CM-3372 - Griddle CLATRONIC - Free user manual and instructions

Product type	Crepe maker
Brand	CLATRONIC
Model	CM-3372
Power supply	220-240 V~, 50/60 Hz
Power	900 W
Net weight	Approx. 1.5 kg
Cooking surface coating	Non-stick
Temperature control	Yes, rotary thermostat (MIN to MAX)
Operation indicator	Red light on
Temperature reached indicator	Green light
Batter capacity per crepe	Approx. 100 ml
Approximate cooking time	About 2 minutes per side (4 min total)
Cable storage	Wrap around base
Cleaning	Damp cloth; do not immerse
Do not use metal sponge	Yes, to preserve the coating
Included accessories	Batter spreader tool
Recipe included	Yes, basic recipe for 8-10 crepes
Recommended use	Household use only
Important safety instruction	Hot surface – risk of burns
First use	Lightly grease and preheat for 10 min empty

Frequently Asked Questions - CM-3372 CLATRONIC

How to clean the crepe maker after use?

After unplugging and allowing the appliance to cool, clean the cooking surface with a damp cloth. Never immerse the appliance in water and do not use harsh detergents or metal brushes.

Is it normal for the crepe maker to produce smoke during first use?

Yes, it is perfectly normal. Some smoke and odor may occur. Ensure good ventilation. It is recommended not to consume the first three crepes.

How much batter should be poured for one crepe?

Pour approximately 100 ml of batter (equivalent to a soup ladle) onto the cooking surface. Adjust to your preference.

How to know when the temperature is ideal for cooking?

The green light turns on when the correct cooking temperature is reached. Set the thermostat to MAX for preheating, then adjust.

Can I use an external timer to turn on the appliance?

No, it is strictly forbidden to use the appliance with an external timer or separate remote control system for safety reasons.

How to store the power cord?

After use, once the appliance has cooled, wrap the cord around the base of the appliance for storage.

Can I use a metal sponge to clean the surface?

No, do not use metal brushes or abrasives to avoid damaging the non-stick coating. Use a soft cloth.

What to do if the crepe sticks?

Make sure the cooking surface is well greased before first use and that the batter is sufficiently liquid. Use a wooden spatula to loosen the crepe.

How long does it take to preheat the crepe maker?

Preheating at maximum power takes about 2 to 3 minutes until the green light turns on. Before first use, heat empty for 10 minutes.

Can I prepare foods other than crepes on this appliance?

This appliance is specifically designed for making crepes. It is not recommended to prepare other foods as the surface is shallow and not suitable.

USER MANUAL CM-3372 CLATRONIC

Ingredients (8-10 crepes):

250g Harina
0,51 Leche
1 pellizco Sal
1 saquito Azucar con vainilla
4 Huesvos
50 g Mantequilla/margarina

Preparación:

Ingredients (para 8-10 crepes):

250g Farinha
0.51 Leite
1 pitada Sal
1 saqueta Açúcar baunilhado
4 Ovos
50 g Manteiga/margarina

Preparacao:

Ingredient (per 8-10 crepe):

250g Farina
0.51 Latte
1 pizzico Sale
1 sacchetto Zucchini vanigliato
4 Uova
50 g Burro/margarina

Preparazione:

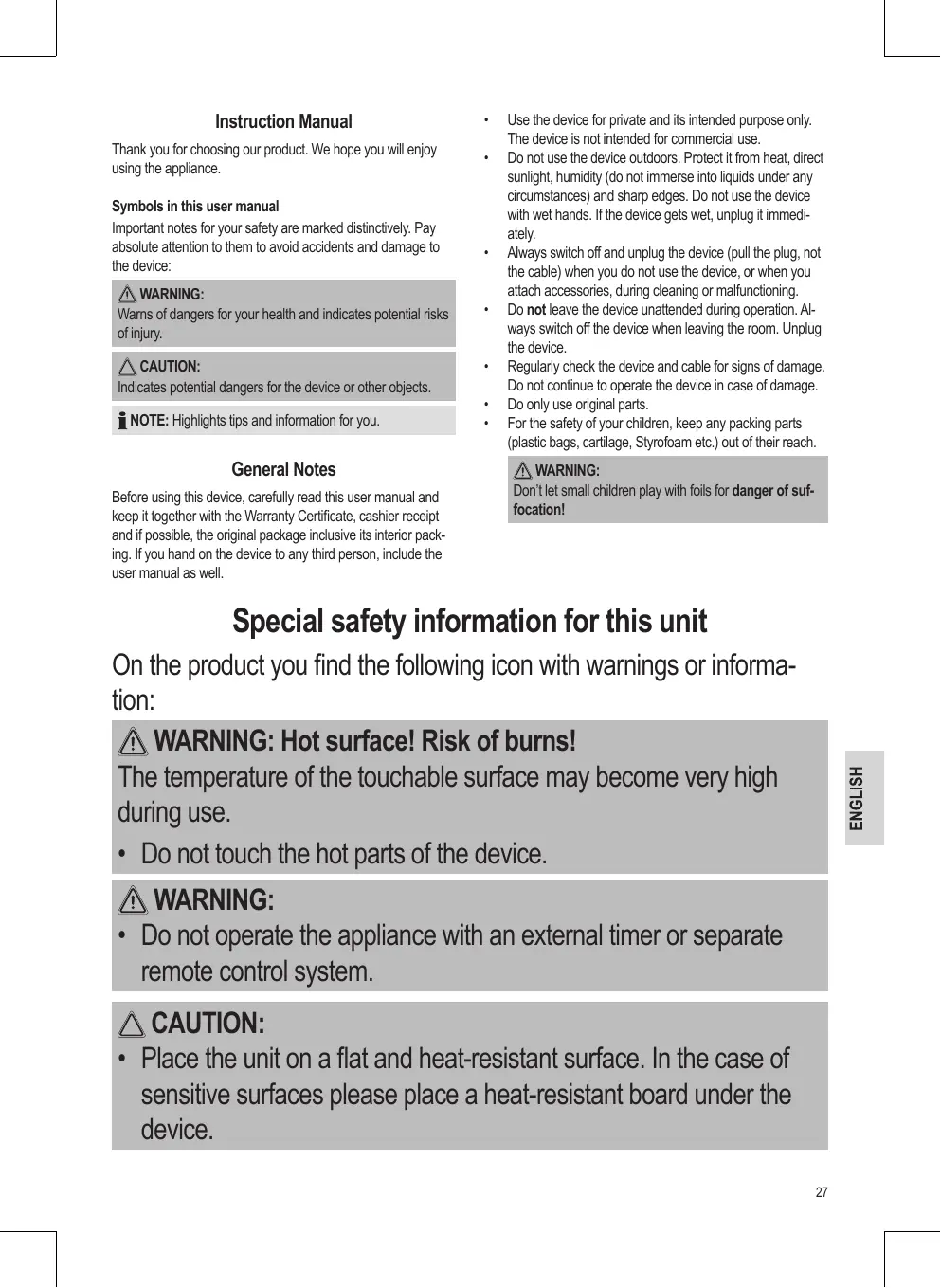

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device:

WARNING:

Wards of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE: Highlights tips and information for you.

General Notes

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.
• Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug it immediately.
  Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.
• Do not leave the device unattended during operation. Always switch off the device when leaving the room. Unplug the device.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.
  Do only use original parts.
• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING:

Don't let small children play with foils for danger of suffocation!

Special safety information for this unit

On the product you find the following icon with warnings or information:

WARNING: Hot surface! Risk of burns!

The temperature of the touchable surface may become very high during use.

• Do not touch the hot parts of the device.

WARNING:

• Do not operate the appliance with an external timer or separate remote control system.

CAUTION:

• Place the unit on a flat and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the device.

CAUTION:

• In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around!
• Do not move the device when it is working.
• Be cautious of heat escaping from the device! Never use the device near or below curtains or other flammable materials!
• Please ensure that the mains lead does not come into contact with the hot sections of the device.

• Allow the device to cool down before cleaning it and putting it away.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION:

This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter "Cleaning".

Starting-up the unit

Non-Stick Coating!

Slightly grease the baking surface before first use and operate the appliance for 10 minutes (see "Use Instructions").

i NOTE:

• Some smoke and odor development during this process is perfectly normal. Ensure sufficient ventilation.
  We recommend not eating the first three Crêpes.

Disconnect from mains power supply and let the appliance cool down. Wipe the appliance with a damp cloth.

Electric Connection

1. Check whether the mains voltage to be used matches that of the appliance. Refer to the specifications on the rating plate.
2. Fully unwind the cable.
3. Set the switch to the "O" position.
4. Connect the appliance to a properly installed wall outlet.

Use Instructions

iNOTE:

It is not necessary to grease the baking surface during preparation.

1. Set the switch to the "f" position. The red status indicator lights up.
2. To preheat the device, set the temperature control to MAX.
3. The correct baking temperature is reached when the status indicator turns green.
4. Place approx. 100ml dough on the baking surface (about one soup ladle).
5. Distribute the dough by using the supplied dough spreader in a circular motion.

iNOTE:

Ensure that the amount of dough is dosed properly; otherwise excess dough will overflow and soil the appliance.

1. Set the desired baking temperature with the temperature control.

NOTE:

• To keep the preset baking temperature during the baking process the green status indicator turns on and off. This does not indicate the end of the baking process.

• The baking time depends on your personal taste. The longer the crêpe stays on the device, the browner it gets. Please follow the recipes.

• Turn the crêpe after approx. 2 minutes with a wooden spatula, as soon as the surface is dry and the edges come loose.

• After further 2 minutes the crépe should be golden brown. Remove it from the baking surface.

OTE:

Stack the finished crêpes on a dish and keep warm in a preheated oven at 100^ until served.

End Of Use

• To pause or stop baking, set the temperature control to MIN.
• Turn the switch to "O" and disconnect from the mains. The red status indicator switches off.

Cable Storage

Wind the power cord around the base.

Cleaning

WARNING:

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Do not immerse the device in water! It could result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or abrasives for cleaning.
• Do not use aggressive or abrasive detergents.

Brush crumbs or leftovers from baking surface and edge.
Clean the entire appliance only with a damp cloth.

Crepes Basic Recipe

This French specialty is known as a very thin pancake. The crêpes dough must be runny.

Serve the crêpes with different fillings according to taste and occasion.

Ingredients (for 8-10 crêpes):

250g Flour

0.51 Milk

1 pinch Salt

1 sachet Vanilla sugar

4 Eggs

50 g Butter/margarine

Preparation:

• Add flour, milk, salt, vanilla sugar and eggs to a bowl and mix to a smooth dough. An electric hand mixer works best.
  Melt the butter and mix in.
• Leave the dough to rest for approx. 30 minutes.
• Before preparation, mix the dough again. Add some milk if it is too thick.
• Bake the dough as described above.
• Fill crêpes according to your taste, roll or fold over twice into quarters. For best results serve hot!

Technical Data

Model: CM 3372

Power supply: 220-240 V\~, 50/60 Hz

Power consumption: 900 W

Protection class:

Net weight: approx. 1.5 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical applications via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
