Notice CARE FITNESS CARDIO MASTER DELUXE - page 11
Pick your language and provide your email: we'll send you a specifically translated version.
Device typeSemi-recumbent exercise bike
Product reference55450
Flywheel weight10 kg
Braking systemMagnetic
TransmissionBelt
Resistance levels32 levels
Number of programs24 (12 preset, 1 manual, 4 user, 4 personal, Watts, Target, Body Fat modes)
Console display5-inch backlit LED (12.5 x 6 cm)
Displayed dataTime, distance, speed, calories, heart rate, RPM, Watts
ConnectivityKinomap compatible (Bluetooth)
Maximum user weight150 kg
Maximum user height190 cm
Assembled dimensions140 x 63 x 123 cm
Device weight40 kg
Seat adjustment (depth)68 to 92 cm
PedalsWeighted with adjustable straps
Included accessoriesTablet holder, water bottle holder, transport wheels
Frame warranty5 years
Wear parts warranty2 years

Frequently Asked Questions - CARDIO MASTER DELUXE CARE FITNESS

How to assemble the CARE FITNESS CARDIO MASTER DELUXE?
The assembly manual provided with the equipment guides you through step-by-step installation. Allow approximately 30 to 60 minutes for complete assembly. Check the tightness of all bolts after the first few sessions of use.
How to adjust the resistance level of the CARDIO MASTER DELUXE?
The bike features 32 levels of magnetic resistance adjustable directly from the console buttons. You can adjust the resistance while pedaling or let one of the automatic programs manage it.
How to adjust the saddle position?
The saddle can be adjusted in depth between 68 and 92 cm. Loosen the lever, position the saddle at the desired height, then tighten firmly. The ideal position is reached when the leg remains slightly bent at the bottom of the pedal stroke.
Is the CARDIO MASTER DELUXE compatible with a mobile application?
Yes, the bike is compatible with the Kinomap application. It allows you to cycle through virtually filmed routes and access interactive coaching sessions. Pairing is done via Bluetooth from the application.
What is the maximum user weight capacity?
The maximum user weight is 150 kg and the recommended maximum height is 190 cm. The equipment itself weighs 40 kg. Integrated transport wheels facilitate movement.
How to measure your heart rate on the CARDIO MASTER DELUXE?
The bike is equipped with heart rate sensors integrated into the handles. Grasp them with bare hands for a few seconds to get the measurement displayed on the console. The Target program allows training at a target heart rate.
What training programs does the CARDIO MASTER DELUXE offer?
The equipment offers 24 programs in total:
  • 12 preset programs
  • 1 manual program
  • 4 customizable user programs
  • 4 personal programs
  • Watts, Target, and Body Fat modes
Is the pedaling quiet for apartment use?
Yes, the belt drive and magnetic braking ensure very quiet operation, without direct mechanical contact. The CARDIO MASTER DELUXE is perfectly suitable for apartment use without disturbing neighbors.
Can the pedals be used with regular sports shoes?
Yes, the weighted pedals are equipped with adjustable straps compatible with most shoe sizes and standard sports shoes. No clip or SPD shoes are required.
How to maintain the CARE FITNESS CARDIO MASTER DELUXE?
Wipe the frame, saddle, and backrest after each session with a dry or slightly damp cloth. Regularly check the tightness of fastenings and bolts. Never use abrasive products or solvents on plastic parts or the console.
How to easily move the CARDIO MASTER DELUXE bike?
The bike is equipped with transport wheels at the front of the chassis. Slightly tilt the equipment forward and roll it to the desired location. Its weight of 40 kg may require assistance from a second person for long-distance moves.
What warranty covers the CARDIO MASTER DELUXE?
Care Fitness offers a 5-year warranty on the frame and 2 years on wear parts. In case of a breakdown, contact Care Fitness after-sales service specifying the product reference 55450.

User questions about CARDIO MASTER DELUXE CARE FITNESS

3 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

How to use the CARE FITNESS CARDIO MASTER DELUXE exercise bike?
Frequently Asked Questions - 08/03/2026
Response Notice-Facile

Starting the bike: The CARDIO MASTER DELUXE operates with automatic start. Just begin pedaling and the backlit LCD screen will light up immediately. The screen will automatically turn off 4 seconds after you stop pedaling. To wake the monitor if it goes to sleep (after 4 minutes of inactivity), simply press the screen.

Before starting your session: Ensure that the bike is placed on a flat and stable surface. Sit comfortably on the semi-recumbent seat and adjust its depth (from 68 to 92 cm) so that your legs are slightly bent in the lowest pedal position. Strap the adjustable weighted pedal straps around your ankles for added safety. Consult your doctor before starting, especially if you are over 35 years old or have limited physical activity.

Choosing and setting up your program: Use the UP (up arrow) and DOWN (down arrow) buttons to navigate through the 24 available programs: 1 manual program, 12 preset programs (step, hill, valley, fat burning, etc.), 4 customizable programs, and specialized modes (watt control, target heart rate, body fat calculation). Once you have selected your program, press ENTER to confirm. The screen will then prompt you to set your parameters: TIME (duration in minutes), DISTANCE (in kilometers), CALORIES or PULSE (target heart rate). Confirm each setting by pressing ENTER. You can only set one target at a time.

During your workout: Start pedaling to begin the exercise. The bike will display in real-time: elapsed time, distance traveled, your speed, calories burned, your heart rate (via the handlebar touch sensors), your RPM (revolutions per minute), and your watts. To adjust the resistance (among 32 levels), use the UP button to increase or DOWN to decrease. In target heart rate programs, the device will automatically adjust the resistance every 20 seconds based on your detected pulse. When you reach your goal, the screen will emit a beep.

Specialized training modes: The manual mode (P1) allows you to exercise with the resistance of your choice. The watt control programs (P23) maintain a constant power regardless of your speed. The target heart rate modes (P18-P22) calculate your ideal zone based on your age (default 35 years if not set). The Body Fat program (P24) measures your body fat percentage, BMI, and basal metabolism based on your height and weight.

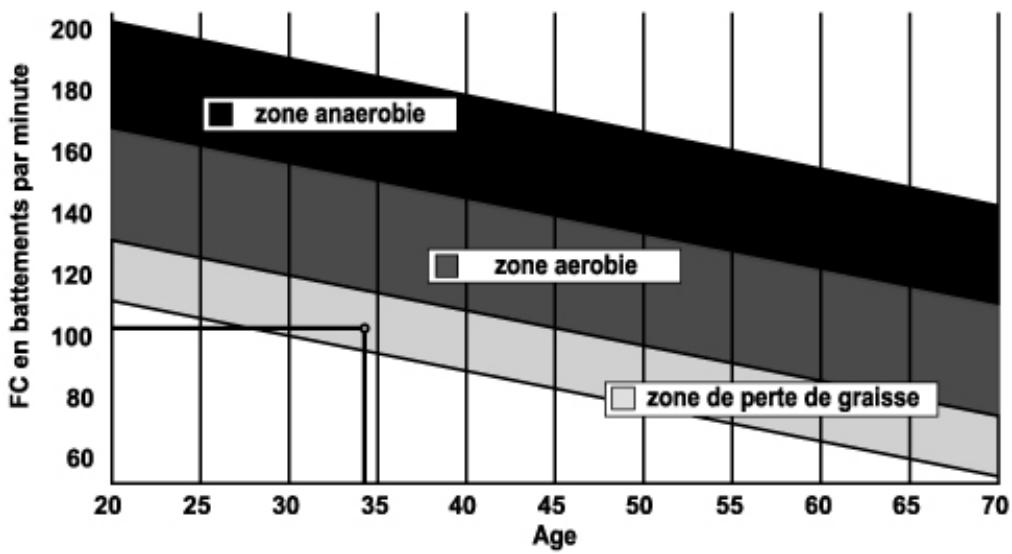

Training zone tips: For fat loss (recommended zone to start), maintain a heart rate between 55 and 65% of your maximum with prolonged exercise duration. To improve your cardiovascular capacity, aim for 65 to 85%. For muscle development, opt for 85% or more. The bike automatically calculates your maximum heart rate based on age: (220 - your age).

End of session and maintenance: Gradually slow down your pedaling before stopping completely. The screen will automatically turn off. After each session, clean the bike to remove sweat. Regularly check that all screws are tight. Your device comes with a 5-year warranty on the frame and 2 years on wear parts. If you feel unwell during exercise, stop your workout immediately.

Respond (be the first)
What are the features of the screen on the CARE FITNESS CARDIO MASTER DELUXE exercise bike?
Frequently Asked Questions - 24/02/2026
Response Notice-Facile

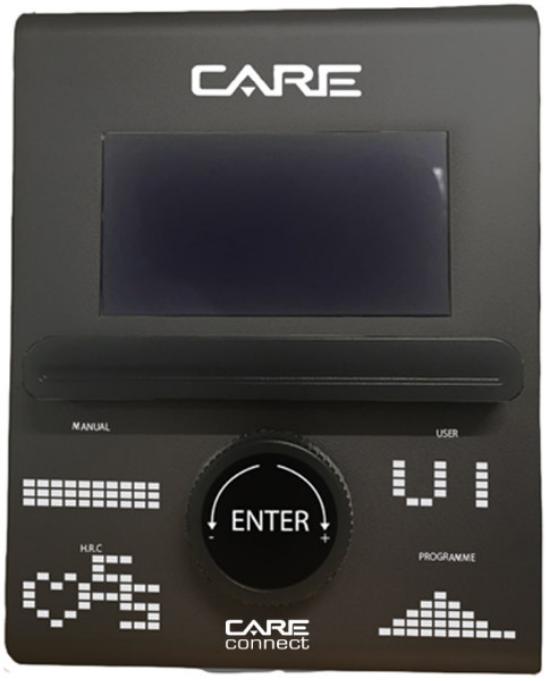

The 5-inch backlit LED screen of the CARE FITNESS CARDIO MASTER DELUXE exercise bike offers a comprehensive array of data and features to optimize your workouts. The screen automatically turns on as soon as you start pedaling and turns off after 4 seconds of inactivity, then enters sleep mode after 4 minutes without a signal.

Real-time data displayed: The screen continuously displays your workout metrics: elapsed time (in minutes and seconds, from 0:00 to 99:59), distance traveled (up to 99.9 KM with a distance bar where each segment = 100 meters), speed in kilometers per hour, RPM (your pedaling cadence), power in Watts (the mechanical energy received), estimated calories burned, your pulse in beats per minute, and your target pulse for optimal cardiovascular control.

Control features and programs: The bike offers 24 distinct programs: a manual program (P1) where you freely set the duration, distance, calories, and target heart rate; 12 preset programs (P2-P13) with dynamically varying intensity profiles such as flat, hill, rolling, valley, fat burning, ramp, mountain, intervals, random mode, plateau, Fartlek, and descent; 4 user programs (P14-P17) that allow you to create your own customized exercise profiles; and 5 smart control modes (P18-P22) that automatically adjust the resistance to maintain your target heart rate.

Advanced modes and body analysis: The Watts program (P23) maintains your power at a target value by automatically adjusting the resistance, ideal for constant intensity training. The Body Fat program (P24) calculates your body fat percentage, BMI, and BMR, providing a specific exercise profile based on your body type. After each goal is reached, the screen emits a sound signal for 5 seconds and offers a heart rate recovery function: place your hands on the sensor and get your result in one minute with a score ranging from F1.0 to F6.0.

Controls and navigation: Use the up and down buttons to increase (clockwise) or decrease (counterclockwise) your settings, press ENTER to confirm your program or target value choice. You can reset the screen by holding down the reset button for 3 seconds. The screen is touch-sensitive: touch it to wake up the monitor if it goes to sleep.

Compatibility: The CARDIO MASTER DELUXE features Bluetooth Kinomap compatibility, allowing you to sync your workout data with digital fitness apps for long-term tracking of your progress.

Respond (be the first)
How to properly maintain the CARE FITNESS CARDIO MASTER DELUXE exercise bike?
Frequently Asked Questions - 25/11/2025
Response Notice-Facile

To ensure the longevity and proper functioning of your CARE FITNESS CARDIO MASTER DELUXE exercise bike, here are the main maintenance steps to follow regularly:

1. Regular cleaning

  • Frame and surfaces: Wipe the frame and outer parts with a soft, damp cloth. Avoid abrasive products that could damage the paint.
  • Seat and handles: Clean them with a mild disinfectant to eliminate sweat and bacteria.

2. Checking moving parts

  • Pedals and wheels: Check that they turn freely without abnormal noise. If you hear squeaking or feel resistance, lubrication may be necessary.
  • Chain (if present): Ensure it is clean and well-lubricated.

3. Checking fasteners

  • Regularly check that all screws and bolts, especially those on the frame and pedals, are tight to ensure stability and safety during use.

4. Inspecting resistance cables

  • If your bike uses cables to adjust resistance, make sure they show no signs of wear or damage. Replace them if necessary.

5. Console maintenance

  • Clean the console screen with a soft cloth to avoid dust accumulation and fingerprints, ensuring good readability.

6. Proper storage

  • Store your bike in a dry place away from moisture when not in use for an extended period to prevent corrosion.

By following these tips, you will help keep your exercise bike in good condition and extend its lifespan.

Respond (be the first)

Download the instructions for your Exercise bike in PDF format for free! Find your manual CARDIO MASTER DELUXE - CARE FITNESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CARDIO MASTER DELUXE by CARE FITNESS.

USER MANUAL CARDIO MASTER DELUXE CARE FITNESS

Programme Contrôle de fréquence cardiaque : 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target (cible) H.R.C.

Programme 18 : 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%
Programme 19 : 65% Max H.R.C. - - Target H.R. = (220 - AGE) x 65%
Programme 20 : 75% Max H.R.C. - - Target H.R. = (220 - AGE) x 75%
Programme 21 : 85% Max H.R.C. - - Target H.R. = (220 - AGE) x 85%
Programme 22: Target H.R.C. - - Entrainement à votre valeur de fréquence cardiaque ciblée.

C. Connection application

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CARDIO MASTER DELUXE - Connection application - 1

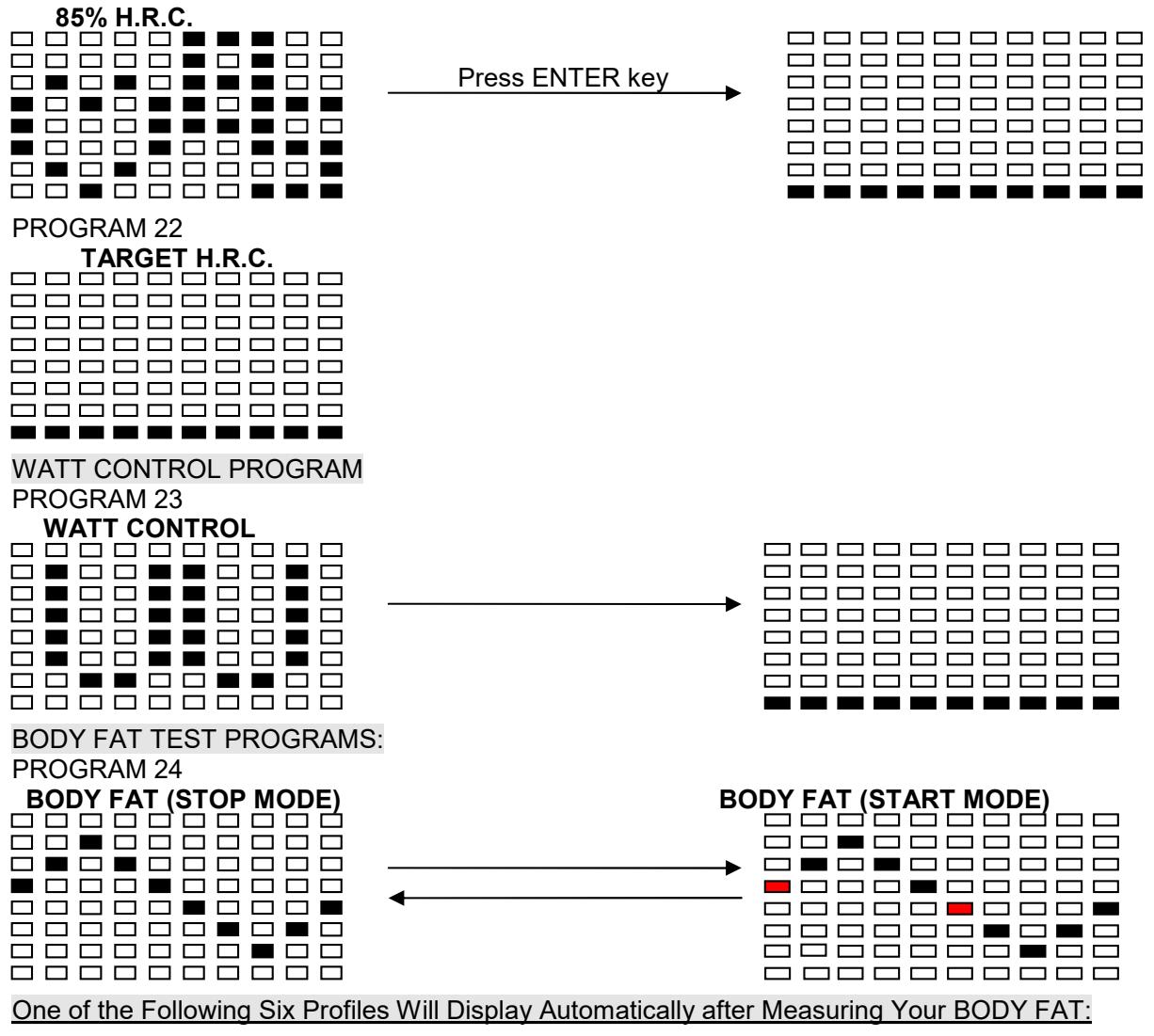

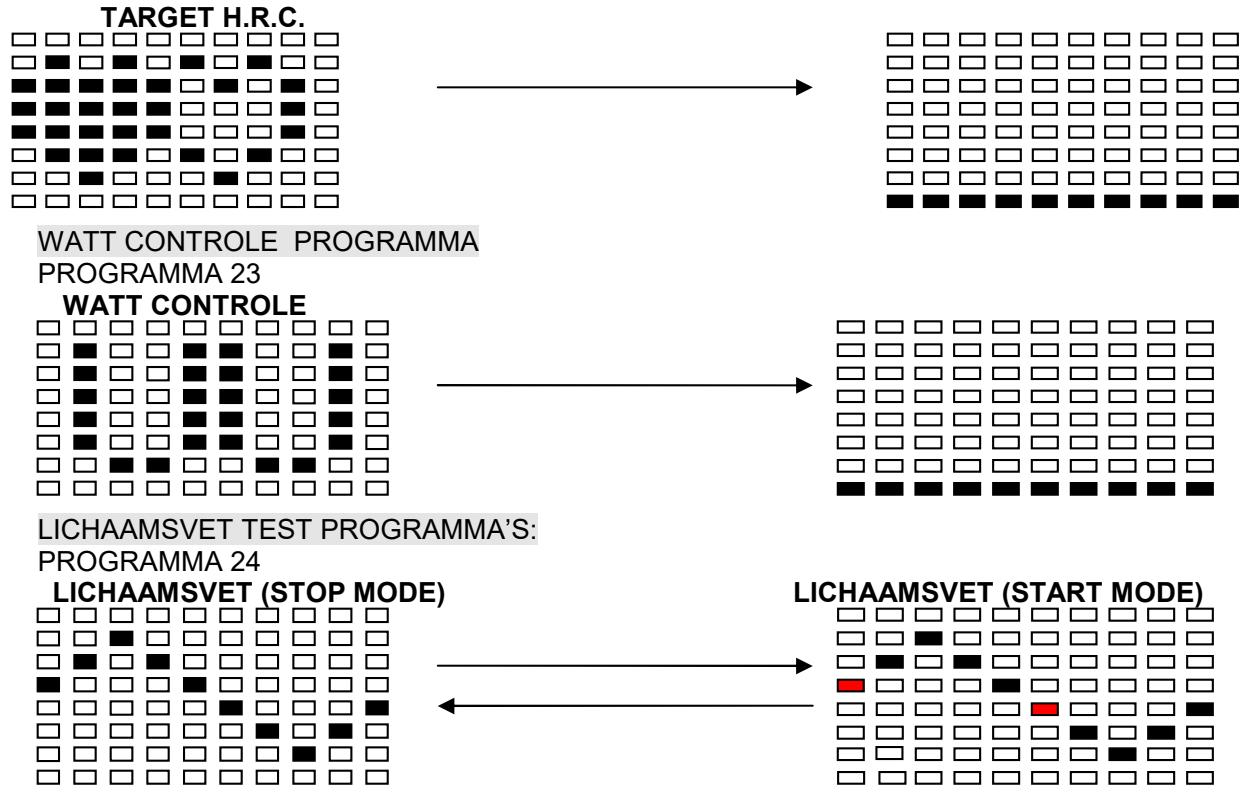

PROGRAMME 22

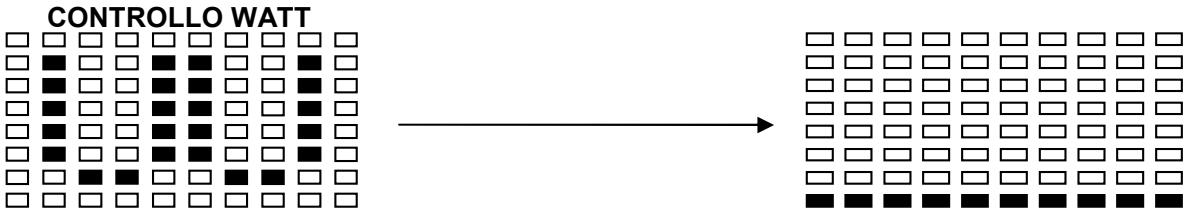

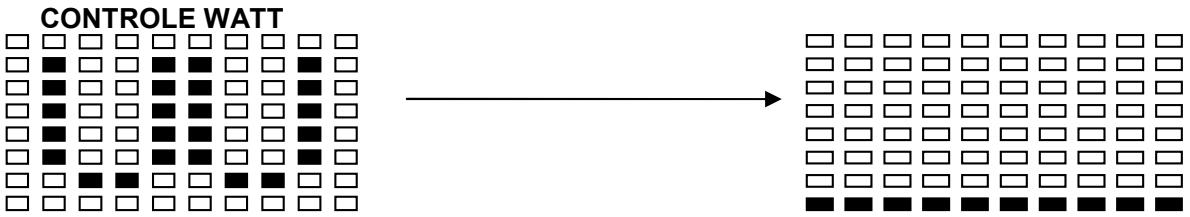

PROGRAMME CONTROLE WATT

CARE FITNESS CARDIO MASTER DELUXE - Connection application - 2
PROGRAMME 23

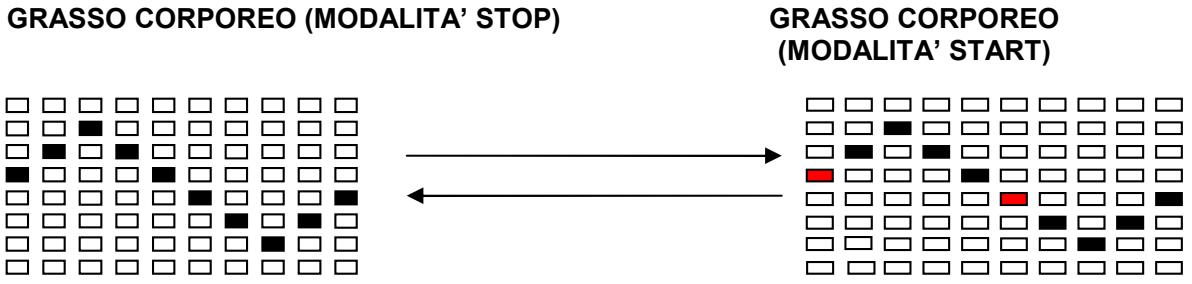

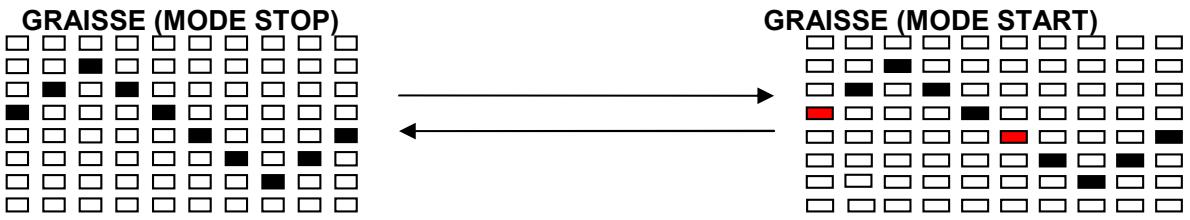

PROGRAMMES TEST GRAISSE :

CARE FITNESS CARDIO MASTER DELUXE - Connection application - 3
PROGRAMME 24

E mail: https://www.carefitness.com/sav

CARE FITNESS CARDIO MASTER DELUXE - Connection application - 4

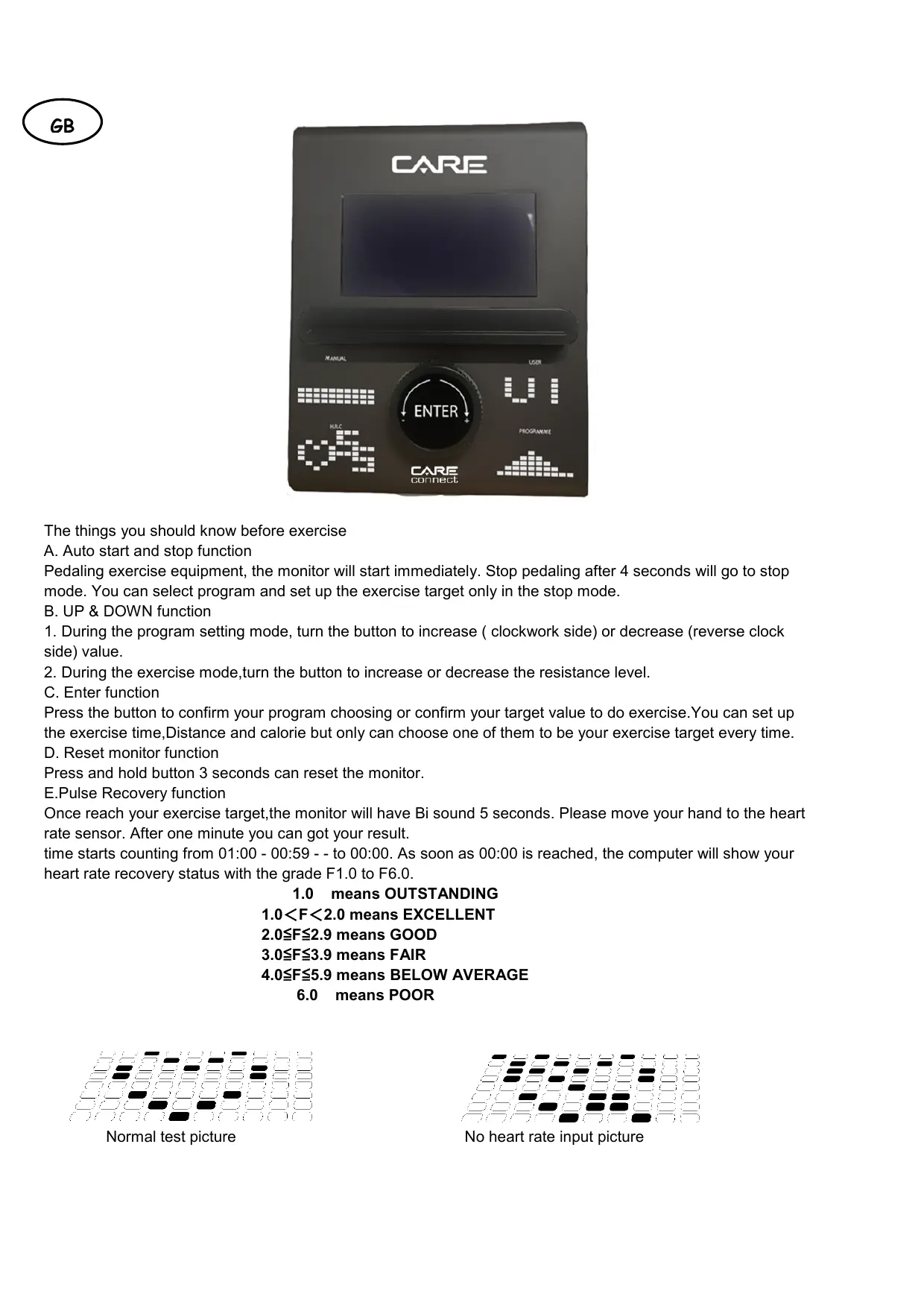

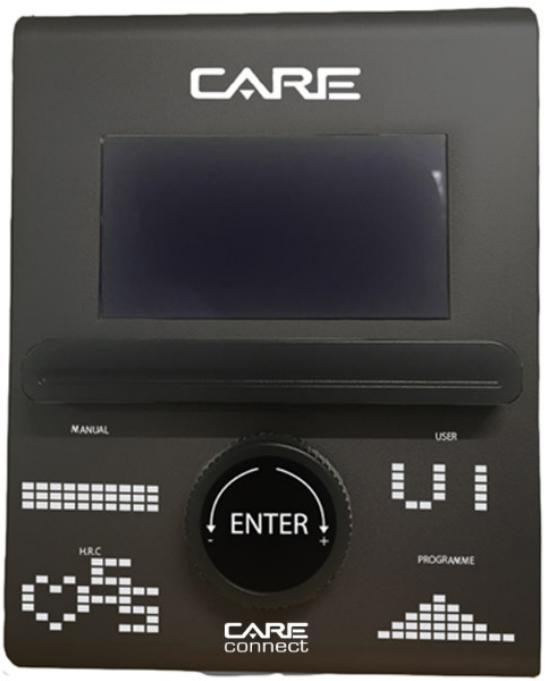

The things you should know before exercise

A. Auto start and stop function

Pedaling exercise equipment, the monitor will start immediately. Stop pedaling after 4 seconds will go to stop mode. You can select program and set up the exercise target only in the stop mode.

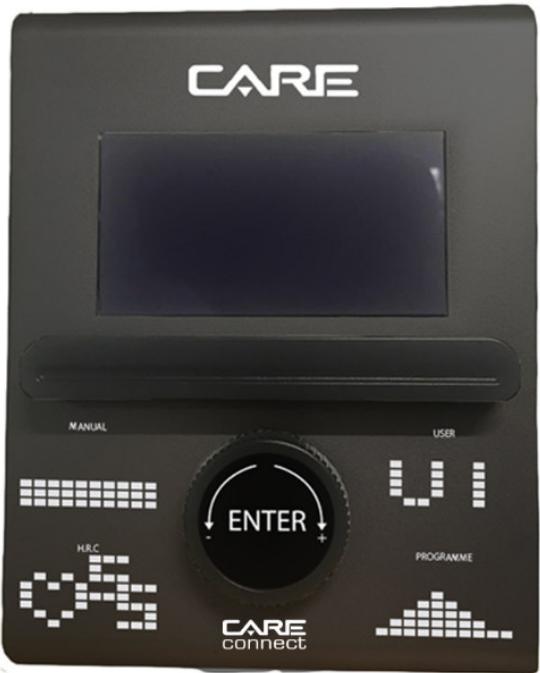

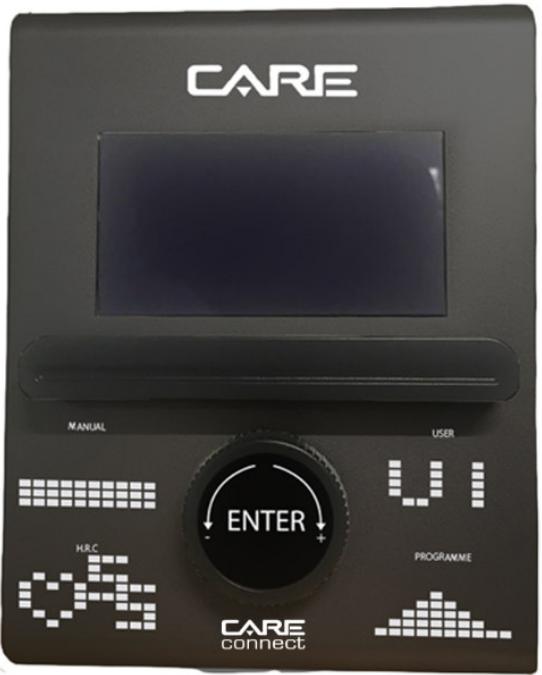

B. UP & DOWN function

  1. During the program setting mode, turn the button to increase ( clockwork side) or decrease (reverse clock side) value.
  2. During the exercise mode, turn the button to increase or decrease the resistance level.
    C. Enter function

Press the button to confirm your program choosing or confirm your target value to do exercise. You can set up the exercise time, Distance and calorie but only can choose one of them to be your exercise target every time.
D. Reset monitor function

Press and hold button 3 seconds can reset the monitor.

E.Pulse Recovery function

Once reach your exercise target, the monitor will have Bi sound 5 seconds. Please move your hand to the heart rate sensor. After one minute you can get your result.

time starts counting from 01:00 - 00:59 -- to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0.

1.0 means OUTSTANDING

1.0 < F < 2.0 means EXCELLENT
2.0≤F≤2.9 means GOOD
3.0 ≤ F ≤ 3.9 means FAIR
4.0≤F≤5.9 means BELOW AVERAGE

6.0 means POOR

CARE FITNESS CARDIO MASTER DELUXE - Connection application - 5

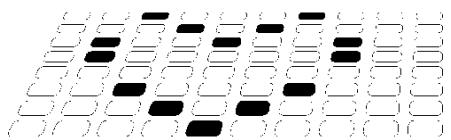

Normal test picture

CARE FITNESS CARDIO MASTER DELUXE - Connection application - 6
No heart rate input picture

F. Target heart rate

You can set up your target heart rate value. Once reach your target, monitor will produce bi sound to remind you.

A. Program select and setting value

  1. Turn the button to select program mode and then press ENTER to confirm your exercise mode.
  2. At the Manual mode, turn the button to set up your exercise TIME, DISTANCE, CALORIES, PULSE. Press the button to confirm your target value.
  3. pedaling the machine to start exercise.
  4. When you reach the target, the computer will produce beep sounds and go to pulse recovery function.

B Wake-Up Function

The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Press the screen to start the monitor.

Functions and Features:

  1. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
  2. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.
  3. RPM: Your pedal cadence.
  4. WATT: The amount of mechanical power the computer is receiving from your exercise.
  5. SPEED: Displays your workout speed value in KM/MILE per hour.
  6. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.
  7. PULSE: Your computer displays your pulse rate in beats per minute during your workout.
  8. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.
  9. TARGET HEART RATE (TARGET PULSE): The heart rate you should maintain is called your Target Heart Rate in beats per minute.
  10. DISTANCE BAR: Every bar indicates 100 meter or 0.1 mile.

Program Introduction & Operation:

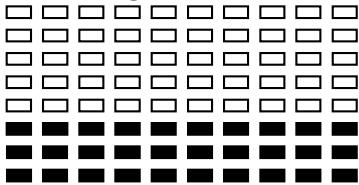

Manual Program: Manual

P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select the MANUAL (P1) program.
  2. Press the ENTER key to enter MANUAL program.
  3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  7. Pedaling the machine to begin exercise

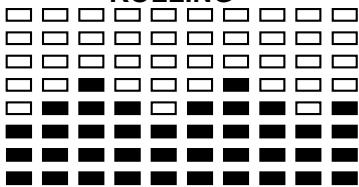

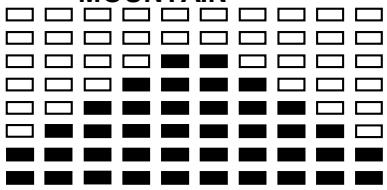

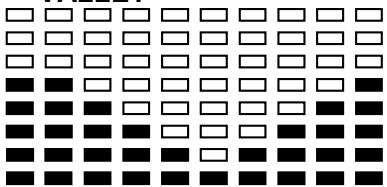

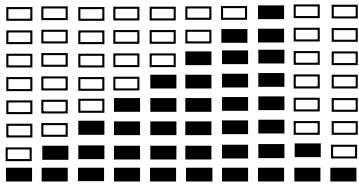

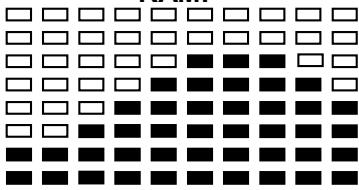

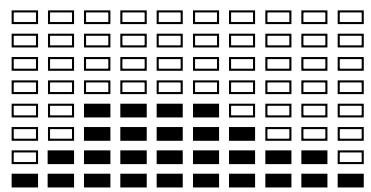

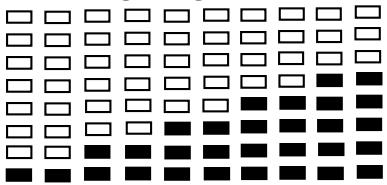

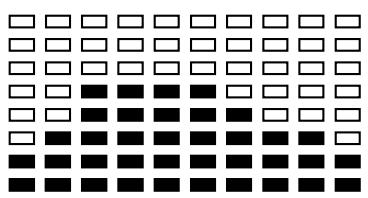

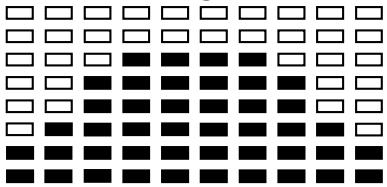

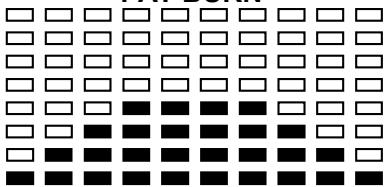

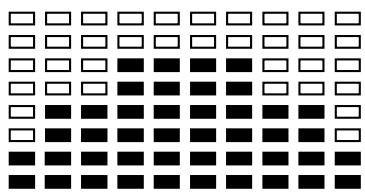

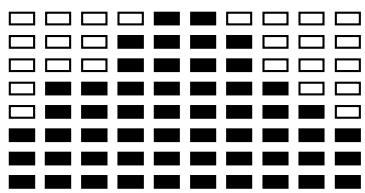

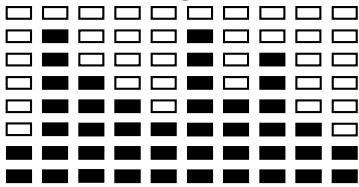

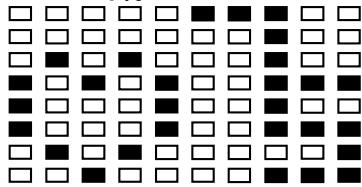

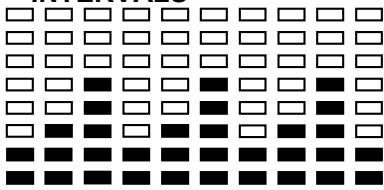

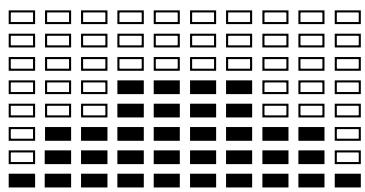

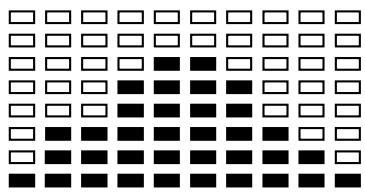

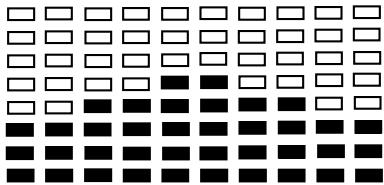

Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program

PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select one of the above programs from P2 to P13.

  2. Press the ENTER key to enter your workout program.

  3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  7. Pedaling the machine to begin exercise

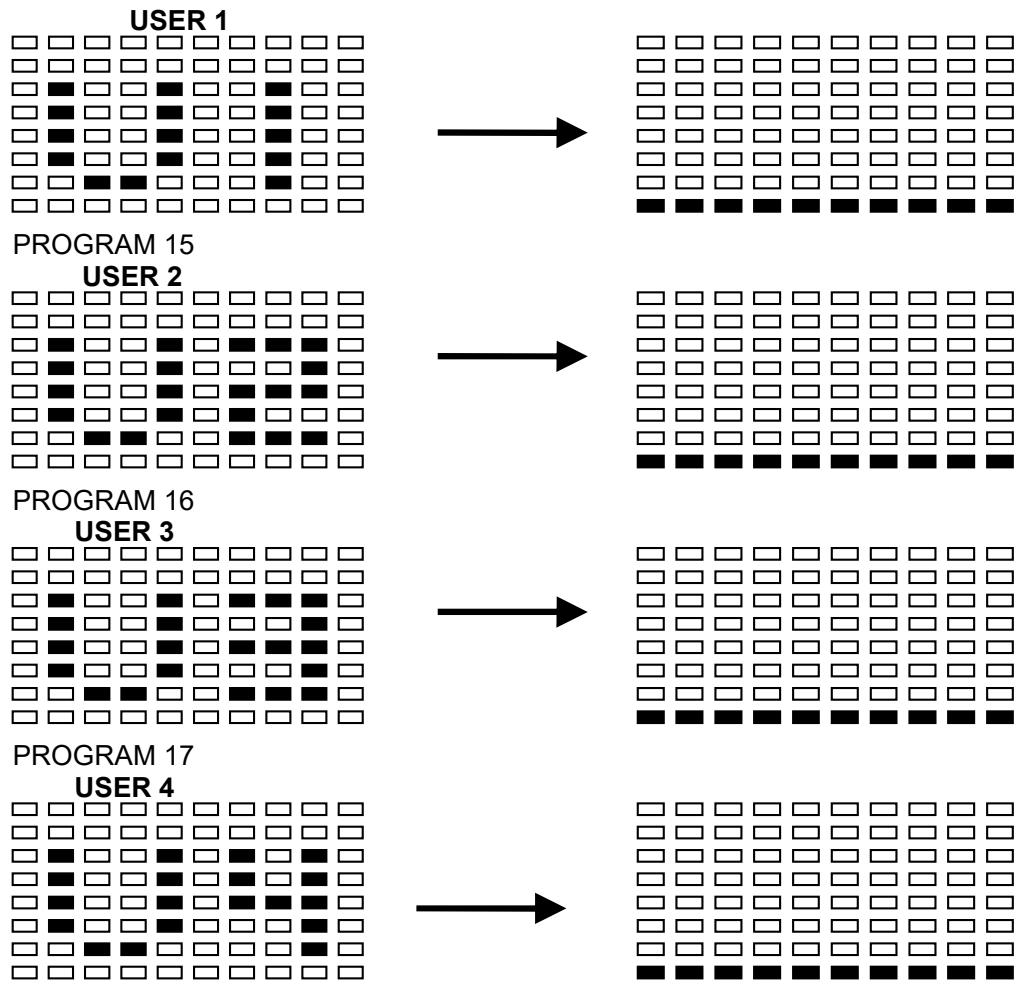

User Setting Program: User 1, User 2, User 3 and User 4

Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory.

Operations:

  1. Use UP/DOWN keys to select the USER program from P14 to P17.
  2. Press the ENTER key to enter your workout program.
  3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your first column of exercise profile. The default level is load 1.
  4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your second column of exercise profile.
  5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired exercise profile.
  6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
  7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  8. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  9. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  10. Pedaling the machine to begin exercise

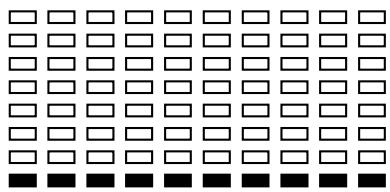

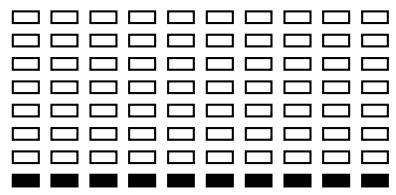

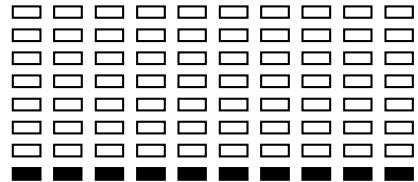

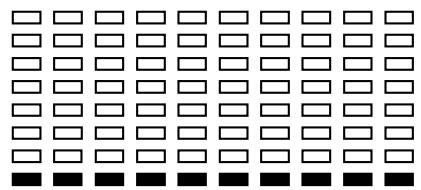

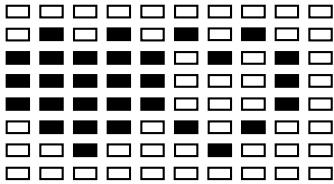

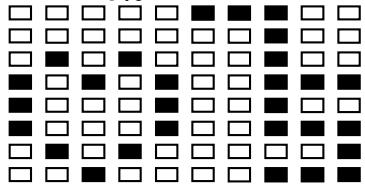

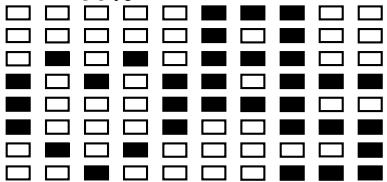

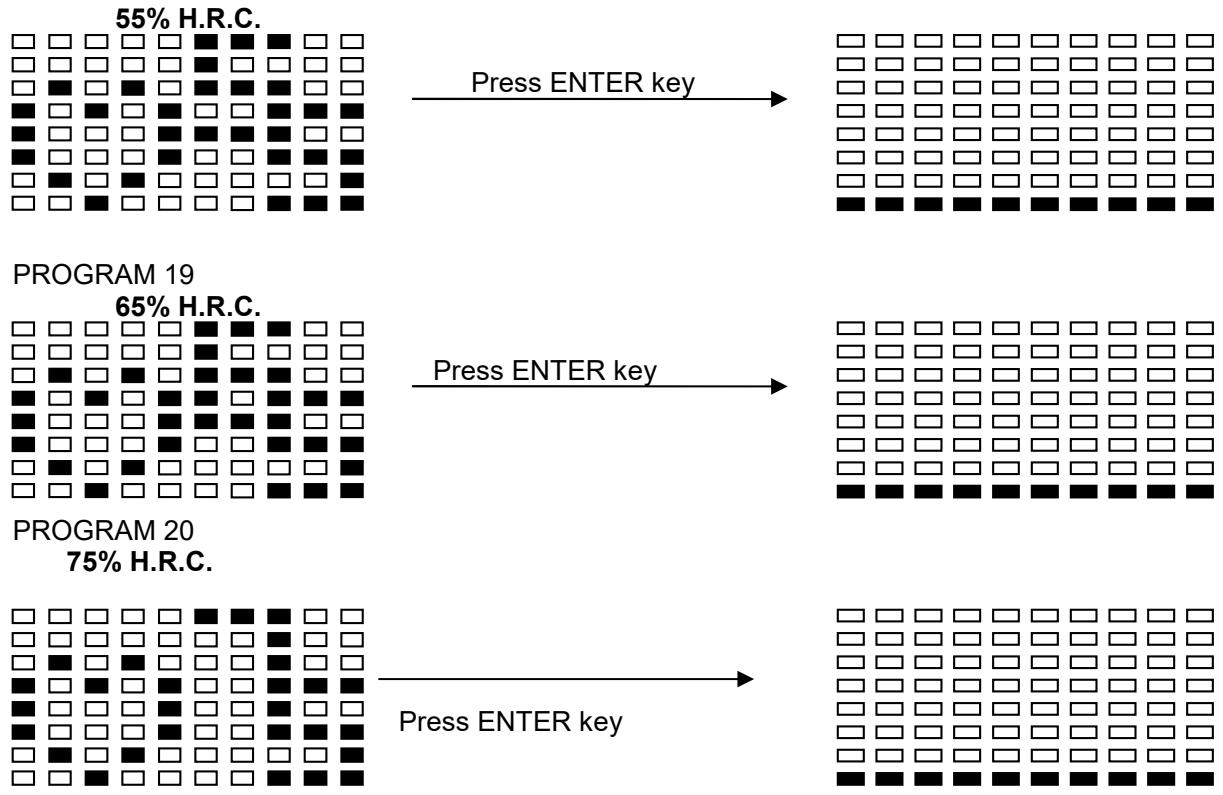

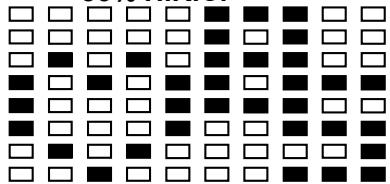

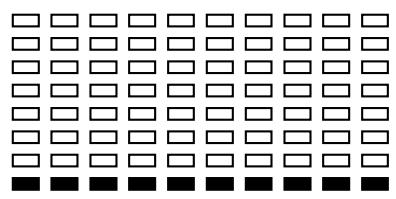

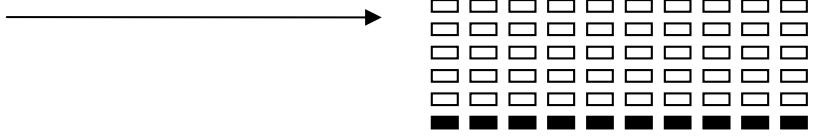

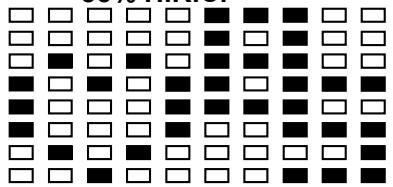

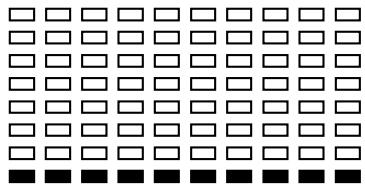

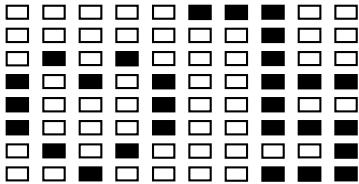

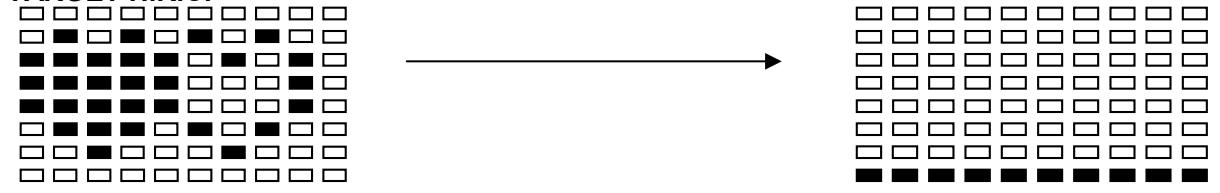

Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program.

Program 18 is the 55% Max H.R.C. -- Target H.R. = (220 - AGE) x 55%

Program 19 is the 65% Max H.R.C. -- Target H.R. = (220 - AGE) x 65%

Program 20 is the 75% Max H.R.C. -- Target H.R. = (220 - AGE) x 75%

Program 21 is the 85% Max H.R.C. -- Target H.R. = (220 - AGE) x 85%

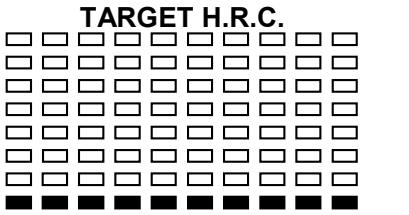

Program 22 is the Target H.R.C. - - Workout by your target heart rate value.

Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET H.R and then the computer will show "SLOW DOWN" on the message window. Also the resistance level may decrease every 20 seconds while the heart rate detected is higher than the TARGET H.R and then the computer will show "HURRY UP" on the message window. As a result, the user's heart rate will be adjusted to close the TARGET H.R. between the range of TARGET H.R. +5 and TARGET H.R. -5 and then the computer will show "KEEP GOING" on the message window.

Operations:

  1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
  2. Press the ENTER key to enter your workout program
  3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE. The default age is 35.
  4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
  5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.

  7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES. You only can set up the target one of them and the monitor will go to the target heart rate setting

  8. Pedaling the machine to begin exercise

Watt Control Program: Watt Control

Program 23 is a Speed Independent Program. Press ENTER key to set up the values of TARGET WATT, TIME, DISTANCE and CALORIES. During the exercise mode, the level of resistance is not adjustable. For example, the level of resistance may increase while the speed is too slow. Also the level of resistance may decrease while the speed is too fast. As a result, the calculated value of WATT will close to the value of TARGET WATT setup by users.

Operations:

  1. Use UP or DOWN key to select the WATT CONTROL (P23) program.
  2. Press ENTER key to enter your workout program.
  3. The TIME will flash and you can press UP or DOWN key to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The WATT will flash and you can press UP or DOWN key to set your target WATT value. Press ENTER key to confirm your target WATT. The default WATT value is 100.
  6. The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  7. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.

8. Pedaling the machine to begin exercise

NOTE:

  1. WATT = TORQUE (KGM) * RPM * 1.03
  2. In this program, the WATT value will keep constant value. It means that if you peddle quickly, the resistance level will decrease and if you peddle slowly, the resistance level will increase. Always try to keep you in the same watt value.

Body Fat Program: Body Fat

Program 24 is a special program design to calculate users' body fat ratio and to offer a specific loading profile for users. There are 3 body types divided according to the FAT% calculated.

Type1: BODY FAT% > 27

Type2: 27 □ BODY FAT% □ 20

Type3: BODY FAT % < 20

The computer will show the test results of FAT PERCENT, BMI and BMR.

Operations:

  1. Use UP/DOWN keys to select the BODY FAT (P24) program.
  2. Press the ENTER key to enter your workout program.
  3. The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT. Press ENTER key to confirm your HEIGHT. The default HEIGHT is 170cm or 5'07" (5feet 7 inches).
  4. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER key to confirm your WEIGHT. The default WEIGHT is 70kgs or 155lbs.
  5. The GENDER will flash and you can press UP or DOWN keys to select your sex. Number 1 means man and number 0 means female. Press ENTER key to confirm your Gender. The default sex is 1 (MAN).
  6. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press ENTER key to confirm your AGE. The default AGE is 35.
  7. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure your hands are attached well on the grips or the chest belt is touch well on your body. Then press the START/STOP key again to begin body fat measurement.
  8. After finished your measurement, the computer will show the values of BMR, BMI and FAT PERCENT on the LCD display. Furthermore, the computer will show your own exercise profile for your body type.
  9. Pedaling the machine to begin exercise

Operation guide:

  1. Sleep Mode: The computer will enter the sleep mode when there is no signal input and no keys be pressed after 4 minutes. You can press any key to wake up the computer.

C. Application connection

Copy the link here under to your brower (Edge, Firefox, Chrome, Safari etc)

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

And Followw the detailed instruction

WARNING! Rhythm control systems heart rate may be inaccurate. Overtraining can lead to serious injury or death. If you feel unwell, stop training immediately.

Error Message:

E1 (ERROR 1):

Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1.

Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor's driver will be cut off immediately and show the E1 on the LCD display. All the other digital and function mark are blank, and the output signals are cut off also.

E2 (ERROR 2): When the monitor read the memory data, if the I.D. code is not correct or the memory IC damages then the monitor will show E2 immediately at power on.
E3 (ERROR 3): After 4 seconds by start mode, the computer detects the faulty motor did not leave the zero point then the LCD bar displays "E3".

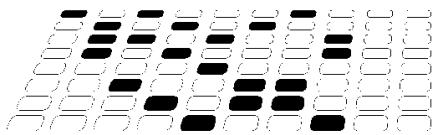

LCD Workout Graphics

PRESET PROGRAM PROFILES:

PROGRAM 1

MANUAL

CARE FITNESS CARDIO MASTER DELUXE - MANUAL - 1

PROGRAM 4

ROLLING

CARE FITNESS CARDIO MASTER DELUXE - ROLLING - 1

PROGRAM 7

RAMP

CARE FITNESS CARDIO MASTER DELUXE - RAMP - 1

PROGRAM 10

RANDOM

CARE FITNESS CARDIO MASTER DELUXE - RANDOM - 1

PROGRAM 2

STEPS

CARE FITNESS CARDIO MASTER DELUXE - STEPS - 1

PROGRAM 5

VALLEY

CARE FITNESS CARDIO MASTER DELUXE - VALLEY - 1

PROGRAM 8

MOUNTAIN

CARE FITNESS CARDIO MASTER DELUXE - MOUNTAIN - 1

PROGRAM 11

PLATEAU

CARE FITNESS CARDIO MASTER DELUXE - PLATEAU - 1

PROGRAM 3

HILL

CARE FITNESS CARDIO MASTER DELUXE - HILL - 1

PROGRAM 6

FAT BURN

CARE FITNESS CARDIO MASTER DELUXE - FAT BURN - 1

PROGRAM 9

INTERVALS

CARE FITNESS CARDIO MASTER DELUXE - INTERVALS - 1

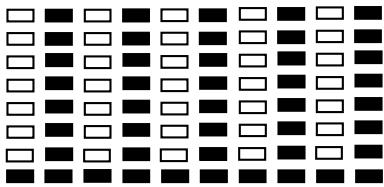

PROGRAM 12

FARTLEK

CARE FITNESS CARDIO MASTER DELUXE - FARTLEK - 1

PROGRAM 13

PRECIPICE

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 1

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 2
USER SETTING PROGRAM
PROGRAM 14
HEART RATE PROGRAM PROFILES:

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 3
PROGRAM 18

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 4
PROGRAM 21

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 5
Exercise Time: 40 minutes

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 6
Exercise Time: 40 minutes

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 7
Workout time: 20 minutes

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 8
Workout Time: 40 minutes

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 9
Exercise Time: 40 minutes

CARE FITNESS CARDIO MASTER DELUXE - PRECIPICE - 10
Workout time: 20 minutes

Cardio - Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

Cardio - Training:

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to eliminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system. The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

Make a diagram of the target zones

CARE FITNESS CARDIO MASTER DELUXE - Make a diagram of the target zones - 1

The progressive training stages:

1) A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 - 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR.

Gradually increase from 30 to 60 minutes per session.
Exercise 3 or 4 times a week.

The Aerobic Zone, 65 - 85%

This zone is recommended for those who are in good physical condition who train regularly. By training in this zone, you will improve your physical condition but avoid overworking.

Duration: 20 to 30 minutes per session.
- Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina. The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints are still warm. This relaxes the muscles and helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

All defective materials or parts can only be exchanged once we have received them. Shipping is at the sender's expense. No returns of goods will be accepted without our prior approval.

To order spare parts

To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:

The name or reference of the product.

The manufacturing number shown on the main chassis and on the packing box.

The number of the missing or faulty part shown on the exploded view of the product described in this manual.

After Sales Service

Email: service-uk@carefitness.com

CARE FITNESS CARDIO MASTER DELUXE - To order spare parts - 1

Vor Trainingsbeginn zu beachten

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

E mail: service-de@carefitness.com

CARE FITNESS CARDIO MASTER DELUXE - To order spare parts - 2

CARE FITNESS CARDIO MASTER DELUXE - To order spare parts - 3

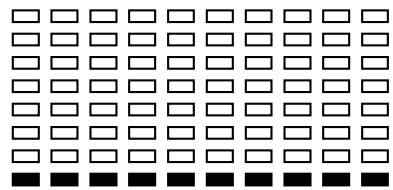

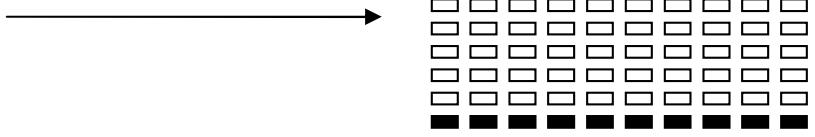

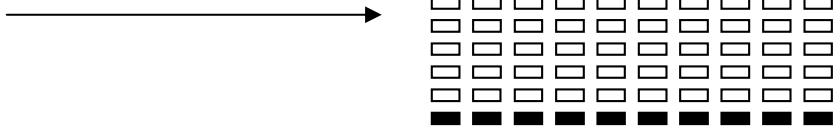

Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C.

https://cloud-carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 1
PROGRAMA 19
65% H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 2

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 3

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 4
PROGRAMA 20
75% H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 5

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 6

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 7
PROGRAMA 21
85% H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 8

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 9

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 10
PROGRAMA 22
OBJETIVO H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 11

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 12

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - ETA') x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - ETA') x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - ETA') x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - ETA') x 85%

https://cloud-carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 13
PROGRAMMA 19
65% H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 14

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 15
PROGRAMMA 20
75% H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 16

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 17
PROGRAMMA 21
85% H.R.C.

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 18

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 19

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 20

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 21

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 22

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 23
PROGRAMMA 22
TARGET H.R.C.
PROGRAMMA PER IL CONTROLLO DEI WATT

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 24
PROGRAMMA 23
PROGRAMMI PER IL TEST DEL GRASSO CORPOREO

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 25
PROGRAMMA 24

E mail: service-it@carefitness.com

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 26

CARE FITNESS CARDIO MASTER DELUXE - Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C. - 27

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 55%

Programma 19: 65% Max H.R.C. - - Target H.R. = (220 - LEEFTIJD) x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 85%

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

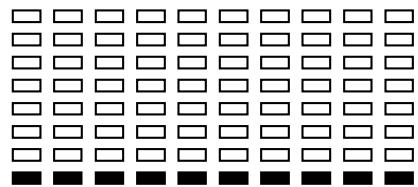

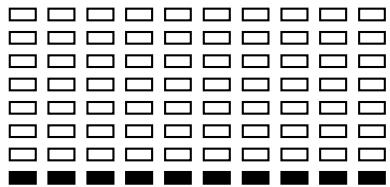

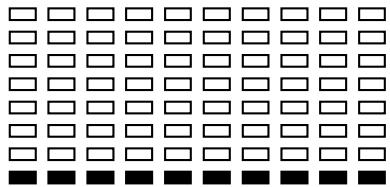

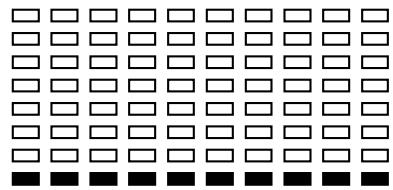

WAARSCHUWING! Ritmecontrolesystemen

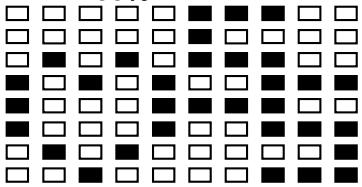

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 1
PROGRAMMA 18
55% H.R.C.
PROGRAMMA 19

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 2
65% H.R.C.
PROGRAMMA 20

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 3
75% H.R.C.
PROGRAMMA 21

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 4
85% H.R.C.

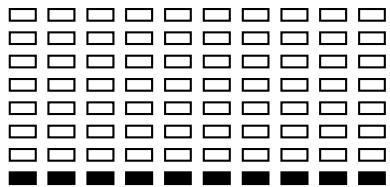

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 5

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 6

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 7

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 8

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 9

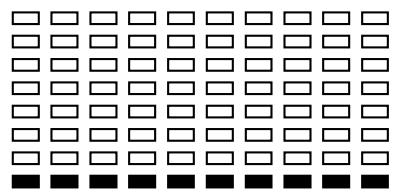

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 10

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 11

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 12

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 13

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 14

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 15

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 16

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 17

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 18

CARE FITNESS CARDIO MASTER DELUXE - WAARSCHUWING! Ritmecontrolesystemen - 19
PROGRAMMA 22

De harttraining (cardiotraining):

Dagelijke training = circa 10 minutes per keer.

2 tot 3 trainingen per week = circa 30 minutes per keer.

1 tot 2 trainingen per week = circa 50 minutes per keer.

E-mail: service-nl@carefitness.com

CARE

FITNESS

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CARE FITNESS

Model : CARDIO MASTER DELUXE

Category : Exercise bike
