USER MANUAL BIKE 160 URBAN GLIDE
Change Lock Password
SGS-CSTC Standards Technical Services (Shanghai) Co.,Ltd.
588 West Jindu Road, Xinqiao, songjiang, 201612 Shanghai, China
COORDONNEES DE L'IMPORTATEUR:
PACT GROUP
29 Promenade Michel Simon
93160 Noisy le Grand - France
COORDONNEES DE LA PERSONNE AUTORISE A EDITER LE DOCUMENT TECHNIQUE :
Fung NIM
29 Promenade Michel Simon
93160 Noisy le Grand - France
URBANGLIDE is a brand imported by the PACT GROUP, Located at 29 Promenade Michel Simon- 93160 Noisy Le Grand - France
Urbanglide.fr
Urbanglide
Urbanglide Channel
Safety and precaution
Follow and read the instructions in this manual on operating procedures, including ignition, starting, braking, maintenance and storage.
Please read the risks and safety advice in the manual. The use of an electrical product can be dangerous if the user is not vigilant. Misuse and non-compliance with safety instructions does not implicate the company in the event of an accident. The user should use self-judgment and common sense to detect potential hazards. Please check your country's regulations and laws to find out where and how to legally use your product. You must obey
the rules and laws applicable to vehicles and pedestrians.
- Protective equipment
Always wear the following protective equipment:
Approved and certified helmet according to your location
Knee pads and elbow patches
Long sleeve t-shirt and long pant
Gloves
Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system.
- Driver's advice
The user must not be more than 120kg , the size and weight do not fully certify that the user will have full control of the vehicle. It is your responsibility to make sure that all users are aware of the risks. This appliance may be used by children aged 14 and over and by persons with reduced physical, sensory or mental capabilities, or lacking experience or knowledge, if they are properly supervised or if they have been instructed in the safe use of the appliance and have understood the risks involved. Children must not play with the unit. Cleaning and maintenance by the user must not be carried out by unsupervised children. It is your responsibility to supervise younger children, considering their skills, maturity and ability to follow the rules. Do not touch the motor or brakes of the product immediately after use, as these parts can be extremely hot.
Security advice
Take the time to learn the basics of practice to avoid any serious accidents during the use of the product, this goes through the following points:
- The age of the driver must be at least 14 years old, for a pleasant ride the hip of the driver must not exceed the handlebars of the scooter, and his visibility must be at least 30cm above the handlebars. . The maximum height of the user must not exceed 2m .
- Get closer to the seller to be directed to an appropriate training organization;
- Avoid high traffic areas or congested areas;
- In all cases, anticipate your trajectory and speed while respecting the highway code, the pedestrian code and the most vulnerable beings;
- Cross the protected passages while walking;
- Do not divert the vehicle from its initial use;
- Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake axle;
- Eliminate sharp edges caused by use;
- Do not modify or transform the vehicle, including the steering tube and sleeve, the stem, the folding mechanism and the rear brake.
General use
City traffic involves crossing many obstacles, such as sidewalks or steps. It is recommended to avoid jumping obstacles. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or the risk of skidding they present.
In the event of an accident, get to safety and put on a yellow vest to be spotted on the road, turn off the scooter and call the emergency services.
The maximum speed of the scooter (25 km/h) may vary depending on the weight of the user, the weather conditions and the inclination of the road.
Proper functioning
To operate this scooter adjustment and maintenance before and after each use is necessary, do not expose yourself to any risk when these operations are carried out, wear personal protective equipment and contact the manufacturer in case of questions or doubts, take into account also from any reasonably foreseeable misuse.
Any load attached to the handlebars will affect the stability of the vehicle, please do not carry heavy loads or attach accessories or additional items not approved by the manufacturer as this may make driving very unstable.
- Procedures and driving conditions
Please check the laws and regulations in your country before using the product. In France, the linear speed on flat ground and a person not exceeding the maximum permissible load is 25km / h . Look around when using the product, and pay attention to any potential hazards. It is important to respect everyone's rights and properties. For your safety, do not engage the accelerator if you are not on the product. This product is not designed for performing jumps, stunts and skids. Never drive on roads, near vehicles, stairs, hills, swimming pools or other bodies of water. Please hold the handlebar with both hands. Never mount more than one person on the product. Be sure to keep your fingers and all other parts of the body away from parts that can heat up during use (brake, motor, chain). Never use the product with an audio player, or with your smartphone in your hand.
Never use the product to pull something as this will damage the components and wear out the battery. Never put the product in contact with water, the electrical components may be damaged and create a dangerous situation. Ride only on flat, solid surfaces. Avoid surfaces with gravel, holes, ice, which can cause loss of product control. Do not ride at night or in areas where visibility is reduced. Also, don't ride indoors, where carpets and rugs can get in the way.
The A-weighted emission sound pressure level at the driving position does not exceed 70dB(A). The total value of the vibrations to which the hand-arm system is exposed does not exceed 2.5m / s^2 , the maximum frequency-weighted mean square value of the acceleration to which the whole body is exposed does not exceed 0.5m^2 . (Measurement accuracy uncertain)
After each use, check that each part is in its place and that it is not damaged. Before each use, check the following points:
- Brakes are in good condition
- All components are in good condition and in their places
- The parts having presented anomalies during the last use have been repaired or changed according to the manufacturer's conditions.
Check tire pressure before first use, make sure tires are inflated to 2.6 bars MAX
People who have medical monitoring or treatment such as: cardiac people, pregnant women, non-responsible people, people with back or neck problems, should not use the product.
Usage of the charger
Before using the product, it is necessary to charge it. A long charge may be required before first use. Please rely on the light on the battery indicator. It is possible to charge your battery at any time to ensure constant power, it is not necessary to wait until the battery is completely empty to charge it. Use only with PS84B546Y1500S power supply unit. To recharge the battery, use only the detachable power supply unit supplied with the device. Please do not use the charger of other brand, these may damage the battery of your product. It is important to charge your battery at least once every 3 months, even if you are not using the product, to ensure a normal life cycle. Avoid shocks and contact with water, these are factors not covered by the warranty that can damage the battery. The charger provided is "intelligent", it is designed to stop at 100% of the charge and not damage the battery. The charger must be in perfect condition each time you use it, check the wires, the condition of the tips and connectors. If the product does not charge, the charger may be faulty, it is then necessary to change it. The charger should only be used by an adult, it is important to unplug it from both sides when not charging. Do not charge your scooter unattended.
The charging connector cover must be closed when the scooter is not being charged.
The external flexible cable of this transformer cannot be replaced; if the cable is damaged, the transformer should be disposed of.
Battery
Please do not store the battery in extreme temperatures. Below 30^ and above 0^ . If you do not use your product for 60-90 days, the battery may be less efficient than when it started. This loss of autonomy is due to lack of use and is therefore not covered by the warranty.
At the end of its cycle, the battery must be disposed of separately from undifferentiated generic waste. Dispos. of the batteries in the containers provided for this purpose. Collecting and recycling batteries helps to protect the environment and conserve material resources. This product contains a Li-ion battery, any fire must be extinguished using a powder extinguisher (Class D fire)
(The battery is subject to wear).
This device contains a battery which may only be replaced by qualified personnel.
WARNING: To recharge the battery, use only the removable power supply unit supplied with the unit." Charger part number (PS84B546Y1500S).
- Maintenance
Please store your product in a dry and dust-free place, and avoid leaving it too long in a humid space or under the sun. To clean your device, use a damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene or other harsh chemical solvents to clean your device, which will damage its appearance and structure.
Constantly check the condition of your product components, if any part is damaged, please replace it before using the product. If a part is not in working order, you risk falling and injuring yourself. To avoid premature wear, keep the tires inflated between 2.6 bar minimum and 3.1 bar maximum.
Transport
If you wish to transport your product, as well as its battery, by plane or by other means of transport, please contact the competent local authorities and the carrier beforehand in order to inform you of any prohibitions and restrictions on transport. Lithium batteries are considered dangerous in many countries. Please ensure before a trip that access and transport is authorised. International law prohibits the air transport of lithium batteries.
Scooter handling:
Always use both hands on the stem to carry and move the scooter safely, wear suitable footwear and check that the locking system is securely locked.
Use of the product
To turn on your product, press the Power button located on your handlebars. Move the scooter forward with your foot to reach a speed of around 3 ~km / h , then press the acceleration trigger. The electric system will start up automatically. To brake use the manual brakes located on the handlebars. You can also use the rear mudguard, if your product is equipped with it. Before each use, please check that the wheels are free from obstruction, that the brakes are working. In order to make certain basic adjustments, in particular the play of the brake control, come and discover our tutorial videos available on our YouTube channel: URBANGLIDE CHANNEL.
The use of this type of product over a long period can cause vibrations which can be unpleasant, take breaks regularly. To warn other users of your presence, use the buzzer located on your handlebars, if your product is equipped with them. Use the front LED to light your way in dark places. When you stop your product, use the stand to stabilize it.
Rebut
THIS PRODUCT CONTAINS LITHIUM BATTERIES WHICH MUST BE SAFELY RECYCLED : The battery must be removed before disposal. Before any intervention, remember to turn it off and unplug it from the power outlet.
WARNING : As with any mechanical component, a vehicle is subject to high stress and wear. Different materials and components may react differently to wear or fatigue. If the expected life of a component is exceeded, it may suddenly break and risk injuring the user. Cracks, scratches, and discoloration in high-stress areas indicate that the component has exceeded its life and should be replaced.
Some parts need to be replaced depending on the degree of wear and its time of use, you can get spare parts at the following address (Section BIKE 160):
https://boutique.urbanglide.com
| Spare parts | Replacement criteria | Acceptability criterion | Replacement method | References |
| The tires | Loss of its original shape, presence of cracks, chips or any other sign of wear | Online video on YouTube Urbanglide Channel | On request to the customer service | |
| Brake discs | Abnormal noise during braking, low thickness (<2.5mm) | Drive at 15Km/h Brake on 1m, the product must stop | Online video on YouTube Urbanglide Channel | On request to the customer service |
| Brake linings | Abnormal braking noises or abnormal friction noises | Online video on YouTube Urbanglide Channel | ||
| The brake control cable | Frayed cable | Online video on YouTube Urbanglide Channel | On request to the customer service | |
| Retroreflective strips | When it comes off | Online video on YouTube Urbanglide Channel | On request to the customer service | |
| Bearings | Abnormal noises | Contact our customer service | Contact our customer service |
The serial number has the year of manufacture as a prefix located on the information label of your product.
MMYYYYYYYYYYYY
Instructions for use

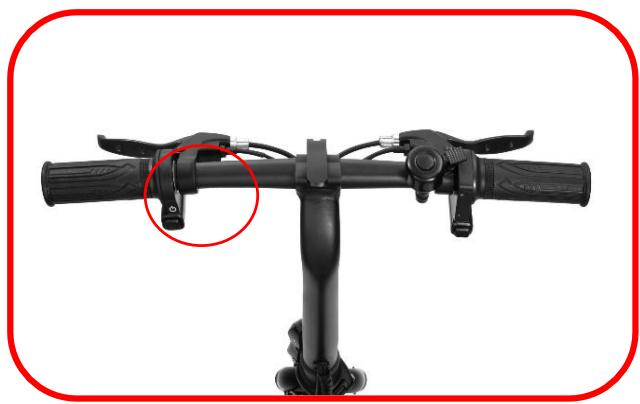

1. Turn on/off

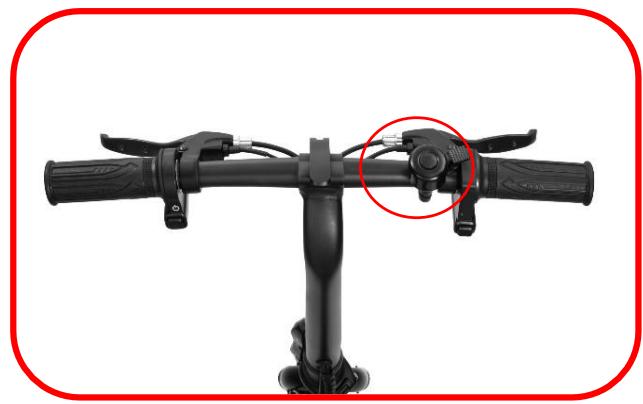

2. The bell
There is a bell located on the handlebars, use it to warn people around you of your arrival.
As shown in the photo, the button circled in red allows you to turn your device on and off. Push up to turn on. Then down to turn off.

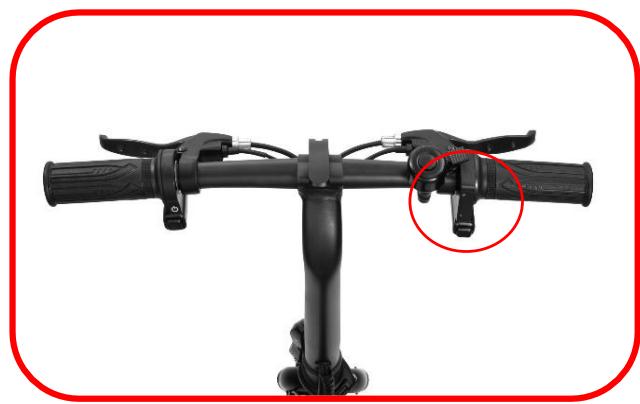

3. The battery indicator

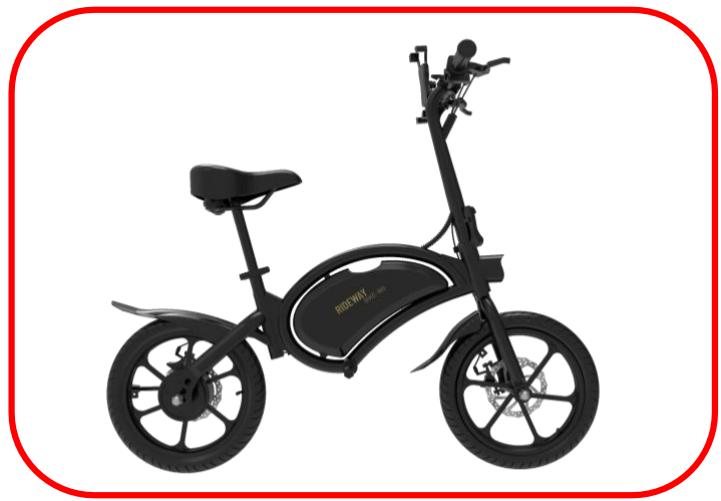

4. Loading
The charging port is located in the frame of the bike, as shown in the following photo.
When the battery is fully charged, the top three bars turn blue.
The screen located on the right side of your handlebar allows you to follow the battery level of your device.
4 bars: Battery at 100% .
3 bars: Battery below 80% of capacity
2 bars : Battery below 50% of capacity
1 bar: Battery below 20% .
Application
1. Application
APPLE
ANDROID
Download the Urbanglide application on your smartphone. Your Bluetooth must be turned on to connect the app to your smartphone. Once the bike is detected via the app, click on it to connect it.
The application requires at least Android 4.3 and iOS 8 to work.

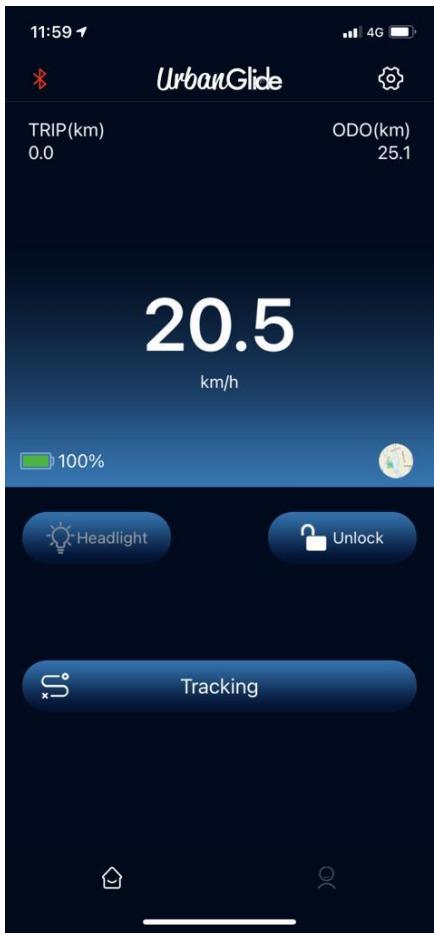

On the main interface of the application, you can find the speedometer, the battery level and the distance traveled in km. The Bluetooth logo at the top of the screen allows you to access the Bluetooth search interface.
Press the Light icon to turn on the light of your electric bike.
When you tap the lock at the bottom of your screen, you can lock and unlock your electric bike. When the bike is locked, it is impossible to accelerate.
Finally, at the bottom of the interface, tap on "Tracking" to track your trips and get more information about your previous trips.

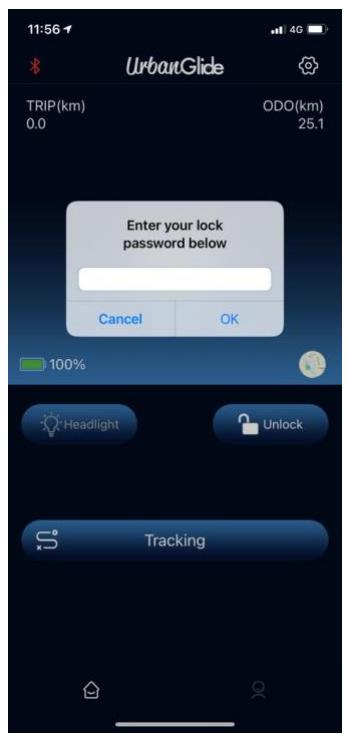

3. Lock/unlock
When you click on the lock, the application asks you for a password to lock or unlock your electric bike. When you turn off your bike, it locks automatically, you can ride with it only when it is turned on.
The original password is 123456, you can change it in the settings.
Setting
4. Speed control
This option allows you to limit your device to a maximum speed.
In order to familiarize yourself with the bike, it is automatically limited to 20km / h .
Once you have ridden a total of 10km, you can increase the maximum speed.
5. Startup parameters
The "Startup" setting allows you to determine two startup choices:
- Zero speed start: This allows you to accelerate directly when the bike is stopped.
- The non-zero start: Which allows you to accelerate only when the bike has already gained some speed, using your feet.
6. Bluetooth name
In the "Bluetooth name" setting you can change the Bluetooth name. The name will be applied the next time you connect to the device.
Rename Your E-Bike
7. Password
Change Lock Password
You can change the password that allows you to lock/unlock your bike.
To do this, simply enter your old password and then the new one.
If you want to change the password for the first time, use the original password "123456", then enter your new password.

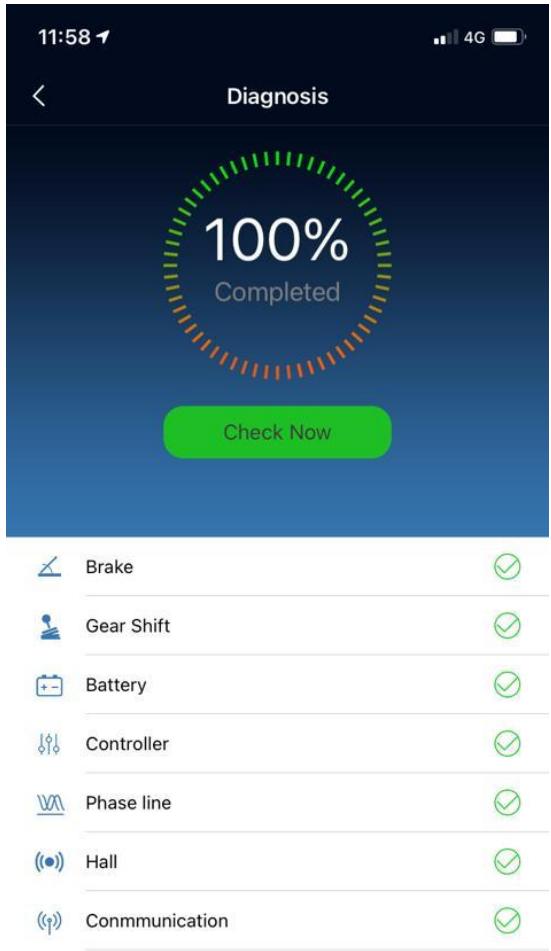

8. Diagnostics
This setting allows you to check the condition of all components of the electric bicycle. If there is a malfunction, it will be automatically detected.
| Problem | Possible causes | Solutions |
| Your product is not working. | The battery is not charged | Charge your battery and check that your charger shows a red light. |
| The connection cables are disconnected. | Check that all cables are securely connected and that none of them are damaged. | |
| Your product doesn't work continuously | The battery needs to be recharged | Charge your battery and check that your charger displays a red light correctly. |
| The battery is not fully charged | Check that the motor cable is properly connected. | |
| The battery may need to be replaced. | ||
| Your product has suddenly stopped working. | Overload/Cut | Overloading may cause the product to fail. Please turn off the product, wait 15 seconds, and then turn it back on. |
| A fuse dropped | Start by checking the status of all cables first. | |
| Your product is moving slowly | Brakes are not properly adjusted | Check the condition of the brakes and try to release them. If this does not solve the problem, please contact the after-sales service. |
| The product is overloaded | Check if the user weighs less than the previously recommended weight. Also make sure that no object interferes with the proper functioning of the product. | |
| You use your product in inappropriate conditions | Make sure you are on flat, dry and stable ground. | |
| Wheels and tires are damaged | Check the condition of the product's wheels. |
For any information, contact our after-sales service at the following address:
https://urbanglide.com/contact/
You will also find many tutorial videos concerning the maintenance of your product on our YouTube channel:
UrbanGlide Channel
Finally, do not hesitate to follow us on our social networks Instagram and Facebook to follow our news.
You can find the latest update of this manual in digital format by logging on to our website:
www.urbanglide.com
(Model section concerned).
The paper version will be given to you on request from our customer service department.
All product names, logos and trademarks are the property of their respective owners. All company, product and service names mentioned in this manual are for identification purposes only. Mention of these names, logos and trademarks is not a recommendation for use.
DECLARATION OF CONFORMITY
We undersigned PACT GROUP hereby declare that the product.
Model : URBANGLIDE BIKE 160
Type: Balance bike
Function : Balance bike for individual transport
Product description : Foldable Balance bike with a maximum speed of 25 km/h.
Production batch : 052023UGB160BKFL
Year of construction : 2022
DIRECTIVES
| 2014/53/EU | 2006/42/EC | 2014/30/EU |
STANDARD DETESTS
| EN 61000-6-3:2007+A1:2011 | EN 301 489-1 V2.1.1 | EN 300 328 V2.1.1 |
| EN 61000-6-1:2007 | EN 301 489-17 V3.1.1 | EN 62479:2010 |
| EN ISO 12100:2010 | EN 60335-1:2012+A11:2014 | EN 60335-1:2012+A11:2014+A13:2017 |
All tests were carried out by the laboratory mentioned below:
Guangdong UTL Co., Ltd.
Lianding Testing Building, No.18 Center Road of Yayuan Industrial
Shen Zhen UONE Test Co., LTD
Unit 4B, Building B4, China Merchants Guangming Science
Park,Tourist Road 3009,Guangming New District,ShenZhen.
Contact details of the importer:
PACT GROUP
29 Promenade Michel Simon
93160 Noisy le Grand - France
Contact details of the person authorized to edit the technical document:
Fung NIM
29 Promenade Michel Simon
93160 Noisy le Grand - France
This declaration shall be issued under the responsibility of the importer on 09/05/2023
Representative of the company:
PACT GROUP
29 Promenade Michel Simon-
Noisy le Grand France
Maurice Bodokh
