USER MANUAL RIDE 100S URBAN GLIDE

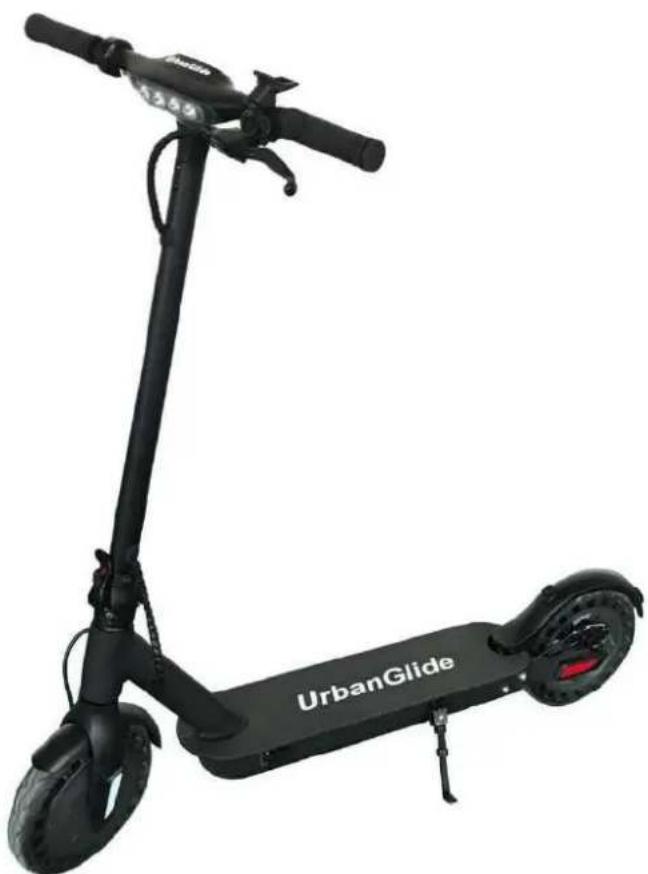

Black electric scooter with 'UrbanGlide' branding on the side, no visible text or symbols on the scooter body

URBANGLIDE is a brand imported by the PACT GROUP, Located at 33 rue du Ballon - 93160 Noisy Le Grand - France

Urbanglide.fr

Urbanglide

Urbanglide Channel

Safety and precaution

Please read the manual carefully before using the product and read the risks and safety tips in the manual. The use of an electrical product can be dangerous if the user is not watchful. Misuse and non-respect with the safety instructions does not affect the company in event of accident. Self-judgment and common sense are necessary for users to detect the possible dangers.

Please verify the current regulations and laws in your country to know where and how to use your product legally. You must comply with the rules and laws that applicable to vehicles and pedestrians.

- Protective equipment

Always wear the following protective equipment:

- Approved and certified helmet according to your location

- Knee pads and elbow patches

- Long sleeve t-shirt and long pants

- Gloves

- Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system.

- Driver's advice

The user must not be more than 120 kg, the size and weight do not fully certify that the user will have full control of the vehicle. It is your responsibility to make sure that all users are aware of the risks. The recommended age for using this product is 12 years. It is your responsibility to put a younger child into consideration by taking into account their skills, maturity and ability and following the rules. Do not touch the engine or the brakes of the product immediately after use, these parts may be extremely hot.

• Procedures and driving conditions

Please verify the current laws and rules in your country before using the product. In France, the linear speed on level ground and a person not exceeding the maximum permissible load is 25km/hour. Look around when using the product and pay attention to all possible risks. It is important to respect the rights and properties of everyone. For your safety do not start the accelerator if you are not on the product. This product is not designed to make jumps, acrobatic tricks and skids.

Never drive on roads, near vehicles, stairs, hills, swimming pools or other streams. Please hold the handlebars with both hands. Never go on the product with more than one person. Be sure to keep your fingers and other body parts away from hot parts during use (Brake, motor, chain). Never use the product with a Mp3 player, or with your smartphone at hand.

Never use the product to pull anything, as this may damage the components and wear out the battery. Never put the product in contact with water, the electrical components can be damaged and create a dangerous situation. Roll only on flat and solid surfaces. Avoid surfaces with gravel, holes, ice, which can lead to loss of control of the product. Do not drive at night or in areas where visibility is reduced. Do not ride indoors where there are carpets as they can interfere.

The A-weighted emission sound pressure level at the driver's cab shall not exceed 70dB(A). The total value of the vibrations to which the hand-arm system is exposed does not exceed 2.5m/s ^2 , the maximum frequency-weighted root mean square value of the acceleration to which the whole body is exposed does not exceed 0.5m/2. (Measurement accuracy is uncertain)

After each use, verify that each piece is in its proper place, and that it is not damaged. Before each use, verify the following points:

- The brakes are in good condition

- All components are in good condition and in their places

- The parts with defects in the last use have been repaired or replaced according to the manufacturer's conditions.

People who have medical follow-up or treatment such as: cardiac people, pregnant women, irresponsible people with back or neck problems, should not use the product.

• Usage of the charger

Before using the product, it is necessary to charge it. A long charge may be necessary before the first use. Please refer to the battery indicator, you can charge your battery at any time to ensure the constant power. It is not necessary to wait until the battery is completely empty to charge it.

Please do not use the charger of other brand, these can damage the battery of your product. To ensure a normal life cycle, it is important to charge your battery at least once every 3 months, even if you are not using the product. Avoid shocks and contact with water, these are factors not covered by the warranty that may damage the battery. The supplied charger is "smart", it will stop at 100% of the charge and not damage the battery.

The charger must be in perfect condition during each use, verify the wires, the condition of connection ends and connectors. If the product does not charge, the charger may be defective, it needs to be replaced.

The charger must be used only by an adult, it is important to unplug it from both sides when not charging.

- Battery

Please do not store the battery in extreme temperatures. Store it below 30 °C and above 0 °C . If you do not use your product for 60-90 days, the battery may get worse. This loss of autonomy is due to lack of use and is therefore not covered by the warranty.

At the end of its cycle, the battery must be discarded separately from the undifferentiated generic waste. Discard the batteries in the containers provided for this purpose. The recovery and recycling of batteries contributes to protect the environment and material resources conservation. This product contains a Li-ion battery, the extinction of a possible fire must be done with a powder extinguisher (Fire class D).

- Maintenance

Please store your product in a dry, dust-free place, and avoid leaving it in a humid area or under the sun for too long. To clean your appliance, use a damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean your appliance, which will damage its appearance and structure. Constantly verify the condition of components of your product, if any part is damaged, please replace it before using the product. If a part is not working, falling, and injuring may occur.

- Transport

If you wish to transport your product by air or other means of transport as well as its battery, please contact the local authorities and the carrier beforehand to obtain the possible prohibitions and limits of transport. Lithium batteries are considered dangerous in many countries. Please make sure that the access and transport are allowed before travelling. International law prohibits the transport of lithium batteries by air.

- Use of the product

To turn on your product, press the Power button on your handlebars. To move forward, press the accelerator also located on your handlebars. Place both feet on the product and squeeze the accelerator trigger. To brake, use the manual brakes located on the handlebars. You can also use the rear mudguard if your product is equipped with one. Before each use, please check that the wheels are not jammed and that the brakes are working. In order to carry out some basic adjustments, in particular the brake control play, please go to our tutorial videos available on our YouTube channel: URBANGLIDE CHANNEL.

The use of this type of product over a long period of time can cause vibrations which can be unpleasant, take regular breaks. To warn other users of your presence, use the horn on your handlebars, if your product is equipped with one. Use the front LED to light your way in dark places. When you stop your product, use the crutch to stabilize it.

- Rebus

THIS PRODUCT CONTAINS LITHIUM BATTERIES THAT MUST BE SAFELY RECYCLED: The battery must be removed before disposal. Before any work is carried out, remember to switch it off and unplug it from the socket.

Some parts require replacement depending on the degree of wear and tear and the time of use, you can obtain spare parts at the following address (Section RIDE 100S)

https://boutique.urbanglide.com

Spare parts	Replacement criteria	Acceptability criteria	Replacement method	References
Wheel	Loss of original shape, cracks, splinters or other signs of wear and tear		Online video on YouTube Urbanglide Channel	3700092665060
Disc brake	Abnormal noise when braking, low thickness (<2.5mm)	Drive at 15Km/h Brake on 1m, the scooter must stop.	Online video on YouTube Urbanglide Channel	3700092664797
Brake pads	Abnormal noises when braking or abnormal rubbing noises		Online video on YouTube Urbanglide Channel	3700092664834
Brake cable	Fraying cable		Online video on YouTube Urbanglide Channel	3700092665015
Reflectives sticker	When it comes off		Online video on YouTube Urbanglide Channel	On request to customer service
Bearings	Abnormal noises		Contact our customer service	On request to customer service

• Before driving, take safety precautions, for example: wear sports clothes, helmet, knee pads, elbow pads, etc.

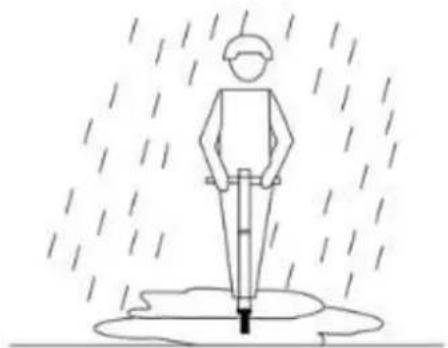

• DO NOT drive when it rains.

Line drawing of two people using a scooter and a person on a scooter, both in profile view (no text or symbols)

Line drawing of a person riding a scooter with a speech bubble showing 'Baby' (no text or symbols on the figure or scooter)

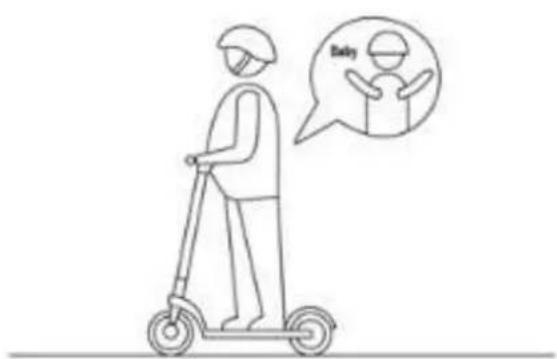

• DO NOT drive with a load

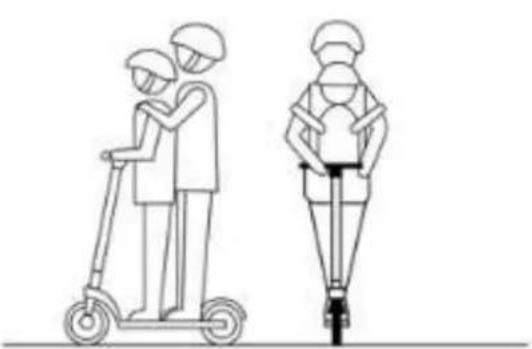

• DO NOT drive with two or more people, it is only suitable for one driver.

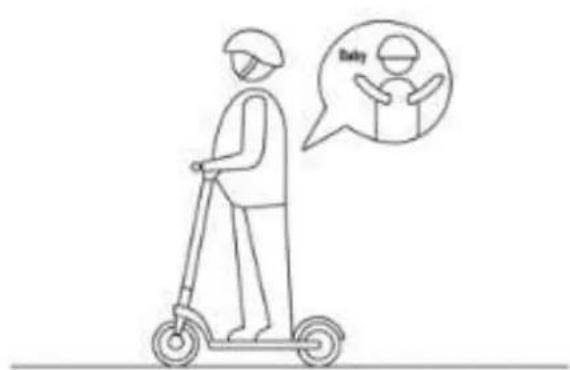

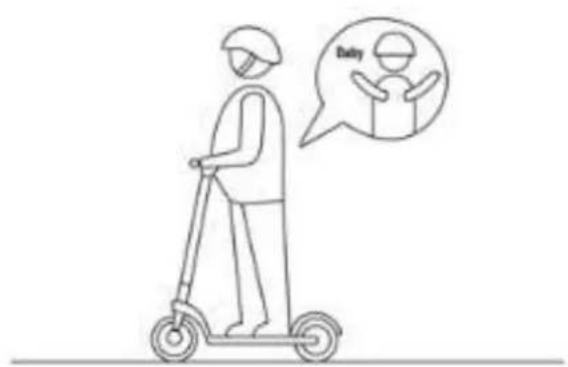

• Persons of 14 years of age may use the product, pregnant women are not allowed to use the electric scooter.

20 ~ 100 KG

Maximum load : 100 kg

Diagram showing a person riding a scooter with a traffic sign and crossed-out parking area symbol

• DO NOT drive after drinking or taking medication.

Line drawing of a person riding a scooter with a headlamp (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker, no text or symbols present

- DO NOT call or listen to music while using the electric scooter.

- Pay attention to the road with the roadblock, sandstone, puddles, mud, moisture, ice and snow, slope (angle > 15°), stairs, dark areas while driving.

Simple line drawing of a person standing on a horizontal surface with a lightning bolt and warning symbol (no text or labels)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

- DO NOT use in a hazardous area, where an explosion or fire may be caused by flammable, explosive or vaporous objects, liquids, dust and fibers.

- DO NOT drive on roads, pavements or sidewalks (get off and drive by hand without using the engine, in built-up areas use bicycle paths and lanes when available, respect the traffic regulations in force in the country where you are riding.

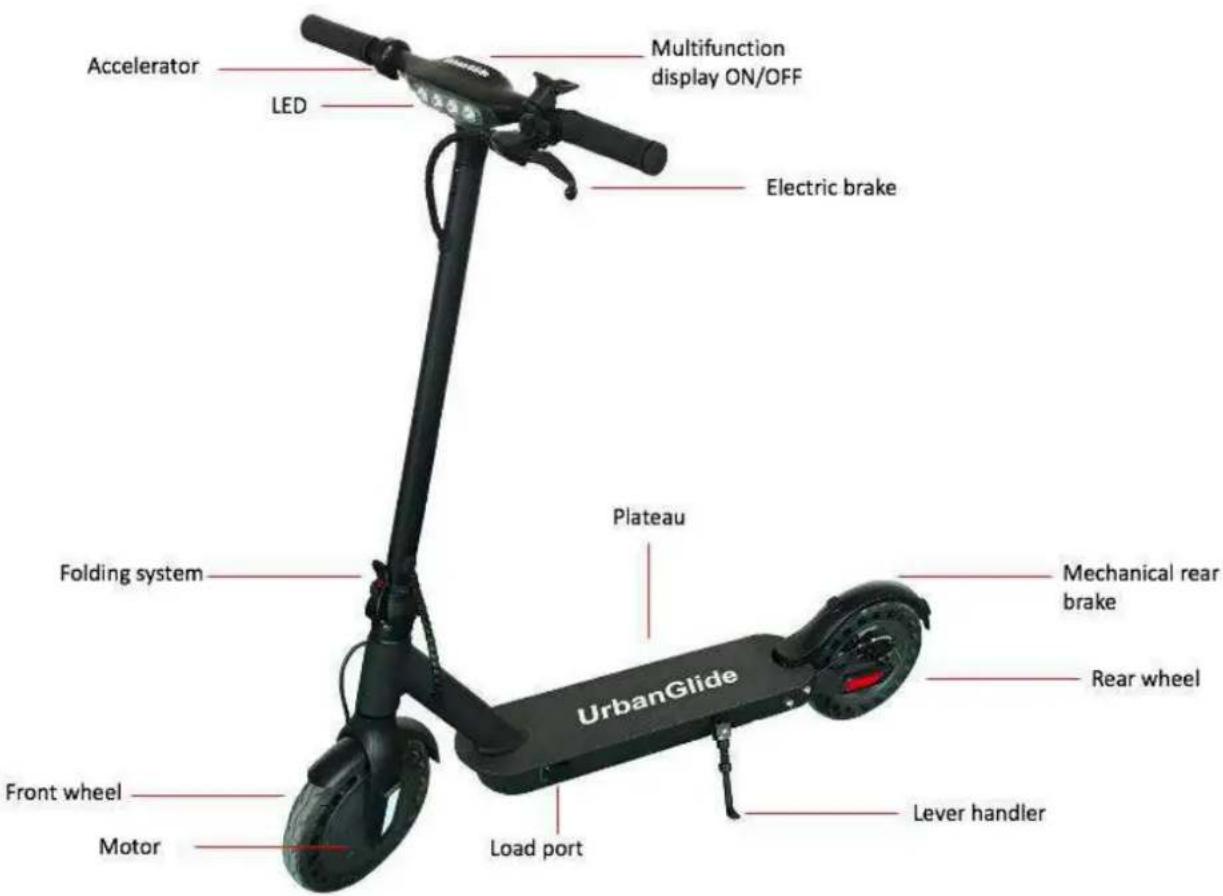

USE The different parts

Accelerator LED Multifunction display ON/OFF Electric brake Plateau Folding system UrbanGlide Motor Front wheel Load port Lever handler Mechanical rear brake Rear wheel

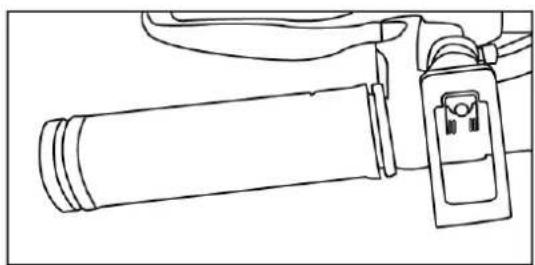

To move forward, place both feet on the board, and use the right trigger on your handlebars to move your scooter forward.

To brake, you can use the left trigger on your handlebars, or pull the rear mudguard with your foot to reduce the speed of your scooter.

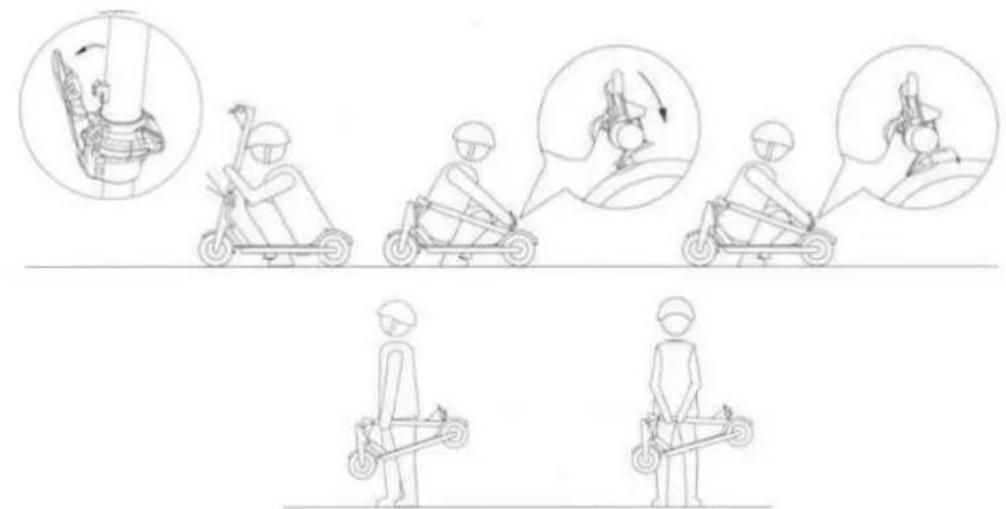

Folding steps

1. Turn off the scooter and put away the handle lever.
2. Press and pull the button on the latch and fold the scooter.
3. Continue to fold until the hook on the handlebars engages in the opening on the mudguard.
4. You can carry your scooter with one or both hands as shown in the diagram below.

Diagram illustrating four sequential steps of a person using a scooter, with each step showing the correct and incorrect states of the motion.

Technical line drawing of a mechanical device and a foot (no text or symbols)

To keep your scooter in folded mode, bring the hook on the left side of your handlebars to the hook on the rear mudguard of your scooter.

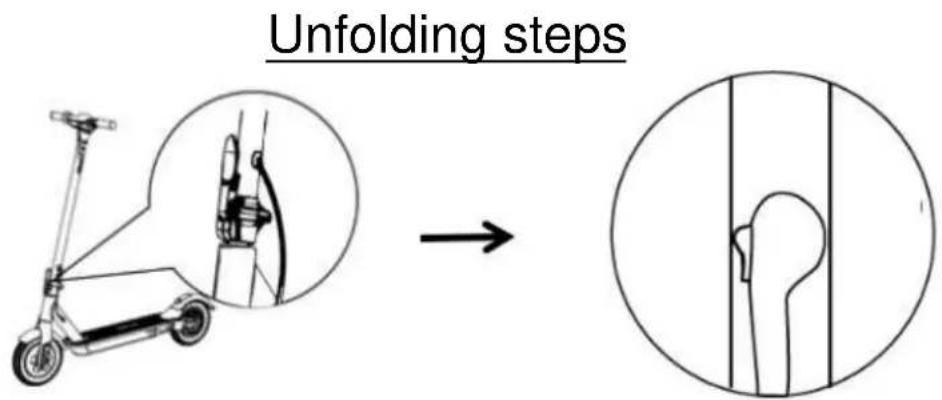

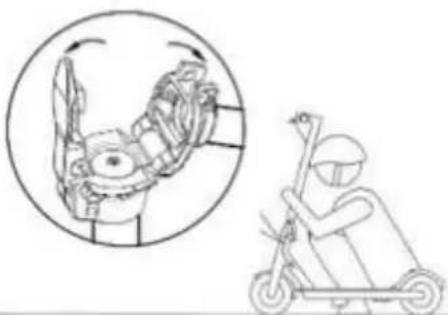

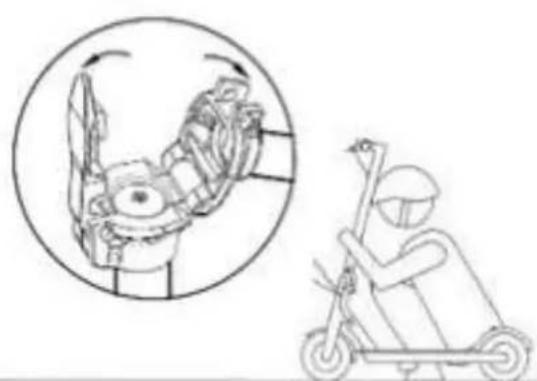

Unfolding steps

1. To unfold the scooter, first put the scooter on straight and then press the mudguard to release the hook, hold the chainring, lift the handlebars to the stem position and close the folding/unfolding latch.

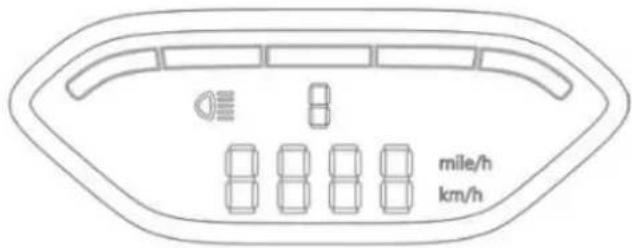

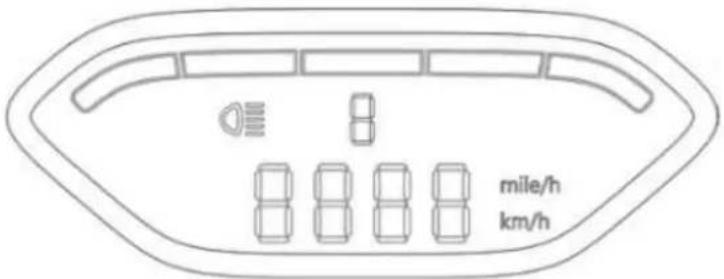

Using the screen

mile/h km/h

1. The battery indicator shows the remaining battery level in real time.
2. To turn on the scooter, press and hold the On/Off button for 1-2 seconds. Same to turn it off.

3. Once turned on, press the On/Off button twice to turn on the front light. Press the On/Off button once more to turn it off.

4. To change the speed modes "1, 2, and 3" press the On/Off button briefly.

- Speed 1: maximum speed of 6 km/h

- Speed 2: maximum speed of 15 km/h

- Speed 3: maximum speed of 25 km/h

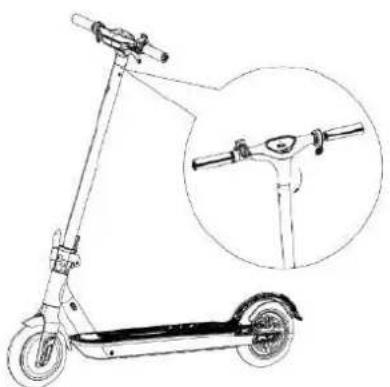

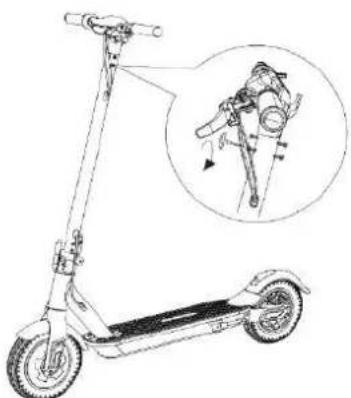

Handlebar mounting

Line drawing of a scooter with a side-mounted sensor and an inset close-up showing the handle (no text or symbols)

1. Insert the handlebars into the stem without jamming the power cables.

Technical line drawing of a scooter with an inset showing the internal mechanism of the device.

1. Fix the handlebars with the 4 screws provided. Use the M3 spanner to attach the handlebars to your scooter. Make sure it is secure and the handlebars are stable before using your scooter.

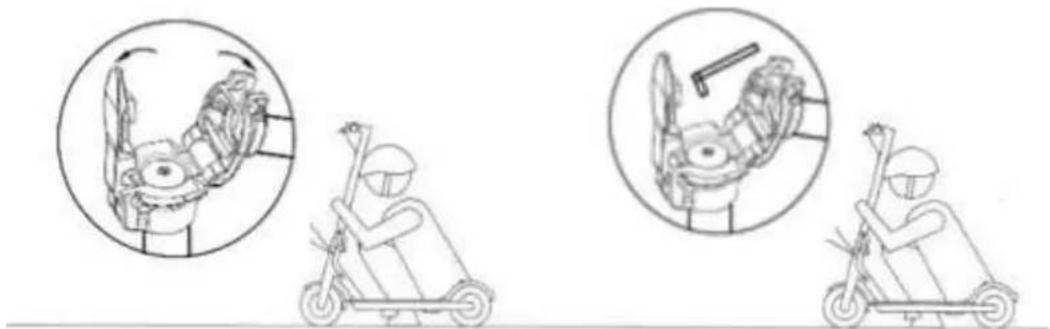

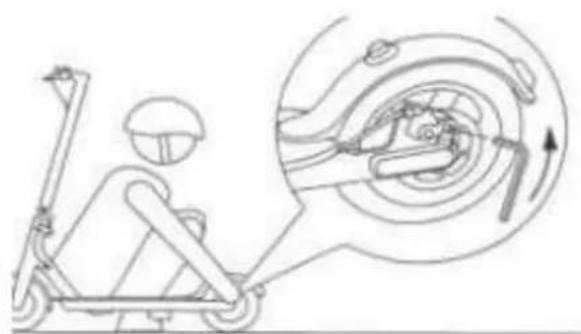

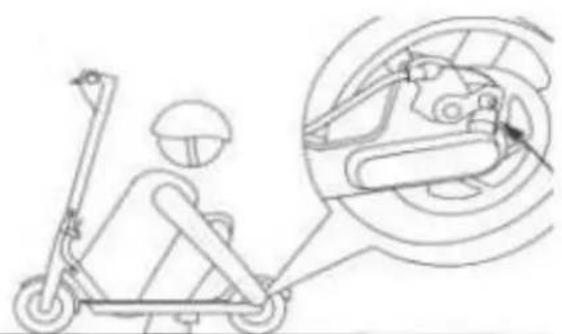

Stem/brake maintenance

Line drawing of a person riding an electric scooter with a magnified inset showing internal mechanical components (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing mechanical components (no text or symbols)

Illustration of a scooter being pulled by a person using a steering wheel (no text or symbols present)

Illustration of a person riding a scooter with a hand gesture inside a circular diagram (no text or symbols)

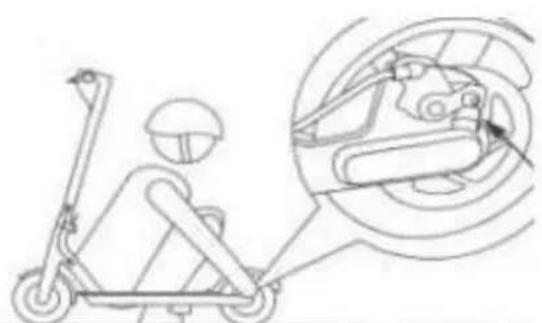

1. If you feel that the brakes are too tight, please use the M5 hexagonal wrench to loosen the plate screws on the disc brake, slide the brake cable back so that the length is slightly shorter, and then tighten the plate screws; If you feel that the brakes are too loose, please use the M5 hexagonal wrench to loosen the plate screws on the disc brake, slide the brake cable back so that the length is slightly longer, and then tighten the plate screws; If you feel that the brakes are too tight, please use the M5 hexagonal wrench to loosen the plate screws on the disc brake, slide the brake cable back so that the length is slightly longer, and then tighten the plate screws.

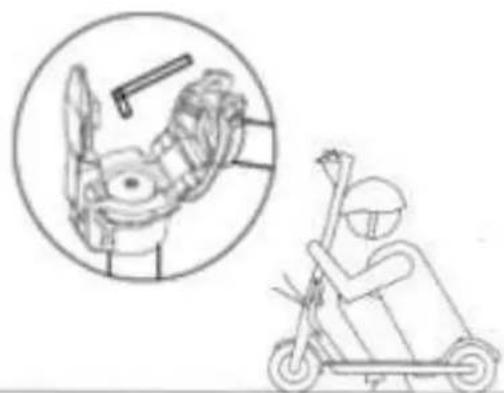

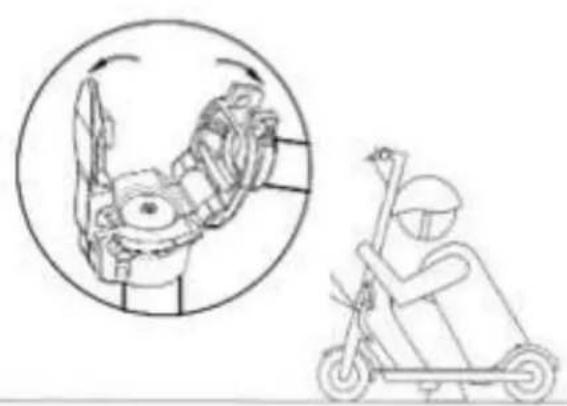

2. If the stem of the scooter shakes, please use the M5 hexagonal wrench to lock the two screws of the folding mechanism.

3. Before adjustment, make sure that the scooter is stable and secure to prevent it from tipping over.

Troubleshooting

Problem	Possible cause	Solution
It does not work	The battery is not charged.	Charge the battery, check if the red light is on.
	Connections or cables are disconnected.	Check that the battery is firmly seated in the product
It does not work continuously	The battery needs to be charged.	Charge the battery, check if the red light is on.
	The battery is not fully charged.	Make sure the power cable is well connected.
		The battery may need to be replaced.
It suddenly stopped working	Overload, cut-off	Overloading may result in product failure. Turn off the product, wait 15 seconds, then turn it on again.
	Fuse burnt	Prior to this, check the condition of all cables and connectors.
It is moving slowly	The brakes are not properly adjusted.	Check the condition of the brakes and try to loosen. If this does not work, please contact the after-sales service.
	It has overloaded	Check that the user weighs less than the previously recommended weight. Check that there are no objects obstructing the proper operation of the product.
	Bad driving condition.	Make sure you are on flat, dry, and constant ground.
	The tires / wheels are damaged.	Check the condition of the wheels of the product.

For any information, contact our after-sales service at the following address:

[e-mail]

You will also find many tutorial videos concerning the maintenance and maintenance of your product on our YouTube channel:

UrbanGlide Channel

Finally, do not hesitate to follow us on our social networks Instagram and Facebook to follow our news.

You can find the latest update of this manual in digital format by logging on to our website:

www.urbanglide.com

(Model section concerned).

The paper version will be given to you on request from our customer service department.

All product names, logos and trademarks are the property of their respective owners. All company, product and service names mentioned in this manual are for identification purposes only. Mention of these names, logos and trademarks is not a recommendation for use.

Urbanglide.fr

Urbanglide

Urbanglide Channel

DECLARATION OF CONFORMITY ORIGINAL

We undersigned PACT GROUP hereby declare that the product.

Model: URBANGLIDE RIDE 100S

Type: Electric scooter

Function: Electric scooter for individual transport

Product description: Foldable electric scooter with a maximum speed of 25Km/h.

Meets all standards and technical directives below:

DIRECTIVES

2014/30/EU

2014/35/EU

2006/42/EU

2011/65/UE

TESTS STANDARD

EN 55014-1:2017EN 55014-2:2015EN 61000-6-3:2007+A1:2011+AC:2012EN 61000-6-1:2007EN 61000-3-2:2014EN 61000-3-3:2013

EN 60335-1:2012 +A11:2014+ A13:2017

EN ISO 12100:2010,EN 60204-1:2006+A1:2009+AC:2010

All tests were carried out by the laboratories mentioned below:

Guangdong UTL Co., Ltd.

Lianding Testing Building, No.18 Center Road of Yayuan Industrial

Zone, Nancheng District, Dongguan, Guangdong, China.

Shen Zhen UONE Test Co., LTD

Unit 4B, Building B4, China Merchants Guangming Science

Park, Tourist Road 3009, Guangming New District, ShenZhen.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District,

Dongguan, Guangdong, China

Contact details of the importer:

PACT GROUP

33 rue du ballon

93160 Noisy le Grand – France

Contact details of the person authorized to edit the technical document:

Fung NIM

33 rue du ballon

93160 Noisy le Grand - France

This declaration shall be issued under the responsibility of his representative.

03/12/2020

Abstract line drawing with curved and straight lines, no text or symbols present

Representative of the company:

PACT GROUP

33 rue du ballon -

Noisy le Grand - France

Maurice Bodokh

CEO

UrbanGlide

UrbanGlide

RIDE 100S

Notice originale

Black electric scooter with 'UrbanGlide' branding on the side, no visible text or symbols on the scooter body

Line drawing of two people using a scooter and a person standing on a pole (no text or symbols)

Line drawing of a person riding a scooter with a speech bubble showing 'Baby' (no text or symbols on the figure or scooter)

Diagram showing a person on a scooter with a speech bubble containing a crossed-out sign and 'No Entry' symbol.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker, no text or symbols present

Simple line drawing of a person standing with a device, no text or symbols present

Line drawing of a person riding a bicycle on a road with a car nearby (no text or symbols)

Diagram illustrating a multi-step robotic mobility scenario with labeled stages and motion instructions

Line drawing of a camera with lens and external device (no text or symbols)

Line drawing of a finger with a circular knob (no text or symbols)

Diagram illustrating the use of a scooter to adjust its seat, showing before-and-after assembly and cross-section view.

Line drawing of a scooter with a side-mounted steering wheel and a close-up inset showing the handle (no text or symbols)

Line drawing of a scooter with an inset showing the internal mechanism (no text or symbols)

Technical diagram showing scooter gear assembly and motion tracking, with labeled diagrams illustrating changes in the body parts.

[e-mail]

Lianding Testing Building, No.18 Center Road of Yayuan Industrial Zone, Nancheng District, Dongguan, Guangdong, China.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District, Dongguan, Guangdong, China

Shen Zhen UONE Test Co., LTD

Unit 4B, Building B4, China Merchants Guangming Science Park, Tourist Road 3009, Guangming New District, ShenZhen.

COORDONNÉES DE L'IMPORTATEUR:

PACT GROUP

33 rue du ballon

93160 Noisy le Grand – France

COORDONNEES DE LA PERSONNE AUTORISE A EDITER LE DOCUMENT TECHNIQUE :

Fung NIM

33 rue du ballon

93160 Noisy le Grand – France

Abstract line drawing with flowing curves and a loop (no text or symbols)

Black electric scooter with 'UrbanGlide' branding on the side (no other text or symbols visible)

Facebook logo icon, blue circular background with white lowercase 'f' (no text or symbols beyond the logo)

Urbanglide Channel

Side-view line drawing of a person wearing a helmet and holding a device, shown from front and side views (no text or symbols)

Simple line drawing of a person standing in a rain pit with falling raindrops (no text or symbols)

Line drawing of two people using a scooter, one standing and one seated (no text or symbols)

Line drawing of a person riding a scooter with a speech bubble showing 'Baby' (no text or symbols on the figure or scooter)

Diagram showing a person on an electric scooter with a 'No Entry' sign and a crossed-out barrier symbol

Line drawing of a person riding a scooter with a horizontal line indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker, no text or symbols present

Line drawing of a person using a bicycle to lift a beam, with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Diagram showing the change in scooter usage and joint structure from left to right, with magnified detail of the device.

Line drawing of a scooter with a handle and front-mounted sensor, shown with an inset close-up (no text or symbols)

Line drawing of a scooter with an inset showing the internal mechanism (no text or symbols present)

[e-mail]

Lianding Testing Building, No.18 Center Road of Yayuan Industrial Zone, Nancheng District, Dongguan, Guangdong, China.

Shen Zhen UONE Test Co., LTD

Unit 4B, Building B4, China Merchants Guangming Science Park, Tourist Road 3009, Guangming New District, ShenZhen.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District, Dongguan, Guangdong, China

Abstract line drawing of a flowing ribbon or stream (no text or symbols)

Black UrbanGlide electric scooter with visible wheels and side-mounted sensor (no text or symbols on the scooter body)

Line drawing of a person wearing a helmet and holding a device, shown from front and side views (no text or symbols)

Simple line drawing of a person standing in a puddle under rain, no text or symbols present

Line drawing of two people using a scooter and a person standing on a scooter (no text or symbols)

Baby

Diagram showing a person on a scooter with a speech bubble containing a crossed-out sign and 'No sign' symbol.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker (no text or symbols on the figure itself)

Line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Diagram illustrating four sequential steps of a person using a scooter, with magnified views showing motion changes.

Line drawing of a handheld device with a cylindrical body and attached clip (no text or symbols)

Line drawing of a curved object with a circular feature, resembling a stylized tool or device (no text or symbols)

Diagram illustrating the use of an electric scooter to interact with a joint, showing before-and-after comparison and magnified detail.

Line drawing of a scooter with a side-mounted sensor and an inset close-up showing the steering wheel (no text or symbols)

Line drawing of a scooter with an inset showing the engine compartment (no text or symbols present)

Diagram of a scooter with gear and wheel, showing internal mechanical components and motion direction (no text or labels)

Line drawing of a person using an electric scooter with a magnified inset showing mechanical components (no text or symbols)

Illustration of a person riding an electric scooter with a circular inset showing a mechanical device (no text or symbols)

Illustration of a person using a scooter to lift a bicycle, with an inset showing the same figure (no text or symbols present)

[e-mail]

Lianding Testing Building, No.18 Center Road of Yayuan Industrial Zone, Nancheng District, Dongguan, Guangdong, China.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District, Dongguan, Guangdong, China

Shen Zhen UONE Test Co., LTD

Unit 4B, Building B4, China Merchants Guangming Science

Park, Tourist Road 3009, Guangming New District, ShenZhen.

Abstract line drawing of a flowing ribbon or ribbon shape (no text or symbols)

Black UrbanGlide electric scooter with visible wheels and front panel (no text or symbols on the scooter body)

Side profile line drawing of a helmet and jaw (no text or symbols)

Line drawing of a human leg joint with a belt (no text or symbols)

Simple line drawing of a person standing on a platform under rain, with no text or symbols present.

Line drawing of two people using a scooter and a person on a scooter, both in profile view (no text or symbols)

Line drawing of a person riding a scooter with a speech bubble showing 'Baby' (no text or symbols on the figure or scooter)

Diagram showing a person on a scooter with a speech bubble containing 'Accident' and crossed-out hand signals.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker, no text or symbols present

Line drawing of a person using a bicycle with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Diagram illustrating the step-by-step instructions for using a scooter, showing motion changes and safety actions.

Technical line drawing of a mechanical device with a close-up view of its handle (no text or symbols present)

Diagram illustrating the change in scooter usage and joint positioning, showing before-and-after comparison of the scooter's internal components.

Line drawing of a small electric scooter with a side-mounted sensor, shown in two views: one close-up and one enlarged detail (no text or symbols)

Line drawing of a scooter with an inset showing the engine mechanism (no text or symbols present)

Line drawings of two scooter components with internal mechanical mechanisms, shown from different angles (no text or symbols)

Illustration of a person using a scooter in two different positions, showing head and torso positioning (no text or symbols)

[e-mail]

Lianding Testing Building, No.18 Center Road of Yayuan Industrial

Zone, Nancheng District, Dongguan, Guangdong, China.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District,

Dongguan, Guangdong, China

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District,

Dongguan, Guangdong, China

Abstract line drawing of a flowing ribbon or ribbon shape (no text or symbols)

Black UrbanGlide electric scooter with visible wheels and front panel (no text or symbols on the scooter body)

Facebook logo icon on blue circular background (no text or symbols)

Urbanglide Channel

YouTube logo icon with red circular background and white play button (no text or symbols)

Illustration showing two different scenarios: head profile with helmet and leg, and outdoor exercise with a person holding a device (no text or symbols)

Line drawing of two people using a scooter, one standing and one seated, both wearing helmets (no text or symbols)

Baby

Diagram showing a person on a scooter with a speech bubble containing a crossed-out sign and a 'No Entry' symbol.

Line drawing of a person riding a scooter with a horizontal line indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15-degree angle marker (no text or symbols on the figure itself)

Line drawing of a person standing with a lightning bolt and safety harness, no text or symbols present

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Diagram illustrating the step-by-step instructions for using a scooter, showing motion changes and safety actions.

Line drawing of a camera lens and its connector (no text or symbols)

Line drawing of a curved object with a circular feature, resembling a stylized tool or device (no text or symbols)

Diagram showing the change in scooter body parts from a simple sketch to a simplified view of the knee joint.

Usando a tela

mile/h km/h

Line drawing of a scooter with a side-mounted sensor and an inset showing the wheel assembly (no text or symbols)

Line drawing of a scooter with an inset showing the internal components (no text or symbols)

Line drawing of a scooter with an inset showing the lever mechanism (no text or symbols present)

Diagram of a scooter with a gear and internal mechanical components, showing motion direction (no text or labels)

Line drawing of a person riding an electric scooter with a magnified inset showing mechanical components (no text or symbols)

Illustration of a motor and scooter in action, showing gear rotation and motion (no text or symbols)

Illustration of a scooter with a hand operating the steering wheel, shown in two views: one close-up and one outline (no text or symbols)

[e-mail]

Lianding Testing Building, No.18 Center Road of Yayuan Industrial Zone, Nancheng District, Dongguan, Guangdong, China.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District, Dongguan, Guangdong, China

Shen Zhen UONE Test Co., LTD

Unit 4B, Building B4, China Merchants Guangming Science

Park, Tourist Road 3009, Guangming New District, ShenZhen.

COORDONADAS DO IMPORTADOR:

PACT GROUP

33 rue du ballon

93160 Noisy le Grand – France

Simple line drawing of a stylized bird or wing with curved wings (no text or symbols)

Black electric scooter with 'UrbanGlide' branding on the side, no visible text or symbols on the scooter body

Facebook logo icon, blue circular background with white lowercase 'f' in center (no text or symbols beyond the graphic)

Urbanglide Channel

YouTube logo icon with red circular background and white play button (no text or symbols)

Illustration showing a helmet and medical device in two different poses: head profile and surgical procedure (no text or symbols)

Line drawing of two people using a scooter, one standing and one seated (no text or symbols)

Line drawing of a person riding a scooter with a speech bubble showing 'Baby' (no text or symbols on the figure or scooter)

Diagram showing a person on a scooter with a speech bubble containing a 'NO FOR' sign and a crossed-out street sign.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker, no text or symbols present

Line drawing of a person using a device to walk, with motion lines indicating movement (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Diagram illustrating four sequential steps of a person using a scooter, with each step showing the correct and incorrect states of the motion.

Technical line drawing of a mechanical device with a close-up view of its handle (no text or symbols present)

Diagram showing scooter body positioning and cross-section of the knee joint, with magnified detail view

Line drawing of a scooter with a side-mounted sensor and an inset showing the wheel assembly (no text or symbols)

Line drawing of a scooter with an inset showing the internal mechanism (no text or symbols)

[e-mail]

Lianding Testing Building, No.18 Center Road of Yayuan Industrial

Zone, Nancheng District, Dongguan, Guangdong, China.

Dongguan UTL Electronic Technology Co., Ltd.

1F, Hengzheng Bldg, North Road of Station, Nancheng District,

Dongguan, Guangdong, China

Shen Zhen UONE Test Co., LTD

Unit 4B, Building B4, China Merchants Guangming Science

Park, Tourist Road 3009, Guangming New District, ShenZhen.

Abstract line drawing with curved strokes (no text or symbols)
