MAD-CENTER 160BR - Speaker MADISON - Free user manual and instructions

Product Type	Active column speaker
Brand	MADISON
Model	MAD-CENTER 160BR
RMS Power	80 W at 4 ohms
Impedance	4 ohms
Frequency Response	50 Hz – 20 kHz
Signal-to-Noise Ratio (Line Input)	≥ 75 dB (A-weighted)
Total Harmonic Distortion (Nominal Conditions)	≤ 2% (50-20 kHz)
Line Input Level	500 mV
Power Supply	220 – 240 V ~ 50/60 Hz
Power Consumption	≤ 45 W
Dimensions (W x D x H)	256 x 200 x 1000 mm
Net / Gross Weight	12.2 kg / 13.5 kg
Audio Sources	Bluetooth, USB, SD/MMC, Line input (AUX), MP3 input
Functions	USB/SD player, Bluetooth, 7 presets, repeat, remote control, LED display
Protection	Internal fuse, power switch
Maintenance and Cleaning	Clean with a dry cloth; do not use liquid or abrasive products
Safety	Do not open the enclosure; use only indoors; avoid moisture and extreme temperatures
Spare Parts and Repairability	Fuse replaceable by a technician; no other user-accessible parts
General Information	Compliant with LVD, RTTE and RoHS directives

Frequently Asked Questions - MAD-CENTER 160BR MADISON

How do I connect my smartphone via Bluetooth?

Press the MODE button on the panel or remote control to select the Bluetooth input. Activate Bluetooth on your smartphone and search for devices. Select "MAD-CENTER" from the list. The connection is automatic.

What are the dimensions of the MAD-CENTER 160BR speaker?

The dimensions are 256 x 200 x 1000 mm (W x D x H).

What is the power of the speaker?

The RMS power is 80 W at 4 ohms.

Can I use the speaker outdoors?

No, the speaker is designed for indoor use only in a dry, enclosed area. Do not expose it to water or humidity.

How do I clean the speaker?

Use a dry, soft cloth to dust the speaker. Never use liquid or abrasive products.

What should I do if the fuse blows?

The fuse is located inside the unit. It must be replaced by an experienced technician with a fuse of the same specifications.

What is the warranty for this product?

The warranty does not apply in case of mishandling or failure to follow safety instructions. Contact your retailer for more details.

What should I do if the remote control does not work?

Make sure the remote control is pointed at the sensor (on the front of the speaker) and there is no obstacle. Replace the batteries if necessary.

How do I select an audio source?

Use the MODE button on the top panel or remote control to switch between USB/SD, Bluetooth, and line input (AUX).

How do I adjust the volume?

Press the VOL+ or VOL- buttons on the remote control, or hold down the previous/next buttons on the panel to decrease/increase the volume.

USER MANUAL MAD-CENTER 160BR MADISON

ACTIVE CENTER COLUMN SPEAKER WITH USB/SD & BLUETOOTH

MAD-CENTER160: 16cm / 160W

IMPORTANT NOTE: You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

Imported from China by

LOTRONIC SA - Av. Zénobe Gramme 9 - B-1480 Saintes

Operating Instructions

Congratulations to the purchase of your new speaker.

Warnings

CAUTION - VORSICHT - ATTENTION - OPGELET

Shock hazard - Do not open the housing

Explanation of signs

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

In circuit diagrams or lists of components, a symbol is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reasons.

Important Safety instructions and danger warnings

• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.

• Do not remove the cover or back, as there are no user-serviceable parts inside.

• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any guarantee claims expires in such cases.
• Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
• The appliance may not be exposed to extreme temperatures (< +5^ircC / > +35^ircC) in operation.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

REMOTE CONTROL

Standby/on

Switches the amplifier between on and standby mode.

Mode

Source selector: selects USB/SD, BLUETOOTH, LINE IN.

Stop: Press this button to stop music play back from USB/SD /BLUETOOTH.

Mute

Mute the audio on the amplifier. The mute mode is indicated by the display VOL 00. Press again to cancel mute.

Repeat

First press repeat current song in USB/SD, second press repeat all the songs in USB/SD.

EQ: Select 7 Pre EQ sets.

Numerical track select

Press the number of the desired track. The track will then play automatically.

VOL+: Press this button to increase volume

VOL-: Press this button to decrease volume

Press this button to select previous song
▶: Press this button to select next song
Play/pause music from USB/SD/BLUETOOTH

Instructions of Top panel

1. USB stick input
2. SD/MMC card input
3. Press to select previous song, long press to decrease volume
4. Play/pause music from USB/SD/BLUETOOTH
5. Press to select next song, long press to increase volume
6. Input selection
7. Press to select 7 Preset EQ.
8. Press to repeat current songs/ all the songs in USB/SD memory

1. Power LED
2. Remote control window

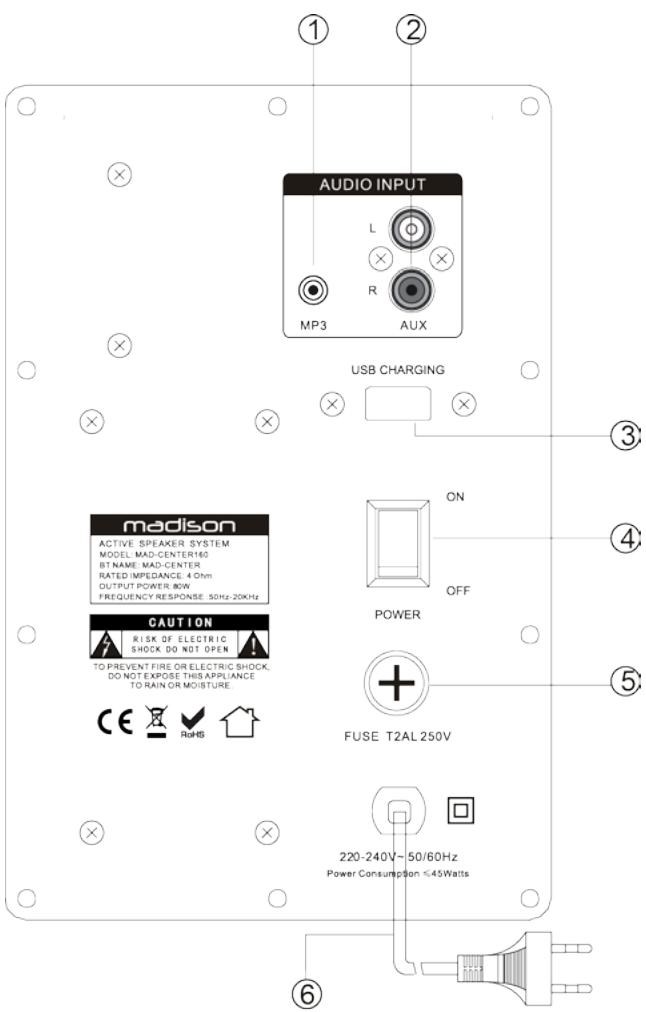

Rear panel of MAD-CENTER160

1. MP3 input jack
2. AUX input jack
3. USB charging
4. Power switch
5. Fuse
6. Power cable

Operating Instructions

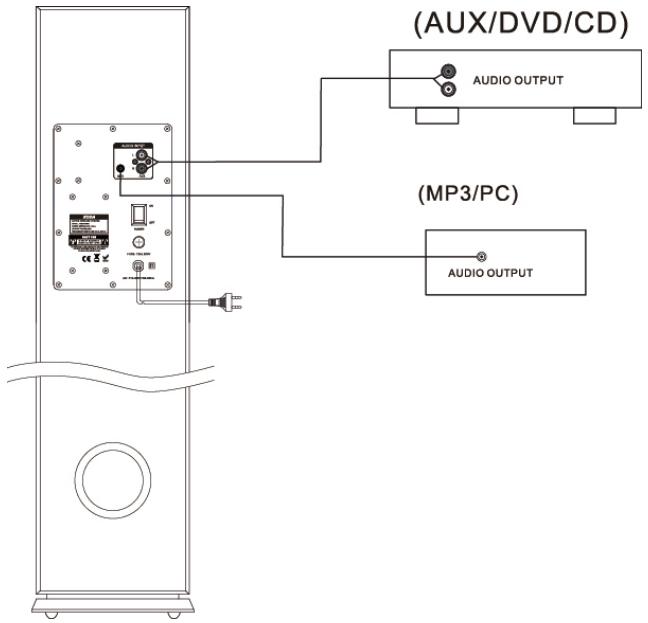

1. Before starting the power, please connect the system properly according to the above chart. Make sure to connect the polarity correctly and turn the volume button to minimum position.
2. Please turn input selector button to correct position and switch the unit on. After a few seconds, the amplifier is in normal working condition. Set the volume to an adequate level and enjoy your music.
3. The power fuse is inside of the set. If it blows, it must be replaced by a trained technician. The new fuse must have the same specifications as the original one.
4. If the LED is not bright once the system is switched on, the set is under abnormal condition. Switch the unit off and solve the problem. Turn power on again.
5. Connection of Bluetooth: Press mode button on the top panel or on the remote control and select the Bluetooth input. Turn the Bluetooth function on your equipment on (such as mobile phone) and search for a Bluetooth device. The Bluetooth name is "MAD-CENTER", pair your mobile to "MAD-CENTER", and connect it. Now you can play your music.

Trouble-Shooting

If the product is not operating properly, make a check of the items in the table below. If the problem persists, a malfunction may be assumed. Disconnect the power immediately and contact the store where the unit was purchased.

Problem	Causes	Corrections
No sound	• Insecure speaker lead connection. • Audio frequency input terminal connected improperly. • Mains plug & AC jack connection is insecure • Volume control sets to minimum. • Speaker output not in right position	• Connect securely. • Check the audio frequency terminal. • Connect the power properly. • Tum volume up to a suitable level. • Put the speaker output at right position
Distortion	• The volume is too loud.	• Reduce volume.

Specifications

Output power RMS	80W @ 4 ohm
THD (at rated conditions)	≤2% (50-20kHz)
S/N ratio (line in)	≥75dB (A-weighted)
Impedance	4 Ohm
Frequency response	50Hz – 20kHz
Rated input level/impedance	Line in: 500mV
Input voltage	220 – 240Vac 50/60Hz
Consumption	≤45W
Dimensions	256 x 200 x 1000mm
Net / Gross weight	12.2kg / 13.5kg

The above specifications are for reference only.
Design and specifications are subject to change for improvement without prior notice.
