REVHV8C-QW - Hand vacuum cleaner BLACK & DECKER - Free user manual and instructions

Product type	Hand vacuum cleaner
Brand	Black+Decker
Model	REVHV8C-QW
Voltage	7.2 V dc
Battery capacity	2.0 Ah
Weight	0.66 kg
Charger	GB:S010QB1400040 / QW:S010QV1400040
Charging time	Approximately 5 hours
Charger input voltage	100-240 V ac
Charger output voltage	14 V dc
Charger output current	400 mA
Intended use	Dry vacuuming, household use
Included accessories	Folding brush, flat nozzle (depending on model)
Filtration system	Washable pre-filter and filter
Filter maintenance	Regular cleaning, replacement every 6 to 9 months
Safety	Do not vacuum liquids, do not immerse
Warranty	24 months
Repairability	Battery and charger replaceable by a professional

Frequently Asked Questions - REVHV8C-QW BLACK & DECKER

How to charge the vacuum cleaner?

Make sure the appliance is switched off. Insert the charger plug into the charging port on the appliance. Plug the charger into a mains socket. The charging indicator lights up and goes off when charging is complete. The charging time is approximately 5 hours.

What is the battery runtime?

The runtime depends on usage. The 2.0 Ah battery provides sufficient usage time for small vacuuming jobs. For optimal performance, fully recharge the battery before each use.

How to clean the filters?

Turn the dust bowl counterclockwise to remove it. Take out the filter assembly. Separate the pre-filter and the filter, rinse them with water and let them dry completely before reinstalling. You can also rinse the dust bowl.

Can you vacuum liquids?

No, this hand vacuum cleaner is designed only for dry vacuuming. Never use the appliance to vacuum liquids or flammable materials, as this could damage the appliance and pose a safety risk.

What to do if the vacuum does not turn on?

First check that the battery is charged. Make sure the On/Off switch is in the forward position. If the appliance still does not turn on, check the charger and the power cord. If the problem persists, contact a Black+Decker authorized repairer.

How to use the folding brush?

The folding brush is integrated into the appliance. To use it, flip it into the position shown in the manual (figure B). It allows dusting delicate surfaces without scratching them.

What accessories are included?

The vacuum cleaner comes with an integrated folding brush and a flat nozzle (depending on the model, supplied with the European model). The charger is also included.

How to replace the filter?

Filters should be replaced every 6 to 9 months or when worn or damaged. Remove the filter assembly from the dust bowl, replace it with a new filter available from your Black+Decker dealer.

Can the vacuum be used continuously?

Yes, but it is recommended to take regular breaks to avoid overheating. The lithium-ion battery allows normal use, but for long tasks, remember to recharge the battery between sessions.

Where to find spare parts?

Spare parts, including filters, are available from Black+Decker authorized dealers. Visit www.2helpU.com to find the nearest authorized repairer or contact your local agency.

USER MANUAL REVHV8C-QW BLACK & DECKER

BLACK+ DECKER™

Technical diagram of a handheld vacuum cleaner with numbered parts and exploded view

English (original instructions) 4

Diagram showing a device with labeled parts including a plug, cable, and connector, marked with numbers ⑦ and ⑨.

⑤ E

Technical diagram of a cleaning or cleaning device with numbered parts labeled 4 and 5

④a ④b G

Intended use

Your BLACK + DECKER REVHV8C handheld vacuum cleaner has been designed for light dry vacuum cleaning purposes.

This appliance is intended for household use only.

Safety instructions

Warning! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Warning! When using battery-powered appliances,

basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.

• Read all of this manual carefully before using the appliance.
• The intended use is described in this manual.

⑤ H

The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

- Retain this manual for future reference.

Using your appliance

• This appliance contains batteries that are only replaceable by skilled persons.
• Do not use the appliance to pick up liquids or any materials that could catch fire.
• Do not use the appliance near water.
• Do not immerse the appliance in water.
• Never pull the charger lead to disconnect the charger from the socket. Keep the charger lead away from heat, oil and sharp edges.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not use without dust bag and/or filters in place.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorized repair agent.
• Regularly check the charger lead for damage. Replace the charger if the lead is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions

- When not in use, the appliance should be stored in a dry place.

- Children should not have access to stored appliances.

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any moving parts.
• Injuries caused by touching any hot parts.
• Injuries caused when changing any parts or accessories.
• Injuries caused by prolonged use of the appliance. When using any appliance for prolonged periods ensure you take regular breaks.
• Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Batteries and chargers

Batteries

• Never attempt to open for any reason.
• Do not expose the battery to water.
• Do not expose the battery to heat.
• Do not store in locations where the temperature may exceed 40°C.

• Charge only at ambient temperatures between 10°C and 40°C.

• Charge only using the charger provided with the appliance/tool. Using the wrong charger could result in an electric shock or overheating of the battery.

• When disposing of batteries, follow the instructions given in the section "Protecting the environment".
• Do not damage/deform the battery pack either by puncture or impact, as this may create a risk of injury and fire.
• Do not charge damaged batteries.
• Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries carefully wipe the liquid off using a cloth. Avoid skin contact.
• In case of skin or eye contact, follow the instructions below.

Warning! The battery fluid may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye contact, rinse immediately with clean water and seek medical attention.

Chargers

Your charger has been designed for a specific voltage.

Always check that the mains voltage corresponds to the voltage on the rating plate and the information in the technical data table.

Warning! Never attempt to replace the charger unit with a regular mains plug.

- Use your BLACK+DECKER charger only to charge the battery in the appliance/tool with which it was supplied.

Other batteries could burst, causing personal injury and damage.

• Never attempt to charge nonrechargeable batteries.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
• Do not expose the charger to water.
• Do not open the charger.
• Do not probe the charger.
• The appliance/tool/battery must be placed in a well ventilated area when charging.

Electrical safety

Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

Symbols on the charger

Read all of this manual carefully before using the appliance.

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

The charging base is intended for indoor use only.

Labels on appliance

The following symbols appear on this appliance along with the date code.

Read all of this manual carefully before using the appliance

Only use with charger

GB:S010QB1400040

QW:S010QV1400040

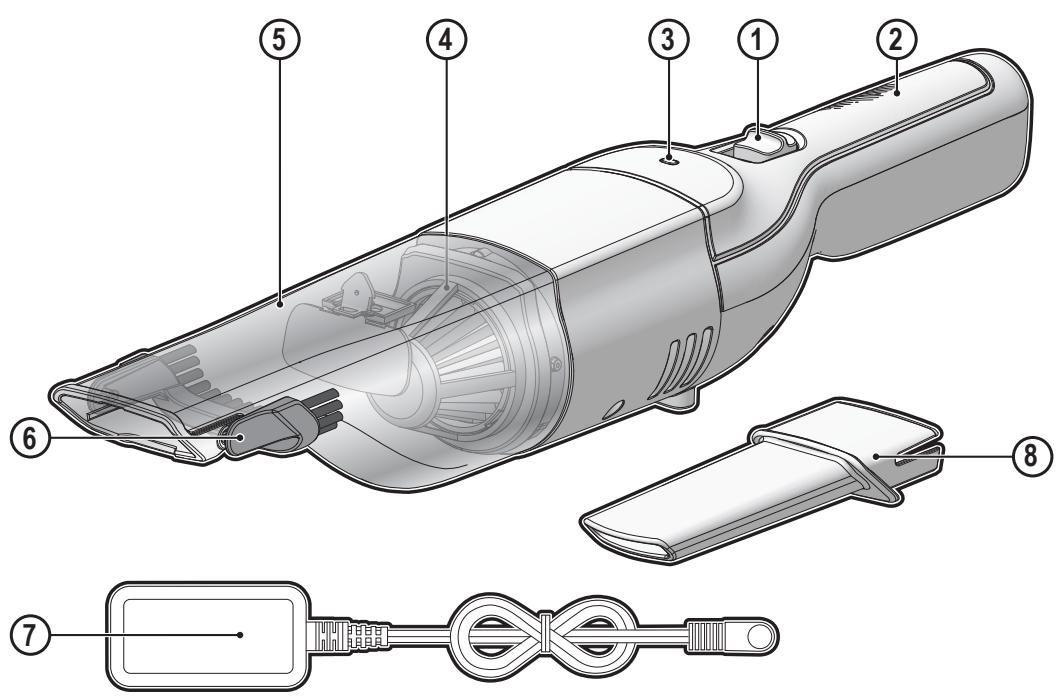

Features

This tool includes some or all of the following features.

1. On/Off switch
2. Main handle
3. Charge indicator LED
4. Filter assembly
5. Dust bowl
6. Flip down brush
7. Charger
8. Crevice tool (Only available with REVHV8CA)

Operation (Fig. A)

◆ To turn on slide the On/Off switch (1) forward as shown in figure A.
- Slide the On/Off switch backward, the appliance stops working.

Using the flip down brush (Fig. B)

◆ Flip the brush into position for use, as shown in figure B.

Attaching Accessories (Fig. C

If you need to use an accessory such as the crevice tool (8) (supplied with European unit only) insert the accessory into the air inlet as shown in figure c and then start the appliance.

Charging (Fig. D)

◆ Make sure that the appliance is switched off. The battery will not be charged with the on/off switch (1) pressed.
◆ Insert the charger jack plug (7) into the charging port (9).
◆ Plug in the charger. Switch on at the mains.
- The LED (3) indicator will light up while charging and switch off when fully charged.
While charging, the charger may become warm. This is normal and does not indicate a problem. The appliance can be left connected to the charger indefinitely.

Warning! Do not charge the battery at ambient temperatures below 10 °C or above 40 °C.

Cleaning the filters (Fig. E, G, H)

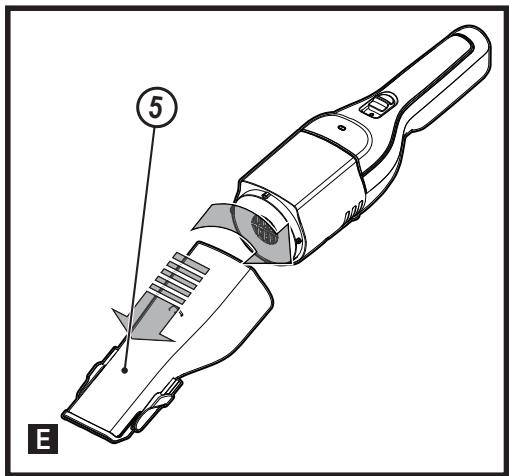

◆ Rotate the dust bowl (5) in a counterclockwise direction to release from the appliance body as shown in figure E.

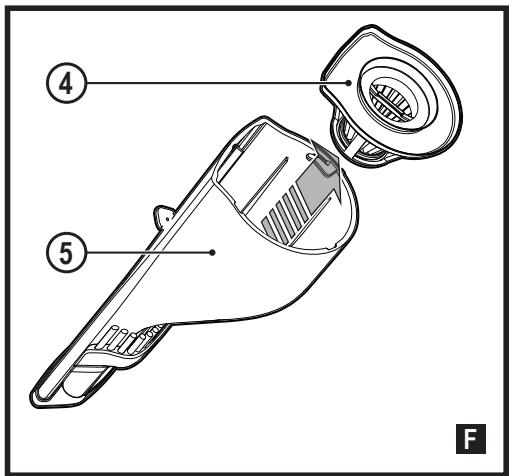

◆ Take out the filter assembly (4) from the dust bowl (5).

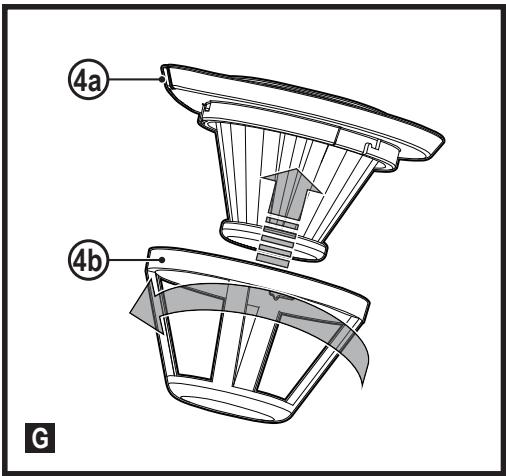

- The prefilter (4a) and filter (4b) can be seperated and rinsed with water and should be dried afterwards.

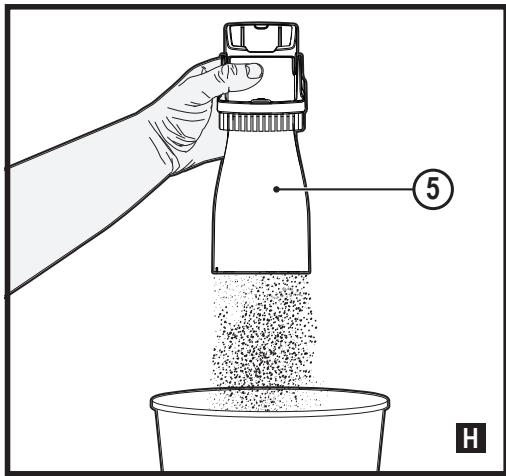

◆ Dispose of the dirt inside the dust bowl as shown in figure H. The dust bowl can be rinsed by water. However it needs to be dried afterwards.

Replacing the filters

The filters should be replaced every 6 to 9 months and whenever worn or damaged.

Replacement filters are available from your BLACK+DECKER dealer

Maintenance

Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance on corded/cordless power tools:

◆ Switch off and unplug the appliance/tool.
- Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
- Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Note:

• BLACK+DECKER's policy is one of continuous improvement to our products and, as such, we reserve the right to change product specifications without prior notice.
  ◆ Standard equipment and accessories may vary by country.
  ◆ Product specifications may differ by country.

ENGLISH

(Original instructions)

◆ Complete product range may not be available in all countries. Contact your local BLACK+DECKER dealers for range availability.

Technical data

	REVHV8C
Voltage ( V_dc )	7.2
Battery	2.0Ah
Weight (Kg)	0.66
Charger	GB:S010QB1400040, QW:S010QV1400040
Approx charge time (h)	5
Input Voltage ( V_sc )	100 - 240V
Output Voltage ( V_dc )	14
Current (mA)	400

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase.

This guarantee is in addition to and in no way prejudices your statutory rights.

The guarantee is valid within the territories of the Member States of the European Union, European Free Trade area and the United Kingdom.

To claim on the guarantee, the claim must be in accordance with Black&Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent.

Terms and conditions of the Black&Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.
