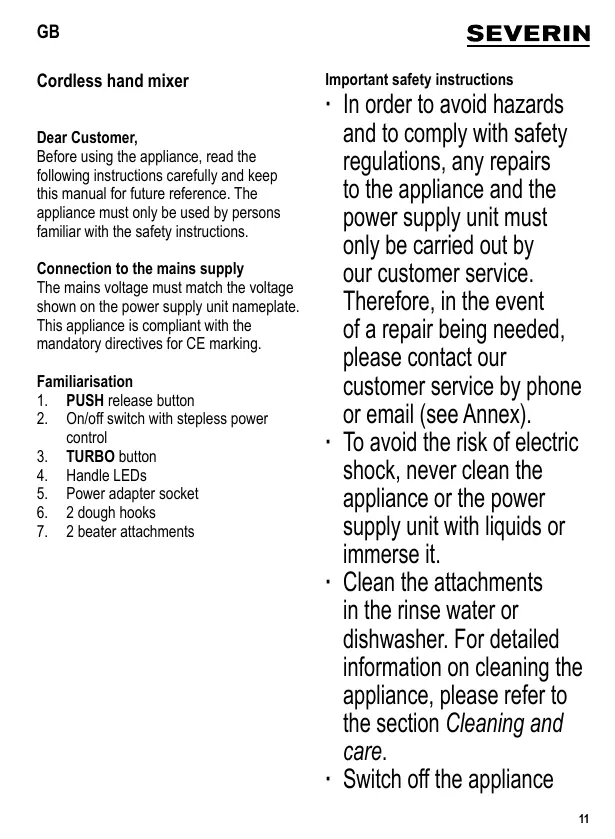

USER MANUAL SSFILHM3843 SEVERIN

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with the safety instructions.

Connection to the mains supply

The mains voltage must match the voltage shown on the power supply unit nameplate. This appliance is compliant with the mandatory directives for CE marking.

Familiarisation

1. PUSH release button
2. On/off switch with stepless power control
3. TURBO button
4. Handle LEDs
5. Power adapter socket
6. 2 dough hooks
7. 2 beater attachments

Important safety instructions

• In order to avoid hazards and to comply with safety regulations, any repairs to the appliance and the power supply unit must only be carried out by our customer service. Therefore, in the event of a repair being needed, please contact our customer service by phone or email (see Annex).
• To avoid the risk of electric shock, never clean the appliance or the power supply unit with liquids or immerse it.
• Clean the attachments in the rinse water or dishwasher. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
• Switch off the appliance

and disconnect the power supply unit from it:

• before fitting or removing any attachments,
• in case of any malfunction,
  -during cleaning,
• when there is no supervision,

• after each cycle of use.

• Warning! Any misuse can cause severe personal injury.

• The appliance may only be used by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
• The appliance must not be

used by children. Keep the appliance and the power supply unit away from children.

Children must not be permitted to play with the appliance.
- This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offices and other similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.

• Before commissioning, check the whole appliance, including the power supply unit with power cord and any accessories, to ensure that there are no defects or damage, which could impair the functional safety of the appliance. If the appliance, for example, has been dropped onto a hard surface, or if excessive force has been used to pull the power cord of the power supply unit, it may show outside damage that may not be visible. In such cases, do not operate the appliance.

• Caution: After switching off, always wait until the motor has come to a complete standstill. Do not touch any moving parts.
• The appliance and the power supply unit with the

power cord must not be exposed to any sources of heat.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• Never touch the mains plug with wet hands.
• Do not touch any moving parts during operation, and do not insert any implements (e.g. dough scrapers or cooking spoons) into the bowl unless the motor has come to a complete standstill.
• Keep your hair, hands, and loose clothing away from moving parts, openings, and vents to avoid entanglement.
• No responsibility is accepted if damage results from improper use, or if these instructions are not

complied with.

Safety When Handling Batteries

• There is a risk of injury and explosion if batteries are handled incorrectly.
• The appliance contains rechargeable batteries that cannot be replaced. Never replace the rechargeable batteries with other rechargeable or non-rechargeable batteries.
• WARNING! Use only the included power supply unit to charge the battery (see Technical Data). Never use another power supply unit to charge the batteries. The power supply unit provided must, in turn, only be used to charge the appliance batteries provided.
• When disposing of the appliance, take the motor

unit with battery to an appropriate collection point in your area to be disposed of in a safe and environmentally friendly way. Never dispose of batteries with household waste.

• Never disassemble the motor unit with the battery. Never expose to high temperatures or put it into a fire.
• The appliance must always be stored in a dry interior at temperatures between -10^ and 60^ . Failure to do so may damage the battery.
• If the battery is handled incorrectly, liquid may leak from it. Do not continue using a battery if it is damaged or leaking liquid.
• If there has been any leakage, avoid contact with

the liquid.

• If any contact with the leaked liquid occurs, rinse off immediately with plenty of water. In the event of any symptoms (of any kind), please consult a doctor.

Intended Use

• The appliance is intended exclusively for mixing suitable foods, whipping cream, or beating egg whites.
• Use the appliance only with the accessories provided.
• Any other use not mentioned in the instructions is considered improper use and could result in serious injury or damage to the appliance.

Before using for the first time

• Remove all remaining packaging material and any promotional stickers from the appliance. The nameplate must not be removed.
• Clean the appliance as described in the Cleaning and Care section.
• Charge the battery as described in the Charging the Battery section.

Short-term operation

The hand blender is designed for a short-time operation of 5 minutes (KB 5). This means that the hand blender should not be operated continuously for more than 5 minutes. Switch off the appliance

afterwards and allow the motor to cool down for 20 minutes.

Switch settings

• The hand blender features a stepless switch.
  Position 0: Off
• Bottom switch position: For mixing light and liquid mixtures or when stirring in any ingredients
  Medium & top switch position: For stirring and kneading
• For heavy and tough dough mixtures, the top switch position must be used.

Turbo setting

With the appliance switched on, maximum speed may be obtained for short periods by pressing the turbo button regardless of the speed level selected.

Selecting the attachments

Beater attachments

• Suitable for light and liquid mixtures such as crèmes, mixing dough, mashed potatoes, egg white or cream etc.

Dough hooks

• For heavy, kneading-type dough.
• The dough hook with the integrated plate must be inserted into the larger opening on the left, with the other dough hook inserted into the right opening.

Charging the Battery

• Charge the battery regularly, especially after any long period without use. This extends battery life and ensures the longest possible processing cycles.
  During the charging process, the appliance cannot be used.
• Plug the power adapter of the included power supply unit into the socket on the handle.
• Connect the power adapter supplied to the power socket.
• The LEDs should start to flash.
• When the battery is fully charged, all LEDs light up permanently. When the battery is empty, the charging process takes approximately 2 hours.
• Unplug the power supply unit from the power socket.
  Take the power adapter of the power supply unit out of the connection socket for the appliance.

LED indication

The six LEDs on the handle indicate the battery charge level:

Charging:

• When the battery is low, the rear LEDs flash; when the battery is medium, the middle LEDs flash; and when the battery is high, the front LEDs flash.
• The more LEDs that are permanently lit, the higher the charge level.
• When all LEDs light up permanently, the battery is fully charged.

Operation:

• The fewer LEDs that are lit, the lower the charge level.
• When the battery power is below 20% ,

the rear two LEDs appear flashing.

Overload:

• If all LEDs flash simultaneously, the appliance is overloaded and switches off. You can switch the appliance on again immediately if the battery has sufficient power. When the last two LEDs flash, charge the appliance first.
  If necessary, add less dough to prevent the appliance from switching off again.

Operation

• Insert the selected attachments into the openings on the underside of the blender and push them gently upwards until they lock into place.
  Depending on the quantity of ingredients, use a sufficiently deep bowl.
• Any bowl, round container or glass is suitable, provided it is scratch-proof and the attachments can rotate freely inside.
• Once the attachments are fitted, take the blender in hand and position the attachments inside the container filled with the ingredients.
• Use the switch to turn the appliance on.
• Once processing is finished, or if you wish to interrupt the operation, switch off first and wait until the motor has come to a complete standstill before lifting the attachments out of the mixture.

Ejecting the attachments

Always switch off the appliance from before any attachments are ejected.
- The attachments are automatically detached PUSH when the release button is pressed.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply.
• To avoid the risk of electric shock, never clean the appliance or the power supply unit with liquids or immerse it.
• Use a slightly damp cloth to wipe the housing.
• The beaters and dough hooks can be cleaned in the rinse water or dishwasher. After cleaning, dry thoroughly.

Recipe for testing institutes

924 g Flour

665 ml Water

Blending procedure:

1. 30 seconds on bottom switch position
2. 4 minutes, 30 seconds on top switch

position

Dispose of the appliance with the battery

Devices and batteries marked with this symbol must be disposed of separately from household

waste! Devices and batteries contain valuable raw materials that can be recycled. Proper disposal of these items protects the environment and public health. Take the device with the battery to the appropriate collection points for disposal.
