GSN 36VW30G/03 - INSTALLATION INSTRUCTIONS - Fridge Freezer BOSCH - Free user manual and instructions

Product type	Fridge-freezer
Brand	BOSCH
Model	GSN 36VW30G/03
Installation type	Free-standing appliance
Dimensions (H x W x D)	Approximately 180 x 60 x 65 cm
Weight	Approximately 70 kg
Power supply voltage	220-240 V ~ 50/60 Hz
Installation location	Dry, ventilated room, away from sunlight and heat sources
Minimum distances from heat sources	3 cm (electric/gas cooker); 30 cm (oil/coal heating)
Door opening angle	Sufficient angle for use (not specified)
Possibility to reverse door opening direction	Yes (recommended by customer service)
Changing door handle	Possible (depending on model)
Side-by-side installation	Yes (fridge on left, freezer on right)
Wall spacers	Included, to be mounted to comply with energy consumption
Adjustable feet	Yes (front, screw type, with fork wrench)
Leveling	Mandatory, using a spirit level
Junction kit for side-by-side	Available from retailer (optional)

Frequently Asked Questions - GSN 36VW30G/03 - INSTALLATION INSTRUCTIONS BOSCH

How to install the appliance side-by-side with another?

Place the fridge on the left and the freezer on the right. Use the junction kit available from your retailer and stick the spacers to the four corners 5 cm from the lateral edges after degreasing the surfaces.

How to reverse the door opening direction?

It is recommended to entrust this operation to the after-sales service. Before any intervention, disconnect the appliance. Follow the order of the numbers in fig. 1 of the manual. Carefully lay the appliance on its back with a cushion.

How to change the door handle?

Follow the order of the numbers in fig. 4 of the manual. This operation is performed if necessary, depending on the model.

How to mount the wall spacers?

Mount the wall spacers to achieve the stated energy consumption. A smaller gap does not hinder operation but may slightly alter consumption.

How to adjust the appliance to make it level?

Place the appliance in the intended location, then adjust the two front screw feet with a fork wrench. Check the level with a spirit level to ensure a vertical position.

What distances must be observed from heat sources?

3 cm for electric or gas cookers, 30 cm for oil or coal heating appliances. Use an insulating panel if necessary.

Where to install the appliance?

In a dry and ventilated room, away from direct sunlight and heat sources. The floor must be stable and level.

Can I install the appliance on an uneven floor?

Yes, by compensating for unevenness with shims under the appliance and adjusting the front screw feet. Make sure the appliance stands plumb.

How to degrease the surfaces before sticking the spacers?

Use a degreasing solvent or alcohol to carefully degrease the bonding areas on the right side of the fridge.

Can the appliance be laid on its back?

Yes, but with caution: place a cushioning material under the back to avoid damage. Note: do not mount the side wall spacer while the appliance is lying down.

USER MANUAL GSN 36VW30G/03 - INSTALLATION INSTRUCTIONS BOSCH

Using the installation instructions 8

Installation location 8

Installing appliances

next to each other 9

Changing over the door hinges 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

fr Table des matieres

Lieud'st installation 11

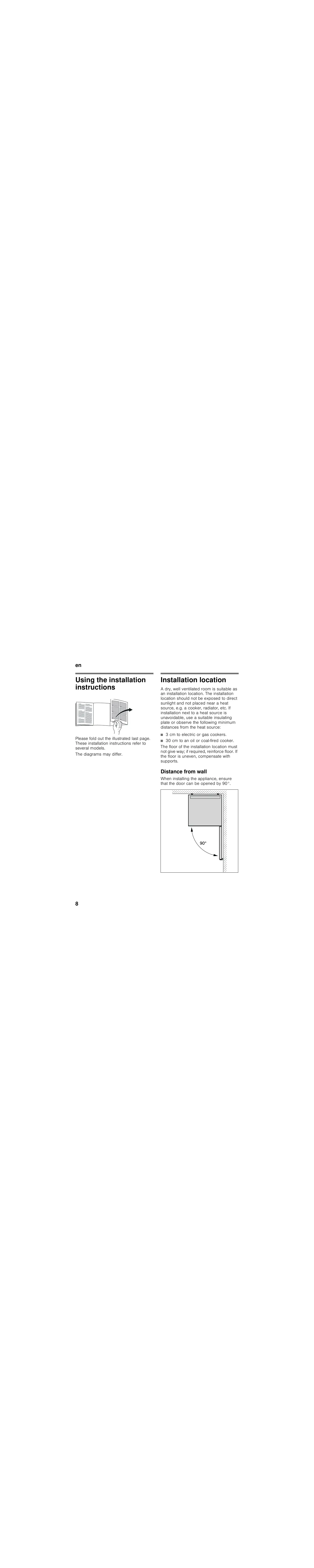

Using the installation instructions

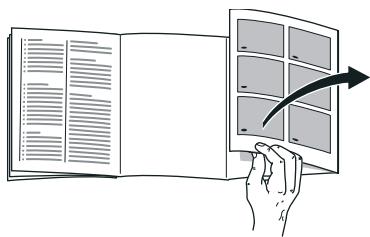

Please fold out the illustrated last page.

These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

3 cm to electric or gas cookers.
30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

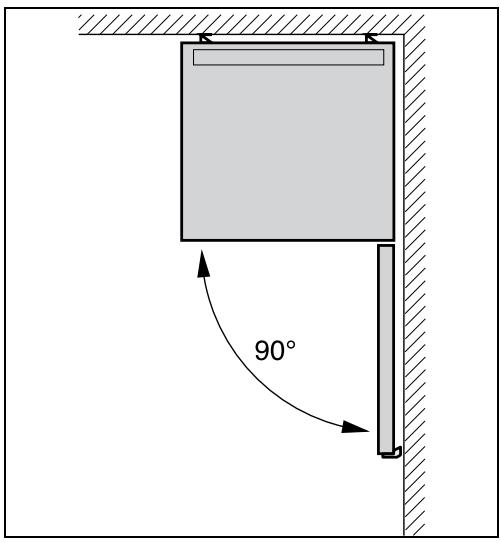

When installing the appliance, ensure that the door can be opened by 90^ .

Installing appliances next to each other

Fig. 2

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 3

1. On the right side of the refrigerator, degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 4

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

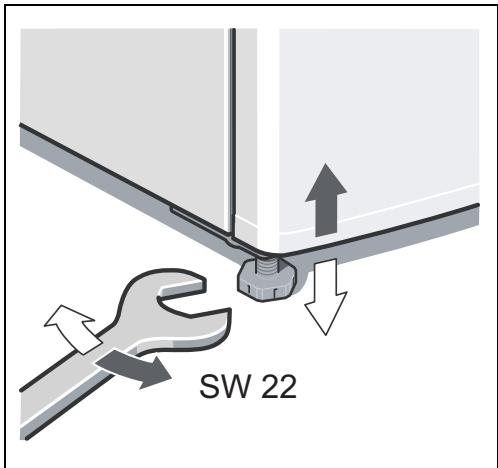

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.
