USER MANUAL RH 440 NTE DOMETIC

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

RH430NTE, RH440NTE

EN Minibar

Installation and Operating Manual.....11

DE Minibar

Technical diagram of an open refrigerator with screw installation and magnified detail view showing internal components

3

A 3 2 1 1

B 1 3 2 1

1 C 3 2 1

1 D 3 2 1

4 1. 2. 3.

5 3. 2. 1.

6 5 mm 5 mm 1. 2. 3.

7 1. 2. 3.

8 1. 2. 3.

9 3. 2. 1.

10 180°

Diagram showing a 3D geometric shape with a downward arrow and dashed lines indicating projection or transformation (no text or symbols)

12 1. 2.

Simple geometric diagram showing a trapezoid with a shaded rectangle and a small square, labeled with number 13 (no text or symbols on the shapes themselves)

14 180°

15 1. 2. 3.

16 1. 2.

Diagram of a table tennis serve with a stand and ball, showing a downward force (no text or symbols)

18 3. 2. 1.

19 10 mm 40 mm 1. 2.

20 6-8 mm 1-2 mm

21

22 90°

23 1. 2. 3.

Line drawing of a door frame with two arrows indicating upward motion (no text or symbols)

Diagram of a mechanical device with an upward arrow and a small object on top, no text or symbols present

26

27 3. 2. 1.

Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols....11
2 Safety instructions....12
3 Intended use....14
4 Scope of delivery 14
5 Technical description ..... 14
6 Installation....15
7 Operation....17
8 Cleaning and maintenance....18
9 Troubleshooting....19
10 Disposal....19
11 Technical data....20

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause death or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

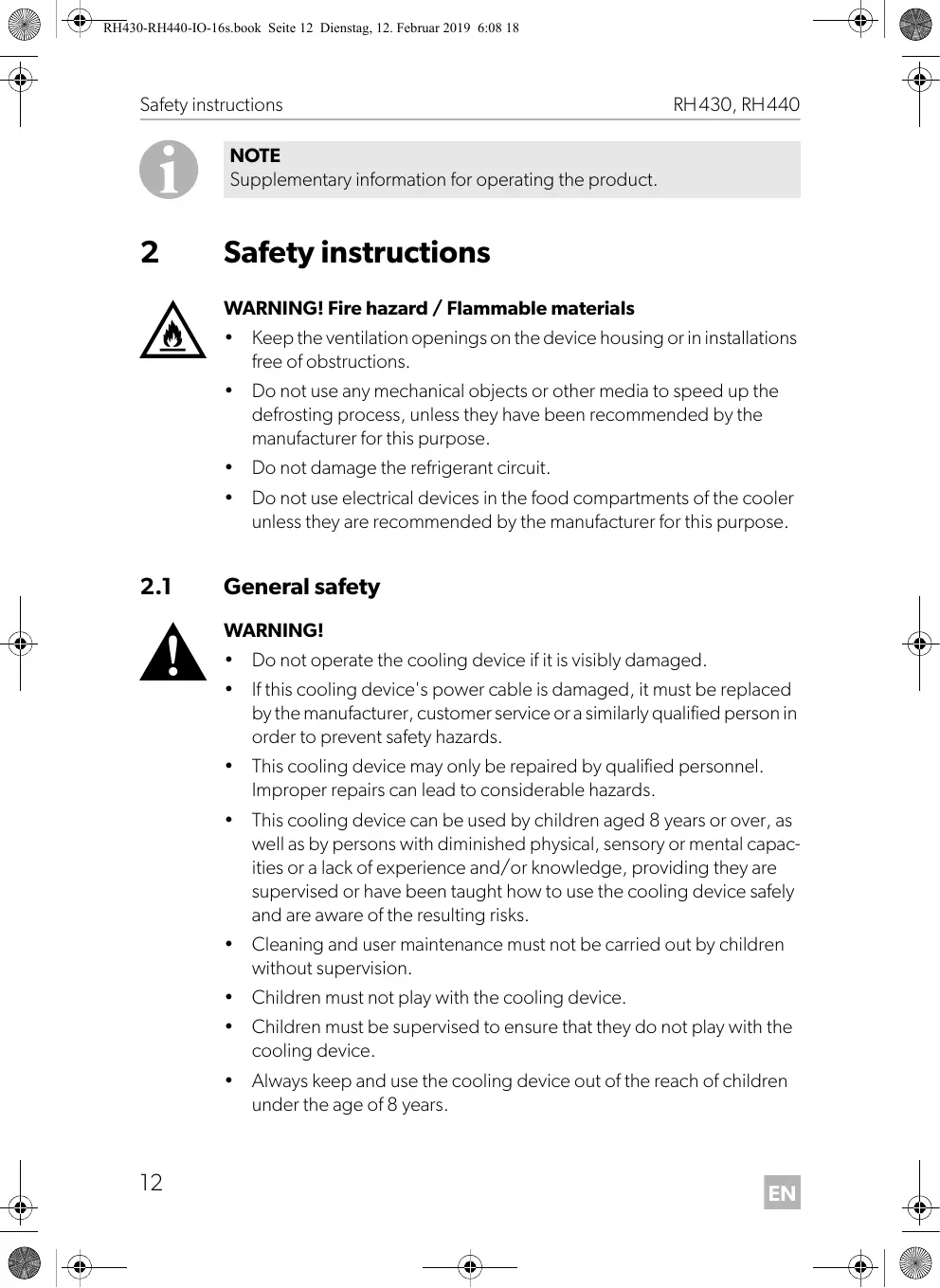

2 Safety instructions

WARNING! Fire hazard / Flammable materials

• Keep the ventilation openings on the device housing or in installations free of obstructions.
• Do not use any mechanical objects or other media to speed up the defrosting process, unless they have been recommended by the manufacturer for this purpose.
• Do not damage the refrigerant circuit.
• Do not use electrical devices in the food compartments of the cooler unless they are recommended by the manufacturer for this purpose.

2.1 General safety

WARNING!

• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This cooling device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the cooling device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  • Children must not play with the cooling device.
• Children must be supervised to ensure that they do not play with the cooling device.
• Always keep and use the cooling device out of the reach of children under the age of 8 years.

- Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION!

• Disconnect the cooling device from the power supply
• before each cleaning and maintenance
• after every use

- Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Connect the cooling device with an AC connection cable to the AC power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

2.2 Operating the cooling device safely

CAUTION!

- Before starting the cooling device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

• Danger of overheating!

Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components.

Do not place the cooling device in closed compartments or areas with none or minimal air flow.

- Ensure that the ventilation openings are not covered.

• Do not fill the inner container with ice or fluids.
  • Never immerse the cooling device in water.

- Protect the cooling device and cables against heat and moisture.

3 Intended use

The cooling device is suitable for cooling beverages and snacks.

The device is designed for use with a 100 - 240 V AC mains supply.

The cooling device is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments
- farm houses
- clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

4 Scope of delivery

Quantity	Description
1	Minibar
1	Installation and operating manual

5 Technical description

The cooling device can cool products to a maximum of 21 °C under the ambient temperature and keep them cool. A grid divider can be used to separate foodstuffs, e.g. bottles and sweets.

Its cooling system is a non-wearing Peltier cooling.

Control element

No. in fig. 1, page 3 Description

1 Temperature controller

6 Installation

WARNING!

Damage to the refrigerant circuit at the back of the cooling device causes a fire hazard as the cooling agent is highly flammable. To avoid a damage to the refrigerant circuit due to instability of the cooling device, always fix the cooling device in accordance with the instructions.

NOTICE!

When carrying the cooling device handle it with special care.

• Carry the cooling device with two people.
• Only carry the cooling device upright.
• Be careful not to damage the technical components located at the backside.

The cooling device is designed for free-standing installation, but can be built-in if the following conditions are complied with to ensure satisfactory operation and maximum cooling efficiency.

• The cooling device must be levelled carefully to ensure proper function.
• For the glass door version: When ambient humidity is above 65 % in 25 °C ambient temperature, moisture will condense on the door.
• The socket outlet for the mains connection must be freely accessible.
• When the cooling device is positioned, the supply cord must not be trapped or damaged.

Ventilation (fig. 3, page 4)

• Ventilation must be provided as shown in alternatives A, B, C or D.
• Ventilation grills (1), if used, must have openings of at least 200cm^2 each.

- The minimum clearance between the cooling device's back and the surrounding structure should be as follows:

No. in fig. 3, page 4	Min. distance
2	20 mm
3	105 mm

• The ventilation duct must at least measure 105 mm x the width of the cooling device.
• Only the entire cooling unit must project into the ventilation duct as shown.
• Air passing through the ventilation duct must not be preheated by any source of heat.
• The ventilation duct must be kept free from any obstacles. Especially portable multi socket outlets or portable power supplies, which can get warm, must not be kept at the rear of the cooling device.

6.1 Fixing the cooling device

▶ Fix the cooling device through its fixing feet as shown (fig. 2, page 3).

6.2 Changing the decorative plate

▶ Change the decorative plate as shown (fig. 4 to fig. 7, page 5).

6.3 Mounting the sliding hinge (optional)

You can mount a sliding hinge that allows the cooling device door to be opened at the same time as the door of the built-in cabinet.

▶ Mount the sliding hinge as shown (fig. 8, page 6, to fig. 22, page 9).

6.4 Reversing the door

▶ Reverse the door as shown (fig. 23 to fig. 27, page 10). or ...

▶ Reverse a door with a sliding hinge as shown (fig. 25 and fig. 26, page 10).

7 Operation

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable containers.

NOTE

• Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 18).
• A few water drops may form inside the cooling device if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooling device falls. The cooling device is not defective. Wipe it out with a dry cloth if necessary.

7.1 Energy saving tips

• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.

7.2 Using the cooling device

NOTICE! Risk of damage

• Ensure that the objects placed in the cooling device are suitable for cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.
• Ensure that your cooling device is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.

NOTE

If you are not going to use the cooling device for a long time, leave the door slightly ajar to prevent unpleasant odours building up.

▶ Place the cooling device on a firm base.
▶ Connect the connection cable to the AC mains supply.
√ The cooling device starts cooling the interior.
▶ Set the temperature controller (fig. 1 1, page 3) to the desired temperature (3 – 12 °C)
▶ If you wish to switch the cooling device off, pull out the connection cable or ...
▶ Rotate the temperature controller (fig. 1 1, page 3) anti-clockwise to the OFF position.

8 Cleaning and maintenance

WARNING!

Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage

• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooling device.

▶ Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the cooling device.
▶ Wash out the cooling device using clean water and dry thoroughly.
▶ At annual intervals, remove dust from the cooling aggregate at the back of the cooling device using a brush or a soft cloth.

9 Troubleshooting

Problem	Possible cause	Suggested remedy
Your device is not working (plug is inserted).	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
	The integrated mains adapter is defective.	This can only be repaired by an authorised customer services unit.
	The main control board is defective.	This can only be repaired by an authorised repair centre.

10 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

11 Technical data

	RH430NTE	RH440NTE
Gross capacity:	30 l	40 l
Connection voltage:	100 - 240 V~, 50/60 Hz
Power consumption:	55 W12.1 W (100 - 240 V~, ECO mode)
Temperature range:	3 °C ... 12 °Cmax. 21 °C under ambient temperature
Category:	2 (Cellar)
Energy efficiency class:	A+
Energy consumption:	99 kWh/annum
Usable capacity:	25 l	34 l
Climate class:	N, T
Refrigerant:	R600a
Refrigerant quantity:	25 g
Ambient temperature:	+16 °C to +43 °C
Noise emission (sound power):	0 dB
Dimensions (W x H x D):	384 x 522 x 395 mm	401 x 554 x 425 mm
Weight:	10 kg	11 kg
Testing/certification:
