USER MANUAL MASTERMIX LM800G MOULINEX

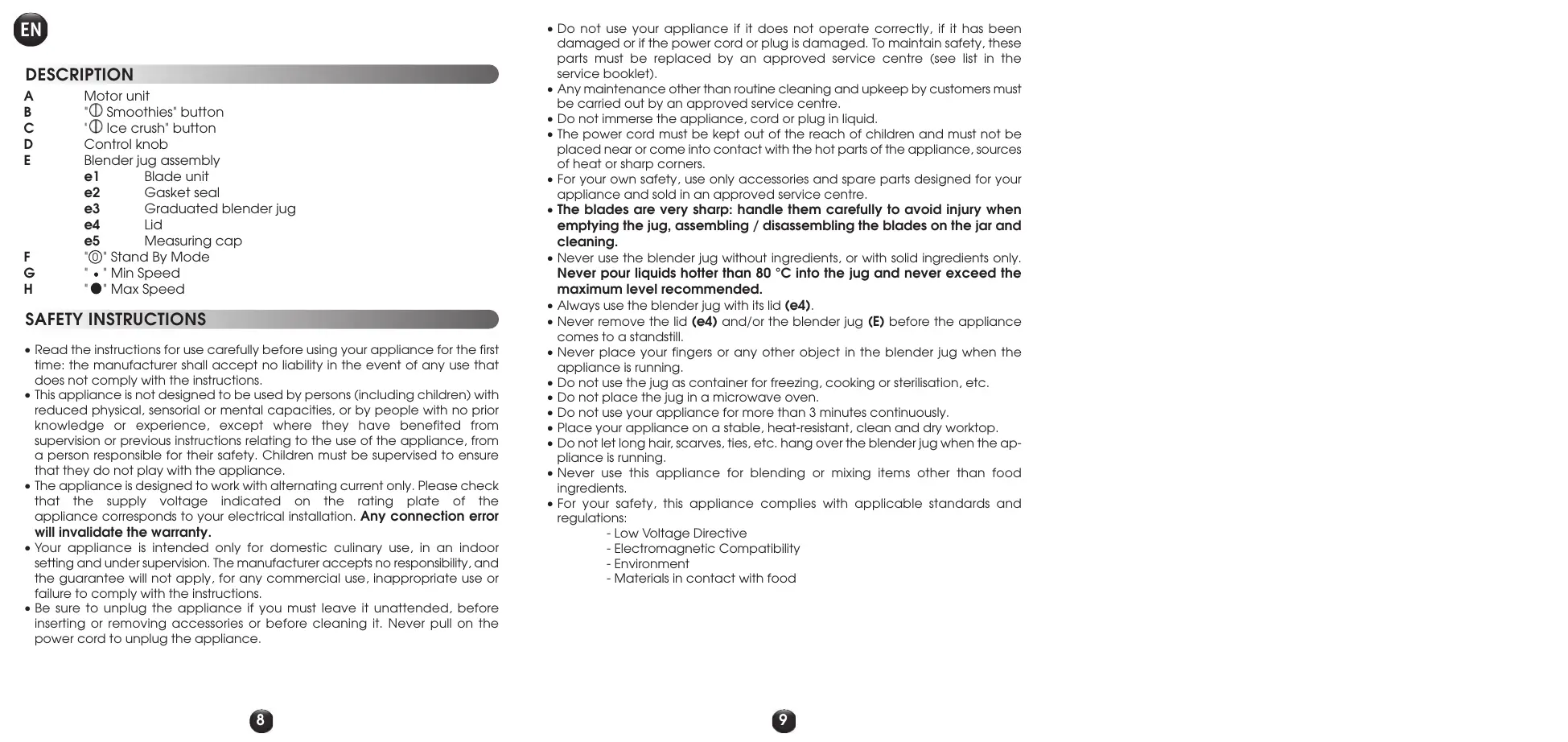

Motor unit " Smoothies" button " Ice crush" button Control knob Blender jug assembly e1 Blade unit e2 Gasket seal e3 Graduated blender jug e4 Lid e5 Measuring cap " 0 " Stand By Mode " " Min Speed " " Max Speed

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions. • This appliance is not designed to be used by persons (including children) with reduced physical, sensorial or mental capacities, or by people with no prior knowledge or experience, except where they have benefited from supervision or previous instructions relating to the use of the appliance, from a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance. • The appliance is designed to work with alternating current only. Please check that the supply voltage indicated on the rating plate of the appliance corresponds to your electrical installation. Any connection error

will invalidate the warranty.

• Your appliance is intended only for domestic culinary use, in an indoor setting and under supervision. The manufacturer accepts no responsibility, and the guarantee will not apply, for any commercial use, inappropriate use or failure to comply with the instructions.

• Be sure to unplug the appliance if you must leave it unattended, before inserting or removing accessories or before cleaning it. Never pull on the power cord to unplug the appliance.

• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an approved service centre (see list in the service booklet).

• Any maintenance other than routine cleaning and upkeep by customers must be carried out by an approved service centre. • Do not immerse the appliance, cord or plug in liquid. • The power cord must be kept out of the reach of children and must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp corners. • For your own safety, use only accessories and spare parts designed for your appliance and sold in an approved service centre. • The blades are very sharp: handle them carefully to avoid injury when

emptying the jug, assembling / disassembling the blades on the jar and cleaning.

• Never use the blender jug without ingredients, or with solid ingredients only.

Never pour liquids hotter than 80 °C into the jug and never exceed the maximum level recommended.

• Always use the blender jug with its lid (e4). • Never remove the lid (e4) and/or the blender jug (E) before the appliance

comes to a standstill.

• Never place your fingers or any other object in the blender jug when the appliance is running. • Do not use the jug as container for freezing, cooking or sterilisation, etc. • Do not place the jug in a microwave oven. • Do not use your appliance for more than 3 minutes continuously. • Place your appliance on a stable, heat-resistant, clean and dry worktop. • Do not let long hair, scarves, ties, etc. hang over the blender jug when the appliance is running. • Never use this appliance for blending or mixing items other than food ingredients. • For your safety, this appliance complies with applicable standards and regulations: - Low Voltage Directive - Electromagnetic Compatibility - Environment - Materials in contact with food

BEFORE THE FIRST USE

• Clean all the parts (E) with warm water and washing up liquid except for the motor unit (A) which must never be immersed in water or placed under running water (see § Cleaning).

CAUTION: The blades are extremely sharp; handle them with caution when using or cleaning the appliance.

• Make sure all the packaging has been removed before operating the appliance • Important note: Turn the control knob (D) to 0 before placing the blender jug on the motor unit (A). • The appliance will start only if the blender jug is positioned correctly on the motor unit. • Do not operate the appliance if the lid is not in place.

ASSEMBLING AND FITTING THE JUG

• Fit the gasket seal (e2) on the blade unit (e1) (Fig.1). • Place the assembly (e1+e2) on the base of the jug (e3). Lock it by rotating the blade unit through a quarter turn in an anticlockwise direction (Fig.2). • Introduce the ingredients to the assembled jug. • Place the lid (e4) on the jug. Place the measuring cup (e5) in its slot on the lid. • Place the blender jug assembly (E) on the motor unit (A). The blender jug can be placed in two positions: jug handle to the right or the left of the motor unit

USING YOUR APPLIANCE FOR THE FIRST TIME

• Once the blender jug is positioned correctly on the motor unit, plug in the appliance and turn it on using the desired function. • Speed selection: Turn the control knob (D) to choose the desired speed; the speed increases gradually between min " " and max " ". You can change this speed as required during preparation. • "Pulse" function: Turn the control knob (D) to the "Pulse" position. Using a succession of pulses gives finer control over the degree of blending for precise preparations. In this position, the appliance starts directly on maximum speed. It stops as soon as you release the knob.

• Function " Smoothies"

This function is used to prepare smooth milkshakes and fruit cocktails. The speed is pre-programmed for best results. To use this function, turn the control knob to 0 , and press the "Smoothies" button (B) to start the appliance. To stop it, press the "Smoothies" button (B) again. • Function " Ice crush" You can use this function to crush ice finely with pre-programmed operating cycles and speed. To use this function, turn the control knob to 0 , and press the "Ice crush" button (C) to start the appliance. To stop it, press the "Ice crush" button (C) again. • Your appliance comes with a microprocessor that controls and analyses the operating power. If the load becomes too high, your appliance will stop automatically. To restart your appliance, turn the control knob to 0 , unplug the appliance and remove some of the ingredients from the blender jug. Allow your appliance to cool down to room temperature. Plug it in again. You can then select the desired speed or function to complete your preparation.

• Depending on the nature of the ingredients, you can use the blender jug to prepare up to

1.5 L for thick mixtures

1.25 L for liquid preparations

• You can prepare finely blended soups, cream soups, stewed fruit, light batter

(pancakes, fritters, Yorkshire pudding batter, etc.), milkshakes, smoothies, cocktails, etc. • If ingredients stick to the sides of the jug when blending, stop the appliance. Remove the blender jug from the motor unit, and push the food down onto the blades using a spatula and put your blender jug back to continue your preparation. • Always pour the liquid ingredients into the blender jug first, before adding the solid ingredients, without exceeding the maximum level. • To add ingredients while blending, remove the measuring cup (e5) from the lid (e4) and add the ingredients through the feeder hole. • For finely crushed ice, use a maximum of 6 to 10 large ice cubes using "Ice

crush" function. There is no need to add water.

RECIPE WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK Carrot soup with cumin:

Ingredients: - 700 g carrots, cut into cube of 15 mm x15 mm - 800 ml of water - 1 teaspoon cumin - Salt and pepper Put the carrot pieces in the glass jar and add the water. Mix in max " " speed for 5 seconds. Turn off the appliance. Pour the mixture into a saucepan, add the cumin and cook for about 30 min. You can add water during cooking for a thinner soup. Salt and pepper according your taste.

PROBLEMS CAUSES SOLUTIONS The plug is not connected

Connect the appliance to a socket with the same voltage as that on the rating plate of the appliance.

The blender jug is not positioned correctly on the motor unit

Check that the blender jug is positioned properly on the motor unit as explained in the leaflet.

Follow the instructions in

The product is not placed on a flat surface

Place the appliance on a flat surface.

Volume of ingredients is too high

Reduce the quantity of ingredients processed.

Volume of ingredients is too high

Reduce the quantity of ingredients processed.

The lid is not correctly positioned

Appliance does not work

• Unplug the appliance and remove the blender jug. • The blades are extremely sharp; handle them with caution. • To clean the motor unit (A), use a moist cloth. Dry it carefully. • Never immerse the motor unit (A) in water or any other liquid and do not put it under running water. • For easy cleaning, be sure to wash the removable parts in warm water and washing up liquid immediately after use. • The blender jug (E) can be washed in the dishwasher using the ECONOMY or QUICK WASH programme. • To clean the blender jug (E) easily, unlock the blade unit (c1) by rotating it through a quarter turn in the clockwise direction. Remove the gasket seal (e2) and clean all an parts under running water or in the dishwasher.

The appliance stopped while in use

Excessive vibrations

Leak at the bottom of the blender jug

The blender jug gasket

Reposition the gasket seal (e2) is not positioned seal and lock the blade correctly or is absent holder correctly.

The blade does not turn easily

Pieces of food too large Replace with a new one. or too hard Reduce the size or Liquid has been blended quantity of ingredients that was too hot and processed. distorted the gasket seal Add liquid.

YOUR APPLIANCE STILL DOES NOT WORK?

Contact an approved service centre (see list in service booklet).

• Disposal of the appliance and its packaging materials The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area. For disposing of the appliance itself, please contact the appropriate service of your local authority. • End of life electrical and electronic products: Your appliance is expected to last for many years. However, when the time comes to replace it, do not throw it in the bin or in a dump, but take it to the recycling centre in your town (or to a waste reception centre where applicable).

Think of the environment!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:
