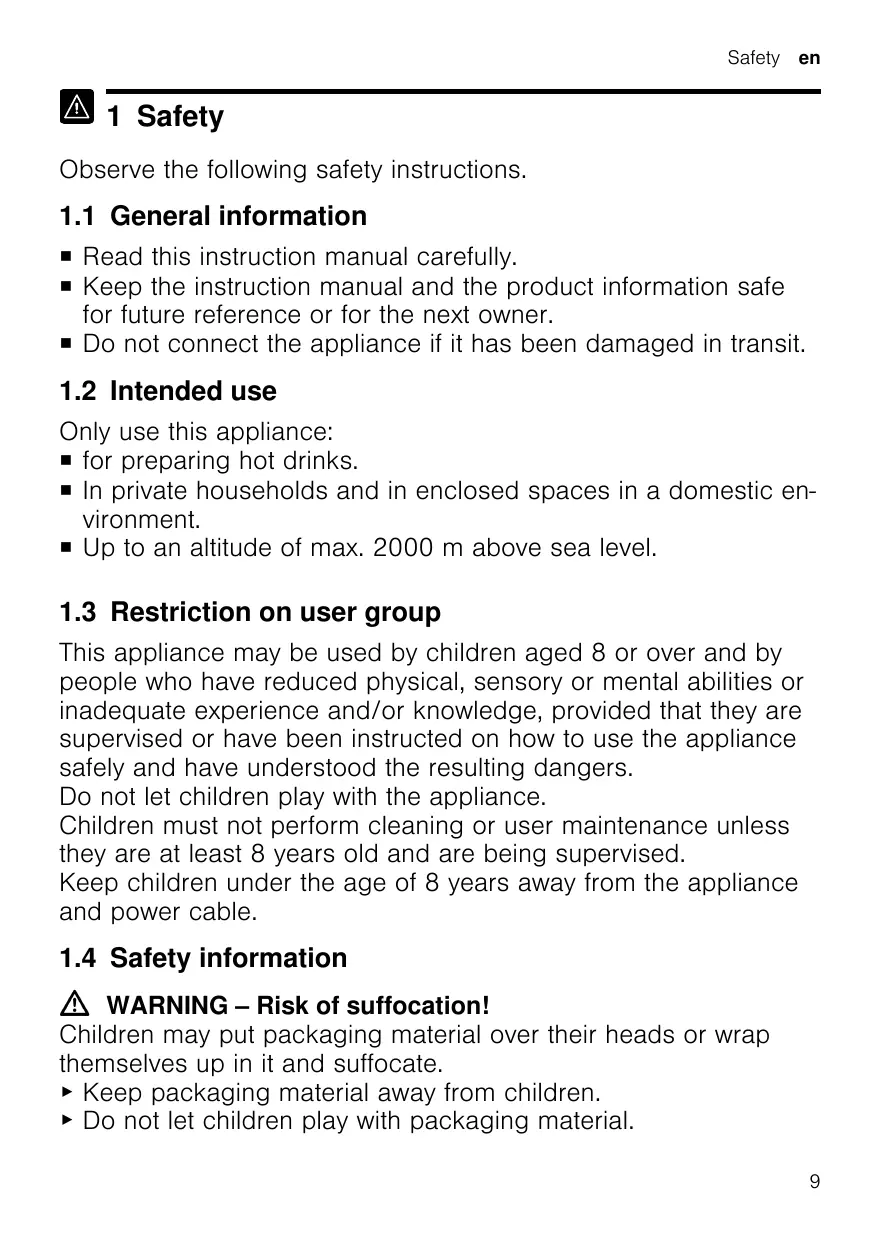

Observe the following safety instructions.

1.1 General information

“ Read this instruction manual carefully.

= Keep the instruction manual and the product information safe for future reference or for the next owner.

# Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

= for preparing hot drinks.

= In private households and in enclosed spaces in a domestic en- vironment.

= Up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

À WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

> Keep packaging material away from children.

> Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

> Keep small parts away from children.

> Do not let children play with small parts.

À WARNING - Risk of electric shock!

Incorrect installation is dangerous.

> Connect and operate the appliance only in accordance with the specifications on the rating plate.

> Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.

> The protective conductor system of the domestic electrical in- stallation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

> Never operate a damaged appliance.

> Never operate an appliance with a cracked or fractured surface.

> Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

> If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box.

> Call customer services. — Page 36

Incorrect repairs are dangerous.

> Repairs to the appliance should only be carried out by trained specialist staff.

> Only use genuine spare parts when repairing the appliance.

> Ifthe power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

> Never immerse the appliance or the power cord in water.

+ Liquids must not be spilled on the appliance plug connection.

> Only use the appliance in enclosed spaces.

> Never expose the appliance to intense heat or humidity.

> Do not use steam- or high-pressure cleaners to clean the appli- ance.

À WARNING - Risk of fire!

The appliance will become hot.

> Ventilate the appliance adequately.

> Never operate the appliance in a cupboard.

It is dangerous to use an extended power cord and non-approved

> Do not use extension cables or multiple socket strips.

> Only use adapters and power cords approved by the manufac- turer.

> Ifthe power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

À WARNING - Risk of burns!

Some parts of the appliance become very hot.

> Never touch hot appliance parts.

> Allow hot appliance parts to cool down before touching.

À WARNING - Risk of scalding!

Freshly prepared drinks are very hot.

> Leave drinks to cool down if necessary.

> Do not let escaping liquids or steam come into contact with your skin.

A remote start via the Home Connect app while the appliance is

unattended may cause scalding to third parties.

> Do not reach under the coffee outlet during the dispensing of drinks.

> Keep other persons, in particular children, away from the appli- ance.

À WARNING - Risk of injury!

Improper use of the appliance may endanger the user.

> To avoid injuries, only use the appliance for its intended pur- pose.

Trapped fingers when closing the appliance door.

> Be careful of your fingers when closing the appliance door.

The grinder rotates. > Never reach into the grinder.

À WARNING - Danger: Magnetism!

The appliance contains permanent magnets. These may affect

electronic implants, e.g. pacemakers or insulin pumps.

> People with electronic implants must stand at least 10 cm away from the appliance.

> This minimum distance of 10 cm must also be observed for the water tank when removed.

À WARNING - Risk of harm to health! Soiling on the appliance may be harmful to health.

> To ensure hygiene, follow the cleaning instructions for the appli- ance.

Environmental protection and saving energy en

2 Environmental protec- tion and saving energy

2.1 Disposing of packaging

The packaging materials are environ-

mentally compatible and can be re-

> Sort the individual components by type and dispose of them separ- ately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less power.

Set the interval for automatic switch- off to the smallest value. + lfthe appliance is not being used, it will switch itself off earlier. — "Basic settings", Page 25

Do not interrupt the dispensing pro- cess prematurely.

+ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

+ Limescale deposits increase the appliance's energy consumption.

3 Installation and con- nection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and complete- ness of the delivery.

Note: Different accessories are en-

closed depending on the appliance

model. This accessory is shown in a frame with a dashed line.

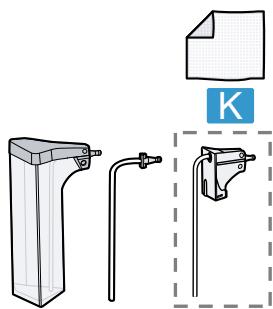

Fully automatic coffee ma- chine

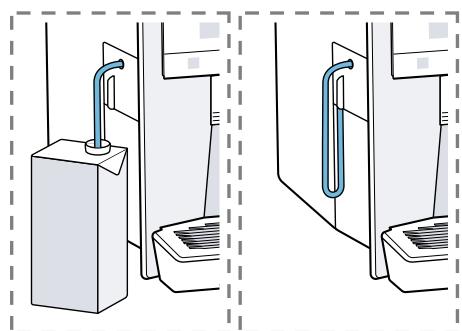

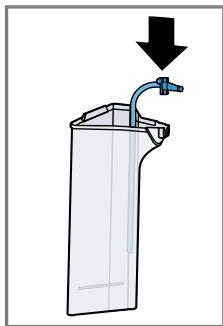

Milk container Milk tube

Adapter for milk containers ‘

Insertion aid for water filter

Cleaning tablet Water filter

Water hardness testing strip

SSEGRUESE Microfibre cloth

‘ Depending on the appliance spe- cifications

3.2 Installing and connecting the appliance

Risk of damage to the appliance. If

the appliance is not started up cor-

rectly, it may be damaged.

+ Use the appliance in frost-free rooms only.

+ Ifthe appliance has been transpor- ted or stored below 0 °C, wait 3 hours at room temperature be- fore starting it up.

>» After plugging in, always wait ap- prox. 5 seconds.

1. Place the appliance on a level, wa- ter-resistant surface that is capable of bearing its weight.

en Familiarising yourself with your appliance

2. Using the mains plug, connect the appliance to an earthed socket that has been correcily installed.

4 Familiarising yourself with your appliance

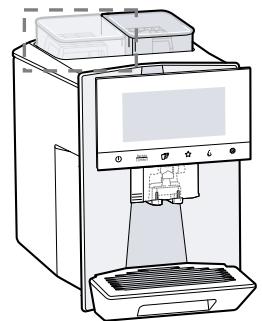

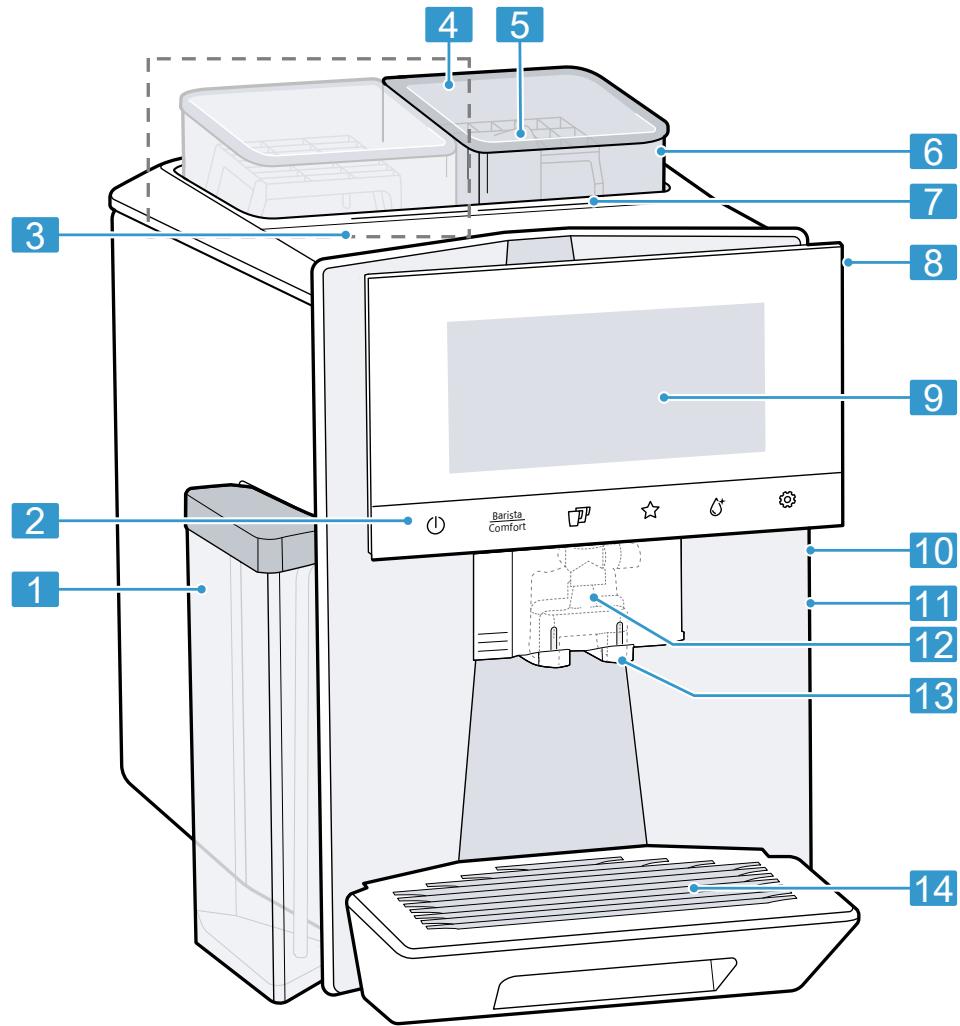

You can find an overview of the parts of your appliance here.

“ Individual details and colours may differ, depending on the appliance model.

= The operating instructions describe two product variants: — Appliance has a bean container. — Appliance has two bean contain-

! Depending on the appliance spe- cifications

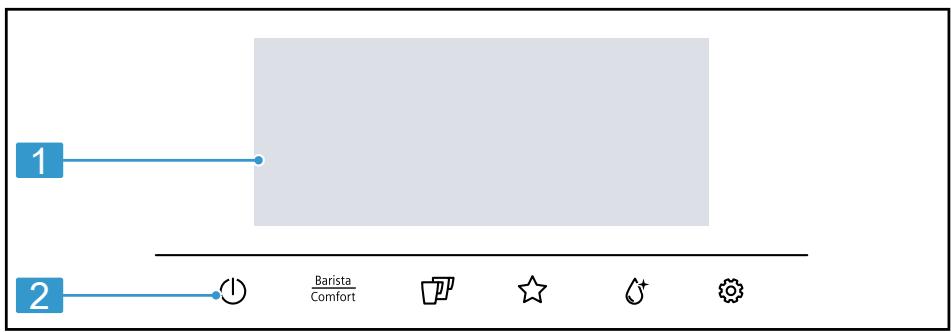

You can use the control panel to con- figure all functions of your appliance and to obtain information about the operating status.

Touch display Touch fields

The touch display functions both as a display and a control element.

Profiles Select saved bever- ages with personal set- tings.

Classic Select standard bever- ages.

coffee- Select basic bever-

World ages which can be ex-

tended in conjunction with Home Connect.

SSBCCREESSERES T Depending on the appliance spe- cifications

Aroma lid' - Beverage parameters

Bean container LED display

o] Strength Rating plate Quantity Touch display Ü Share of milk Brewing chamber door EE Grinding level Water tank © Contact time Milk system ë Temperature

! Depending on the appliance spe- cifications

Ec] Bean type selected! Æ Appliance is not con- CS nected to Home Con- ss : nect. |SÉ] Select bean container'. S Appliance is not con- ! Depending on the appliance spe- nected to the server. cifications Touch fields

Tip: You can find other beverage set- tings in the basic settings.

Here you can find an overview of the symbols that are always visible.

Display ©) Switch the appliance

comfort Appliance is in on or off.

barista baristaMode or com- ane Select baristaMode or fortMode. comfortMode.

US Cup warmer is ΠDispense two cups. switched on. % Save favourite bever-

Appliance is connec- © Open or close the ser- ted to Home Connect. vice programmes.

ES] Open or exit the set-

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service Cleaning tablets TZ80001A 00312097 TZ80001B 00312098 Descaling tablets TZ80002A 00312094 TZ80002B 00312095 Water filter TZ70003 00575491 Water filter pack of 3 TZ70033A - Microfibre cloth - 00460770 Care set TZ80004A 00312105 TZ80004B 00312106 Adapter for milk containers TZ70001 17006005

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

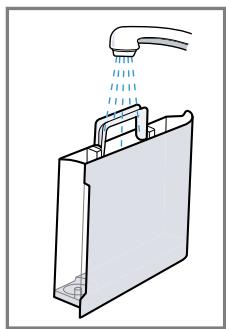

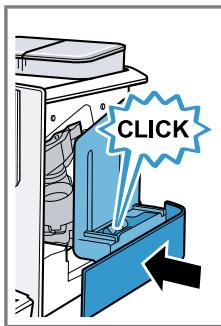

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instruc- tions at the beginning of this manual.

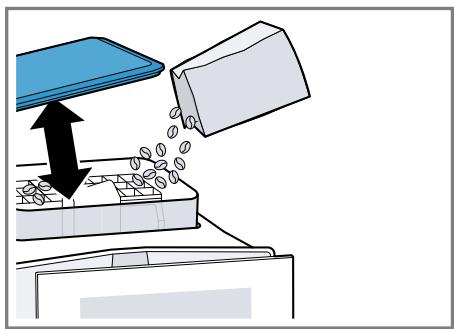

Unsuitable beans can block up the

> Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso ma- chines.

> Do not use glazed coffee beans.

+ Do not use caramelised coffee beans.

+ Do not use coffee beans that have been treated with additives con- taining sugar.

> Do not add ground coffee.

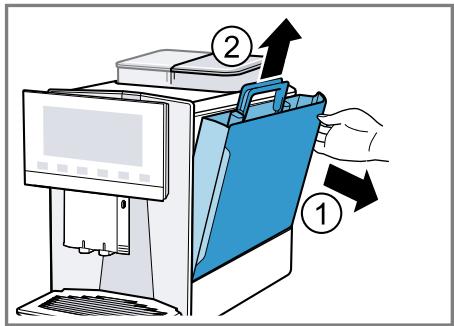

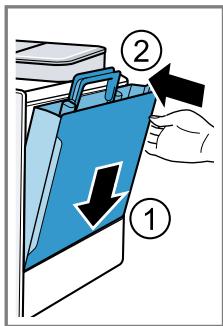

— Fig. E -Æ1 Notes = Fill the water tank each day with fresh, cold, non-carbonated water. = [f you have the product variant with 2 bean containers, you can add 2 different types of coffee. The LED of the active bean container lights

up. = The appliance memorises the bean container last selected for each drink. You can change this default setting. — "Basic settings", Page 25

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Checking the water hard- ness

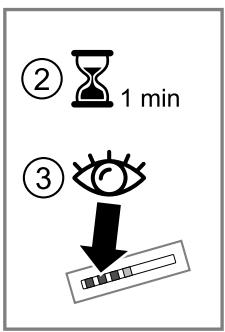

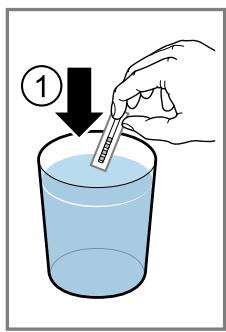

It is important to set the water hard- ness correcily so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company. 1. Briefly dip the test strip in fresh tap water. 2. Allow the water to drain off the test strip. 3. Read the water hardness off the test strip after 1 minute. The table shows allocation of the

levels to the different degrees of water hardness:

Level German Total hard- degrees in ness in mmol/

Note: |f a water softening system is installed in your house, you can se- lect "Water softening system".

Tip: You can change the settings at any time. — "Basic settings", Page 25

You can use a water filter to minimise limescale deposits and reduce impur- ities in the water.

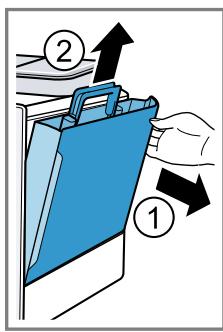

Inserting the water filter

Possible damage to the appliance

due to limescale build-up.

> Change the water filter in good time.

> Change the water filter after 2 months at the latest.

+ Observe the display messages.

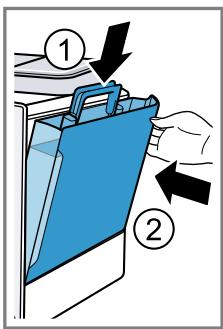

Press Ÿ. Press "INTENZA filter" and follow the instructions on the display.

Changing or removing the water

You can also operate your appliance

without a water filter.

2 Press "INTENZA filter".

3. Press "Replace" or "Remove" and follow the instructions on the dis- play.

= You should also change your wa- ter filter for reasons of hygiene.

= With a water filter you need to de- scale your appliance less fre- quently.

= [If you use a water filter, your coffee will be more flavoursome.

= [f your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.

=“ The water filter can be purchased from retailers or customer service. — "Accessories", Page 15

6.4 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for initial start-up. Initial start-up only appears when switching on for the first time.

Press © to switch the appliance on.

Follow the instructions on the dis- play.

The display will guide you through the programme.

If you want to set up Home Con- nect now, follow the instructions in the Home Connect app.

— "Setting up Home Connect", Page 23

If "Demo mode" is selected, only the display screens will work. You cannot dispense a beverage or run a programme.

.5 General information lease bear this information in mind

so that you can get the best out of your appliance.

The appliance has been pro- grammed at the factory with stand- ard settings for optimum operation. The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can set the grinding level.

— "Using electronic grinding level adjustment eGrinder', Page 20 During operation water droplets may form at the ventilation slits and on the lid of the tablet com- partment.

If you do not perform any actions on the appliance for a certain period, it will switch off automatic- ally. You can change the duration in the basic settings. — Page 25

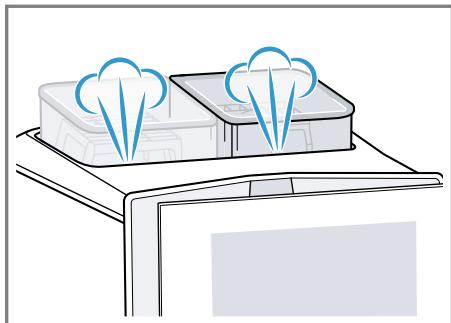

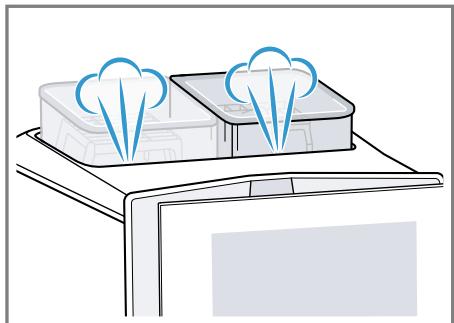

" For technical reasons steam can escape from the appliance.

= The first beverage will not yet have

— You are using the appliance for the first time.

— You have run a service pro- gramme.

— You have not used the appli- ance for a long time.

Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7.4 Switching the appliance on or off

When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

À WARNING Risk of scalding!

Freshiy prepared drinks are very hot. Leave drinks to cool down if ne- cessary.

> Do not let escaping liquids or steam come into contact with your skin.

Notes = With a number of settings your cof- fee is prepared in several steps. Wait until the process is fully com- pleted.

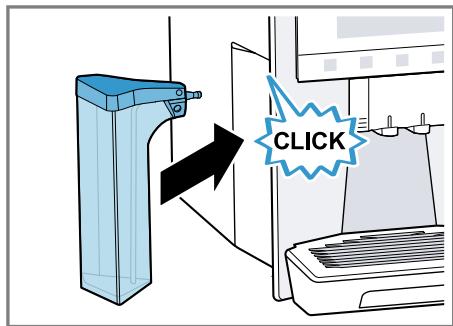

= |f you are dispensing a beverage with milk, always connect the milk container filled with milk or the milk adapter to a milk carton.

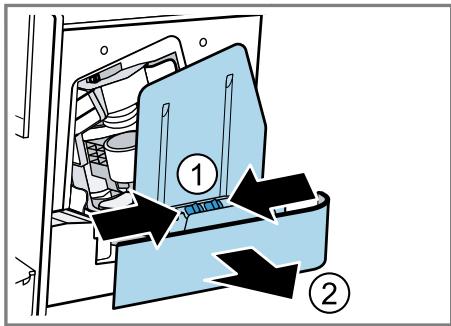

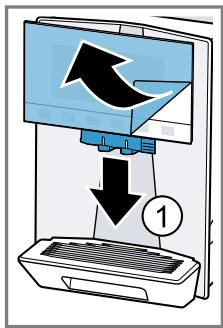

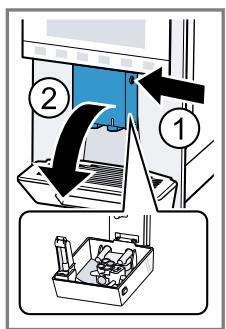

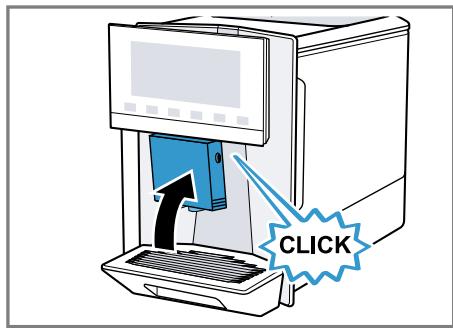

=“ You can only insert or remove the beverage outlet if the milk con- tainer or milk adapter is not con- nected.

=“ The milk container is specially de- signed for this appliance. Only use the milk container for storing milk in the refrigerator and in the house.

= lfthe milk system has not been cleaned, small amounts of milk may escape when hot water is dis- pensed.

7.3 doubleShot and tripleShot

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic sub- stances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter

substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "doubleShot" and "tripleShot" depend on the beverage, the beverage strength and the bever- age size selected.

7.4 Dispensing a coffee drink with milk

An example explains how to make a latte macchiato.

À WARNING Risk of burns!

The milk system can become ex-

+ Never touch the milk system when itis hot.

> Allow the hot milk system to cool down before touching it.

Requirements = The appliance is switched on and the water tank and bean container have been filled.

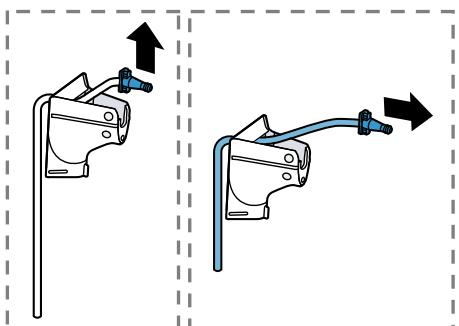

= The milk container or milk adapter is connected.

“ The milk container is filled with milk or the milk adapter hose is immersed in milk.

1. Place a glass underneath the beverage outlet.

- To set the per-cup quantity , press the segments.

— To set the milk ratio D, press the segments.

— To set the grinding level #8, press the segments. — "Using electronic grinding level adjustment eGrinder”, Page 20

— To set the contact time ©, press the segments.

— To set the brewing temperature à, press the segments.

6. Press "Start" and wait until the pro-

— To completely stop dispensing the beverage, press "Stop".

— To only stop the current dis- pensing step, press "Skip".

Notes If you do not change any settings for approx. 30 seconds, the appli- ance will exit settings mode.

=“ The appliance saves the settings automatically.

= To reset all beverage parameters, press "Reset".

=“ You can also pre-heat cups before dispensing using hot water or the cup heater!.

=“ The appliance variant with 2 bean containers allows you to switch containers ‘ while dispensing a beverage if the bean container is empty. Dispensing will then con- tinue with the full bean container.

=“ You can also use plant-based al- ternatives to milk, e.g. soya milk.

=“ The quality of the milk froth de- pends on the type of milk or plant- based alternative used.

Depending on the appliance specifications

7.5 baristaMode or comfort- Mode

You can select the mode.

When selecting "baristaMode", more setting options are available for the individual beverages, e.g. contact time.

7.6 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: |f the "doubleShot" or “ripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press the symbol for the required beverage.

v The display shows the setting D.

3 Place two cups on the left and right underneath the beverage out- let.

4. Press "Start". The beverage is prepared in 2 steps. The beans are ground in 2 grinding operations.

+ The beverage is brewed and then runs into the cups.

5. Wait until the process is complete.

7.7 Saving favourite beverage À

You can directly save a favourite

beverage that you frequently dis-

1. Press the symbol for the required beverage.

2. Press the beverage symbol and set the beverage parameters.

3. To save, press ++ for 3 seconds.

=“ To display and start your favourite beverage at any time, briefly press Le

" You can save a new favourite beverage at any time.

Note: |f you save a new favourite beverage, this will replace your exist- ing favourite.

78 Using electronic grinding level adjustment eGrinder

Your appliance has an adjustable

grinder, which you can use to cus-

tomise the grinding level of the coffee

beans in "baristaMode".

1. Press &x and select "baristaMode".

2. Press the symbol for the required beverage.

3. Press #3 and set the grinding level. The grinding level setting only takes effect after the second cup.

Note: The appliance variant with 2

bean containers allows you to set the

grinding level for each bean con-

=“ You can set the basic grinding level for the "comiortMode" in the beverage settings.

=“ In "comfortMode" you can also use the [aromaBoost] function for small beverages, e.g. espresso. With [aromaBoosit] the grinding level is set slightly finer than the basic grinding level selected.

= lfthe coffee is only dispensed drop by drop, set a coarser grind- ing level. If the coffee is too thin with too little crema, set a finer grinding level.

7.9 Using beanident System ‘

You can set your appliance to the type of coffee bean you are using. 1. Press &.

2. Select "Beverage settings".

3. Select "beanident System".

4. Select the type of coffee.

You can lock the appliance, to pro- tect children against scalding and burns.

8.1 Activating the child-proof lock

Requirement: The appliance is

> Press and hold & for at least 8 seconds.

+ The childproof lock is activated.

8.2 Deactivating the child- proof lock > Press and hold # for at least 8 seconds. + The childproof lock is deactivated.

You can use the cup heater to pre- heat your cups.

The cup heater! can become very

> Never touch the cup heater! while hot.

> Allow the hot cup heater! to cool down before touching it.

Tip: Place the cups with their base on the cup heater to warm them to optimum effect.

> You can activate or deactivate the cup heater! in the basic settings.

Save beverages in your personal pro- file.

A profile contains preferred bever- ages with personal settings. To exit the settings, press <—.

Tip: You can change the settings at any time.

10.1 Create first profile

1. Press "Profiles".

5. Select a background picture.

Depending on the appliance specifications

10.2 Create other profiles

Press "Profiles" at the bottom of

Press + "Add profile".

Enter a profile name.

Select a background picture.

Press + "Add beverage".

Select a beverage and press "Se-

Note: The profile used last is always shown in the profiles. lf several pro- files have been created, press "Switch profile" at the bottom of the display to create new profiles or edit existing ones.

1. Press "Profiles".

2 Press "Profiles" at the bottom of the display.

3. Press "Edit profiles".

. Press the required profile.

5. Change the profile name and press "Save".

6. Select the required background picture and press "Continue".

1. Press "Profiles".

2 Press "Profiles" at the bottom of the display.

3. Press "Delete profile".

4. Press the required profile.

10.6 Add beverage to a pro- file

1. Press "Profiles".

2. Press "Profiles" at the bottom of the display.

3. Press the required profile.

4. Press + "Add beverage".

7. Enter a beverage name and press "Save".

10.7 Add a beverage from Classic or coffeeWorld to the profile

1. Select a beverage from "Classic" or "coffeeWorld”.

Set the beverage parameters. Press "Save in profile".

Select the required profile.

Enter a name for the beverage. Press "Save".

The beverage is now saved in the profile.

10.8 Create profile from Clas- sic or coffeeWorld 1. Select a beverage from "Classic" or "coffeeWorld”. 2. Set the beverage parameters. 3. Press "Save in profile". 4. Press + "Add profile".

9. Enter a beverage name and press "Save".

+ The profile and beverage are now saved.

10.9 Edit beverage in profile

1. Press "Profiles".

2 Press "Profiles" at the bottom of the display.

Press the required profile. Select a beverage.

Set the beverage parameters. Press "Save".

Start the beverage or use <— to re- turn to the menu.

10.10 Delete beverage in pro- file

1. Press "Profiles".

2 Press "Profiles" at the bottom of the display.

3 Select and press the profile.

4. Press the beverage.

This appliance is network-capable. Connecting your appliance to a mo- bile device lets you control its func- tions via the Home Connect app, ad- just its basic settings and monitor its operating status.

The Home Connect services are not available in every country. The avail- ability of the Home Connect function depends on the availability of

Home Connect services in your coun- try. You can find information about this at: www.home-connect.com.

The Home Connect app guides you through the entire login process. Fol- low the instructions in the Home Con- nect app to configure the settings.

Tip: Please also follow the instruc- tions in the Home Connect app.

=“ Please note the safety precautions in this instruction manual and make sure that they are also ob- served when operating the appli- ance via the Home Connect app. — "Safety", Page 9

= Operating the appliance on the ap- pliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

11.1 Setting up Home Con- nect

= The appliance is already connec-

ted to the mains power supply and

You have a mobile device with a

current version of the iOS or An-

droid operating system, e.g. a

=“ The mobile device and the appli- ance are within range of your home network's WiFi signal.

=“ The Home Connect app has been installed on your mobile device.

. Open the Home Connect app and scan the following QR code. — Fig. 2. Follow the instructions in the Home Connect app.

11.2 Home Connect settings

Adapt Home Connect to your needs.

You can find the Home Connect set- tings in the basic settings for your ap- pliance. Which settings the display shows will depend on whether

Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings Here you can find an overview of the "Home Connect" settings and network set-

Basic setting Selection

Switch off the wireless module during long absences or to save energy. Note: In networked standby mode your appliance requires max. 2 W.

Switch remote start on the appliance on and off.

Note: With the "Home Connect" app only switch-off is possible.

Connect the appliance to the "Home Connect" app or additional accounts.

Display network information and appli- ance information.

Off Remote start On Off Add mobile - device Network informa - tion Delete -

Note: You cannot operate your appli- ance via the "Home Connect" app without a network connection.

Note: This setting is only available with a software update.

11.3 Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appli- ance connected to the Home Con- nect server and if Remote Dia- gnostics is available in the country in which you are using the appliance. Tip: For further information and de- tails about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-con- nect.com

11.4 Data protection

Please see the information on data

The first time your appliance is

registered on a home network

connected to the Internet, your

appliance will transmit the following

types of data to the Home Connect

server (initial registration):

=“ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module in- stalled).

= Security certificate of the Wi-Fi communication module (to ensure a secure data connection).

“ The current software and hardware version of your appliance.

= Status of any previous reset to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the

Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

You can configure the basic settings for your appliance to meet your needs and call up additional func- tions.

12.1 Changing the basic set- tings 1. Press &.

+ The display shows the list of basic settings.

2. Change the required basic setting.

+ The appliance saves the basic set- ting automatically.

3. To exit the basic settings, press <—

12.2 Overview of the basic settings

You can find an overview of the basic settings here.

Basic setting Selection

Set allocation of the bean containers.

"Electronic grinding level adjustment" Electronic grinding level adjustment Set the basic grinding level in "comfortMode".

Select the type of beans used.

— "Using beanldent Sys- tem ”, Page 21

Select the sequence for milk and coffee.

Latte macchiato pause

Select the pause between milk and coffee.

Set the brewing temper- ature.

‘ Depending on the appliance specifications

Switch the cup heater' on or off.

Automatic switch-off

Set the time after which the appliance switches off.

Set the brightness in steps.

“ Switch sounds on and off. “ Set the volume.

Set the water hardness.

Reset the appliance to the factory settings.

Set the sequence of pro- files.

Beverage sequence in profile

Set the sequence of beverages in the profile.

Information about Home Connect

Appliance information

Display the number of beverages dispensed.

Cleaning information

Time until the water filter should next be changed or a service programme started.

Mode for demonstration purposes

Switch "Demo mode" on or off.

Quick guide to user in- terface

Get to know the appli- ance settings.

* Depending on the appliance specifications

Cleaning and servicing en

Basic setting Selection Use

Customer service Find QR code and coun- try-specific Customer service.

T Depending on the appliance specifications

13 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

13.1 Dishwasher-safe components

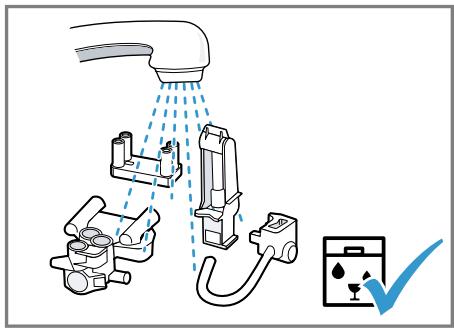

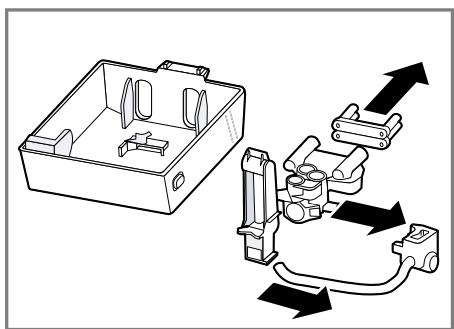

Here you can find an overview of the components you can clean in the dish- washer.

ATTENTION! > Only clean dishwasher-safe com- Some components are sensitive to ponents in the dishwasher. heat and may be damaged if they are > Only use programmes that do not cleaned in a dishwasher. heat the components above + Follow the operating instructions of 60 °C. the dishwasher. Suitable: 57 Not suitable: 5 = Drip tray =“ Water tank — Drip plate =“ Aroma lid — Coffee dregs container = Brewing unit — Mechanical fill level indicator = Cover of brewing unit = Milk system with adapter = Beverage dispenser cover

" Milk container with lid =“ Red trays of the brewing unit = Adapter for milk container!

‘ Depending on the appliance specifications

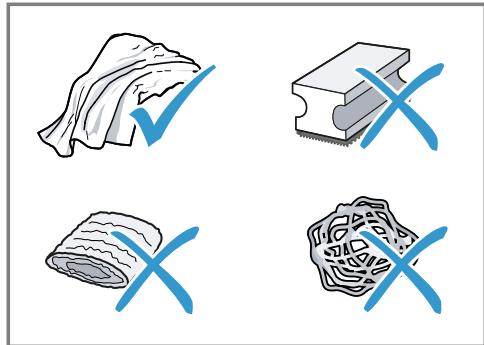

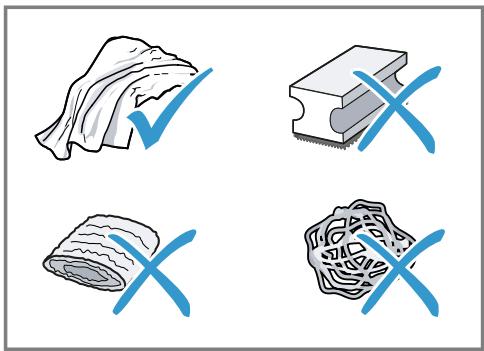

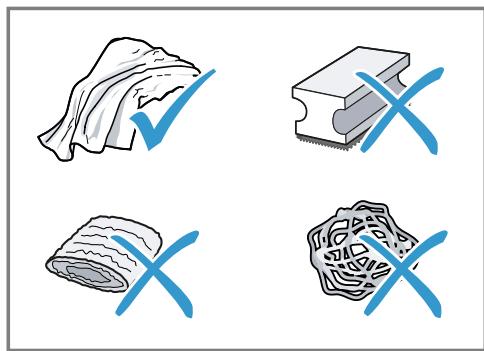

13.2 Cleaning agent > Do not use hard scouring pads or | cleaning sponges. Only use suitable cleaning agents. Unsuitable cleaning agents and de-

scalers may damage the appliance.

> Do not use pure citric acid, vinegar or any vinegar-based agents to de- scale the appliance.

ATTENTION! Unsuitable cleaning products may damage the surfaces of the appli-

ance. > Do not use descaling agent with > Do not use harsh or abrasive de- phosphoric acid 3 29 tergents. |

> Do not use cleaning agents con- taining alcohol or spirits.

en Cleaning and servicing

> Only use cleaning tablets and de- scaling tablets that have been spe- cially developed for the appliance. — "Accessories", Page 15

=“ Wash new sponge cloths thor- oughly to remove any salt adher- ing to them. Salt can cause rust film to develop on stainless steel surfaces.

= Always remove any residues of limescale, coffee, milk and clean- ing/descaling solutions immedi- ately to prevent corrosion.

13.3 Cleaning the appliance

À WARNING Risk of electric shock!

An ingress of moisture can cause an

+ Never immerse the appliance or the power cord in water.

+ Liquids must not be spilled on the appliance plug connection.

> Do not use steam- or high-pres- sure cleaners to clean the appli- ance.

À WARNING Risk of burns!

Some parts of the appliance become very hot.

> Never touch hot appliance parts.

> Allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with the enclosed microfibre cloth.

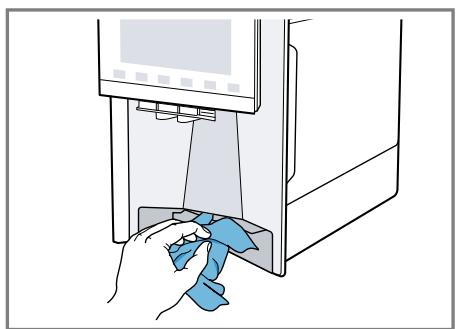

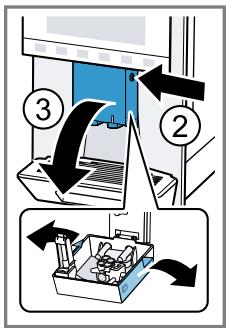

2. Clean the outlet system with a soft, damp cloth after beverages have been dispensed.

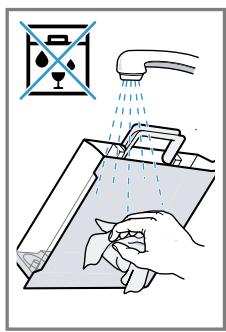

3. Rinse the water tank with fresh, clean water.

4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, includ- ing moving parts such as the brew- ing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

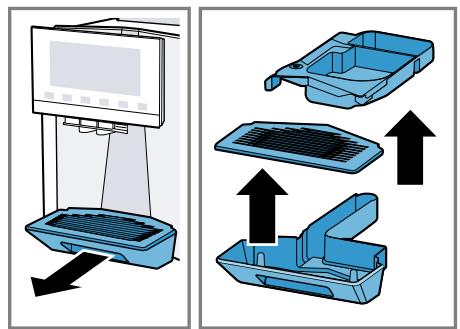

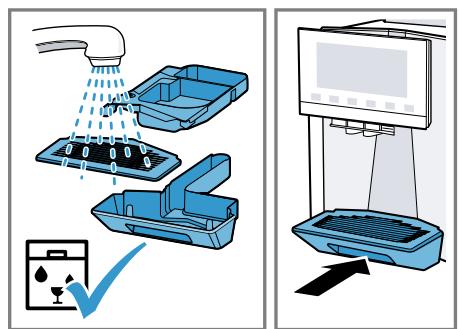

13.4 Cleaning the drip tray and coffee dregs con- tainer

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illus- trated instructions at the beginning of this manual.

13.5 Cleaning the milk con- tainer

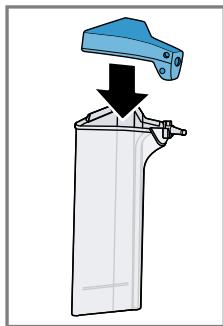

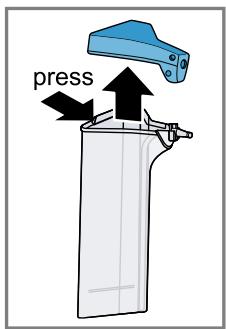

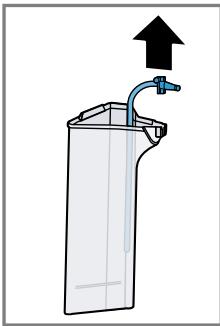

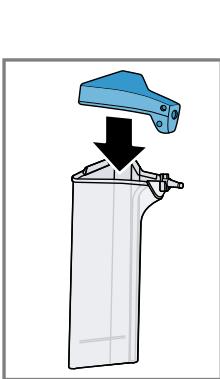

Clean the milk container regularly for hygiene reasons. You can clean the milk container in the dishwasher. Fol- low the illustrated instructions at the beginning of this manual.

13.6 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thor-

oughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

Improper cleaning and descaling or a

delay in doing so may damage the

appliance. > Immediately perform the descaling process in accordance with the in- structions.

> Only use cleaning tablets in the tablet compartment.

> Do not put descaling tablets or other products in the tablet com- partment.

Overview of service programmes

Cleaning and servicing en

=“ The display indicates the progress of the descaling or cleaning pro- cess.

If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tip: In addition to the automatic rins- ing process, regularly also remove and clean the brewing unit.

Using the service programmes

2. Press the symbol for the required programme.

+ The display will guide you through the programme.

You can find an overview of the service programmes here.

Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.

Insert, replace or remove the water fil- ter.

Cleaning the milk sys-

Rinse the milk system automatically.

tem calc'nClean Combine cleaning and descaling. Re- V move residues of limescale and cof- fee from the pipes. Cleaning Remove residues of coffee from the ) pipes. Descaling Remove residues of limescale from

Cleaning brewing unit

The display shows optimum cleaning of the brewing unit step by step.

Cleaning and servicing

Beverage outlet clean- The display shows optimum cleaning

of the outlet step by step.

Drain the pipes to protect the appli- ance during transport or storage.

If a service programme is interrupted, e.g. due to a power failure, it will rinse itself automatically. The appliance is then ready for use again.

S If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 1 l'atthe ready.

If you use a water filter, this will prolong the time until you have to run a service programme.

You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- Sary costs.

À WARNING Risk of electric shock!

ncorrect repairs are dangerous. > Repairs to the appliance should only be carried out by trained specialist staff.

> Only use genuine spare parts when repairing the appliance.

> Ifthe power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting Appliance no longer Appliance has a fault. responds. 1. Pull out the mains plug and wait 60 seconds.

2 Re-insert the mains plug. Home Connect is not Different causes are possible.

working properly. > Go to www.home-connect.com.

Appliance only dis- Empty bean container is not detected by the appli- penses water, not cof- ance.

fee. > Pour in coffee beans.

Coffee shaft on brewing unit is blocked. + Clean the brewing unit.

Beans are too oily and are not falling into the grinder. > Gently tap the bean container.

» Change the coffee variety.

> Do not use oily beans.

+ Clean the empty bean container with a damp cloth.

Brewing unit is not inserted properly.

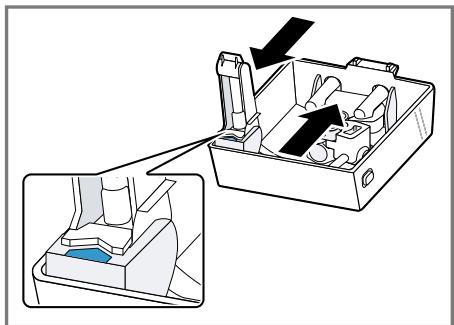

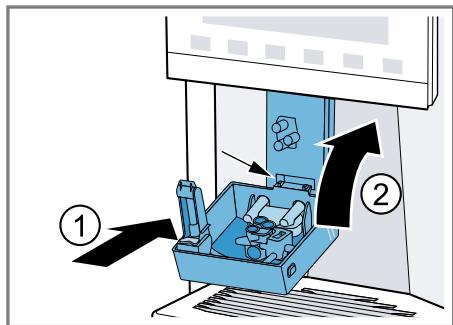

1. Check whether the brewing unit is inserted correctly and is securely locked.

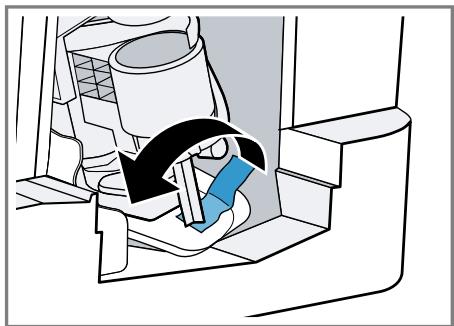

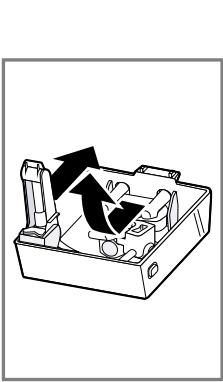

2 Push the red lever up to the left.

3. Insert the brewing unit cover.

Appliance is not dis- Milk system is soiled. pensing milk froth. > Clean the milk system in the dishwasher.

Milk tube not immersed in milk. > Use more milk.

Cause and troubleshooting

Appliance is not dis- pensing milk froth.

> Check whether the milk tube is immersed in the milk.

Heavy build-up of limescale in the appliance. + Descale the appliance.

No milk intake by the milk system.

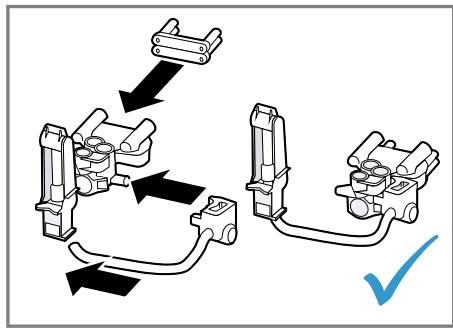

The milk system is assembled incorrectly. + Assemble the milk system correctly.

Order for connecting the milk container and milk sys-

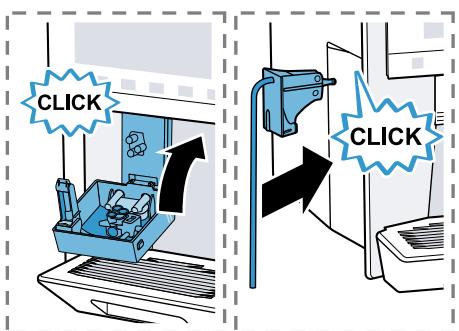

+ First insert the milk system into the outlet and then the milk container.

Milk tube not immersed in milk. > Use more milk.

> Check whether the milk tube is immersed in the milk.

Milk froth is too cold.

Milk is too cold. > Use lukewarm milk.

Appliance is not dis- pensing hot water.

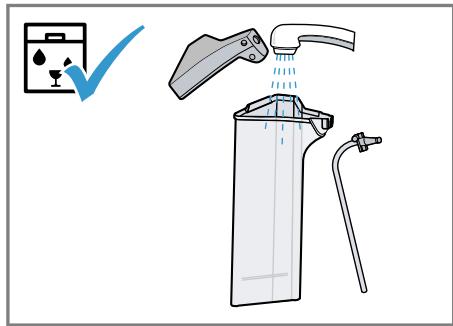

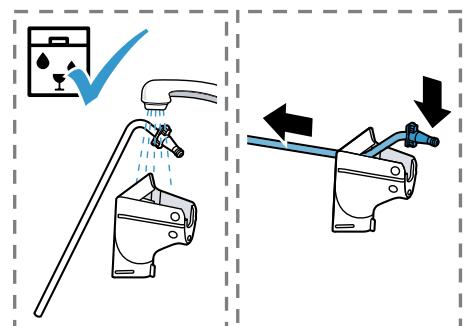

Milk system is soiled. + Clean the milk system in the dishwasher.

Milk system cannot be assembled or disas- sembled.

Order of assembly is wrong.

+ First connect the milk system and then the milk container. When disassembling, you must first re- move the milk container and then the milk system.

Appliance is not dis- pensing drinks.

Air is in the water filter.

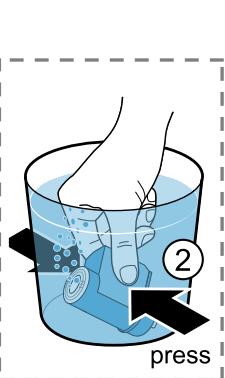

1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.

2 Reinsert the filter.

+ Firmly press the water filter straight down into the tank connection.

Residues of limescale remover are blocking the water tank.

1. Remove the water tank.

2 Clean the water tank thoroughly.

There is dripping wa- ter on the inner floor of the appliance.

Drip tray was removed too soon. > Wait a few seconds after the last drink was dis- pensed before removing the drip tray.

Brewing unit cannot be removed.

Locking device cannot be released, brewing unit is jammed. * Switch the appliance off and back on after

Cause and troubleshooting

Grinder won't start.

Appliance is too hot. 1. Disconnect the appliance from the mains. 2 Wait 1 hour so the appliance can cool down.

Grinder is not grinding any coffee beans des- pite full bean con- tainer.

Beans are too oily and are not falling into the grinder. > Gently tap the bean container.

» Change the coffee variety.

> Do not use oily beans.

+ Clean the empty bean container with a damp cloth.

Coffee or milk froth quality varies widely.

Build-up of limescale in the appliance. + Descale the appliance.

Milk froth quality var- ies widely.

Milk froth quality depends on the type of milk or plant-

based alternative used.

> Optimise the result through the selection of the milk or vegetable-based drink type.

Coffee is not dis- pensed or has slowed to a trickle.

Set quantity is not reached.

Grinding level is set too fine. » Set a coarser grinding level.

Heavy build-up of limescale in the appliance. + Descale the appliance.

Air is in the water filter.

1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2 Reinsert the filter.

Appliance is soiled. + Clean the brewing unit. + Descale and clean the appliance.

Coffee has no crema.

Type of coffee is not optimal.

+ Use a coffee variety with a higher proportion of Ro- busta beans.

> Use beans with a darker roasit.

Beans are no longer fresh. > Use fresh beans.

Grinding level is not appropriate for coffee beans. + Adjust the grinder to a finer setting.

Coffee is too acidic.

Grinding level is set too coarse. + Adjust the grinder to a finer setting.

Type of coffee is not optimal. + Use a coffee variety with a higher proportion of Ro- busta beans.

> Use beans with a darker roasit.

Cause and troubleshooting

Coffee is too bitter.

Grinding level is set too fine. » Set a coarser grinding level.

Type of coffee is not optimal. » Change the coffee variety.

Coffee tastes burnt.

Grinding level is set too fine. » Set a coarser grinding level.

Type of coffee is not optimal. » Change the coffee variety.

Coffee temperature setting is too high. + Set the coffee temperature lower.

Coffee grounds are not compact and are too wet.

The grinding level is not set optimally. + Adjust the grinder to a coarser or finer setting.

Beans are too oily. + Use a different type of bean.

Display shows "Please insert brewing unit.".

Cover is wrongly inserted. 1. Check whether the brewing unit is inserted correctly and is securely locked.

2 Push the red lever up to the left. 3. Insert the brewing unit cover.

Display shows "Please fill water tank." despite the fact that the water tank is full.

Water tank is wrongly inserted. + Insert the water tank correctly.

Carbonated water is in the water tank. + Fillthe water tank with fresh tap water.

Float is stuck in the water tank. 1. Remove the water tank. 2 Clean the water tank thoroughly.

New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2 Place the water filter into operation.

Air is in the water filter.

1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.

2 Reinsert the filter.

Water filter is old. > Insert a new water filter.

Limescale deposits in the water tank are blocking the system. 1. Clean the water tank thoroughly.

Cause and troubleshooting

Display shows "Please fill water tank." despite the fact that the water tank is full.

2 Start the descaling programme.

Display shows "Please clean brewing unit.".

Brewing unit is soiled. + Clean the brewing unit.

Mechanism of brewing unit is stiff. + Clean the brewing unit.

Display shows "Incor- rect voltage".

There are problems with the power supply. > Only operate the appliance at 220 - 240 V.

Display shows "Re- start appliance".

Appliance has a fault. 1. Pull out the mains plug and wait 60 seconds.

2 Re-insert the mains plug.

Display very frequently

Decalcified water still contains small amounts of lime. 1. Insert a new water filter. 2 Set the corresponding water hardness.

Incorrect or too little descaling agent used. + When descaling, only use suitable tablets.

Service programme has not been carried out in its en- tirety. > Start the "Special rinsing" service programme.

— "Service programmes", Page 28

en Transportation, storage and disposal

15 Transportation, stor- age and disposal

15.1 Activating frost protec- tion

Protect your appliance from frost dur- ing transport and storage.

Residues of liquid in the appliance

may damage it during transport or

> Empty the pipe system before transport or storage.

1. Run the "Frost protection" pro- gramme. — "Overview of service pro- grammes", Page 29

2. Disconnect the appliance from the mains power supply.

15.2 Disposing of old appli- ance

Valuable raw materials can be re-

1. Unplug the appliance from the mains.

2. Cut through the power cord.

3 Dispose of the appliance in an en- vironmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is la- belled in accordance with European Directive 2012/19/EU concerning used electrical and elec- tronic appliances (waste electrical and electronic equipment - WEÉEE).

The guideline determ- ines the framework for the return and recycling of used appliances as applicable throughout the EU.

Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Eco- nomic Area.

Note: Under the terms of the manu- facturer's warranty the use of Cus- tomer Service is free of charge.

Detailed information about the war- ranty period and the warranty terms in your country is available in the en- closed customer service directory, from our customer service, your re- tailer or on our website.

If you contact Customer Service, you will require the product number (E- Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Ser- vice can be found in the enclosed Customer Service directory or on our website.

16.1 Product number (E-Nr.), production number (FD) and consecutive num- bering (Z-Nr.)

You can find the product number (E-

Nr.), the production number (FD) and

the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly.

17 Technical specifica- tions

Voltage 220- 240 V- Frequency 50 Hz

Connection rating 1500 W Maximum static pump 20 bar pressure

Maximum capacity of 2,81 water tank (without fil- ter)

Maximum capacity of 375g bean container

Maximum capacity of 260 g/ right/left bean con- 280 g tainer

Length of the power 100 cm cable

Appliance height 40 cm Appliance width 32 cm Appliance depth 47 cm

Type of grinder Ceramic

17.1 Information regarding Free and Open Source Software

This product includes software com-

ponents that are licensed by the

copyright holders as free or open source software.

Technical specifications en

The applicable licence information is stored on your home appliance. You can also access the applicable li- cence information via your

Home Connect app: "Profile > Legal information -> Licence Information". You can download the licence in- formation on the brand product web- site. (Please search on the product website for your appliance model and additional documents). Alternat- ively, you can request the relevant in- formation from oss- request@bshg.com or BSH Hausger- äte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany.

The source code will be made avail- able to you on request.

Please send your request to oss- request@bshg.com or BSH Hausger- äte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: ,OSSREQUEST“*

The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

18 Declaration of Con- formity

BSH Hausgeräte GmbH hereby de- clares that the appliance with Home Connect functionality conforms to the basic requirements and other relev- ant provisions of Directive 2014/58/ EU.

A detailed RED Declaration of Con- formity can be found online at siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

Depending on the appliance specifications

en Declaration of Conformity

CE Hereby, BSH Hausgeräte GmbH de- clares that the appliance with

Home Connect functionality is in compliance with relevant statutory requirements.

A detailed Declaration of Conformity can be found online at siemens- home.bsh-group.com/uk/ among the additional documents on the product page for your appliance.'

UK CA Only applies to Great Britain

2.4 GHz band (2400-2483.5 MHz): Max. 100 mW

1 Only applies to Great Britain

Home Connect (premier

Comfort Apparaat is in de ba-

7.5 baristaMode of comfort- Mode

11.2 Home Connect instellin- gen

7.3 doubleShot a tripleShot

(waste electrical and electronic equipment - WEEE).

= Ha BkIcoTe He 6onee 2000 M Haa ypoBHeM Mopn.

CA HCTOHHUKOM ONACHOCTH.

SarpasHeHuA npH6oOpa MOryT NPeACTABAATE ONACHOCTE ANA 3AOPOBLA.

HanHTKH, KOTOPBIE MOXHHO AONONHHTE NPH HCNONb3O- BaHMU NPHIOKEHUR Home Connect.

ES Mpu6op He nonknIoUEH K Home Connect.

—BbI BEINONHHIIH CEPBHCHY1O NPOTPAM- My;

7.3 doubleShot u tripleShot

“_Baso8y1 crenexb nomoa ana “comfortMode" MoxHo 3aqaTb B yCTa- HOBKAX HañUTKOB.

O630p Hacrpoex Home Connect

Kopemonka He sanyc- KaeTCA.

+ He ucnonbsyüTe MaCnAHACTEIE KoODeHEIE 3EPHA.

CKHX H 2JIEKTPOHHPIX NPHÉO- pos (waste electrical and electronic equipment - WEEE).

KOCTH ANA KOPEMHPIX 38-

11 Home Connect 11.1 HanauTysanHa Home Connect

> He sacroco8yre nogoBxyBaui a60 6araToMiCHi PO3ETKH.

A0 Home Connect. nonoBHIOBATH 3a _. AONOMOrOIO ES Mpunag He nigknioue- Home Connect. Ho 40 Home Connect.

MpuroTyBaHHA ABOX YALLIOK.

+ He BukopncroByüTte kapamenñi- 30BaHi KaBOBi 8EPHA.

> GAaMiHATH BOAAHUA DiABTP NOTPI- 6Ho He nisHilue Hix yepes 2 Mic.

7.6 OnHouacHe npyroTyBaH-

7.9 KopucrysaHHa beanident System ‘

Mpuran MOXHA ananTyBaTu 10

KOHKPETHOTO COPTY KABOBUX 3EPEH.

10.2 CTBopeHHA AOHATKOBUX npoinis

= Ha MobinEHOoMy kiHLIEBOMY npy- CTpoï BCTAHOB/EHO SACTOCYHOK Home Connect.

= PeryniOBaHHA ry- UHOCTI.

! SanexHo Bin KoMnAeKkTALIT npANAAY

! SanexHo Bin KoMnAeKkTALIT npANAAY

Mpunan He BunaE Mo- AOUHY MIHKY.

He BnaeTRcA BCTAHOBUTH a60 SHATA MOAOUHY CUCTEMY.

HenpasnnbHa noCniAOBHICTR MOHTAXKY.

> Cnepluy npnenHañTe MOROUHY CUCTEMY, à TOAÏI — €MHICTE ANA MOnOKa. Min 4ac aeMoHTaKy BuÂMañTe Cnepliy EMHICTE MIA MOAOKA, à TOAi — MONOUHY CU- CTeMy.

Mpunan He Bunae Hanid.

OÏNETP ANA BOAU MICTUTE NOBITPA.

1. Morpumañre pinbrp OTBOPOM AOTOPH y BOI, AOKU 3 HbOTO HE TNEPECTAHYTE BUXOAUTU ÉYAOALUKU NOBI- TPA.

2 Bcragre pinbrp Ha mice.

He BnaeTRCA BUAHATU 6n0K 3aBapioBaHHA.

OikcauiA He BiANYCKAETECA, 3ABAPIOBANLHUA 671OK SaCTPAr.

> BUMKHITE NPUAAA, 3aKAÏTE 3 XBUAUHU Î 8HOB yBi- MKHITB.

KaBoMonKa He 3any- CKAETECA.

2 Bcragre pinbrp Ha mice.

2 Bcragre pinbrp Ha mice.

BTOPHO BUKOPUCTOBYBATH LIIHHY CU-

Betreff: ,OSSREQUEST“

Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House
