Product type	Built-in induction cooker
Brand	Siemens
Model	EX875LYE3E
Dimensions (H x W x D)	85 cm x 90 cm x 60 cm
Net weight	72 kg
Power supply	230 V ~ 50 Hz, 10.5 kW
Number of zones	4 induction zones with Flex function
Oven type	Multifunction with convection
Oven capacity	71 L
Oven cleaning	Self-cleaning pyrolysis
Hob cleaning	Easy-to-clean ceramic glass
Main functions	4 induction cooking zones, convection oven + grill, pyrolysis, timer, child safety
Child safety	Control lock and automatic shut-off
Repairability index	8.5/10
Spare parts availability	Available (motor, heating element, glass, etc.)
Energy class	A+
Annual energy consumption	180 kWh (oven)
Noise level	45 dB(A) (oven)
Installation	Built-in, power cable included

Frequently Asked Questions - EX875LYE3E SIEMENS

How to use the pyrolysis function on the Siemens EX875LYE3E oven?

The pyrolysis is a high-temperature cleaning cycle (approx. 500°C) that turns residues into ash. Select Pyrolysis mode on the selector, set the duration (1-3h) and confirm. The appliance locks automatically. After cooling, wipe the ash with a damp cloth.

What types of pots can I use on the induction hob?

Use only ferromagnetic bottom utensils (magnet sticks): stainless steel, cast iron, enamel. Avoid aluminum, copper, glass, and unsuitable ceramic. The zone automatically detects size and position.

How to activate the child safety lock on the cooker?

Press the Lock key (padlock) for 3 seconds. A beep confirms activation. All controls are locked. To deactivate, repeat the same procedure.

What to do if the induction hob displays error code E0?

Code E0 indicates an internal electronic failure. Try resetting the appliance: disconnect the power supply for 30 seconds, then turn it on again. If the fault persists, contact Siemens after-sales service.

What is the maximum power of the zones?

The front left and rear right zones offer a power of 3.7 kW in boost mode. The other zones are 2.2 kW. The total power is limited by the electrical installation (10.5 kW).

How to install the cooker in a worktop?

Cut an opening of 86.4 cm x 49.2 cm (W x D) according to the supplied template. Ensure ventilation of at least 10 cm². Connect to a 230 V outlet with a 32 A circuit breaker. Installation must be carried out by a professional.

Can cooking be programmed in advance?

Yes, the cooker has a timer and delayed programming (up to 23:59). For the zones, use the Timer function. For the oven, select the mode and set the cooking end time.

How to clean the oven's pyrolytic glass?

After a pyrolysis cycle, the ash can be removed with a damp cloth. For the outer glass, use a non-abrasive glass cleaner. Never use chlorine-based products or metal scrapers.

What is the standby power consumption?

In standby, the cooker consumes less than 0.5 W according to regulations. To reduce, switch off completely via the circuit breaker if unused for long periods.

Where to find spare parts for model EX875LYE3E?

Spare parts (heating elements, fans, glass, etc.) are available on the Siemens spare parts website or from authorized dealers. The serial number (E-Nr.) is required: it is on the label at the bottom of the cooker.

USER MANUAL EX875LYE3E SIEMENS

Wireless Temperature Sensor HZ39050

siemens-home.com/welcome

Register your product online

de Gebrauchsanleitung. . . . . . . . 3
en Instruction manual ..... 8
fr Mode d'emploi....13
it Istruzioni per l'uso ..... 18
nl Gebruiksaanwijzing ..... 23
da Brugsanvisning. 28
no Bruksveiledning .... 33
sv Bruksanvisning....38
fi Käyttöohje 43
es Instrucciones de uso ..... 48
pt Instruções de serviço.....54
el Οδηγίες χρήσης .... 59
tr Kullanma kılavuzu ..... 64
cs Návod k použití ..... 69
sk Návod na používanie ..... 74
hu Használati utasítás ..... 79
pl Instrukcja obsługi....84
ro Instructiuni de utilizare ..... 90
bg Ръководство 95
ru Правила пользования.....100
uk Інструкція з використання. . 106
sr Uputstva za upotrebu.....112
hr Upute za uporabuuređaja....117
sl Navodila za uporabo.....122
sq Udhëzim për përdorim ..... 127
mk Упатство за употреба ..... 132
zh 说明手册....137

Inhaltsverzeichnis

Online-Shop: www.siemens-eshop.com

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

de

Hinweise

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being processed into a housing, with no visible text or symbols.

Achtung!

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Technical illustration of a mechanical component with a tool and shaft, no text or symbols present

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Important safety information.

9 Read these instructions carefully. Please keep the 9 instruction in a safe place for later use or for subsequent owners.

Environmental protection .....

Environmentally-friendly disposal.....9

Wireless temperature sensor

10

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

Preparing and maintaining the wireless temperature sensor ....10 Cleaning ....12 Declaration of Conformity ....12

Additional information on products, accessories, replacement parts and services can be found at www.siemens-home.com and in the online shop www.siemens-eshop.com

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for

their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

⚠ Warning Risk of injury!

■ The battery in the wireless temperature sensor may become damaged or explode if it gets too hot. Remove the sensor from the hob after cooking and do not store it near sources of heat.
■ The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

■ Adhering the silicone patch
■ Using the wireless temperature sensor
■ Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

HZ39050 Temperature sensor and set of 5 silicone patches

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

A silicone patch must be adhered when using a saucepan with the cooking functions for the first time.

Proceed as follows:

1. The adhesion point on the saucepan must be free of grease. Clean the saucepan, dry it thoroughly and wipe the adhesion point with a degreasing agent such as spirit.

2. Remove the protective film from the silicone patch. Adhere the silicone patch to the saucepan in the correct place using the enclosed template as a guide.

1. Press the silicone patch down, including its inside surface. The adhesive requires 1 hour to fully harden. The cookware must not be used or cleaned during this time.

Notes

■ Cookware with the silicone patch must not be left to soak for long periods in soapy water.
■ If the silicone patch comes off, attach a new one.

Using the wireless temperature sensor

Attach the temperature sensor to the silicone patch and align it correctly.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Notes

■ Make sure that the silicone path is completely dry before attaching the temperature sensor.
■ Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.

■ To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot.
■ Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If you press the wireless temperature sensor symbol and the LED does not light up, the battery is flat.

Changing the battery:

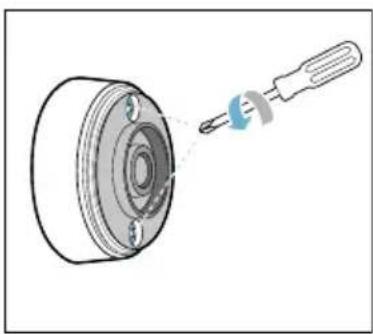

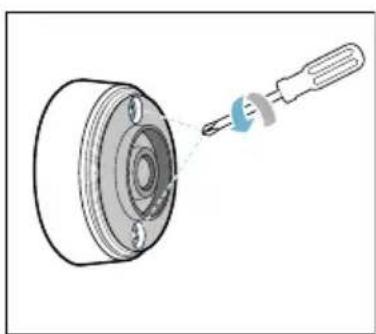

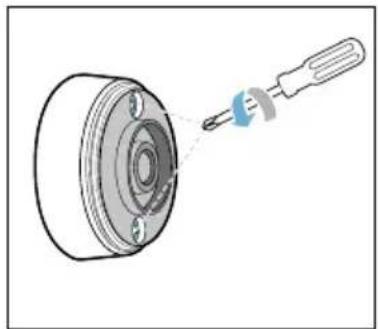

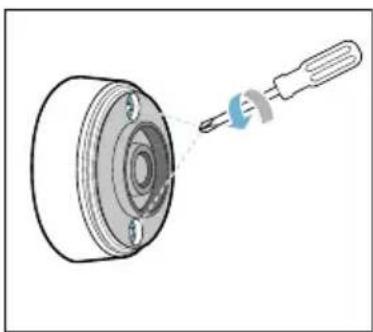

1. Remove the silicone cover from the lower section of the casing. Unscrew the screws with a screwdriver.

Diagram of a mechanical component with a blue pulley and a blue ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

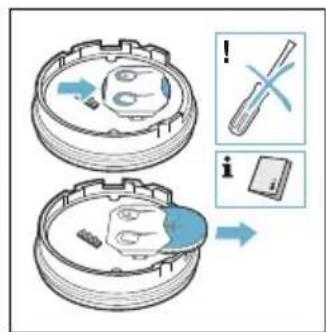

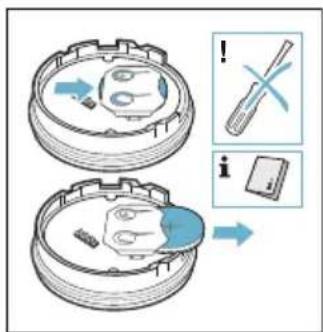

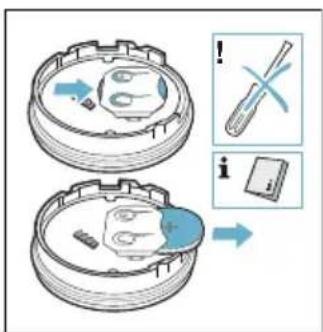

1. Remove the upper section of the casing. Take the old batteries out. Put the new batteries in. Make sure that the polarity is correct.

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Caution!

Do not use metal objects to remove the battery. Do not touch the contacts.

Diagram of a mechanical assembly with a gear and housing, showing directional arrows and polarity indicators (no text or symbols)

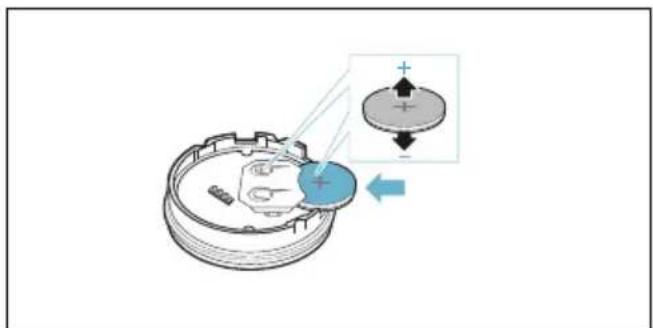

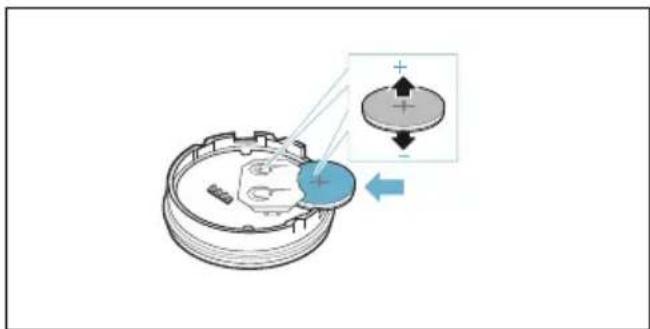

1. Put the upper and lower sections of the casing back together. Make sure that the contact pins are aligned correctly.

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Diagram of a mechanical component with a tool and a circular base, no text or symbols present

1. Put the silicone cover back on the lower section of the temperature sensor casing.

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

Note: Only use premium-quality CR2032 batteries. These have an especially long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note: Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

■ Remove dirt and oil splatters regularly.
■ Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

• Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
• Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 1999/5/EG.

A detailed R&TTE Declaration of Conformity can be found online at www.siemens-home.com on the product page for your appliance under "Additional documents".

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by BSH Hausgeräte GmbH under licence. All other trademarks and brand names are owned by the respective companies.

Table des matières

Illustration of a cooking pot on a stovetop with a hand using a pan to press the lid (no text or symbols)

Remarques

Diagram of a mechanical component with a blue pulley and a white cylindrical body, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a cylindrical housing (no text or symbols)

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Attention!

Diagram of a mechanical assembly with a central component and two inset views showing positive and negative charges (no text or labels)

Technical illustration showing two views of a mechanical component with a tool inserted (no text or symbols present)

Illustration of a mechanical component with a blue circular base and arrow indicating direction (no text or symbols)

Illustration of a cooking pot with a hand pressing a button on a stovetop (no text or symbols)

Avvertenze

Diagram of a mechanical component with a blue pulley and gray ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a housing (no text or symbols)

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Attenzione!

Diagram showing two circular components with internal structures and directional arrows, no text or symbols present.

Diagram of a mechanical component with a screwdriver and a circular base, showing no text or symbols.

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

nl

Aanwijzingen

Illustration of a blue pulley or wheel component with a blue arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted, showing a circular base and mounting holes (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Attentie!

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with a blue pulley and arrow indicating direction (no text or symbols)

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Anvisninger

• Kontroller, at silikone-patchen er helt tør, inden temperatursensoren placeres.
• Placer gryden eller panden, så temperatursensoren vender ud mod ydersiden af kogesektionen.

Diagram of a mechanical component with a blue pulley and a blue ring, showing a rotating arrow (no text or symbols)

Technical illustration of a screwdriver inserted into a circular mechanical component (no text or symbols)

Diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Pas på!

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with a blue circular base and a blue arrow indicating direction (no text or symbols)

www.siemens-eshop.com

Dette apparatet er bare ment for bruk i private husholdninger. Apparatet er kun beregnet til tilberedning av mat og drikke. Kokeprosessen må finne sted under tilsyn. En kortvarig kokeprosess må hele tiden finne sted under tilsyn. Bruk bare apparatet i lukkede rom.

Illustration of a cooking pot on a stovetop with a hand using a tool to press the lid (no text or symbols)

Merknader

Illustration of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being converted into a circular housing (no text or symbols present)

Obs!

Ikke bruk gjenstander i metall när du skal ta ut batteriet. Ikke ta på kontaktene.

Diagram showing a mechanical assembly with two circular components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

Illustration of a mechanical pulley or wheel component with a blue arrow indicating direction (no text or symbols)

Illustration of a cooking pot on a stovetop with a hand pressing it, no text or symbols present

Anvisningar

Diagram of a mechanical component with a blue pulley and a gray ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Obs!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows indicating motion (no text or symbols)

Diagram showing two circular components with internal structures and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

Illustration of a mechanical pulley or wheel component with a blue arrow indicating direction (no text or symbols)

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Huomautuksia

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating assembly or transformation (no text or symbols present)

Huomio!

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical illustration of a mechanical component with a screwdriver and a circular base (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Illustration of a cooking pot on a stovetop with a hand using a pan to press the lid (no text or symbols)

Notas

Two technical diagrams showing a mechanical component before and after disassembly, with no visible text or symbols.

es

Diagram showing a mechanical component being converted into a flanged housing (no text or symbols present)

¡Atención!

Diagram of a mechanical assembly with a blue component and a magnified inset showing force vectors (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

www.siemens-eshop.com

Illustration of a cooking pot on a stovetop with a hand using a tool to press the lid (no text or symbols)

Conselhos

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Atenção!

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

Illustration of a cooking pot on a stovetop with a hand touching it, showing a knob and stirring pan (no text or symbols)

Υποδείξεις

Diagram of a mechanical component with a blue pulley and a metallic ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Προσοχή!

Diagram showing a mechanical component with two views of a cylindrical housing, one open and one closed, both with blue arrows indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a tool and pin, no text or symbols present

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Bilgiler

Diagram of a mechanical component with a blue pulley and a blue ring, showing a rotating arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Dikkat!

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Diagram of a mechanical component with a tool and screwdriver, no text or symbols present

Illustration of a mechanical component with a blue circular base and arrow indicating direction (no text or symbols)

www.siemens-eshop.com

Illustration of a cooking pot on a stovetop with a hand using a rotary knob to press the lid (no text or symbols)

Upozornění

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being converted into a flanged housing (no text or symbols present)

Pozor!

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical illustration of a mechanical component with a tool and pin, no text or symbols present

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

www.siemens-eshop.com

Použitie k určenému

účelu

Illustration of a cooking pot with a hand pressing a button on a stovetop (no text or symbols)

Upozornenia

Diagram of a mechanical component with a blue pulley and a blue ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component showing a cylindrical housing with internal components and a flanged circular housing (no text or symbols)

Pozor!

Diagram of a mechanical component with a blue highlighted section and an inset showing force vectors (no text or symbols)

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Utasítások

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Figyelem!

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols present)

Diagram of a mechanical component with a blue circular base and a blue arrow indicating direction (no text or symbols)

www.siemens-eshop.com

Line drawing of a cooking pot with a lid and side panel, showing a close-up of the lid being inserted (no text or symbols present)

Illustration of a cooking pot on a stovetop with a hand pressing a button (no text or symbols)

Wskazówki

Diagram of a mechanical component with a blue pulley and a gray ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being converted into a flanged housing (no text or symbols present)

pl

Uwaga!

Diagram of a mechanical component with a magnified inset showing force vectors (no text or symbols)

Diagram showing a mechanical component being converted into a circular housing (no text or symbols present)

Diagram of a mechanical component with a tool and screwdriver, no text or symbols present

Diagram of a mechanical component with a blue pulley and arrow indicating direction (no text or symbols)

www.siemens-eshop.com

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Indicații

Illustration of a mechanical component with a blue pulley and a gray ring, showing a motion arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular housing (no text or symbols)

Atentie!

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component (no text or symbols)

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Указание

Diagram of a mechanical pulley or wheel assembly with a blue rim and a blue blade, showing no text or symbols.

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Внимание!

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Technical illustration of a mechanical component with a tool and pin, no text or symbols present

Diagram of a mechanical component with a blue circular base and arrow indicating direction (no text or symbols)

Illustration of a cooking pot on a stovetop with a hand touching it, showing the lid and stirring pan (no text or symbols)

Указания

Illustration of a mechanical pulley or wheel assembly with a blue blade and arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Внимание!

Diagram of a mechanical assembly with a gear and housing, showing directional arrows and component symbols (no readable text or labels)

ru

Diagram showing a mechanical component being converted into a circular housing (no text or symbols present)

Diagram of a mechanical component with a tool and screwdriver, no text or symbols present

Diagram of a mechanical component with a blue circular base and a blue arrow indicating direction (no text or symbols)

www.siemens-eshop.com

Line drawing of a cooking pot with lid and side panel, showing a hand holding a circular object (no text or symbols)

Illustration of a cooking pot with a hand pressing a button on a stove (no text or symbols)

Вказівки

Diagram of a mechanical pulley or wheel assembly with a blue rim and a blue blade, showing no text or symbols.

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

uk

Увага!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and an inset view of a circular component (no text or symbols)

Diagram showing a mechanical component being converted into a circular housing (no text or symbols present)

Diagram of a mechanical component with a tool and screwdriver, no text or symbols present

Diagram of a mechanical component with a blue circular base and a blue arrow indicating direction (no text or symbols)

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Uputstva

■ Uverite se da je silikonska traka potpuno suva, pre nego što postavite senzor temperature.
■ Posudu za kuvanje postavite tako da senzor temperature pokazuje bočnu spoljašnju površinu ringle.

■ Senzor temperature ne sme da se usmeri prema drugoj vreloj posudi da bi se izbeglo pregrevanje.
Nakon termičke obrade senzor temperature uklonite sa lonca. Čuvajte ga na čistom, bezbednom mestu, npr. u pakovanju, i dalje od izvora toplote.

Zamena baterije

Ako je pritisnut simbol bežičnog senzora temperature i LED ne zasvetli, znači da se baterija ispraznila.

Zamena baterije:

Diagram of a mechanical component with a blue pulley and a blue ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

1. Izvucite gornji deo kućišta. Uklonite staru bateriju. Ugurajte novu bateriju. Pri tom pazite na polove.

Diagram showing two mechanical components with arrows indicating assembly or transformation (no text or symbols present)

Pažnja!

Za uklanjanje baterije nemojte upotrebljavati predmete od metala. Nemojte dodirivati kontakte.

Diagram of a mechanical assembly with a gear and housing, showing directional arrows and polarity indicators (no text or symbols)

1. Ponovo utaknite gornji i donji deo kućišta. Pri tom vodite računa da kontaktne osovinice budu pravilno usmerene.

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

1. Silikonski pokrov ponovo postavite na donji deo kućišta senzora temperature.

Illustration of a mechanical pulley or wheel component with a blue arrow indicating direction (no text or symbols)

Uputstvo: Upotrebljavajte kvalitetne baterije tipa CR2032. One posebno dugo drže.

Čišćenje

Senzor temperature

Senzor temperature čistite vlažnom krpom. Nikada ga nemojte čistiti u mašini za pranje posuđa. Nemojte ga potapati u vodu i čistiti pod mlazom vode.

Nakon kuvanja, senzor temperature uklonite sa posude. Čuvajte ga na čistom, bezbednom mestu, npr. u pakovanju, i dalje od izvora toplote.

Silikonski umetak

Operite i osušite pre postavljanja temperaturnog senzora. Može da se pere u mašini za pranje sudova.

Uputstvo: Nemojte dugo držati posuđe sa silikonskim umetkom u vodi sa deterdžentom.

Prozorčić senzora temperature

Illustration of a cooking pot with a hand pressing a button on a stovetop (no text or symbols)

Napomene

■ Uvjerite se da je silikonska pločica potpuno suha prije stavljanja senzora temperature.
■ Posudu za kuhanje stavite tako da senzor temperature pokazuje na bočnu vanjsku površinu ploče za kuhanje.

hr

Diagram of a mechanical component with a blue pulley and a white ring, showing a directional arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

1. Izvucite gornji dio kućišta. Izvadite staru bateriju. Umetnite novu bateriju. Pritom pazite na polaritet.

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Oprez!

Za vađenje baterije ne koristite metalne predmete. Ne dodirujte kontakte.

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Technical illustration of a mechanical component with a screwdriver and a circular base (no text or symbols)

1. Silikonski poklopac ponovno stavite na donji dio kućišta senzora temperature.

Diagram of a mechanical pulley or wheel assembly with a blue rim and arrow indicating direction (no text or symbols)

Napomena: Koristite samo kvalitetne baterije tipa CR2032. One naročito dugo traju.

Čišćenje

Senzor temperature

Senzor temperature očistite vlažnom krpom. Nikada ga ne perite u perilici posuđa. Nemojte ga uroniti u vodu i prati pod mlazom vode.

www.siemens-eshop.com

Illustration of a cooking pot with a hand pressing a button on a stovetop (no text or symbols)

Opombe

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

1. Snemite zgornji del ohišja. Odstranite staro baterijo. Vstavite novo baterijo. Pri tem bodite pozorni na pravilne pole.

Diagram showing two mechanical components with arrows indicating assembly or transformation (no text or symbols present)

Pozor!

Diagram showing two circular components with internal structures and directional arrows indicating movement (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

Diagram of a mechanical pulley or wheel assembly with a blue rim and arrow indicating direction (no text or symbols)

1. Shtypni kapakun e silikonit, edhe pjesën e brendshme.

Illustration of a cooking pot with a hand pressing a button on a stovetop (no text or symbols)

Udhëzime

Illustration of a blue pulley and roller component with a directional arrow (no text or symbols)

Technical illustration of a mechanical component with a tool inserted into a housing (no text or symbols)

Diagram showing a mechanical component being processed into a circular housing, with no visible text or symbols.

Kujdes!

Diagram showing two circular components with internal structures and directional arrows, no text or symbols present.

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

www.siemens-eshop.com

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Напомени

Diagram of a mechanical component with a blue pulley and a blue arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Внимание!

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols)

Technical illustration of a mechanical component with a tool and circular base (no text or symbols)

Diagram of a mechanical component with a blue circular base and a blue arrow indicating direction (no text or symbols)

1. 按压硅胶贴片，包括其内表面。

Illustration of a cooking pot on a stovetop with a hand pressing the lid (no text or symbols)

提示

Illustration of a blue and gray mechanical component with a blue arrow indicating rotation (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component, showing the tool interacting with a circular housing (no text or symbols present)

Diagram showing a mechanical component being converted into a flanged housing (no text or symbols present)

注意！

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and an inset view of a circular component (no text or symbols)

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

1. 将硅胶贴放回烹饪传感器外壳的下部区域。

Diagram of a mechanical component with a blue circular base and arrow indicating direction (no text or symbols)
