USER MANUAL CMCS5154W CANDY
Underside view of the freezer door
Adjusting temperature 35
Super Freezing Function 35
Is the Refrigerator cold enough? 35
Tips for Water dispenser 36
Tips for keeping food perfect in the Fridge 36
Where to store your foods in the fridge 37
Storing Frozen Food 38
Label everything 38
ENERGY SAVING 38
TAKE CARE 39
Defrosting 39
Cleaning and Care 39
CHANGING THE INTERNAL LIGHT 40

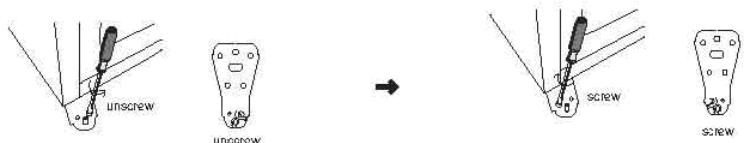

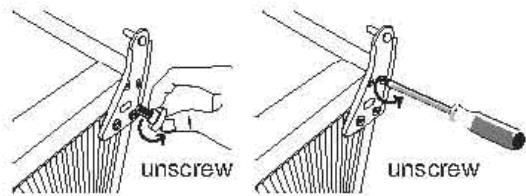

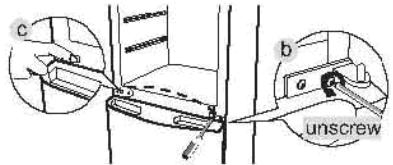

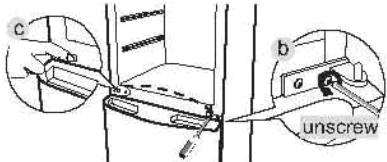

REVERSING THE DOOR SWING 40
TROUBLESHOOTING 43

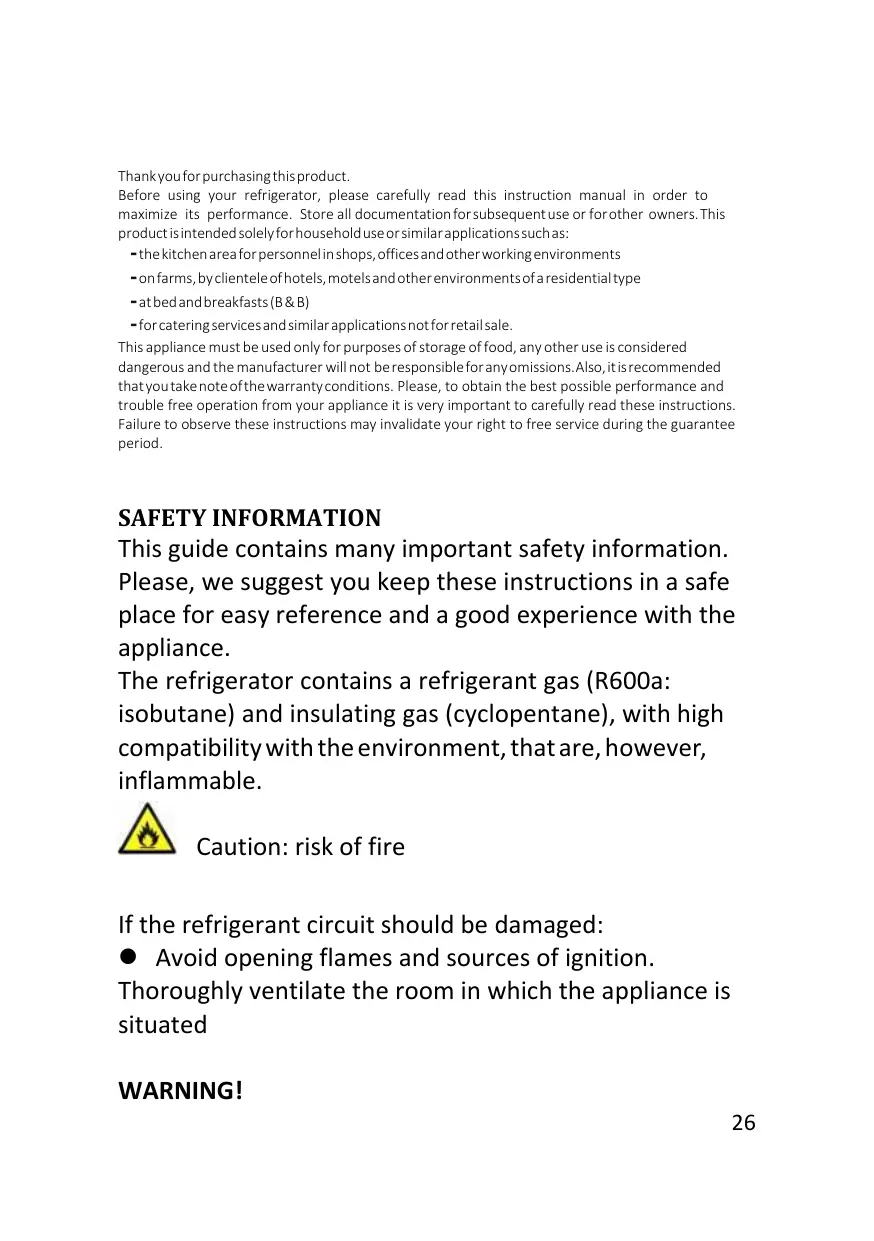

Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:
- the kitchen area for personnel in shops, offices and other working environments
- on farms, by clientele of hotels, motels and other environments of a residential type
- at bed and breakfasts (B & B)
- for catering services and similar applications not for retail sale.
This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.
This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.
The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.
Caution: risk of fire
If the refrigerant circuit should be damaged:
- Avoid open flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated.
WARNING!
- Care must be taken while cleaning or carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.
- This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
- Make sure that the mains cable is not caught under the appliance during and after carrying or moving the appliance, to avoid the mains cable becoming cut or damaged.
- When positioning your appliance, take care not to damage your flooring, pipes, wall coverings, etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.
- Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight and to water.
- Do not install the appliance near heaters or inflammable materials.
- If there is a power failure, do not open the lid. Frozen food should not be affected if the failure
lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
- If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.
- Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.
- This freezer must only be used for its intended purpose (i.e., storing and freezing of edible foodstuff).
- Do not store medicine or research materials in the Wine Coolers. When storing materials that require strict control of storage temperatures, they may deteriorate or undergo an uncontrolled reaction that could cause risks.
- Before performing any operation, unplug the power cord from the power socket.
- On delivery, check to make sure that the product is not damaged and that all parts and accessories are in perfect condition.
- If a leak is noted in the refrigeration system, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
- Do not use extension cords or adapters.
- Do not excessively pull or fold the power cord or touch the plug with wet hands.
- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
- Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
- Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.
- Do not place objects and/or containers filled with water on the top of the appliance.
- We do not recommend the use of extension leads and multi-way adapters.
- Do not dispose of the appliance on a fire. Take care not to damage the cooling circuit/pipes of the appliance during transportation and use. In case of damage, do not expose the appliance to fire,
potential ignition sources, and immediately ventilate the room where the appliance is situated.
- The refrigeration system located behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from
which can cause a fire or damage your eyes.
- Do not use mechanical devices or other equipment to hasten the defrosting process.
- Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
- Never use water to wash the compressor area; wipe it thoroughly with a dry cloth after cleaning to prevent rust.
- It is recommended to keep the plug clean. Any excessive dust residues on the plug can cause fire.
- The product is designed and built for domestic household use only.
- The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
- The product must be correctly installed, located, and operated in accordance with the instructions contained in the User Instructions Booklet provided.
- The guarantee is applicable only to new products and is not transferable if the product is resold.
- Our company disclaims any liability for incidental or consequential damages.
- The guarantee does not in any way diminish your statutory or legal rights.
- Do not perform repairs on this wine cooler. All interventions must be performed solely by qualified personnel.
- If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.
- Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
- Locks: If your fridge/freezer is fitted with a lock, to prevent children being entrapped, keep the key out of reach and not in the vicinity of the appliance. If disposing of an old fridge/freezer, break off any old locks or latches as a safeguard.

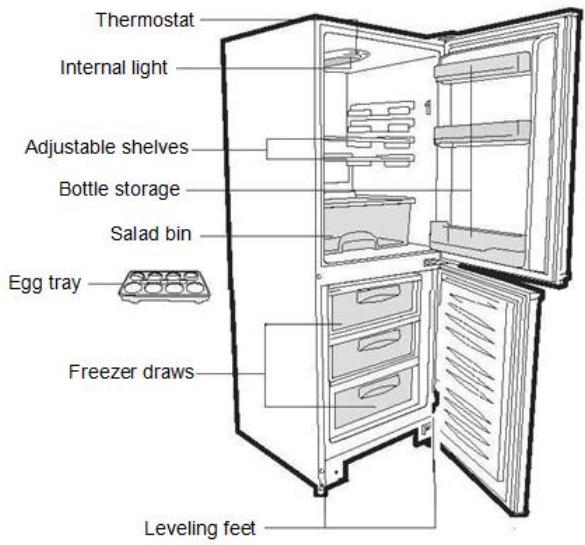

COMBI REFRIGERATOR CANDY
Climate Class
The appliance is designed to operate at a limited range of ambient temperatures, depending on climate zones. Do not use the appliance at temperatures outside this limit. The climate class of your appliance is indicated on the label with technical description inside the fridge compartment.
| Climate Class | Amb. T. (°C) | Amb. T. (°F) |
| SN | From 10 to 32 | From 50 to 90 |
| N | From 16 to 32 | From 61 to 90 |
| ST | From 16 to 38 | From 61 to 100 |
| T | From 16 to 43 | From 61 to 110 |

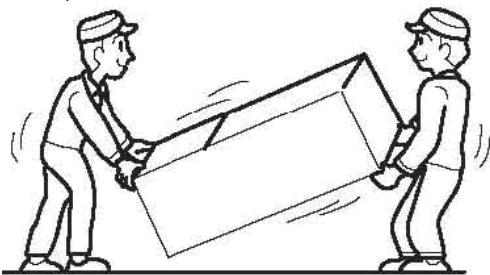

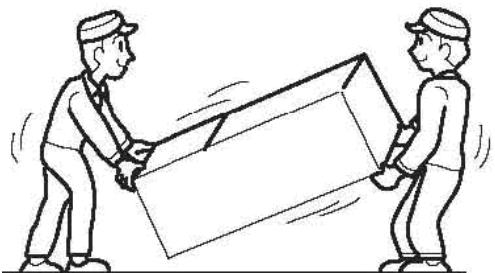

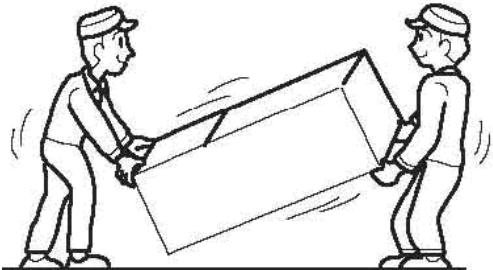

TRANSPORTATION INSTRUCTIONS
The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.
- Failure to comply with the above instructions could result in damage occurring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.
- The appliance must be protected against rain, moisture and other atmospheric influences.
INSTALLATION INSTRUCTIONS
- If possible avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances:
| From Cookers | 4" (100 mm) |
| From Radiators | 12" (300 mm) |
| From Fridges | 4" (100 mm) |
- Make sure that sufficient room, with an average temperature of between 16°C and 32°C, is provided around the appliance to ensure free air circulation. Ideally, a space of no less than 9cm on the back and 2cm on the sides.
- The appliance should be located on a smooth surface.
- It is forbidden to use the refrigerator outdoors.
- Protection from moisture. Do not locate the freezer in moist space to avoid the metal parts rusting. And do not spray water on the freezer, otherwise it will weaken the insulation and cause current leakage.
- Refer to "Cleaning and Care" section to prepare your appliance for use.
- If the freezer is installed in unheated areas, garages etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth.
- Never place the refrigerator in a wall recess or into fitted cabinets or furniture. When it is working, the grille at the back may become hot and the sides warm. Do not drape the refrigerator with any covering.
STARTING TO USE
Before you start using the freezer, please check that:
- The interior is dry and air can circulate freely at the rear.
- Clean the interior as recommended under the "TAKE CARE" section (electric parts of the refrigerator can only be wiped with a dry cloth).
- Do not switch on until 4 hours after moving the fridge/freezer. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.
- Before connecting the refrigerator to the mains supply, position it properly. The thermostat control dial is located inside the fridge compartment.
- Turn the thermostat knob to the "3" position and turn on the electricity. The compressor and the light inside the refrigerator will begin to work.
- Before storing foods in your refrigerator, turn the refrigerator on and wait for 24 hours to make sure it is working properly and to allow the fridge/freezer to reach the correct temperature.
- Open the door 30 minutes later. If the temperature in the refrigerator decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits.
COMBI OPERATION

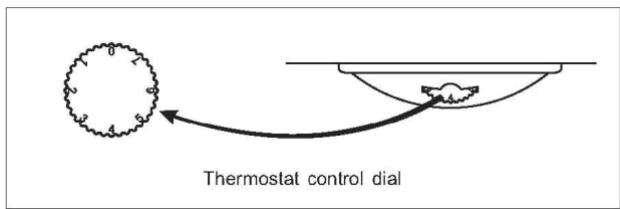

Adjusting temperature
Follow these points:
- The temperature in the refrigerator and freezer compartments is controlled by the temperature controller installed on the inside wall of the refrigerator compartment. We strongly recommend you use a freezer thermostat to check that the temperature is below -18°C before loading any food. This can take 2-3 hours.
- The marks on the knob are the temperature grades, NOT the exact degree of temperature. "0" is "OFF" and "7" represents the lowest temperature.
- Please start with the knob set to position "4". Use a suitable thermometer to check the temperature after 2 hours. The refrigerator temperature should be set between +2°C and +5°C and the freezer will vary between -18 and -25°C over a typical cycle. To reduce the refrigerator temperature, turn the knob towards "6" and check after one hour.
Super Freezing Function
- Quick freezing allows moisture inside foodstuffs to form fine ice-crystals which prevent the cell membrane from being damaged and the cytoplasm being lost when unfreezing, thus the original freshness and nutrition constituent of foodstuffs can be retained.
- Fresh meal and fish to be stored for long time must be done by quick freezing. To quick freeze, turn the temperature knob to setting "7" before adding food (the maximum allowable capacity is 2.5 kg at a time).
- After quick freezing, turn the knob back to the original position (normally time for quick freezing shall not exceed 4 hours).
Is the Refrigerator cold enough?
If you are at all concerned that your Fridge/Freezer is not being kept cold enough, or you occasionally wish to check the temperature, you can purchase a Fridge/Freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in the Fridge compartment and leave overnight. The correct temperature should read between 0°C and 10°C. Alternatively, place the thermometer in the middle basket of the Freezer compartment and leave it overnight. The correct temperature should be -18°C or lower.
Tips for Water dispenser
The refrigerator includes a water dispenser which makes it easier to fill your cup of water and have access to cold water almost immediately. The water dispenser includes one tank of 2.0 litres of water which has to be filled out. To use water dispenser, follow the instructions below:
- Open the refrigerator door to ensure the water dispenser is fixed well.
- Open the filler cover of the water tank, slowly fill the water tank to prevent any spills until the tank is filled. Then close the filler cover of the water tank. See image C.
- Once full, turn the thermostat knob to maximum number and come back 30 minutes later, then fill your cup on water dispenser. See image D.
- When using the water dispenser, some water may drip and accumulate at the bottom of the water dispenser. Please wipe it with a cloth when necessary.
NOTE: Don't take away the cup until no waterdrop.
Tips for keeping food perfect in the Fridge
Take extra care with meat and fish: cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil.
Leave space around food: this allows cold air to circulate around the fridge, ensuring all parts of the fridge are kept cool.
Wrap up food! To prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.
Pre-cooked food should be cooled properly: allow pre-cooked food to cool down before placing in the fridge. This will help to stop the internal temperature of the fridge from rising.
Shut the door! To prevent cold air escaping, try to limit the number of times you open the door.
When returning from shopping, sort foods to be kept in your fridge before opening the door. Only open the door to put food in or take it out.

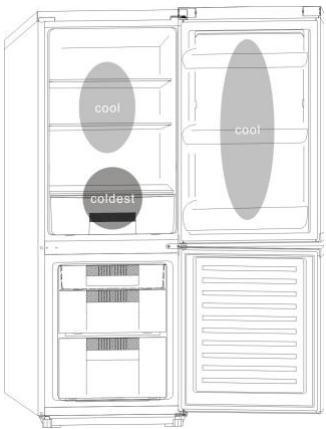

Where to store your foods in the fridge
Cool area: this is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses e.g. Cheddar. Opened jars and bottles of salad dressings, sauces and jams. Fats, e.g. Butter, margarine, low-fat spreads, cooking fats and lard.
Coldest area (0°C to 5°C): this is where foods which must be cold to keep them safe should be kept:
- Raw and uncooked foods should always be wrapped. - Pre-cooked chilled foods, e.g. Ready meals, meat pies, soft cheeses. - Pre-cooked meats e.g. Ham,
- Prepared salads (including pre-packed mixed green salads, rice, potato salad etc). Desserts, e.g. Fromage frais, home-prepared food and leftovers or cream cakes.
Crisper: this is the most humid part of the fridge. Vegetables, fruit, fresh salad items e.g. Unwashed whole lettuce, whole tomatoes, radishes etc can be stored here.
WE RECOMMEND THAT ALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.
NOTE: Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom of the fridge. This will stop them dripping onto, or touching other foods. Do not store inflammable gases or liquids in the fridge.
Electrical operation: after 3h on the freezer, the temperature in the cabinet above -12°C, the alarm light is lit, and buzzer sounds.
Storing Frozen Food
Prepackaged commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a freezer compartment.
To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:
- Put packets in the freezer as quickly as possible after purchase.
- Do not exceed "Use By" or "Best Before" dates on the packaging.
| DO | DON'T |
| Defrost food from the freezer thoroughly in a fridge or in a microwave oven following defrosting and cooking instructions. | Use pointed sharp edged objects such as knives, forks to remove the ice. |
| Defrost frozen meat completely before cooking. | Put hot food in the freezer. Let it cool down first. |
| Store commercially frozen food in accordance with the instructions given on the packets that you buy. | Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst. |
| Check contents of the refrigerator at regular intervals. | Remove items from the freezer with wet hands. |
| Clean and defrost your refrigerator regularly. | Freeze fizzy drinks. |
| Prepare fresh food for freezing in small portions to ensure rapid freezing. | Consume ice-cream and water ices direct from freezer. It may cause “freezer burns” on lips. |
| Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it. | Store poisonous or dangerous substances in the freezer. |
| Wrap all foods in aluminum foil or freezer quality plastic bags and make sure any air is excluded. | |
| Wrap frozen food when you buy it and put it into the freezer shortly. | |
| Keep food for as short a time as possible and adhere to “Best Before”, “Use By” dates. | |
For more about storing, download the App and visit "Tips & Hints".
Label everything
- Many foods look the same when frozen, so careful labeling will help avoid forgetting what an item is. Exceeding storage times could cause food poisoning. On home-cooked food, add the date so you can make sure you don't eat food past the recommended storage period.
- You can buy special fridge/freezer labels and pens. Labels come in different colors, which can help you use your fridge/freezer effectively. For instance, you could color-code meat red and vegetables green. Using a different color label for each quarter of the year will help you rotate your frozen food more efficiently.
- Write the contents and date. Add the weight and notes on cooking such as "thaw first" or "cook from frozen," and keep a separate "log-book" of what is in each drawer. This will save opening the door and searching around unnecessarily.
ENERGY SAVING
For better energy saving, we suggest:
- Installing the appliance away from heat sources, not exposed to direct sunlight, and in a well-ventilated room.
- Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous operation of the compressor.
- Do not overstuff foods so as to ensure proper air circulation.
- Defrost the appliance in case there is ice to facilitate the transfer of cold.
- In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
- Open or keep the doors of the appliance open as little as possible.
- Avoid adjusting the setting to temperatures too cold.
- Remove dust present on the rear of the appliance.
TAKE CARE
Defrosting
Defrost twice a year or when a frost layer of around 5 mm has formed.
Alternatively you may switch off the freezer at the socket outlet and pull out the mains plug. Extract the water conduit and put it in a water container.
As a temporary measure, this frost should be scraped away using a plastic scraper. NEVER use a metal or sharp instrument. This should be carried out if the frost build-up cannot be scraped away, or if it begins to interfere with the food storage. Choose a time when the stock of frozen food is low and proceed as follows:
- Take out the frozen food, turn the Refrigerator off at the mains supply and leave the doors open. Ideally the frozen food should be put into another Fridge/Freezer or refrigerator. If this is not possible wrap the food, firstly in several sheets of newspaper or large towels and then in a thick rug or blanket and keep it in a cool place.
- Scrape away as much frost build-up as possible using the plastic scraper. To accelerate the thawing process place bowls of hot water inside the Fridge/Freezer cabinet. As the solid frost loosens, prize it away with the plastic scraper and remove.
- When defrosting is completed, clean your Fridge/Freezer as described.
Cleaning and Care
After defrosting, clean the inside of the fridge/freezer with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before placing them back in the fridge/freezer. Condensation will form on the back wall of the fridge; however, it will normally run down the back wall and into the drain hole behind the salad bin.
The drain hole has a "cleaning spike" inserted into it. This ensures that small pieces of food cannot enter the drain. After cleaning the inside of your fridge and removing any food residues from around the hole, use the "cleaning spike" to make sure there are no blockages. Use standard furniture polish to clean the exterior of the fridge/freezer. Make sure the doors are closed to prevent polish from getting on the magnetic door seal or inside.
The grille of the condenser at the back of the fridge/freezer and the adjacent components can be
vacuumed using a soft brush attachment.
Do not use harsh cleaners, scouring pads, or solvents to clean any part of the fridge/freezer.
CHANGING THE INTERNAL LIGHT
- Before carrying out the LED replacement, always press and turn the thermostat control dial to position 0, then disconnect the mains supply.
- Hold and lift up the LED light cover.
- Remove the old LED by unscrewing it in an anti-clockwise direction.
- Replace with a new LED light by screwing it in a clockwise direction, making sure that it is secure in the bulb holder.
- Refit the light cover and re-connect your fridge/freezer to the mains supply and switch on.
REVERSING THE DOOR SWING
To change the opening direction yourself, please follow these instructions:
Tools required: Philips style screwdriver / flat bladed screwdriver / hexagonal spanner
- a. Remove all the cover's screws first. b. Lift the top cover away from the fridge.
c. Remove the left hinge cover. Insert the right hinge cover.
- a. Undo the screws, lift the hinge bracket up and take it off.
b. Remove the bolt with a screwdriver and flip the hinge bracket, then reattach the bolt to the hinge bracket. Remove the fridge door.
- a. Lift the top hinge cover on the fridge door and move it to the side you want to install.
b. Take off the middle hinge by removing the screws. Lift the freezer door up and move it away.
c. Remove the screws' covers and place them on the opposite side.
- Remove the bottom hinge adaptor from the freezer door. Move the adaptor to the opposite side. Ensure it is securely located.
Underside view of the freezer door.
- a. Tilt the fridge carefully. Two people are required to tilt the fridge during the door reversing process.
b. Remove the screws and bottom hinge. Then remove the adjustable feet from both sides and reattach them to the opposite side.
- Remove the screw from the bottom hinge and refit it to the opposite side. Place the freezer door back on.
- After placing the freezer door, screw the middle hinge back onto the opposite side of the fridge.
Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.
- Place the fridge door back on. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
a. Insert the hinge bracket and screw it to the top of the fridge.
b. Use a spanner to tighten it if necessary.
- Put the top cover back and tighten it with the screws. Reverse step 1a to 1c for details.
- Change the handle (which is the same method for both fridge door and freezer door).
a. Remove the right bush on the upper door trim, install it to left symmetrical position.
b. Remove two side of plastic hole cover and handle with a screwdriver.
c. Fix them on the opposite side. Put the plastic hole cover that were situated where the handles are presently.
Double check that the door is aligned correctly and all the seals are closed on all sides. If necessary, re-adjust the levelling feet.
NOTE: If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
All parts removed must be saved to do the reinstallation of the door. You should rest the fridge freezer on something solid so that it will not slip during the door change process. Do not lay the fridge freezer flat as this may damage the coolant system. Ensure the fridge freezer is unplugged and empty. We recommend that 2 people handle the fridge freezer during assembly.
TROUBLE SHOOTING
If the appliance does not operate when switched on, check: - Power cut: If the internal temperature of the Fridge/Freezer compartment is -18°C or less when the power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for approx 16 hours with the door closed. Do not open the Fridge/Freezer door more than necessary. The product is designed and built for domestic household use only. - The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance). - The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off. The temperature control has been set correctly. If the refrigerator is exceptionally cold, you may have accidentally adjusted the thermostat control dial to a higher position. - If the refrigerator is exceptionally warm, the compressor may not be working. Turn the thermostat control dial to the maximum setting and wait a few minutes. If there is no humming noise, it is not working. Contact the local store where your purchase was made. - If condensation appears outside of the Refrigerator, this may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues contact the local store where your purchase was made. - If the provided plug has been replaced, make sure the new plug is properly connected. If the appliance is still not operating after the above checks, please contact Customer Service.
SCRAPPING OLD APPLIANCES
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
WEEE should not be treated as household waste.
WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
TABLE OF CONTENTS
SAFETY INFORMATION 46
COMBI CANDY 54
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
DISPOSAL OF OLD APPLIANCES
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
- a. Carefully tilt the refrigerator. Two people are needed to tilt the refrigerator when moving the door.
b. Unscrew the screws and the bottom hinge. Then unscrew the leveling foot on both sides and place them on the opposite side.
- Unscrew the screws from the bottom hinge and place it on the opposite side. Put the freezer door back in place.
- After installing the freezer door, screw the middle hinge onto the refrigerator (on the opposite side). Make sure the refrigerator door is aligned horizontally and vertically so that the gaskets seal everywhere before fully tightening the top hinge.
- Put the refrigerator door back in place. Make sure the refrigerator door is aligned horizontally and vertically so that the gaskets seal everywhere before fully tightening the top hinge.
a. Insert the hinge bracket and screw it onto the top of the refrigerator.
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
Underside view of the freezer door
- The device must be protected from moisture, rain, and other atmospheric influences.
INSTALLATION INSTRUCTIONS
- If possible, place the unit close to the gas cylinder, radiator, or direct sunlight, as this will cause the compressor to work for longer periods of time. If mounted near a heat source, observe the following minimum distances:
| До roтварскпechки | 4инчa (100 mm) |
| До радиатори | 12инчa (300 mm) |
| До xладилици | 4инчa (100 mm) |
- Ensure there is sufficient free space around the unit, with an ambient temperature between 16°C and 32°C to allow free air circulation. In the ideal case, the space should be no more than 9 cm from the back and 2 cm from the sides.
- The unit must be placed on a flat surface.
- It is forbidden to use the cooling unit outdoors.
- Protection from moisture. Do not place the refrigerator in damp places to avoid rusting of the metal parts. Do not splash water on the refrigerator, otherwise this will cause damage and lead to a short circuit.
- Refer to the "Installation and Maintenance" section to prepare the unit for use.
- If the refrigerator is installed in unheated spaces, e.g., garages, condensation may form on the outer surfaces during cold weather. This is perfectly normal and not a defect. Wipe off the condensation using a dry cloth.
- Never place the cooler against a wall or in built-in cabinets or closets, as the grill at the back can become hot and cause a fire hazard. Do not cover the refrigerator with a cover.
START OF OPERATION
Before you start using the refrigerator, check the following:
- The interior is dry and air can circulate freely in the back.
- Clean the interior as described in the "CARE" section (the electrical parts of the refrigerator can be wiped with a dry cloth).
- Do not plug it in for 4 hours after transporting the refrigerator/freezer. The cooling system needs time to settle. If the unit has been switched off for any length of time, wait 30 minutes before switching it on again to allow the cooling system to settle.
- Before connecting the refrigerator to the electrical supply, please check the thermostat dial located in the refrigerator compartment.
- Turn the thermostat knob to position "3" and plug in the electricity.
Components and lighting inside the refrigerator are designed to work properly.
- After unpacking the refrigerator, plug it in and let it run for 24 hours to ensure it operates correctly before allowing the refrigerator to reach the proper temperature.
- Open the doors for 30 minutes; if the temperature in the refrigerator rises, this indicates that the refrigerator system is working well. When the refrigerator operates for a certain period, the thermostat will automatically adjust the temperature within the limits when the doors are opened.
PROGRAMMING
Temperature adjustment
Follow the steps below:
The temperature in the refrigerator and freezer compartments is controlled by the thermostat, located on the inner wall of the refrigerator compartment. We strongly recommend using a freezer thermometer to verify that the temperature is below -18°C before storing frozen food. This may take 2-3 hours. The markings on the thermostat are temperature levels, not exact degree temperatures. "0" is "OFF" and "7" represents the lowest temperature. For example, start with setting "4". Use a suitable thermometer to check the temperature after 2 hours. The refrigerator temperature should be set between +2°C and +5°C, and the freezer should vary between -18 and -25°C during normal operation. To lower the refrigerator temperature, turn the thermostat to "6" and check again after 2 hours.
- a. Remove the screws, lift the door hinge brackets.
b. Remove the bolts and washers, then turn the hinge brackets on the door. After that, tighten the bolts to the door brackets. Close the refrigerator door.
- a. Lift the top hinge cover of the refrigerator door and move it to the side from which you want to install.
b. Remove the middle hinge by removing the screws. Lift the freezer door and move it.
c. Remove the hinge covers and screws, then place them on the opposite side.
- Remove the hinge from the bottom of the freezer door. Move the hinge to the opposite side. Make sure it is positioned correctly.
Underside view of the freezer door
- a. Tilt the refrigerator carefully. Two people are needed to tilt the refrigerator for the door reversal procedure.
b. Remove the screws and the hinge pin. Then remove the adjusting screws from both sides and place the opposite side.
- Remove the hinge pin and place it on the opposite side. Place the hinge pin back into the hinge.
- Then place the hinge pin, tighten the middle hinge (the opposite side) of the door. Make sure the hinge pin is aligned horizontally and vertically, so that the door is closed on all sides, before tightening the hinge.
- Place the hinge pin back into the door. Make sure the hinge pin is aligned horizontally and vertically so that the door is closed on all sides, before tightening the hinge pin.
a. Place the screws on the hinge and tighten them towards the top part of the door.
b. If necessary, use a wrench to tighten them.
- Place the top cover back and tighten it with the screws. Refer to steps 1a to 1c for details.
- Color of the door (the method is the same for the door hinge and the hinge)
a. Remove the bushing from the top side of the door, while installing it in the opposite symmetrical position.
b. Remove the two sides of the hinge of the plastic opening, holding the screws.
c. Fix them on the opposite side. Place the hinge and the plastic opening, which was previously positioned, so that they are in the correct position.
Check that the door is aligned correctly and that all hinges are closed on all sides. If necessary, adjust the adjusting screws again.
WARNING: If you want to change the direction of the door opening, we do not recommend that you do it yourself. You should only attempt to change the direction of the door yourself if you are qualified to do so.
All removed parts must be stored so that the door can be reinstalled. You must place the door hinge back on the hard surface, so that it does not move during the process of changing the door. Do not place the door hinge in a tilted position, as this may damage the cooling system. Make sure the door hinge is unplugged and empty. We recommend the help of a second person to perform the installation.
TROUBLESHOOTING
Before using the appliance, when it is switched on, check it. - Electrical connection: If the temperature of the compartment
Refrigerator/Freezer is -18°C or lower, when the electrical
supply is restored, the food will be frozen. The food in the Refrigerator/Freezer will remain
frozen for about 16 hours with the door closed. And if you open the door of the
Refrigerator/Freezer more than necessary. - The appliance is designed and manufactured only for domestic use. - The appliance is equipped with a built-in alarm to warn of an increase in temperature. (To check the alarm, switch on the appliance). - The appliance is switched on. The temperature control is set correctly. If the refrigerator is not cold enough, you may accidentally have set the thermostat knob to a higher position. If the refrigerator is not cold, the compressor may not work. Turn the thermostat regulator to the maximum position and wait a few minutes. If you hear a sound, it is working. Contact the local dealer where the purchase was made. If the condenser at the back of the refrigerator is dirty, this can affect the room temperature. Clean all the dust. If the problem persists, contact the local dealer where the purchase was made. If the appliance has been replaced, check that the new one is connected correctly. If after performing the above checks the appliance still does not work, contact the customer service department.
DISPOSAL OF OLD APPLIANCES
This appliance is marked in accordance with European Directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE).
WEEE contains both polluting substances (which can have negative effects on the environment) and basic components (which can be recycled).
It is important that WEEE is disposed of properly, so that all polluting substances are removed correctly and all materials are collected and recycled.
The separate collection of WEEE plays an important role in ensuring that WEEE is not a problem for the environment; it is important to follow these basic rules:
WEEE should not be treated as household waste.
WEEE should be handed over to the designated collection points, managed by the municipality or registered companies. For large WEEE in many countries, there may be the possibility of home pickup.
In many countries, when you buy a new appliance, the old one can be returned to the retailer, who must take it free of charge on a one-for-one basis, provided it is of equivalent type and has the same functions as the delivered one.
Compliance
With the CE marking on this product, we confirm compliance with all European requirements for safety, health, and environmental protection, applicable to this product.
SUMMARY
SAFETY INFORMATION 427
CANDY COMBI. 434
Climate class 434
SHIPPING INFORMATION 434
INSTALLATION DESCRIPTION 435
USING THE FREEZER 435
COMBINED OPERATION 436
Underside view of the freezer door
Do not use open flames or sources of ignition.
Carefully ventilate the room where the appliance is installed.
WARNING!
Be careful when moving/transporting the appliance. Do not touch the metal parts and pipes in the lower part of the condenser, as this may cause injury to fingers and hands, as well as damage to the product.
Wrap food: To avoid odors and drying out, food should be wrapped separately or covered. Fruits and vegetables do not need to be wrapped.
Cooked dishes should be properly cooled: before placing cooked food in the refrigerator, let it cool down. This will prevent an increase in temperature inside the refrigerator.
Close the door: To avoid cold air leakage, try to open the refrigerator door less often. Before placing purchased products in the refrigerator, sort them. Open the door only to remove or add products.
Storage zones in the refrigerator
Cool zone: Where products will be stored best if they are cool. Milk, eggs, yogurt, fruit juices, hard cheeses such as cheddar. Opened jars of dressings, sauces, and jams. Fatty products, for example, butter, margarine, low-fat spreads, cooking oils, and lard.
Cold zone (from 0°C to +5°C): Place where products should be stored, the temperature of which must be low:
Cooked and prepared foods must be stored in the packaging.
Ready-to-eat chilled foods, such as ready meals, soft cheeses, and soft fruits.
Ready-to-eat meat products, for example, ham.
Ready-to-eat salads (including packaged green salads, rice salads, and potato salads, etc.).
Desserts, for example, soft cheese, homemade dishes, and leftovers of cakes with cream.
The fruit and vegetable container: this is the coldest zone of the refrigerator. Vegetables, fruits, fresh products for salads, etc. Here you can store unwashed lettuce, whole tomatoes, radishes, etc.
It is recommended to store all products for salads in the packaging.
Note. Raw meat, poultry, and fish should be wrapped in foil and stored on the lowest shelf or in the lower part of the refrigerator. This prevents contact and dripping of juices onto other products. Do not store flammable gases or liquids in the refrigerator.
If the temperature in the freezer compartment after 3 hours of operation is above -12°C, the alarm indicator lights up and a buzzer sounds.
Storage of frozen products
Packaged products, previously frozen under industrial conditions, should be stored according to the manufacturer's instructions for freezers. To achieve the best product quality, as intended by the manufacturer of frozen products and the retailer of food products, the following should be observed:
- Place the packages in the freezer as soon as possible after purchase.
- Do not exceed the storage period ("Use by...", "Best before") indicated on the packaging.
- a. Carefully tilt the refrigerator. To tilt the refrigerator during the process of changing the door opening direction, two people are required.
b. Remove the screws from the lower part. Then remove the adjustable knives from both sides and reposition them on the opposite side.
- Unscrew the screws of the lower part and reposition them on the opposite side. Install the freezer door in place.
