Brand	Franke
Model	VERTIS FVT 605
Product type	Cooker hood
Usage	Domestic
Minimum safety distance (cooking surface)	650 mm
Power supply	220-240 V
Electrical class	Class I (mandatory grounding)
Motor speeds	3 speeds (adjustable via keys T2 and T3)
Delay function	Yes, adjustable from 1 to 9 minutes (key T4)
Lighting	Integrated, replacement by after-sales service
Grease filter	Dishwasher safe, monthly cleaning
Activated carbon filter	Not washable, replacement every 4 months approximately
Cleaning	Damp cloth and neutral liquid detergent
Material	Stainless steel (likely)
Use with non-electric appliances	Proper ventilation required, negative pressure < 0.04 mbar
Safety instructions	Do not flambé under the hood, do not use for other purposes
Installation	By competent technician, compliance with local regulations
Country of origin	Not specified

Frequently Asked Questions - VERTIS FVT 605 FRANKE

What is the minimum installation height of the hood above a cooker?

The minimum safety distance between the cooking surface and the hood is 650 mm. Check your cooker's instructions as a higher distance may be required.

How often should I clean the grease filters?

The grease filters should be cleaned every month (or more often with heavy use). They are dishwasher safe.

How do I replace the activated carbon filter?

The activated carbon filter is not washable and should be replaced approximately every 4 months of operation, or more often if the hood is heavily used. Refer to the manual for the exact model.

Can I use the hood at the same time as a gas cooker?

Yes, but ensure the room is properly ventilated to prevent backflow of combustion gases. Negative pressure must not exceed 0.04 mbar.

How do I set the delay function?

Press and hold the T4 key (3 seconds) until the number flashes. Use T2 or T3 to set from 1 to 9 minutes, then press T4 again to confirm. The motor and lighting will stop after the set delay.

What should I do if the lighting no longer works?

The lighting must be replaced by an authorized after-sales service. Do not attempt to replace it yourself; contact the manufacturer or a qualified technician.

The hood turns off by itself after a few minutes, is this normal?

If the delay function is activated (flashing indicator), the hood automatically turns off after the set delay. Check if the T4 indicator flashes; if so, deactivate it by briefly pressing T4.

Can I use the hood without a carbon filter?

Yes, if the hood is installed in evacuation mode (external discharge), the carbon filter is not needed. In recirculation mode, it is mandatory to filter odors.

How do I clean the exterior of the hood?

Use a damp cloth and neutral liquid detergent. Avoid abrasive or alcohol-based products that may damage the surface.

What should I do if the power cord is damaged?

Do not use it. Have it replaced by the manufacturer, its after-sales service, or a qualified technician to avoid any risk of electrocution.

USER MANUAL VERTIS FVT 605 FRANKE

EN 1.SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 ~mm . The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

• Connect the plug to a socket complying with current regulations, located in an accessible place.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
  WARNING: Before installing the Hood, remove the protective films.

• Use only screws and small parts in support of the hood.
  WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of

this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

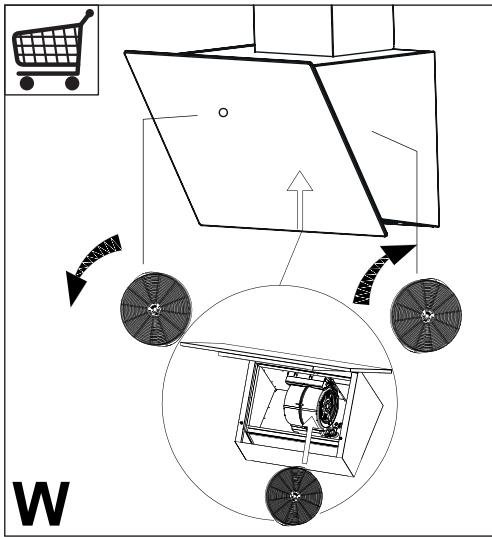

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

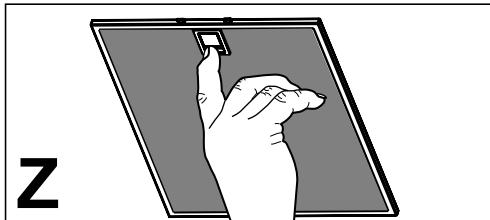

The Grease filters must be cleaned every 1 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

T4

T2

T1

T3

L

Button	Function	Led
T1	By pressing T1 Button the controls board are On and Off. After 2 minutes without button pressing, the control board turn Off.	Show 0
T2	Decreases the speed of the Motor.	Show the selected speed
T3	Increases the speed of the Motor.	Show the selected speed
T4	1) Press briefly: Activates/Deactivates the Delay 2) Press and hold for at least 3 seconds: Activates the Delay settings Enable shutdown with same minutes delay (Motor+Lights). It is possible to change the operating speed when this function is enabled. It's possible to choose the timing of Delay: Press for 3 seconds the button until the Digit flash. Within 10 seconds set from 1 to 9 the minutes of Delay by pressing T2 or T3 button. Press again the Button T4 to confirm.	Flash
L	Turns the Lighting System on and off.	On / Off

5. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").
