Product type	Decorative island extractor hood
Brand	Faber
Model	Arkea 110.0255.506
Power supply	220-240 V ~ 50/60 Hz (check rating plate)
Minimum distance to cooking surface	650 mm
Air outlet diameter	120 mm minimum
Exhaust type	Filter version (indoor recirculation)
Lighting	White LED, class 1M, adjustable color and brightness (7 W max)
Controls	Touch panel with buttons L, T1, +, -, ①, Delay, 24h, lighting; remote control optional (not supplied)
Number of speeds	Multiple (intensive speed, normal, etc.)
Grease filter	Metal, dishwasher safe (every 2 months)
Active carbon filter	Not washable, replace every 4 months (filter version)
Delayed shutdown function	Yes (Delay, shutdown after 30 min)
24h function	Yes (10 min per hour for 24h)
Intensive speed	Yes, timed 10 min
Safety	Safety microswitch, automatic cut-off, mandatory grounding
Use	Household use only
Installation	Ceiling or shelf, with support plate and suspension cables
Spare parts	Grease filter, carbon filter, LED bulbs (after-sales service), remote control (not supplied)

Frequently Asked Questions - Arkea - 110.0255.506 FABER

How to clean the grease filters?

The metal grease filters should be cleaned approximately every 2 months. They are dishwasher safe or can be washed by hand with a neutral detergent. To remove them, open the lighting unit, push the filter backwards and pull downwards. Let them dry before reinstalling, making sure the handle is visible.

When to replace the active carbon filter?

The active carbon filter is neither washable nor regenerable. It must be replaced approximately every 4 months or more frequently with heavy use. To replace it, open the lighting unit, remove the grease filter, then unclip the saturated filters and install new ones.

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm between the cooking surface and the hood. If the gas hob instructions specify a greater distance, that must be observed.

What to do if the hood does not turn on?

First check that the appliance is plugged in and the bipolar switch is on. Check the fuse located in the lighting unit (fuse holder to the left of the motor) and replace it if necessary (same specifications). If the problem persists, contact after-sales service.

How to use the remote control?

The remote control is optional (not supplied). It uses LR03-AAA alkaline batteries (1.5 V). The buttons allow controlling the motor, lighting, speeds and movements. Do not expose the remote control to heat and recycle used batteries.

How to adjust the LED lighting?

Open the lighting unit and use the keys on keyboard B (1: red, 3: green, 5: blue) to adjust the intensity of each color. Key 4 starts a gradient or flashing. Key 6 turns on/off and allows memorizing the color by pressing for 3 seconds.

What does the flashing of the T1 LED mean?

A slow flash (every 2 seconds) indicates exceeding the current absorption threshold. Check that no obstacle obstructs the movement. A fast flash (every 250 ms) signals the safety microswitch intervention in opening: contact after-sales service.

Can I install the hood myself?

Installation requires electrical and DIY skills. The hood must be securely fixed to the ceiling or a shelf with the supplied plate. Respect the distances, grounding, and use screws suitable for the support. If in doubt, call a qualified installer.

How to activate the delayed shutdown function (Delay)?

The Delay function can be activated when the hood is running (except intensive and 24h). Briefly press the Delay button: the hood will automatically shut down after 30 minutes. To cancel, press the same button again or turn off the motor.

What to do in case of movement malfunction?

Check that the hood body is level and that the four cables are evenly tensioned. Check the fuse. If the problem persists, contact after-sales service. Never force the movement manually.

USER MANUAL Arkea - 110.0255.506 FABER

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

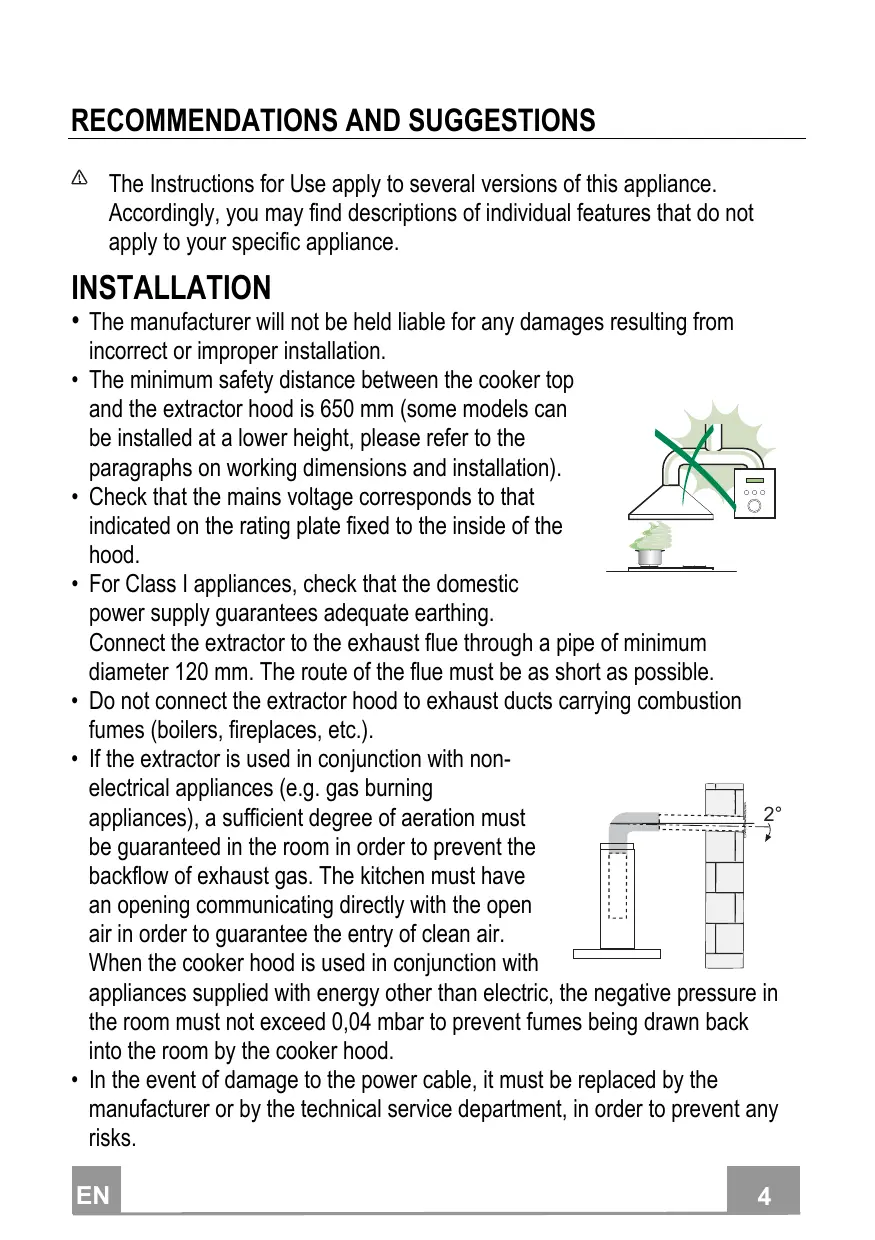

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with nonelectrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

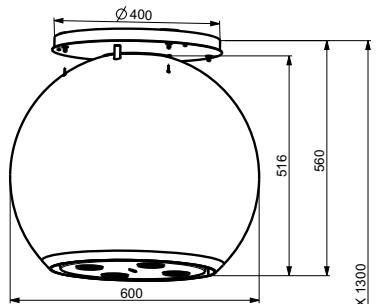

Dimensions

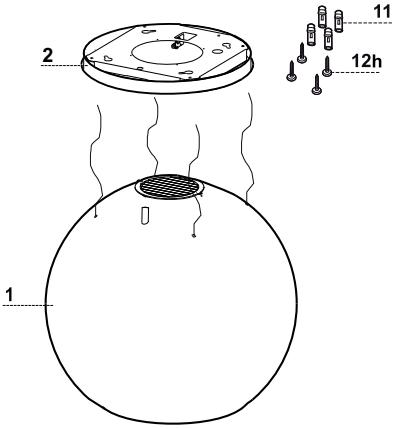

Components

Ref.	Q.ty	Product Components
1	1	Hood Canopy complete with: Controls, Light, Filters, Motor.
2	1	Hood support plate.

Ref. Q.ty Installation Components
Q.ty Documentation
1 Instruction Manual

11	4	Wall plugsø10
12h	4	Screws 4.2 x 44.4

This hood is designed to be mounted on the ceiling/on a shelf, above a free-standing Hob (min. 650 mm), in:

• Recirculation version: Internal recirculation.

Sequence of operations - Installation

Preparing for installation
- Drilling the Ceiling/Shelf and Fixing the support plate
- Connections
- Fitting the hood body
Functional Check
- Disposal of Packaging

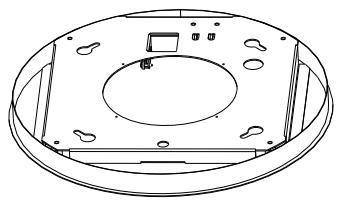

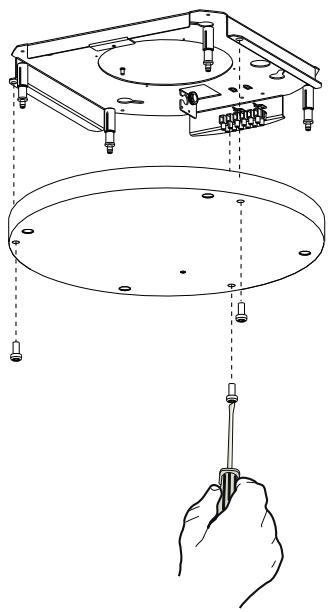

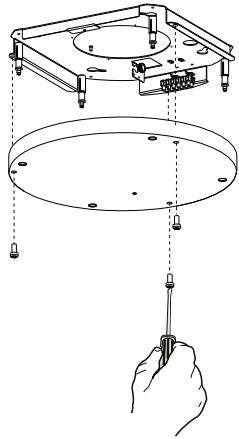

Opening Plate and preparing for assembly

• Unfasten the screws joining the plate to its cover.
• Take the plate and position it in the correct direction, as shown in the figure.

Ceiling/Shelf drilling and Plate Fixing

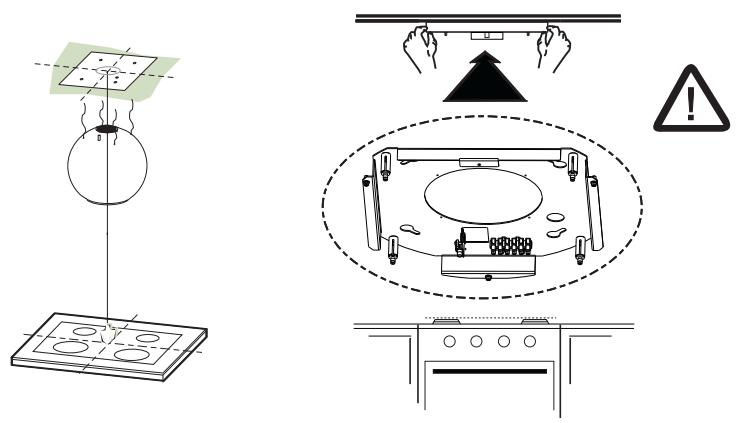

CEILING/SHELF DRILLING

• Use a plumb-line and mark the centre of the cooking hob on the Support Ceiling/Shelf
• Rest the Plate against the Ceiling/Shelf, making sure it is the right way up, as shown in the figure.
• Mark the centres of the holes in the plate.

• Drill the following points:

• Ceilings in solid concrete: As per concrete plugs used.

• Ceilings in hollow bricks with 20mm resistance thickness: Drill a hole 10mm (insert Plugs 11 supplied immediately).
• Ceilings with Wood Beams: As per Wood Screws used (not supplied).
  Wooden shelf, with a resistant thickness of 15mm drill a hole 7mm

• Feeding the electric supply cable: drill a hole 0.1mm .

• Insert two screws, crossing them and leaving 4 - 5mm from the ceiling:

• for solid concrete, concrete plugs, not provided.

• for hollow bricks with approx. 20mm resistance thickness, screws 12h, provided.
• for wooden beams, wood screws, not provided.
• for wooden shelves, screws with washers and nuts, not provided.

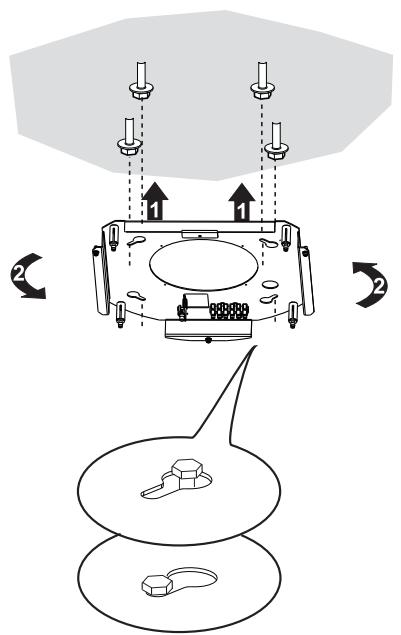

FIXING THE PLATE

• Lift up the Fixing plate and fit the slots onto the two screws previously inserted in the ceiling, and turn until they are at the centre of the adjustment slot.

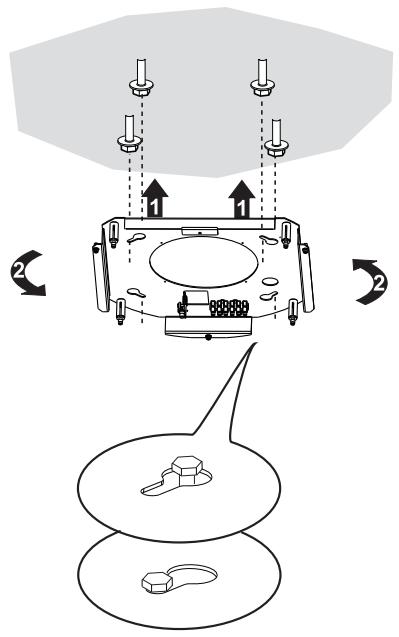

Warning: The plate must be facing in the direction shown in the figure

• Tighten the two screws completely and screw in the other two provided; before locking the screws completely it is possible to make adjustments by turning the piece, making sure that the screws do not come out of the adjustment slot.
• The unit must be securely fastened both due to the weight of the Hood and the stress caused by occasional sideways pressure on the Appliance when in position. Once the unit has been fixed, make sure that the plate is stable.
• In all cases where the Ceiling is not sufficiently strong at the point of suspension, the Installation technician must strengthen it with suitable plates and counterplates, anchored to structurally sound elements.
• Check that the plate is level on the ceiling.

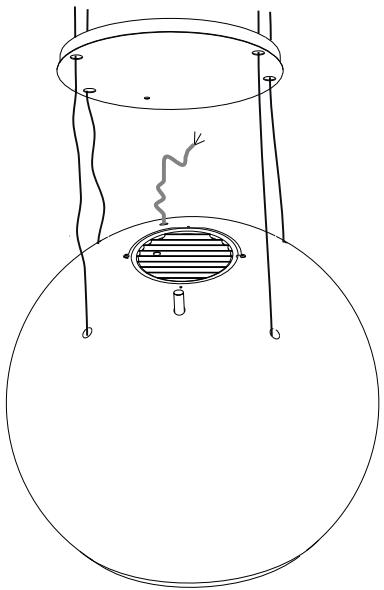

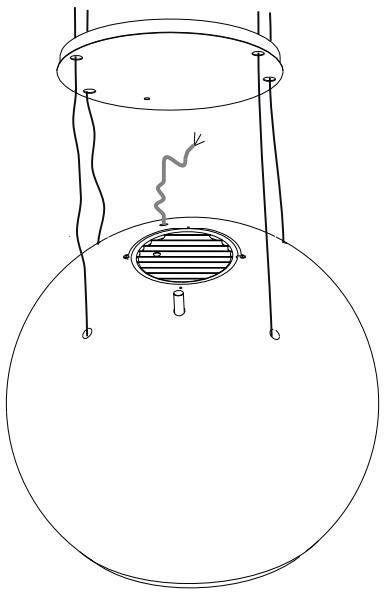

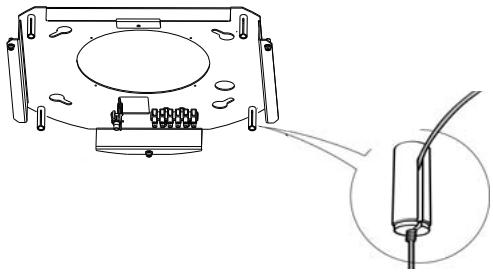

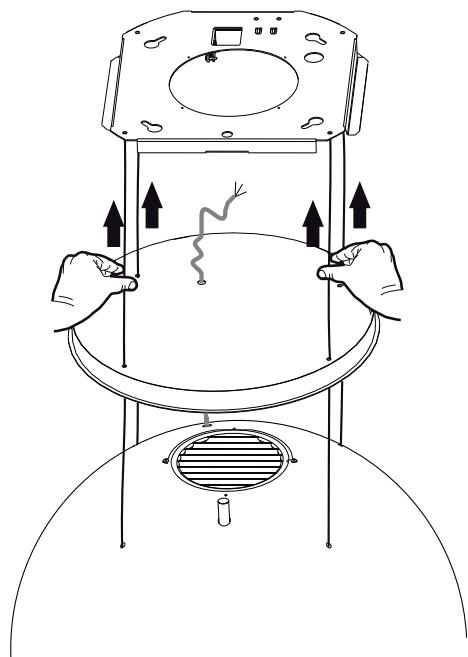

CONNECTING HOOD-PLATE CABLES

N.B. Before proceeding with installation the Hood must be raised to a height of at least 650 mm above the cooker hob by means of a support or with the assistance of another person. Take care not to exceed the maximum hood extension indicated in the dimensional drawing.
This operation is essential, as the Hood Cables are to be connected to the Plate mounted on the ceiling, and this must be done without the weight of the Hood bearing down on the structure.

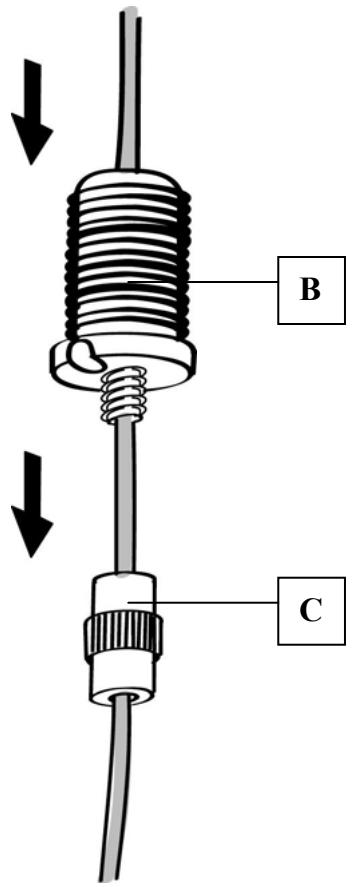

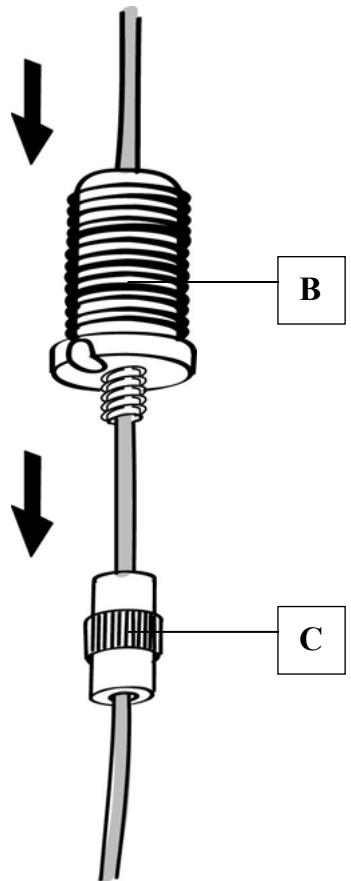

The system used to fix the 4 Cables comprises 3 components:

• Threaded pawl (a) already mounted on the ceiling Plate.
• Cable locking screw (b), provided.
• Safety knob (c), provided.

• Insert the hood power supply cable into the hole provided in the cover.

Warning: Do not break or remove the tie that fixes the power supply cable to the hood

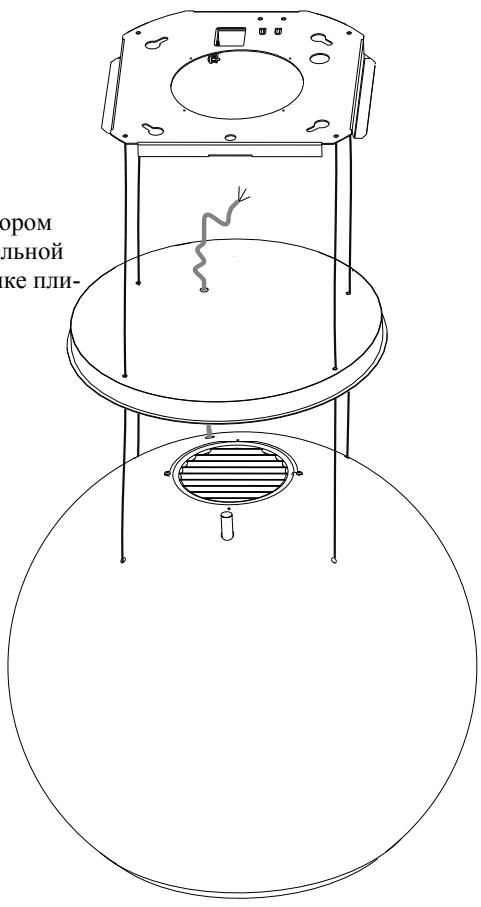

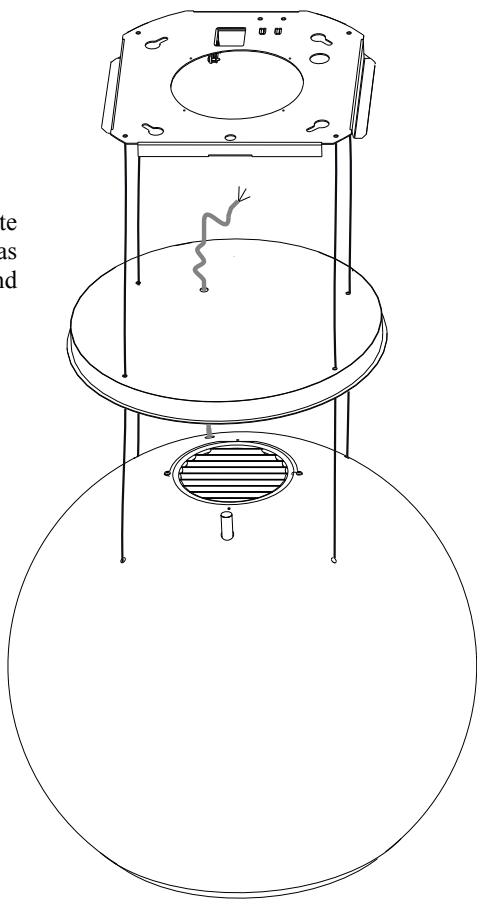

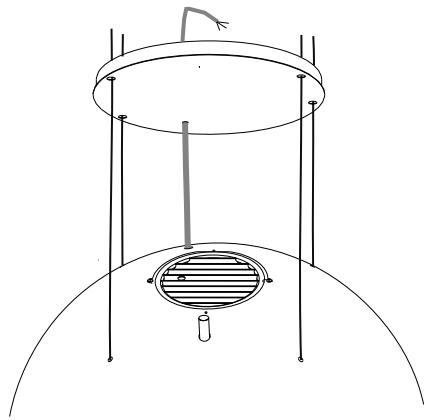

Pass the 4 cables (connected to the hood canopy) through the respective holes in the plate cover, after opening it as above, making sure that it faces in the same direction as the plate connected to the ceiling.

• Pay attention to the direction of the plate fixed to the ceiling (the plate limit pawl has a corresponding hole on the plate cover and on the hood canopy).

• Insert the safety knobs (c) into the respective cables, with the thread to the top.

• Insert the cable locking screws (b) into the respective cables.

• Pass the Cables into the slots on the threaded pawls (a) and tighten the cable locking screws (b) into the pawls themselves.

• When the operation has been completed, the result should be as shown in the figure for all 4 cables.

• At this point, all 4 cables are now connected to the Plate.

Tension the Cables by pushing them upwards, so that they slide inside the cable locking screw and out through the slot in the threaded pawn.

This is possible because the cable locking screw involves a system that allows the Cable to slide in one direction only, preventing it from sliding in the other direction.

Make sure that the cables are all the same length, to facilitate final levelling operations, and that the front left cable is not slacker than the others.

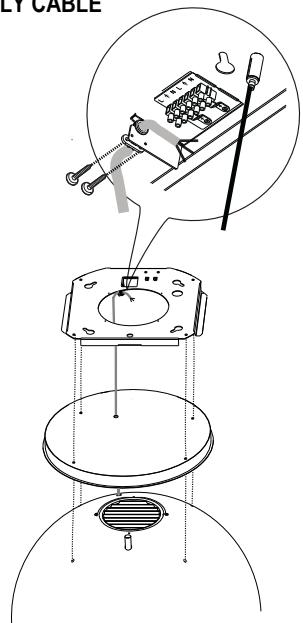

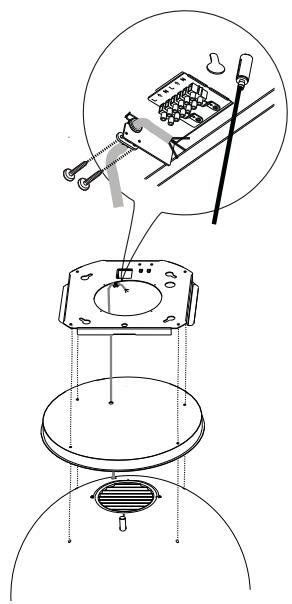

FIXING THE POWER SUPPLY CABLE

• Tighten the power supply cable and fix it to the bracket on the ceiling-mounted plate, using the tongue already mounted and 2 screws.
• Slot the rubber cable raceway already threaded onto the power cable into the slot to prevent future damage.
• Connect the Hood to the Mains Power Supply, inserting a bipolar switch with a contact aperture of at least 3 mm.
• Remove the Grease filters (see paragraph "Maintenance") and make sure that the Power cable connector has been properly inserted into the Suction fan socket.
• At this point it is possible to remove the tie fixing the power supply cable to the hood canopy.

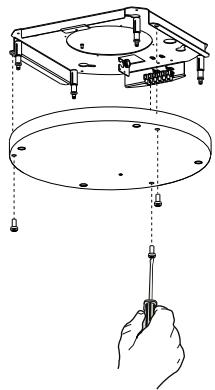

FITTING THE PLATE COVER

• Screw the cover back onto the plate using the screws removed as described above.

AIR OUTLET - RECIRCULATION VERSION

• Open the lighting unit by pulling on the notch provided.
• Remove the grease filter.
• Make sure that the Activated charcoal odour filter has been fitted.

Control panel

Button	Function	Display
L	Turns the lights On/Off.	-
T1	Hood Down Press for 2 seconds to raise the Hood. Press briefly to turn the Motor On/Off.	On/Off
	Hood Up Press once: The Hood lowers. Press a second time: The Hood Stops. When the movement has been completed the motor turns on at Speed two.	Off/Off

The electronic control system recognises and signals two types of fault.

Led T1
Slow flashing	Current absorption threshold exceeded:If an overload condition occurs, the fault is signalled by LED T1 on the keyboard flashing once every 2 seconds. Check that nothing is blocking normal hood movements.The signal remains active until a new hood open/close command is given.
Rapid flashing	Hood opening safety microswitch tripped:If the safety microswitch trips, the fault is signalled by LED T1 on the keyboard flashing quickly (once every 250 ms). This means that the hood has passed the microswitch.......Call Technical Assistance!You can continue to use the hood's light and motor functions while this fault is active. Whenever the motor is on, LED T1 will continue to flash, indicating that the fault is still present.

REMOTE CONTROL

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Control panel

Button	Function	Display
	Turns the Motor On/Off.	-
	Hood Closed: - Press the button briefly to start lowering the hood - It will stop when the button is pressed again. When the movement has been completed the motor will start at speed 2.	-
	Hood Open: - Press and hold for 2 seconds to activate raising of the hood, which stops when it reaches the stop. - Press (briefly) to stop the movement (before the stop is reached). - Press again briefly to turn the motor on/off. - Press and hold for 2 seconds to start raising of the hood. - If the motor is on, it will first stop the motor and then start the movement.	-
-	Decreases the speed of the Motor.	-
+	Increases the speed of the Motor.	-
①	INTENSIVE - This can only be activated with the hood lowered and when the delay or 24h functions are not active. - Activates Intensive speed from any other speed. To disable it, simply press the same button again or turn the motor off. - Intensive speed is timed to run for 10 minutes. At the end of the 10 minutes the system will automatically return to the speed that was set before.	The led on the motor button (on the hood controls) will flash once a second.
	Press briefly for the Delay Function: Can only be activated if the Intensive or 24h function is not active. Activates and deactivates total shutdown of the hood (motor+lights) after 30 minutes: To disable the Delay, simply press the button again or turn the motor off.	The led on the motor button (on the hood controls) will flash once every 0.5 seconds.
	Press and hold for 2 sec. for the 24H Function: Can only be activated if the Intensive or Delay function is not active. Activates and deactivates the 24H function for 10 minutes every hour, for 24 hours. After this time it is deactivated.	The led on the motor button (on the hood controls) will flash once every 2 seconds.
	Turns the Hood lights On/Off.

Grease filter

The filter must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

CLEANING METAL SELF- SUPPORTING GREASE FILTER

• Open the lighting unit by pulling on the nocth.
• Remove the filter one by one pushing it towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filter has to be avoided when washing it. Before fitting it again into the hood make sure that it is completely dry.
• When fitting the filter into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Replace the lighting unit.

Activated Charcoal Filter (Recirculation Version)

This cannot be washed or regenerated, and must be changed approximately once every 4 months, or more frequently in the case of particularly intensive use.

CHANGING

• Open the light unit.
• Remove grease filter.
• Remove the saturated Activated Charcoal Filters, as indicated (A).
• Fit the new Filters, as indicated (B).
• Fit the anti-grease filter and the Light Unit back into position.

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7 W . Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

• For replacement contact technical support. ("To purchase contact technical support")

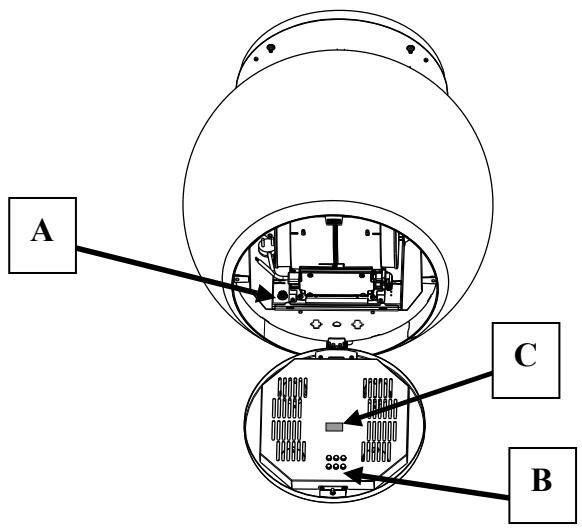

Hood canopy lighting

It is possible to adjust the colour and intensity of the hood canopy lighting

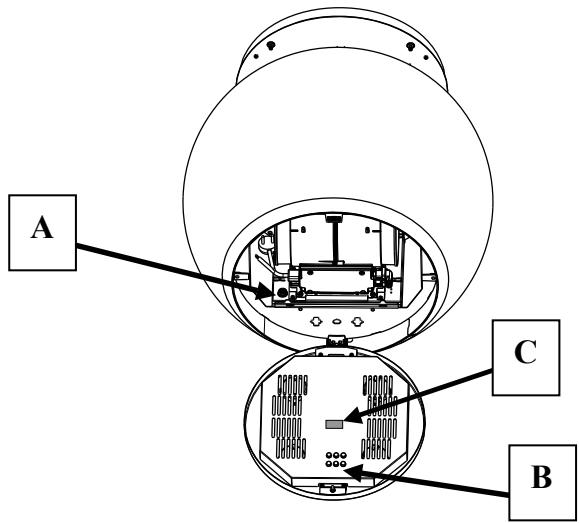

• Open the lighting unit by pulling on the notch provided.
• Adjust the lighting, using the buttons on button pad B, following the indications provided on the label C

Procedure to be used in case of malfunction on the movement

• Check that the fuse is properly inserted and that it has not burned out, for replacing the fuse open the lighting unit and unscrew the fuser holder and replace it with one having the same characteristics (Rif.A)
• Check that the hood canopy is fitted level.
• Check that the four cables are all at the same tension.

If even these operations do not solve the problem contact the Technical Assistance.

Button	Colour	Function
1	Red	Manages the intensity of the colour Red. Press and hold the button to increase or decrease the intensity each time you press. The maximum and minimum intensity limits are marked by a brief flash of the selected colour on the lamp.
2	Black	Manages the speed at which colours change when both the programs for Button 4 are used. The speed increases or decreases each time it is pressed. The decrease is indicated by a brief flash. They are disabled by pressing Button 6.
3	Green	Manages the intensity of the colour Green. Press and hold the button to increase or decrease the intensity each time you press. The maximum and minimum intensity limits are marked by a brief flash of the selected colour on the lamp.
4	Black	Manages the 2 colour change programs: Blended or Intermittent. They are disabled by pressing Button 6.
5	Blue	Manages the intensity of the colour Blue. Press and hold the button to increase or decrease the intensity each time you press. The maximum and minimum intensity limits are marked by a brief flash of the selected colour on the lamp.
6	Black	Light On / Off Initially when turned On the colour of the Hood is White. It can be modified as desired by increasing or decreasing the intensity of colours using the buttons (1-3-5). To return to the original state simply increase the intensity of all 3 colours to maximum using the buttons (1-3-5). The current colour setting can be stored by pressing and holding the button for 3 seconds.

“BHIMAHHE:IOCTyHbIe Yactn BbITJxKm MOYr CINbHO HArpeBaTbc BO Bpemra6Otblra3OBbIX np6OpOB.

yXoI

• Перед Вьлоленем Лобов onepaши по очирке и ухodied выковочипли OTоюнITE пибор OT ольктуескй сети.
• OuHuaTe n/nn 3aMeHnTe fNbTpbl NcTeueHn yKa3aHHOro nepNoDa BpeMeHn (ONaCHOCTb BO3HnKHOBeHn NOJapa).
  JnpoBbIe pHJIbTpbl Heo6xOdImo OOnuatab pa3 B 2 Mecaa pa60tbl nnu Yaue B Cnyae OueHb INTeHCNBHO NcNoJIb3OBaHn Ipn6opa; JnpoBbIE pHJIbTpbl MOxHO MbITb INocyDOMOEuHm MaunHe.
• Φильър на akтувированьюгле Heльья Мьть и BOCCTанавлиьъ, ergcneует Meнъ пимерно pa3В 4 меса рабъ илп чашь в слчаяоуень ИHTEHCBHOrO ИСПЛьЗOBAHЯ пббopa.
  "Опасноctь BO3нКНовеня пожара, ecn Oчистka npибopa He BbIПОЛHЯТСВ COOTBETCTBm C INHCTpyKUЯМN".
  OuHuaTe BbITgKky BnJxHoN TpIKNo, CMOueHHoB HHeITpaJIbHOM XnIDKOM MOUeM BeIeCTBe.

CnmboHa n3deHnn Hn Ha ynaKOBKe yka3bIBaET, YTO npnbop HeIb3y Bbl6paCbBaTb, KaK obbyHbI 6bITOBOy MycOp. Pnp6Op, NpIeXaunyHNUTOHO, HeoBXoDmO CdaTb BCNEuaNBbHbI C6OpHbI pyHK TIIy IOBTOPO HO NCIOJIb3OBaHnA 3JeKTPueCKHX IJKeKTPOHHbIX KOMNOHETOB. IOnb3OBaTeNb, npabINbHO cdaUoyni np6Op Ha nepepa6OTKy, NOMoae TpeODTbPAITb NOTeHuaNBhIE HeratNBhIE NOCEdCTBnA DnA OKpyKaIoUe Cpebl I dN 3IOPOBbI JIODeB, BO3HkaIOUne B clyuae He npabINbHO rO yHNUTOKeHnA. 3a 60nee PoDPbOH uHΦopMaUne O BTOPHOM MCNoJIb3OBaHnPnp6opa ObpaauTeCB B rOpOdCKoB COBET, B MeCTHyO cIyK6y IIO nppepa6OTke OTxODOB INB MaRa3HN, rDe np6Op 6bl npno6peTeH.

Ta6apntbI

actn

OtbepcTnB notoJIke/NoJIke n KpenJIeHne nnIHTbI

IIOIROTBKA OTBEPCTM B INOTOLKE/IOJKE

C IIOMOIbIyO OTBeca OIIpeJeJIInTe Ha IIOToJIke/IIoDBeCHOH IIOLKe IeHTp BapOuHOn IaHeJIH.
- IIpnIOxHtE K IIOTOJky/IOJIke IINHTy, KaK IIOKa3aHO Ha pHCsyHKe.
OTMeTbTe CEHTpbI OTBepCTH IIINTbI.
- IIpocBepJIInTe OTBepCTHn.

B IIOTOJIke H3 KOMIIaKTHOro 6eTOHa: B COOTBeTCTBHH C HcIIOJIb3yEmbIMH IIJIg 6eTOHa IIO-6eJIaMH.
B IIOTOJIke H3 IyCTOTEJoro KHPINHa TOJIiHHoJ 20 MM: OTBepCTHg O 10 MM (cpa3y JKe BCTABbTe IIpHJIaRaEMbIe IIO6eJIH 11).
B IIOTOJIke H3 IepeBaHHbIX 6aJIIOuHbIX IepeKpbITH: B COOTBeTCTBHN C HcIIOJIb3YeMbIMN IIIpyiAmn DJIg IepeBa (HE BXOJrT B KOMIIJIeKT IIOCTABKN).
B DiepeBaaHHoI IIOJIke TOJIiHHOI 15 MM:OTBepCTHe 07 MM
- IpoxoHoe OTBepCThe ⅡIJIeKtprHuecKO Ra6JII INHTAHN: OTBepCThe 0 10 MM

BbHHTHe Kpct-HaKpeCT IBa BnHTa, OCTaBBI IOIOTJIka 4-5 MM:

B IIOTOJIOK H3 KOMIIaKTHO TOBO-IOOJIIN DIIA 6eTOHa (He BXoIaT B KOMIIJEKT IOCTaBKn)
B IIOJIOK H3IyCOTeJIO KHPINHua TOJIiHHOH OKOJO 20 MM-IPHJIaeraMbE BHHTb1 12h
B I NTOJIOK H3 IpepeBAAHHbIX 6aJIIOUHbIX IpepeKpbITn - IIUPyIIbI IJIg IpepeBa (He BXOJrT B KOMIIJEKT IIOCTaBKH)
B IepeBraHHyIO IIOJIky - IIpyIbI C IIIaII6aMH H raIIKaMH (He BxOJIaT B KOMIIJEKT IOCTaBKN).

KPEIJIeHHe PJIITbI

• IIpHIOIDHHMHTe yCTaHOBOHYU IOJIHTy H BCtABbTe B OTBepCTHЯ IBa BNHTa, IIpeIIBapHTeJIbHO IOIITOTOBJIeHHbIe B ITOJIKe; IOBepHHTe IJIHTy IIO IeHTpa peIgYIIHPOBOCHOR OTBepCTHЯ.

BHHMaHHe:HaIIpaBJIeHHe yCTaHOBKN IIJINTBI JOJIJKHO COOTBeTcBOBaT IIOKa3aHHOMy Ha pHCyHKe.

3aTHTe 06a BnHTa H IIpNBHTHTE eIe IBa BnHTa, IIpJIaeraMbIe B KOMIIJEKeT; IIpeKJde YEm 3aTAYtB BnHTb OKOHyATEJBHO, IOBOPOTOM IINTb MOJHOOTpeYJINPOBaTb ee IIOJOKeHHe; CJIeIHTe, YTObI BnHTb II pN 3OM He BbIIJIN H3 peYJINPOBOUHOOTBepCTHa.
- KpeIIIeHHe IIIHTbI IOJIJKHO 6bITb HAJeKHBIM OTHOCHTeJIbHO BeCa BbITJKKn H aRpy3OK, OKa3bIBAeMbIX CJUyauHbIMN 60KOBbIMN TOJIckAMN Ha yctaHOBJIeHHbI Ipi6op. IocJIe 3aBepIeHHa OIIepaIII IIpOBePbTe ycToOHBOe IIOJOKeHH IIIHTbI.
BoBcexCJyuaX,KoIJaIIOTOJIK HeIOCTaTOUHO IIpoueH B TOUKe KpeJIeHNHa IIpHbOpa,MOHTaJHK JOJIKeH yIpOuHTb eTo CIEuaJIbHBiIMN IJIaCTHHaMn H OIIOpHBiMH IJIHTaMn,3aKpeJIeHHbIMN K ycToHNBbIM CTpyKTypHBiIM 3JIeMeHTaM.
- IpoBepbTe ypoBeHkpeIIJIeHHNIIIHTbIKIHOJKy.

COEINHEHNE IPOBOIOB BbITXKA -IJIITA

IIpHMM. IIpeKJHe Yem IPOIOJIJKHTb yCTaHOBKY, IIOIHMHTE BbITgKKy Ha BbICOTy Ha MeHee 650 MM HaN BApOCHN IaHEJIbIO, yCTaHOHB ONOpY, IIN C IIOMOIbIO BTOPOrO YeJIOBeKa. CJIeJyET IIPOcJIeIHTb 3a TeM, YTObI BbITgKKa He BbICTyIIaJaIee, Yem Yka3aHO Ha HeptExe c Ra6apHTbIMn pa3MepaMn.

TO Heo6xOIMHO, TAK KA KBO Bpem CoeINHeHn IPOBOIOB BbITgKKn C 3aKpeIIJIeHHoI K IIOToJky IIINTOn BEc IIpH6opa He IOJKeH OTARoIHATb CTpyKTypy.

CnCTema KpeJIeHn4 IpoBOIOB COCTOHT 3 3aCTeI

• 3aIIeJIka cpe3b60i(a), yCTaHOBJeHHa Ha IIOToJIOuHoi IIInTe.
  Ka6eJIbHbI HK caTOp (b), IIpHJIaRaembI B KOMIIJIeKTe.
  -П配电хангельная руковта (c),прллагамь В комплькte.

BCTaBbTe Ka6eJIb IITaHnB BbITJxKKn B OTBepCTHe, IIpeYcMOTpeHHOE B KpbIiKe.

BHHMaHHe!XOMyTHK,06ecneuHbAIOHn KpeJIeHHe Ka6eJIa HHTaHnK BbITJxKKe, OJIXeH ocTaBaTbCnHa CBOeM MecTe H He HMeTb HHKaKHX NOBpeKdEHH.

• IIpoIyucHTe 4 IIpoBOJa (IIpHKpeIIJIeHbI K KOPIyCy BbITJxKKn) B COOTBcTcTByIOUHe NTBePCTHb I 3apaHee CHToI KpbIiKe IIJInTbI, CJJeIa 3a Tem, YTObI CTOpOHa KpbIiKN COOTBcTcBOBaJIa CTOpOHe IIJInTbI, CMOHTHpOBaHHoH Ha IIOToJIke.

• O6paTHTe BHNMaHHe Ha IIOJIOKeHne, B KOTOpOM IIHTa 3aKpeIIJIeHa K IIOTOJIky (OgpaHHuTeJIbHOI co6aUke COOTBeTCTByET OTBepCTHe B KpbIiKe IIIN-TbI H B KOpIIyce BbITJkKN).

IocTaBbTe IpeIOxpaHHTeJIbHbIe pykoTkn (c) Ha COOTBeTCTByIOUHe IPOBOJa; IIpn 3Tom pe3b6a IOJIka H6bITb 6paIIeHa BBepx.
IocTabbTe Ka6eJIbHbIe fHKcaTOpbI (b) Ha COOTBETCTBYIOIIne Ka6eJIH.

• IIpoIyCTHTe IpoBOJa Ype3 OTBepCTHЯ B 3aIeJIkax c pe3b60i (a) H IIpNBHTHTe BnHTbI Ka6eJIbHbIX ΦHKcaTOPOB (b) K 3aIIeJIkAM.

-ПоЗаBERPиEHHОпepaHнВce4IpoBOJaДJOJIЖHb6bITb3aKpeJIeHb,КakIOKA3aHOHa pncyHKe.

IpaTe Ha npObHa nApJxKeHne,
pHxKab Hx KBepxy, YTO6bI OHN IpoXoDJIIN BHyTpN Ka6eJIbHbIX ΦHKcTOpOB H chapyKn OTBepCTn 3aIIeJIKN c pe3b-60n.

B KOnctpyKuHH Ka6eJIbHbIX ΦHKcaTOpOB IIpeDyCMOTpeHa CnCTema, IIO3BOJIAIOUa Ka6eJIHO CKoJIb3HTb BHyTpHΦHKcaTOpOB ToJIbKO B ODHOM HApabJIeHH.

CJIeIHTe, YTO6bI BCE IpoBOda 6blJH OJHHaKOBoB JINHHb (3To HeO6XoJHMo JII 3AKJIOUHTe.JbHO T BO BbIPaBHNBaHHa BtTJAKKH), H YTO6bI JIEbBI IIpeEHH Tpoc He 6bl HaTHHyT MehBHe, Yem dpyrHe.

KPEINJIEHNE KABENI NITAHNIA

HaTaNHTe Ka6eJIb IINTaHnI Ha 3aKpeINITb erO 2 BnHTaMn Ha cKObe Ha IIOTOJIOUHOH IIINTe C IIOMOIIbO yKe yCTaHOBJEHHOR a3bIyKa.
Pa3MeCTHTe yKe IIOCTABJIeHHbI Ha Ka6eJIb IIITaHnpe3INHOBBI yIIIOTHHTeJI B OTBepCTHNBOH36ExKaHn erO IOBpeKdEHHB 6yDyIeM.
- CoeINHHTe BbITaKKy c ceTBIO INTaHHN;ДЛЯ -TOrO yCTaHOBHTe DByXIIIOJIIOCHbIY -BlKIIIOHaTeJIb C MHHMaJIbHbIM pa3BeJeHHem KOHTaKTOB 3 MM.
BbHbTe JnpoBbIe fHJIbTpblcMa3JeJ "O6- cJyKJBaHHe") HIOpOBepbTe, YTObbl coEHHTeJbHb3aJHM IHTaHOIIero KAbEJIa 6bJI IIpa-BHJIbHO BCTaBJIeH B pa3bEm BbITaIKHO yctpoiCTBa.
-ПослЕ эТOrO можно срзать xOMyTHK,КOTOpbIMKa6eJIbПИТАнЯКрпNTсяККорпucуБыTJKKH.

YCTAHOBKA BEPXHEI PAHEJIN MOHTAXHON PJIINTbI

• IIpHKpyTHTe KpbIIKky K MOHTaJHoi IJIInTe, c IIOMOIbIO BHNTOB, BbIKpyeHHbIX paHee.

BbIyCK BO3dYXA N3 ΦNJIbTPYIOUeEM BbITJAKK

-ПOTЯнITEЗаСпeиuaJIbHbIyВыpeзИОТКpoIteOCBeTHeJIbHbIpyn6Op.
- YdaJIITb JKnPOBOJ ΦHJIbTp.
- IIpoBepbTe HaJIINHue ΦJIbTpOB IIpoTHB 3aIIaXOB Ha aKTHBnPoBaHHOM yJIe.

Panaelb ynpablenia

B daHHo moJeHn IppeYcMoTpeHa BO3MOxHOCTb peyJInpOBKn OTteKa I HHTeHCHBHOCTH OCBeIeHn KOpIIyCa BbITJIKN.

-ПOTЯнITEЗаСпeинайынВыpeзИОТкpoйTe OcБeТeЛьнБиI ПИбop.
- OtperyIInpyIte oCBeIeHHe, IIOJIb3yIcB KHOIIKaMn Ha IaHeJIH B n cJIeIy Iprn 3TOM yka3a-HnA, IIpHBeIeHHbIM Ha HauKJIeIke C

Oepaunn B c.lvuae HeIpaBnJbHoRo IbHKeHHa

1. Поберъ, Утбь Iпрдoxрангь He IIpeperopeи 6ыл IIpaBnIbHOBCTaBJeH, IIH HeOxOIMOCTH B erO 3aMeHe OTKpoIte OCBETHReIbHbII IIpH6op, OTBHTHTE IIaBkyIO BcTaBky I 3aMeHITe IIpeDoxpahnteJIb HaДуго c TaKHMH Jxe xapaKTepHcTtKamH (O6.A).
2. Y6eIITecb, YTO KOpIYc BbITJgKHN BbICTaBJIe H IO yPoBHIo.
3. y6eHTecb BOINHaKOBOH HATJKeHH YeTbIpex TPOCOB.

EcJIN C IIOMOIIbIy TaKHX IIPOBepOK IIpo6JIeMa He peIeHa, O6paHTteCb B IeHTp TexHnueckOrO 06cIJyKHBaHH.
