Look Isola BRS X/V A90 - 110.0256.176 - Kitchen hood FABER - Free user manual and instructions

Brand	FABER
Model	Look Isola BRS X/V A90 - 110.0256.176
Product type	Island cooker hood
Width	90 cm
Minimum installation height	650 mm above the cooking surface
Power supply	220-240 V ~ 50/60 Hz
Electrical class	Class I (grounding required)
Motor power	Not specified, estimated 250-300 W
Number of speeds	4 speeds + timed intensive (6 min)
24H function	Yes (extraction 100 m³/h, 10 min/h)
Delayed automatic shut-off	Yes (Delay, 20 minutes)
Lighting	Integrated LED, maximum intensity, courtesy light
Remote control	Optional (remote control on request, CR2032 battery)
Keyboard lock	Yes (long press 5 s on button A)
Grease filters	Metallic, dishwasher safe, alarm after 100 h
Activated charcoal filter	Optional for recirculation version, non-washable, alarm after 200 h
Air outlet diameter	150 mm (reducible to 120 mm)
Installation version	Extracting (external evacuation) or recirculating (recirculation)
Duct material	Telescopic, steel
Fixing	Ceiling or shelf, with drilling template provided
Approximate weight	Approximately 25 kg
Included accessories	Reduction flange, Novastick tape, clamps, screws, wall plugs
Cleaning and maintenance	Washable grease filters, gentle cleaning of external surface
Repairability	Lighting replaceable by after-sales service, easily accessible filters

Frequently Asked Questions - Look Isola BRS X/V A90 - 110.0256.176 FABER

What is the minimum installation height above the cooking surface?

The minimum safety distance is 650 mm. If the gas hob indicates a greater distance, this must be respected.

Can this hood operate in recirculation mode?

Yes, the hood can be installed in extraction mode (external evacuation) or recirculation mode (internal recirculation) with an activated charcoal filter (not supplied).

How to clean the metallic grease filters?

The grease filters are dishwasher safe. Remove them by pushing them backwards and pulling downwards. Let them dry before putting them back. The cleaning alarm activates after 100 hours of operation.

How to activate or reset the charcoal filter alarm?

To activate the charcoal filter alarm, turn off the lighting and motor, then press the D button for 5 seconds. To reset it after replacement, turn everything off and press the F (24H) button for 5 seconds.

Is the remote control included?

The remote control is optional (on request). It works with a CR2032 battery (not supplied). To pair it, press the G button for 5 seconds.

What diameter of exhaust duct should be used?

The outlet diameter is 150 mm. A 150-120 mm reducer is supplied for a 120 mm outlet. Use a rigid or flexible tube with hose clamps.

How to lock the keyboard to prevent unintentional operations?

Press the A button for 5 seconds. All LEDs flash cyclically to confirm the lock. Repeat the operation to unlock.

What to do if the hood does not turn on?

First check the power supply (bipolar switch). Ensure that the power cable connector is properly plugged into the control unit. If the problem persists, contact after-sales service.

How to replace the LED lighting?

Replacement of the LED lighting must be carried out by a qualified technician. Contact the after-sales service for purchase and installation.

What is the lifespan of the activated charcoal filter?

The activated charcoal filter is neither washable nor regenerable. It must be replaced at least every 4 months, or when the alarm flashes (Delay button).

USER MANUAL Look Isola BRS X/V A90 - 110.0256.176 FABER

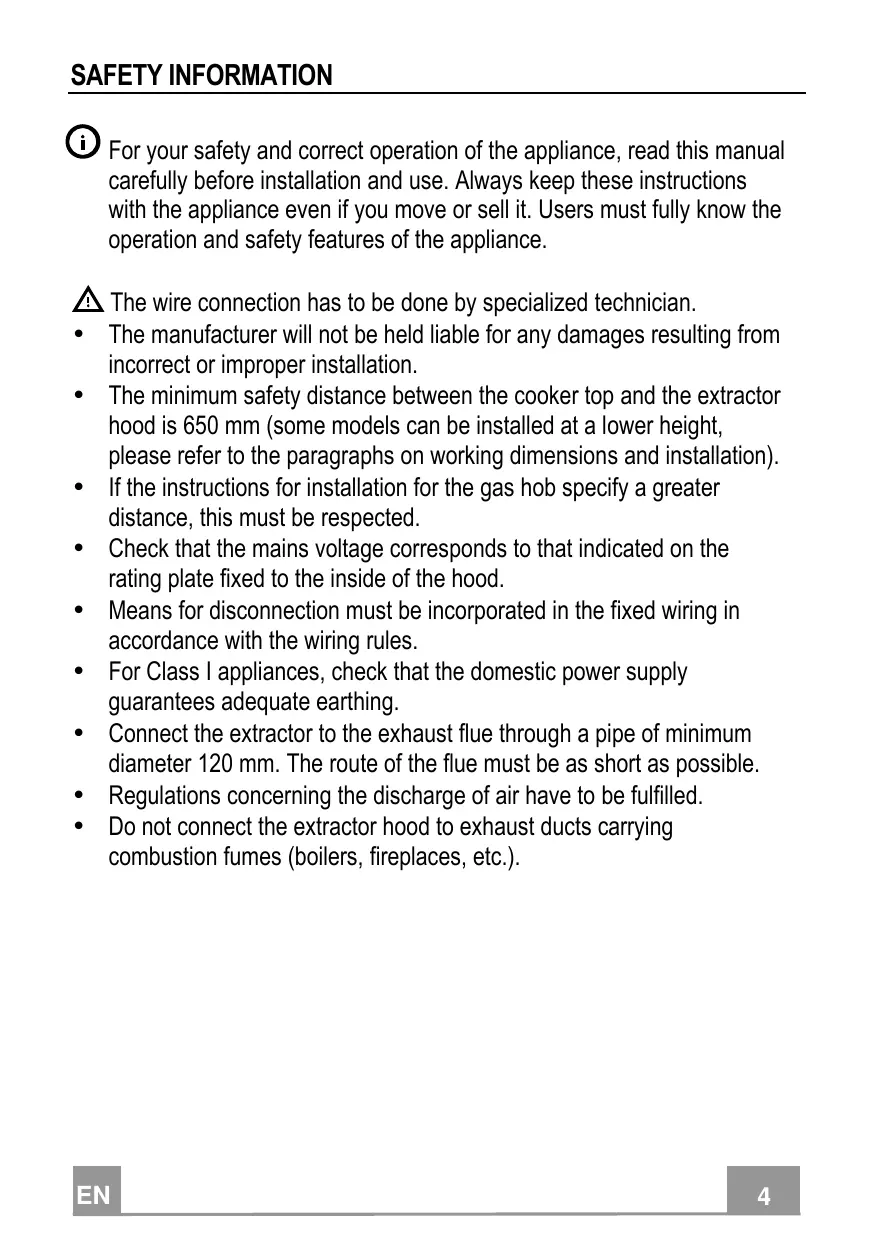

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

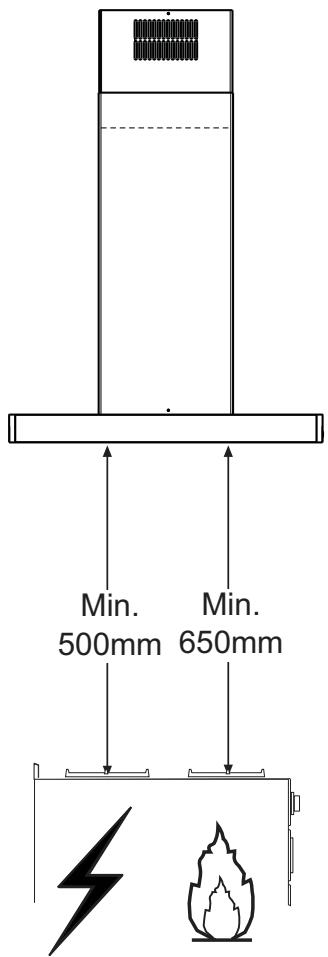

• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.
- Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé under the range hood; risk of fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  Accessible parts may become hot when used with cooking appliances.
• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

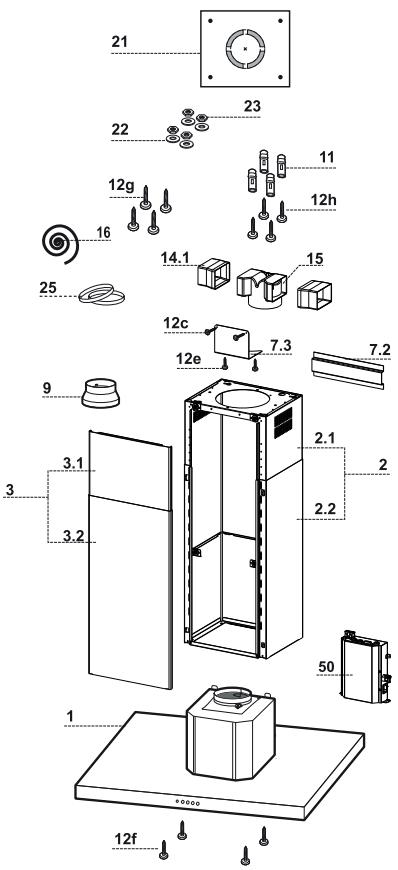

Components

Ref.	Q.ty	Product Components
1	1	Hood Canopy complete with: Controls, Light, Filters
2	1	Telescopic chimney, made up of:
2.1	1	Upper chimney
2.2	1	Lower chimney
3	1	Telescopic panel, made up of:
3.1	1	Upper panel
3.2	1	Lower panel
9	1	Reduction flangeø 150-120 mm
14.1	1	Air Outlet Connector Extension
15	1	Air Outlet Connector
16	1	Novastick tape
25		Hose clamps (not supplied)
50	1	Control Board Group

Ref.	Q.ty	Installation Components
7.3	1	Air outlet connector fixing bracket
7.2	1	Telescopic chimney fixing bracket
11	4	Wall plugsø 10
12c	2	Screws 2.9 x 6.5
12e	2	Screws 2.9 x 9.5
12f	4	Screws M4 x 80
12g	4	Screws M6 x 80
12h	4	Screws 5.2 x 70
21	1	Drilling template
22	4	Washersø 6.4
23	4	Nuts M6
	Q.ty	Documentation
	1	Instruction Manual

This hood is designed to be mounted on the ceiling/on a shelf, above a free-standing Hob (min. 650 mm), in:

• Ducting version: Evacuation to the outside.
• Recirculation version: Internal recirculation.

Sequence of operations - Installation

Preparing for installation
- Drilling the Ceiling/Shelf and Fixing the support plate
- Connections
- Fitting the Hood canopy
Functional Check
- Disposal of Packaging

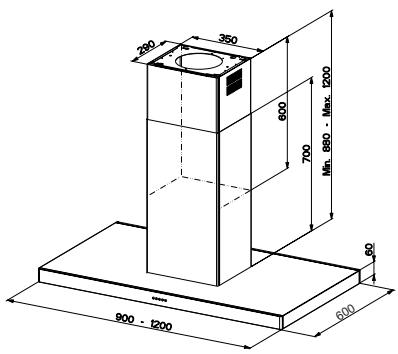

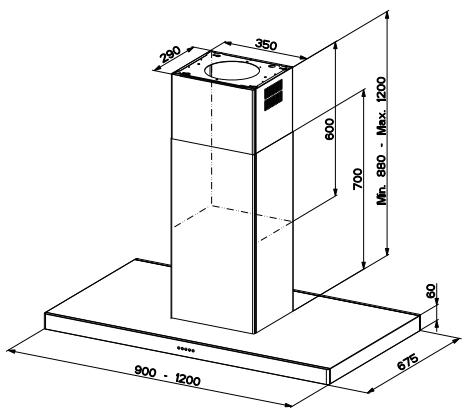

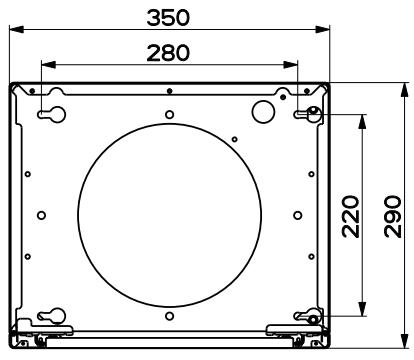

Dimensions

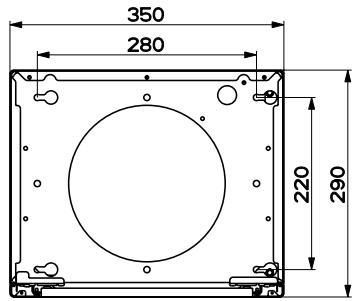

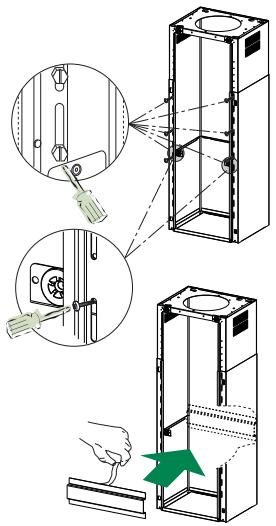

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

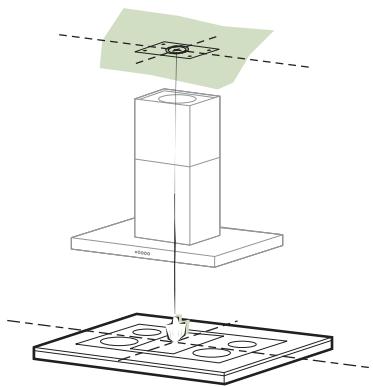

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20mm : drill 10mm (immediately insert the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill 7mm
• For the power supply cable feed, drill 10mm

• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

• Insert two screws of the following type, crossing them and leaving 4 - 5mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20mm , Screws 12h, supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

Should it be necessary to adjust the height of the frame, proceed as follows:

• Unfasten the metric screws joining the two opposite parts that can be seen from the front;
• Adjust the height of the frame as required, then replace the screws removed as above, making sure that you insert 2 of them close to the panel lock;
• Lift the frame, insert the slots onto the screws and slide them until they lock;
• Tighten the two screws and insert the other two screws provided.
• Take the telescopic chimney locking bracket 7.2, remove the film from the double sided adhesive and fix it inside the frame so as to hold it more firmly.

Before final locking of the screws it is possible to make small adjustments to the frame, making sure that the screws do not come out of the adjustment slot.

• The Frame must be securely fastened both due to the weight of the Hood and the stress caused by occasional sideways pressure on the Appliance when in position. When fastened, check that the base is stable even when the Frame is subjected to bending.
• In all cases where the Ceiling is not sufficiently strong at the point of suspension, the Installation technician must strengthen it with suitable plates and counterplates, anchored to structurally sound elements.

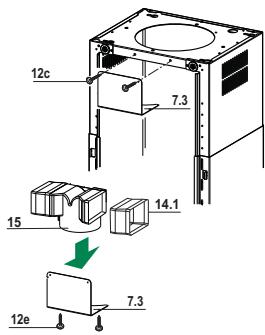

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120~mm the choice of which is left to the installer.

• To install a 120mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe using the pipe clamps 25 (not provided).
• Remove any activated charcoal filters.

• Insert the Connector extensions 14.1 into the side of the Connector 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with the screws.
• Fasten the Support bracket 7.3, fixing it to the upper part with the Screws.
• Make sure that the Connector extensions outlet 14.1 is in correspondence with the Chimney openings both horizontally and vertically.
• Join the Connector 15 to the Hood canopy outlet using a rigid or flexible pipe , 150 ~mm , selection of which is at the discretion of the installation technician.
• Make sure that the Activated charcoal odour filter has been fitted.

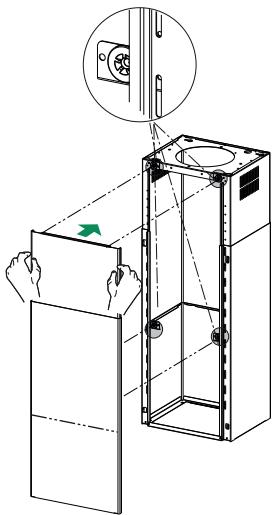

Application of Novastick Tape

• Apply the Novastick tape 16 to the front edge of the Upper Chimney from the top part down to the start of the Lower Chimney.

Before fixing the Hood Canopy to the Frame:

• Unscrew the screws near the Air outlet and use these for attaching the Control Group 50;
• Remove the Grease filters from the Hood Canopy;
• Remove any Activated charcoal filters.
• Working from below, fix the Hood canopy to the Frame provided, using the 4 screws 12f (M6 x 10) provided.
• Then hook the upper part of the Panel 3, adjusted to size, to the rubber supports in the upper part and in the lower part of the Frame.
• Slide the lower part of the Panel 3 until its metal tabs slot into the slots in the frame.

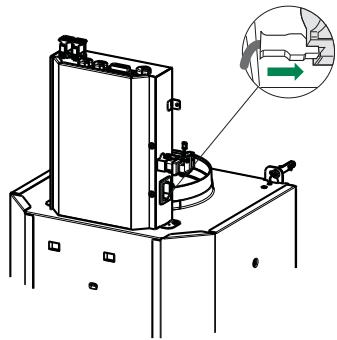

ELECTRICAL CONNECTION

• Connect the Hood to the Mains Power Supply, inserting a bipolar switch with a contact aperture of at least 3mm .
• Make sure that the Power cable has been properly inserted into the Control Board Unit socket.
• Connect up all the connectors to the sockets provided on the Control Board Unit, making sure they are compatible.

Control panel

Button	Function	Led
A	Motor off.	The Leds indicating the Speed of the motor turn off.
	Enables / Disables Keyboard Lock mode if pressed and held for 5 seconds.	All the Leds light up in cycle and run a start-up sequence.
B	Activates speed one.	The Leds indicating Speed one and Motor Off turn on.
C	Activates speed two.	The Leds indicating Speed two and Motor Off turn on.
D	Activates speed three.	The Leds indicating Speed three and Motor Off turn on.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. To turn it off, press and hold the button again for 5 seconds.	Button A LED flashes twice. Button A LED flashes once.
E	Activates speed four.	The Leds indicating Speed four and Motor Off turn on.
	Press and hold for 5 sec. to activate Intensive speed. This speed is timed to run for 6 minutes. At the end of this time the system will return to the speed set previously. It is disabled by pressing the Button or turning the Motor off.	The Led flashes once a second and button A Led lights up.
F	Starts the 24H function, in which the motor starts at a speed that allows suction of 100 m3/h for 10 minutes per hour. This mode cannot be activated if Intensive or Delay modes are active. To deactivate it, press the same button or button A.	The Leds indicating 24H speed and Motor Off turn on. 24H Led Flashing: Indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 5 seconds. These indications are only visible when the motor is turned off.	The button A Led flashes three times
G	Activates Delay mode, causing automatic shutdown of the Motor and the Lighting system with a 20' delay. It is disabled by pressing the button or turning the motor off.	The Delay and Motor Off button Leds turn on. Delay Led Flashing: Indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
	Pressing and holding the button for 5 seconds enables the remote control. Pressing and holding the button for 5 seconds disables the remote control	Button A Led flashes twice. Button A Led flashes once.
H	Press briefly to turn the lighting system on and off at maximum intensity.	The Led on the button lights up.
	Press and hold the button for 2 seconds to turn the Courtesy Lights On (if provided).	The Led on the button lights up.

REMOTE CONTROL (OPTIONAL)

This appliance can be commanded using a remote control, powered by a CR2032 type 3 V battery (not supplied).

• Do not place the remote control near heat sources.
• Do not discard the batteries with normal waste, they must be put into the specific containers.

Metal grease filters

These can also be washed in the dishwasher, and need to be cleaned whenever the 24H Led comes on or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press and hold button (24H) for 5 seconds.

Cleaning the Filters

• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.

The Activated Charcoal Filter is only present on the Hoods in Recirculation version, and has the job of retaining smells in the flow of air that passes over it, until reaching saturation. This cannot be washed or regenerated, and must be changed when the Delay led on the display starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.

• Press button D until confirmation is given:

• Motor Off LEDs flash twice - Activated Charcoal Filter saturation alarm ACTIVATED.

• Motor Off LEDs flash once - Activated Charcoal Filter saturation alarm DEACTIVATED.

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press and hold button F (24H) for 5 seconds.

Changing the Filter

• Remove the Metal grease filters.
• Remove the saturated Activated charcoal filter, using the hooks provided.
• Fit the new Filter, hooking it into place.
• Replace the Metal grease filters.

Lighting unit

• For replacement contact technical support ("To purchase contact technical support").

Anschluss in Abluftversion

BbIyCK BO3dYXA I3 BCACbIBAIOJIeN BbITaKKN

PanaheIy npabJIeHnIa

BORING I LOFTET/HYLDEN
