Product type	Extractor hood
Brand	ZANUSSI
Model	ZHS92650XA
Number of speeds	3 speeds + stop
Lighting	Integrated LED
Grease filter	Dishwasher safe
Charcoal filter	Replace every 4 to 6 months
Cleaning	Clean grease filters every month
Control type	Electronic buttons
Functions	Lighting, 1st speed / Stop, 2nd speed, 3rd speed
Maintenance	Do not use abrasive detergents
Bulb replacement	By a technician only (LED)

Frequently Asked Questions - ZHS92650XA ZANUSSI

How to clean the grease filters?

Press the clamp lever under the hood, tilt the filter downwards and remove it. Clean with a sponge and a non-abrasive detergent, or in the dishwasher at low temperature on a short cycle. Discoloration does not affect performance.

When to replace the charcoal filter?

The charcoal filter should be replaced every 4 to 6 months, or more frequently with heavy use. It is not washable.

How to replace the charcoal filter?

First remove the grease filters. Press the tab on the charcoal filter and tilt the front of the filter. Install the new filter following the reverse procedure.

What to do if the lighting does not work?

The bulb is an LED that can only be replaced by a technician. Contact customer service.

How to turn on the hood?

Press the first speed button (0-1) to turn on. Use the other buttons to increase speed. To turn off, press the 0-1 button again.

Which speed to choose for which type of cooking?

Speed 1: reheating or cooking with lids. Speed 2: cooking with lids on multiple burners or gentle frying. Speed 3: boiling and frying without lid, intensive cooking.

How long to leave the hood on after cooking?

We recommend leaving the hood on for about 15 minutes after cooking to remove odors.

How to clean the exterior of the hood?

Use a soft cloth, warm water and a mild detergent. Avoid abrasive detergents and brushes. Dry after cleaning.

Can the grease filters go in the dishwasher?

Yes, they are dishwasher safe. Set to low temperature and short cycle. Discoloration is normal.

How to recycle the hood at the end of its life?

Do not dispose of the appliance with household waste. Take it to a recycling center or contact your local municipal services.

USER MANUAL ZHS92650XA ZANUSSI

6poosypacnHctpykun3a

HCTaIIpaHe 3a INHOpMaunr 3a

6e3oNaCHOCTMOHTaK.PpoUeTeTe

BHNMaTeJIHO rIaBnTe 3a

6e3oNaChOCT npeDn BcKa ynoTppe6a

IJIINIOIDpBxKHaHa ypea.

Опиcaне на урEDA

IPERJIeH KAHTPOJHnI PAHEI

XP'HsH TOY ANOPPOΦHTHPA

EeYTe Tn ouviotwevn taxutnta oupwva Tov napakatw tivaka.

WARNING! Refer to the separate

Installation Instructions booklet for Safety Information and Installation.

Read carefully the Safety chapters

before any use or maintenance of the appliance.

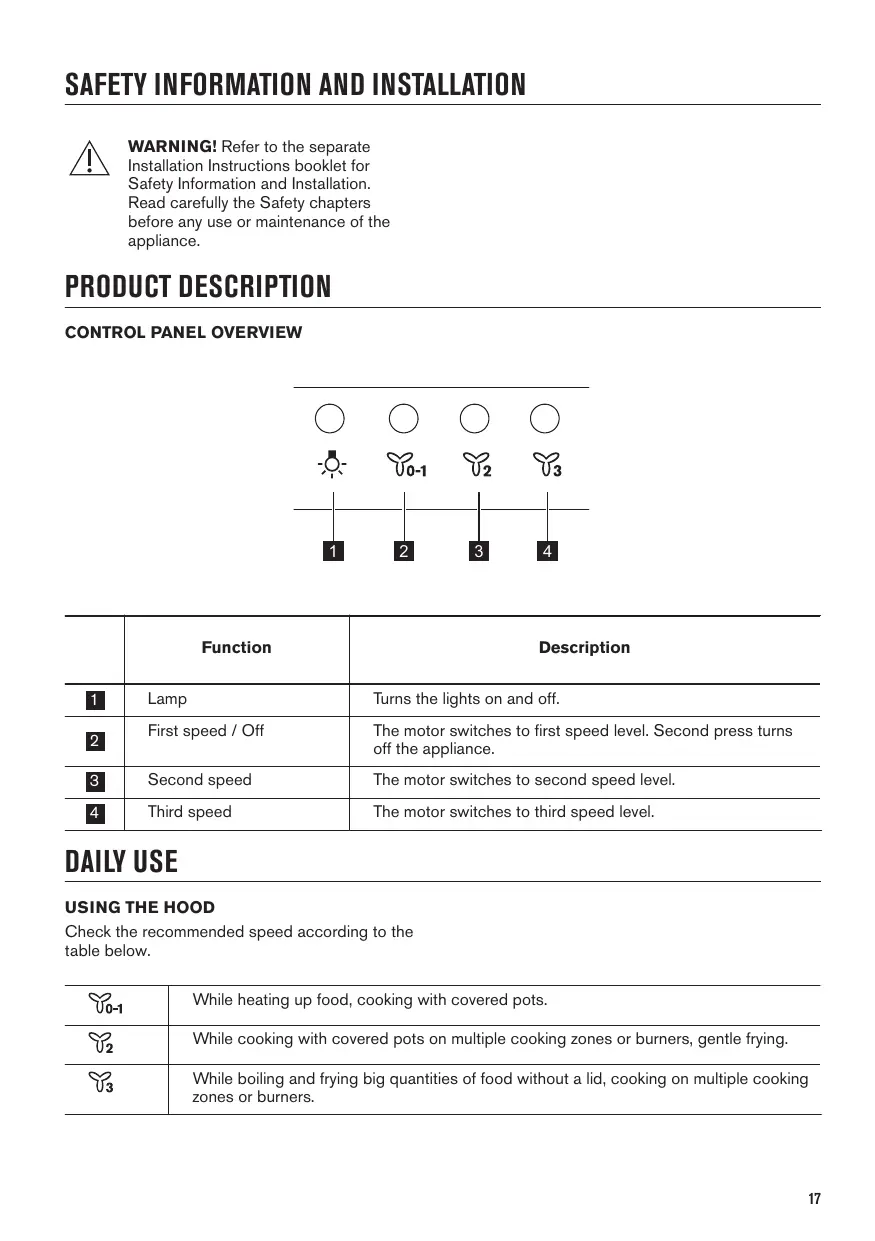

PRODUCT DESCRIPTION

CONTROL PANEL OVERVIEW

	Function	Description
1	Lamp	Turns the lights on and off.
2	First speed / Off	The motor switches to first speed level. Second press turns off the appliance.
3	Second speed	The motor switches to second speed level.
4	Third speed	The motor switches to third speed level.

DAILY USE

USING THE HOOD

Check the recommended speed according to the table below.

U0-1	While heating up food, cooking with covered pots.
U2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
U3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

1. Press the first speed button 0-1 to switch on the appliance.
2. If needed, change the speed by pressing the desired button.

The hoods light works independently to other hood functions. To illuminate the cooking surface press the light button

To turn off the appliance press the first speed button 0 - 1 again.

CARE AND CLEANING

NOTES ON CLEANING

Cleaning Agents	Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.
Keep the hood clean	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
	Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

CLEANING THE GREASE FILTER

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

REPLACING THE CHARCOAL FILTER

WARNING! The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.
2. press the tab (1) and slightly tilt the front of the filter.

1. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

REPLACING THE LAMP

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

www.zanussi.com/support
