BEAT 430 - Kitchen hood FABER - Free user manual and instructions

Product type	Kitchen hood
Brand	FABER
Model	BEAT 430
Minimum safety distance from cooktop	650 mm
Exhaust duct diameter	120 mm minimum
Grease filter type	Washable (dishwasher)
Grease filter cleaning frequency	Every 2 months
Charcoal filter type	Non-washable, replacement
Charcoal filter replacement frequency	Every 4 months
Number of speeds	4 (including a 6-minute timer)
Lighting	LED lamps (risk group 1)
Supply voltage	220-240 V
Electrical class	Class I (grounded)
Use	Domestic only
Main material	Stainless steel
Exhaust system	Extraction or recirculation
Maximum negative pressure in recirculation	0.04 mbar

Frequently Asked Questions - BEAT 430 FABER

What is the recommended installation height for the BEAT 430 hood?

The minimum safety distance between the cooktop and the hood is 650 mm. Also check your cooker's instructions.

How to clean the grease filters?

The grease filters must be cleaned every 2 months. They can be washed in the dishwasher or by hand with a neutral detergent.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced every 4 months, or more often with heavy use.

What to do if the hood does not turn on?

First check the power supply and the outlet. Make sure the plug is properly inserted. If the problem persists, contact customer service.

Can I use the hood with a gas cooker?

Yes, but make sure the room is properly ventilated. The negative pressure must not exceed 0.04 mbar to prevent gas backflow.

How to replace the hood's lighting?

LED lamps must be replaced by an authorized technician. Contact customer service for purchase and replacement.

The hood makes abnormal noise, what to do?

Check that the hood is correctly installed and that the filters are in place. Unusual noise may come from a clogged filter or improper installation.

How to adjust the hood speed?

Use the buttons: T1 for 1st speed, T2 for 2nd, press T3 briefly for 3rd, and press T3 for 2 seconds for the 4th timed speed (6 minutes).

What is the 4th speed for?

The 4th speed is a timed function of 6 minutes to handle heavy smoke emissions. After this time, the hood returns to the previous speed.

Does the hood come with a charcoal filter?

No, the charcoal filter is not included. It must be purchased separately if you use the hood in recirculation mode.

USER MANUAL BEAT 430 FABER

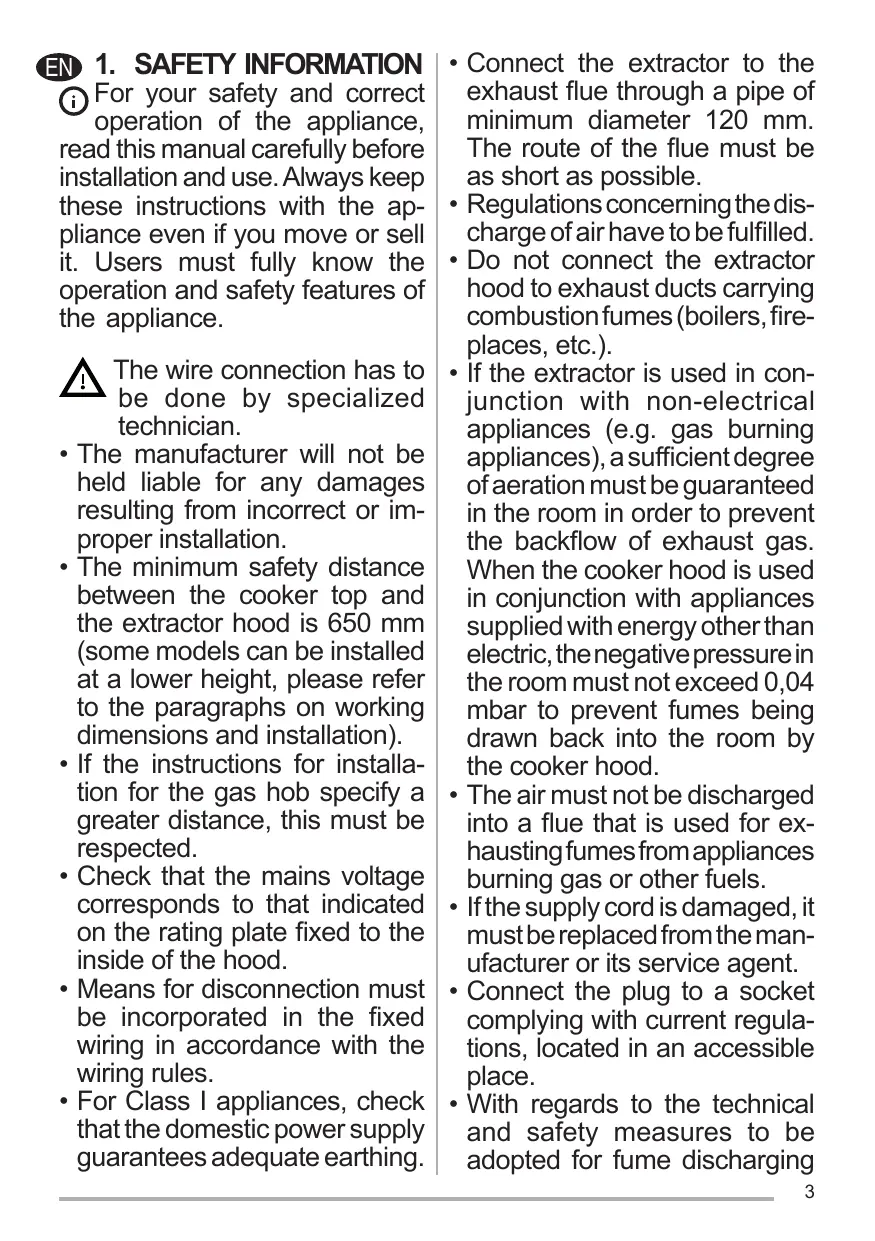

EN 1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging,

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films. - Use only screws and small parts in support of the hood. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. - Do not look directly at the light through optical devices (binoculars, magnifying glasses...). - Do not flambé under the range hood; risk of fire. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Children should be supervised to ensure that they do not play with the appliance. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol ¯X¯ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

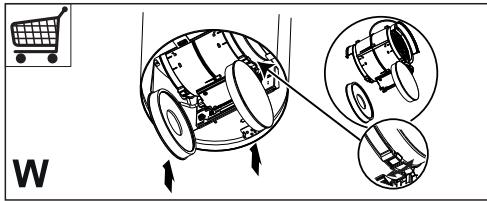

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

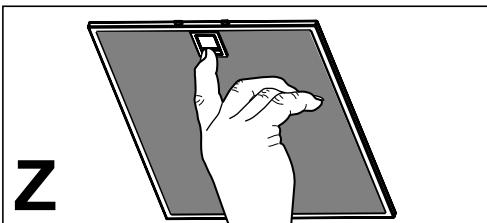

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Functions	Led
T1 Speed	Turns the Motor on at Speed one.	On
	Turns the Motor off.	-
T2 Speed	Turns the Motor on at Speed two.	On
T3 Speed	When pressed briefly, turns the Motor on at Speed three.	Fixed
	Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.	Flashing
L Light	Turns the Lighting System on and off.	-

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

• Lamps in risk group 1 under IEC/EN62471 at a distance of 20 cm and in exempt from risk group under IEC/EN62471 at a distance of 30 cm.
• For replacement contact technical support ("To purchase contact technical support").

For replacement, contact technical support.

• The device must be installed in a way that prevents accidental disconnection. The distance from the lamp to the illuminated surface must be at least 650 mm (other distances are possible, depending on the lamp and the illuminated surface).
• If the lamp is installed in such a way that the distance to the illuminated surface is less than the specified value, the distance must be increased. The lamp must be installed in accordance with the technical data sheet and the safety instructions.

The lamp must be installed by a qualified electrician in accordance with the electrical installation regulations. For class 1 lamps, grounding is mandatory. The lamp must be connected to a power supply with a minimum diameter of 120 mm. The connection must be made with a cable. The cable must be protected against mechanical damage. The lamp must be installed in a location where it is not exposed to flammable materials (such as curtains, furniture). The lamp must not be installed near flammable gases or vapors. If the lamp is installed in a location where it may come into contact with water or other conductive liquids, the connection must be made with a waterproof connector. The lamp must be installed at a distance of at least 0.04 m from the illuminated surface. The lamp must be installed away from flammable materials.

Do not enter the area intended for the lamp.

If the lamp is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person. Do not connect the lamp to a power outlet that is not properly grounded. If the lamp is to be used with a dimmer, it must be used with a dimmer that is compatible with the lamp. The lamp must be installed in accordance with the instructions provided by the manufacturer.

WARNING: Before installing the lamp, disconnect the power supply.

Use only the bulbs and accessories specified for the lamp. WARNING: Do not install the bulbs or accessories in a way that could cause electric shock. - Do not look directly at the light source (LED, laser...). - Do not place any objects on the lamp; they may cause a fire hazard. 8. Do not use the lamp in areas where there is a risk of explosion or in the presence of flammable gases or vapors.

Tobacco products are dangerous and cause cancer. Smoking is harmful to health. Children should not be allowed to smoke. Do not let children play with or handle cigarettes.

• To prevent children from smoking, they must be supervised. If the cigarette has physical, chemical, or electrical hazards, or if it is damaged, it should be kept away from children.

Skin blistering may occur when smoking together with other products.

After the recommended time, dispose of the product or reuse it (see instructions). Refer to the "Use and Disposal" section. When using the product with other types of tobacco or other products, follow the instructions carefully.

Do not use the product if it is damaged. Instead, replace it with a new one. Do not attempt to repair it yourself. If the product is damaged, it may cause injury. For more information on how to use this product, contact the manufacturer or the place of purchase.

2. Usage

The product is intended for use only as directed. Do not use it for other purposes. Keep the product away from children and pets. If the product is accidentally swallowed, seek medical attention immediately.

3. Use and Disposal

Warning: These instructions must be followed. If not, the product may be damaged or cause injury. Follow the instructions carefully.

• When using the product, follow the instructions. If the product is damaged or not working properly, do not use it. Dispose of it properly.

Dispose of the product in accordance with local regulations.

4. Control Elements

Ту问我	Керсetedкишam	Фунникялар
T1 Жылдамдьк	МOTOPДБI 6 bipiHni Жылдамдькта icke Kocады.	Kocy
	MOTOPДБI axbipataды.	-
T2 Жылдамдьк	MOTOPДБI ekiHni Жылдамдькта icke Kocadы.	Kocy
T3 Жылдамдьк	Кыіckaша baskaнда, MOTOPДБI yshiHni Жылдамдькта icke Kocadы.	Бектіrelен
	2 sekynd iwiHne bacy kepek. 6 sekyndka коьлган Таимері бар Тергіншi Жылдамдьктbl бенин ор brybɪnflbl Жылдамдькнha opana'dы. Та мɑк дайындану keziнde Кет мелшердь icstany болfaxа ды жмblc icterenb bihraïны.	Жарсылдay
L Жарсык	Жа рык таhti ру Жуиесін Kocады яэне Жылратды.	-

Control: Press the button once to turn on, press again to turn off.

5. Charging the Device

- Distance 20 cm according to IEC/EN 62471 standards - Included in the kit and according to IEC/EN 62471 standards - Distance 30 cm from the kit. - For installation, contact the technical service center ("For purchase, contact the technical service center").

1. SAFETY INFORMATION

Before using the appliance, carefully read the safety instructions and follow them during installation and use. Keep these instructions for future reference. If the appliance is sold or transferred, make sure the new owner receives this manual. The user must be familiar with the operation and safety functions of the appliance.

Wiring must be carried out by a qualified technician.

• The manufacturer is not responsible for any damage resulting from incorrect or improper installation. The minimum safety distance between the hob and the extractor hood is 650 mm (some models may be installed at a lower height; please refer to the installation instructions). If the installation instructions for the hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate attached

to the inside of the hood.

• The appliance must be connected to the mains supply in accordance with the wiring rules. For appliances of class I, check that the household power supply provides adequate earthing.
• Connect the hood to the exhaust duct with a minimum diameter of 120 mm. The duct must be as short as possible.
• The regulations for air discharge must be followed. Do not connect the hood to a duct that carries combustion gases (from boilers, fireplaces, etc.). If the hood is used together with appliances that do not run on electricity (e.g., gas appliances), adequate ventilation must be ensured in the room to prevent backflow of exhaust gases. When the hood is used together with appliances that do not run on electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent backflow of exhaust gases into the room from the hood.
• Air must not be discharged

into a duct used for exhausting fumes from appliances burning gas or other fuels.

If the power cord is damaged, it must be replaced by the manufacturer or its service agent. - Connect the plug to a socket that complies with current regulations and is located in an accessible place. Regarding technical and safety measures for gas discharge, it is important to strictly follow local regulations.

WARNING: Before use, remove the protective film from the appliance. Use it according to the instructions for use of the appliance. WARNING: If the instructions for use are not followed in accordance with the safety regulations, there may be a risk of injury from the device. Do not look directly into the light or the lens (LED, etc.). Do not cover the appliance while it is in operation; there is a risk of fire. - The manufacturer is not responsible for damage caused by improper use.

This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the device. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

The appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Check and replace the filters at the specified intervals (risk of fire). Follow the instructions for use and maintenance. There must be adequate ventilation in the room where the appliance is used, and in which

at the same time appliances that operate on gas or other fuels are used (not applicable to appliances that discharge air into the room).

The symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The appliance is designed exclusively for household use to eliminate kitchen odors. Do not use the appliance for any other purpose than that for which it is designed.
• Never leave the

appliance unattended while it is in operation.

-Adjust the flame intensity to direct it exactly at the bottom of the pan. Check that the pan does not protrude beyond the hob. -Fry foods in deep oil: the oil must be constantly monitored during use: overheated oil can easily catch fire.

3. CLEANING AND MAINTENANCE

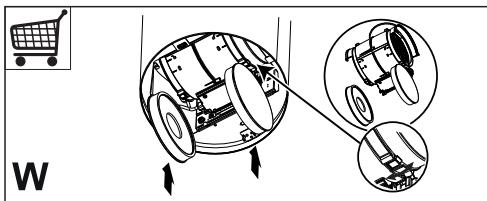

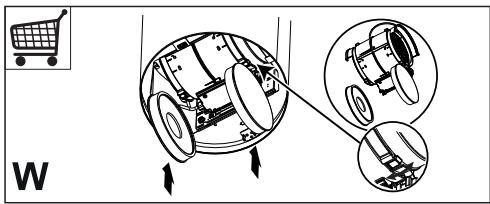

-The filter with activated carbon cannot be washed or regenerated, so it must be replaced approximately every four months, or more often with intensive use (W).

The filter must be cleaned every 2 months from the start of use and can be washed in a dishwasher (Z).

• The appliance is equipped with a side air outlet and a neutral filter.

4. CONTROL

Кончe	Функции	Led
Т1Брзина	То вклuyува Моторот bo Брзина[eдени.	Вклuyенo
	ТоInsклuyува Моторот.	-
Т2Брзина	То вклuyува Моторот bo Брзина[dва.	Вклuyенo
Т3Брзина	КORA ke ce пrintисе кратук,го вклuyува Моторот bo Брзина[tprn.	ФИКСНО
	Држete ro пrintисato 2 секунд.Ja akтувира четвртatable брзина co тajмep noctавенha 6 минут, a notoa ce Врака BO петховно noctавенata bo рзина. Oba e coодвettingо за справувае co максимални НИВОа на Исnapува на od rotvebeh.	Тpenkaнe
LСВETПО	То вклuyува и InckлuyувambstемOT за освettingувае.	-

Warning: Disconnect the motor before cleaning.

5. LIGHTING

• Lamps in risk group 1 according to IEC/EN62471 at a distance of 20 cm and with the lamp in risk group 1 according to IEC/EN62471 at a distance of 30 cm. For replacement, contact the technical service; for purchase, contact the technical service.

AL 1. SAFETY INFORMATION

For your safety and for the correct functioning of the appliance, please read this manual carefully before installation and commissioning. Keep these instructions together with the appliance, even if you give or transfer it to third parties. It is important that users know all the operating and safety characteristics of the appliance.

General safety instructions.

• In case of installation, check that the electrical supply can provide adequate earthing.
• Connect the hood to the ventilation duct with a minimum diameter of 120 mm. The duct should be as short as possible. The regulations regarding air discharge must be observed. Do not connect the hood to flues that carry combustion products (e.g., from boilers or fireplaces).
• If the hood is used together with non-electrical appliances (e.g., appliances that burn gas), adequate ventilation of the room must be ensured to prevent the backflow of exhaust gases. When the hood is used together with appliances that do not use electrical energy, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes from being drawn back through the hood into the room. Air must not be discharged into a ventilation duct used for exhaust from appliances burning gas or other fuels.
• If the power cord is damaged, it must be replaced by the manufacturer or its service agent.
• Place the appliance in a

place that complies with the regulations and is easily accessible.

• Follow the technical and safety measures that apply to testing evaporation, and it is important to comply with local regulations. WARNING: Before installing the aspirator, protect the throat.
• Use only the original accessories that come with the aspirator. WARNING: Installing the accessories incorrectly can lead to a severe impact.
• Do not look directly into the light source through the optical aids (magnifying glass, lenses...). Do not look at the aspirator's lamp; danger of burns. This device may be used by children aged 8 and above and persons with reduced physical, sensory, or mental capabilities, as well as those lacking sufficient experience and knowledge, if they are supervised or have been instructed on the safe use of the device and understand the possible dangers. Do not allow children to play with the device. Cleaning and maintenance should not be performed by children without supervision.
• Children must be supervised to ensure they do not play with the device. This device should not be used by persons (including children) with reduced physical, sensory, or mental capabilities, or those lacking sufficient experience and knowledge, unless they are supervised or have been instructed on the use of the device by persons responsible for their safety.

The accessories can become hot when used with the device for vacuuming.

Clean and/or replace the filters at the specified time intervals (danger of burns). See the section "Cleaning and Maintenance". - The device must be properly disposed of. Do not dispose of the aspirator with regular household waste. This symbol on the product or its packaging indicates that it must not be treated as ordinary household waste. Instead, it must be handed over to an appropriate collection point for recycling of electrical and electronic equipment. By ensuring proper disposal of this product, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling. For more detailed information about recycling of this product, please contact your local waste management service, the shop where you purchased the product, or your local council.

2. USE

• The aspirator is designed exclusively for use in households.
• Never use the aspirator without a filter.
• It is intended for this purpose only.
• Never leave the aspirator on with an open flame. Adjust the flame intensity so that it is directed only at the pot, not at other sides. During use, children must be supervised: the appliance can catch fire.

3. CLEANING AND MAINTENANCE

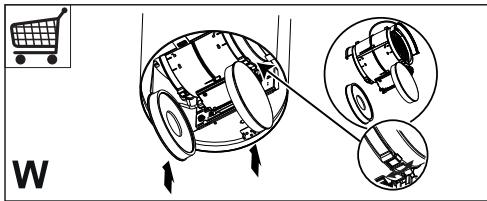

This filter cannot be washed or regenerated; it must be replaced at regular intervals of every 4 months of operation, or more frequently in case of very intensive use (W).

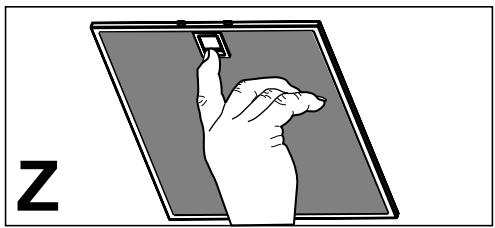

The grease filters must be cleaned every 2 months of operation, or more frequently in case of very intensive use, and can be washed in a dishwasher (Z).

• Clean the aspirator with a damp cloth and neutral detergent.

4. COMMANDS

Дугme	Функциje	Led
Т1Брзина	Укльуне motop у пвубрзины.	С Beetли
	Искльуне motop.	-
Т2Брзина	Укльуне motop у дугурзины	С Beetли
Т3Брзина	Када се пrantисе кратук, укльуне motop у трешип.	С Beetли
	Пр Initiating be 2 сени.	Tpenhe
	Укльуне четврту орзини са Татмером поедшим на 6 минута, наkonчera ce вра納а на петхоандов поедшему орзини. Погорно за уклары要进一步 на得住 июнхковлuyни Кухиные ИсторICALs.
LОсветъе被执行人	Укльуне щincьунеocветъе被执行人	-

Note: Pressing T1 after switching on starts the motor at the first speed.

5. LAMP
