Product type	Range hood
Brand	ELECTROLUX
Model	LFV218X
Power supply	220-240 V, 50 Hz
Evacuation type	External (extraction) or internal recirculation with charcoal filter
Number of speeds	3 (min, med, max)
Lighting	LED, long-lasting, energy-saving
Anti-grease filter	Washable, monthly cleaning (by hand or dishwasher)
Activated charcoal filter	Not washable, replace every 4 months maximum
Minimum distance from hob	45 cm for electric cooktop, 50 cm for gas or mixed
Controls	5 buttons: light ON/OFF, motor OFF, 3 speeds
Safety	Disconnect before maintenance; do not use without filter; no flambéing under the hood
Maintenance	External cleaning with damp cloth and neutral detergent; internal cleaning monthly
Target audience	Domestic use

Frequently Asked Questions - LFV218X ELECTROLUX

What is the minimum distance between the hood and the hob?

For an electric cooktop, the minimum distance is 45 cm. For a gas or mixed cooktop, it is 50 cm. If the cooking device instructions specify a larger distance, follow that.

How to clean the anti-grease filter?

The anti-grease filter must be cleaned at least once a month. You can wash it by hand with a non-abrasive detergent or in the dishwasher at low temperature and short cycle. Note that dishwasher washing may discolor the filter, but its performance is not affected.

How often should the charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced at most every 4 months, or more often depending on use and cleaning of the anti-grease filter.

Can I use the hood without the anti-grease filter?

No, it is strictly forbidden to use the hood without the anti-grease filter properly installed, as this could cause a fire.

How to replace the LED bulb?

The lighting uses LEDs with a long lifespan. In case of failure, contact the authorized after-sales service for replacement. Do not look directly at the LED light.

What are the controls of the hood?

The control panel has 5 buttons: one to turn lights on/off, one to stop the motor, and three to select suction power (minimum, medium, maximum).

Can the hood be used in recirculation mode?

Yes, the hood can operate in filter version with internal recirculation, provided an activated charcoal filter is installed. Consult the installation manual to know which version corresponds to your model.

What to do in case of malfunction?

Before contacting after-sales service, check that the hood is properly plugged in and that power is turned off and on again. Also ensure that the filters are not clogged. If the problem persists, note the model, PNC, and serial number (on the rating plate) and contact an authorized service.

Is it safe to use the hood with a gas cooktop?

Yes, but the room must be adequately ventilated. Respect the minimum distance of 50 cm and never flambé food under the hood. Deep frying must be done carefully to avoid overheated oil catching fire.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Do not use abrasive products or alcohol. Disconnect the hood before cleaning.

USER MANUAL LFV218X ELECTROLUX

Thank you for choosing this Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol \(\mathbb{O}\). Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol \(\mathbb{O}\) with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

Subject to change without notice.

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the

hood and filters will lead to the risk of fires. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/

Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

1. SAFETY INSTRUCTIONS

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. Never use the hood without effectively mounted grids. The hood must NEVER be used as a support surface unless specifically indicated. Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identified in the Installation Guide. In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the

model you have, the suction version with

external evacuation or filtering with internal recirculation

In some models ONLY:

As an optional accessory, a non-return valve is supplied.

This should be installed inside the proper outlet hole housing in some cases only (i.e., in any case where there's no protection against accidental backdraft air current from the outside).

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 50cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

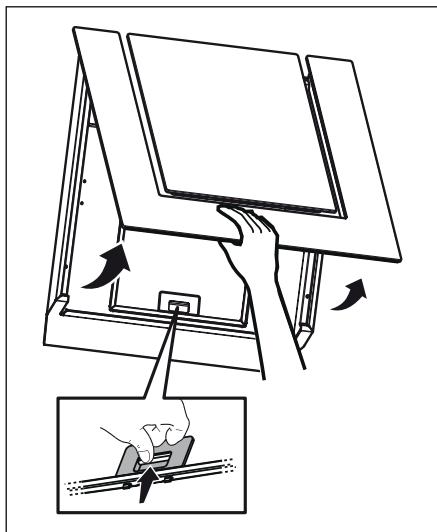

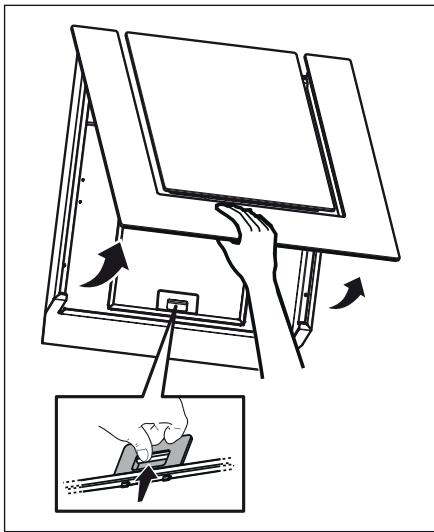

4.1 Grease filter - The grease filter must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

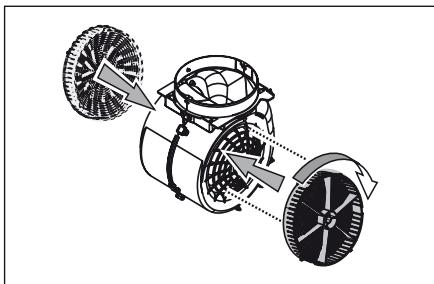

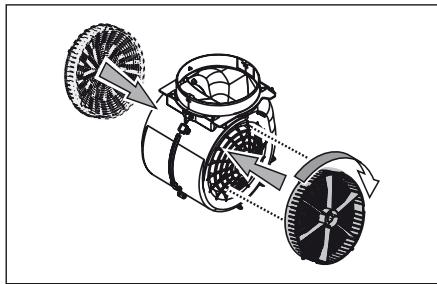

4.2 NON-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

1 ON/OFF lights 2 OFF motors 3 Minimum suction power 4 Medium suction power 5 Maximum suction power

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

To replace lights, contact authorised spare part center.
