USER MANUAL BHC9602B BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

1/NOTICES TO THE USER

+ Safety recommendations 4 + Environmental protection 9 + Description of your appliance 10

2 / INSTALLING YOUR APPLIANCE

+ Assembling the hood 11

3 / USING YOUR APPLIANCE

+ To use your cooker hood 13

4 / CARING FOR AND CLEANING YOUR APPLIANCE

+ Changing and cleaning the anti-grease filters 15 + Installing the carbon filter 15 + Changing the light bulb 15 + Maintaining your appliance 16 5 / TROUBLESHOOTING 17 6 / AFTER-SALES SERVICE 17

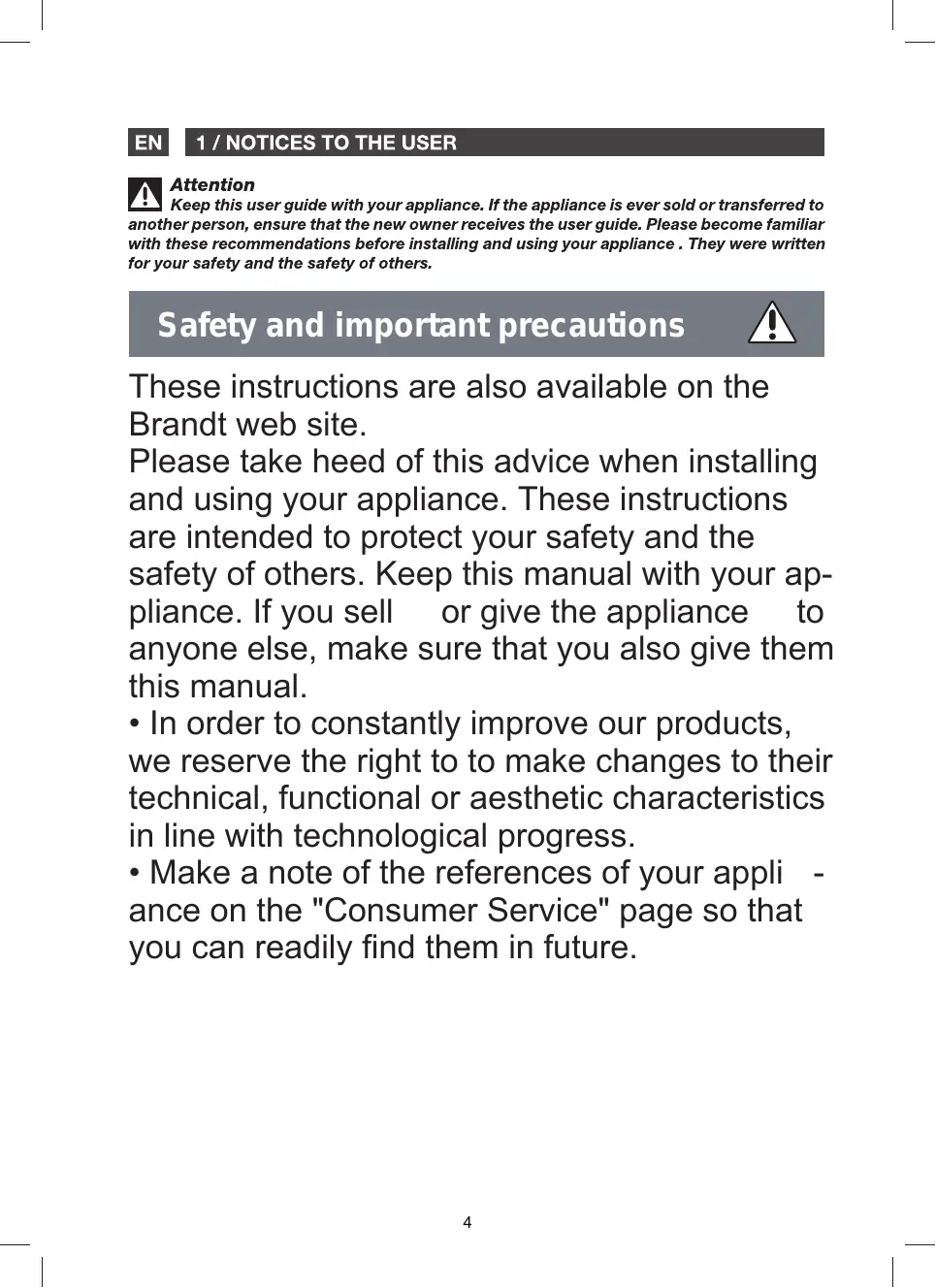

Attention Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance . They were written for your safety and the safety of others. Safety and important precautions 7N These instructions are also available on the Brandt web site. Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your ap- pliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual. - In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress. - Make a note of the references of your appli - ance on the "Consumer Service" page so that you can readily find them in future.

Important precautions - This appliance is designed for use by consum ers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended. + Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy. - This appliance can be used by children aged under 8 and by persons with diminished physi - cal, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this ap- pliance. The appliance must not be cleaned and maintained by unattended children. - Caution: The accessible parts of this appli - ance may become hot when used with cooking equipment. Electrical risks

• Allthe power supply circuits must be discon - nected before touching the connection termi- nals. If the power cord is damaged, it must be

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger. - The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules. - Do not change or attempt to change the char- acteristics of this appliance. Doing so can be dangerous. - The appliance must only be repaired by an ap proved specialist. - Always disconnect the hood before cleaning or maintaining it. - Never use steam or high-pressure tools to clean your appliance (for the purposes of elec- trical safety). - The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules. - Do not change or attempt to change the char- acteristics of this appliance. Doing so can be dangerous. - The appliance must only be repaired by an ap proved specialist. -* Always disconnect the the hood before clean

ing or maintaining it. - Never use steam or high-pressure tools to clean your appliance (for the purposes of elec- trical safety). Risk of asphyxiation - The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appli - ances that use gas or other fuels (this does not apply to appliances that only emit air into the room). - The room must be suitably ventilated when the range hood is used at the same time as appli - ances that use gas or other fuels (this does not apply to appliances that only emit air into the room). Risk of fire - Itis forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.

• Keep a constant eye on fryers used beneath the hood. When heated to very high tempera - tures, oil and fat can catch fire.

• Clean the appliance and replace the filters at

the recommended frequency. Accumulated de- posits of grease can cause a fire. - Itis forbidden to use the hood above a fuel fire (wood, coal, etc.). - Ifthe hoodis installed above a gas-fired appli ance, leave at least 70 cm between the top of the range and the underside of the hood. Ifthe instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected. Warning In the case of a kitchen heated by a device connected to a chimney (a stove, for ex- ample) the “recycling” version of the hood should be installed. Do not use the hood without metal filters. Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

+ ENVIRONMENTAL PROTECTION — This appliance's packaging material is recyclable. Help recycle it and protect the environ ment by dropping it off in the municipal receptacles provided for this purpose. — Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment Contact your town hall or your retailer for the used appliance collection points closest to your home. BE thank jou doing your part to protect the environment. Warning Installation should only be performed by installers and qualified technicians. Warning Remove the protective film from the cartridge filter before use.

2 / INSTALLING YOUR APPLIANCE [EN |

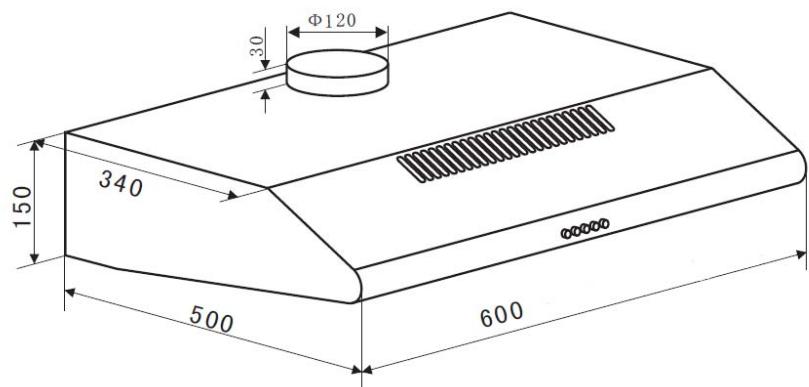

+ INSTALLATION (Wall Mounting) LL The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See Pic 1. Pic 1 — To install onto the wall, drill 4 holes of © 8mm on a suitable place according to the centre distance of hole in the back of the cooker hood.See Pic 2. — Insert the plug into the holes. Pic 2 — Insert the screws into the plugs and tighten them. Pic 2 — Put up the cooker hood onto the fixed screws. Pic 2 — Insert the safety screws into the plugs and tighten them to fix the cooker hood to the wall Pic 3 — Put the one way air outlet onto the cooker hood. Fix the expansion pipe {not included) on the air outlet. Lift up the expansion pipe till it out of the wall through the hole on the wall. Pic 3 & 4 Pic 2 60cm Pic 3 Pic 4

[EN D 2 / INSTALLING YOUR APPLIANCE

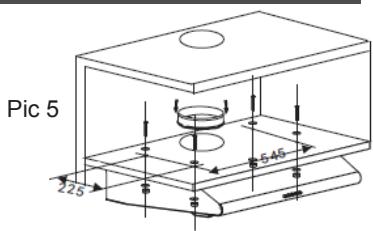

+ INSTALLATION (Cabinet Mounting) — Drill 4 holes of @ 6mm at the bottom of the hanging cupboard. Pic 5 — Put the one way air outlet to the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the cooker hood with 4 screws. Pic 5 — Lay the expansion pipe (not included) on the valve. Lift up the expansion pipe till it out of the wall through the hole on the wall. Pic 6 &7 Note — There are 2 methods for ventilation, including ‘horizontal ventilation' and ' vertical ventilation". Please pay attention to the ventilation method when installation. — Horizontal ventilation: See Pic 8A, please use the cover to seal the outlet on the top, then the air can be vented from back. — Vertical ventilation: See Pic 8B, please use the cover to seal the outlet on the back, then the air can be vented from top. Air ventilation setting — Outdoor air ventilation: Turn the adjuster to outdoor position(pic.2A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet. — Indoor air ventilation: Turn the adjuster to indoor position (pic.9B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet. Pic 9 Pin si. antiiatien

2. Pushthe Low button, the motor runs at Pic 10

3. Push the Mid button, the motor runs at

4. Push the High button, the motor runs

5. Push the light button and the light will

come on. Push it again and the light will turn off.

[EN | 4 / CARING FOR AND CLEANING YOUR APPLIANCE

+ CHANGING AND CLEANING THE ANTI-GREASE FILTERS

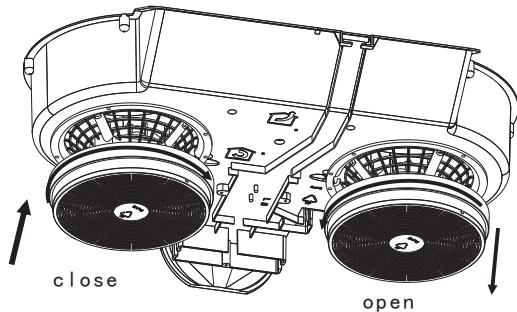

— Tear down your cooker hood as per the approach shown on Pic.11. — You can clean the filter as below: Soak them for about 3 minute in hot water (40-50 degrees) with a grease- loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure ,avoid to damage it . — Please do not use abrasive detergent for it will damage the hood. Note Make sure that cooker hood is shut down before cleaning. — Remove the filters see Pic.11. — The charcoal filters (Pic.12) are located at either end of the motor. Turn the charcoal filters anti-clockwise until they are unscrewed. — Apply reverse procedure to uninstall the charcoal filter.

the charcoal cannot be washed or re- cycled. It should be changed at three or six months according to your cooking habit

Contact after sales service. Pic 11 INSTALLING THE CARBON FILTER (OPTIONAL), SEE PIC.12 Pic 12

Warning EANING UR APPLIANCE Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

+ MAINTAINING YOUR APPLIANCE

Top surface and accessories Never use metal scouring pads, abrasive products or excessively stiff brushes. To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth. Filter cartridge This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non- abrasive cream, then rinse with clean water. Activated carbon filter This filter traps odours and must be changed at least once a year depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

[EN À 5 / TROUBLESHOOTING SYMPTOMS SOLUTIONS The hood is not working... Ensure that: + The power is not cut off. + À speed has been selected. The hood is not operating effectively... Ensure that: + The selected motor speed is sufficient for the quantity of smoke and vapours tol be cleared. + The kitchen is sufficiently ventilated to allow for fresh air intake. + The carbon filter is not worn (hood operating in recycling mode). The hood stopped working Ensure that: + The power is not cut off. + The single-pole cut-off device was not activated.

[EN À 6 / AFTER-SALES SERVICE

Any maintenance on your equipment should be undertaken by: - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

Ecodesign information / Technical product fiche [EN | This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods. symbol Value Unit Brand Brandt [Model number BHC9602X/W/B JAnnual energy consumption AEC [559 [kwh/annum Energy efficiency index EE [826 Fluid dynamic effciency index FDE [120 Lighting efficiency index LE 46.5 Grease filtering efficiency Gre [756 [Time increase factor 1.6 Maximum volumetric airflow of the cooker hood CRE Volumetric airflow at best efficiency point Quer [1897 ]m/h Static pressure at the best efficiency point Pa [213 (p Power consumption at the best efficiency point War [933 [w INominal power consumption of lighting system Ww,. 20 [w Average illumination of the lighting system Enuue [23 [Lux/W Power consumption in off mode Pp, [000 [w Power consumption in standby mode P. - W Volumetric airflow at the highest speed setting in normal use - 3219 Im/h Volumetric airflow at the lowest speed setting in normal use - 154.8 ]m°/h Volumetric airflow in intensive or boost mode - E- m°/h Sound power emissions at the highest speed setting in normal use _|- F1 [aBtLws) Sound power emissions at the lowest speed setting in normal use | 56 [aBtLus) Sound power emissions in intensive / boost mode F F dB(Lus)
