USER MANUAL BHB1944IX BRANDT

FI ASENNUSOHJEET Διακοσμητικός απορροφητήρας Campana extractora decorativa Decorative Hood Exaustor decorativo KoristekupuEN 18 As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation. EN 2 FR 24 PT 46 DE 69 CZ 92

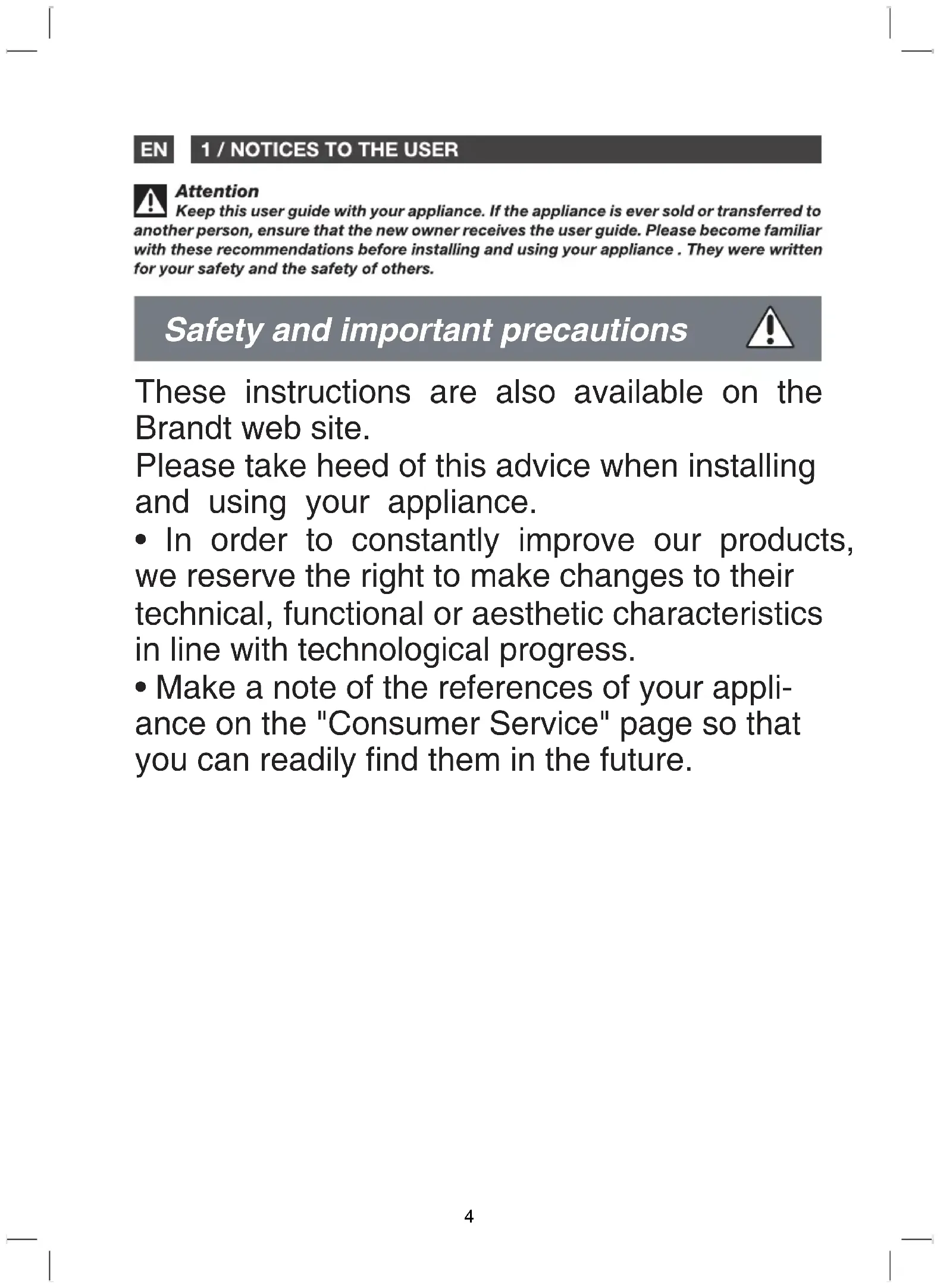

21Safety and important precautions These instructions are also available on the Brandt web site. Please take heed of this advice when installing and using your appliance.

• In order to constantly improve our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.

• Make a note of the references of your appli- ance on the "Consumer Service" page so that you can readily find them in the future. 4Important precautions

• This appliance is designed for use by consum ers at home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

• Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

• This appliance can be used by children aged under 8 and by persons with diminished physi- cal, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this ap- pliance. The appliance must not be cleaned and maintained by unattended children.

• Caution: the accessible parts of this appli- ance may become hot when used with cooking equipment. Electrical risks

• All the power supply circuits must be discon- nected before touching the connection termi- nals. If the power cord is damaged, it must be

1 / NOTICES TO THE USER EN

5replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.

• Do not change or attempt to change the char- acteristics of this appliance. Doing so can be dangerous.

• The appliance must only be repaired by an ap- proved specialist.

• Always disconnect the hood before cleaning or maintaining it.

• Never use steam or high-pressure tools to clean your appliance (for the purposes of elec- trical safety).

• The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appli- ances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

• The room must be suitably ventilated when the range hood is used at the same time as appli- ances that use gas or other fuels (this does not apply to appliances that only emit air into the room). Risk of fire

• It is forbidden to flame food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may be sucked in and damage the appliance.

• Keep a constant eye on fryers used beneath the hood. When heated to very high tempera- tures, oil and fat can catch fire.

• Clean the appliance and replace the filters at

1 / NOTICES TO THE USER EN

7the recommended frequency. Accumulated de- posits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).

• If the hood is installed above a gas-fired appli- ance, leave at least 70 cm between the top of the cooker and the underside of the hood. If the instructions of the cooker installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

1 / NOTICES TO THE USEREN

8910The exhaust duct shouldn’t empty into the attic under no circumstances. 1112tube this purpose (Pic.2).

Expandable tube (not supplied)

B14 crews slightly (Pic. 3). Connect the tube to the air outlet to the Part C15 glass in and secure it with the 4 screws (Pic. 3). Fit the tube adapter on the deflector16

1. Press the button “ ”, its inner indicator

lights bright, the motor is running at low speed and its indicator lights bright. Press the button“ ” again, the indicators light will be off. All the function of the hood will be closed, the hood enters into standby mode.

2. Press the button “1”, its inner indicator

lights bright, the motor is running at low speed. Press the button again, the motor stops.

3. Press the button “2”, its inner indicator

lights bright, the motor is running at medium speed. Press the button again, the motor stops.

4. Press the button “3”, its inner indicator

lights bright, the motor is running at high speed. Press the button again, the motor stops.

5. Press the button “ ”, both spot lights

start bright. Press the button again, the lights are switched off .Remove the carbon filter by turning it as shown on the drawing.

The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.192021symbol Value Unit Brand Model number Annual energy consumption AEC 26,0 kWh/annum Energy efficiency index EEi 42,6 - Fluid dynamic effciency index FDE 32,6

Lighting efficiency index

Time increase factor

Maximum volumetric airflow of the cooker hood

Volumetric airflow at best efficiency point

Static pressure at the best efficency point

Power consumption at the best efficiency point

Nominal power consumption of lighting system

Average illim ination of the lighting system

Lux/W Power consumption in off mode

Power consumption in standby mode

Volumetric airflow at the highest speed setting in normal use - 551,8

Volumetric airflow at the lowest speed setting in normal use - 193,1

Volumetric airflow in intensive or boost mode -

Sound power emissions at the highest speed setting in normal use -

dB(L WA) Sound power emissions at the lowest speed setting in normal use -

dB(L WA) Sound power emissions in intensive / boost mode -

Lighting efficiency index

Time increase factor

Maximum volumetric airflow of the cooker hood

Volumetric airflow at best efficiency point

Static pressure at the best efficency point

Power consumption at the best efficency point

Nominal power consumption of lighting system

Average illimination of the lighting system

Lux/W Power consumption in off mode

Power consumption in standby mode

Volumetric airflow at the highest speed setting in normal use - 536,6

Volumetric airflow at the lowest speed setting in normal use - 189,9

Volumetric airflow in intensive or boost mode -

Sound power emissions at the highest speed setting in normal use -

dB(L WA) Sound power emissions at the lowest speed setting in normal use -

dB(L WA) Sound power emissions in intensive / boost mode -
