USER MANUAL AD1515X BRANDT

EN GUIDE TO INSTALLATION

FR GUIDE D'UTILISATION

SE GUIDE FÖR INSTALLATION

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning :

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

ENT

1 /NOTICES TO THE USER

• Safety recommendations 4
  • Environmental protection 9
  • Description of your appliance 10

2 / INSTALLING YOUR APPLIANCE

• Using the evacuation mode 11
• Using the recycling mode 11
• Electrical connections 12
• Assembling the hood 13
• Assembling the ventilation shaft
  ° Outdoor evacuation 14
  ° Recycling 15

3 / USING YOUR APPLIANCE

• Description of control panel 16

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the filter cartridges 17
• Changing the carbon filter 17

- Cleaning the outer surfaces 18

- Changing the light bulb 18

- Maintaining your appliance 19

5 / TROUBLESHOOTING 20

6 / AFTER-SALES SERVICE 21

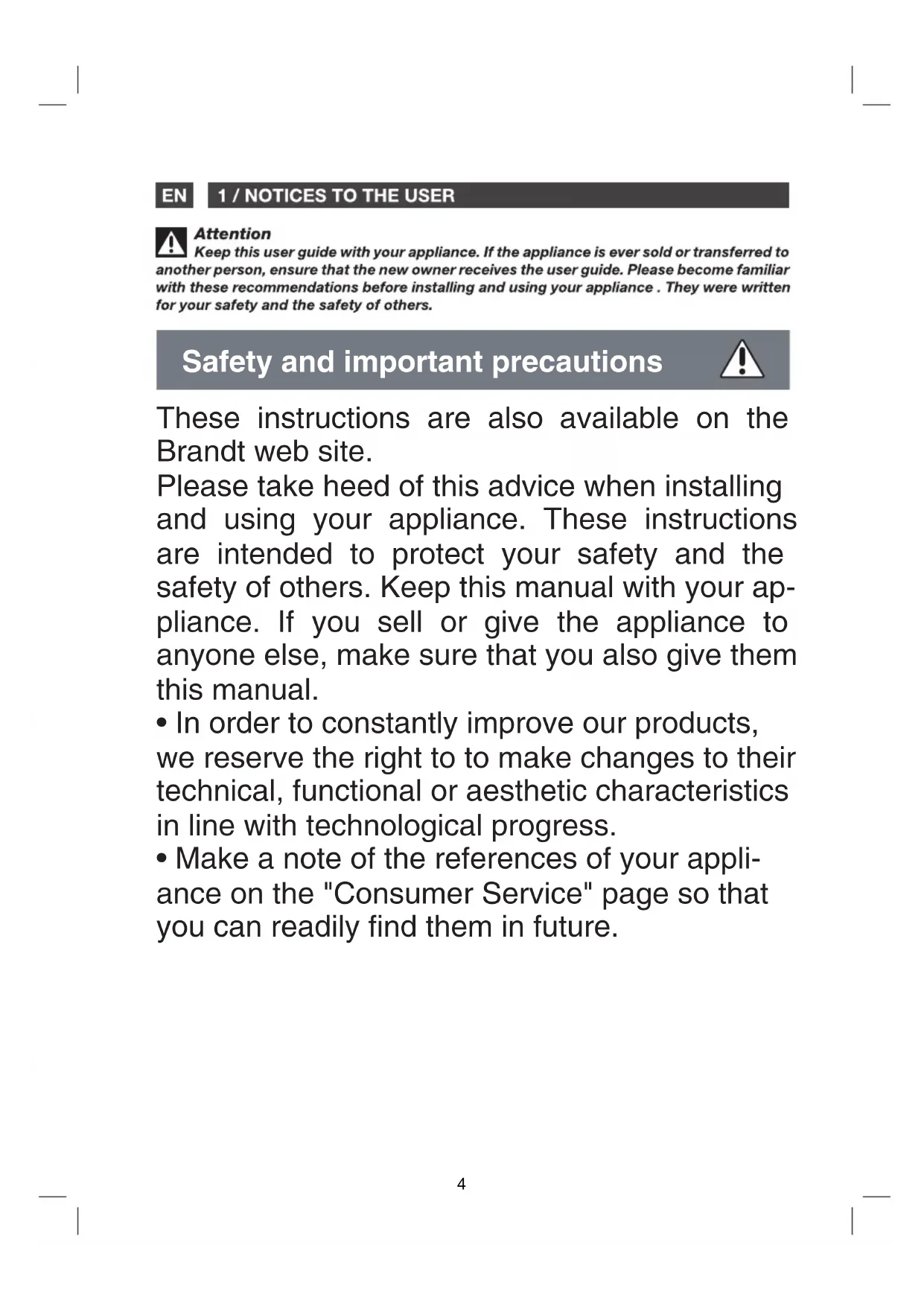

EN 1 / NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

Safety and important precautions

These instructions are also available on the Brandt web site.

Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual.

- In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress.

- Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in future.

1 / NOTICES TO THE USER EN

Important precautions

- This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

- Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

- This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.

- Caution: The accessible parts of this appliance may become hot when used with cooking equipment.

Electrical risks

- All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be

1 / NOTICES TO THE USEREN

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
• Always disconnect the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).
• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
  • Always disconnect the the hood before clean

1 / NOTICES TO THE USER EN

ing or maintaining it.

- Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

Risk of asphyxiation

- The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

- The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire

- It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.

- Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.

- Clean the appliance and replace the filters at

1 / NOTICES TO THE USEREN

the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).
• If the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER EN

• ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
— Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way,

the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

— We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective fi lm from the cartridge fi iter before use.

1 / NOTICES TO THE USEREN

• DESCRIPTION OF YOUR APPLIANCE

303 275 500-980 500 230 40 500 600 Ø150

2 / INSTALLING YOUR APPLIANCE EN

— The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.

— Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.

— If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.

— If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.

— Under no circumstances should the exhaust duct empty into the attic.

— Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

• USING THE EVACUATION MODE

If you possess an outlet to the exterior (pic. 1)

Your hood can be connected to this outlet using a fl ue (minimum diameter ∅ mm that is enamelled, in aluminium, fl exible or made of infl ammable material). If your fl ue is less than 125 mm in diameter, you must use the recycling mode.

φ 125 φ 150 pic.1

• USING THE RECYCLING MODE

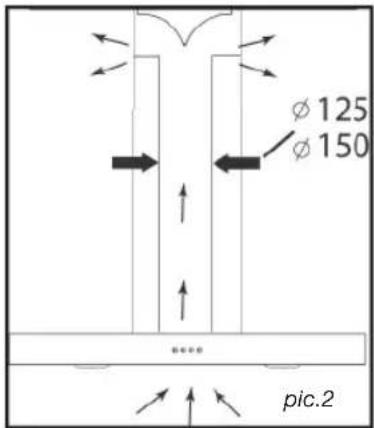

If you do not possess an outlet to the exterior (pic. 2)

All of our appliances can be used in recycling mode.

In this case, you should add an active carbon fi Iter which will keep in odours. (See Chapter 4: Changing the carbon fi Iter.)

φ 125 φ 150 pic.2

Advice on how to save energy

To make optimal use of your appliance, keep the length of the duct and the number of bends in the duct to a strict minimum.

2 / INSTALLING YOUR APPLIANCEEN

• ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The electrical connections are made before the appliance is installed in its housing.

Ensure that:

— the electrical installation has sufficient voltage,
— the electrical wires are in good condition,
— the diameter of the wires complies with the installation requirements.

Warning

This appliance is delivered with a H 05 VVF power cord that has three- 0.75mm^2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

2 / INSTALLING YOUR APPLIANCE EN

• ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm at least. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected.

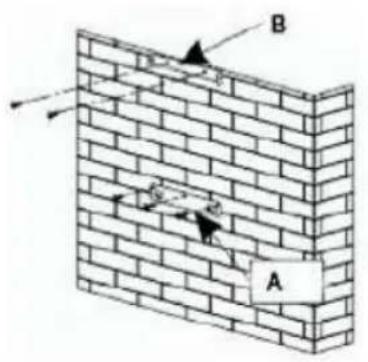

Fixing to the wall :

— Mark a vertical line on the wall centred on the cooktop.

— Mark on the wall the three holes that have to be drilled, using the supplied hood suspension hook and observing the recommended distance. (part A Pic. 1)

— Drill the three 8 mm diameter holes in a suitable position and insert the plugs.

— Before fi xing the hood, mount the non-return valve on the motor outlet -Secure the hood's fi xing support, ensuring that it is perfectly level. (part A Pic. 1)

— Fix the extendable evacuation sleeve (not included) to the motor outlet without impeding the movement of the non-return valve.(Pic. 3)

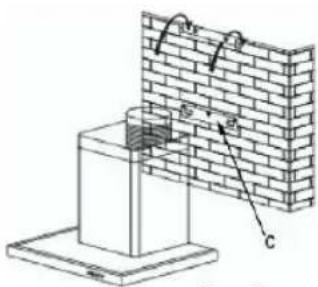

— Fit and secure the body of the hood on this support with the screws provided for this purpose. (Pic. 2)

B 30° A

Pict 1

Technical line drawing of a brick wall assembly with a base and support structure (no text or symbols)

Pict 2

Diagram of a cylindrical object being placed on a base, with arrows indicating direction (no text or symbols)

Pict 3

2 / INSTALLING YOUR APPLIANCEEN

• ASSEMBLING THE VENTILATION SHAFT

• Outdoor evacuation

— Calculate the fi nal height for fixing the duct support U-bracket (part B Pic. 1)
— Mark the two holes accordingly
— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed on the same axis as the hood (part B Pic. 1)
— Fix the fl at bracket behind the lower duct.

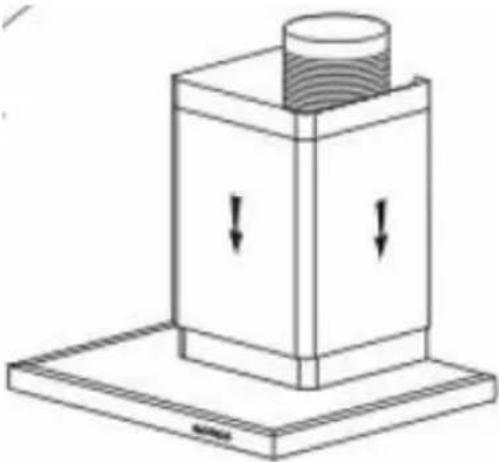

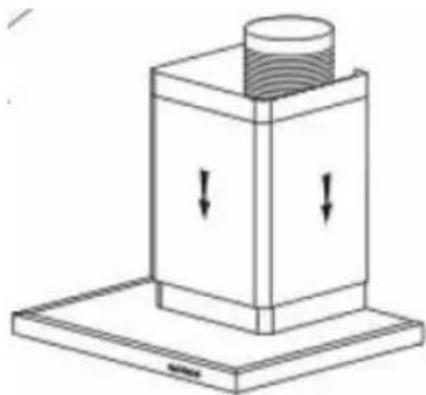

— Fix the two ducts to the hood.(Pic. 5)
— Connect the sleeve to the air outlet to the outside.
— Make the electrical connection to the hood using the mains supply cable.

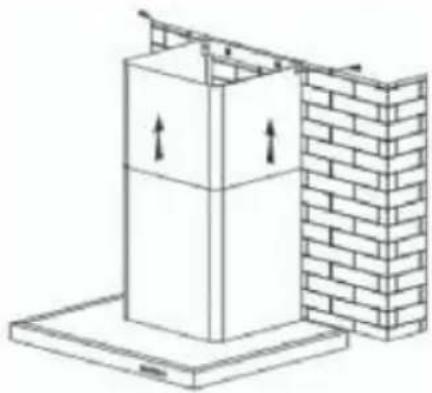

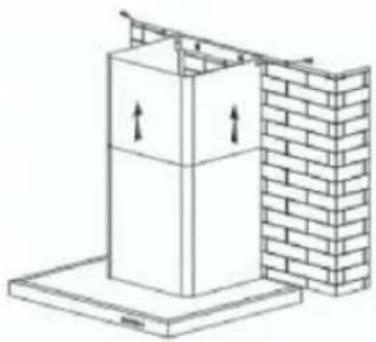

— Lift the upper duct up to the ceiling and fix it to the bracket using the screws.

Diagram of a cylindrical object being compressed onto a base, with arrows indicating force direction (no text or symbols)

Pict 3

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Pict 6

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pict 5

Simple line drawing of a cabinet or enclosure with labeled points A and B, showing internal structure and no text or symbols.

Pict 4

2 / INSTALLING YOUR APPLIANCE EN

- Recycling

— Calculate the fi nal height for fixing the duct support U-bracket.
— Mark the two holes.
— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed in the same axis as the hood.
— Fix the fl at bracket behind the lower duct.
— Fit the sleeve adapter on the deflector (Pic. 8).
— Connect the extendable sleeve to the deflector.

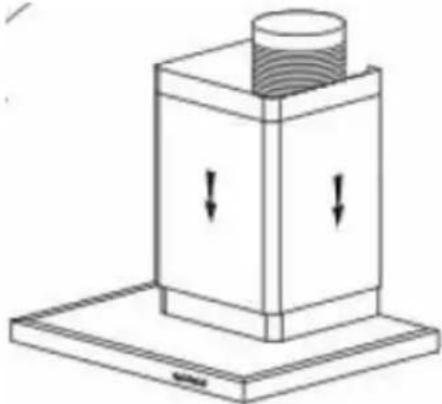

— Fit the two parts of the duct on to the hood (Pic. 5).
— Fit the defl ector (Pic. 8) into the upper duct by the ventilation inlets (Pic. 6)
— Make the electrical connection to the hood using the mains supply cable.

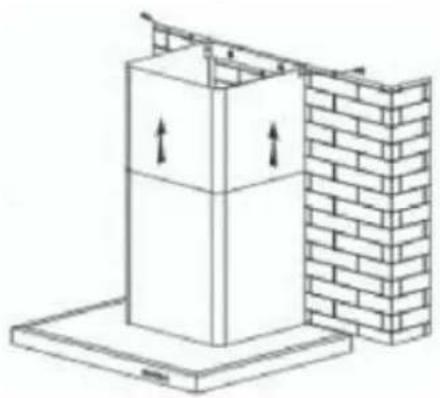

— Lift the upper duct up to the ceiling and fix it to the bracket using the two screws.

Simple line drawing of a cabinet or enclosure with labeled point C (no text or symbols beyond label)

Pict 4

Pict 8

Technical line drawing of a mechanical assembly with layered components and alignment lines (no text or symbols)

Architectural diagram of a building with brick wall and upward arrows indicating structural components (no text or symbols)

Pict 6

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Pict 5

Tip

For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter fl ue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the fl ue. In the event that the hood will be operated using outdoor evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

Warning

Do not use tools to remove the safety film of hood.

3 / USING YOUR APPLIANCEEN

• DESCRIPTION OF CONTROL PANEL

Push button

1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor runs at low speed.
3. Push the Mid button, the buzzer will buzz once, and the motor runs at mid speed.
4. Push the High button, the buzzer will buzz once, and the motor runs at high speed.
5. Push the light button and the two lights will come on. Push it again and the light will turn off.

0 1 2 3 Stop Low Mid High Light

Advice on how to save energy

Adjust the speed to the cooking method and the number of pans in use. It is preferable to use the rings at the back of the range.

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and fi lters may cause fi res. Please carefully adhere to the maintenance recommendations.

- CLEANING THE FILTER CARTRIDGES

They must be cleaned after approximately 30 hours of use or at least once a month.

Use a brush, hot water and mild detergent. Rinse and dry them thoroughly before returning them to the hood.

• Dismantling the fi Iter cartridge

— Turn the built-in fi Iter cartridge handle.
— Tilt the filter cartridge downward.

Technical diagram of a kitchen ventilation system with labeled components and directional arrows indicating airflow or movement.

- CHANGING THE CARBON FILTER (optional)

Replace it after approximately 120 hours of use.

— Remove the fi Iter cartridge.

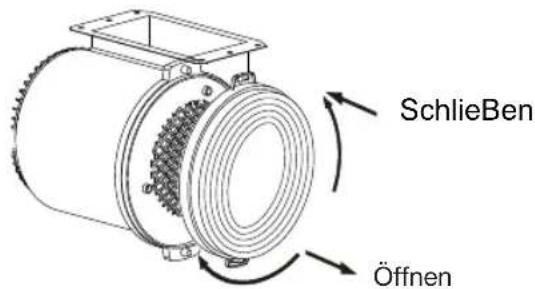

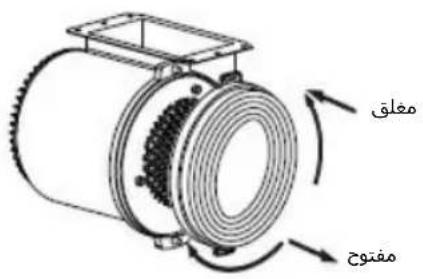

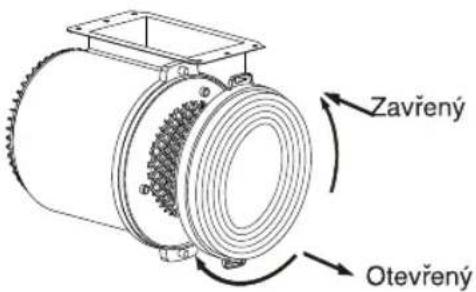

— Turn the carbon filter to remove it.
— Do the operation in the reverse order to put a new filter back.
— Put the filter cartridges back.

Close Open

EN 4 / CARING FOR AND CLEANING YOUR APPLIANCE

• CLEANING THE OUTER SURFACES

To clean the outside of your hood, use soapy water, but never use abrasive creams, corrosive detergents, scrubbing sponges or brushes. Wipe down with a soft, damp cloth.

• CHANGING THE LIGHT BULB

Warning

The power supply must be turned off before changing the light bulb, either by removing the plug or by using the circuit breaker switch.

Model with LED light

— Remove the lighting port
— Change the LED light.
— Replace the bulb by repeating these steps in reverse order.

Technical diagram showing a ceiling-mounted device with labeled components and three instructional arrows indicating installation steps.

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE WHAT	TO DO	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This fi lter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood.In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These fi liters can be cleaned in a vertical position in your dishwasher.(Do not allow them to touch dirty dishes or silverware.)
Activated carbon fi lter	This fi lter traps odours and must be changed at least once a year depending on your level of use.You should order these fi liters from your dealer (quoting the reference shown on the identifi cation plate located inside the hood) and note the date the fi lter was changed.

5 / TROUBLESHOOTINGEN

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is suffi cient for the quantity of smoke and vapours to be cleared.• The kitchen is suffi ciently ventilated to allow for fresh air intake.• The carbon fi lter is not worn (hood operating in recycling mode).
The hood stopped working.	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

6 / AFTER-SALES SERVICE EN

Any maintenance on your equipment should be undertaken by :

— either your dealer,
— or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

EN Ecodesign information / Technical product ëche

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods.

symbol Value Unit

Brand	Brandt
Model number	AD1515X
Annual energy consumption	AEC	56,1	kWh/annum
Energy efficiency index	EEi	62,5	-
Fluid dynamic efficiency index	FDE	24,3	-
Lighting efficiency index	LE	30,4	-
Grease filtering efficiency	GFE	77,2	-
Time increase factor	f	1,1	-
Maximum volumetric airflow of the cooker hood	Qmax	586,3	m3/h
Volumetric airflow at best efficiency point	Q BEP	321,6	m3/h
Static pressure at the best efficiency point	P BEP	354	P
Power consumption at the best efficiency point	W BEP	130,3	W
Nominal power consumption of lighting system	W L	5,2	W
Average illumination of the lighting system	E middle	158	Lux/W
Power consumption in off mode	P o	0.00	W
Power consumption in standby mode	P s	-	W
Volumetric airflow at the highest speed setting in normal use -		586,3	m3/h
Volumetric airflow at the lowest speed setting in normal use -		360,2	m3/h
Volumetric airflow in intensive or boost mode -		-	m3/h
Sound power emissions at the highest speed setting in normal use -		70	dB(LWA)
Sound power emissions at the lowest speed setting in normal use -		60	dB(LWA)
Sound power emissions in intensive / boost mode -		-	dB(LWA)

FR 23

Technical diagram showing a brick wall structure with labeled components and angle annotations

Fig. 2

Diagram of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Fig. 3

2 / INSTALLATION DE VOTRE APPAREILFR

• MONTAGE DE LA CHEMINEE

Technical line drawing of a mechanical assembly with a cylindrical component and base (no text or symbols)

Fig. 3

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Fig. 6

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Fig. 5

Simple line drawing of a cabinet or enclosure with labeled component C (no text or symbols beyond label)

Fig. 4

2 / INSTALLATION DE VOTRE APPAREIL FR

- Recyclage

Simple line drawing of a cabinet or enclosure with labeled points C and D (no text or symbols beyond labels)

Fig. 4

Fig. 8

Isometric line drawing of a mechanical assembly with layered components and alignment lines (no text or symbols)

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Fig. 6

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Fig. 5

Conseil

Technical diagram of a ceiling structure with labeled components and directional arrows indicating movement or flow.

Fermé Ouvert

FR 4 / ENTRETIEN ET NETTOYAGE DE VOTRE APPAREIL

• NETTOYAGE DE LA SURFACE EXTERIEURE

Technical diagram showing a kitchen sink with labeled components and two instructional arrows indicating installation steps.

4 / ENTRETIEN ET NETTOYAGE DE VOTRE APPAREIL FR

Attention

1- RELATIONS CONSOMMATEURS FRANCE

Technical diagram showing a door with a magnified inset highlighting a component, alongside a labeled panel with Chinese text.

OU

SERVICE :

TYPE :

#

No. 4

#

Technical diagram of a machine with labeled components and control panel

Technical diagram of a brick wall assembly with labeled component C (no text or symbols beyond label)

fig. 2

Technical line drawing of a mechanical assembly with a cylindrical component and base platform (no text or symbols)

fig. 3

Diagram of a cylindrical object being placed on a base platform, with arrows indicating direction (no text or symbols)

fig. 3

Architectural diagram showing a building with upward arrows and a brick wall, no text or symbols present

fig. 6

Isometric line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

fig. 5

Simple line drawing of a cabinet or enclosure with labeled components (no text or symbols)

fig. 4

Simple line drawing of a cabinet or enclosure with ladder and labeled component C (no text or symbols beyond label)

fig. 4

fig. 8

Technical line drawing of a mechanical assembly with layered components and alignment lines (no text or symbols)

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

fig. 6

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

fig. 5

Conselho

0 1 2 3 ◎ ◎ ◎ ◎ ◎

Parar

Baixa

Média

Alta

Lâmpadas

Technical diagram of a ceiling structure with numbered components and labeled parts

Technical diagram showing a device with labeled components and two instructional arrows indicating assembly steps.

Technical diagram showing brick wall installation with labeled components A, B, and C

Abb. 2

Technical line drawing of a mechanical assembly with a cylindrical component and base (no text or symbols)

Abb. 3

2 / ANSCHLIESSEN DES GERÄTSDE

• MONTAGE DER ROHRABDECKUNG

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Abb. 3

Isometric line drawing of a building with upward arrows indicating direction, adjacent to a brick wall (no text or symbols)

Abb. 6

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Abb. 5

Simple line drawing of a cabinet or enclosure with labeled components (no text or symbols)

Abb. 4

2 / ANSCHLIESSEN DES GERÄTS DE

• Umluft

Simple line drawing of a cabinet or enclosure with a handle and labeled point C (no text or symbols present)

Abb. 4

Abb. 8

Technical line drawing of a mechanical assembly with layered components and alignment lines (no text or symbols)

Architectural diagram of a building structure with brick wall and upward arrows indicating forces or movement (no text or symbols)

Abb. 6

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Abb. 5

Hinweis

Technical diagram of a ceiling structure with numbered components and directional arrows indicating assembly or movement.

SchlieBen Öffnen

Technical diagram showing a ceiling fixture with labeled components and a close-up of the component being inserted into a socket.

2 / INSTALACE PŘÍSTROJE

2 / INSTALACE PŘÍSTROJE

CZ

CZ 2 / INSTALACE PŘÍSTROJE

• ELEKTRICKÉ ZAPOJENÍ

2 / INSTALACE PŘÍSTROJE

CZ

• MONTÁŽ EXTRAKČNÍHO ZVONU

Pozor

Diagram showing a brick wall with labeled points A and B, indicating a structural or engineering component.

Obr. 1

Technical diagram showing a brick wall structure with labeled components and annotations

Obr. 2

Diagram of a mechanical press or clamping device with a cylindrical component and base plate (no text or symbols)

Obr. 3

CZ 2 / INSTALACE PŘÍSTROJE

• MONTÁŽ KOMÍNA

• Vypouštění ven

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Obr. 3

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Obr. 6

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Obr. 5

Simple line drawing of a cabinet or enclosure with labeled point C (no text or symbols beyond label)

Obr. 4

2 / INSTALACE PŘÍSTROJE

CZ

- Recyklování

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Obr. 8

Isometric line drawing of a mechanical setup with a central block and two transparent cylinders, mounted on a base (no text or symbols)

Simple line drawing of a cabinet or enclosure with ladder and support structure (no text or symbols)

Obr. 4

Architectural diagram of a building with brick wall and upward arrows indicating structural components (no text or symbols)

Obr. 6

Simple line drawing of a mechanical component with arrows indicating downward motion (no text or symbols)

Obr. 5

Rada

Technical diagram of a ceiling-mounted appliance with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a kitchen sink with labeled components and two close-up insets illustrating the insertion of a device.

4 / ÚDRŽBA A ČIŠTĚNÍ PŘÍSTROJE

CZ

Pozor

Ø 125 Ø 150 ill. 1

• BRUG MED RECIRKULERINGSVERSIONEN

installationskravene.

Advarsel

Technical diagram showing brick wall construction with labeled components A, B, C and angle θ

Illu. 2

Diagram of a cylindrical object mounted on a base with an arrow indicating direction (no text or symbols)

Illu. 3

2 / INSTALLATION AF APPARATET DK

• SAMLING AF VENTILATIONSSKAKTEN

Diagram of a cylindrical object being compressed onto a base platform, with directional arrows indicating compression or force (no text or symbols present)

Illu. 3

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Illu. 6

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Illu. 5

Simple line drawing of a cabinet or enclosure with labeled components (no text or symbols)

Illu. 4

2 / INSTALLATION AF APPARATET DK

- Recirkulering

Simple line drawing of a cabinet or enclosure with labeled points A and C, no text or symbols present.

Illu. 4

Illu. 8

Technical line drawing of a mechanical assembly with layered components and base plate (no text or symbols)

Diagram of a building structure with brick wall and upward arrows indicating movement (no text or symbols)

Illu. 6

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Illu. 5

Råd

4 / PLEJE OG RENG∅RING AF APPARATET DK

Advarsel

Technical diagram of a kitchen furnace with labeled components and directional arrows indicating flow or movement.

• Aftagning af fi Iterelement

Technical diagram showing a kitchen appliance with labeled parts and two instructional arrows indicating assembly steps.

4 / PLEJE OG RENG∅RING AF APPARATET DK

Advarsel

INNEHÅLLSFÖRTECKNING

SE

1 / INFORMATION TILL ANVÄNDAREN 132

● SÄKERHETSINFORMATION.... 132
- MILJÖSKYDD....137
● BESKRIVNING AV APPARATEN 138

2 / INSTALLERA DIN APAPRAT 139

● ANVÄND UTSUGNINGSLÄGET.... 139
● ANVÄND ÅTERVINNINGSLÄGET 139
● ELEKTRISKA ANSLUTNINGAR 140
● SÄTT IHOP SPISKÅPAN.... 141
● SÄTTA IHOP VENTILATIONSTRUMMAN 142
- Utsug till utomhusmiljö.... 141
• Återvinning.... 143

Technical diagram showing brick wall structure with labeled components A, B, C and angle θ

Bild . 2

Diagram of a cylindrical object being placed on a base platform, with an arrow indicating direction (no text or symbols present)

Bild.3

SE

2 / INSTALLERA DIN APPARAT

SÄTTA IHOP VENTILATIONSTRUMMAN

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Bild.3

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Bild. 6

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Bild.5

Simple line drawing of a cabinet or enclosure with labeled component C (no text or symbols beyond label)

Bild. 4

2 / INSTALLERA DIN APPARAT

SE

- Återvinning

Simple line drawing of a cylindrical object mounted on a base with an arrow pointing to it (no text or symbols)

Bild. 3

Simple line drawing of a cabinet or enclosure with a handle and label C (no text or symbols present)

Bild. 4

Bild. 8

Isometric line drawing of a mechanical or architectural component with layered structure and support beams (no text or symbols)

Bild. 6

Diagram of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Bild. 7

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Bild.5

Tips

Technical diagram of a ceiling-mounted air duct with labeled components and directional arrows indicating flow or movement.

- Plocka isär filterpatronerna

Technical diagram showing a ceiling fixture with labeled components and a magnified inset illustrating the assembly process.

4 / RENGÖRING OCH UNDERHÅLL FÖR DIN APPARAT

SE

Varning

Technical diagram showing a brick wall structure with labeled components A, B, C and dimension lines

Eik. 2

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Eik. 3

Architectural diagram showing a chimney structure with brick wall and upward arrows indicating airflow or movement (no text or symbols)

Eik.66

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Eik. 55

Simple line drawing of a cylindrical object mounted on a base, with an arrow indicating upward motion (no text or symbols)

Eik. 3

Simple line drawing of a cabinet or enclosure with labeled point C (no text or symbols beyond label)

Eik. 4

Technical line drawing of a mechanical assembly with layered components and alignment lines (no text or symbols)

Eik. 6

Isometric line drawing of a building structure with brick wall and upward arrows indicating direction (no text or symbols)

Eik.777

Diagram of a cylindrical object being placed on a base platform, with arrows indicating direction (no text or symbols)

Eik. 3

Simple line drawing of a rectangular box with a side panel and label C, no text or symbols present.

Eik. 4

Simple line drawing of a mechanical component with a cylindrical top and two downward arrows, mounted on a base (no text or symbols)

Eik 5 5

GR

Technical diagram of a ceiling structure with numbered components and directional arrows indicating flow or movement.

Diagram showing a kitchen appliance with labeled parts and two instructional arrows indicating inspection or repair steps.

GR

Technical diagram showing a door with a magnified inset highlighting a component labeled '2023' and a label box indicating '2024'.

Technical line drawing of an open refrigerator with labeled compartments and control panel

H: ل Quantum Transfer

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating assembly steps.

اننه

Technical diagram of a ceiling structure with labeled components and directional arrows indicating flow or movement.

Isometric line drawing of a mechanical setup with a transparent container and base platform (no text or symbols)

Architectural diagram showing a chimney with upward arrows and brick wall, no text or symbols present

شکل 6

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

شکل 5

. إعادة التدوير

Simple line drawing of a refrigerator with a handle and label C (no text or symbols)

شکل 4

Architectural diagram of a two-story building with brick wall and upward arrows indicating structural elements (no text or symbols)

شکل 6

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

شکل 5

لالطوقي على شكل حرف

(1 شكل B غرفة)

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

شکل 3

Simple line drawing of a cabinet or enclosure with ladder and labeled point C (no text or symbols beyond label)

شکل 4

B A

شکل 1

انته

Technical line drawing of a brick wall structure with a base and support structure, no text or symbols present

2 شکل

شکل 3
