Installing and Setting Up Ring Video Doorbell Elite Welcome Congratulations on your new Ring Video Doorbell Elite. Ring Doorbell is the foundation of the Ring of Security around your home. We hope your Ring Doorbell brings you an increased sense of security and convenience, as well as the joy that comes from being able to connect with visitors when you’re not home. Hi, I’m Rochelle, a Ring Community Support Agent in Arizona. I’ve set up so many Ring Doorbells, I can probably do it in my sleep! We’ve included all the tools you need, so setting it up by yourself should be a breeze. If you run into any problems, my colleagues and I can help. Just give us a call. Don’t feel like calling? Check out our online Help Center at ring.com/help.

Before you begin Screwdriver Handle Check out all the stuff in the box. Screw Bit Includes power adapter and plugs for different types of outlets Use the Phillips end for installation. If you are securing existing doorbell wires in the small connectors on the back of Ring Elite, use the flathead end. 3’ Ethernet Cable Flexible Bit Elite Power Kit Use this cable to connect the Elite Power Kit to your internet access point. 50’ Ethernet Cable Run this cable from the Elite Power Kit to your Ring Doorbell. Use it for screwing the security screw into the bottom of Ring Doorbell Elite after installing the faceplate. Security Screws (2) Use one to secure the faceplate. Put the other one in your toolbox for the inevitable moment that the first one gets dropped in the bushes. Elite Mounting Bracket (optional) If installing Ring Elite on an existing junction box, you don’t need to use this bracket. If you do use this bracket, you should remove the existing junction box. Faceplates (4) Select the color that best matches your home…or your mood. Mounting Screws (5) Attach Ring Elite to the bracket with two screws. Use two other screws to attach the Elite Power Kit to your wall, if you’d like.

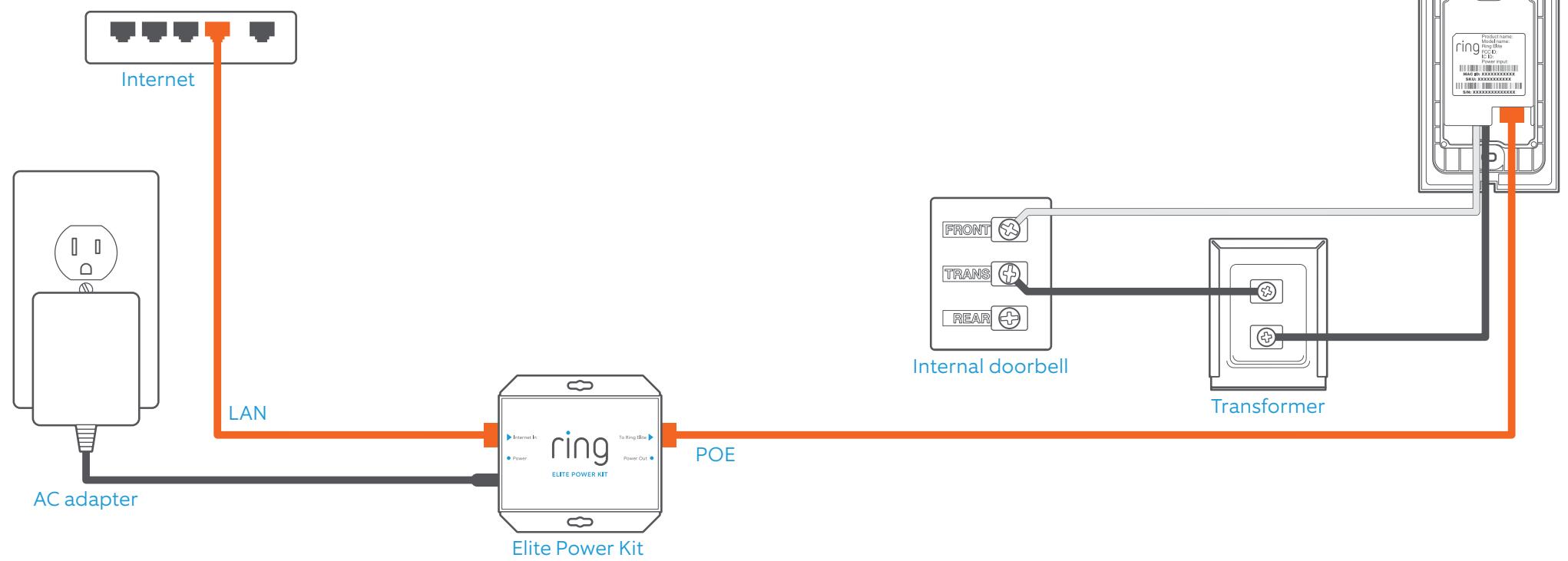

Wiring the Elite Power Kit Run cable to your Ring Elite The Elite Power Kit is a PoE injector that converts internet in to Power Over Ethernet out. Run the 50 foot cable to the location where you’ll be installing Ring Elite. To get started, connect the Elite Power Kit to AC, using the provided adapter. Wiring Ring Elite to an internal doorbell is optional. If you do so, shut off power at the breaker before connecting your existing doorbell wires to the small wire terminals Ring Elite on the back of Ring Elite. Then, use the provided 3 foot ethernet cable to connect your access point to the Internet In port on the Elite Power Kit. Internet Internal doorbell Transformer LAN POE AC adapter Elite Power Kit

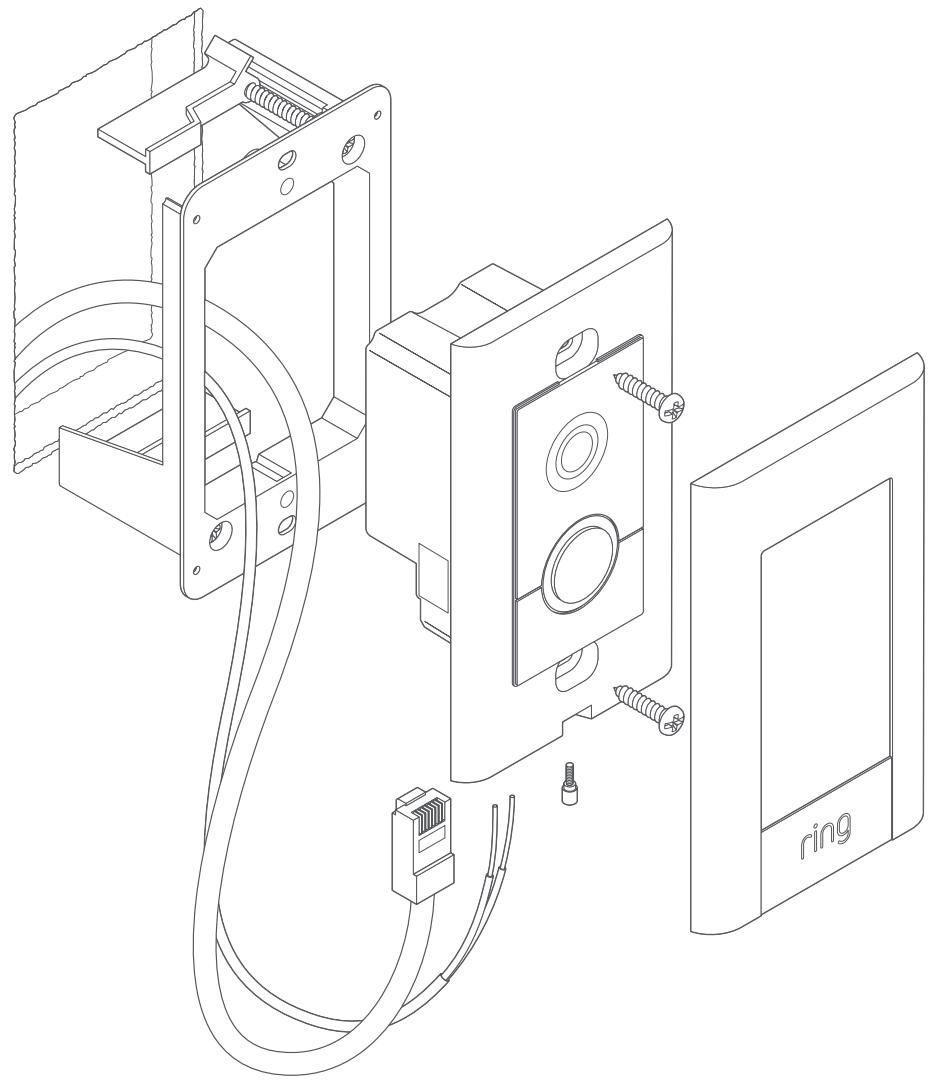

How it all fits together If you need a visual overview, see the diagram to the right. This is how is all fits together. Note that as you screw the Elite Mounting Bracket into your wall, the “wings” will rotate and lock the bracket into place.

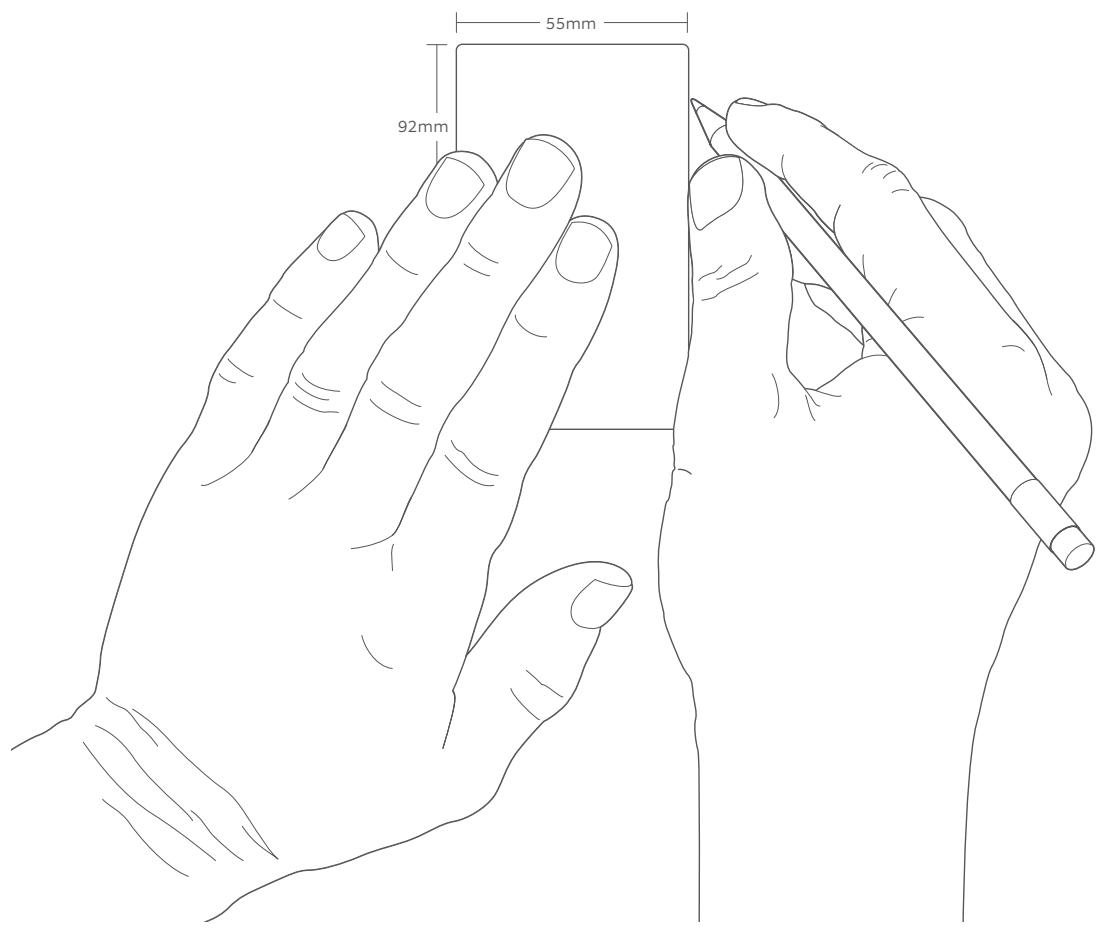

Mark the install location If you already have a junction box at the location where you’re installing your Ring Elite, skip the next couple of steps and screw it directly into that junction box. 55mm 92mm If you don’t have a junction box, trace the outline of the supplied template, then cut a rectangular hole in your wall to make room for the Elite Mounting Bracket.

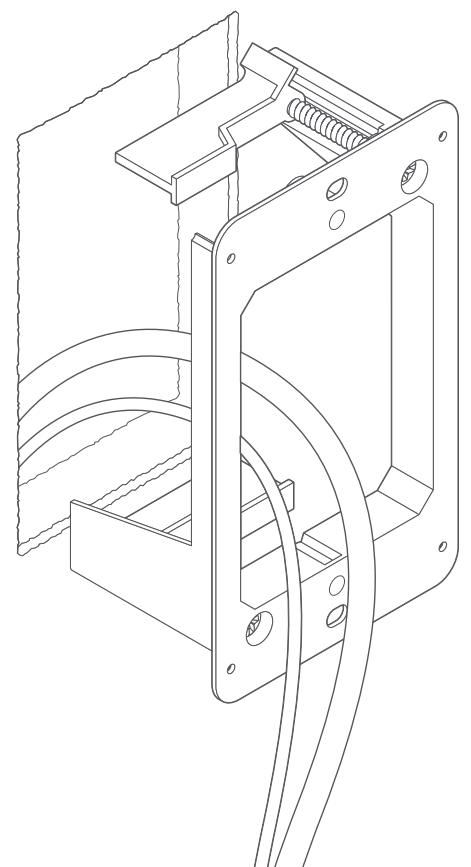

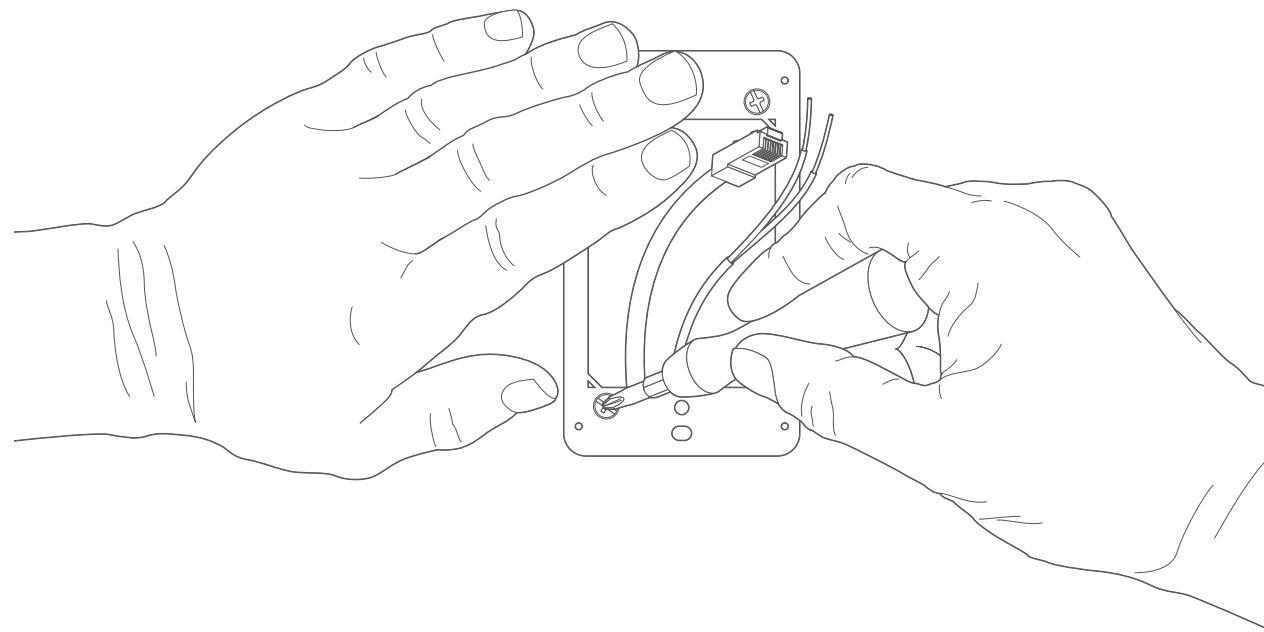

Install the Elite Mounting Bracket Make sure any wires in your wall come through the hole in the middle, and screw the bracket in using the two screws in the corners. The wing clamps will rotate as the screws turn and lock the bracket into your wall.

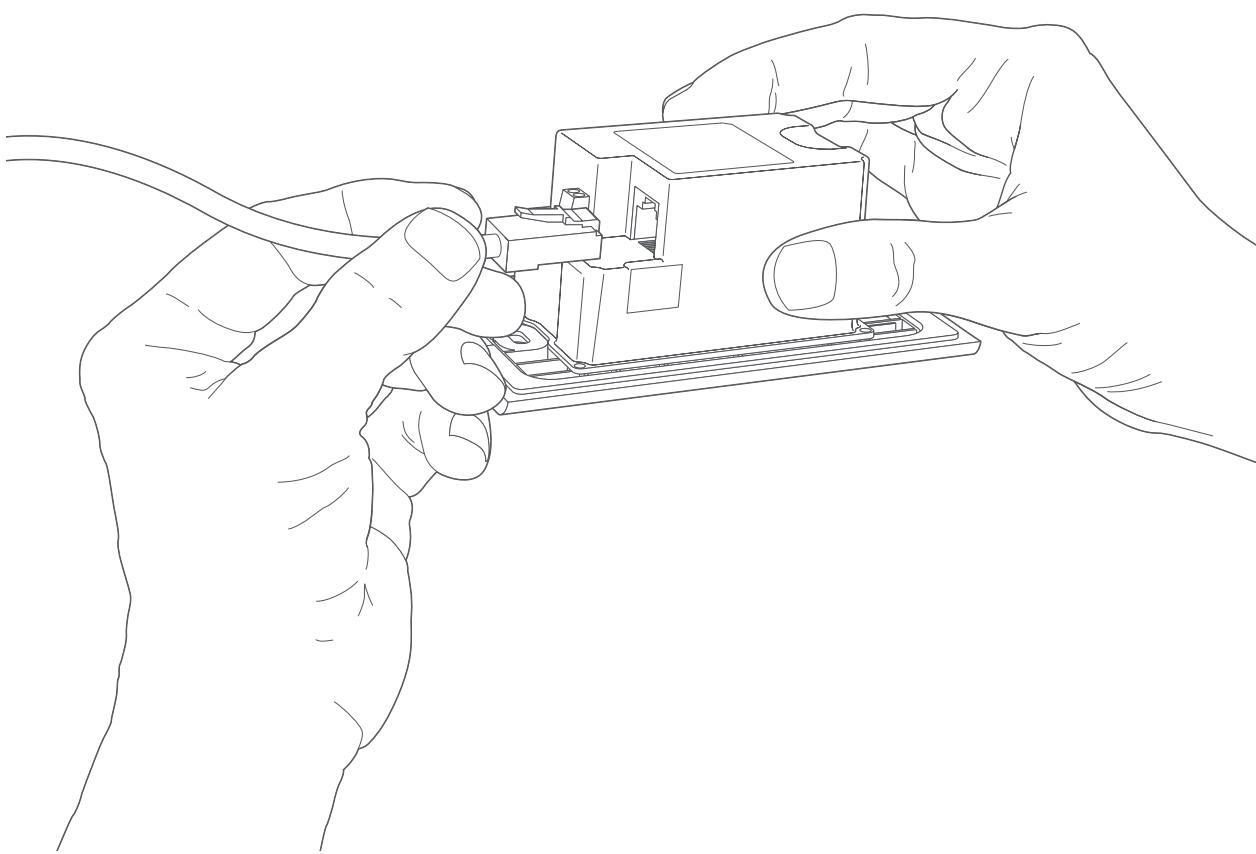

Plug in the ethernet cable Plug the ethernet cable coming out of your wall into the ethernet port on the back of Ring Elite. As long as this cable is connected to power, the front light on Ring Elite will begin spinning and it will begin talking to you to let you know that it is ready to be set up in the Ring app.

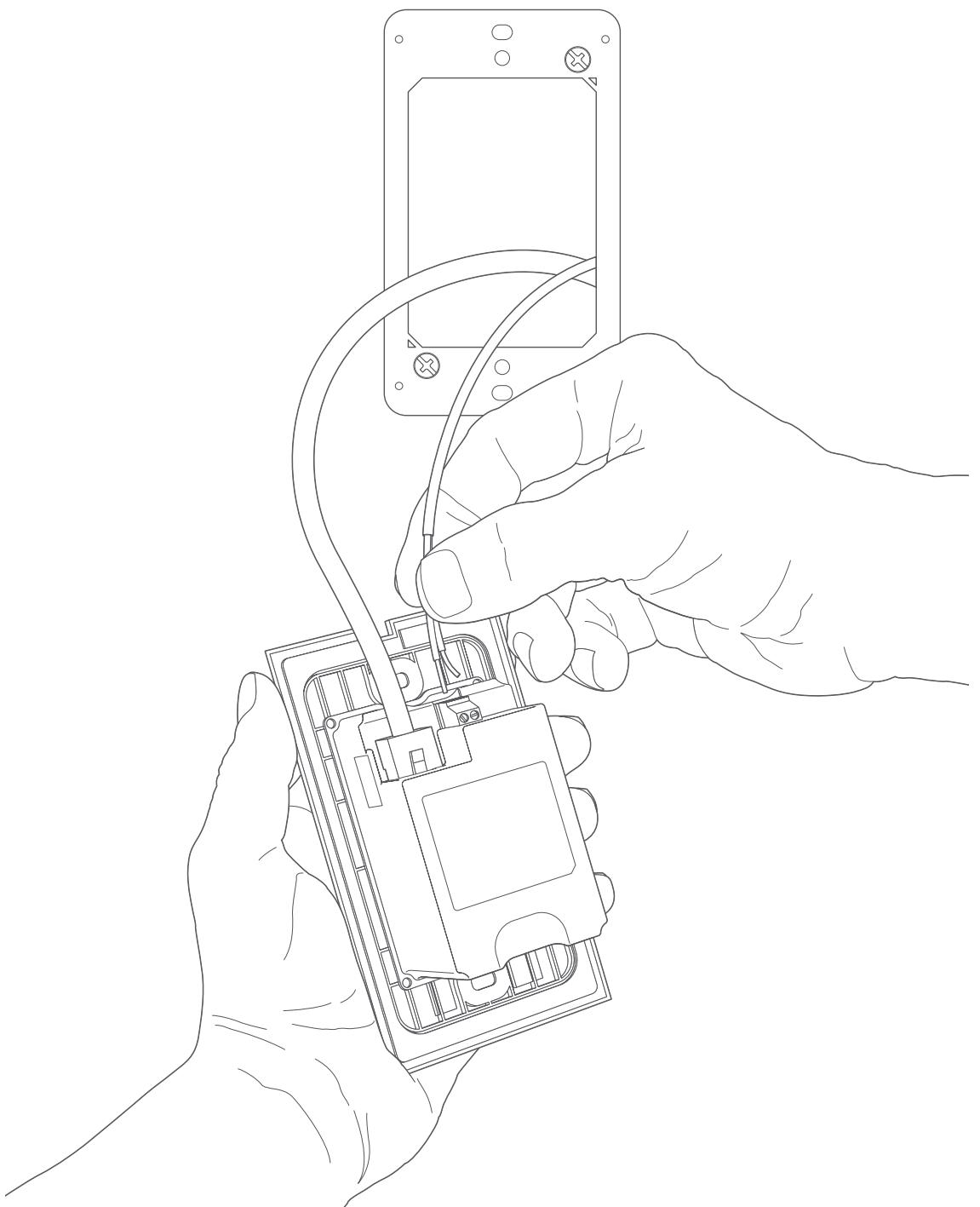

Connect doorbell wires (optional) If wiring Ring Elite to an internal doorbell, first shut off power at the breaker, then connect your doorbell wires to the small wire connectors next to the ethernet port. Then use the provided flat-head screwdriver to secure the wires in the screw holes.

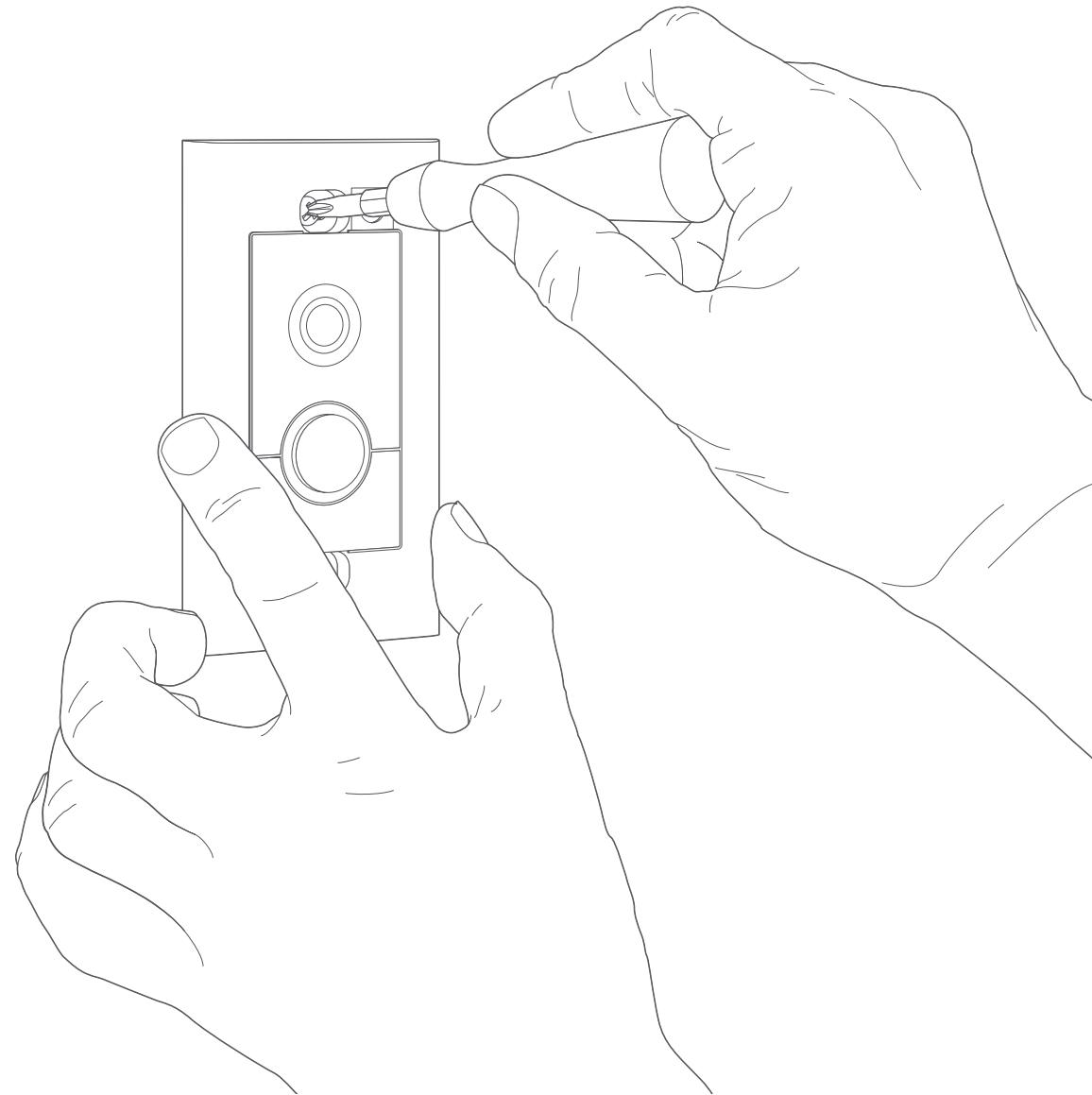

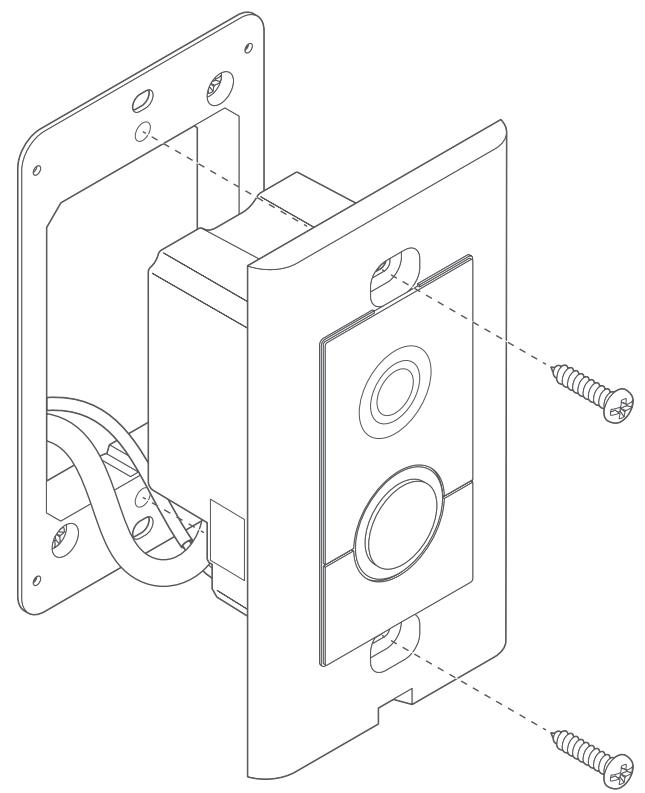

Screw Ring Elite into the bracket Using two of the provided screws, screw Ring Elite into the bracket to secure it on your wall.

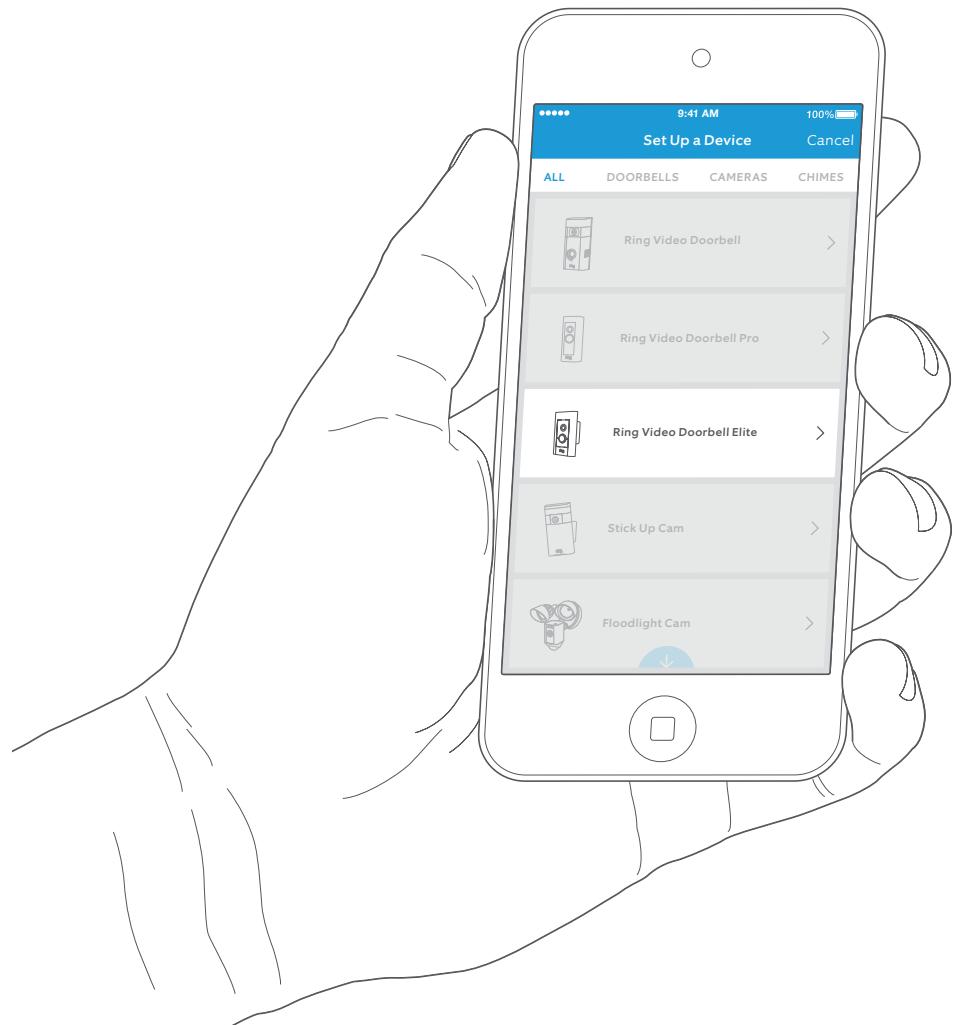

Perform the in-app setup In the Ring app, select Set Up a Device, and follow the in-app instructions to connect Ring Elite to your Wi-Fi network. When prompted, select ethernet as your connection method. 9:41 AM Set Up a Device ALL DOORBELLS CAMERAS Cancel CHIMES Ring Video Doorbell Ring Video Doorbell Pro Ring Video Doorbell Elite Stick Up Cam Floodlight Cam

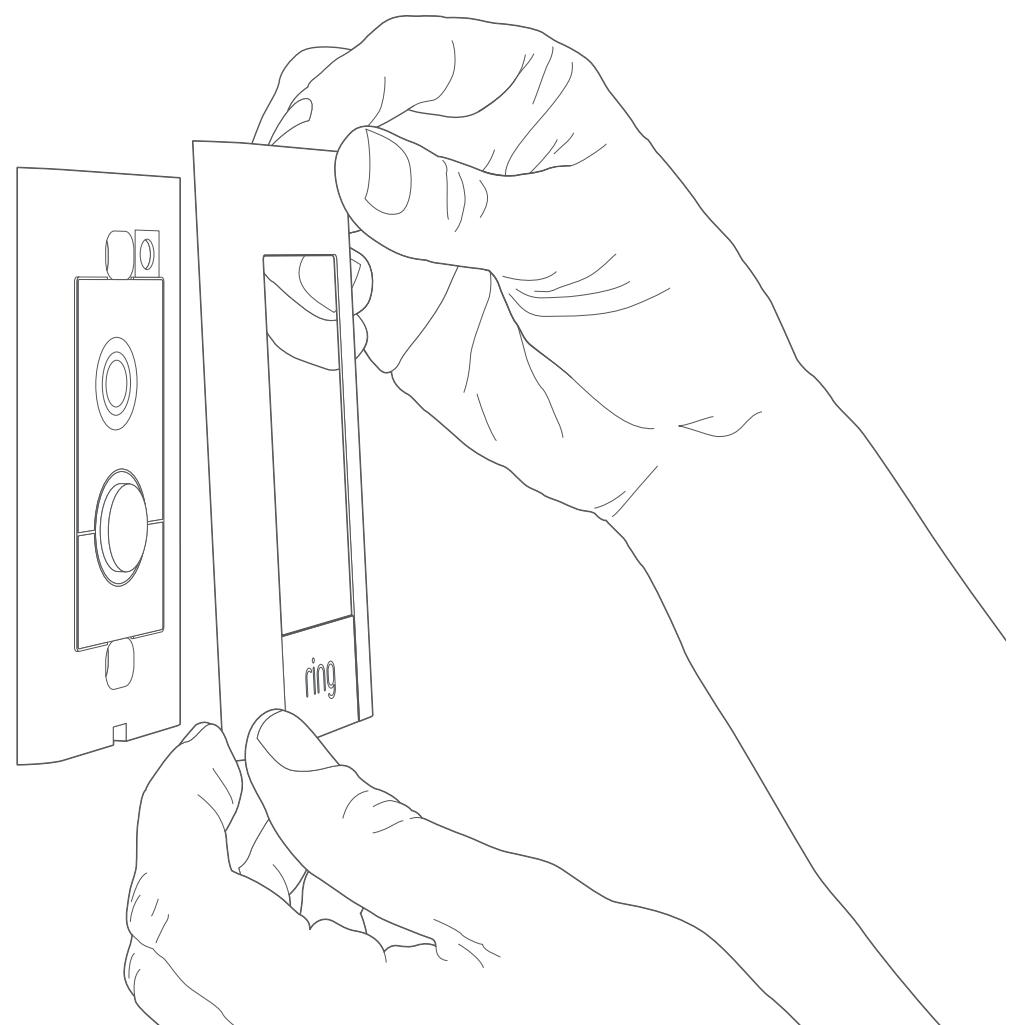

Secure the faceplate After completing the in-app setup, place one of the provided faceplates on your Ring Elite.

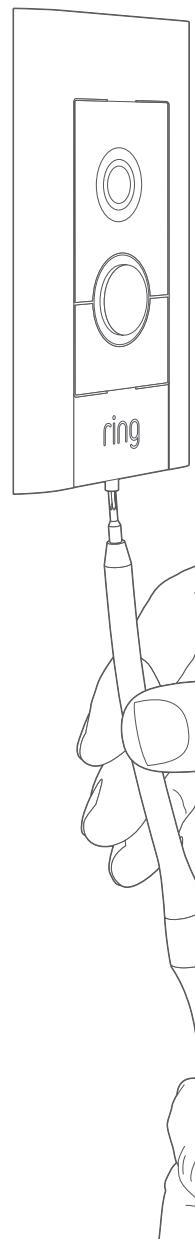

Then use one of the provided security screws and the flexible screwdriver bit to lock it into place.

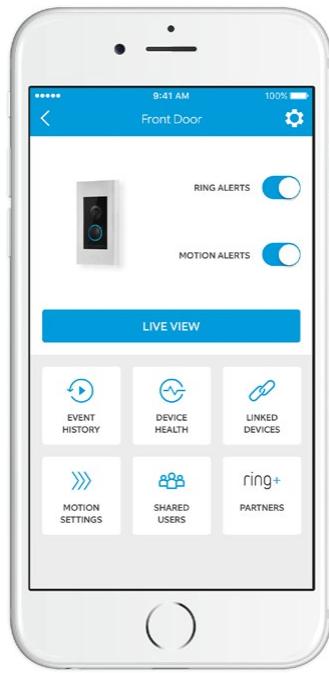

After setting up Ring Elite in the app, select it This will bring you to the Device Dashboard, where you can change settings and access various features. Ring Alerts are notifications you receive when someone presses the button on the front of your Ring Doorbell. Motion Alerts are notifications you receive when movement is detected within your Motion Zones. Switch these alerts on or off on this screen.

Shared Users Select Shared Users to let family or friends answer live events and view recordings (if recording is enabled). Motion Settings Select Motion Settings to enable and customize your motion detection settings. Device Health If you ever run into a problem with your Ring Doorbell, visit Device Health to diagnose the issue. Event History View a log of all the events captured by your Ring Doorbell in Event History.

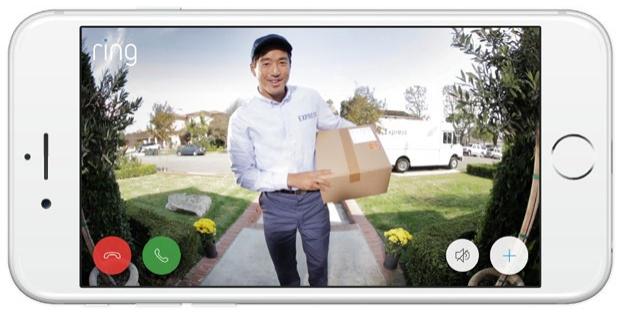

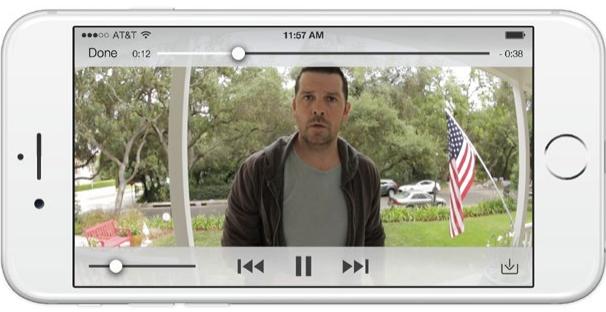

Answering your door Ring Video Recording When someone is at your door, you can access the following features: This optional feature saves recordings of every event your Ring Doorbell captures. what they have to say. You can access these events on any device running the Ring app or by logging into your account at: ring.com/activity Microphone – Mute or unmute your mic. Learn more at: ring.com/video-recording Two-way Talk – Speak to visitors and hear Speaker – Mute or unmute audio in the app. Ring Neighborhoods – Share suspicious events with your neighbors. Your new Ring Doorbell includes a free trial of Ring Recording for you to enjoy. Watch your email inbox for important announcements about this service. I’m having trouble completing the in-app setup Ethernet Setup If you selected Ethernet Setup during the inapp setup, see the following tips. Why did my ethernet setup fail? Check to see that all your wires are securely connected and try again. Check to see that your Ring Doorbell has power by making sure that the light on the front is glowing. Make sure that your Elite Power Kit is connected correctly - with the ethernet cable plugged into the proper In and Out ports, and the power adapter plugged in and connected to a power outlet. Wi-Fi Setup I still can’t set setup to complete. What now? When prompted to choose your connection type in the app during setup, select Wi-Fi, and see if that works. I’m having trouble with Wi-Fi setup When Wi-Fi setup fails, look at the front of your Ring Doorbell. The light indicates the issue. Left Flashing White indicates a possible issue with your internet connection. Unplug your modem/ router for 40 seconds, plug it back in and then repeat setup. Spinning White indicates that your Ring Doorbell is in setup mode. You’ll need to follow the instructions in the Ring app. When prompted, connect to the Wi-Fi network being broadcast by your Ring Doorbell. Nothing If the front light is not illuminated at all, check the connections to your Elite Power Kit, since it is likely that a cable is not connected. Why can’t I find the temporary Ring network on my phone? Sometimes your phone fails to pick up the temporary Ring network. If this happens, go to your phone settings, turn off your Wi-Fi connection, wait 30 seconds and turn it back on. If the Ring network still fails to appear, check the connections to your Elite Power Kit, and ensure your Ring Doorbell is in setup mode. Top Flashing White means your Wi-Fi password was entered incorrectly. Select your Wi-Fi network in your phone settings, select the option to forget it, then reconnect to it again to confirm that you’re using the correct password during setup. If none of the above helped… Right Flashing White means your Ring Doorbell may be too far from your router to get a decent signal. If you are unable to connect Ring Elite via ethernet, then you may need to get a Chime Pro to boost the WiFi signal to your Ring Doorbell. Turn off cellular data and bluetooth on your mobile device and try again. Perform a hard reset on your Ring Doorbell by holding down the setup button for 15 seconds, waiting 30 seconds and repeating the setup process. Try performing setup on a different mobile device. Learn more at: ring.com/chime-pro. © 2017 Bot Home Automation, Inc. RING, ALWAYS HOME, and CHIME are trademarks of Bot Home Automation, Inc. Last updated: 01/11/18
