Smart Lighting Pathlight - Lighting RING - Free user manual and instructions

Product Type	Outdoor Smart Path Light
Brand	Ring
Model	Smart Lighting Pathlight (C50)
Power Source	4 D-cell batteries (not included)
Connectivity	Ring Bridge (sold separately) via Ring app
App Compatibility	Ring app (iOS and Android)
Motion Detection	Yes, with adjustable sensor direction arrow
Installation	Stake into ground, twist to lock
Optimal Spacing	5-7 feet apart for best motion sensing
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Compliance	FCC Part 15, IC RSS-102
Warranty	Visit ring.com/warranty
Customer Support	ring.com/help or 1-800-656-1918 (US)
Compatible Devices	Ring Bridge and other Ring Smart Lights
Light Source	LED
Battery Type	4 D-cell alkaline, carbon zinc, or rechargeable NiMH
Patents	ring.com/patents
Included Accessories	Stake, battery cover

Frequently Asked Questions - Smart Lighting Pathlight RING

How do I set up my Ring Pathlight?

Download the Ring app, tap Set Up a Device, select Smart Lights, and follow the in-app instructions. You will also need a Ring Bridge connected to your network.

What batteries does the Pathlight require?

It requires 4 D-cell batteries (not included). Use only specified battery types; do not mix old and new batteries or different chemistries.

Do I need a Ring Bridge to use the Pathlight?

Yes, a Ring Bridge is required to connect the Pathlight to the Ring app and other compatible devices.

How far apart should I place multiple Pathlights?

For optimal motion sensing performance, space them 5-7 feet apart.

What is the operating temperature range?

The Pathlight operates between -4°F and 122°F (-20°C to 50°C).

How do I adjust the motion sensor direction?

Ensure the Sensor Direction arrow on the stake points toward the area you want to monitor for motion before installing the light.

Is the Ring Pathlight weatherproof?

While not explicitly rated, it is designed for outdoor use with an operating temperature range of -4°F to 122°F. Keep the battery cover securely attached to protect from moisture.

How do I contact customer support?

Visit ring.com/help or call 1-800-656-1918 (US), 1-855-300-7289 (Canada), or [phone] (worldwide).

What is covered under the warranty?

Warranty details are available at ring.com/warranty. Review the site for specific coverage information.

Can I control the Pathlight with Alexa?

Yes, Ring devices are compatible with Alexa through the Ring app. Enable the Ring skill in the Alexa app to use voice commands.

USER MANUAL Smart Lighting Pathlight RING

Black handheld lamp with hexagonal light bulb and handle, isolated on white background (no text or symbols visible)

1. Set up your Pathlight.

Download the Ring app.

The app walks you through setting up and managing your Ring Pathlight.

Search for "Ring" in one of these app stores, or visit: ring.com/app

Download on the

App Store

GET IT ON

Google play

Set up your Ring Bridge.

The Bridge connects your Ring Smart Lights to the Ring app and other compatible Ring devices.

To set up your Bridge, follow the instructions in the Ring app or the Bridge user manual.

White wireless router device with USB port and indicator lights (no visible text or symbols)

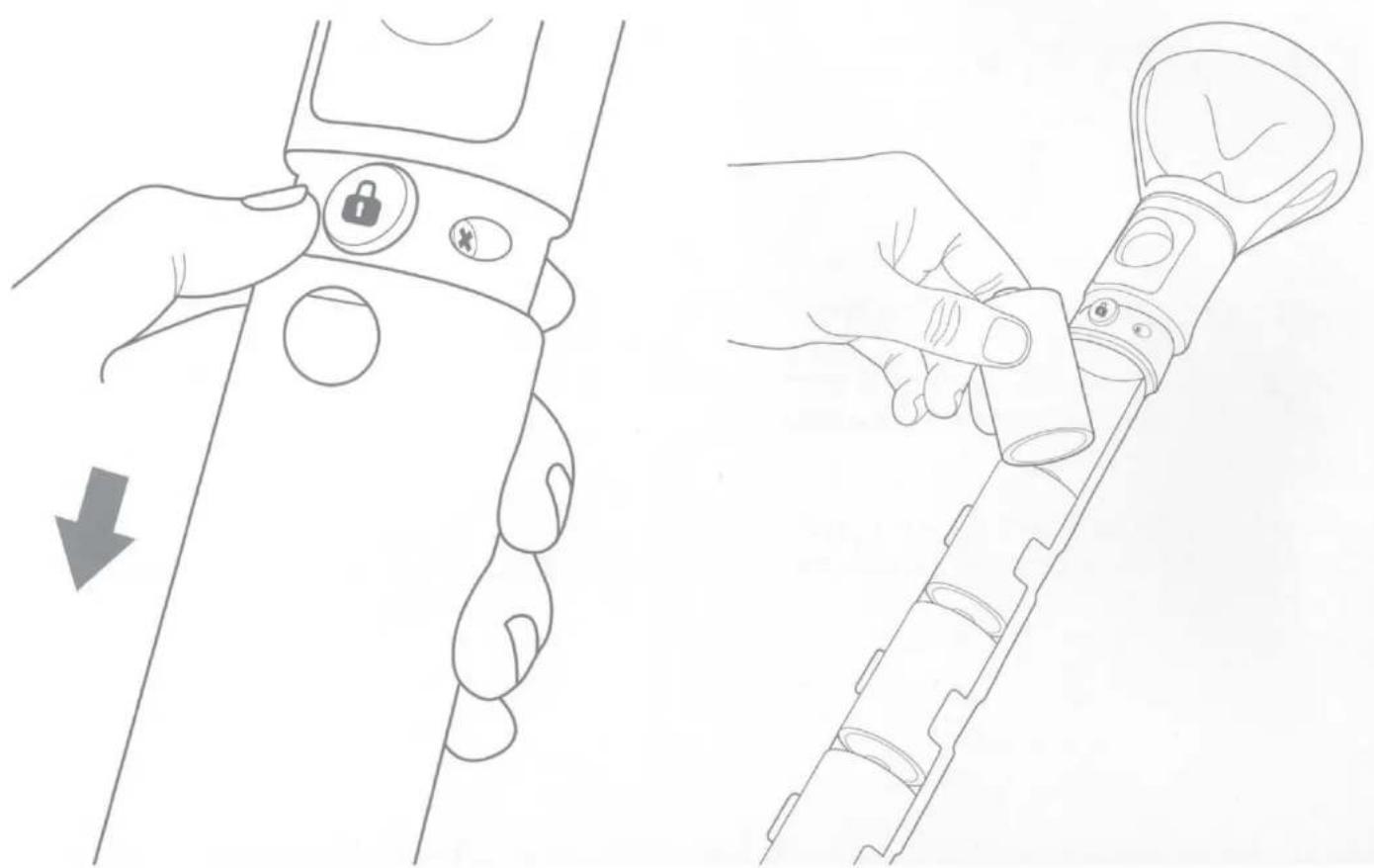

Insert the batteries.

Push in the lock button on the front of your Pathlight, and slide off the battery cover. Then insert four D Cell batteries (not included), flat end first, into the battery compartment.

Line drawings showing a hand adjusting a device with a lock and adjustment arrow (no text or symbols)

Set up your Pathlight in the Ring app.

In the app, tap Set Up a Device.

When prompted, select Smart Lights and follow the in-app instructions.

Once setup is complete, slide the battery cover back onto your Pathlight.

2. Install your Pathlight.

Place the stake.

Gently drive the stake into the ground at your chosen location.

Make sure the "Sensor Direction" arrow is pointing toward the area you want to monitor for motion.

If you're installing multiple Pathlights, space them 5-7 feet apart for the best motion sensing performance.

Attach your Pathlight.

Lower your Pathlight onto the stake and twist clockwise until it clicks to lock it into place.

For additional help, visit: ring.com/help

Or give us a call...

US 1 800 656 1918

Canada 1 855 300 7289

Worldwide [phone]

For a list of all our customer support numbers, visit: ring.com/callus

To review your warranty coverage, please visit www.ring.com/warranty.

Patents: www.ring.com/patents

© 2019 Ring LLC or its affiliates.

Ring, Alexa, Always Home, and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Last updated: 01/08/19

Models: Ring Motion Sensor (C20), Ring Spotlight (C30), Ring Steplight (C40), Ring Pathlight (C50), Ring Floodlight Battery (C3500), Ring Floodlight Wired (C5000), Ring Transformer (CT200)

Canada

CAN ICES-3 (B)/NMB-3(B)

Innovation, Science and Economic Development Canada (ISED) Compliance. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

Information Regarding Exposure to Radio Frequency Energy: This equipment complies with IC RSS-102 RF exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information on this device is on file with the FCC and can be found by inputting the device's FCC ID into the FCC ID Search form available at https://www.fcc.gov/oet/ea/fccid.

The output power of the radio technology used in the Products is below the radio frequency exposure limits set by the FCC. Nevertheless, it is advised to use the Products in such a manner that minimizes the potential for human contact during normal operation. This device should be installed and operated with at least 20 cm between the radiator and your body.

General

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

Electrical ratings:

Motion Sensor: 3 x AAA-cell batteries

Spotlight: 4 x D-cell batteries

Steplight: 3 x C-cell batteries

Pathlight: 4 x D-cell batteries

Floodlight Battery: 4 x D-cell batteries

Floodlight Wired: 110-240 VAC, 50-60 Hz

Transformer: 120 VAC, 60 Hz, 200 W maximum load

This device may require batteries for use. Only use the specified battery types. Never mix old and new batteries. Install batteries with correct polarity. Do not mix Alkaline, Standard Carbon Zinc, Rechargeable Nickel Cadmium or Nickel Metal Hydride batteries. Keep all of the batteries out of the reach of children. Do not open, disassemble, puncture, cut, bend, shred or heat the batteries. Remove all batteries if they are worn out or before storing your device for an extended period of time. Dispose of all batteries in accordance with applicable laws and regulations and do not dispose of batteries by throwing them into a fire. If any batteries begin to leak, take steps to prevent the fluid from coming into direct contact with skin or clothes as the fluid could be corrosive and may be toxic. Remove the batteries and clean the battery compartment in accordance with the battery manufacturer's recommendations.

Operating conditions:

Floodlight Battery: -4°F to 122°F (-20°C to 50°C)

Floodlight Wired: -4°F to 122°F (-20°C to 50°C)

Motion Sensor: -4°F to 122°F (-20°C to 50°C)

Pathlight: -4°F to 122°F (-20°C to 50°C)

Spotlight: -4°F to 122°F (-20°C to 50°C)

Steplight: -4°F to 122°F (-20°C to 50°C)

Transformer: -4°F to 122°F (-20°C to 50°C)

Small parts may pose choking hazards. Keep device and box contents out of reach of children.

To review your warranty coverage, please visit www.ring.com/warranty

Patents: www.ring.com/patents

© 2019 Amazon.com, Inc. or its affiliates.

RING, ALWAYS HOME, ALEXA, and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

1. Download the Ring app.

Open the app, tap Set Up a Device, then select Smart Lights.

2. Scan this code.

This identifies your Ring to make setup fast and easy.

31769
