USER MANUAL TI355209RW BOSCH

Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in.

Table of contents enI nst r uct i on manual

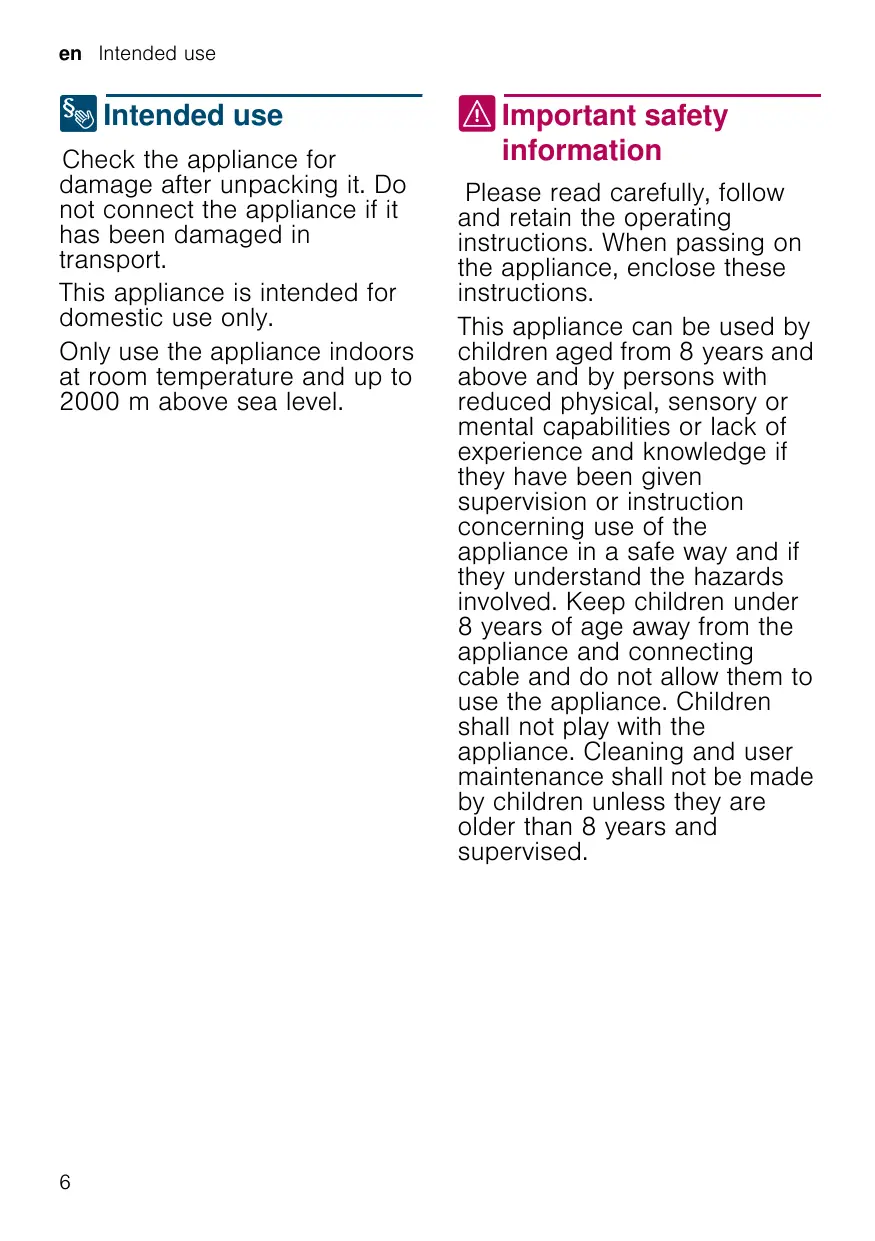

8 Intended use Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. This appliance is intended for domestic use only. Only use the appliance indoors at room temperature and up to 2000 m above sea level.

( Important safety information

Please read carefully, follow and retain the operating instructions. When passing on the appliance, enclose these instructions. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. I mpor t ant saf et y i nf or mat i on

Important safety information en

Danger of electric shock! ■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic electricity supply has been correctly installed. Risk of eleConnect ctric shock! ■ and operate the appliance only in accordance with the specifications on the rating plate. If the power cord of this appliance is damaged, it must be replaced by customer service. Risk of eleDo ctric shock! not use if the power ■ cable or appliance is damaged. If a fault occurs, pull the mains plug or switch off the mains voltage immediately. Risk of eleTo ctric shock!prevent hazards, the ■ appliance may be repaired by our customer service only. Risk of eleNever ctric shock! ■ immerse the appliance or mains cord in water. Risk of eleThe ctric shock! plug and socket ■ connection of the appliance must not come into contact with liquids. Risk of elePlease ctric shock! ■ note the special information on cleaning in the instructions.

Hazard due to magnetism! The appliance contains permanent magnets which may affect electronic implants, e.g. heart pacemakers or insulin pumps. Persons with electronic implants should keep a minimum distance of 10 cm from the appliance and the water tank when removed.

Risk of suffocation! Do not let children play with packaging material. Store small parts safely as they can be easily swallowed.

Risk of burns! ■ The milk system becomes very hot. After use, allow it to cool down first before touching it. Risk of burns! ■ After use, surfaces such as the cup warmer may still be hot for a certain period. Risk of burns! ■ Freshly prepared beverages are very hot.Leave to cool a little if necessary.

en Environmental protection

: Warning Risk of injury! ■ Improper use of this appliance may result in injury. Risk of injDo ury! ■ not reach into the grinding unit. : Warning

Fire hazard! ■ The appliance will become hot. Fi■re hazard! Never operate the appliance in a cupboard.

7 Environmental protection

Envi r onment al pr ot ect i on

If the appliance is not being used, switch it off. Set the interval for automatic switch-off to the smallest value. If possible, do not interrupt coffee or milk froth dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly. Descale the appliance regularly to avoid a build-up of limescale. Limescale residue results in higher energy consumption.

Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your dealer about current disposal routes.

Getting to know your appliance en

* Getting to know your appliance

This section provides an overview of the scope of delivery, the assembly and the components of your appliance. It also introduces you to the different controls.

Get i ng t o know your ap l i ance

Note: Depending on the appliance model, individual details and colours may differ. How to use these instructions: The illustrations are identified using numbers that are referred to in the operating instructions. Example: ~ Fig. !

Included in delivery ~ Fig. ! # Fully automatic coffee machine + Water hardness testing strip 3 Instruction manual ; Milk frother

Assembly and components ~ Fig. " ( On / off button (stand-by mode) 0 Display 8 Control panel @ Handle of milk frother H Outlet system for coffee, height adjustable P Milk frother (holder, frother, cover), height adjustable X Drip tray (coffee grounds container, drip grate, drip plate, float) ` Door of brewing chamber h Rating plate )" Brewing unit )* Aroma lid )2 Bean container ): Rotary selector for setting grinding level )B Cover for water tank )J Water tank )R* Cup warmer * Depending on the appliance model

en Getting to know your appliance

Controls By touching the fields, you can e.g. select and start making a drink or adjust the coffee strength. Button

Meaning Switch the appliance on and off The appliance rinses automatically when it is switched on and off. The appliance is not rinsed if: ■ it is still warm when switched on, or ■ coffee was not dispensed before the appliance was switched off. The appliance is ready for use when the LEDs of the buttons for selecting drinks light up in the control panel. The appliance has automatic switch-off. ~ "Selecting automatic switch-off" on page 18

Coffee strength Adjusting the coffee strength ~ "Adjusting beverage settings" on page 15

Start the service programme Flashes when the service programme needs to be performed.~ "Calc’nClean service programme" on page 23

Make 2 Espresso or 2 Caffe crema at the same time. Position the cups next to one another under the coffee dispenser.~ "Operating the appliance" on page 13 The fully automatic coffee machine has a cup warmer that can be switched on or off manually with the button. When the cup warmer is on, the button lights up.

: Warning Risk of burns! The cup warmer becomes very hot! Note: For optimal warming of cups, place them with the bottom on the cup warmer. * Depending on the appliance model --------

Accessories en Display

Lights up when the water tank needs to be topped up with water, the water tank is not inserted, or the water filter needs to be changed. A message appears on the display. Lights up when trays need to be emptied. Flashes when door of brewing chamber is open.

Ready to use, selection possible

Waiting for operation, e.g. with calc’nClean

Display The display 0 shows the selected drinks, settings and setting options, as well as messages about the appliance’s operating status. The display also prompts the user to perform certain actions. The individual steps for performing the action are shown in the display. If the action required has been carried out, e.g. "Fill water tank", the corresponding message will disappear.

_ Accessories The following accessories are available from retailers or from customer service:

The contact data for customer service in all countries can be found at the back of these instructions.

en Before using for the first time

K Before using for the first time

In this section, you will learn how to commission your appliance. Bef or e usi ng f or t he f i r st t i me

Note: Only use the appliance in frost-free areas. If the appliance was transported or stored at temperatures below 0 °C, you must wait for at least 3 hours before using it.

Installing and connecting the appliance 1. Remove any protective plastic film. 2. Place the appliance on a level,

water-resistant surface which can bear the weight. 3. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed. Note: After plugging in, always wait (approx. 5 seconds).

Commissioning the appliance Attaching milk frother ~ Fig. # 1. Remove milk frother parts from the

bag. 2. Assemble milk frother. 3. Attach the milk frother on the front of the appliance. Filling the bean container This appliance can be used to make coffee drinks from coffee beans. 1. Open the lid )* of the bean

2. Add coffee beans. 3. Close the lid again.

Notes ■ Coffee beans that have been glazed, caramelised or treated with other sugary additives will block the brewing unit.Only use pure, roasted bean mixes that are suitable for use in espresso or fully automatic coffee machines. ■ The coffee beans are freshly ground for each brewing operation. ■ Store coffee beans in a sealed container in a cool place to ensure optimum quality. ■ Coffee beans can be stored in the bean container for a number of days without losing their aroma. Filling the water tank Important: Fill the water tank with fresh, cold, still water on a daily basis. Prior to operation, check whether the water tank has been sufficiently filled. 1. Carefully remove the cover of the

2. Use the handle to remove the water

tank and then rinse out.

3. Fill the water tank with water up to

4. Put the water tank back in the holder

again, keeping it straight, and fit the cover of the water tank.

Setting the language 1. Switch on the appliance with the k

button. The preset language appears in the display. 2. Touch the “V” button cappuccino repeatedly until the required language appears on the display. 3. Touch the “ok” button latte macchiato to confirm the setting. The appliance rinses and is ready to use when "Choose beverage" appears in the display.

Operating the appliance en Notes Language selection only appears automatically when the appliance is switched on for the first time. ■ You can change the language at any time. ~ "Settings" on page 18 ■

General information The factory settings of the fully automatic coffee machine are programmed for optimal performance. ■ ■

The appliance switches off automatically after a specific time. When switched off, the appliance will emit steam into the tray for cleaning purposes. Whenever a button is pressed, a signal sounds. It can be switched off.~ "Settings" on page 18 When the appliance is used for the first time, after running a service programme or has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed. After commissioning the appliance, you will only achieve a suitably thick and stable "crema" after the first few cups have been dispensed. If the appliance is in use for a long period of time, water droplets will form on the ventilation slots. This is normal. Escaping steam is not a fault but due to the design of the machine.

1 Operating the appliance

In this section, you will learn how to make beverages with coffee and milk. It contains information about settings, water filters and adjustment of the grinding level, in addition to frost protection. Oper at i ng t he ap l i ance

Note: Freshly prepared beverages may be very hot.

Preparing coffee using freshly ground beans You can choose between Espresso and Caffe crema. ~ "Preparing drinks with milk" on page 14 The appliance is switched on. The water tank and bean container have been filled. 1. Place a cup under the outlet system. 2. Touch % repeatedly to select the required coffee strength. 3. Touch the espresso or caffe crema button. The coffee is brewed and then dispensed into the cup. Note: To stop dispensing the drink before the end, touch espresso or caffe crema again.

Before using your new appliance, you should check and select the water hardness.~ "Settings" on page 18

en Operating the appliance

Preparing drinks with milk This appliance has a milk frother. You can make drinks of coffee with milk or froth up milk. Tip: You can also use plant-based alternatives to milk, e.g. soya milk. Notes ■ The quality of the milk froth depends on the type of milk or the plant-based alternative used. ■ Dried milk residues are difficult to remove so always perform cleaning.~ Fig. &III ~ "Daily care and cleaning" on page 20

: Warning Risk of burns! The milk frother gets very hot. Hold only by the handle. After use, let it cool down first before touching it. Coffee drinks with milk You can choose between cappuccino and latte macchiato. When doing so, please check the position of the coffee dispenser and milk frother. Cappuccino

The appliance is switched on. The water tank and bean container have been filled. The milk frother is installed. 1. Fill a large cup or a large glass with approx. 100 ml milk for cappuccino and approx. 150 ml milk for latte macchiato. 2. Place a cup or a glass under the outlet system. 3. Push the coffee dispenser and milk frother right down. 4. Touch % repeatedly to select the required coffee strength. 5. Touch the cappuccino or latte macchiato button. The milk is first frothed up in the cup or glass. The coffee is then brewed and dispensed into the cup or glass. Note: To stop current dispensing of the drink before the end, touch cappuccino or latte macchiato again. Frothing up milk The appliance is switched on. The water tank has been filled. The milk frother is installed. 1. Fill a large cup or a large glass with approx. 100 ml milk. 2. Place a cup or a glass under the outlet system. 3. Push the coffee dispenser and milk frother right down. 4. Touch the milk button. The milk is frothed up. Note: To stop the process before the end, touch milkagain.

Operating the appliance en

Adjusting beverage settings Preparing two cups at once Before making a drink, you can select dispensing of two cups at once. Touching # switches the function on or off. "Double cup on" or "Double cup off" lights up in the display for 5 seconds. The Double cup function is only possible for espresso and caffe crema; the buttons light up. Dispensing other drinks is not possible while the Double cup function is switched on.

Adj ust i ng bever age set i ngs

Notes ■ The drinks are prepared in two steps (two grinding operations). Please wait until the process is fully completed. ■ If no button is pressed within 90 seconds, the appliance automatically switches to the setting "Double cup off". Coffee strength Before making a drink, you can adjust the coffee strength: To do so, touch % to select the strength you require. very mild mild regular

Filling level You can adjust the filling level of your drinks. Press and hold espresso or caffe crema for 3 seconds. Dispensing takes place, with the button selected flashing. Progress is shown on the display:

Once the required filling level is reached, touch the button selected to stop. The new filling level is only apparent after the next drink is dispensed. Note: The filling level can be selected either for Espresso (25 - 60 ml) or Caffe crema (80 - 200 ml).A minimum quantity is always brewed: Espresso approx. 25 ml and Caffe crema approx. 80 ml. Frothing time You can adjust the frothing time of your drinks. Press and hold cappuccino, latte macchiato or milk for 3 seconds. The milk is frothed up, and the button selected flashes. Progress is shown on the display:

strong very strong only with TI305: aromaIntense

Once the required frothing time is reached, touch the button selected to stop.

Note: The coffee strength selected is then active for all drinks made with coffee.

en Operating the appliance Notes ■ There is a limited time period for the frothing time setting. A minimum to a maximum time can be selected depending on the drink. ■ Setting the frothing time has no impact on the amount of coffee. Setting the grinding level This appliance features an adjustable grinder. This enables the grinding level of the coffee to be individually changed.

: Warning Risk of injury! Do not reach into the grinding unit. Caution! The appliance may be damaged! Only adjust the grinding level when the grinder is running! When the grinder is in operation, use the rotary selector ): to set the grinding level. Finer grinding level: turn anticlockwise. (Fig. a) Coarser grinding level: turn clockwise. (Fig. b)

D E Notes ■ The new setting will not become apparent until after the second cup of coffee. ■ Set a finer grinding level with dark-roasted coffee beans and a coarser grinding level with lighter coffee beans.

Operating the appliance en

~ Fig. ' A water filter lessens limescale deposits and reduces impurities in the water. The appliance also does not need to be descaled so often. Water filters are available from retailers or from customer service. If a water filter is inserted, the appliance will show when this needs to be changed. The display shows the relevant prompt.The ) symbol will light up.

Inserting or replacing a water filter A new water filter must be rinsed before it can be used. The appliance is switched on. The water tank has been filled. 1. Simultaneously hold down % and calc’nClean for at least 3 seconds. 2. Touch the “V” button cappuccino repeatedly until "W. hardness" appears. 3. Confirm by pressing the “ok” button latte macchiato. 4. Press the “V” button cappuccino repeatedly until "Water filter" appears. 5. Confirm by pressing the “ok” button latte macchiato. The display shows "Filter act.". 6. Immerse the water filter (opening facing up) in a container filled with water until no more air bubbles rise to the surface. ~ Fig. ' 7. Then press the water filter firmly into the empty water tank. 8. Fill the water tank with water up to the "max" marking. 9. Place a container with a capacity of 1.0 litre under the outlet. 10. Touch the “ok” button latte macchiato to save the setting and start rinsing.

12. Then empty the container. The

appliance is ready for use again.

Removing the water filter If the water filter has been removed and no new one inserted, please select the appropriate water hardness. ~ "Setting the water hardness" on page 19

Frost protection To prevent frost damage during transportation and storage, completely empty the appliance beforehand. Info: The appliance must be ready for use and the water tank filled. 1. Place a large container under the

outlet of the milk frother and push the frother down. 2. Press and hold the milk button for at least 5 seconds. The LED in the button flashes, and the appliance now heats up. 3. As soon as steam escapes from the milk frother, remove the water tank. 4. Allow the appliance to cool down. Wait until ) "Water tank empty" appears. 5. Use the k button to switch the appliance off. 6. Empty the water tank and the drip tray and thoroughly clean the appliance. The appliance can now be transported or stored. Note: The brewing unit is now secured and cannot be removed.

Switching the audible signal on/off

This appliance has different factory settings. You can customise the settings on the appliance.

Whenever a button is pressed, an audible signal sounds. This can be switched on or off.

Note: If no button is pressed within 90 seconds, the appliance switches to "Choose beverage" without saving. The previous setting remains unchanged. You can select the following settings:

1. Simultaneously hold down % 2. 3.

Automatic switch-off

The appliance switches off automatically at a specific time after the last button was pressed. This time can be selected, with settings from 15 minutes to 4 hours possible here. Sel ect i ng aut omat i c swi t ch- of

and calc’nClean for at least 3 seconds. Touch the “V” button cappuccino repeatedly until "Auto Stand-by" appears. Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “V” button cappuccino and select the time. The following settings are possible: – after 15 min. – after 30 min. (factory setting) – after 1 hour – after 2 hours – after 4 hours Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “¾” button caffe crema to exit the menu.

and calc’nClean for at least 3 seconds. Touch the “V” button cappuccino repeatedly until "Sound" appears. Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “V” button cappuccino and select "Sound on" or "Sound off". Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “¾” button caffe crema to exit the menu.

and calc’nClean for at least 3 seconds. Touch the “V” button cappuccino repeatedly until "Language" appears. Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “V” button cappuccino and select the required language. Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “¾” button caffe crema to exit the menu.

Setting the water hardness It is important to set the water hardness correctly so that the appliance indicates in good time when the descaling programme should be run. The preset water hardness is level 4. You can check the water hardness using the enclosed test strip or by asking your local water supplier. 1. Briefly immerse the enclosed test

strip in fresh tap water, leave it to drip and read off the result after 1 minute. The number of fields on the test strip that change colour indicate the water hardness level. Simultaneously hold down % and calc’nClean for at least 3 seconds. Touch the “V” button cappuccino repeatedly until "W. hardness" appears. Touch the “ok” button latte macchiato and confirm. Touch the “V” button cappuccino and select the water hardness. The following settings are possible: – W. hardness 1 – W. hardness 2 – W. hardness 3 – W. hardness 4 (factory setting) – Water filter (when used) – H2O-softener (setting if water softener available) Touch the “ok” button latte macchiato to save the setting. Touch the “¾” button caffe crema to exit the menu.

The table shows the allocation of the levels to the different degrees of water hardness: Setting Degree of water hardness German (°dH)

Subsequent changes to the water hardness can be made at any time. Note: When using the water filter (see section "Accessories"), proceed as follows ~ "Water filter" on page 17.

Factory reset If you set the appliance back to the factory settings, you will lose your own settings. 1. Simultaneously hold down % 2. 3.

and calc’nClean for at least 3 seconds. Touch the “V” button cappuccino repeatedly until "Factory reset" appears. Confirm by pressing the “ok” button latte macchiato. The factory settings are activated, the language selection appears. Touch the “V” button cappuccino repeatedly until the required language appears on the display. Touch the “ok” button latte macchiato to confirm the setting. The appliance rinses and is ready to use when "Choose beverage" appears on the display.

en Daily care and cleaning

D Daily care and cleaning

With good care and cleaning, your appliance will remain fully functioning for a long time to come. In this section, you will learn how to correctly clean and care for your appliance.

Caution! Not all of the appliance's components can be cleaned in the dishwasher. ~ Fig. % - '

Dai l y car e and cl eani ng

Not dishwasher-safe: Water tank Cover for water tank Aroma lid

Risk of electric shock! Before cleaning the appliance, pull out the mains plug. Never immerse the appliance in water. Do not use a steam cleaner.

Please observe the following information to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use: ■ ■ ■

Harsh or abrasive cleaning agents. Any cleaning agents containing alcohol or spirits. Hard scouring pads or sponges.

Notes ■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel. Wash new sponge cloths thoroughly before use. ■ Always remove any limescale, residues of coffee or milk, cleaning or descaling solution immediately.This residue may cause corrosion. 20

Coffee grounds container max.

60°C Float Milk frother Cover for milk frother

Cleaning the appliance 1. Wipe down the outside of the

appliance with a soft, damp cloth.

2. Clean the control panel using a

3. Wipe down the coffee dispenser if

required after dispensing each beverage.

Notes If the appliance is cold when switched on or if it is switched off after dispensing coffee, it rinses automatically.The system is therefore self-cleaning. ■ If the appliance has not been used for a long period of time (e.g. while you are on holiday), clean the entire appliance thoroughly, including the milk frother, trays and brewing unit. ■

Daily care and cleaning en

Cleaning the drip tray and coffee grounds container ~ Fig. % Note: The drip tray and coffee grounds container should be emptied and cleaned every day in order to prevent deposits.With frequent use also empty from time to time, as soon as the float is clearly visible, or the relevant message appears in the display. 1. Open the door. 2. Pull the drip tray with the coffee

grounds container forwards and out.

3. Remove the drip plate with grate. 4. Empty and clean the drip tray and

coffee grounds container.

5. Wipe out the inside of the appliance

(area of drip tray).

Cleaning the milk system

Clean the milk system after each use to remove residues and ensure the function. Cl eani ng t he mi l k syst em

Risk of burns! The milk frother gets very hot. Hold only by the handle. After use, let it cool down first before touching it.

1. Fill a glass half-full with water and

place under the outlet system.

2. Push the milk frother right down. 3. Touch the milk button to clean the

milk system. 4. Push the milk frother right up and allow it to cool down. 5. Dismantle the milk frother into its individual parts and clean thoroughly. ~ Fig. & 6. Dry the individual parts, reassemble and fit back onto the appliance.

Notes ■ To stop the process before the end, touch milk again. ■ All parts of the milk system should be cleaned in the dishwasher. Detergent residues in the milk system must be thoroughly removed following the rinsing process.

Cleaning the brewing unit ~ Fig. $, ~ Fig. % In addition to automatic cleaning, the brewing unit should be removed regularly for cleaning. Caution! Clean the brewing unit without detergent or products containing vinegar or acid and do not place in the dishwasher. Remove the brewing unit: 1. Switch off the appliance. 2. Open the door to the brewing chamber. 3. Remove the coffee grounds container. 4. Push the red lever up, grasp the brewing unit by the handle and pull forwards carefully. 5. Rinse the brewing unit thoroughly under warm, running water. 6. Clean the interior of the appliance thoroughly with a damp cloth, removing any coffee residues. 7. Allow the brewing unit and the interior of the appliance to dry. Insert the brewing unit: 1. Hold the brewing unit only by the handle. 2. Push the red lever up, position the brewing unit underneath and slide back as far as it will go. The lever must snap into place. 3. Insert the coffee grounds container again and close the door. Important: If the brewing unit has not been inserted, or the brewing unit or drip tray not inserted correctly, it will not be possible to close the door. 21

en Service programme

. Service programme Every so often – with the exact frequency depending on water hardness and usage – the calc’nClean button will light up. The display shows "Calc’nClean required". The appliance should be immediately cleaned and descaled using the programme.

Ser vi ce pr ogr ame

Notes ■ Important: If the appliance is not cleaned and descaled in good time, it may be damaged. Important: If the appliance is not descaled and cleaned in time, it will be locked.The display shows "Device locked". If the appliance is locked, it can only be operated again once the service programme has been carried out. ■ Caution! For each of the service programmes, use Calc’nClean descaling and cleaning agents as described in the instructions and observe the (relevant) safety information. ■ Do not drink the liquids. ■ Never use citric acid, vinegar or any vinegar-based agents to descale the appliance. ■ For cleaning and descaling, only use the tablets intended for such purposes.They have been specially developed for this appliance, and new stocks can be ordered through customer service. ~ "Accessories" on page 11 ■ Do not use descaling agent with phosphoric acid. ■ Never insert descaling tablets or other products into the brewing unit. ■ Never interrupt the service programme. ■ Prior to starting a service programme, remove, clean and re-insert the brewing unit. Clean the milk frother. 22

At the end of a service programme, wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. This residue may cause corrosion. New sponge cloths may contain salts. Salts can cause rust film on stainless steel, so cloths must always be washed out thoroughly before use. Using a water filter increases the intervals until a service programme needs to be performed. If the service programme is interrupted, e.g. by a power failure, ', calc’nClean and ) will light up on the display.Proceed as described in the section calc'nClean from item 10.

Service programme en

Starting Calc’nClean Cal c’ nCl ean ser vi ce pr ogr ame

Duration: approx. 40 minutes

1. Press and hold the calc’nClean

button for approx. 5 seconds. ( symbol lights up. 2. Open the door, remove the drip tray and coffee grounds container and empty. 3. Remove and clean the brewing unit. 4. Place a Siemens cleaning tablet in the brewing unit and re-insert the unit.

11. Close the door and place a

container under the outlet system. ) symbol lights up. 12. Clean the water tank and replace the water filter (if removed). ~ Fig. ' 13. Fill with fresh, still water up to the "max" mark. Place the container under the outlet system again. 14. calc’nClean flashes, touch calc’nClean. The programme starts and then cleans and rinses the appliance. calc’nClean pulses. ( symbol lights up. 15. Empty, clean and re-insert the drip tray and coffee grounds container. The programme has finished. The appliance is ready for use again.

5. Re-insert the drip tray and coffee

grounds container and close the door. ) symbol lights up. 6. Remove the water filter (if there is one). 7. Pour 0.5 litres of lukewarm water into the empty water tank up to the mark and dissolve a Siemens descaling tablet in it. 8. Re-insert the water tank and place a large container (approx. 1 litre) under the outlet system. 9. calc’nClean flashes, touch calc’nClean. The programme starts, cleans and descales the appliance. calc’nClean pulses. Duration approx. 20 minutes. ( symbol lights up. 10. Empty the container, open the door, empty the drip tray and re-insert.

3 Trouble shooting Faults often have simple explanations. Before calling the customer service, please refer to the fault table and attempt to correct the fault yourself. Please read through the safety information at the beginning of these instructions.

Tr oubl e sho t i ng

Fault table Problem The appliance no longer responds.

Fault in the appliance.

Pull out the mains plug, wait 10 seconds, plug back in.

Coffee or milk froth quality var- Build-up of limescale in the ies considerably. appliance.

Descale the appliance in accordance with the instructions.

The individually selected The grinding level is too fine. per-cup quantity is not reached. Heavy build-up of limescale in Coffee dispensing slows to a the appliance. trickle or stops completely Air in the water filter.

Set a coarser grinding level. Descale the appliance as described in the instructions. Immerse the water filter in water until no more air bubbles escape; insert the filter again.

The appliance is soiled.

Clean the brewing unit or run the "Calc'nClean" service programme.

Residues of descaling agent are blocking the water tank.

Clean the water tank thoroughly.

The coffee strength is set too high.

Reduce the coffee strength.

No milk froth is produced. / The The quality of the milk froth quality of the milk froth varies. depends on the type of milk or the plant-based alternative used.

Optimise the result by selecting your milk or plant-based alternative as appropriate.

The milk frother is soiled. Clean the milk frother in the dishThe milk frother is not inserted washer. in the milk. Use more milk, check whether the milk frother is inserted in the milk. Slide the outlet system right down. Heavy build-up of limescale in the appliance.

Descale the appliance as described in the instructions.

Trouble shooting en No coffee dispensed, only water.

An empty bean container is not Add coffee beans detected by the appliance. Note: The appliance will adjust to the coffee beans on the next dispensing process. The coffee shaft on the brewing Clean the brewing unit. ~ "Cleaning unit is blocked. the brewing unit" on page 21 Beans are not falling into the grinding unit (beans too oily).

Gently tap the bean container.Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.

The brewing unit is not inserted Slide the brewing unit right back. properly. Coffee has no “crema”.

Unsuitable type of coffee.

Use a type of coffee with a higher proportion of robusta beans.

The beans are no longer freshly Use fresh beans. roasted.

The coffee is too "acidic". The coffee is too "bitter". The coffee tastes "burnt".

The grinding level is not suitable for the coffee beans.

Set a finer grinding level.

Grinding level set too coarse.

Set a finer grinding level.

Unsuitable type of coffee.

Coffee is ground too fine.

Set a coarser grinding level.

Unsuitable type of coffee.

Change the type of coffee.

Coffee is ground too fine.

Set a coarser grinding level.

Unsuitable type of coffee.

Change the type of coffee.

Milk/blended milk drinks too Too little milk in glass or cup. hot. Milk froth too thin, loud sucking noise.

Use more milk or adjust frothing time.

Milk/blended milk drinks too cold.

Too much milk in glass or cup.

Use less milk or adjust frothing time.

Milk in the glass or cup is too cold.

The appliance is not dispensing Air in the water filter. drinks.

Immerse the water filter in water until no more air bubbles escape; insert the filter again. Firmly press the water filter straight down into the tank connection.

Water dripped onto the inner Drip tray removed too early. floor of the appliance when the drip tray was removed.

Wait a few seconds after the last drink was dispensed before removing the drip tray.

en Trouble shooting The brewing unit cannot be removed.

The brewing unit is not in the Switch the appliance on again. removal position (e.g. frost protection activated).

The appliance cannot be oper- The appliance is in demo mode. Hold k button for at least 5 seconds ated, display messages changto deactivate demo mode. Remove the ing. water tank, fill with fresh water and re-insert. The grinder will not start.

The appliance is too hot.

Display shows "Close door" despite door being closed.

The door is not closed properly. Press the door firmly closed.

Display shows: "Empty trays" despite empty drip tray - what to do?

Emptying is not detected when When the appliance is switched on, the appliance is off. remove and re-insert the drip tray.

Display shows "Fill water tank" despite full water tank.

Water tank wrongly inserted.

Insert water tank correctly.

Carbonated water in the water tank.

Fill the water tank with fresh tap water.

The appliance is too hot.

Disconnect the appliance from the mains and leave to cool down for 1 hour. Disconnect the appliance from the mains and leave to cool down for 1 hour.

Float is stuck in the water tank. Remove the water tank and clean thoroughly. New water filter not rinsed according to the instructions.

Rinse the water filter according to the instructions and then switch on.

Air in the water filter.

Immerse the water filter (opening up) in water until no more air bubbles escape; insert the filter again. ~ "Inserting or replacing a water filter" on page 17

Water filter is old.

Insert a new water filter.

Limescale deposits in the water Clean the water tank, add 0.5 l water tank can block up the system. and allow a Siemens descaling tablet to dissolve completely. Switch the appliance off and on again so the descaling solution is pumped into the system. Wait 3 minutes. Repeat the process.Check whether the appliance starts. Clean the water tank thoroughly and start calc'nClean. ~ "Calc’nClean service programme" on page 23

Trouble shooting en Display shows "Fill water tank" and LEDs flashing.

Water tank is missing or not inserted correctly.

Insert water tank correctly.

The pipe system in the appliance is dry.

Fill the water tank with fresh tap water. Do not fill with carbonated water.

Air in the water filter.

Immerse the water filter (opening up) in water until no more air bubbles escape; insert the filter again.

Display shows "Clean brewing unit".

Brewing unit is soiled.

Clean the brewing unit.

Display shows "Incorrect voltage".

Incorrect voltage in building.

Display shows "Appliance too cold".

The ambient temperature is too Operate the appliance at temperatures cold. > 5 °C.

Display shows "Restart appliance", LEDs flashing.

Brewing unit very heavily soiled Switch the appliance off and back on or brewing unit cannot be again. Clean brewing unit if possible. removed.

Display shows "Restart appliance"; LED does not light up.

Fault in the appliance.

The brewing unit’s mechanism Clean the brewing unit. ~ "Daily care is stiff. and cleaning" on page 20 Only operate the appliance at 220V-240V.

Display shows "Clean/fill water The descaling process has tank", calc'nClean and ) been interrupted. light up.

Proceed as described in the section calc'nClean from item 10.

Display "calc'nClean" keeps on The water is too hard. appearing.

Insert water filter and activate according to the instructions. ~ "Water filter" on page 17

If you are unable to solve the problem, always call the hotline. You will find the telephone numbers at the back of these instructions --------

Technical data Electrical connection (voltage – frequency)

220–240 V ∼, 50/60 Hz

1300 W Maximum static pump pressure

Maximum capacity of water tank (without filter)

Maximum capacity of bean container

Length of power cable

Dimensions (H x W x D)

Type of grinding unit

E number and FD number

When calling us, please give the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate h. (~ Fig. ") To save time, you can make a note of the data for your appliance and the telephone number for customer service here, should this be required.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Changes reserved.

Customer service O The contact data for customer service in all countries can be found at the back of these instructions.

Dimensions (H x L x P)

nl Service programme

Service programme nl

.112 .112 .113 .115 .115

.165 .165 .165 .166 .166

de Störungen, was tun?

siemens-home.bsh-group.com
