Product type	Oil-free electric deep fryer (air fryer)
Basket capacity	Up to 800 g of fries
Material	Tank and basket with non-stick coating
Temperature setting	Adjustable thermostat (80-200°C according to cooking chart)
Timer	Countdown with audible signal (0-30 min approx)
Indicator lights	Power indicator and heating indicator
Cooking type	Hot air cooking, possibility to add a spoonful of oil
Maintenance and cleaning	Basket and tank dishwasher safe; heating element cleaned with a brush; exterior with a damp cloth
Safety	Do not immerse the appliance; do not use without basket; hot surface; do not block openings
Included accessories	Basket with handle, tank, release button
Warranty	2 years from date of purchase

Frequently Asked Questions - AR1K30 - 8004032110517 ARDES

How to use the deep fryer for the first time?

Before first use, clean the basket and tank with hot water and dish soap, then dry them. Make sure the tank is properly inserted, set the temperature and timer as indicated in the cooking chart. Preheat the appliance for 3 minutes before adding food.

Can I use oil in this deep fryer?

Yes, but only in a limited way: add half a spoonful of olive oil in a bowl with the food, mix and remove the excess before placing them in the basket. Never pour oil directly into the tank or basket.

Why are my fries not cooked?

This may be due to too much food in the basket or too low temperature. Reduce the quantity and increase the temperature. Refer to the cooking chart for optimal settings.

What to do in case of white smoke?

White smoke may come from greasy residues in the tank or overly fatty foods. Clean the tank and basket thoroughly after each use and avoid cooking very fatty foods like sausages.

How to clean the deep fryer?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. The basket and tank can be washed in the dishwasher. Use a brush or dry cloth to clean the heating element. Never immerse the appliance in water.

Are the basket and tank dishwasher safe?

Yes, the basket and tank are dishwasher safe. Use a gentle cycle and avoid abrasive detergents. Dry them well before reusing.

How to set the temperature and time?

Turn the thermostat knob (8) to the desired temperature (see cooking chart) and the timer knob (7) to the desired cooking time. The timer emits a beep when cooking is finished.

Can I cook frozen foods?

Yes, the deep fryer is suitable for frozen foods like fries, nuggets, or fish sticks. Refer to the cooking chart for recommended times and temperatures. It is often advised to preheat the appliance and shake halfway through.

How to prevent food from sticking?

The non-stick coating makes removal easier. Be careful not to use metal utensils that could scratch the surface. If necessary, add a little oil by mixing the food in a bowl before cooking.

What if the appliance does not turn on?

Check that the timer is set: the appliance only turns on if the timer is set. If the problem persists, check the plug and power outlet. If the appliance remains unresponsive, contact authorized customer service.

USER MANUAL AR1K30 - 8004032110517 ARDES

ATTENTION : READ THIS BOOKLET CAREFULLY IT CONTAINS IMPORTANT INSTRUCTIONS FOR A SAFE INSTALLATION, USE AND MAINTENANCE. IMPORTANT INSTRUCTIONS TO BE KEPT FOR FUTURE REFERENCE.

THIS UNIT CAN BE USED BY CHILDREN AGED 8 AND ABOVE AND INDIVIDUALS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPACITY, OR LACK OF EXPERIENCE OR KNOWLEDGE, IF THEY ARE PROVIDED WITH ADEQUATE SUPERVISION OR HAVE RECEIVED INSTRUCTIONS REGARDING THE USE OF SAFETY EQUIPMENT AND THAT THEY UNDERSTAND THE RISKS RELATED.

CHILDREN MUST NOT PLAY WITH THE UNIT. CLEANING AND MAINTENANCE SHOULD NOT BE CARRIED OUT BY CHILDREN YOUNGER THAN 8 YEARS OF AGE. CHILDREN MUST BE SUPERVISED. KEEP THE EQUIPMENT AND ITS CABLE OUT OF REACH OF CHILDREN YOUNGER THAN 8 YEARS OF AGE.

THE APPLIANCE MUST NEVER BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR WITH A SEPARATE REMOTE CONTROL SYSTEM.

WARNING

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging within the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.

Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

Unplug the appliance from the mains when not in use.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

• Never touch the appliance with wet or humid hands.

• Children must be supervised to make sure that they do not play with the appliance.

• Do not use the appliance when barefoot.

• Do not leave the appliance exposed to weathering (rain, sunlight).

• Do not subject it to rough handling.

In case of failure, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

The appliance has been designed and manufactured to operate as an electric cooker in the home. Any other use is considered inappropriate and dangerous.

Do not use the appliance out of doors.

For safety reasons, the appliance should never be opened.

During use, rest the appliance on a flat surface.

To prevent children from accidentally touching hot components, use the appliance on surfaces that are at least 85 cm high.

Keep the appliance out of reach of children and the disabled since the plates reach high temperatures.

Attention: the surfaces of the cavity and the container can get very hot during use.

Do not place the cord near sources of heat.

Do not position the appliance over or under other ovens, microwave ovens or near gas hobs.

Do not position the appliance against a wall or against another appliance. Leave at least 10cm of free space behind, to the sides and over the appliance.

Keep the vents free of obstruction.

Do not move the appliance when on, when it is hot and when it contains food.

Attention: do not use the product near curtains or other combustible materials.

Pay attention to hot steam that could exit the appliance when on or after opening the basket.

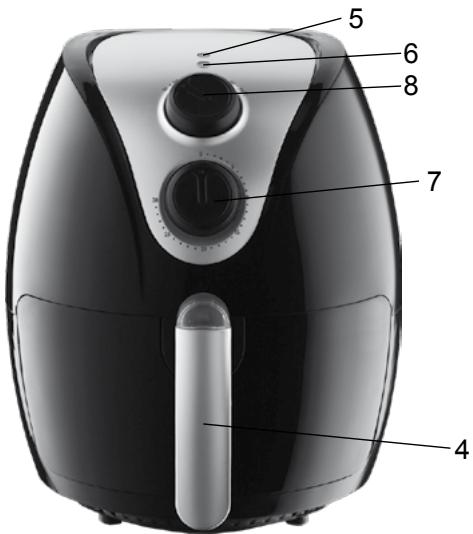

TECHNICAL INFORMATION

1 - Container
2-Basket
3 - Basket release button
4 - Basket handle
5 - Functioning light
6 - Heating light
7 - Timer knob
8 - Temperature knob

This product has been manufactured in conformity to current 2014/35/EU and 2014/30/EU.

Technical data indicated on the appliance.

INSTRUCTIONS FOR FIRST USE

Before using the appliance for the first time, clean it as indicated in the "MAINTENANCE" paragraph.

• Remove the container (1) from the fryer and insert the ingredients in the basket (2). See the "settings" paragraph for information on preparation of ingredients.

Avoid food coming in contact with the heating element. Do not fill the basket beyond the MAX level and pay particular attention to food that can leaven. Never use the container without the basket.

Attention: never pour oil or other liquids in the container or in the basket; use of oil is only permitted as indicated in the "settings" paragraph.

• Insert the container in the appliance.
• Insert the plug in the power socket.
• Adjust the thermostat (8) to the desired temperature (see the "settings" paragraph).
• Adjust the timer (7) to the desired cooking time (see the "settings" paragraph).

If the appliance is not hot already, set approx. 3 minutes more or pre-heat the appliance for 3 minutes before inserting the ingredients.

• The appliance starts to work, the functioning light and the heating light switch on, the timer starts the countdown. During cooking, the heating element (and the relevant light) switch on and switch off to reach the temperature set or to maintain it.

Some food must be stirred half way through cooking (see the "settings" paragraph). In this case, remove the container from the appliance paying attention you only touch the handle and you do not separate the basket from the container (do NOT press the release button Figure A): shake the container and place it back in the appliance.

• Once the time is up, the timer emits an acoustic signal; remove the container and check cooking is complete; on the contrary, place the container back in and set more minutes.
• Once cooking is complete, having removed the container, position it on a heat-resistant surface.
• Separate the basket from the container by pressing the specific release button, firstly moving the plastic guard, sliding it forward; pay attention not to touch the saucepan, the basket and the inner appliance.
  To re-attach the basket, place it in the specific compartment until you hear a "click" (Fig. B)
• Pour the content of the basket in the container you want (plate, etc.).

The fryer can be re-used immediately without waiting for it to cool.

SETTINGS

The following table outlines the indicative information to cook various food.

The values indicated can vary based on the dimensions of the ingredients, the quantity and the type. Avoid cooking particularly fatty foods (e.g. sausages).

Food	Min-Max quantity (g)	Time	Temp. (℃)	note
CHIPS
frozen thin cut chips	NOTES	9-16	200	shake
frozen chunky chips	300-700	11-20	200	shake
homemade chips *	300-800	16-10	200	shake
homemade wedges *	300-800	18-22	180	shake
homemade diced potatoes *	300-750	12-18	180	shake
* 1 - Peal and slice the potatoes 2 - Carefully wash and dry 3 - Pour a half tablespoon of oil in the bowl, add the potatoes and mix them to season them. 4 - Remove the potatoes so the excess oil stays in the bowl. Put the potatoes in the basket. NOTE: for crispier potatoes, cut smaller pieces or use a little more oil
roast potatoes	250	15-18	180	shake
gratin potatoes	500	15-18	200	shake
MEAT AND POULTRY
steak	100-500	8-12	180
pork chop	100-500	10-14	180
hamburger	100-500	7-14	180
sausage	100-500	13-15	200
chicken breast	100-500	10-15	180
spring roll	100-400	8-10	200	pre-heat the appliance and shake during cooking
frozen chicken nuggets	100-500	6-10	200	pre-heat the appliance and shake during cooking
frozen fishfingers	100-400	6-10	200	pre-heat the appliance
Frozen bread	100-400	8-10	180	pre-heat the appliance
stuffed vegetables	100-400	10	160
SNACKS
cake	300	20-25	160	Use specific oven containers
savoury pie	400	20-22	180	Use specific oven containers
muffin	300	15-18	200	Use specific oven containers
desserts	400	20	160	Use specific oven containers

MAINTENANCE

Disconnect the plug from the socket and let the appliance cool down well before cleaning it. In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.

Never use abrasive sponges to clean the inside of the appliance.

To clean the heating resistor, use a brush or a dry cloth to remove any food residue.

To clean the basket and the container, use hot water, washing up liquid and a non-abrasive sponge; alternative, they can be washed in the dishwasher.

Do not clean the container, the basket and inside the appliance with metal tools or abrasive materials to avoid damaging the non-stick coating.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

Problem	Cause	Solution
The appliance does not work	Timer off	Set timer
The chips are not cooked	Too much food in the basket	Reduce the quantity of food in the basket
	The temperature set is too low	Increase the cooking temperature
Food is not evenly cooked	During cooking, the food was not mixed	Cook for another few minutes, keeping the food mixed and see the settings table
The fried food is not crispy	Food was used which is suitable for a traditional oil fryer.	Use food suitable for oven cooking or consult the settings table
White smoke is coming from the appliance	Fatty ingredients	As indicated in the settings section, avoid cooking excessively fatty food
	The container contains fatty residue from previous use	Clean the container and/or basket well after each use

Ardes

1K30 MODE D'EMPLOI FRITEUSE

ATTENTION : LIRE SOIGNEUSMENT LES AVERTISSEMENTS CONTENUS DANS LE MODE D'EMPLOI QUI FOURNIT DES INDICATIONS IMPORTANTES CONCERNANT LA SECURITE DE L'INSTALLATION, D'USAGE ET D'ENTRETIEN. INSTRUCTIONS IMPORTANTES À CONSERVER POUR TOUT AUTRE CONSULTATION.

CET APPAREIL PEUT ETRE UTILISÉ PAR LES ENFANTS DE PLUS DE 8 ANS ET PAR LES PERSONNES AUX CAPACITÉS PHYSIQUES, SENSORIELLES OU MENTALES RÉDUIITES OU N'AYANTPASSUFFISAMMENTD'EXPÉRIENCEOUDE CONNAISSANCE À CONDITION QUE CES DERNIERS SOIENT SURVEILLÉS OU BIEN QU'ILS AIENT REÇUS DES INSTRUCTIONS SUR L'UTILISATION EN TOUTE SECURITE DE L'APPAREILET QU'ILS AIENT COMPRIS LES DANGERS LIÉS À L'UTILISATION DE L'APPAREIL. LES ENFANTS NE DOIVENT PAS JOUER AVEC L'APPAREIL. LES OPÉRATIONS DE NETTOYAGE ET D'ENTRETION NE DOIVENT PAS ETRE EFFECTUÉES PAR DES ENFANTS DE MOINS DE 8 ANS SANS SURVEILLANCE.

MAINTENIR L'APPAREIL ET LE CABLE HORS DE LA PORTÉE DES ENFANTS DE MOINS DE 8 ANS.

L'APPEARIL NE DOIT ÉTRE MIS EN FONCTION NI AVEC UN TEMPORISATEUR EXTÉRIEUR NI AVEC UN SYSTème DE COMMANDE À DISTANCE SEPARÉ.

DÜLEZITÉ POKNY, KTERÉ JE TřEBA USCHOVAT Z DUVODU DALŠÍCH KONZULTACÍ.

TOTO ZARIZENI MOHOU POUZIVAT DÉTI OD 8 LET A OSOBY SE SNÍZENYMI FYZICKYMI, SMYSLOVÍMI NEBO DUSEVNYMI SCHOPNOSTMI NEBO OSOBY BEZ ZKUŠENOSTI NEBO ZNALOSTI, KDYZ JIM BYL ZAJISTEN VHODNÉ DOZOR NEBO KDYZ DOSTALY POKYNY OHLEDNE BEZPEČNÉHOPOUŽITI ZARIZENI A POCHOPILY SOUVISEJÍCINEBEZPEÇI. DÉTI SINESMÍHRÁT SE ZARIZENÍM. UKONYČISTENI A UDRžBY NESMI PROVADET DÉTI, S VYJIMKOU PRIPADU, KDY JE JIM VICE NEZ 8 LET A JSOU POD DOZOREM. UDRžUJE ZARIZENI A JEHQ KABEL MIMO DOSAH DÉTI, KTERYM JE MENE NEZ 8 LET. ZARIZENÍNESMÍ BYT NASTAVENO PRO FUNGOVÁNIS EXTERNÍM CASOVÍM SPINAČEM NEBO S ODDELENÍM SYSTÉMEM DÁLKOVEHO OVLÁDÁNÍ.

VAROVÁNÍ

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

• mishandled by unauthorized persons

• improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
