USER MANUAL Eldorada Mini AR1K32 ARDES

Attention : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

This unit can be used by children aged 8 and above and individuals with reduced physical, sensory or mental capacity, or lack of experience or knowledge, if they are provided with adequate supervision or have received instructions regarding the use of safety equipment and that they understand the risks related.

Children must not play with the unit. Cleaning and maintenance should not be carried out by children younger than 8 years of age. Children must be supervised.

Keep the equipment and its cable out of reach of children younger than 8 years of age.

The appliance must never be operated by means of an external timer or with a separate remote control system. If the power cable gets damaged, it has to be replaced only in a service centre approved by the manufacturer, in order to avoid a hazard.

WARNING! The surfaces are subject to heating up during use. Before using the appliance for the first time, clean it as indicated in the "MAINTENANCE" paragraph.

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging within the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution. Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

Unplug the appliance from the mains when not in use.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

• Never touch the appliance with wet or humid hands.

• Children must be supervised to make sure that they do not play with the appliance.

• Do not use the appliance when barefoot.

• Do not leave the appliance exposed to weathering (rain, sunlight).

• Do not subject it to rough handling.

In case of failure, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer. In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

The appliance has been designed and manufactured to operate as an electric cooker in the home. Any other use is considered inappropriate and dangerous.

Do not use the appliance out of doors.

For safety reasons, the appliance should never be opened.

During use, rest the appliance on a flat surface.

To prevent children from accidentally touching hot components, use the appliance on surfaces that are at least 85~cm high.

Keep the appliance out of reach of children and the disabled since the plates reach high temperatures.

Attention: the surfaces of the cavity and the container can get very hot during use.

Do not place the cord near sources of heat.

Do not position the appliance over or under other ovens, microwave ovens or near gas hobs.

Do not position the appliance against a wall or against another appliance. Leave at least 10cm of free space behind, to the sides and over the appliance.

Keep the vents free of obstruction.

Do not move the appliance when on, when it is hot and when it contains food.

Attention: do not use the product near curtains or other combustible materials.

Pay attention to hot steam that could exit the appliance when on or after opening the basket.

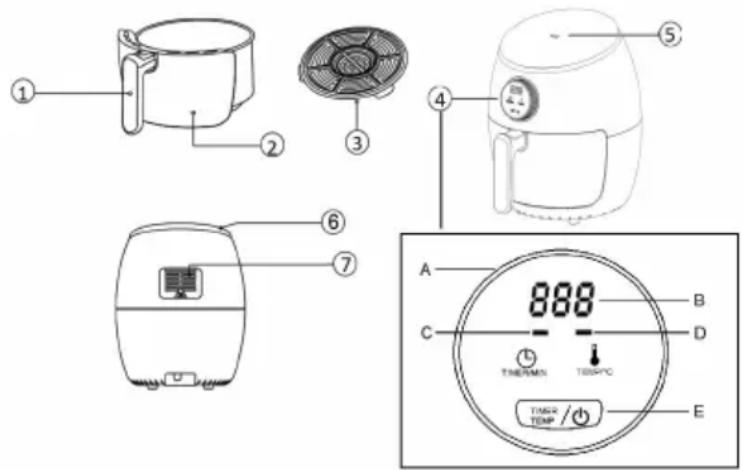

TECHNICAL INFORMATIONS

1 - Container handle
2 - Container
3-Basket
4 - Control Panel
5 - Heating light
6 - Vent (air inlet)
7 - Vent (air outlet)

A - Rotary knob
B-Display
C - Time indicator
D - Temperature indicator
E - Time and Temperature button / Switch off button

INSTRUCTIONS FOR FIRST USE

Before using the appliance for the first time, clean it as indicated in the "MAINTENANCE" paragraph.

WARNING: Ensure the basket (3) is correctly inserted into the container (2).

1. Remove the container (2) from the fryer and insert the ingredients in the basket (3). See the "settings" paragraph for information on preparation of ingredients.

Avoid food coming in contact with the heating element. Do not fill the basket beyond the MAX level and pay particular attention to food that can leaven. Never use the container without the basket.

Attention: never pour oil or other liquids in the container or in the basket; use of oil is only permitted as indicated in the "settings" paragraph.

1. Insert the container in the appliance.
2. Insert the plug in the power socket.
3. Adjust the knob (4) to the desired temperature (see the "settings" paragraph).

Note: if there is no operation within 20 seconds, the system will automatically exit from the "setting" mode

1. Press the TIMER TEMP button (E) and adjust the knob (A) to the desired cooking time (see the "settings" paragraph)

If the appliance is not hot already, set approx. 3 minutes more or pre-heat the appliance for 3 minutes before inserting the ingredients.

6. Wait 5 seconds;

1. The appliance starts to work, the heating light switch on, the timer starts the countdown. The display also shows the temperature set and the remaining cooking time.

During cooking, the heating element (and the relevant light) switch on and switch off to reach the temperature set or to maintain it.

Some food must be stirred half way through cooking (see the "settings" paragraph). In this case, remove the container from the appliance, shake the container and place it back in the appliance.

To change the temperature while cooking, repeat operations 4 and 6.

To change the time while cooking, repeat operations 5 and 6.

To stop cooking, press the TIMER TEMP button (E) for 3 seconds:

1. Once the time is up, the timer emits an acoustic signal and ventilation remains active for a few seconds.
   Remove the container and check cooking is complete; on the contrary, place the container back in and set more minutes.
2. Once cooking is complete, having removed the container, position it on a heat-resistant surface.
3. Pay attention not to touch the saucepan, the basket and the inner appliance.
4. Pour the content of the basket in the container you want (plate, etc.).
   The fryer can be re-used immediately without waiting for it to cool.

SETTINGS

The following table outlines the indicative information to cook various food.

The values indicated can vary based on the dimensions of the ingredients, the quantity and the type. Avoid cooking particularly fatty foods (e.g. sausages).

Food Min-Max	quantity (g)	Time Temp. (°C)		note
CHIPS
frozen thin cut chips 200-400 12-16 200 shake
frozen chunky chips 200-400 12-20 200 shake
homemade chips * 200-350 18-25 180 shake
homemade wedges * 200-350 18-22 180 shake
homemade diced potatoes *	200-400 12-18	180 shake
*1 - Peal and slice the potatoes2 - Carefully wash and dry3 - Pour a half tablespoon of oil in the bowl, add the potatoes and mix them to season them.4 - Remove the potatoes so the excess oil stays in the bowl. Put the potatoes in the basket. NOTE: for crispie potatoes, cut smaller pieces or use a little more oil
roast potatoes 200 15-18	180 shake
gratin potatoes 500 18-22	180 shake
MEAT AND POULTRY
steak 100-300	8-12 180
pork chop	100-300 10-14	180
hamburger 100-300	7-14	180
sausage	100-300 13-15	180
chicken breast	100-300 10-15	180
spring roll	100-300	8-10	200	pre-heat the appliance and shake during cooking
frozen chicken nuggets	100-300	6-10	200	pre-heat the appliance and shake during cooking
frozen fishfingers	100-300	6-10	200	pre-heat the appliance
Frozen bread	100-300	8-10	180	pre-heat the appliance
stuffed vegetables	100-300	10	160
SNACKS
cake	200 20-25 160	Use specific oven containers
savoury pie	250 20-22 180	Use specific oven containers
muffin	200 15-18 200	Use specific oven containers
desserts	250	20	160	Use specific oven containers

MAINTENANCE

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.

Never use abrasive sponges to clean the inside of the appliance.

To clean the heating resistor, use a brush or a dry cloth to remove any food residue.

To clean the basket and the container, use hot water, washing up liquid and a non-abrasive sponge; alternative, they can be washed in the dishwasher.

Do not clean the container, the basket and inside the appliance with metal tools or abrasive materials to avoid damaging the non-stick coating.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

Problem Cause Solution
The appliance does not work Timer off Set timer
The chips are not cooked Too much food in the basket Reduce the quantity of food in the basket
The temperature set is too low Increase the cooking temperature
Food is not evenly cooked During cooking, the food was not mixed		Cook for another few minutes, keeping the food mixed and see the settings table
The fried food is not crispy Food was used which is suitable for a traditional oil fryer.		Use food suitable for oven cooking or consult the settings table
White smoke is coming from the appliance	Fatty ingredients As indicated in the settings section, avoid cooking excessively fatty food
	The container contains fatty residue from previous use	Clean the container and/or basket well after each use

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

• mishandled by unauthorized persons

• improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

DISPOSAL

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
