USER MANUAL ARFRYA01 ARDES

Hand holding a white air fryer with a black lid, labeled 'A' and an arrow pointing to the lid (no text or symbols on the device itself)

Hand holding a white spray bottle next to a black square air fryer (no text or symbols visible)

IMPOSTAZIONI

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

SMALTIMENTO

Attention : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

This unit can be used by children aged 8 and above and individuals with reduced physical, sensory or mental capacity, or lack of experience or knowledge, if they are provided with adequate supervision or have received instructions regarding the use of safety equipment and that they understand the risks related.

Children must not play with the unit. Cleaning and maintenance should not be carried out by children younger than 8 years of age. Children must be supervised.

Keep the equipment and its cable out of reach of children younger than 8 years of age.

The appliance must never be operated by means of an external timer or with a separate remote control system. If the power cable gets damaged, it has to be replaced only in a service centre approved by the manufacturer, in order to avoid a hazard.

WARNING! The surfaces are subject to heating up during use.

Before using the appliance for the first time, clean it as indicated in the “MAINTENANCE” paragraph.

Do not position the appliance against a wall or against another appliance. Leave at least 10cm of free space behind, to the sides and over the appliance.

Keep the vents free of obstruction.

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging within the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution. Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

Unplug the appliance from the mains when not in use.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Children must be supervised to make sure that they do not play with the appliance.

- Do not use the appliance when barefoot.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

In case of failure, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer. In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

The appliance has been designed and manufactured to operate as an electric cooker in the home. Any other use is considered inappropriate and dangerous.

Do not use the appliance out of doors.

For safety reasons, the appliance should never be opened.

During use, rest the appliance on a flat surface.

To prevent children from accidentally touching hot components, use the appliance on surfaces that are at least 85 cm high.

Keep the appliance out of reach of children and the disabled since the plates reach high temperatures.

Attention: the surfaces of the cavity and the container can get very hot during use.

Do not place the cord near sources of heat.

Do not position the appliance over or under other ovens, microwave ovens or near gas hobs.

Do not position the appliance against a wall or against another appliance. Leave at least 10cm of free space behind, to the sides and over the appliance.

Keep the vents free of obstruction.

Do not move the appliance when on, when it is hot and when it contains food.

Attention: do not use the product near curtains or other combustible materials.

Pay attention to hot steam that could exit the appliance when on or after opening the basket.

TECHNICAL INFORMATIONS

1 - CONTAINER2 - BASKET3 - BASKET RELEASE BUTTON4 - BASKET HANDLE5 - ON-OFF BUTTON6 - BUTTON COOKING SETTING7 - BUTTONS + AND -8 - TIMER BUTTON9 - TEMPERATURE BUTTON10 - VENTS

A – CHIPSB - FISHC – CHICKEND – RED MEATE – SEAFOODF- PIZZAG – PIE, MUFFINH - VEGETABLES

Technical data indicated on the appliance.

INSTRUCTIONS FOR USE

Food contact

Only the basket (2) is intended to come in contact with food.

• Type of foods: all type of foods
• Maximum temperature: 200°C
• Maximum time: 1,5 hours
  This accessory can be used only with this appliance.

INSTRUCTIONS FOR FIRST USE

Before using the device for the first time, operate it while empty (for about 10 minutes, 200°C) in a well-ventilated area to eliminate any odours and fumes due to possible residual traces from production on the internal parts of the device.

Before using the appliance for the first time, clean it as indicated in the "MAINTENANCE" paragraph.

Using the device

- Remove the container (1) from the fryer and insert the ingredients in the basket (2). See the "settings" paragraph for information on preparation of ingredients.

Avoid food coming in contact with the heating element. Do not overfill the basket and pay particular attention to food that can leaven. Never use the container without the basket.

Attention: never pour oil or other liquids in the container or in the basket; use of oil is only permitted as indicated in the "settings" paragraph.

• Insert the container in the appliance.
• Insert the plug in the power socket.

- Press the ON-OFF (5) button

MANUAL OPERATION (DIY)

• Press the button set the temperature by pressing the buttons .
• Press the button ; set the cooking time by pressing the buttons .
• Press the button ☐ to start cooking.

PRESET PROGRAMMES

- Press the button ☐ and set one of the preset programmes (A-H);

- Press the button 📋 to start cooking.

PROGRAMMES LIST

Program Temperature (°C) Time (min)
	Preset Range	Preset Range
Manual (DIY)	- 60-200	- 1-90
Chips	180	160-200	15	10-25
Fish	180	160-200	18	10-20
Chicken	200	160-200	20	10-25
Red meat	200	160-200	10	10-25
Seafood	190	160-200	8	5-15
Pizza	160	160-200	17	10-25
Pie, muffin	150	140-180	35	10-40
Vegetables	150	140-180	12	5-15

The “settings” paragraph outlines some useful information to cook various food. If the appliance is not hot already, set approx. 3 minutes more or pre-heat the appliance for 3 minutes before inserting the ingredients.

- While cooking

- The display shows the temperature set and the remaining cooking time.

- Press the button to change the temperature by pressing the buttons.

- Press the button to change the cooking time by pressing the buttons .

Some food must be stirred half way through cooking (see the “settings” paragraph). In this case, remove the container from the appliance paying attention you only touch the handle and do not separate the basket from the container (do NOT press the release button Figure A); the appliance switches off in an instant if the container is removed; shake the container and place back in the appliance; the fryer re-activates as soon as the container is put back in and the cooking cycle starts again from the instant it stopped.

- Press the button to stop cooking. Ventilation remains active for a few seconds.

- Once the time is up, the timer emits an acoustic signal and the appliance switches off (ventilation remains active for a few seconds); remove the container and check cooking is complete; on the contrary, place the container back in and set more minutes.

- Once the cooking is complete, remove the container and place it on a heat-resistant surface.

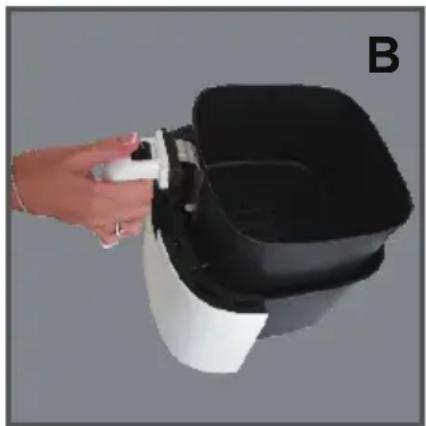

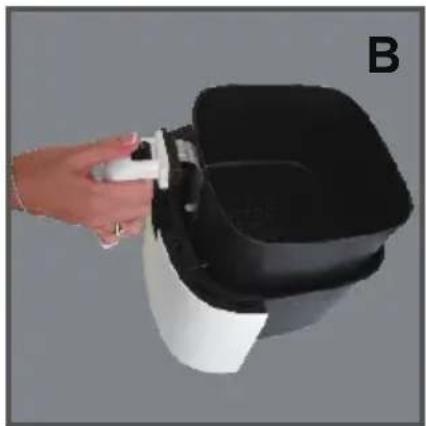

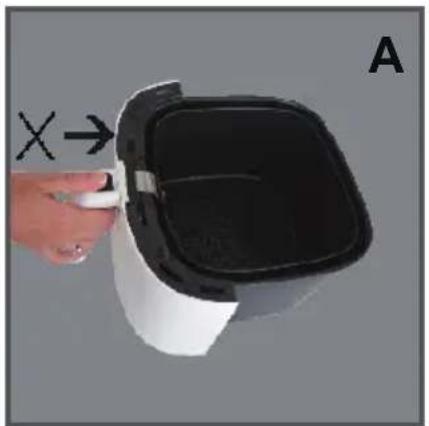

- Separate the basket from the container by pressing the specific release button; pay attention not to touch the saucepan, the basket and the inner appliance.

To re-attach the basket, place it in the specific compartment until you hear a "click" (Fig. B)

- Pour the content of the basket in the container you want (plate, etc.).

The fryer can be re-used immediately without waiting for it to cool.

Hand holding a white air fryer with a black lid, labeled 'A' and an arrow pointing to the lid (no text or symbols on the device itself)

Hand holding a white spray bottle next to a black square air purifier (no text or symbols visible)

The following table outlines the indicative information to cook various food.

The values indicated can vary based on the dimensions of the ingredients, the quantity and the type. Avoid cooking particularly fatty foods (e.g. sausages).

Food Min-Max	quantity (g)	Time Temp.	(°C)	note
CHIPS
frozen thin cut chips 200-7	750 12-25 200 shake
frozen chunky chips 200-7	750 12-25 200 shake
homemade chips * 200-65	50 18-25 180 shake
homemade wedges * 200-	650 18-22 180 shake
homemade diced potatoes *	200-650 12-25	180 shake
*1 - Peal and slice the potatoes2 - Carefully wash and dry3 - Pour a half tablespoon of oil in the bowl, add the potatoes and mix them to season them.4 - Remove the potatoes so the excess oil stays in the bowl. Put the potatoes in the basket. NOTE: for crispie potatoes, cut smaller pieces or use a little more oil
roast potatoes 400 15-22	180 shake
gratin potatoes 650 18-22	180 shake
MEAT AND POULTRY
steak 100-500	8-16	180
pork chop	100-500	10-15	180
hamburger 100-500	7-18	180
sausage	100-500	13-15	180
chicken breast	100-500	10-22	180
spring roll	100-500	10-22	8-12	200 pre-heat the appliance and shake during cooking
frozen chicken nuggets	100-500	10-22	6-15	200 pre-heat the appliance and shake during cooking
frozen fishfingers	100-500	10-22	6-15	200 pre-heat the appliance
Frozen bread	100-500	10-22	8-15	180 pre-heat the appliance
stuffed vegetables	100-500	10-22	15	180
SNACKS
cake	400 20-25	160		Use specific oven containers
savoury pie	500 20-22	180		Use specific oven containers
muffin	400 15-18	200		Use specific oven containers
desserts	500	20	160	Use specific oven containers

MAINTENANCE

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.

Never use abrasive sponges to clean the inside of the appliance.

To clean the heating resistor, use a brush or a dry cloth to remove any food residue.

To clean the basket and the container, use hot water, washing up liquid for washing dishes by hand and a non-abrasive sponge; DO NOT WASH IN THE DISHWASHER.

Do not clean the container, the basket and inside the appliance with metal tools or abrasive materials to avoid damaging the non-stick coating.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

Problem Cause Solution
The appliance does not work Timer	er off Set timer
The chips are not cooked Too much	ch food in the basket Reduce the	quantity of food in the basket
	The temperature set is too low In	increase the cooking temperature
Food is not evenly cooked During	cooking, the food was not mixed	Cook for another few minutes, keeping the food mixed and see the settings table
The fried food is not crispy Food	was used which is suitable for a traditional oil fryer.	Use food suitable for oven cooking or consult the settings table
White smoke is coming from the appliance	Fatty ingredients As indicated in	the settings section, avoid cooking excessively fatty food
	The container contains fatty residue from previous used	Clean the container and/or basket well after each use

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

Symbol of a trash bin crossed with two crossed arms, no text or labels present

DISPOSAL

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
