USER MANUAL DMP-BDT381 - DMP-BDT385EG PANASONIC

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Unit To reduce the risk of fie, electric shock or product damage,

Do not expose {his unit to rain, moïsture, dripping or splashing, Do not place objects filed with lquids, such as vases, on this unit Use only the recommended accessories.

Do not remove covers.

Do not repair this unit by yourself. Refer servicing to qualified service personnel

Do not let metal objects fall inside this unit.

Do not place heavy items on {his unit.

To reduce the risk of fie, electric shock or product damage,

‘+ Ensure that the power supply voltage corresponds lo the voltage printed on {his unit.

Inser the mains plug fully into the socket outlet

Do not pull, bend, or place heavy items on the lead.

Do not handle {he plug with wet hands.

Hold onto the mains plug body when disconnecting the plug

Do not use a damaged mains plug or socket outlel

The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

This unit utlizes a laser. Use of controls or adjustments or

performance of procedures other than those specified herein

may result in hazardous radiation exposure.

Do not place sources of naked flames, such as lighted candies,

‘+ This unit may receive radio interference caused by mobile telephones during use. I such interference occurs, please increase separation belween this unit and the mobile telephone.

‘+ This unit is intended for use in moderate climates.

Placement Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage. + Do not install or place this unit in a bookcase, butin cabinet or in another confined space. Ensure this unit is well ventilated.

+ Do not obstruct this units ventilation openings with newspapers,

tablecloths, curtains, and similar items. Do not place the unit on ampliiersireceivers or equipment that may become hot. The heat can damage the unit Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Mishandling of batteries can cause electrolyte leakage and may

+ Danger of explosion if battery is incorrecly replaced. Replace only with lhe lype recommended by {he manufacturer.

‘+ When disposing of the batteries, please contact your local authorities or dealer and ask for Ihe correct method of disposal.

‘+ Do not mix old and new batteries or diflerent types at 1he same time.

+ Do not heat or expose to flame.

+ Do not leave ie battery(ies) in a car exposed lo direct sunlight for a long period of time with doors and windows closed

Do not take apart or short circuit.

+ Do not recharge alkaline or manganese batteries. Do not use batteries If the covering has been pecled of.

Remove batteries if you do not intend to use the remote control for & long period of time. Siore in a cool, dark place.

[| Wireless LAN connection

‘The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due lo a failure to obey these limits, or to any condition of use or disuse of this uni. + Data transmitted and recelved over radio waves may be intercepted and monitored. + This unit contains delicate electronic components. Please use this unit in the manner in which it was intended and follow the following points: — Do not expose this unit to high temperatures or direct sunlight. — Do not bend, or subject this unit to strong impacts. — Keep this unit away from mosture.

Declaration of Conformity {DoC)

— Do not disassemble or aller this unit in any way. Corporation" declares that this (6 € 1 7 3 1 product is in compliance with Ihe

essential requirements and other relevant provisions of Directive 1999/S/EC.

Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

Http:/hwvww doc. panasonic.de

Contact lo Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, German)

This product is in compliance with the radio standards of the following countries.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, lreland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,

Sweden, United Kingdom, Switzerland This product on purpose to connect to access point of 2.4 GHz WLAN.

æ SP DIP-HDT3S16380_Basie-SQT1275 met. book 3 —

I To dispose or transfer this un

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure lo retum al the settings lo the factory presels to delete the user settings. © Tumtheuniton @ _ Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. — “00 RET"is displayed on the units display. @ Press [à] (right) repeatedly on the remote control until “08 FIN” is displayed on the unifs display. @. Press and hold [OK] for more lhan 5 seconds. ‘+_ The operalion history may be recorded in the memory of this unit

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

‘These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation

By disposing of hem correcdly, you will help to save valable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination vit a chemical symbol. I this case it complies vin the

requirement set by the Directive for the chemical invalved

A more detailed operating instruction is available in “Operating Instructions (PDF format)”. To read it, download it from the website. http:J/av.jpn.support.panasonic.com/support/ globallcs/bdloilindex.html

You will need Adobe Reader to browse or print the Operating Instructions (PDF format).

You can download and install a version of Adobe Reader that you can use with your OS from the following website. http:/www.adobe.com/products/acrobat/ readstep2.html

Check the supplied accessories before using this unit. 1 Remote control (N2QAYB001031) 2 Batteries for remote control 1 AC mains lead

+ Product numbers are provided in these operating instructions correct as of December 2015. These may be subject to change.

+ Do not use AC mains lead with other equipment.

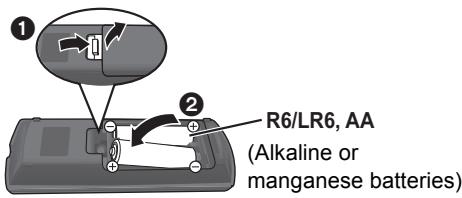

Using the remote control

RG/LR6, AA (Alkaline or manganese batteries)

— Insert the batteries to the terminal so that it (+ and —) matches those in the remote control.

Panasonic is constantly improving the units firmware to ensure that our customers are enjoying the latest technology.

Panasonic recommends updating your firmware as soon as you are notified.

When other Panasonic devices respond to the remote control of the unit, change the remote control code.

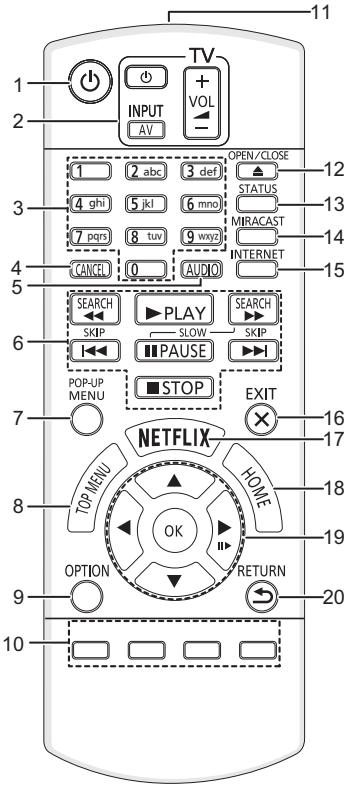

Turn the unit on and off TV operation buttons

You can operate the Panasonic TV using this units remote control. Some buttons may not work depending on the TV.

[@ TV]: Tu the TV on and off

[+ — VOL] : Adjust the volume

Select title numbers, etc./Enter numbers or characters

Coloured buttons (red, green, yellow, blue) Used for various purposes depending on the display

Transmit the remote control signal

Open or close the disc tray

Show the status messages

Show the Home Screen of Network Service Exit the Menu screen

Show HOME menu 5 [A, Y, 4 »]: Move the highlight for Ÿ selection

[OK] : Contirm the selection

{H1®) : Frame-by-frame

Return to previous screen

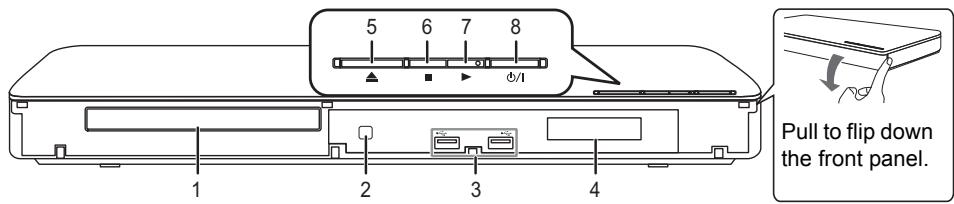

Disc tray 2 Remote control signal sensor Distance: Within approx. 7 m Angle: Approx. 20° up and down, 30° left and right USB ports Display 5 Open or close the disc tray

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

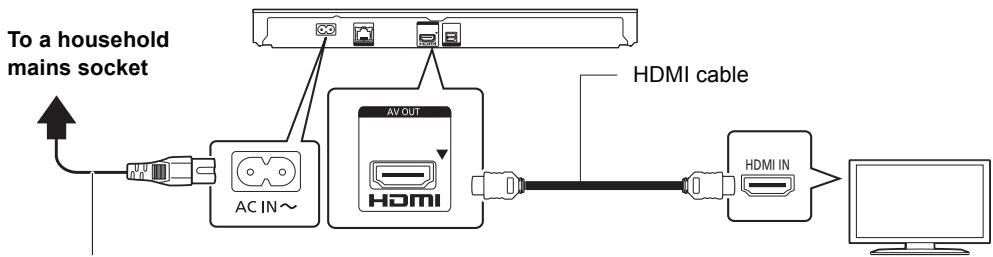

Connecting to a T HDMI cable HDMI — Ê =

< This unit consumes a small amount of AC power (® 8) even when turned off in standby mode. For the purpose of energy conservation, the unit should be disconnected if you will not be using it for extended period of time.

To a household mains socket

AC mains lead (supplied)

STEP 2 : Connecting to the network

Æ Wireless LAN connection

Wireless router, etc.

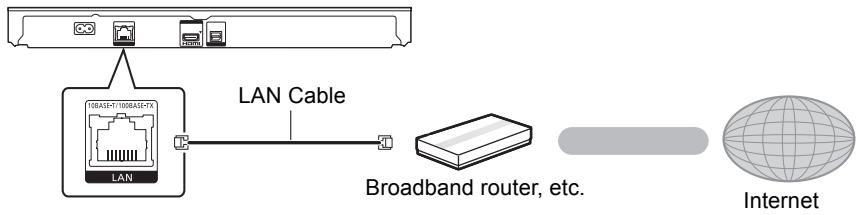

Broadband router, etc.

Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.

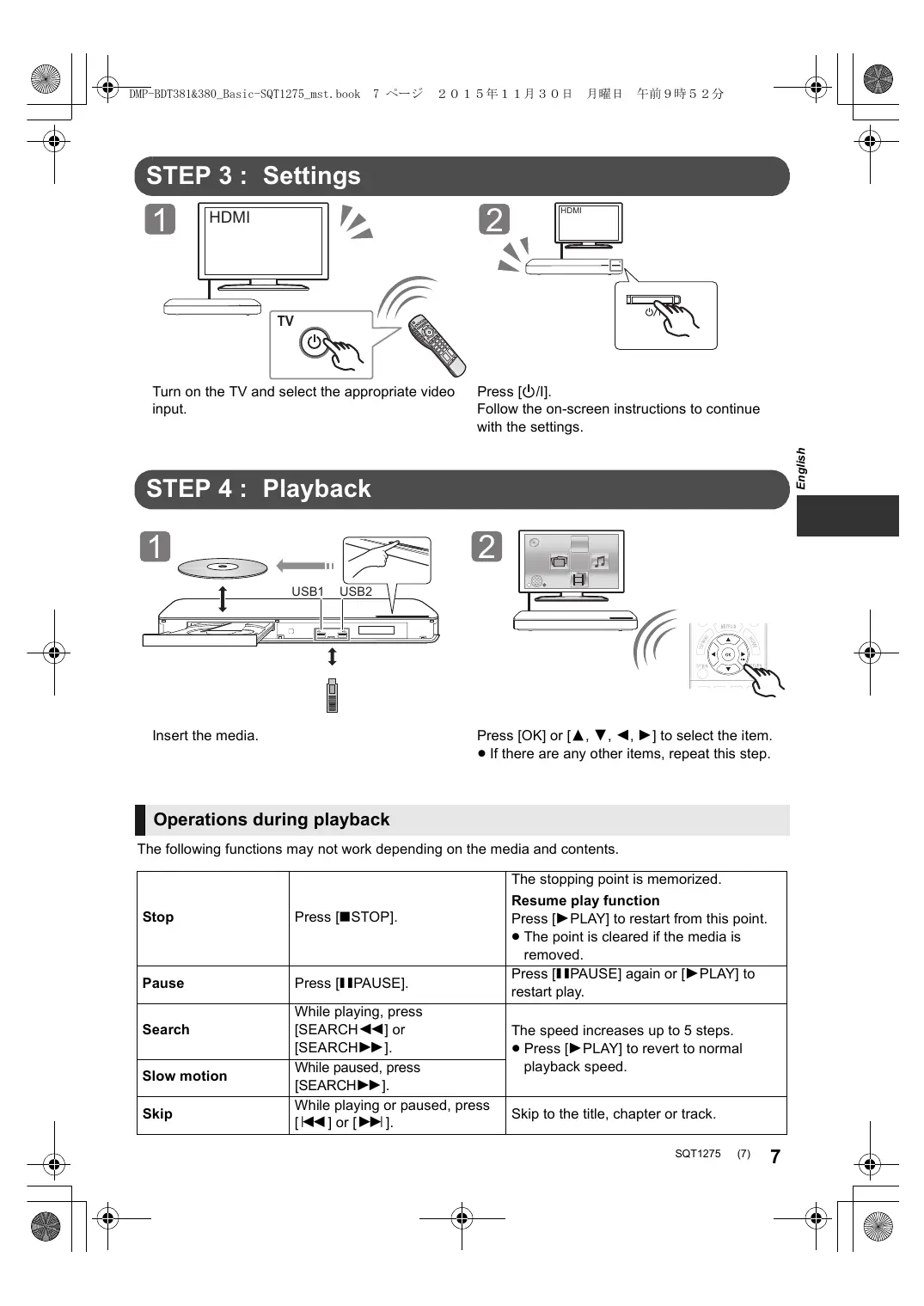

FC Turn on the TV and select the appropriate video

Press [0/1]. Follow the on-screen instructions to continue with the settings.

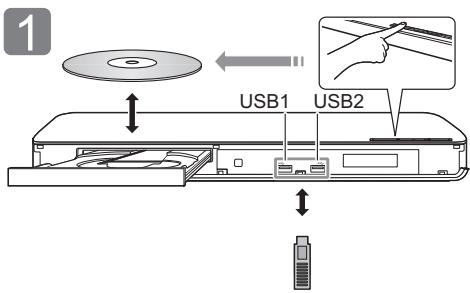

I Operations during playback

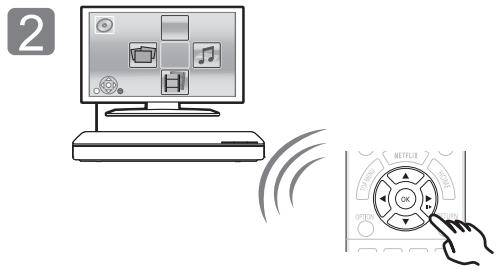

Press [OK] or [A, , 4, &] to select the item. « Ifthere are any other items, repeat this step.

The following functions may not work depending on the media and contents.

The siopping pointis memorized. Resume play function Stop Press [BSTOP]. Press [b PLAY] to restart from this point. e The point is cleared if the media is removed. pause Press IHPAUSE], Press IHPAUSE] again or [> PLAY] io restart play. While playing, press Search ISEARCH-4<] or The speed increases up to 5 steps. [SEARCH ]. « Press [à PLAY] to revert to normal - While paused, press playback speed. Slow motion SEARCH | x While playing or paused, press |. Skip LH or PAL, Skip to the title, chapter or track.

WAV, WMA M Region management information The unit can play back BD-Video/DVD-Video discs of the following regions codes, including “ALL”:

Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge.

This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection.

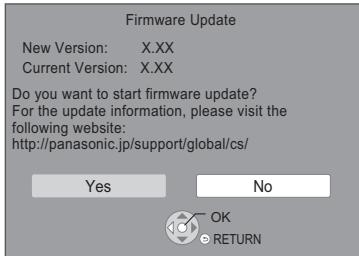

When a new firmware version is available, the following message is displayed.

(CA You can also download the latest firmware from the following website and store it to a USB device to update the firmware. htip:/Ipanasonic.jp/support/global/cs/

(This site is in English only.)

DO NOT DISCONNECT the unit from the AC power or perform any operation while the update takes place.

After the firmware is installed, unit will restart and the following screen will be displayed.

+ To show the firm IHOME] + ‘Setup’ “System Information” + “Firmware Version Information"

+ Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.

+ If you do not want to check for the latest fimware version, set “Automatic Update Check” to “Off”

Power supply [AC 220 V to 240 V, 50 Hz

Power consumption _|Approx. 17 W Power consumption in standby mode

approx. 0.5 W (Quick Start: Of)

in quick start standby |APPrOX.

ne (Quick Start: On) PNEUS D IE 415 mmx43 mmx 182 mm Mass Approx. 1.2 ke

+ Specifications are subject to change without notice.

æ| 4 4 @ 7 DMP-BDT381&380_Basic-SQT1275_mst. book 9 — 2015#Æ11H301R AMH ‘ÆFM9H52% 7

7 7 : his productncorporaes he olowing sofare Copyrights and (H) 1e sofiare developed independendy by ar Tr Panasonic Carole (2) te Éoluere ouned by tir party nd loensed to Panasonic Trademarks Corporation,

(8)the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), {&)the software licensed under the GNU LESSER General Public

This product uses Cinavia technology Lo limit the use of License, Version 2.1 (LGPL V2 1), andior

unauthorized copies of some commercialy-produced flm and k videos and their soundtracks. For details, refer lo the operating ()open source soñware other han he software licensed under instructions (PDF forma 1e sofa calégorzed 28) (5) are bed in he ha — that il be Useful but WITHOUT ANY WARRANTY, vou AVCHD”is a irademark of Panasonie Corporation and Sony even the implied warranty of MERCHANTABILITY or FITNESS Corporation: FOR À PARTICULAR PURPOSE. Please refer lo (he detailed terms and conditions Inereof shoun in the Player Setings menu Java is a registered trademark of Oracle andor is afliates. Atleastthree (3) years from delivery of this product, Panasonic will give lo any third party who contacie us al ie contact information Dolby, Dolby Audio, and ihe double-D symbol are lrademarks of provided below for à charge no more lhan our cost of physicalh Dolbÿ Laboratories. Perloming source code dslibution, à complete machine-readable

Éopy of 1né corresponding source code covered under GPL V2.0. For DTS patents, see hitp://patents dis.com. Manufactured under LGPL V2.1 or the other licenses with the obligation to do so, as license from DTS Licensing Limited. DTS, DTS-HD, tre Symbol. & Wells he respective copyright nolice tnereot DTS and the Symbol together are registered trademarks, and Contact Information: c&s-cé-requesl@gg.p.panasonic.com DTS-HD Master Audio a trademark of DTS, Inc. © DT ne. AI The source code and 1ne copyright nolice are also available for Righis Reserved free in our website below.

hitp/panasonie.netavc/oss/

Te tom ON an HO Der Ve D en a en ae o Davdi Gays dunndettdieure D ae 6 de Unies Sac an ee eu De ce Da Gay

This product is licensed under the AVC Patent Portfolio License for Permission to use, copy, modify, and distribute this software for the personal use of a consumer or other uses in which it does not M Dent sinon nn is herel a. granted provided nat this ce receive remuneration to (i) encode video in compliance with the noëcs is Inca in all copies of any software which is or includes er nee ne Lesjarmadiele Re aa an na sn la was encoded by a consumer engaged in a personal activity and/or SUPPOrtng documentation for such software.

THIS SOFTWARE IS BEING PROVIDED “AS IS. WITHOUT AY as chaned om vide prier censedt raide AVC Video. ESS OR LED MARNE IN PARTICULAN NETLNER il granted or shall be implied for any other use. THE AUTHOR NOR LUGENT MAKES ANY REPRÉSENTATION OR Mldane iérmaton may e chanson MPEG LA EC NOR LUCENT MARES NY See http:/hwww.mpegla.com MÉRCHANABILIN OF THIS SOFTWARE ORITS FITNESS FOR <VC-> ANY PARTICULAR PURPOSE. & This product loense under e VC Patent Porto License N < Dear come 0 | DANGODENC VERRE AGREEMENT ONRAIESAO k

sncode ideo compiance wirine VC Sander (VC SOFTAAR Video”) andor () decode V1 idea that wes ancaded by a Uncade Data Es neue al a fs under te retoris consumer engaged in a personal and non-commercial avi and! hüipynwunicode-org/Publc. hüp-/Mawuncode-org/reports,

or was oblained from a video provider licensed lo provide VC-1 end htip:/wwwunicode.orgjcidr/datal. Video. No license is granted or shall be implied for any other use. Unicode Sofware includes any source code published in the Additional information may be obtained from MPEG LA, LLC. Unicode Standard or under Ihe directories.

See htip:/hwmn mpegla.com Hltp:/hwww.unicode.org/Public/,

Hp:/Mnrunicode orglreporis]. and MPEG Layer-3 audio coding technology licensed from Fraunhoter … hlpi/imuvi.unicode orgcidrideta.

IIS and Thomson NOTICE TO USER: Carefully read the following legal agreement

— Disinbuted under he Terms of Use in Wi-Fi" and hip:/Mnmunicode org/copyrigt.himl Alliance®.

“Wi-Fi Protected SetupTW, “MiracastTWr, “WPATM-, and

“WPA2Tñ" are trademarks of Wi-Fi Alliance ®.

Fi Direci®” are registered trademarks of WI DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Aliance.

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries,

Android is a trademark of Google Inc.

Copyright 2004-2014 Verance Corporation. CinavialW'is a Verance Corporation trademark. Protected by US. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. AI rights reserved.

SaT1275 (9) ÿ NS SP DIP-HDT3S16380_Basic-SQT1275 met. book 10 —

Permission is hereby granted, free of charge, lo any person obtaining à copy of the Unicode data iles and any associated documentation (the “Data Files") or Unicode sofiware and any associated documentation (Ihe Software”) to deal in the Data Files or Sofware without restriction, including without limitation the rights lo use, copy, modify, merge, publish, distribute, and/or sell copies of the Data Files or Software, and lo permit persons to whom the Data Files or Software are fumished lo do so, provided that (a) the above copyright nolice(s) and this permission notice appear wih ll copies 9 he Data Files or Solar, (b) bolh the above copyright nolice(s) and this permission notice appear in associated documentation, and (c) there is clear notice in each led Data File or in thé Software as well as in the

documentation associated with the Data Flle(s) or Sofware that the data or software has been modified

THE DATA FILES AND SOFTWARE ARE PROVIDED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED INGLUDING BUT NOT LMED 10 THE WARRANTIES DE MERCHANTABILITY, FITNESS FOR À PARTICULAR PURPOSE AND NONINFRINGEMENT GE THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDF INCLUDED IN THIS NOTICE BE LIABLE EOR ANY GLAIML OR ANŸ SPECIAL INDIRECT OR CONSÉQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHEX CONTRAGT NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OÙT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA FILES OR SOFTWARE. Except as contained in this nolice, the name of à copyright holder Shall not be used in advertising or otherwise to promote the sale, use or other dealings in these Data Files or Sofware without prior written authorization of the copyright holder.”

(MSMMA This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsof or an authorized Microsoft subsidiary and third parties, (2) MSIPiayReady/Final Product Labeling his product contains technology subject to certain intellectuel property rights of Micraso. Use or distribution of {his technology utside of ins product is prohibited without he appropriate license(s) rom Microsof. (8) MS/PlayReady/End User Notices Content ouners use Microsoft PlayReady" content access technology to protecL ieir ntelleclual property, including Sopyighied content This deyice uses PlyRady technology to sccess PlayReady-protecied content and/or WMDRM-prolécted content. If the device fais lo properiy enforce restrictions on content usage, content owners may require Microsoft revoke the device ab o coneume Playeady-prolecied content Revocation should not affect unprotecled content or content protecied by other content access technologies. Content ouners May requiré you to upgrade PlayReady lo access their content. If you deciine an upgrade, you wil not be able Lo access content inat requires the upgrade {@) FLAC, WPA Supplicant The soñare licenses are displayed when "Sofware Licence” in the Setup menu is selected." + IHOME] 2 "Selup” & ‘Player Setings” & “System” © “System Information"
