Installation and Connection 8
Safety Instructions 9
Important Information. 9, 10
How Does the Microwave Work? 10
Outline Diagram 11
Control Panel 11
How to Operate 12

A. Manual Heating 13

Manual Single Stage Heating 13
Manual 2 or 3 Stages Heating 14

B. Programmed Heating 15
C. Programming 16

Programming Memory Pads for Single Stage Heating 16
Programming Memory Pads for 2 or 3 Stages Heating. 17
Programming the Double Quantity (x 2) Pad 18

D. Program Lock 19

To Activate Program Lock. 19
To Release Program Lock 19

E. To Read Program List 20
F.To Select Beep Tone Options 21
G. To Read the Cycle Counter 21

Self Diagnostics Failure Code 22

Care of Your Microwave Oven 22

Cooking/Defrosting Guide 23

Technical Specification 24

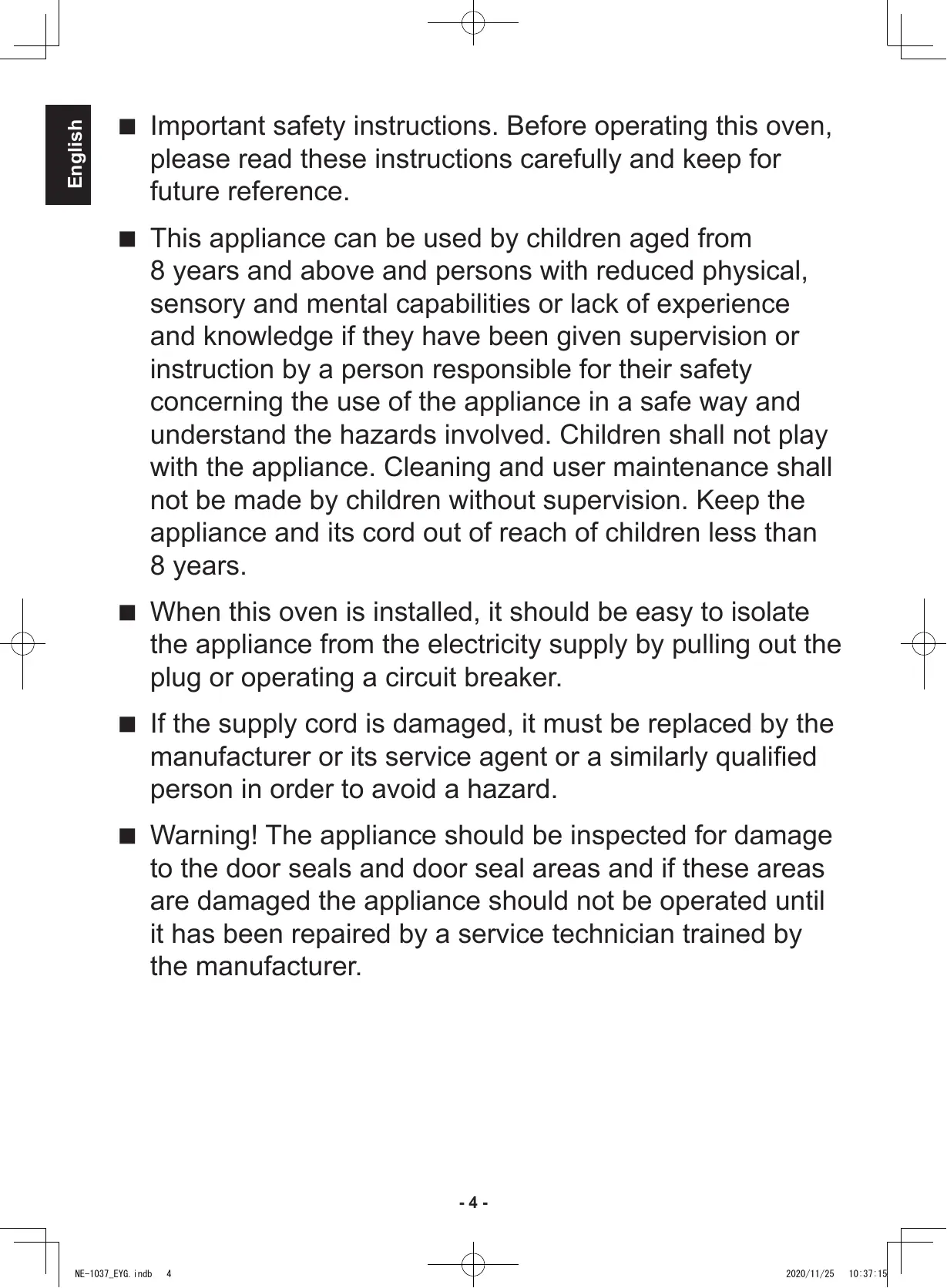

• Important safety instructions. Before operating this oven, please read these instructions carefully and keep for future reference.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.
• When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Warning! The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

■ Warning! Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be by a qualified service person.
■ Warning! Do not place this oven near an electric or gas cooker range.
■ Liquids and other foods must not be heated in sealed containers since they are liable to explode.
■ Warning! Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
This oven is intended for counter-top use only. It is not intended for built-in use or use inside a cupboard.

For countertop use:

• Place the oven on a flat and stable surface more than 85 ~cm above the floor.
• Allow 15 ~cm of space on the top of the oven, 10 ~cm at the back, 5 ~cm on one side, and the other side must be opened more than 40 ~cm .
• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
  If smoke is emitted or a fire occurs in the oven, press Stop/Cancel button and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel.
• When heating liquids, e.g. soup, sauces and beverages in your oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid.
• The contents of feeding bottles and baby food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns.
• Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

Clean the inside of the oven, door seals and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty.
The use of harsh detergent or abrasive is not recommended. DO NOT USE COMMERCIAL OVEN CLEANERS.
Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation.
- Only use utensils that are suitable for use in microwave ovens.

Installation and Connection

Examine your microwave oven

Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven.

Earthing instructions

IMPORTANT: THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY.

If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket.

Operation voltage

The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

Placement of the Oven

1. Place the oven on a flat and stable surface.
2. When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug operating a circuit beaker.
3. For proper operation, ensure a sufficient air circulation for the oven.

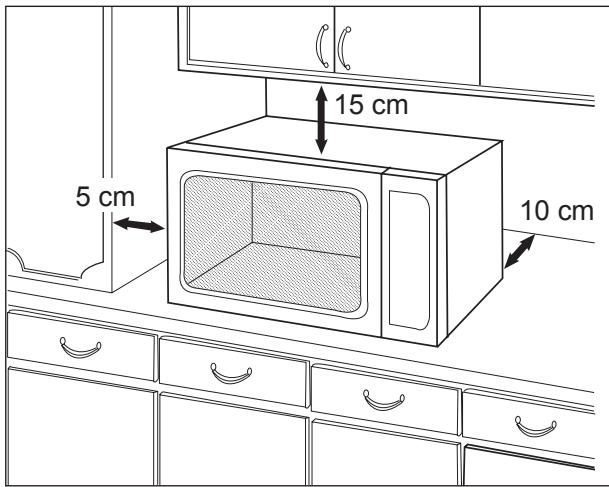

Counter-top use:

a. Allow 15cm of space on the top of the oven, 10cm at back and 5cm on both sides.
b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

1. Do not place this oven near an electric or gas cooker range.
2. The feet should not be removed.
3. This oven is only for household usage. Do not use outdoors.
4. Avoid using the microwave oven in high humidity.
5. The power cord should not touch the outside of the oven. Keep the cord away from hot surfaces.

Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.
9. Do not block the air vents on the top and back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.

Caution

This appliance is delivered without a plug and must be installed by a qualified electrician to a 16 A fused power supply 400 ~V 3 / N / PE 50 ~Hz . Installation must conform to local rules and standards. Please refer the data on the nameplate.

IMPORTANT: The wires in the mains lead are coloured in accordance with the following:

Green and Yellow: Earth

Blue: Neutral

A precise assignment of the live wires is not necessary as the connection is not dependant on phase sequence. The colour of the live wires may vary.

Use of your oven

1. Do not use the oven for any reason other than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.
2. Before use, check that utensils/containers are suitable for use in microwave ovens.
3. Do not attempt to use this microwave oven to dry newspaper, clothing or any other materials. They may catch on fire.
4. When the oven is not being used, do not store any objects other than oven accessories inside the oven in case it is accidentally turned on.
5. The appliance shall not be operated by MICROWAVE WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance.
6. If smoke or a fire occurs in the oven, press the Stop/Reset Pad and leave the door closed. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel.

Manufactured by: Panasonic Corporation, 1006 Oaza Kadoma, Kadoma City, Osaka, Japan
Imported by: Panasonic Marketing Europe GmbH

Contact: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany.

Safety Instructions

Warning

1. The door seals and door seal areas should be cleaned with a damp cloth.

The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

1. Do not operate this appliance if it has a damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.
2. Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from oven. Repairs should only be done by a qualified service person.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

1. When it becomes necessary to replace the oven light, please consult your dealer.
2. Only allow children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, to use the oven without supervision when adequate instructions have been given so that the child and such person is able to use the oven in a safe way and understands the hazards of improper use. And children should be supervised to ensure that they do not play with the appliance.
3. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
4. The contents of feeding bottles and baby food jars are to be stirred or shaken.

The temperature has to be checked before consumption to avoid burns.

1. Liquids or other foods must not be heated in sealed containers since they are liable to explode.

Important Information

1) Cooking Times

• Cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature and amount of food and on the type of cooking ware.
• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer.

N.B.: If the recommended cooking time are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2) Small Quantities of Foods

• Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3) Eggs

• Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs will explode.

4) Piercing Skin

• Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

5) Meat Thermometer

• Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer in the microwave oven because it may cause sparking.

6) Liquids

• When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks.
b) Do not overheat.
c) Stir the liquid before placing the container in the oven and again halfway through cooking time.
d) After heating, allow it to stand in the oven for a short time, stirring again before carefully removing the container.

Important Information

7) Paper/Plastic

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
• Do not use recycled paper products (ex. Kitchen Roll) unless the paper product is labeled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires when use.
• Remove wire twist-ties from roasting bags before placing bags in oven.

8) Utensils/Foil

• Do not heat any closed cans or bottles because they might explode.
  Metal containers or dishes with metallic trim should not be used during Microwave cooking. Sparking will occur.
• If you use any aluminum foil, meat spikes or metal ware the distance between them and the oven walls and door should be at least 2cm to prevent sparking.

How Does the Microwave Work?

Microwaves are a form of high frequency radio waves similar to those used by a radio including AM, FM and CB. They are, however, much shorter than radio waves; approximately 12 cm long.

Electricity is converted into microwave energy by the magnetron tube. From the magnetron tube, microwave energy is transmitted and absorbed.

Reflection

Microwaves are reflected by metal just as a ball is bounced off a wall. A combination of stationary (interior walls) and rotating antenna, located underneath the bottom shelf assures that the microwaves are well distributed within the oven cavity to produce even heating or cooking of foods.

Transmission

Microwaves pass through some materials such as paper, glass and plastic much like sunlight shining through a window. Because these substances do not absorb or reflect the microwave energy, they are ideal materials for microwave oven heating containers.

Absorption

During heating, microwaves will be absorbed by food. They penetrate to a depth of about 1 to 5cm Microwave energy excites the molecules in the food (especially water, fat and sugar molecules), and causes them to vibrate at a rate of 2,450,000,000 times per second. This vibration causes friction, and heat is produced just as you will feel heat produced if you vigorously rub your hands together. The internal heating of larger foods is done by conduction. The heat which is produced by friction travels by conduction to the centre of the food. Foods also continue to heat by conduction during standing time. Because microwaves dissipate, much like sunlight as it reaches the Earth's surface, they are not stored in food.

TV / RADIO / WIRELESS EQUIPMENT INTERFERENCE

1. This product can radiate radio frequency energy, which could cause interference to such products as radio, TV, baby monitor, cordless phone, Bluetooth, wireless router, etc., which can be confirmed by turning this product off and on. If present, the user is encouraged to try to correct by taking one or more of the following countermeasures:

(1) Increase the spacing distance between the microwave oven and other product receiving the interference.
(2) If possible, use a properly installed receiver antenna and/or reorient the receiving antenna of the other product receiving the interference.
(3) Plug the microwave oven into a different outlet from the other product receiving the interference.
(4) Clean door and sealing surfaces of the oven. (See "Care of Your Microwave Oven")

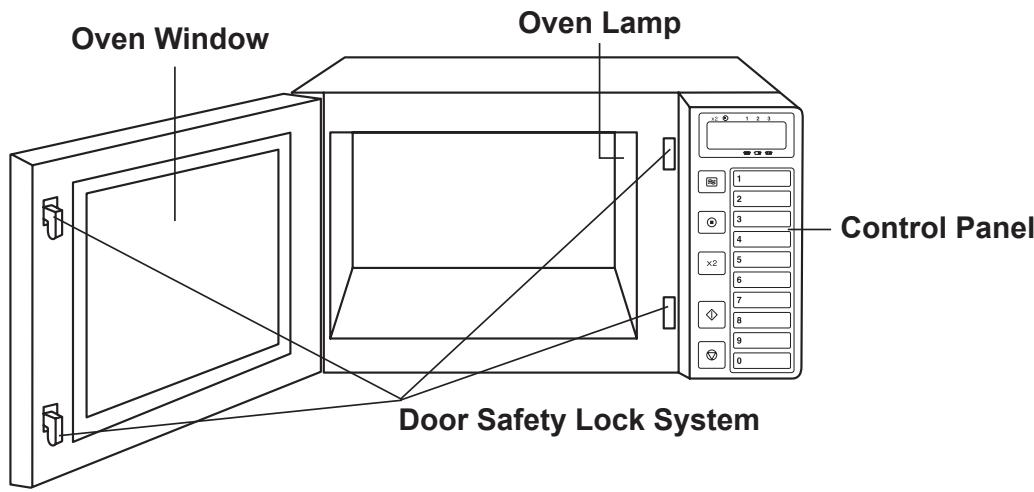

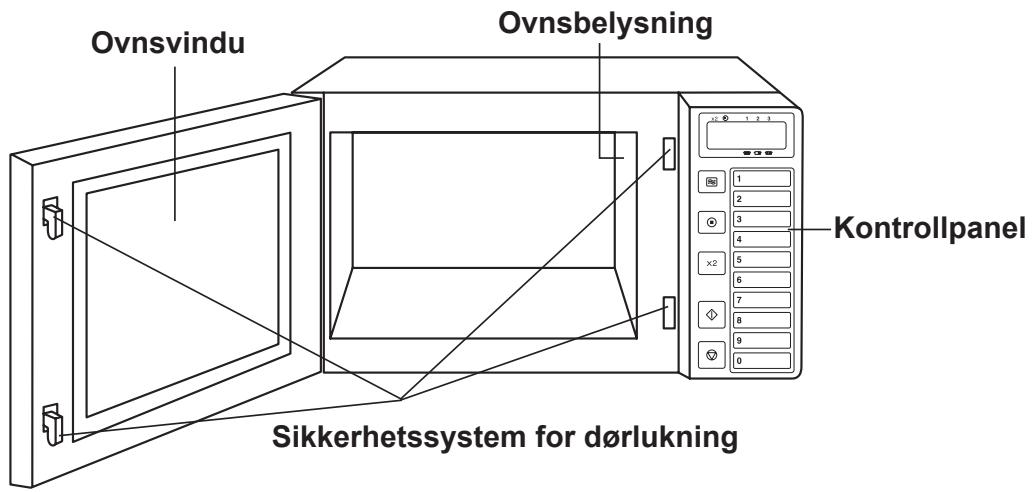

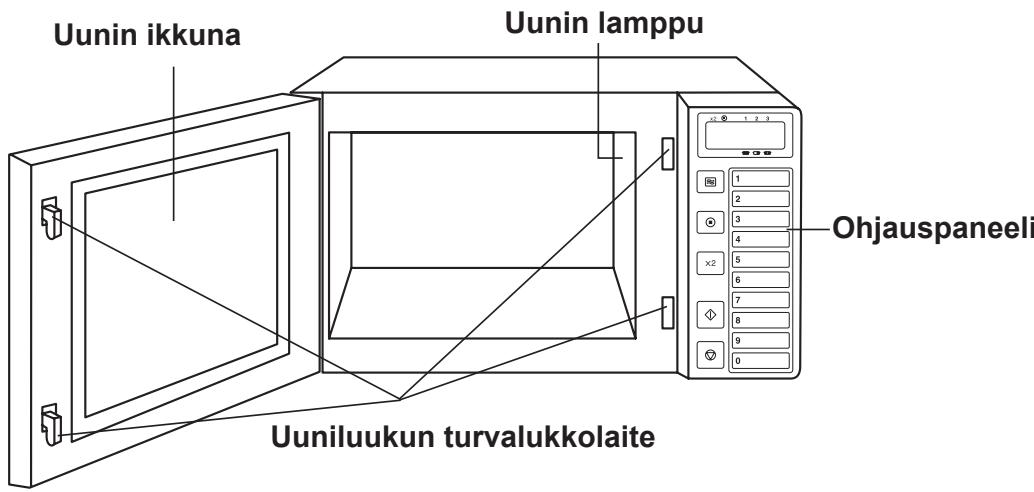

Outline Diagram

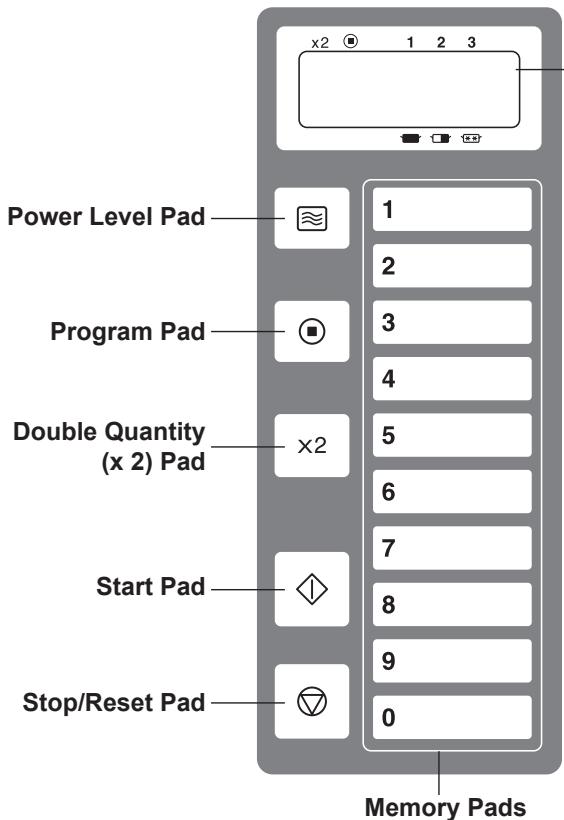

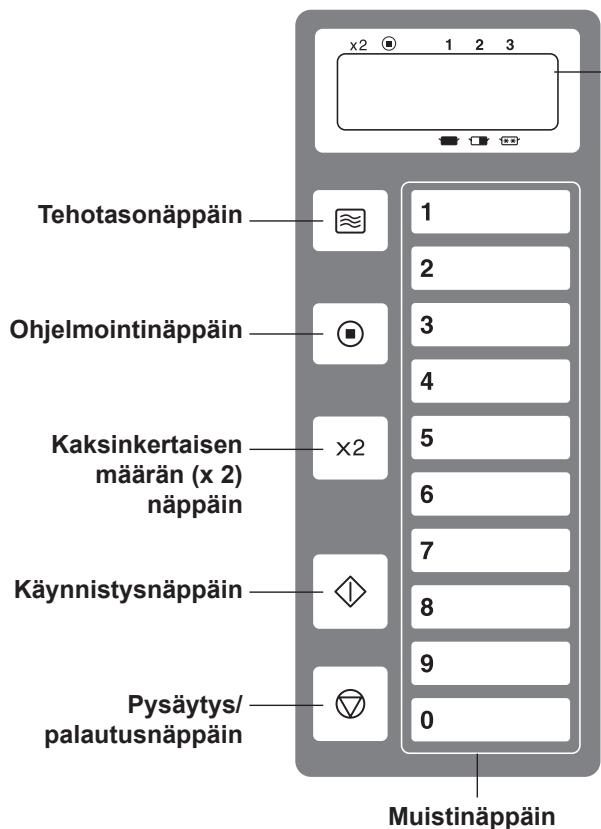

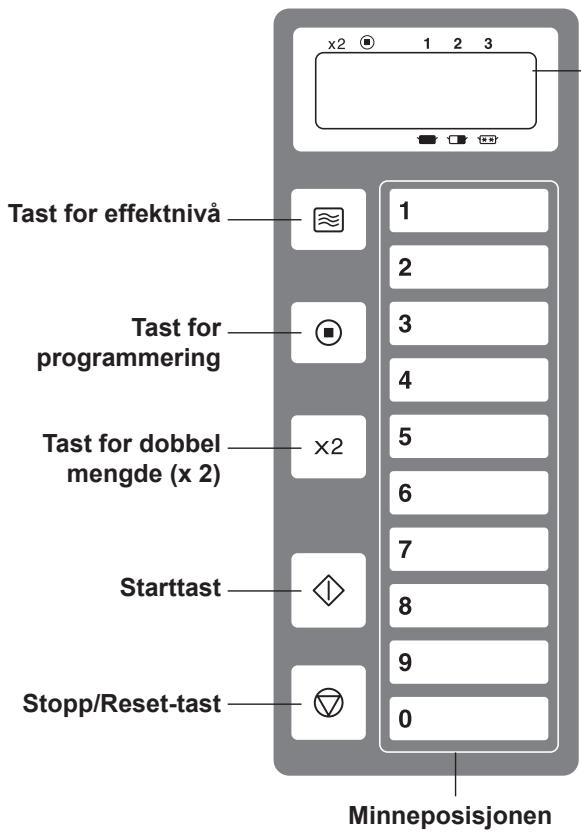

Control Panel

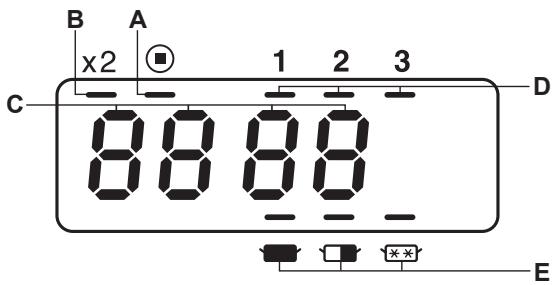

Digital Display Window

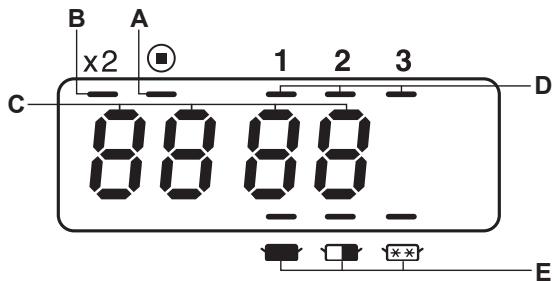

Indicator Locations

A - Program Change Indicator
B - Double Quantity (x 2) Heating Indicator
C - Memory Pad Number and Heating Time Display (min. sec.)
D - Stage Heating Indicator
E - Power Level Indicator

1000 W

500 W

340 W (Defrost)

How to Operate

This oven is preset at the factory for the following

1. Memory Pads preset to 1000 W at the indicated heating times for single stage heating.

Pad No.	1	2	3	4	5	6	7	8	9	0
Time	10 sec.	20 sec.	30 sec.	45 sec.	1 min.	1 min. 30 sec.	2 min.	2 min. 30 sec.	3 min.	3 min. 30 sec.

The Double Quantity (x 2) Pad preset to automatically double the programmed time of each Memory Pad. (See pages 15, 18)

1. Program Unlock. (See page 19)
2. Cycle counter set to "0". (See page 21)

Display

The display will flash "0".

• continuously if door is not opened to remove the food.

Oven Lamp

Oven lamp will be turned on, when:

door is opened.
heating starts.

Oven lamp will be turned off, when:

• door is closed (no heating).
  heating finishes.

Stop/Reset Pad

1. While heating, one touch on the Stop/Reset Pad stops the oven. You can restart by pressing the Start Pad or a second touch on the Stop/Reset Pad will cancel the selected program.
2. One touch on the Stop/Reset Pad, before the heating cycle is started, will cancel the selected program.

How to Operate

A. Manual Heating

Open the door and place food in the oven cavity. Close the door.

"0" must be showing in the display window.

Manual Single Stage Heating:

This feature gives the user maximum flexibility to set the oven to desired heating time and power level.

This is ideal for menus that require various heating requirements.

Example: To heat for 2 minutes at 1000W

	PAD	INSTRUCTION
1.		·Select the desired power level. 1000 W press once 500 W press twice 340 W (Defrost) press 3 times	1 -
2.	2 0 0	·Select the desired heating time by pressing the Memory Pads. up to 30 minutes up to 99 minutes 99 seconds	1 200 -
3.		·Press the Start Pad. Heating will start. The time on digital display will count down.	1 159
4.	Beep tone will sound. (See page 21)	·All heating will stop. When opening the door, the display will stop blinking.	0

How to Operate

Manual 2 or 3 Stages Heating:

This feature allows you to set to begin heating at one power level then shift automatically to a different power level after the designated length of heating time.

Example: To heat for 2 minutes at 340W for 2 stage heating

	PAD	INSTRUCTION
		·Follow steps 1 and 2 on page 13.
3.		·Press the Power Level Pad 3 times. Indicator will change each time the pad is pressed. “*” is now displayed. The stage “2” is blinking.	1 2 - -
4.	2	·Press the Memory Pads 2, 0 and 0.	1 2 200 - -
	0
	0
5.		·Press the Start Pad. The total time for both stages will be displayed. The stage “1” and the power level “*” blink. The oven lamp will be turned on. Heating will start and the time will count down. ·When oven shifts to the next stage, a single beep tone will sound. The stage “2” and the power level “*” blink.	1 2 400 - -
		·When opening the door, the display will stop blinking.	2 159 - -
6.	Beep tone will sound. (See page 21)	·All heating will stop. When opening the door, the display will stop blinking.	0 0 - -

NOTE: • For 3 stages heating, repeat steps 3 and 4 above before pressing Start Pad.

SPECIAL NOTE: For both single and 2 or 3 stages heating.

• The maximum cooking time for "—" (1000 W) is up to 30 minutes.

How to Operate

B. Programmed Heating

Example: 1 stage; Memory Pad 9 to heat for 3 minutes at 1000 W

	PAD	INSTRUCTION
1.	9	• Press the Memory Pad 9. In Program Lock Mode the oven will start without pressing the Start Pad. (See page 19)	1 9
2.	◇	• Press the Start Pad. Heating will start. The time on digital display will count down.	1 259
3.	Beep tone will sound. (See page 21)	• All heating will stop. When opening the door, the display will stop blinking.	0

Example: 2 stages; Memory Pad 3 to heat for 3 minutes at 1000 ~W and 2 minutes at 340 ~W

	PAD	INSTRUCTION
1.	3	• Press the Memory Pad 3. In Program Lock Mode the oven will start without pressing the Start Pad. (See page 19)	1 2 3
2.	◇	• Press the Start Pad. The total time for both stages will be displayed. The time on digital display will count down. Heating will start. • When the oven shifts to the next stage, a single beep tone will sound.	1 2 4 5 9 2 15 9 3
3.	Beep tone will sound. (See page 21)	• All heating will stop. When opening the door, the display will stop blinking.	0

For Double Quantity Heating

The Double Quantity (x 2) Pad is preset at the factory to automatically double the programmed time for double quantity heating. (See page 18 for programming the Double Quantity (x 2) Pad.)

Example: Memory Pad 5

	PAD	INSTRUCTION
1.	x2	• Press the Double Quantity (x 2) Pad.	x2 ⊙
2.	5	• Press the Memory Pad 5. In Program Lock Mode the oven will start without pressing the Start Pad. (See page 19)	x2 ⊙ 1 5
3.	◇	• Press the Start Pad. Heating will start. The time on digital display will count down.	x2 ⊙ 1 159
4.	Beep tone will sound. (See page 21)	• All heating will stop. When opening the door, the display will stop blinking.	0

How to Operate

C. Programming

—DO NOT OPEN THE DOOR —

The display window MUST show "0" before programming.

Programming Memory Pads for Single Stage Heating:

Example: To program 30 seconds at 500W for Memory Pad 5

	PAD	INSTRUCTION
1.		• Press the Program Pad. Note: • If no “○” Indicator appeared on display, “Program Lock” should be cancelled. (See page 19)
2.	5	• Press the Memory Pad 5. The pad number and the previously selected time and power level will appear in the display. • The pad number and Stage Heating Indicator will appear in the display again.
3.		• Press the Power Level Pad twice. The Memory Pad number will go out.
4.	3	• Press Memory Pads 3 and 0.
	0
5.		• Press the Program Pad again. You have completed programming the selected Memory Pad for single stage heating. Double heating time for multiple portion heating was automatically set. • 2 seconds later, the time and power level setting you programmed will appear in the display. • 2 seconds later, Double Quantity (x 2) Heating Indicator and then the double heating time will appear in the display. • 2 seconds later, the display will show “0”. The Memory Pad 5 is now programmed for heating -30 seconds at 500 W.

NOTE: · Program the remaining Memory Pads as desired by repeating steps 1 to 5. You may insert up to 10 memory programs.
- When the Program indicator “ 口 ” is blinking, the program can be cancelled and/or the pad number erased by pressing the Stop/Reset Pad.

How to Operate

Programming Memory Pads for 2 or 3 Stages Heating:

Example: To program for 2 minutes at 340W for 2 stage heating using Memory Pad 5

	PAD	INSTRUCTION
		·Complete steps 1 to 4 on page 16.	30
5.		·Press the Power Level Pad 3 times. “××” is now displayed.	1 2
6.	2	·Press the Memory Pads 2, 0 and 0.	200
	0
	0
7.		·Press the Program Pad again. You have completed programming the selected Memory Pad for 2 stages heating. Double heating time for double quantity heating was automatically set.	1 2 5
		·2 seconds later, the display will confirm your programming.	1 30
			200
			x2 1 2 5
			x2 1 100
			x2 1 400
		·After all of your programming has been completed, the display will show “0”.	0

NOTE: • Program the remaining Memory Pads as desired by repeating the steps above. DO NOT OPEN THE OVEN DOOR during programming.
- For 3 stages heating, select a further power level and set the desired heating time between steps 6 and 7 above.

How to Operate

Programming the Double Quantity (x 2) Pad:

Your oven is preset at the factory to automatically double the programmed time for multiple portion heating. This model allows you to customize the heating time and/or power level for multiple portions of your menu items. For example, if Memory Pad 2 is set for 20 seconds at 1000 W, 40 seconds at 1000 W is set for double quantity heating automatically. However, if your own tests have determined that the correct heating time required for two portions is less (only 30 seconds at 1000 W), you can program as shown below.

Example: To program 30 seconds at 1000 W on double quantity of Memory Pad 2 (display must show "0")

	PAD	INSTRUCTION
1.		• Press the Program Pad. Note: • If no “®” Indicator appeared on display, “Program Lock” should be cancelled. (See page 19)
2.	×2	• Press Double Quantity (x 2) Pad.	x2® →
3.	2	• Press the Memory Pad 2. The pad number and the previously selected time and power level for double quantity heating will briefly appear in the display. • The pad number and Stage Heating Indicator will reappear in the display.	x2® 1 2 x2® 1 40 x2® 1 2
4.		• Press the Power Level Pad once. The Memory Pad number will go out.	x2® 1 →
5.	3	• Press Memory Pads 3 and 0.	x2® 1 30 =
	0
6.		• Press the Program Pad again. You have completed programming the selected Memory Pad for double quantity heating. • 2 seconds later, the display will confirm your programming. • 2 seconds later, the display will show “0”.	x2® 1 2 x2® 1 30 0

NOTE: · Program the remaining Memory Pads as desired by repeating steps 1 to 6 above. You may insert up to 10 memory programs.

• When the Program indicator “ ” is blinking, the program can be cancelled and/or the pad number erased by pressing the Stop/Reset Pad.

How to Operate

D. Program Lock

To Activate Program Lock:

This procedure locks the Memory Pads into their programmed heating times and power levels. DO NOT OPEN THE DOOR.

	PAD	INSTRUCTION
		·The display window must show “0”.	0
1.		·Press and hold the Program Pad (for 5 seconds) until the display shows “P” and “L”.·Program Lock feature is now activated.	● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●	● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ★

NOTE: • In "Program Lock"

a. The oven is started by pressing the desired Memory Pad. There is no need to press the Start Pad.
b. The oven cannot be programmed until the Program Lock is released.

To Release Program Lock:

This procedure releases "Program Lock" and activates all other features. The Oven reverts to a 2 touch operating mode (Memory Pad plus Start Pad).

DO NOT OPEN THE DOOR.

	PAD	INSTRUCTION
		·The display window must show “0”.	0
1.	+	·Press the Stop/Reset Pad. While pressing this pad, press the Program Pad (for 5 seconds) until the display shows “P”. ·Program Lock feature is now released.	◎ ▶ ◎ ● ●

NOTE: · In "Program Unlock"

a. Repeat and interrupt features are operational.
b. Memory Pads can be programmed.
c. Beep Tone can be set On or Off.

How to Operate

E. To Read Program List

Allows you to review all currently programmed pad number, heating time and power level for each stage.

	PAD	INSTRUCTION
1.		· Open the door.	0
2.	+	· While pressing the Stop/Reset Pad, press the Start Pad. The beep tone setting will be shown in the display window. Example: Stage Indicator 1: Beep tone is ON. Stage Indicator 2: Beep tone is OFF. · 2 seconds later, the Program Lock setting will be shown in the display window. Program Lock: “P L” Program Unlock: “P”	1 bEEP P L
3.	5	· Press the Memory Pad you desire to read the program. Example: The Memory Pad 5. The display window will show; Program Memory Pad 5, first stage heating time and power level currently programmed on Memory Pad. · 2 seconds later, the information of 2nd and 3rd stage heating will be displayed. · After all settings have been displayed, the pad number and the Stage Heating Indicator will appear in the display again.	1 2 5 1 30 2 20 3 1 2 5

NOTE: If you want to go to another program, press the Memory Pad you desire in order to read the program, while the information of Memory Pad is being displayed.
- If you want to see the Double Quantity (x 2) Heating program, press the Double Quantity (x 2) Pad before pressing the Memory Pad.

How to Operate

F. To Select Beep Tone Options

The Beep Tone can be set, ON or OFF.

	PAD	INSTRUCTION
1.		• Open the door.	0
2.		• Press Program Pad.	0
3.		• Press Start Pad.	1 BEEP
4.		• Press Start Pad. Select “OFF” of Beep Tone. Stage Indicator 1 = ON Stage Indicator 2 = OFF	2 BEEP
5.		• Press the Program Pad again. You have completed programming the beep tone. • 2 seconds later, “0” will appear in the display.	3 BEEP

G. To Read the Cycle Counter

The oven can display the total number of times the oven has been operated cumulatively. This may be used to analyze usage of the oven and traffic flow at the location.

	PAD	INSTRUCTION
1.		·Open the door.	0
2.	+	·While pressing Stop/Reset Pad, press Power Level Pad. The display shows the total cumulative number of times the oven has been used. Example: ·“9999” means the oven has been used 999,900 to 999,999 times. ·“0020” means the oven has been used 2,000 to 2,099 times. ·If the total cumulative number of times is less than 100 times, the display will not be changed. ·2 seconds later, “0” will appear in the display window.	9999
			0

Self Diagnostics Failure Code

The oven monitors its operation and displays a Failure Code in the display window when a problem occurs.

What to do when a failure code appears:

CODE	CAUSE	WHAT TO DO
F01	* Overcooked food * Temperature of exhausted air is too high	* Press Stop/Reset Pad to stop beep. * Unplug the oven and wait at least 30 minutes before reconnecting. * Wait for the oven to cool down and reset. * If a flame is observed, do not open the oven door. * If normal operation does not resume, call the service agent with the information of failure code.
F33-34	* Defective sensor circuit	* Unplug the oven and wait more than 10 seconds before reconnecting. * If normal operation does not resume, call the service agent with the information of failure code.
F44	* When a pad was pressed for more than 2 minutes * Defective pad or control circuit

NOTE: Above codes shown in the display do not indicate all the possible failures on the unit.

Care of Your Microwave Oven

1. Unplug the oven before cleaning.
2. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to the oven walls, wipe with a damp paper towel. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surfaces should be cleaned with a damp paper towel. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. If the Control Panel becomes dirty, clean it with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning, press the Stop/Reset Pad to clear the display window.

5. If steam accumulates inside or around the outside of the oven door, wipe with a soft paper towel. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. Clean off the grease and dust on bottom surfaces often. Use warm detergent solution.
7. This oven should only be serviced by qualified person. For maintenance and repair of the oven contact the nearest authorized dealer.

Cooking/Defrosting Guide

The times given in the chart below are a guideline only. Many factors eg starting temperature of the food can affect the final heating time required. The cooking and defrosting times must be adjusted when necessary.

All times are tested using foods at starting temperatures as below:

Chilled foods.....Approx. +5^

Frozen foods.....Approx. -18 °C

Always check for the correct core temperature with a temperature probe to comply with current Government Food Hygiene Regulations.

Function	Food	Weight	Power Level	Time
Defrosting	Fish Fillets	500 g	340 W	8 min.
	Minced Beef	500 g	340 W	5 min.
	Whole Chicken	1.36 kg	340 W	25 min.
	Composite Dish
	Multi portion	1.36 kg	340 W	20 min.
	Single portion	275 g	340 W	8 min.
	Apple Pie	1 portion	340 W	1 min. 15 sec.
	Gateau	1 portion	340 W	2 min.
	Bread Rolls	1 portion 50 g	340 W	30 sec.
Cooking from Chilled Raw Food	Scrambled Egg	2 eggs + 2 tbsp. milk	1000 W	45 sec.
	Broccoli	500 g	1000 W	6 min.
	Fish Fillets	500 g	1000 W	4 min.
	Bacon	2 rashers	1000 W	1 min. 30 sec.
	Chicken Portions	500 g	1000 W	5 min. 30 sec. - 6 min. 30 sec.
Cooking and/or Reheating from Frozen	Peas	500 g	1000 W	8 min.
	Cooked Rice	167 g	1000 W	2 min. 20 sec. - 2 min. 45 sec.
	Cooked Sausages	x 3 (50 g each)	1000 W	1 min. 20 sec. - 1 min. 45 sec.
	Cooked Wings of Fire	x 7 pieces	1000 W	2 min. - 2 min. 20 sec.
	Cooked Boxed Cheeseburger	75 g	1000 W	1 min. 30 sec. - 1 min. 45 sec.
	Chocolate Fudge Cake	1 portion	340 W	30 sec.
Reheating from Cooked Chilled	Lasagne	325 g	1000 W	3 min. 45 sec. - 4 min. 15 sec.
	Chilli	325 g	1000 W	3 min. 30 sec. - 4 min.
	Apple Pie	1 portion	1000 W	30 sec.
	Pepper Sauce	100 ml	1000 W	1 min. - 1 min. 15 sec.
	Baked Beans	100 ml	1000 W	1 min. 15 sec. - 1 min. 30 sec.
	Soup	125 ml	1000 W	1 min. 30 sec. - 1 min. 45 sec.

HINTS: • Do not cook/reheat/defrost directly onto the base of the oven — use a suitable container.

• When defrosting multi portions of foods, turn over and break apart halfway through defrost time to allow better penetration of microwave energy.
• Solid/dense foods should not be cooked from frozen as they will be overcooked round the edges before the centre has reached the required temperature.
• Cover dishes where appropriate during cooking/reheating. This will retain moisture and prevent splashing/spillages.
• Loosen lids/pierce clingfilm before cooking/reheating covered foods.
• Stir or shake foods halfway through cooking/defrosting time to distribute the heat evenly.
• Allow a Stand Time before food temperature is checked and/or offered for consumption.

Technical Specification

	NE-1037
Power Source	230 V, 50 Hz, single phase
Required Power	6.6 A 1490 W
Output	1000 W*500 W340 W
Frequency	2450 MHz
Outer Dimensions(W × D × H)	510 mm × 360 mm × 306 mm
Cavity Dimensions(W × D × H)	330 mm × 330 mm × 200 mm
Net Weight	18.6 kg
Noise	59 dB
Shipping Weight	21 kg
Memory	10 Memory Pads with Double Quantity (x 2) Pad

• IEC Test Procedure
  Specifications subject to change without notice.

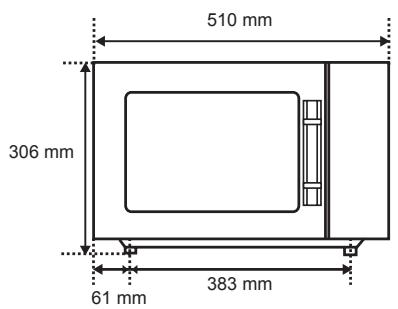

Front View

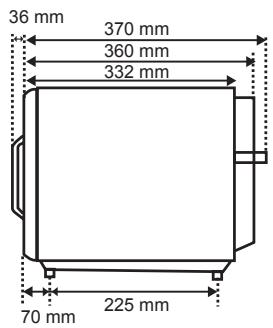

Side View

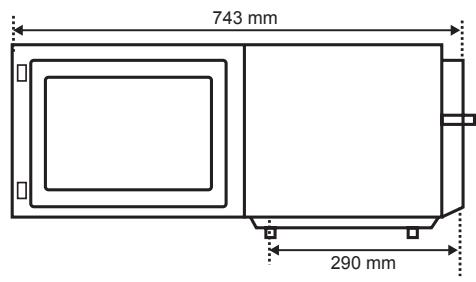

Side View with Opened Door

NE PAS OUVRIR LA PORTE.

	TOUCHE	INSTRUCTIONS
		• «0» doit s'afficher.	0
1.		• Maintenez la Touche Programme enfoncée (pendant 5 secondes) jusqu'à ce que «P» et «L» s'affichent. • La fonction Verrouillage des Programmes est maintainant activée.	② → ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -

REMARQUE: · En mode «Verrouillage des Programmes»

ÖPPNA INTE UGNSLUCKAN.

	KNAPP	ANVISNING
		• Displayfönstret@måste visa“0”.	0
1.		• Häll in programknappen tills displayen visar“P” och“L”(ca fem sekunder).	◎
		• Programlåsetär nu aktiverat.	PL

ANM.: Då programlåset ar aktiverat

ÖPPNA INTE UGNSLUCKAN.

1006 Oaza Kadoma, Kadoma City, Osaka, Japan

Importert av: Panasonic Marketing Europe GmbH

Kontakt: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland.

Oversiktsdiagram

Kontrollpanel

Digitalt display Plassering av indikatorer i det

A. Manuell oppvarming

B. Programmert oppvarming

1006 Oaza Kadoma, Kadoma City, Osaka, Japan

Maahantuoja: Panasonic Marketing

Europe GmbH

Winsberging 15, 22525 Hamburg,

Germany.

Uunin kaaviokuva

Ohjauspaneeli

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
