USER MANUAL KM 8680 GRUNDIG

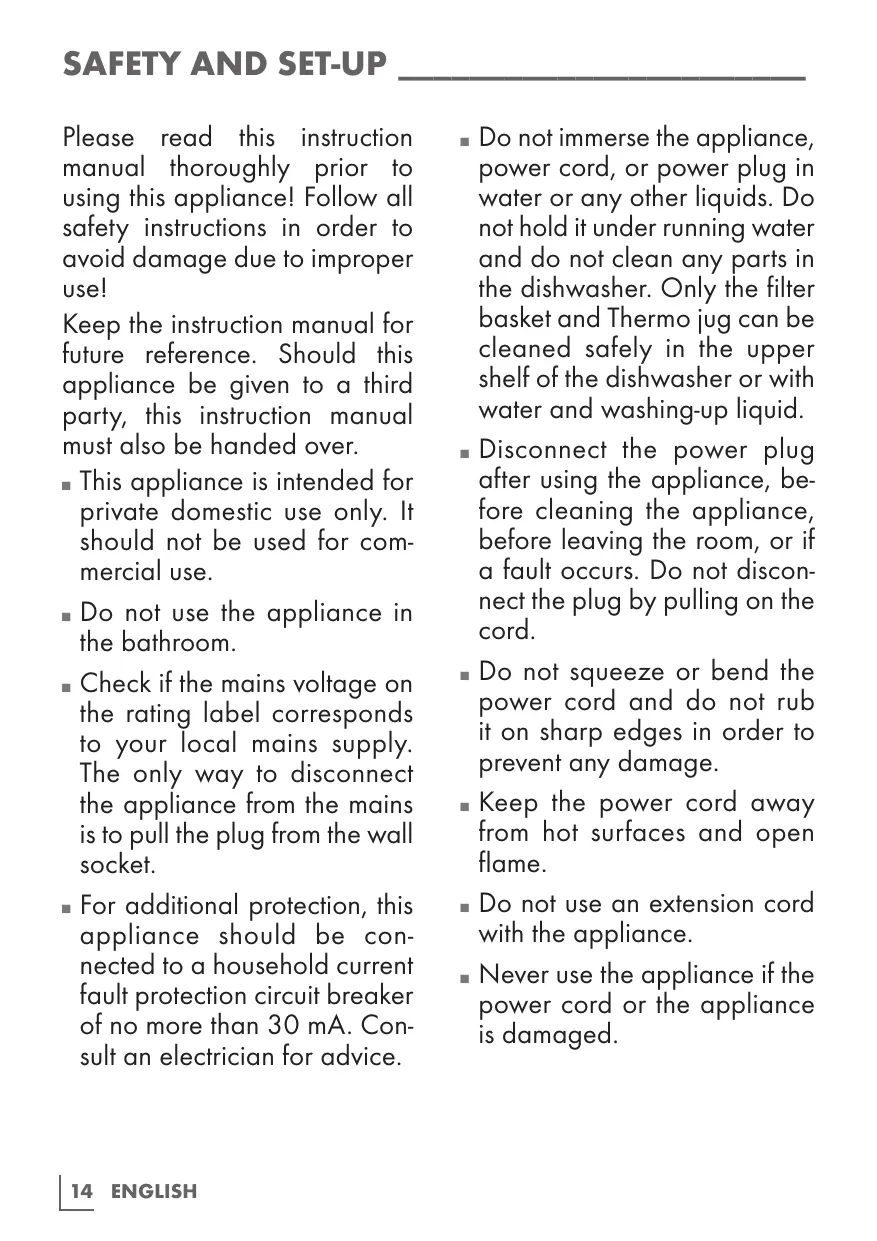

SAFETY AND SET-UP________________________ Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, this instruction manual must also be handed over. This appliance is intended for private domestic use only. It should not be used for commercial use. Do not use the appliance in the bathroom. Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull the plug from the wall socket. For additional protection, this appliance should be connected to a household current fault protection circuit breaker of no more than 30 mA. Consult an electrician for advice.

Do not immerse the appliance, power cord, or power plug in water or any other liquids. Do not hold it under running water and do not clean any parts in the dishwasher. Only the filter basket and Thermo jug can be cleaned safely in the upper shelf of the dishwasher or with water and washing-up liquid.

Disconnect the power plug after using the appliance, before cleaning the appliance, before leaving the room, or if a fault occurs. Do not disconnect the plug by pulling on the cord. Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the power cord away from hot surfaces and open flame. Do not use an extension cord with the appliance. Never use the appliance if the power cord or the appliance is damaged.

SAFETY AND SET-UP________________________

Our GRUNDIG Household

Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by an authorised service centre to avoid any dangers. Faulty or unqualified repair work may be dangerous and cause risk to the user. Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling. Always keep the appliance out of the reach of children. Always keep the appliance and its cord out of reach of children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall

not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. Before and after using the appliance for the first time, clean all parts which come into contact with water or coffee carefully. Please see full details in the “Cleaning and Care” section. Dry the appliance and all accessories before connecting it to mains supply and before attaching any parts. Never operate or place any part of this appliance on or near hot surfaces such as a gas burner, hotplate or heated oven. Do not use the appliance for anything other than its intended use. The coffee maker is designed for preparing coffee. Do not use the appliance to heat any other liquids or tinned, jarred, and bottled foods. Never use the appliance in or near to combustible or inflammable places and materials. ENGLISH 15

SAFETY AND SET-UP________________________

Operate the appliance only with the delivered parts.

Any misuse would result in potential injury. Do not use the appliance with damp or wet hands. Always use the appliance on a stable, flat, clean, dry, and non-slip surface. Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use. Position the appliance in such a way that the plug is always accessible. Avoid contact with hot surfaces and hold the thermo jug by the handle only as there is the danger of burning. The thermo jug becomes hot during use. Do not move the appliance while there is hot liquid in the thermo jug or if the appliance is still hot. Do not open the cover or filter basket during the brewing process.

Never fill the appliance above the maximum level indicator. If it is filled above the maximum level, water flows out of the appliance through the safety drainage.

Never operate the appliance if brewing or keeping the coffee hot is not required. Only fill the appliance with cold and fresh drinking water. The appliance should not be operated with an external clock timer or a separate remote control system. Use the thermo jug only with the coffee maker. Never operate the appliance without water inside. Do not use the thermo jug if it is cracked or the handle is loose or weakened.

AT A GLANCE______________________________

Dear Customer, Congratulations on the purchase of your new GRUNDIG Coffee Maker KM 8680 Please read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers.

We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

For a good reason. Grundig.

See the figure on page 3.

A Water tank / Filter basket cover

C Water level indicator / Water tank

G H Plate for thermo jug

Cable winding unit (beneath base unit)

I Anti-drip filter basket

J Coffee measuring spoon

OPERATION_______________________________

Preparation Caution ██ First time use: Run the appliance at least 4 times without adding coffee. Please follow the steps 1 and 6 - 11 in the “Brewing Coffee” section. 1 Remove all packaging and stickers and dispose of them according to applicable legal regulations. ██

2 Before using the appliance for the first time, clean all parts which come into contact with water carefully. Please see full details in the

“Cleaning and Care” section. 3 Make sure that the appliance is placed in an upright position and on a stable, flat, clean, dry and non-slip surface.

1 Open the water tank / filter basket cover and fill in the water up to “max” level. Notes ██ The scale on the thermo jug is marked in coffee cups, e.g. 4 = 4 cups. For good coffee taste it is suggested to operate the appliance with at least 4 cups coffee serving. The brewed amount of coffee will be 10% less than the filled water, because some water is absorbed by the coffee grounds and the fillter. ██ Use only clean, cold and fresh drinking water. ██ There is a drip hole on the back of the water reservoir to prevent exceeding the capacity of the coffee maker. If you add too much water, it will drip out from the back of the unit. 2 Pull out the filter basket I . 3 Take a suitable paper filter (1 x 4) and insert the paper filter into the filter basket I .

██ Use only one paper filter at each time. Make sure that the paper filter does not bend or fold. 4 Fill the filter with the desired amount of ground coffee. To do this, you may use the supplied measuring spoon J . 5 Insert the filter basket I back into the housing and close the cover B . 6 Place the thermo jug G.

on the warming plate

██ If the filter basket I is not closed or the thermo jug F is not placed accurately, the drip-stop function will not work properly. It could cause hot water or hot coffee to overflow. 7 Connect the plug to the wall socket. 8 Turn the appliance on by pushing the On/Off button E . – The On/Off button E illuminates and the brewing process begins. Notes ██ The brewing process can be stopped at any time by pushing the On/Off button E again. ██ The appliance is equipped with a drip-stop located underneath the filter basket I and enables you to briefly remove the thermo jug F to pour coffee before the water has finished running through the machine. ██ After your coffee is ready, the machine will be shut-off automatically , thermo jug will keep your coffee warm. Caution ██ Make sure to place the thermo jug F on the plate G quickly (max. 30 seconds). Otherwise the brewed coffee from the filter could overflow. If you want to use the thermo jug for more than 30 seconds switch off the appliance. ██ Never pull out the filter basket I during the brewing process even if no water is draining from the filter. Extremely hot water or coffee can spill out from the filter basket and cause injury.

OPERATION_______________________________

If water/coffee is not draining from the filter basket I after several seconds with the thermo jug F properly in place immediately unplug the unit and wait 10 minutes before opening and checking the filter basket I .

When the brewing process ends and the water level indicator C is empty, there will still be hot liquid in the filter basket I . Wait a few minutes for the rest of the liquid to drip into the thermo jug F .

██ The device is equipped with a button to intensify the coffee aroma.

2 Press On/Off button will be turned on.

. On/Off button light

9 Remove the thermo jug F from the plate G as soon as the brewing process has finished and the thermo jug is filled. The coffee is ready.

10 To turn the appliance off, push the On/Off button E . 11 Disconnect the appliance from the wall socket. Notes ██ If you want to continue the brewing process, repeat the procedure from 1 to 11. Let the appliance cool down at least 15 minutes between each brewing process. ██ For a better aroma, use aroma button D which activates a unique brewing process that enhances the flavor and aroma of your coffee. To reach this rich flavor, the coffee maker advances through several continuous cycles. This special time-release process saturates grounds gradually to extract the best flavor and aroma. Hints and Tips ██ Use softened or filtered water to prevent lime scale build-up. ██

Store unused coffee in a cool, dry place. After opening a package of coffee reseal it tightly to maintain its freshness.

Do not reuse the coffee sediment in the filter since this will reduce the flavor. Reheating coffee is not recommended as coffee is at its peak flavour immediately after brewing.

INFORMATION_ ___________________________

Descaling the appliance

██ Never use petrol, solvents, abrasive cleaners, or metal objects and hard brushes to clean the appliance. ██ Never put the appliance or power cord in water or any other liquid.

Descaling extends the life of your appliance.

Descale your coffee maker at least 4 times per year. The period depends on the water hardness in your area. The harder the water is, the more often the appliance has to be descaled. 1 Purchase a suitable descaler from a speciality store. Please ask naming the device.

1 Turn the appliance off and disconnect it from the wall socket.

2 Allow the appliance to cool down. 3 Remove the thermo jug 4 Open the cover

5 Pull out the filter basket I . Remove the paper filter with the coffee sediment and dispose of it.

6 Clean the filter basket cover I by placing it under running water and using a small amount of mild cleanser. The filter basket I and thermo jug F can be cleaned in the upper shelf of the dishwasher or under running water. 7 Use a damp soft cloth and some mild cleanser to clean the exterior of the appliance.

2 Prior to commencing the descaling process thoroughly read the manufacturer’s package insert of the descaler. Should the manufacturer’s instructions differ from the ones listed below, then follow the manufacturer’s instructions.

Note ██ You can also use white vinegar and lemon acid instead of a commercially available descaler. 3 Fill the water tank to the “10” mark and add the descaler. Mixing ratio: 4 parts water to 1 part descaler. 4 Turn the appliance on and allow approximately one large coffee cup to run through the appliance.

8 Insert the filter basket I back into the housing and close the cover B .

5 Turn the appliance off.

██ Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

6 Let the mixture soak for about 15 minutes.

8 Now turn the appliance on and let the entire mixture run through. 9 Fill the water tank with cold, fresh drinking water and run all the water through. 10 Repeat step 9 four times. 11 Now you may brew coffee again.

If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure the appliance is unplugged and completely dry. Store the appliance in a cool, dry place. Make sure the appliance is kept out of the reach of children.

Compliance with the WEEE

20 ENGLISH INFORMATION_ ___________________________

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Power supply: 220 - 240 V ~, 50-60 Hz

Power: 1000 W Technical and design modifications reserved.
