USER MANUAL CH 6860 GRUNDIG

Exterior view of a modern kitchen blender with a 500 W power and control knob (no text or symbols on the device itself)

DE

EN

TR

FR

HR

FI

NO

ANL

VRO

DEUTSCH 07-13

ENGLISH 14-20

TÜRKÇE 21-26

FRANÇAIS 27-33

ESPAÑOL 34-40

HRVATSKI 41-46

SUOMI 47-52

NORSK 53-58

NEDERLANDS 59-65

DANSK 66-71

SVENSKA 72-77

ROMÂNĂ 78-85

A B C MAX 1000 mL 750 mL 500 mL D E F G H

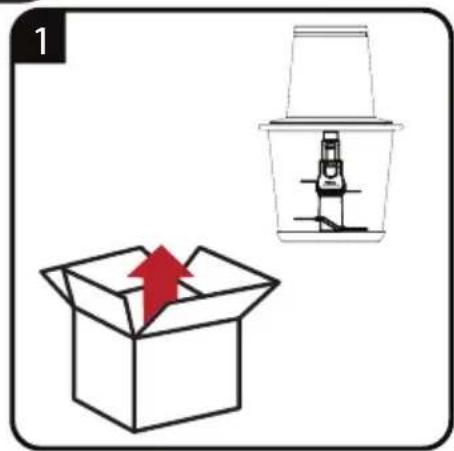

1

Line drawing of a blender with a handle and spout, no text or symbols present

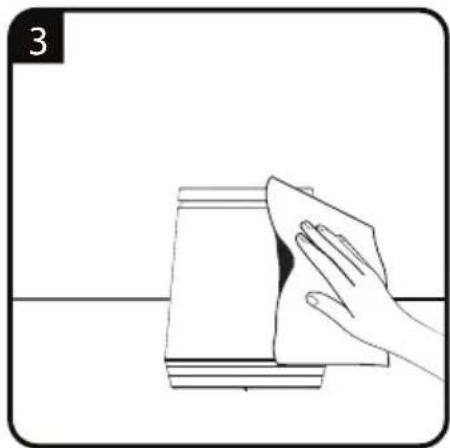

Hand cleaning a jar with a cloth (no text or symbols visible)

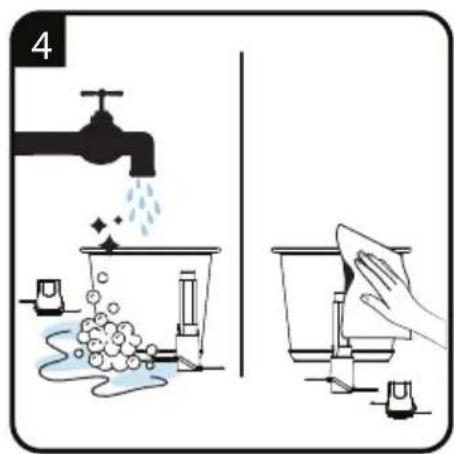

4

5 ↓ 2 ↓ 1

Illustration of a bucket filled with eggs and three round objects above it (no text or symbols)

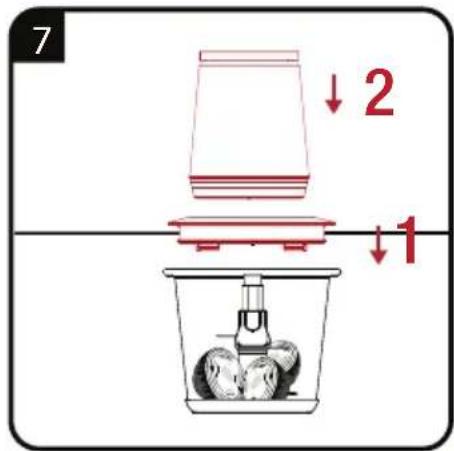

7 ↓ 2 ↓ 1

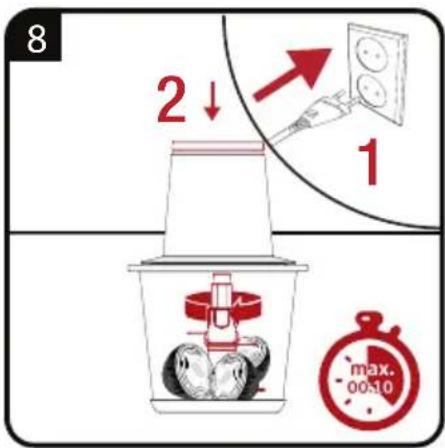

8 2 ↓ 1 max. 00:10

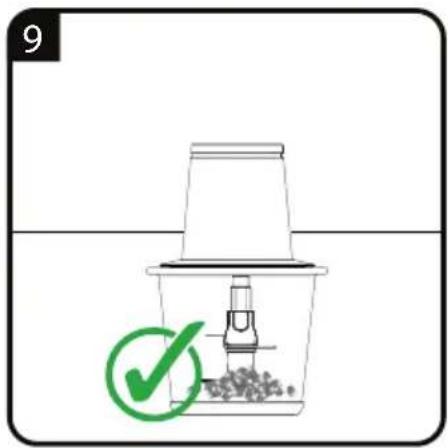

9

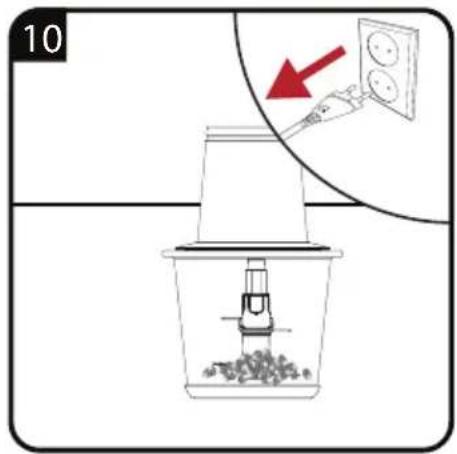

10

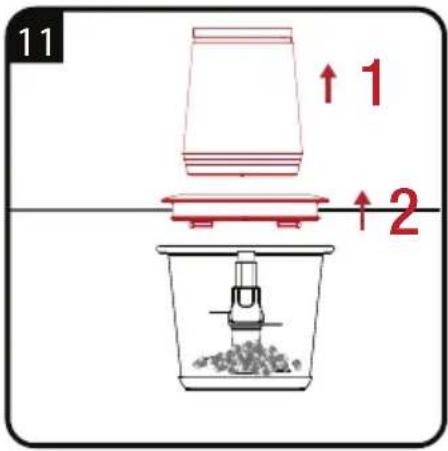

11 ↑ 1 ↑ 2

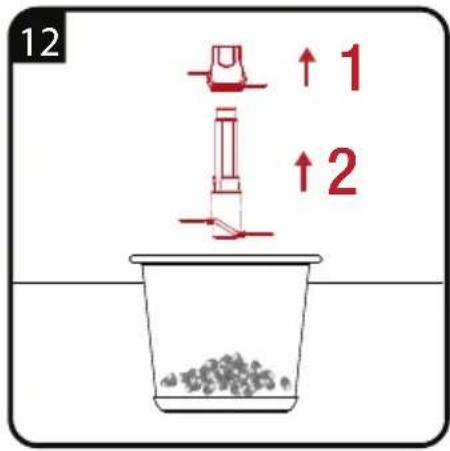

12 ↑ 1 ↑ 2

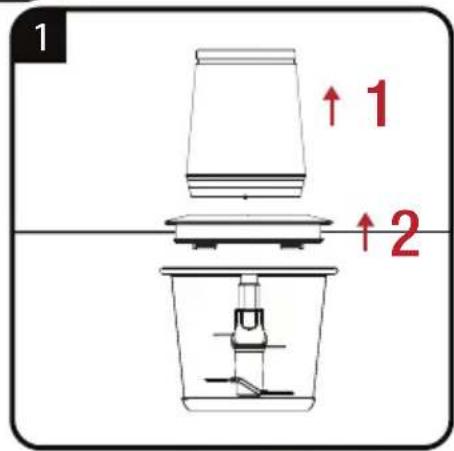

1 ↑ 1 ↑ 2

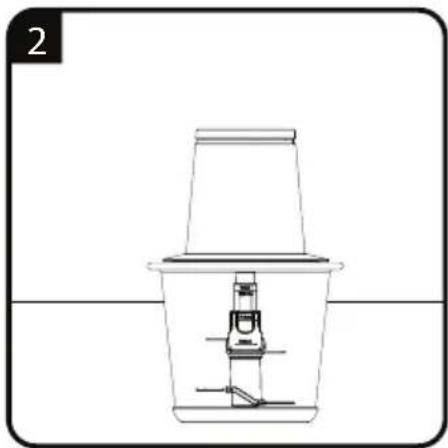

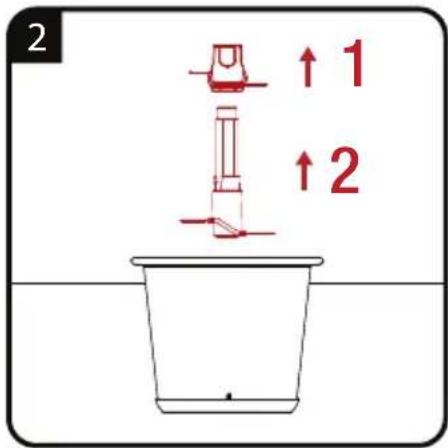

2 ↑ 1 ↑ 2

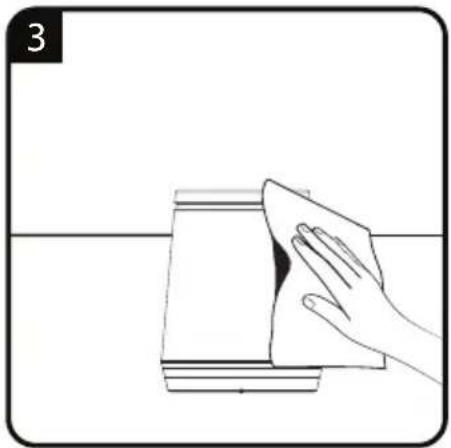

Illustration of a hand cleaning a jar with a cloth (no text or symbols)

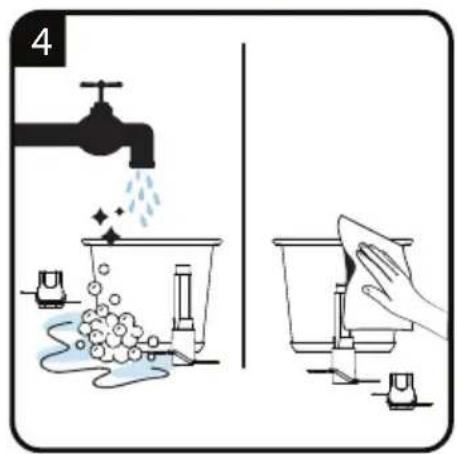

4

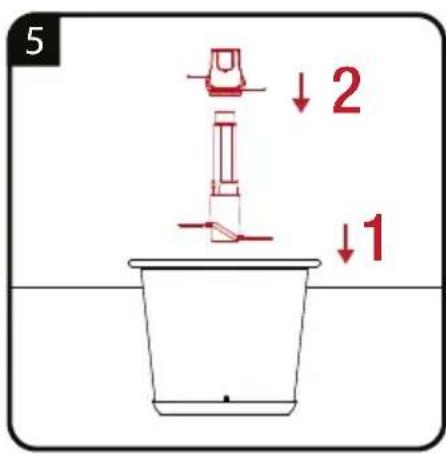

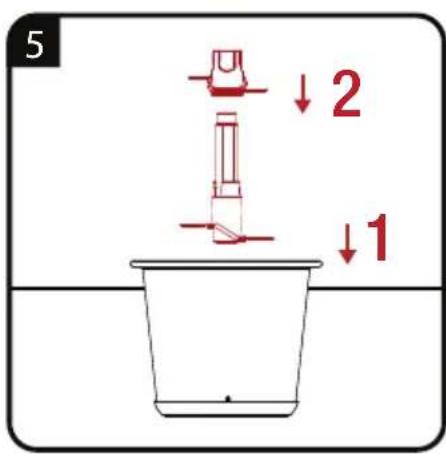

5 ↓ 2 ↓ 1

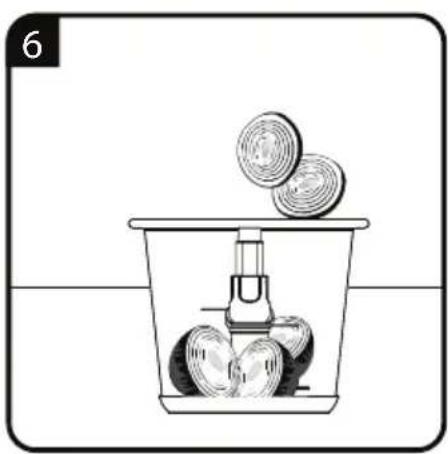

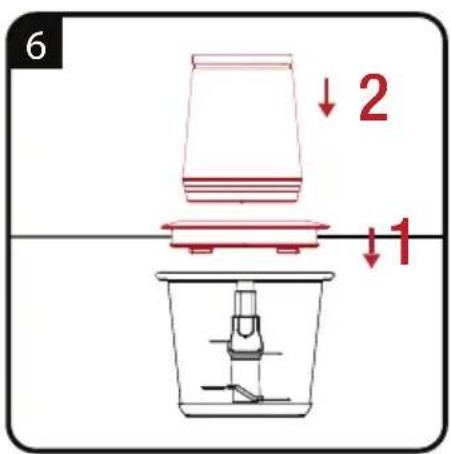

6 ↓ 2 ↓ 1

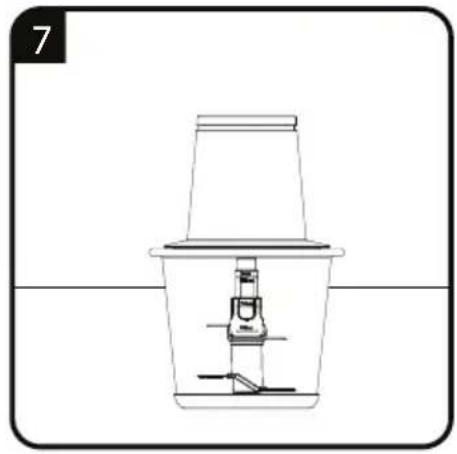

Line drawing of a blender with a handle and lid, no text or symbols present

DE	BETRIEB REINIGUNG UND	PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMIZLEME VE	BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMP	EZA Y CUIDADOS
HR	RAD ČIŠĆENJE I ODRŽAVANJE
FI	KÄYTTÖ PUHDISTUS JA HUOLTO
NO	DRIFT RENGJ∅RING OG VEDLIKEHOLD
NL	WERKING REINIGING EN	ONDERHOUD
DA	BETJENING RENG∅RING	OG VEDLIGEHOLDELSE
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
RO	UTILIZARE CURÃ AREA ŞI İNGRIJIREA

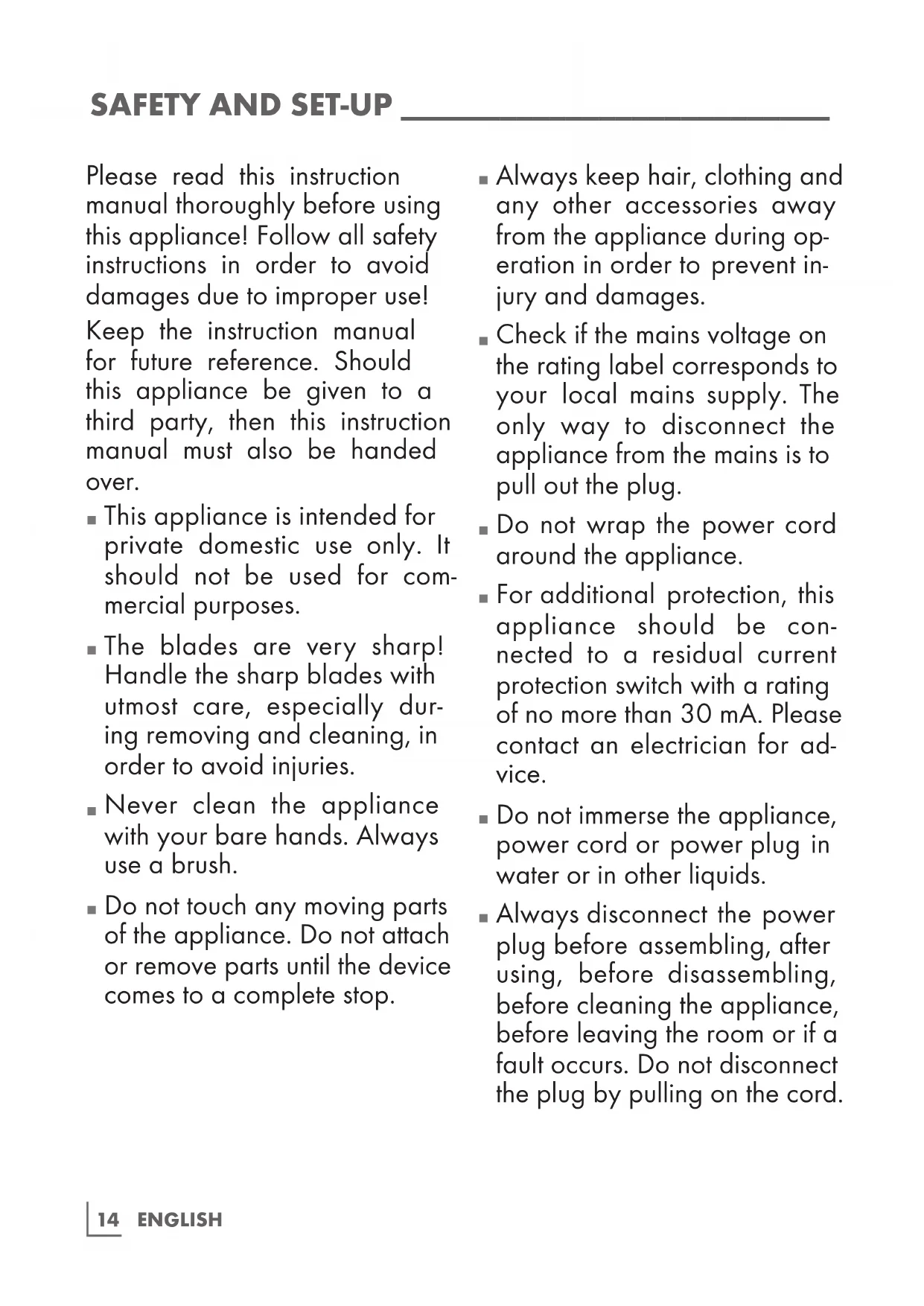

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ This appliance is intended for private domestic use only. It should not be used for commercial purposes.
■ The blades are very sharp! Handle the sharp blades with utmost care, especially during removing and cleaning, in order to avoid injuries.
■ Never clean the appliance with your bare hands. Always use a brush.
- Do not touch any moving parts of the appliance. Do not attach or remove parts until the device comes to a complete stop.

■ Always keep hair, clothing and any other accessories away from the appliance during operation in order to prevent injury and damages.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
■ Do not wrap the power cord around the appliance.
■ For additional protection, this appliance should be connected to a residual current protection switch with a rating of no more than 30 mA. Please contact an electrician for advice.
■ Do not immerse the appliance, power cord or power plug in water or in other liquids.
■ Always disconnect the power plug before assembling, after using, before disassembling, before cleaning the appliance, before leaving the room or if a fault occurs. Do not disconnect the plug by pulling on the cord.

• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.
  ■ Do not use an extension cord with the appliance.
  ■ Never use the appliance if the power cord or the appliance is damaged.
• Our GRUNDIG Household Appliances meet applicable safety standards; if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
• Keep the appliance and its cord out of reach of children.
  ■ This appliance shall not be used by children.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
■ Children shall not play with the appliance.
- Do not leave the appliance unattended when it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.
■ Before using the appliance for the first time clean all parts carefully which come into contact with food.

■ Dry the appliance and all parts before connecting it to the mains supply and before attaching the accessories.
■ Do not operate the appliance without ingredients in the bowl.
■ Never place the appliance, attachments, power cord or plug on or near hot surfaces such as gas or electric burners or heated oven and never use them with hot liquids or food.
■ Do not use the appliance for anything other than its intended use. It is designed for chopping food only.
■ Never use the appliance longer than necessary for processing the food.
■ Never use the appliance with damp or wet hands.
■ Operate the appliance with the delivered parts only.
■ The appliance has been designed for processing food in common household quantities.
- Do not use the appliance if the blades are damaged or show signs of wear.

■ Always use the appliance on a stable, flat, clean and dry surface.
■ Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
■ The appliance has to be positioned in such a way that the plug is always accessible.
■ A spatula may be used to remove the food from the bowl. In order to do this, the appliance must be switched off before.
■ This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
■ Remove bones and stones from food to prevent the blades and the appliance from damage.
■ Make sure that the lid is seated properly on the chopping bowl before switching on the appliance.

■ To prevent overheating, do not use the appliance continuously for more than 10 seconds. After operating the appliance for 10 seconds, switch it off and wait for 1 minute to let it cool down if you would like to use it another 10 seconds.
■ Hold the appliance firmly at the top while operating.
■ Run the appliance pulsewise instead of running it constantly.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Multi-Chopper CH 6860.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

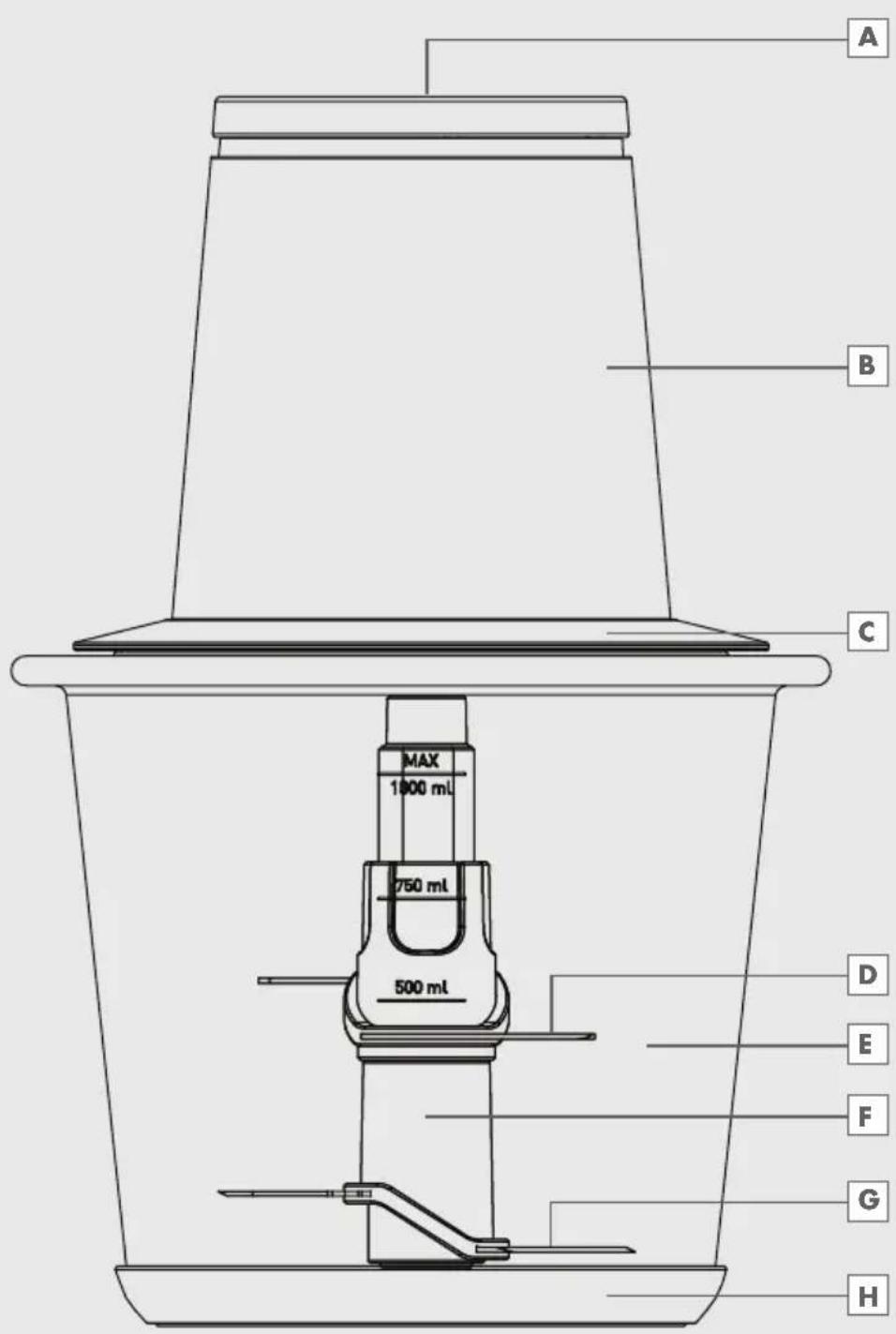

Controls and parts

See the figure on page 3.

A Operation switch
B Base unit
c Inner lid
D Upper blade
E Glass bowl
F Fixed shaft
G Lower blade
H Anti-slip rubber pad

Recipe idea Salsa

Ingredients:

3 tomatoes, seeded

1 red onion
1 garlic clove
1 red bell pepper
1 jalapeño chilli pepper, seeded
2 tablespoons fresh cilantro
12 teaspoon salt

Preparation:

Peel the onion and place it with the garlic, bell pepper and chilli pepper into the bowl of the appliance and operate it until the ingredients are coarsely chopped. Gradually add the tomatoes, cilantro and salt and pulse a few times until the ingredients are thoroughly mixed.

Notes

• Your chopper has been designed for processing small quantities of food and should not be used for any other purpose.
• Do not chop extremely hard ingredients such as coffee beans, nutmeg, grains, ice or bones. Remove stalks from herbs, shells from nuts and bones, tendons and gristle from meat.

■ The appliance should be unplugged when not in use.

Caution

- Do not touch the blades with your bare hands. The blades are very sharp.

■ Never immerse the base unit B or power cord in water or any other liquids and never hold them under running water.

INFORMATION

Cleaning and care

Caution

■ Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.
- Do not touch the chopping blade with your bare hands. The blades are very sharp. Use a brush!
■ Since the chopping blades are so sharp please be careful, while you are cleaning. They are not recommended to be cleaned into dishwasher.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life.

Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes.

Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220 - 240 V\~, 50-60 Hz

Power: 500 W

Technical and design modifications reserved.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that the appliance is unplugged and completely dry.
- Do not wrap the power cord around the appliance.
■ Store it in a cool, dry place.
■ Make sure the appliance is always kept out of the reach of children.

Handling and transportation

■ During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
■ Dropping the appliance will render it nonoperational or cause permanent damage.

Please see the cover page of the user manual for initial use, general use and cleaning sections.
