USER MANUAL MW2-MM20PF TOSHIBA

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

CONTENTS

CONTENTS 1
PRECAUTIONS 2
SPECIFICATIONS 2
IMPORTANT SAFETY INSTRUCTIONS 3-4
CLEANING 5
UTENSILS 5-6
SETUP&INSTALLATION 7-8
OPERATION 9
TROUBLE SHOOTING 10

PRECAUTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the life span of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	MW2-MM20PF(BK)	MW2-MM23PF(BK)
Rated Voltage:	230-240V~50Hz	230-240V~50Hz
Power Consumption (Microwave):	1200-1270W	1200-1250W
Rated Output Power (Microwave):	750-800W	750-800W
Oven Capacity:	20L	23L
Turntable Diameter:	Φ 255mm	Φ 288mm
Outside Dimensions (W x D x H):	440x357x259mm	485x405x293mm
Net Weight:	Approx. 11.4 kg	Approx. 13.0 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are supervised.
3. Keep the appliance and its cord away from children unless they are continuously supervised.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
16. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
17. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
18. This appliance is intended to be used in household and similar applications such as:
19. staff kitchen areas in shops, offices and other working environments;
20. by clients in hotels, motels and other residential type environments;
21. farm houses;
22. bed and breakfast type environments.
23. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
24. Metallic containers for food and beverages are not allowed during microwave cooking.

25. The appliance shall not be cleaned with a steam cleaner.

26. The appliance is intended to be used freestanding.

27. The rear surface of appliances shall be placed against a wall.
28. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip--For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

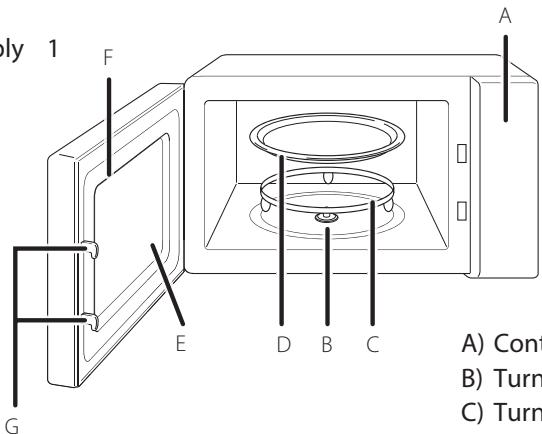

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Turntable Shaft 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

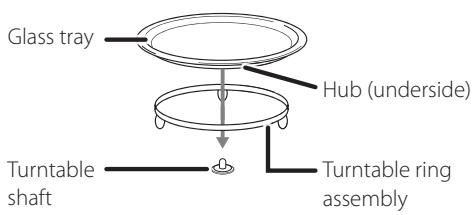

Turntable Installation

a. Never place the glass tray upside down. Follow the instruction to place the glass tray on the turntable ring with correct direction. The glass tray should rotate smoothly.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

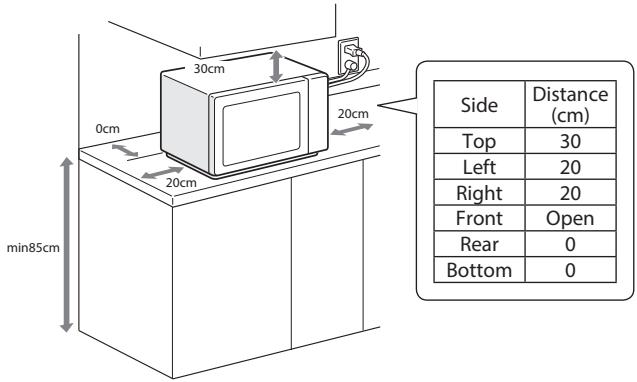

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm .
(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/ or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

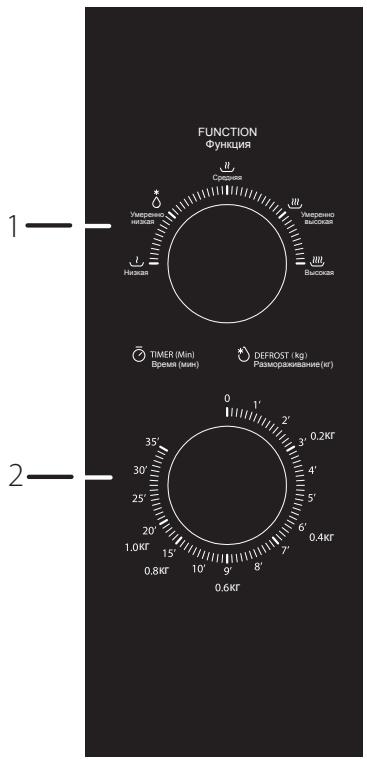

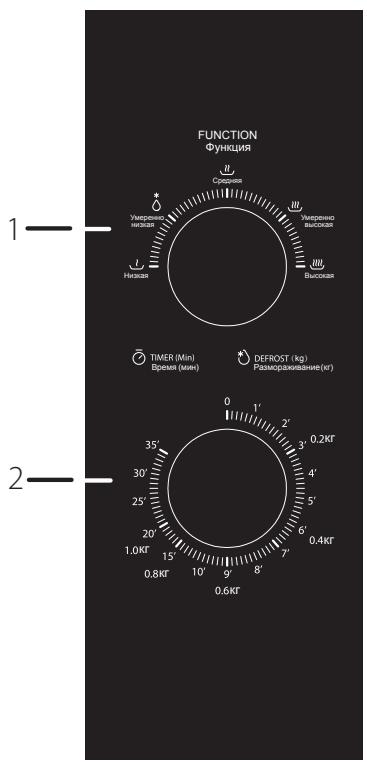

1. POWER knob

2. TIMER knob

3. To set cooking power by turning POWER knob to desired level.

4. To set the time of cooking by turning TIMER knob to desired time per your food cooking guide.
5. The microwave oven will automatically start cooking after power level and time are set.
   After the cooking time is up, the unit will "Dong" to stop.
6. If the unit is not in use, always set time to "0".

Function/Power	Output	Application
Low	17% Micro.	Soften Ice Cream
Med. Low (Defrost)	33% Micro.	Soup Stew, Soften Butter or Defrost
Med.	55% Micro.	Stew, Fish
Med. High	77% Micro.	Rice, Fish, Chicken, Ground Meat
High	100% Micro.	Reheat, Milk, Boil Water, Vegetables, Beverage

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliance, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the until without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

TOSHIBA

Mikrovlná trouba

NAVOD K POUZITI

Model:

MW2-MM20PF(BK)

MW2-MM23PF(BK)

8,9K7>7?, @WZWKWI WSEu fff I ZWkd/WXI SbdShSYk_aeZ fWd_W]ed ué]dW: S

Z Xaddae]ol WeTW hSYk XWWff ZWKW] WSeuf _ WeedzWeeSySds U5

éché' kéf hwl fZ

3ZallaxedW XmW JoVee]olTW XwadbeaVZSzf

1. POWER gomb
2. IDÖZİTO gomb

1. Hanneite B npiroDhB I pI NCIOB3OBAHnB M MKNPOBOHOBKe KOHTeHep 1 CTaKaH XOnODHO BObl (250 m) nNoJXnTE B Hero NoCydy, KOTOpYU HxJHo NpOBepNTb.
2. HarpeBaIte Ha MaKcImaJIbHOH MOUHOCt1 MInHyT.
3. Octopokho notporaite nocudy. EcIn OHa TeTnna, He NcNoJIb3yIte ee B MmKPOBONHOBKe.
4. He harpeBaIte 6oJIee 1 MInHyTbI.

MaTePnAJIbI, KOToPbIE MOryT NcNoJIb3OBAtBcR B MmKpOBoJHOBo Neu

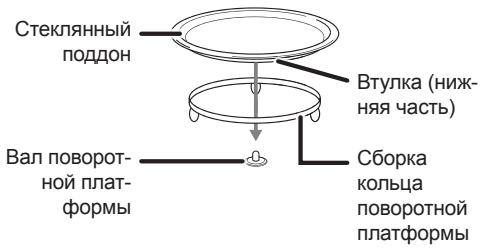

YcTaHOBka NOBOPOTHOn INaTΦOpMbI

a. Hn B Koem cnyuae He paCnoIaraiTe CTEKJIH-NbI IOJIOH BBepx HorAMN.CJeDyIte IN-CTpyKUINM, YTO6bl PaCNOJOXkITb CTEKJIHHbI IOJIOH Ha KOnIe NOBOPOTHOIpaTOpMbI B npAunlbHom HAnpabNeHN.I CTEKJIHHbI IOJIOH DOJKeH CBOOJDHO BpaIaTbcra.
b. I cTeKJIaHHI IOJIOH, I c6OpKa KOIeCa NOBOPoTHoi PIIaTΦOpMbI DOJIxHbI O83aTeJbHO NCNoJIb3OBAtBCa BO BpEm pa60tBi neH.
C.Любая[edaиKoHTeHnEpbIc eEOJdoJIKNbI Bcerda NOMeuaTbcraHa CTeKJIaHHbI nOДоH DЯ npIROTOBHeHIA.
d. B cnyae tpeunhbl nnn noIomknc TceknH Horo ndoHa nnn c6opkn KOnbua nOBOPOT Ho nnatOpmbI obaTntecb B 6Inkaaunm OphiunaBhl cepBnchbl ueTp.

YctaHOBka Ha cToJIeUHnUy

YdannTe BcO YnakOBky N KOMJIeKTyUOJe. OcMOTpIte ney Ha npEIMe TIOBpeXDeHIn, B auctHOCTN 3a3y6bprH INIIN IONOMOK DBepcbl. OTkAKNIteCb OT yCTaHOBKn B cIyuee 6hApuyKeHn IOBpeXDeHIn.

Kopnyc: ydaJIte BcI 3aIHTHy IJIeHky I3 BByTpEHHey QacTNI KOpnyca MmKpOBoNHOBOI NeuN.

He chImaIte CBeTIO-KOpuHHeOe NOKpbITne Mica, KOtOpoe HaxoDITcRa Ha BHyTppeHHe CTeHKe NeHn I npEdHa3NaHcEHO DnI 3aUHTbI MaHrTePOHa.

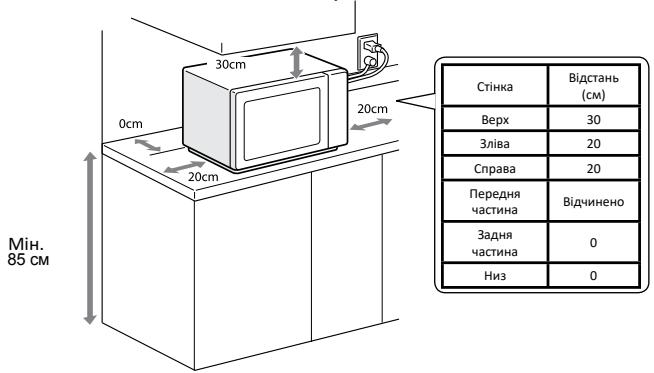

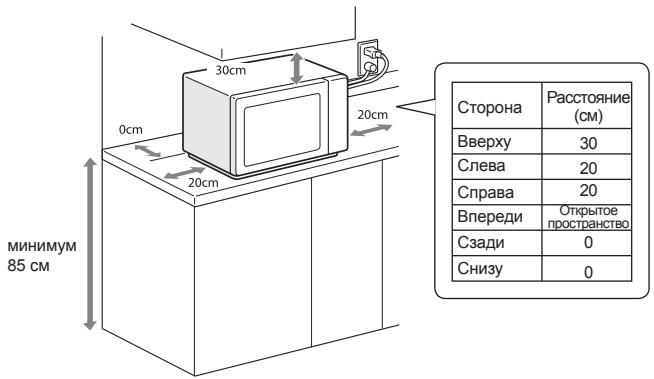

YctaHOBka

1. BbIbepeHte poBHyIOBepxHOCTb C IOCTaTOUHbIM CBO6OHNbIM MecTOM IJI BAxoIDbIX N/INN BblXoHNbIX OTBepCTn.

1）MHHMaJIbHaB YBaCota yCTaHOBKn CoCTaBnIeT 85 cm.
2) 3aJHЯ NOBExHocTb yCTpoIcTBa DOJXHa 6bITb ObaIeHa K cTeHe. Had nebyo DOJXHo 6bITb IO KpaIHe Mepe 30 cm OTKpbITOrTO pOcTaHcTBa, a MEXyD 6OKOBblM nCTeKamn peHn I npIneraHOUcIMn CTeHAM - IO KpaIHe Mepe 20 cm.
3) He cHmMaIte HOxKn Co dHa neu.
4)Блokировka BXOДнбИX I/III BbIXOДнбIb IX OTBepCTM MOJEt NOBpeIITb NeHb.
5) Pacnonarai Te MnkpoBONHOByIO ney KaK MoXHo DaJIbIe OTe paDIO n TeVeBn3Opa. Bo BpeMa pa60tBI MnkpoBONHOBa Ney MoXeT Bbl3BaTb NomExn PpneMa cnHajla paDIO nn TeteBnDeHNIA.

2.ПоДКЛIOHHTe NeB K CTaHdAPTHOБ bIbTOBoi po3ETke. Y6eIITecb,чTo HAnpJKeHne uacTota COOTBeTCTBYOT HAnpJKeHnIO uacTOTE Ha nacNtPTho TaBnUKe.

BHIMAHHE: He yctaHabnBaIte ney had BapOchno nobepxHOCTbIO pInTbI nIN dpYHMn npi6opam, KOTOpBie BblJeJIaIOT TEnIO.

Ipn yctaHOBKe B6n3n NcToUHnKa TeNla neyb MOxET 6bITb NOBpeKdHa, a rapaHTna anHyIpOBaHa.

Bo BpemraobToBIOCTyHbIe NOBepxHOCTM MoY T 6bITb RopAHHM.

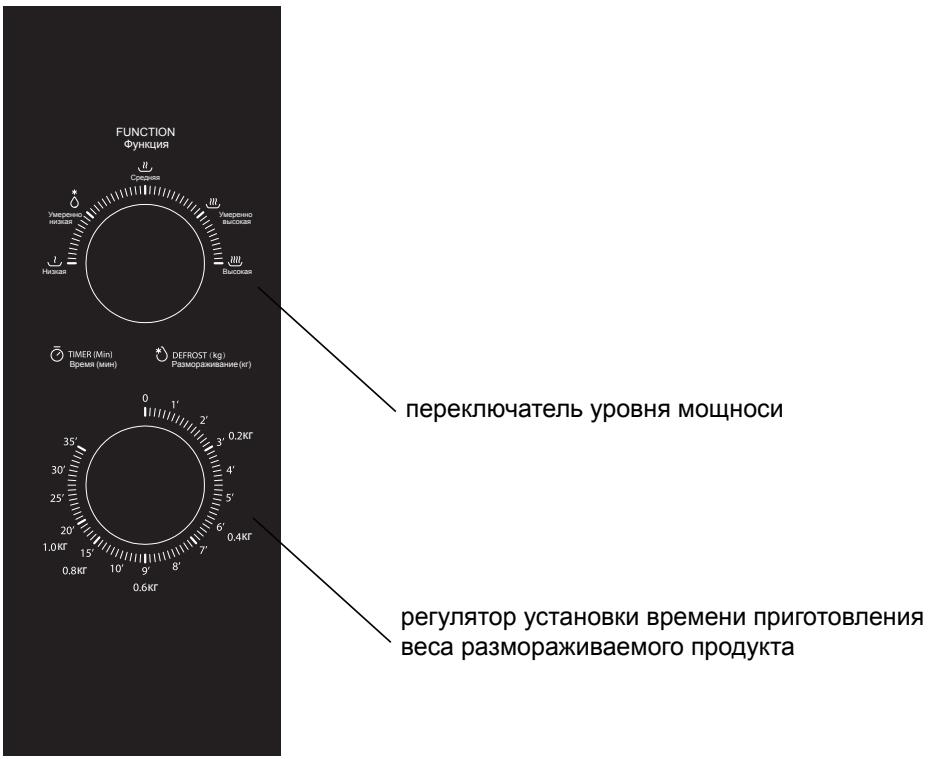

NAHEJIb YNPABJIENHIA

BHeuHn BvI NaHeJIyPraBJIeHn I Ha3HaueHne OpraHOB ynpabJIeHn Ioka3a- HbI Ha pucyHke 2.

OkoHuaHne npiroTOBHeHnCOnpoBoxJaEeTc3ByKOBbIM CnHaIOM.

PncyHok 2

NODKJIIOUeyHNEIeYn

BHIMAHNE:ДЯ ПОДКЛIOUECHNY ПECH K CETN DOJIXHA БыТь ПЕДУCMOTPEHA PO3ETKA C 3A3EMJIYIOUIM KOHTAKTOM!

I3BLeKeITe u ydaJIte pONIN3TUNHeOBUIO pInEky C KOpNyCa neu ecn OHa HaKJIeEHa n HaxOJaIyOCr pInEky MExDy DBePceu N KaMepo MNKPOBOHOBO Neu.

OTkpOte DBepy Neu, Haxab Ha KhoNky OTKpbBHaHnry DBePcbl. YcTaHOBnTe BHTpb KaMepb Neu KoIbUo polNKOBoe. CBepy KoJIbUa poNIKOBOrO yCTaHOBnTe CTekJHHe 6JIIO, COBMecTINB BbICTyIbI CTekJHHHOrO 6JIIOa N MyΦTbI BaJa MOTopa (corlaCHO pncynkY 1). 3akpoTe DBepy Neu.

BHNMAHNE: PO3ETKA DOJXHA HAXOINTbC B HEIOCEPdCTBEHHo BJIN30CTN OT PEUY, K HEI DOJXEH bblb 05ECNEUH CBO6OHyI DOCTyI, YTObI B CJlyuAE HEOBXOIMOCTH MOxHO bblIO HEMeJIeHNO OTKJIIOHTb PEyh OT CETn!

DÔLEŽITÉ BEZPECNOSTNÉ POKNY

UPOZORNENIE

IHCTPyKl3 EKCnIyATAIi

Modelb:

MW2-MM20PF(BK)

MW2-MM23PF(BK)

IpouHTaTe yBaJHo 0i IHcTpKUII nepeD Tm, JIK KOpNCtYBaTHcR MkPoXBnBObOIO niiHIO, ta HadiiHo 36epeXitb ix.

Akyo BV 6ydeTe DoTpyKui, Bawa niu npocnykntb HalexHm YHOM 6barato pokiv.

HADIINHO 3BEPEXKITb LIO IHCTPYKLIIO

3MICT

3MICT 1
3ACTEPEXKEHH 2
TEXHICHIXAPAKTEPNCIKI 2
BAKJIIBI INPABINLA TEXHIKN BE3NEKN 3-4
OuHueHH 5
Pocud 5-6
HACTPOIKA I BCTAHOBKA 7-8
EKCPIIYATAU 9
UCYHEHHH HECPABHOCTE 10

3ACTEPEXEHHЯ ΚΟДΟ YΗΝΚΕΗΝΗ MΟχЛΝΒΟΓΟ BПΙΝΥ HΑΜΙΡΗΟΙ MIΚΡΟXBΙΝΙΒΟΒΟΙ EHEPRΠ

(a) He hamaraitecBnKOpncTObYBaTn 10 Niu 3 BiDkPntmN DBepaTaMn, OckIbKn 1e MoKe npn3BeCTn Do shKiIDnBOrO BnInBy MikpoxBnIbOBoi eHepri. BaXnBO He npuyBaTn i He Btpyatnc B 3axnChi 6lokyBaHHa.
(b) He po3miiyute kOdHnx npedMeTIB mIX nepedHbOIO naHeJIIO nei Ta DBePcIaMn Ta yHnKaIe Te yTBOpEnHra 3aIIuKkB OChuSyBaVa Ha yUilbHIOBaayx.
(c) YBAΓA:Якso Деверцята abo ушільнювач DBерцят пошкоДжено, 3абороняettingь ВИКОпсТовуВати пч, дOKи II He BiДрЕмоHTуЕ KOMпTeHTha Oco6a.

DIOOBHEHHA

JaKIo npnlaJ He 36epiraεTbc8 B uHcTOTi, cTaH NOrO nobepxHi MoKe noripuHTncI i ce BpInHe Ha TepMin EKcnLyataaii npnlaDu Ta MoKe npn3BecTI dO He6e3neuHOi cnTuauii.

TEXHIUHIXAPAKTEPNCTUNK

He BmikaTe B po3eTKy, pOKn npilaJ He 6ynde npaBnIbHO BCTaHOBJeHn i 3a3eMJIeHn.

LcE npIlaD noBHeH 6ytN 3a3eMJIeHm. y pa3i eJekTpnuHOro kopoTKoro 3amKanHH 3a3eMJIeHn 3MeHsUe pnsIK ypaKeHH eJekTpnuHm cTpyMOM, 3a6e3neuOuH npOBiD Ira BIDBeHn eJekTpnuHOrO cTpyMv.

LcE npilaD o6laHaHn shyPOM i3a3eMJIIOUChm npoBOOM i 3a3eMJIIOUO BOILKOIO. BILKy cIiD niDKJIIOCHTu DO haleXHO BCTAHOBLeHOi Ta 3a3eMLeHOi p03eTKN.

3BepHtbcra do KbaIiΦikOBaHoro eIeKtpnka a6o cneuaJIcTa 3 o6cnyroByBaHHra, kIoo iHCTpykciu 10do 3a3emLeHHra He NOBHICTU 3po3yMIi a6o IKAIO icHYOTb cyMHIBN 10do npabInbHocTi 3a3emLeHHra npunaLy.

JAKUHOeO6XiDNO BnKOpNCTOBByBaTn NOOBKyBaU, BnKOpNCTOBByTe JInSe TpNkHbHn NOOBKyBaU.

1. Kopotkni shnyp jinBleHnnepeaueHn dIy 3MeHweHn pN3NKiB, NOB'3aHnx i3 3anlyTyBaHHam a6o 3auePHeHHm uee3 DOBnI shHyp.
   2.Як sooВикористовся Довгий Шурaboювьач:

1) HomHaJIbHa eIeKtpnHa nOtJxHicTb KOMnJIeKTy shHpya a6o NODOByaHa noBHHa 6yTu kMihimym TakoTo Jee, kI eIeKtpnHa nOtJxHicTb npuHaNy.
2)Подовжувальнишур поинен 6утп 3-пpoВiДнИМ shHypom i3 3a3eMJIeHHЯM.
3)Довгийshнурпobинен6утnpo3taшовниТak，цo6ВiHne3Bvncab3 BepxhboiКршкnaboCTiMbHniCi,3bIdknNoRoMOKytbBUNaDKOBONOTARHTN diTnaboNAADKOBOcnITKNHYtncb.

OuHsEHHa

O6ob'raKOBo BiIckluOHTb npnlaD BiI MepeXi KINBHeHHa.

1. OuNCTiB niY BCEpeDi Ni cIe BnKOpnstAHNa 3JeRka BOIoroIO raHcyipKOIO.
2. Ounchitb akcecyapn 3BnuaHm cno6ob y mIbnH BDi.
3. Kapkac DBeperzay, yuilbHIOBau Ta cysiDiHi YactHHI y pa3i 3a6pydHeHHa NobHHi 6yTu peTeIbHo OunuSeHi BOLOrO raHvipKOHO.
4. He BvKOpnCTOByIe IaIyUHcHbckla DBePcTneJxOpc3KI abpa3nBHi cNCTaI 3ac06n a6o roctpi MetaJIeBI zITKn, OckJIbKn BOH MoKytb NpOpranTu NOBepXHIO, a Ze MOKe pIn3BecTn Do pO3bHTTcKla.
5. Nopada dIy OunuHn --- Ia IeIgUro OUnuHn BHyTpIuHix CTiHOK nei, Do knx MoKe TOpKaTncn npiroToBaHa iJka:

He 3nImaTe cBtIIO-KOpNueBy KpNkU CJIouNi, Ra Ka KpInNTbcra Do Kopnyc nei dIra 3axNCTy MarHeTpoHy.

BctaHOBJIeHHA

1.Bn6epiB piBHy nobEpxHIO,Яka 3a6e3neyuE doCTaTHbO BiIDkpntoro npocTopy dIy BnycKHNx i/a6o BnxiDHNX OTBOpIB.

(1)MiHimalbHa BnCota yCTaHOBKn - 85 cm.
(2) 3aДня NOBepxHЯ npILAДIB NOBHHa po3TaIOWByBaTINcH aHbIpOTn CTiH. 3aIIuTe mIHIMaJIbHm 3a3Op 30 cm NaIpiTuTo mIHIMaJIbHm 3a3Op 20 cm MIX nIpyUTo 6yDb-ЯКIMn CyciDHIm CTiHKamn.
(3) He 3nHimaiTe HixKu 3 HxHbOi YacTHIn Neuyi.
(4)Блokувань Bnyckhixi/a6o BnxiДнх OTbopIB MOxe noшкоДиТи NiY.
(5) BctaHobitb nii ykomora dani BiD paio Ta TeleBi3opa. EkCnlyataciMikpoxBnIbOBoi neqi moKe cnpuHHHTn nepeKoDi dny npinyomy paio YTeleBi3opa.

2.Пдклочь niу до 3вичайноюpo3eTKI.NpekehoaTeCb,цо Hanpyra ta yactota 36iraHbces 3 HanpyroTo Ta yactotoHa etnKeTci.

3ACTEPEXHEH: He BCTaHOBJIoIte nIy Hau, PIIIOU OY iINuIMn npilaadamn, 10 Bnpo6JIaOTb TeIIO. Y pa3i po3TaUByaHNr no6JN3y dKepeJa Tepna a6o Ha, Hm nIy MoKe 6yTu NooKoJKeHa, a rapaHTi8 6yHe HeiICHOU.

UCYHEHNA HECPABHOCTEIN

Hopmalbni
Mikpoxbiloba nii 3abaxjae prinmati telbei3iHni cnHaal	Прин�аная радio ta tlne6aehnna може nepeшкдати робoti mikpoxbilbooi neui. Се схожа на пешкоун неvelinkoro elektrupnoro prinlady, як 3Mi7u7Ba4,
Tbmahe cbItno neqi	У рекимi mikoxbilbooi neui 3 Ииькююnotungнichtу CBITNO neui може 3aTbMapntncя. Се hopmalbno.
Пар наковиубся на Дberцятax, rapaye noBitray 3 otbopib	При рпиготуванii ixi може вихочи пол з ixi. Бльшіctь Ви'de З вентлицийнх OTbopib. АLE дяк можуь на неорчыbatсяВ рoxoIoJNoHomy miцii, habprknlad, на девр tax neii. Се hopmalbno.
Вирадково вklючлни nii 6e3 iIXi.	Забороняетсь ecplnyatbyatni рисрий бe3 iIXi BCEpeDiHni. Се дуж небeznequHo.
