MWP-MG20P(WH) - Microwaves TOSHIBA - Free user manual and instructions

Product Type	Freestanding microwave oven with grill
Brand	Toshiba
Model	MWP-MG20P(WH) / MWP-MG20P(BK)
Capacity	20 liters
Dimensions (W x D x H)	439.5 x 359 x 258.2 mm
Net Weight	Approx. 10.82 kg
Rated Voltage	230 V ~ 50 Hz
Power Consumption (Microwave)	1050 W
Microwave Output Power	700 W
Grill Power	1000 W (max)
Turntable Diameter	Φ 255 mm
Control Type	Mechanical knobs (Power and Timer)
Power Levels	6 microwave levels (17%–100%), 3 combi modes, Grill
Timer	Up to 35 minutes (mechanical timer)
Interior Light	Yes, dims on low power
Safety Features	Door interlocks, child safety (supervision required), grounding plug
Accessories Included	Glass tray, turntable ring assembly, turntable shaft, grill rack, instruction manual
Cleaning Method	Wipe with damp cloth; do not use abrasive cleaners; steam cleaning prohibited
Installation Clearance	Top: 30 cm, Sides: 20 cm, Rear: 0 cm (against wall)
Minimum Installation Height	85 cm
Warranty	Refer to user manual; voids if placed over heat source

Frequently Asked Questions - MWP-MG20P(WH) TOSHIBA

What is the capacity of the Toshiba MWP-MG20P microwave?

The microwave has a 20-liter capacity, suitable for standard household use.

Can I use metal utensils in this microwave?

No, metal utensils, aluminum trays, and metal-trimmed dishes can cause arcing and should be avoided. Use only microwave-safe containers.

How do I clean the microwave interior?

Clean with a slightly damp cloth after use. For tough residue, place half a lemon in a bowl with 300 ml water and heat on high for 10 minutes, then wipe dry.

What power levels are available?

There are 6 microwave levels: Low (17%), Med Low (33%), Med (55%), Med High (77%), High (100%), plus three combi levels (Combi 1: 80% grill/20% micro, Combi 2: 70% grill/30% micro, Combi 3: 60% grill/40% micro) and a Grill mode (100% grill).

Why does the oven light become dim during cooking?

Dimming of the oven light is normal at lower power levels, as the magnetron cycles on and off.

How do I install the turntable?

Place the turntable ring assembly on the cavity floor, then place the glass tray onto the ring with the hub centered on the turntable shaft. Ensure it rotates smoothly.

What should I do if the microwave does not start?

Check that the power cord is firmly plugged in, the door is properly closed, and the timer is set. If the issue persists, check the circuit breaker or fuse, and contact a qualified service person.

Can I use the grill rack in microwave mode?

No, the grill rack is only for grill and combi modes. It cannot be used in microwave-only mode. Always place it on the glass tray.

Is it safe to heat liquids in the microwave?

Yes, but caution is needed because microwave heating can cause delayed eruptive boiling. Stir liquids before and after heating, and use microwave-safe containers.

What is the recommended clearance for installation?

Leave at least 30 cm above the oven, 20 cm on each side, and place the rear flush against a wall. The minimum installation height is 85 cm.

USER MANUAL MWP-MG20P(WH) TOSHIBA

Interior view of a modern dining room with a table, chairs, and window (no visible text or symbols)

Microwave Oven

INSTRUCTION MANUAL

Model:

MWP-MG20P(WH) MWP-MG20P(BK)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

MWP-MG20P(WH)

MWP-MG20P(BK)

CONTENTS

CONTENTS .... 1

PRECAUTIONS....2

SPECIFICATIONS....2

IMPORTANT SAFETY INSTRUCTIONS.... 3-4

CLEANING 5

UTENSILS 5-6

SET UP & INSTALLATION 7-8

OPERATION....9

TROUBLE SHOOTING....10

PRECAUTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the life span of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	MWP-MG20P(WH)/MWP-MG20P(BK)
Rated Voltage: 230V~50Hz
Power Consumption (Microwave): 1050W
Rated Output Power (Microwave):	700W
Rated Output Power (Grill):	0W100
Oven Capacity: 20L
Turntable Diameter: Φ 255mm
Outside Dimensions (W x D x H): 439.5x359x2	58.2mm
Net Weight: Approx. 10.82 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are supervised.

3. Keep the appliance and its cord away from children unless they are continuously supervised.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

17. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

18. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;
-by clients in hotels, motels and other residential type environments;
-farm houses;
-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. The appliance shall not be cleaned with a steam cleaner.

4. The appliance is intended to be used freestanding.

5. The rear surface of appliances shall be placed against a wall.
6. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant	oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Tr	Transfer food into microwave-safe dish.
Food carton with metal handle May	cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SET UP & INSTALLATION

SETTING UP YOUR OVEN

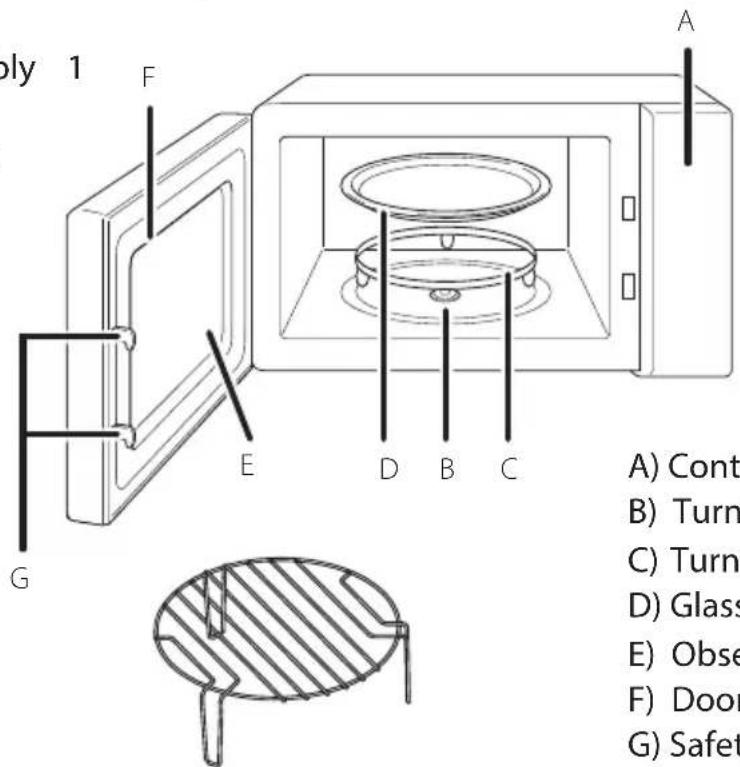

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Turntable Shaft 1

Instruction Manual 1

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

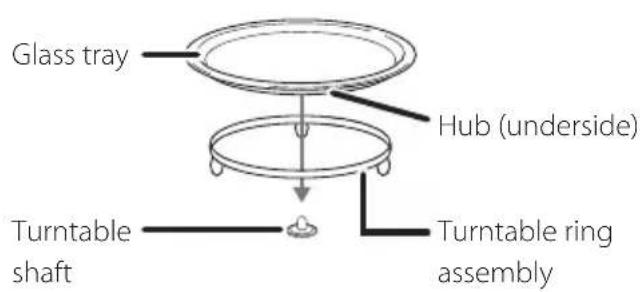

Turntable Installation

a. Never place the glass tray upside down. Follow the instruction to place the glass tray on the turntable ring with correct direction. The glass tray should rotate smoothly.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

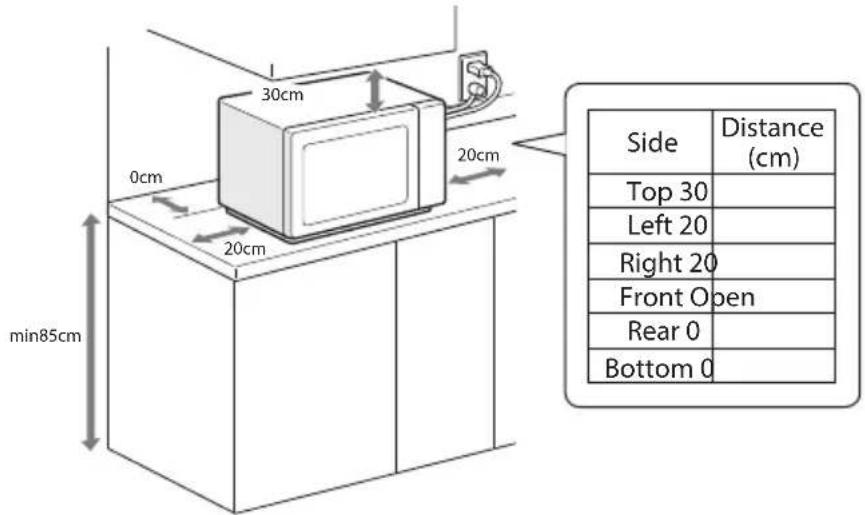

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.

(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

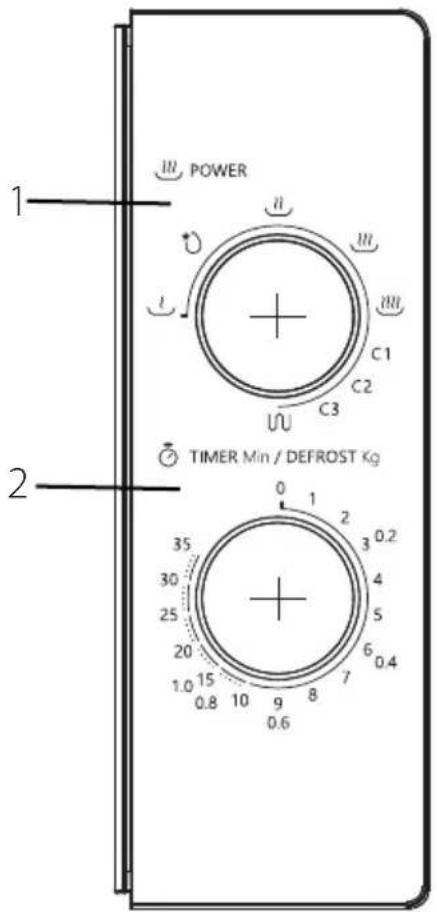

1. POWER knob
2. TIMER knob

• To set cooking power by turning POWER knob to desired level.
• To set the time of cooking by turning TIMER knob to desired time per your food cooking guide.
• The microwave oven will automatically start cooking after power level and time are set.
• After the cooking time is up, the unit will "Dong" to stop.
- If the unit is not in use, always set time to "0".

Low		17% Micro. Soften Ice Cream
Med.	Med. Micro. Soup Stew, Soften	Butter or Defrost
Med.		55% Micro. Stew, Fish
Med. High		77% Micro. Rice, Fish, Chicken, Ground Meat
High		100% Micro. Reheat, Milk, Boil Water, Vegetables, Beverage

Combi.1	80% grill 20% micro.	Sausage, Lamb, Kabobs, Seafood, Steak
Combi.2	70% grill 30% micro.	Chicken pieces, Chicken breasts, Pork chops
Combi.3	60% grill 40% micro.	Whole chicken
Grill	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliance, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the until without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet. Test outlet	with other electrical appliances.
Oven does not heat. (4) Door not closed well. Close door well.

According to Waste of Electrical and Electronic Equipment(WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

TOSHIBA

Interior view of a dimly lit room with furniture and window (no visible text or symbols)

Interior view of a modern dining room with a wooden table, chairs, and potted plants (no visible text or symbols)

Mikrovlnná trouba

NÁVOD K POUŽITÍ

Model:

MWP-MG20P(WH)

MWP-MG20P(BK)

DOPLŇUJÍCÍ INFORMACE

INSTALACE NA PRACOVNÍ DESKU

Interior view of a modern dining room with a wooden table, chairs, and potted plants (no visible text or symbols)

Cuptor cu microunde

MANUAL DE INSTRUCTIUNI

Model:

MWP-MG20P(WH) MWP-MG20P(BK)

Interior view of a modern dining room with a wooden table, potted plant, and window (no visible text or symbols)

Мікрохвильова піч

Interior view of a modern dining room with a large table, chairs, and potted plants (no visible text or symbols)

Микроволновая печь

Simple line drawing of a round table with diagonal hatching and three legs (no text or symbols)

Interior view of a modern dining room with a table, chair, and window (no visible text or symbols)

Mikrovlnná rúra

NÁVOD NA POUŽITIE

Model:

MWP-MG20P(WH) MWP-MG20P(BK)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY 2 – 4

ČISTENIE 5

RIAD 5-6

NASTAVENIE A INŠTALÁCIA 7 – 8

POUŽÍVANIE 8

ODSTRAŇOVANIE CHÝB 9

PREVENTÍVNE OPATRENIA

PREVENTÍVNE OPATRENIA NA OCHRANU PRED PRÍPADNÝM VYSTAVENÍM PÔ SOBENU MIKROVLNNEJ ENERGIE

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

VAROVANIE

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Interior view of a modern dining room with a table, chair, and window (no visible text or symbols)

Mikrohullámú sütő

HASZNÁLATIÚ TMUTATÓ

Modell:

MWP-MG20P(WH) MWP-MG20P(BK)
