FLG4N - Deep fryer DELONGHI - Free user manual and instructions

Product Type	Multifunction electric fryer (hot air oven)
Brand	Delonghi
Model	FLG4N
Voltage	220-240 V ~ 50-60 Hz
Power consumption	1800 W (2000 W in convection mode)
Dimensions (W x H x D)	495 x 305 x 450 mm
Weight	11.6 kg
Cooking functions	Gratin, Grill, Traditional oven, Defrosting, Convection heat, Delicate cooking, Keep warm
Control type	Mechanical buttons (thermostat, timer, function selector)
Indicator lights	Red ON indicator, green °C indicator (temperature reached)
Door material	Glass
Included accessories	Grid, drip tray, crumb tray (internal lighting on some models)
Safety	Automatic shut-off via timer, overheating protection (not specified, but timer)
Maintenance and cleaning	Clean accessories with soapy water; do not use sharp metal objects; wipe interior after use
Repairability	Have the cable or defective parts replaced by an authorized service center
General information	Household use only; do not build in; position 20 cm from the outlet; first use empty for 15 min at maximum thermostat

Frequently Asked Questions - FLG4N DELONGHI

How to use the FLG4N fryer for the first time?

Before first use, remove all packaging. Run the appliance empty at maximum thermostat for at least 15 minutes to eliminate the new smell. Ventilate the room. Wash all accessories thoroughly before use.

What functions are available on the FLG4N fryer?

Functions include: Gratin, Grill, Traditional oven, Defrosting, Convection heat, Delicate cooking and Keep warm. Some functions are available depending on the model.

How to set the timer for times less than 20 minutes?

To set a time less than 20 minutes, first turn the timer knob fully (beyond 20 min), then go back to the desired duration.

What do the indicator lights mean?

The red ON indicator lights up when the oven is on. The green °C indicator lights up when the set temperature is reached.

How to clean the FLG4N fryer?

Always unplug the appliance before cleaning. Wash accessories with soapy water; avoid sharp or pointed metal objects. Clean the interior with a damp cloth. Never immerse the appliance in water.

Can I use the fryer under a hanging cabinet?

No, never operate the appliance under a hanging cabinet or shelf, or near flammable materials (curtains, drapes, etc.)

What to do if food catches fire in the appliance?

Do not pour water. Keep the door closed, unplug the appliance, and smother the flames with a damp cloth.

How to replace the power cord if damaged?

If the power cord is damaged, have it replaced by the manufacturer, an authorized service center, or a qualified professional to avoid any risk.

What is the power of the appliance?

The power consumption is 1800 W in normal mode, and 2000 W in convection mode.

Can the appliance be used by children?

The appliance can be used by children aged 8 and above under supervision. Children must not play with the appliance. Cleaning and maintenance must not be performed by children under 8 without supervision.

USER MANUAL FLG4N DELONGHI

Electrical Connection (UK only)

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below. WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug. B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Blue:

Brown:

Earth

Neutral

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol 1/2 or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

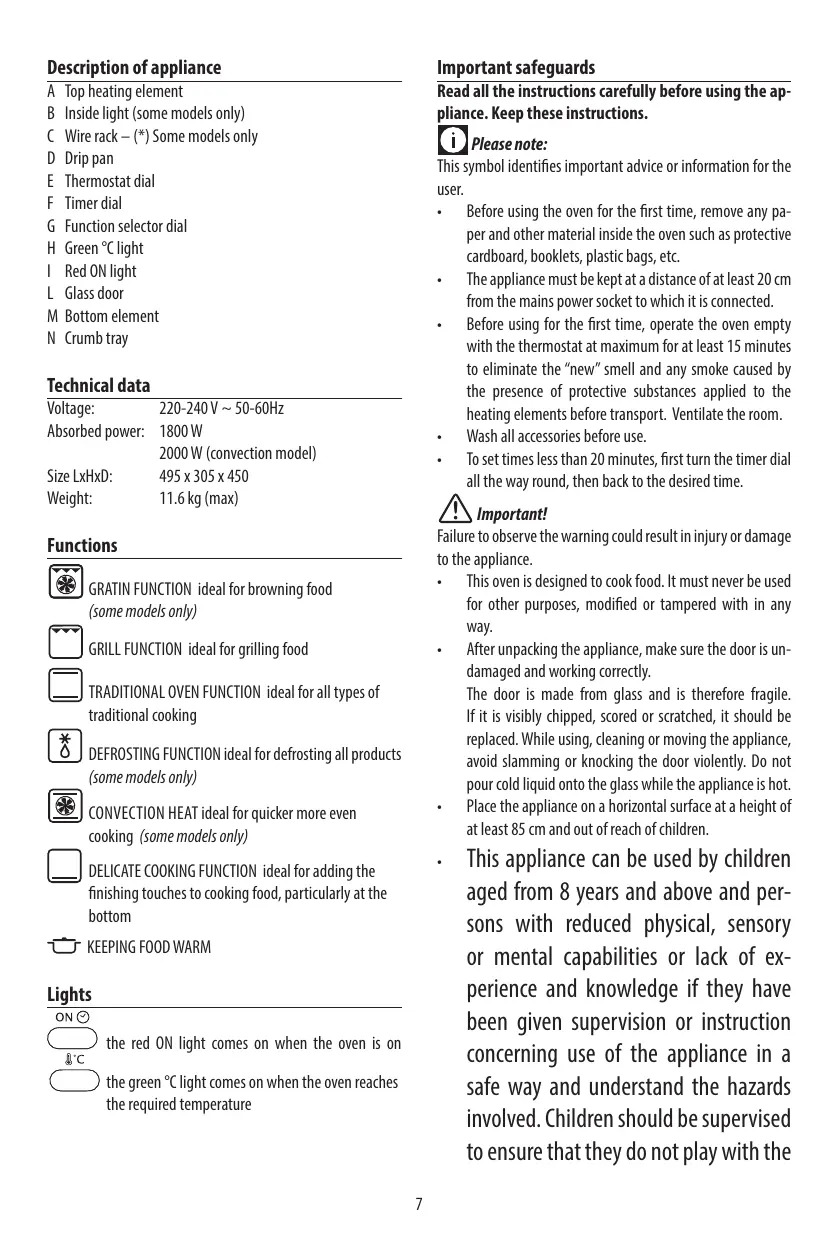

Description of appliance

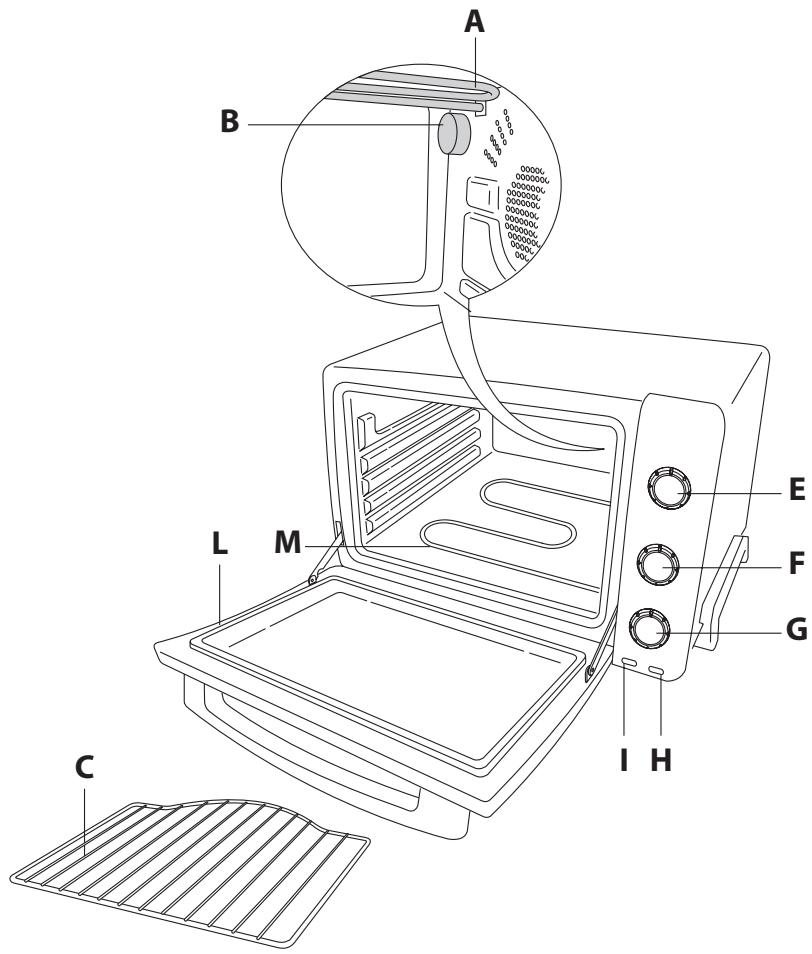

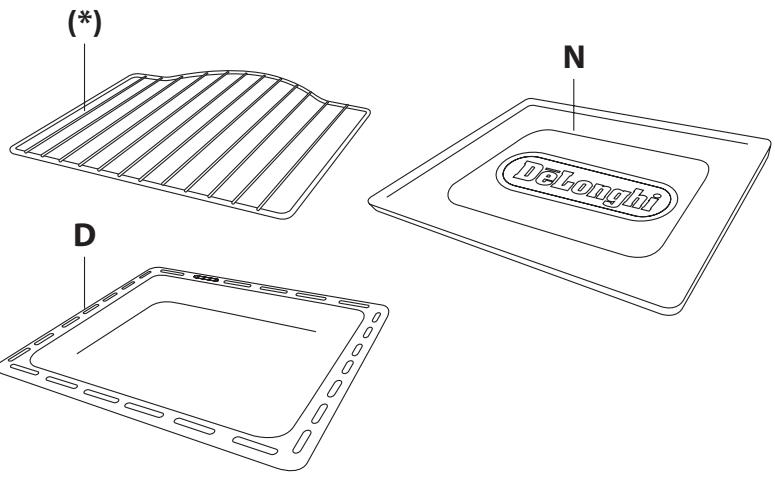

A Top heating element B Inside light (some models only) C Wire rack (some models only) D Drip pan E Thermostat dial F Timer dial G Function selector dial H Green°C light Red ON light L Glass door M Bottom element N Crumb tray

Technical data

Voltage: 220-240 V ~ 50-60Hz

Absorbed power: 1800 W 2000 W (convection model)

Size LxHxD: 495 x 305 x 450

Weight: 11.6 kg (max)

Functions

GRATIN FUNCTION ideal for browning food (some models only)

GRILL FUNCTION ideal for grilling food

TRADITIONAL OVEN FUNCTION ideal for all types of traditional cooking

DEFROSTING FUNCTION ideal for defrosting all products (some models only)

CONVECTION HEAT ideal for quicker more even cooking (some models only)

DELICATE COOKING FUNCTION ideal for adding the finishing touches to cooking food, particularly at the bottom

KEEPING FOOD WARM

Lights

ON

C

The red ON light comes on when the oven is on.

The green °C light comes on when the oven reaches the required temperature.

Important safeguards

Read all the instructions carefully before using the appliance. Keep these instructions.

Please note:

This symbol identifies important advice or information for the user.

Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc. The appliance must be kept at a distance of at least 20 cm from the mains power socket to which it is connected. Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15 minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances applied to the heating elements before transport. Ventilate the room. Wash all accessories before use. To set times less than 20 minutes, first turn the timer dial all the way round, then back to the desired time.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

This oven is designed to cook food. It must never be used for other purposes, modified or tampered with in any way. After unpacking the appliance, make sure the door is undamaged and working correctly.

The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the door violently. Do not pour cold liquid onto the glass while the appliance is hot.

• Place the appliance on a horizontal surface at a height of at least 85 cm and out of reach of children. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the

appliance.

Cleaning and user maintenance shall not be made by children, unless they are more than eight years old and under constant supervision.

• Keep the appliance and power cable away from children under eight years of age.
• Do not move the appliance while in use.
• Do not use the appliance if: The power cable is faulty
• The appliance has been dropped, is visibly damaged or malfunctioning.

In these cases, to avoid all risk take the appliance to your nearest authorised customer services.

• Never position the appliance near heat sources.
• Do not use the appliance as a heat source.
• Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance (utensils, wire racks, other objects).
• Never insert anything into the ventilation openings. Make sure they are unobstructed. This oven is not designed for built-in installation.
• Do not rest heavy objects, boiling pans or containers on the open door.

Do not pull the handle downwards.

Professional or inappropriate use, or failure to observe the instruction for use absolves the manufacturer from all responsibility and invalidates the guarantee. This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments, farm houses, hotels, motels and other residential type environments, bed and breakfast type environments. - When not in use and before cleaning, always unplug the appliance. This appliance must not be operated

by a timer or a separate remote control system.

• The appliance must be placed and operated with the back next to the wall.
• Do not use pointed or sharp metal objects to clean the bread pan. Before cleaning, always turn the appliance off by setting the timer to "0" and unplugging it from the mains socket. This product is not intended and engineered for food preservation.

Accessories for cooking are not suitable for acid food preservation. Avoid leaving for prolonged time acid substances as lemon juice or vinegar on surface of accessories. If left on surface of accessories for prolonged time, acid substances as lemon juice, tomato, vinegar and similar, may damage and impair the coating.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

• When in operation, the door and accessible external surfaces could become very hot. Always use the knobs, handles and buttons. Never touch metal parts or the glass. Use oven gloves if necessary.
• This electrical appliance operates at high temperatures which could cause burns.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Never operate the appliance under a wall cupboard or shelf or near inflammable materials such as curtains, blinds, etc. If food or other parts of the oven catch fire, never try and put out the flames with water. Close the door, unplug from the mains and smother the flames with a damp cloth.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock. Before plugging into the mains, make sure that: The mains voltage corresponds to the voltage indi

cated on the rating plate.

the mains socket is earthed and has a minimum rating of 16A.

The manufacturer declines all liability in the event that this important accident-prevention rule is not respected.

• Do not let the power cable dangle and avoid touching hot parts of the oven. Never unplug the appliance by pulling on the power cable. If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the cross section of the wires is at least equal to that of the power cable provided with the appliance.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water. If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer services or a qualified electrician in order to eliminate all risk.
• For your personal safety, never take the appliance to pieces on your own. Always contact customer services.

This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Disposal

The appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

For more information regarding the various functions and cooking tables, refer to the images on pages 79-89.

Appliance description

Weight: 11.6 kg (max)

Functions

Heating power: 1800 W

2000 W (convection mode)

Dimensions: width x height x diameter:

495 x 305 x 450

CaJMaFbI: 11.6Kr (MaKcHmym)

Functions

Color functions: For baking and frying foods (in some models)

Pipe function: For baking in a pipe

Destruction function: For destruction types of baking

Heating function: For heating all dishes (in some models)

Convection: For baking and frying with a fan (in some models)

Low temperature function: For slow cooking, especially for meat and fish

Setting the temperature

Chamfer

ON

New

Red

Add

Chamfer

The clock and the lamp are new.

The temperature of the channel is kept.

The oil level indicators.

Read the instructions carefully before use. Keep these instructions.

Warning:

To avoid damage to the device or property damage.

• Before first use, remove the protective film, stickers, labels, etc. from the device and its parts. The power cord must be at least 20 cm away from the socket. Before cleaning, unplug the device and let it cool for at least 15 minutes. Do not immerse in water. Keep the device away from children.
• To operate for 20 minutes, press the button until the indicator lights up.

Attention!

Such use may cause damage or fire.

This device is intended for cooking food. Do not use it for other purposes, do not modify the device or its parts. Keep the device away from flammable materials and do not place it near open flames.

The device is intended for household use only. If it is used for professional or semi-professional purposes, it will be damaged. Use the device for drying, ironing, and caring for clothes. Do not use it for other purposes.

Keep these instructions.

Place the device on a stable surface at least 85 cm above the floor, away from children and pets. Do not leave the device unattended while it is plugged in. If the device is used by or near children, or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, they must be supervised or instructed in the safe use of the device and understand the hazards involved. Do not allow children to play with the device. Children should not clean or maintain the device without supervision. Do not use the device if the power cord or plug is damaged. Do not use the device if it has been dropped or damaged. In such cases, take the device to an authorized service center for inspection and repair.

Do not touch the hot surfaces of the device. Do not use the device if it is damaged. Do not place any objects on the device (such as curtains, towels, or clothes). Do not place any objects on the device while it is in use. Do not cover the device with anything. Do not use the device outdoors. Do not place heavy objects, candles, or other items on the device. Do not step on the device. Do not use the device for any purpose other than its intended use. This device is intended for household use only.

Do not use the device in the following places: in bathrooms, near water, or in other damp areas; near heat sources; in areas where flammable gases or liquids are stored; in areas with high humidity.

• Before cleaning or maintenance, unplug the device from the power outlet. Do not immerse the device in water.

or handle it with wet hands.

Clean the device regularly.

Before connecting the device, it is necessary to check the integrity of the cable and metal parts. During the check, set the temperature to "0" and disconnect it from the socket by pulling the plug. The device is not intended for use by children or infirm persons. It is not suitable for preserving food in containers with lids. Do not immerse the device, its cord, or plug in water or other liquids. If the device, cord, or plug gets wet, it is possible to close the circuit breaker.

Danger of burns!

Such a device can cause severe burns.

While the device is in operation, accessible surfaces may become hot. Do not touch them with your hands. Do not cover the device with cloth or other materials. Do not use metal brushes or abrasive sponges. If necessary, clean the device with a soft cloth. - This is a protective cover - It may cause burns at high temperatures - Do not use the device - Do not place it near flammable materials

Do not place the device on surfaces that are sensitive to heat.

When cleaning the device, do not use abrasive powders, solvents, or other chemicals. If necessary, use a soft cloth slightly dampened with water. Do not immerse the device in water and do not hold it under running water.

Danger!

Such a device can cause electric shock or fire if used incorrectly.

• Before connecting to the socket, check the following: the voltage indicated on the rating plate must match the socket voltage. The socket must be grounded and have a minimum of 16 A. If the device is used in a place not intended for this purpose, it may be dangerous for the user. Do not modify the power cord and do not replace the plug. The power cord must be pulled out by the plug, not by the cord. If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. To disconnect all poles, the plug must be removed from the socket. If the cord is damaged, unplug it immediately and contact a qualified technician.

Services or repairs must be performed by qualified personnel.

For your safety, do not attempt to repair the device yourself. Contact the manufacturer or its service agent.

This device complies with the requirements of the EMC directive 2004/108/EC.

For more information about the functions and use of the device, see pages 79-89.
