EO 14552 14 L - Electric oven DELONGHI - Free user manual and instructions

Product Type	Electric Oven
Brand	Delonghi
Model	EO 14552 14 L
Capacity	14 L
Dimensions (WxHxD)	530 x 340 x 450 mm
Weight	14.5 kg
Supply Voltage	220-240 V ~ 50/60 Hz max 16 A
Power Consumption	2000 W or 2200 W
Cooking Functions	Rotisserie, Gratin, Grill, Traditional Oven, Defrost, Convection, Fan, Keep Warm (70-80 °C)
Internal Light	Yes (on some models)
Included Accessories	Grill, Drip Tray, Spit with fork (on some models)
Control Type	Rotary knobs (thermostat, timer, function selector)
Timer	Yes
Indicator Lights	Red light (power on), green light (temperature reached)
Door Material	Glass
Care and Cleaning	Unplug before cleaning; clean with a damp cloth; do not use metal objects
Safety	Unplug after use; do not immerse in water; use insulating gloves; keep out of reach of children
Repairability	Contact after-sales service; do not disassemble yourself
Compliance	Directives 2006/95/EC, 2004/108/EC; Regulation (EC) No 1935/2004
Installation	On a horizontal surface, at a height of 85 cm, 20 cm from the outlet

Frequently Asked Questions - EO 14552 14 L DELONGHI

How to use the fan-forced function?

Select the FAN or CONVECTION function depending on your model. This function provides more even and faster cooking. Place food in the center of the oven and set the desired temperature.

What to do before first use?

Remove all packaging (paper, cardboard, plastics). Run the oven empty at maximum thermostat for at least 15 minutes to remove new smells and protective grease. Air the room during this operation. Wash all accessories thoroughly before use.

How to clean the oven?

Always unplug the appliance before cleaning. Use a damp cloth and mild detergent. Never use sharp or cutting metal objects. Avoid cleaning the door glass with cold liquids when it is hot.

What do the red and green lights mean?

The red light turns on when the oven is operating. The green light turns on when the set temperature is reached. During cooking, the green light may turn off and on to maintain temperature.

Can I use aluminum foil in the oven?

Yes, but ensure it does not touch the heating elements. Do not completely cover the drip tray or grill as this may hinder heat circulation. Avoid putting paper or cardboard in the oven.

How to set the timer for a time less than 20 minutes?

First turn the timer knob fully (beyond 20 minutes) to arm the mechanism, then turn back to the desired time. This ensures precise setting.

The oven does not heat, what to do?

Check that the oven is plugged in and the outlet works. Make sure the timer is set to a value other than 0. If the problem persists, contact authorized after-sales service.

Can I put plastic dishes in the oven?

No, never put plastic, paper or cardboard in the oven. Only use heat-resistant dishes (metal, glass, special oven ceramic).

How to use the rotisserie function?

This function is available on some models. Place the spit through the food, insert it into the designated housing and secure it with the forks. Select the ROTISSERIE function on the selector. Use the drip tray underneath to collect juices.

What are the important safety instructions?

Do not leave the appliance unattended. Keep it out of reach of children. Do not touch hot surfaces (door, body). Always unplug after use. Do not immerse the appliance in water. In case of fire, do not pour water, leave the door closed and unplug.

USER MANUAL EO 14552 14 L DELONGHI

Instructions for use

Mode d'emploi

Bedienungsanleitung

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Blue: Neutral

Brown: Live

Earth

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

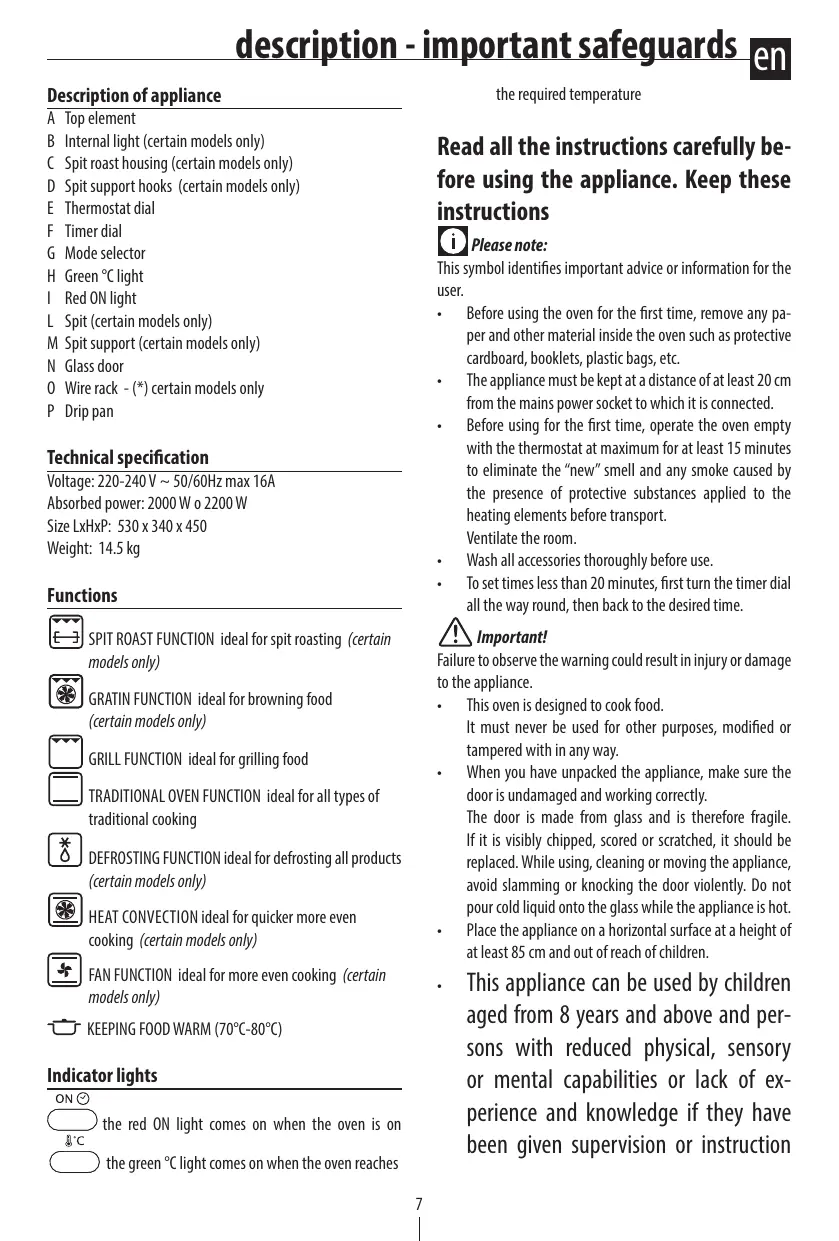

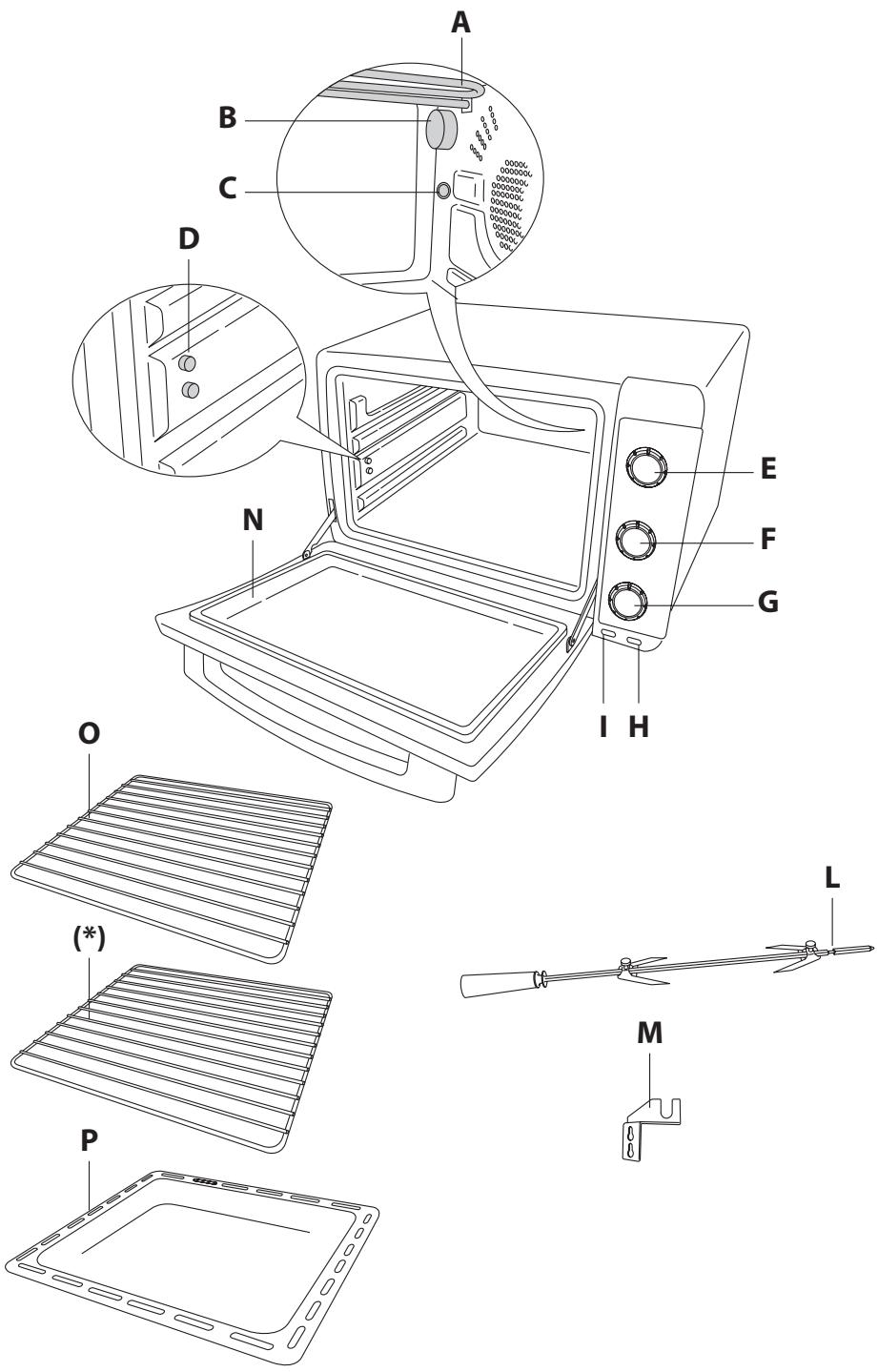

Description of appliance

A Top element
B Internal light (certain models only)
C Spit roast housing (certain models only)
D Spit support hooks (certain models only)
E Thermostat dial
F Timer dial
G Mode selector
H Green°C light
1 Red ON light
L Spit (certain models only)
M Spit support (certain models only)
N Glass door
0 Wire rack - (^*) certain models only
P Drip pan

Technical specification

Voltage: 220 - 240V 50 / 60Hz max 16A

Absorbed power: 2000 W o 2200 W

Size LxHxP: 530 × 340 × 450

Weight: 14.5kg

Functions

SPIT ROAST FUNCTION ideal for spit roasting (certain models only)

GRATIN FUNCTION ideal for browning food (certain models only)

GRILL FUNCTION ideal for grilling food

TRADITIONAL OVEN FUNCTION ideal for all types of traditional cooking

DEFROSTING FUNCTION ideal for defrosting all products (certain models only)

HEAT CONVECTION ideal for quicker more even cooking (certain models only)

FAN FUNCTION ideal for more even cooking (certain models only)

KEEPING FOOD WARM (70^ - 80^)

Indicator lights

ON

C

the red ON light comes on when the oven is on

the green ^ C light comes on when the oven reaches

the required temperature

Read all the instructions carefully before using the appliance. Keep these instructions

i Please note:

This symbol identifies important advice or information for the user.

Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc.
- The appliance must be kept at a distance of at least 20cm from the mains power socket to which it is connected.
Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15 minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances applied to the heating elements before transport.

Ventilate the room.

• Wash all accessories thoroughly before use.
  To set times less than 20 minutes, first turn the timer dial all the way round, then back to the desired time.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

This oven is designed to cook food.
It must never be used for other purposes, modified or tampered with in any way.
- When you have unpacked the appliance, make sure the door is undamaged and working correctly.
The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the door violently. Do not pour cold liquid onto the glass while the appliance is hot.
- Place the appliance on a horizontal surface at a height of at least 85cm and out of reach of children.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children, unless they are more than eight years old and under constant supervision.

• Keep the appliance and power cable away from children under eight years of age.
• Do not move the appliance while in use.
• Do not use the appliance if:
• The power cable is faulty
  the appliance has been dropped, is visibly damaged or malfunctions. In these cases, to avoid all risk take the appliance to your nearest authorised customer services.
• Never position the appliance near heat sources.
• Do not use the appliance as a heat source.
• Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance (utensils, wire racks, other objects).
• Never insert anything into the ventilation openings.
  Make sure they are unobstructed.
  This oven is not designed for built-in installation.
• Do not rest heavy objects, boiling pans or containers on the open door.
• Do not pull the handle downwards.
  Professional or inappropriate use, or failure to observe the instructions absolves the manufacturer from all responsibility and invalidates the guarantee.
  This is a household appliance only. It is not intended to be used in: in staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• When not in use and before cleaning, always unplug the

apppliance.

The appliance must not be operated by a timer or a separate remote control system.
- The appliance must be placed and operated with the back next to the wall.
- Do not use pointed or sharp metal objects to clean the bread pan.
Before cleaning, always turn the appliance off by setting the timer to "0" and unplugging it from the mains socket.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

• When in operation, the door and accessible external surfaces could become very hot.

Always use the knobs, handles and buttons.

Never touch metal parts or the glass. Use oven gloves if necessary.

• This electrical appliance operates at high temperatures which could cause burns.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Never operate the appliance under a wall cupboard or shelf or near inflammable materials such as curtains, blinds, etc.
  If food or other parts of the oven catch fire, never try and put out the flames with water.

Close the door, unplug from the mains and smother the flames with a damp cloth.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

Before plugging into the mains, make sure that:
The mains voltage corresponds to the voltage indicated on the rating plate.
The mains socket has a minimum rating of 16A and an earth wire.

The manufacturer declines all liability in the event

that this important accident-prevention rule is not respected.

• Do not let the power cable dangle and avoid touching hot parts of the oven.
  Never unplug the appliance by pulling on the power cable.
• If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the cross section of the wires is at least equal to that of the power cable provided with the appliance.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
  If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer services or a qualified electrician in order to eliminate all risk.
• For your personal safety, never take the appliance to pieces on your own. Always contact Customer Services.

CE The appliance complies with the following EC direc-tives:

Low Voltage Directive 2006/95/EC and subsequent amendments;
EMC Directive 2004/108/EC and subsequent amendments
Materials and accessories coming into contact with food conform to European regulation (EC) no. 1935/2004.

In compliance with European directive 2012/19/ EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

For more information regarding the various functions and cooking tables, refer to the images on page 79-92
