Type of product	Electric oven
Brand	DELONGHI
Model	E02431
Dimensions (W x H x D)	485 x 305 x 430 mm
Weight	10 kg
Power supply	220-240 V, 50/60 Hz, max 16 A
Power consumption	1800 W or 2000 W
Cooking functions	Gratin, Grill, Conventional oven, Defrosting, Convection heat, Gentle cooking, Keep warm

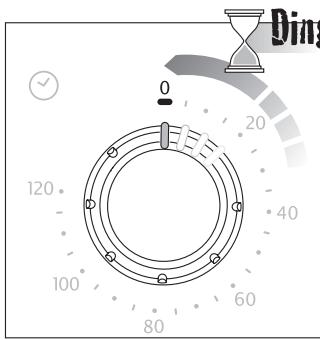

Timer	Yes (rotary knob)

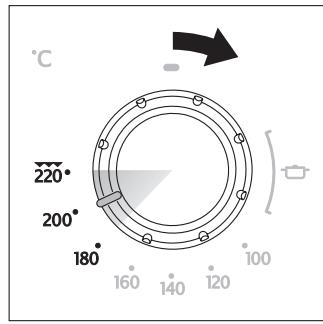

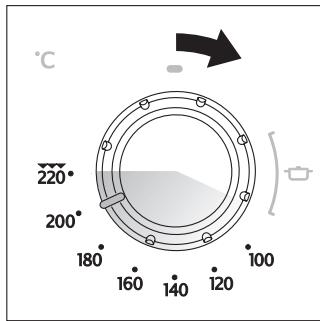

Thermostat	Yes (rotary knob)
Internal light	Yes (on some models)
Included accessories	Rack, drip tray (on some models)
Door	Tempered glass
Heating elements	Upper and lower
Indicator lights	Red (power on), green (temperature reached)
Safety	Automatic shut-off not mentioned, do not use near heat sources
Maintenance and cleaning	Unplug before cleaning, do not use sharp metal objects
Compliance	CE (Directives 2006/95/EC, 2004/108/EC, Regulation 1935/2004)
Disposal	Do not dispose of with household waste, recycle at authorized center

Frequently Asked Questions - E02431 DELONGHI

How to eliminate the new smell before first use?

Run the oven empty, thermostat at maximum, for at least 15 minutes. Ventilate the room during operation.

What accessories are provided with the E02431 oven?

Depending on the model, the oven may include a rack and a drip tray. Check your packaging.

How to clean the oven after use?

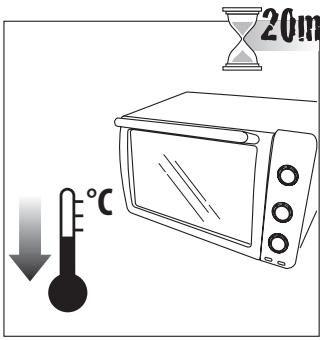

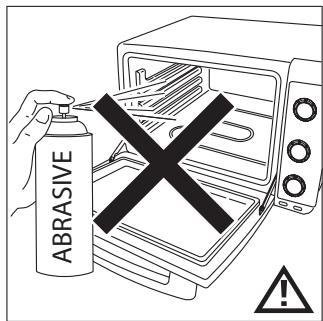

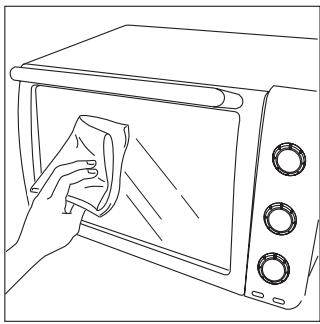

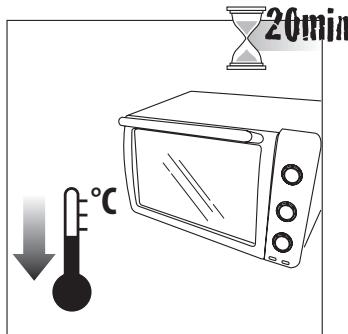

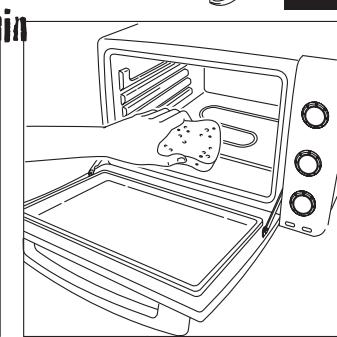

Unplug the appliance and wait for it to cool down. Clean with a damp cloth and mild detergent. Do not use sharp metal objects or abrasive products.

What to do if the oven does not heat up?

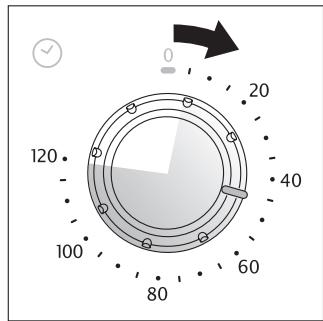

Check that the timer is set to a cooking time and that the thermostat is set to a temperature. If the red indicator does not light up, contact after-sales service.

Can I use aluminum foil in the oven?

It is not recommended to put paper, cardboard or plastic in the oven. For food, use suitable oven-safe dishes.

What minimum distance should I keep around the oven?

Place the appliance at least 20 cm away from the power outlet and keep it away from heat sources and flammable materials.

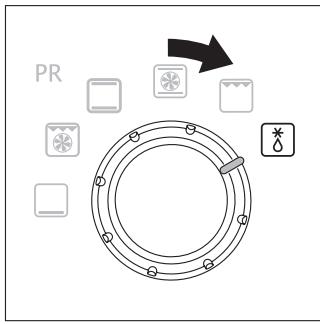

How to use the defrost function?

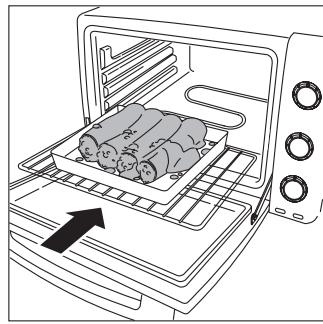

Select the defrost function (if available) and set a low temperature. Place frozen food on the rack. The time depends on weight.

What do the red and green lights mean?

The red ON light turns on when the oven is on. The green ^C light turns on when the set temperature is reached.

Can the oven be built-in?

No, this oven is not designed to be built-in. It must be placed on a stable horizontal surface.

How to change the internal light bulb?

Internal light is only present on some models. To replace it, unplug the appliance and contact an authorized service center.

USER MANUAL E02431 DELONGHI

Instructions for use

Instruction for use

Mode d'emploi

Bedienungsanleitung

Gebruiksaanwijzingen

Instrucciones para el uso

Instruções de utilização

General instructions

Operating instructions

Használati útmutató

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

Electric oven

Electric oven

Electric oven

Electric oven

Electric oven

Instructions for use

Instructions for use

Operating instructions

Operating instructions

Operating instructions

Operating instructions

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

ELECTRIC OVEN

Appliance description

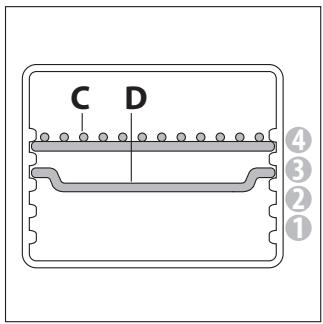

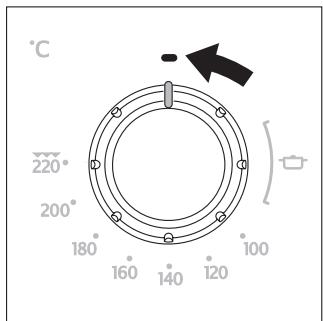

A Top heating element B Internal light (only on certain models) C Grill (only on certain models) D Drip tray (only on certain models) E Thermostat knob F Timer knob G Function selector knob H Green indicator light I Red indicator light ON L Glass door M Bottom heating element N Crumb tray

Technical specifications

Voltage: 220-240 V~ 50/60 Hz max 16 A

Power consumption: 1800 W or 2000 W

Dimensions WxHxD: 485 x 305 x 430

Weight: 10 kg

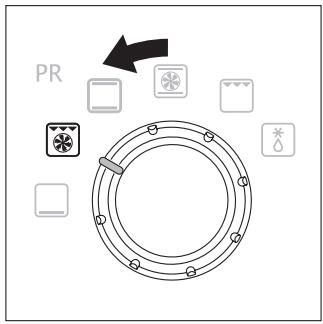

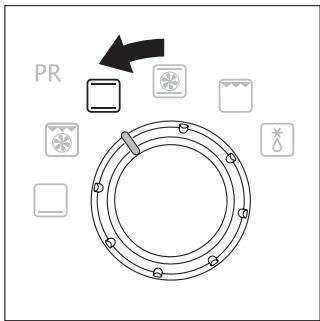

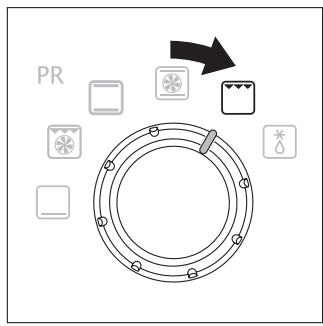

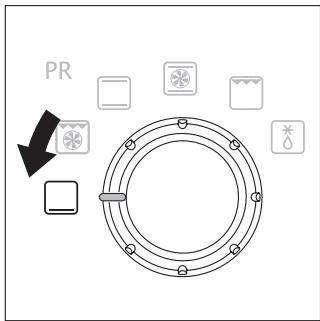

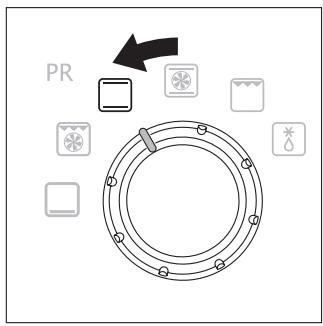

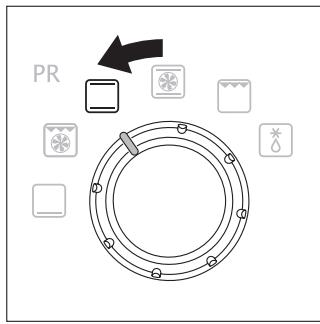

Functions

GRATIN FUNCTION ideal for gratinating food (only on certain models)

GRILL FUNCTION ideal for grilling food

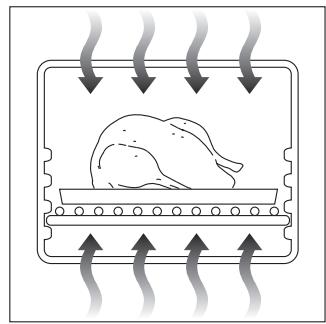

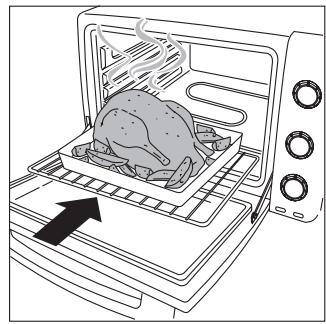

TRADITIONAL OVEN FUNCTION ideal for all traditional cooking

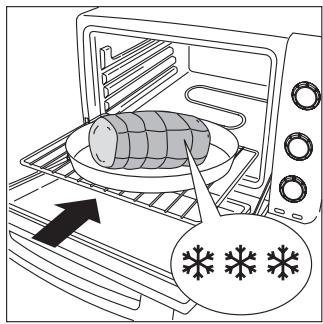

DEFROST FUNCTION ideal for defrosting all products (only on certain models)

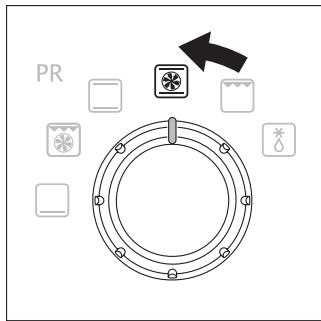

CONVECTION HEAT ideal for faster and more even cooking (only on certain models)

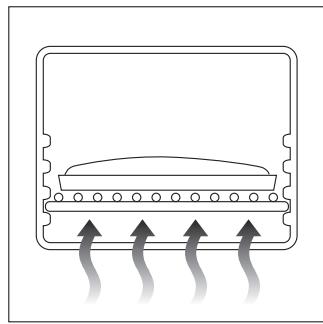

DELICATE COOKING FUNCTION ideal for cooking the underside of food

KEEP WARM

Indicator lights

the red MARCHES indicator light comes on when the oven is turned on

C

the green ° C indicator light comes on when the oven reaches the set temperature

Safety instructions

Read this manual carefully before using the appliance. Keep this manual

i Note:

This symbol highlights advice and important information for the user.

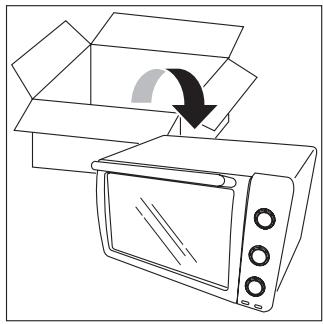

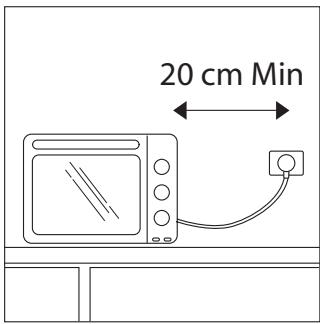

• Before first use, remove all paper, protective cardboard, booklets, plastic bags, etc. from inside the oven. The appliance must be placed at least 20 cm away from the electrical outlet it is plugged into.

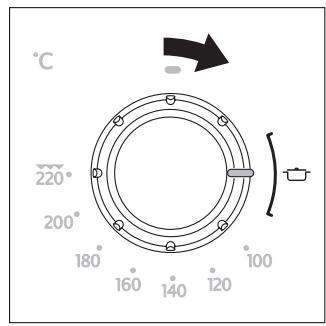

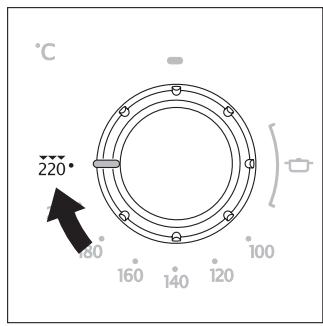

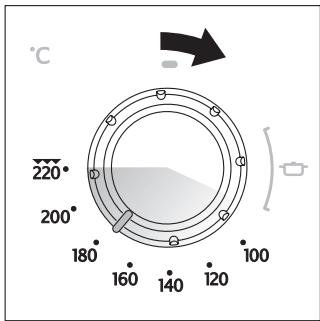

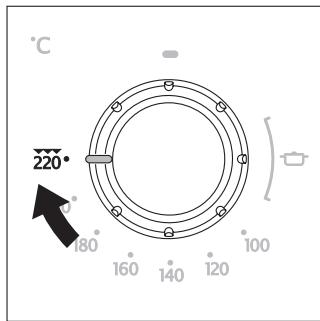

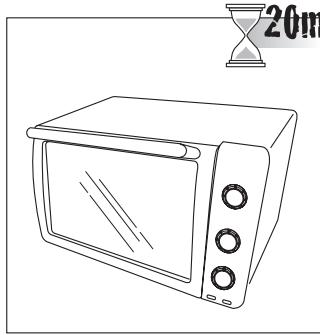

• Before first use, run the appliance empty at maximum thermostat for at least 15 minutes to eliminate the new smell and any smoke caused by protective grease applied to the heating elements before transport.

During this operation, ventilate the room.

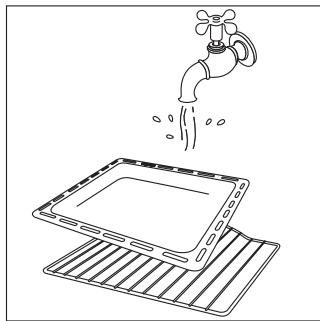

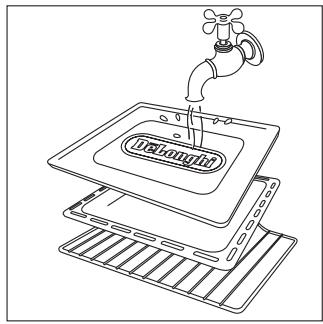

• Wash all accessories thoroughly before use.

Warning!

Failure to comply may cause injury or damage to the appliance.

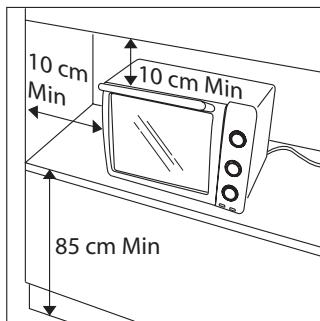

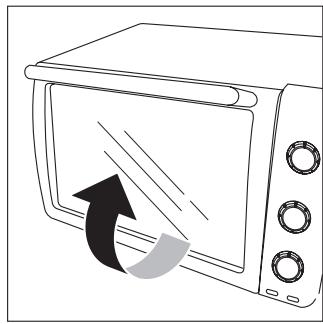

This oven is intended for cooking food. It must not be used for any other purpose and must not be modified or transformed in any way. After unpacking the appliance, check that the door is not damaged. The door is made of glass and is therefore fragile. It is advisable to have it replaced if it is chipped, cracked, or scratched. During use, cleaning, and moving of the appliance, avoid slamming the door, hitting it violently, and pouring cold liquids on the hot glass of the appliance. Place the appliance on a horizontal surface at a height of at least 85 cm, out of reach of children. The appliance can be used by children over 8 years of age and by persons with reduced mental, physical, or sensory capabilities, or with insufficient experience or knowledge, provided they are carefully supervised, they know how to use it safely, and they are informed of the dangers it entails.

Supervise children to ensure they do not play with the appliance. Cleaning and maintenance must not be performed by children unless they are over 8 years old and are constantly supervised.

• Do not leave the appliance and its cord within reach of children under 8 years of age.
• Do not move the appliance while it is in operation. Do not use the appliance if:
• Its power cord is defective, the appliance has fallen, or it shows visible damage or operational anomalies.

If applicable, to avoid any risk, have it checked by the nearest After-Sales Service Center.

• Do not install the appliance near heat sources. Do not use the appliance as a heat source.
• Never put paper, cardboard, or plastic in the oven and never place anything on top of it (utensils, racks, or other objects). Do not insert anything into the ventilation openings. Make sure they are not obstructed. This oven is not designed to be built-in.

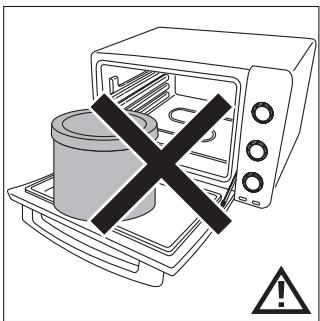

• Once the door is open, never place heavy objects, pots, or hot containers on it.

Do not pull the handle downward.

The manufacturer's liability will not be incurred in case of professional use, inappropriate use, or use not in accordance with the instructions, and the warranty will be voided. This appliance is intended for exclusively domestic use.

It is not intended for use in staff kitchens of shops, offices, and other professional environments, nor in

rural lodgings, hotels, motels, and other accommodation facilities, bed and breakfasts, or guest rooms.

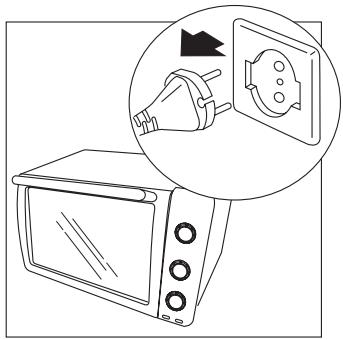

• Always unplug the appliance before cleaning it and when you are not using it.
• Do not operate the appliance using an external timer or a separate remote control system. The appliance must be installed on the wall.

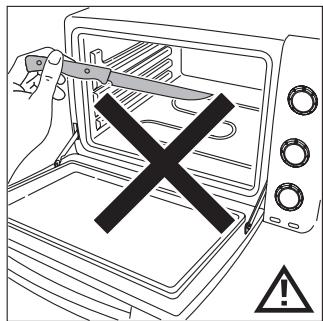

• Avoid cleaning the kneading bowl with sharp or cutting metal objects.

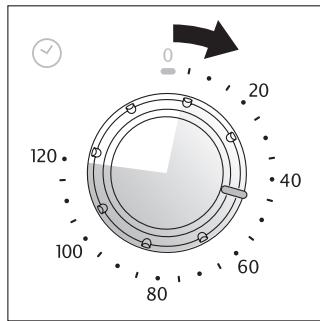

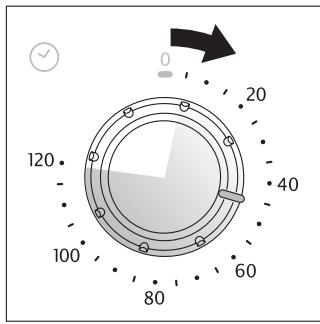

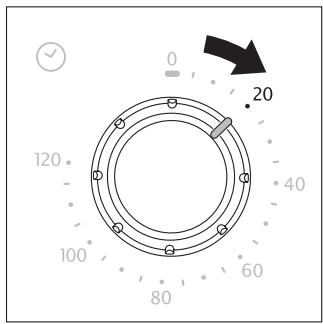

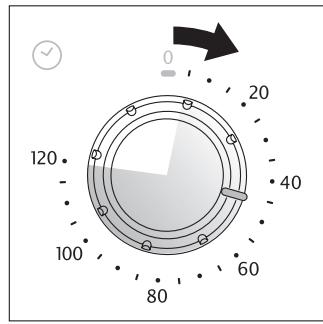

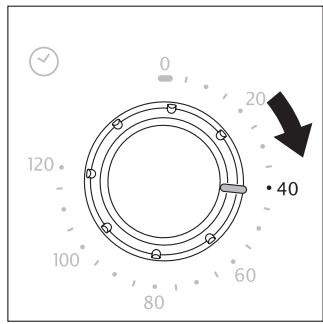

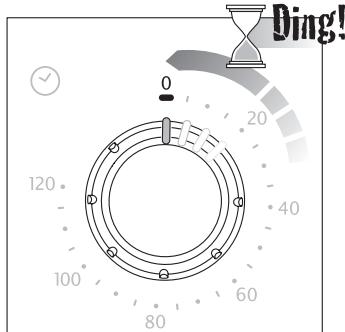

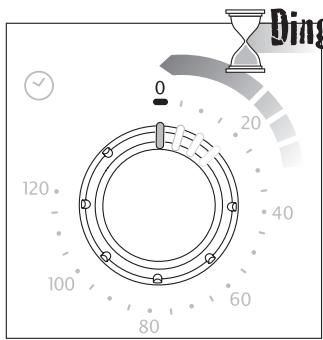

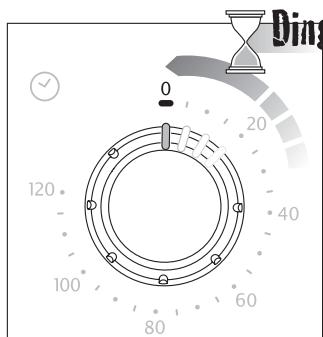

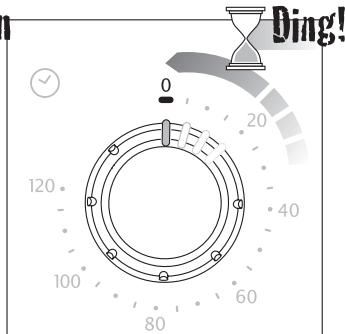

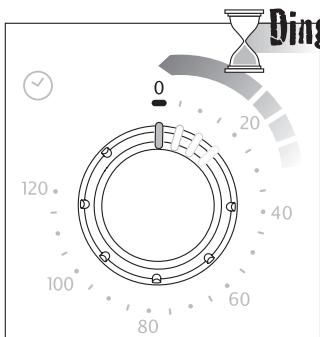

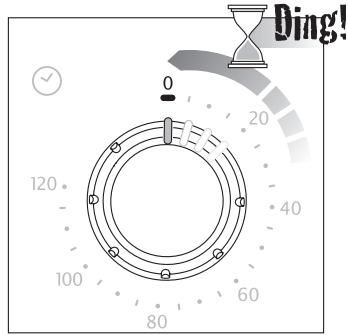

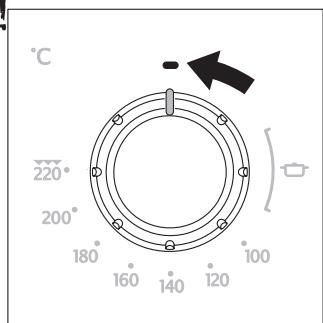

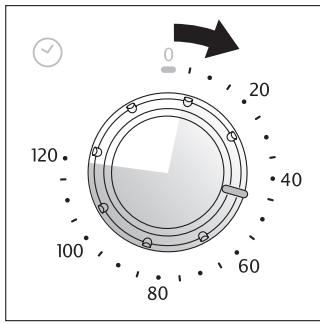

• Always turn off the appliance by setting the timer to "0" and unplug the power cord from the outlet after use and before cleaning.

Danger: Burns!

Risk of burns.

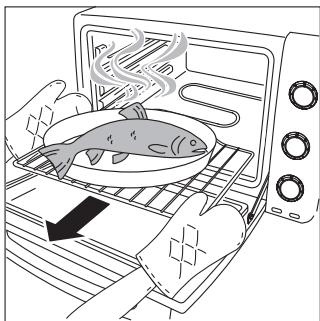

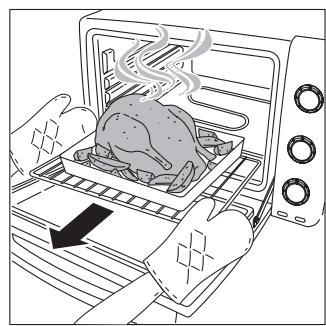

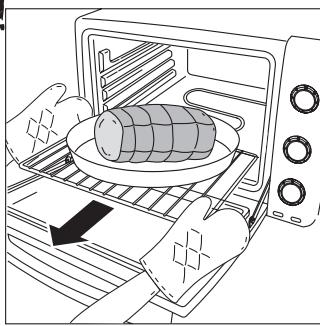

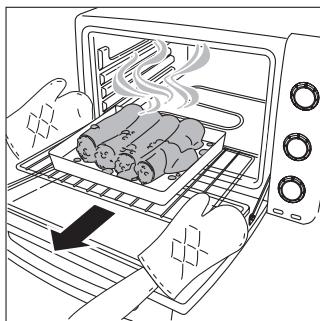

• When the appliance is in operation, the temperature of the door and the body can be very high. Only touch the buttons, handles, and keys. Never touch the metal parts or the oven glass. Use insulating gloves if necessary.
• This electrical appliance operates at high temperatures that can cause burns.
• Never store flammable products near the oven or under the cabinet on which it is placed.
• Never operate the appliance under a hanging cabinet or shelf, or near flammable materials (curtains, drapes, etc.). If food or other parts of the oven catch fire, do not attempt to extinguish the flames with water.

Keep the door closed, unplug the appliance, and smother the flames with a damp cloth.

Danger!

Failure to comply may cause or is the cause of injury from electric shock with risk of death.

Before plugging in the appliance, check that: - The mains voltage corresponds to that indicated on the rating plate. - The power outlet can support 16 A and is equipped with a ground connection. The manufacturer declines all responsibility if the installation does not comply with safety standards. - Do not let the power cord hang and ensure it does not come into contact with hot surfaces of the oven.

Never pull on the cord to unplug the appliance.

• If you must use an extension cord, make sure it is in good condition, its plug is grounded, and the conductor cross-section is at least equal to that of the power cord supplied with the appliance.

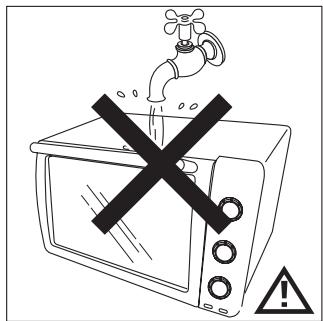

• To avoid any risk of electric shock, never immerse the power cord, plug, or appliance in water or any other liquid. If the power cord is damaged, have it replaced by the manufacturer, an authorized service center, or a qualified professional to avoid any risk. For your personal safety, never disassemble the appliance yourself; always contact an authorized service center.

The appliance complies with the following EC directives

Low Voltage Directive 2006/95/EC and its successive modifications. EMC Directive 2004/108/EC and its amendments. - Materials and objects intended for contact with food products comply with European Regulation (EC) No. 1935/2004.

Disposal

In accordance with European Directive 2002/96/EC, do not dispose of the appliance with household waste, but take it to a selective/authorized collection center.

	kg	301	PR 图 图 图	F
	700g	1	180℃	45-50 min
				30-35 min
	750g	1	200℃	25-30 min
***	450g	2	200℃	20-22 min
				15-17 min
	500g	1	180℃	35-40 min
	1500g	1	180℃	35-40 min
			200℃	30-35 min
	1300g	1	190℃	100-105 min
				80-85 min
	700g	1	190℃	65-70 min
				50-55 min
	1000g	1	190℃	90-95 min
				75-80 min
	1200g	1	180℃	55-60 min
	750g	4	220℃	25-30 min
	1000g			200℃	25-30 min
***	1000g			200℃	65-70 min
					45-50 min
	1000g			200℃	55-60 min
					45-50 min
	1000g			220℃	15-20 min
					15-20 min
	300g			180℃	15-20 min
					20-22 min
***	6			180℃	13-15 min
					40-45 min
	850g			180℃	30-35 min
					40-45 min
	850g			180℃	30-35 min
					35-40 min
	900g			180℃	25-30 min
					20-25 min
	900g			160℃	85-90 min
