BCS712XXL - Vacuum Cleaner BOSCH - Free user manual and instructions

Brand	BOSCH
Model	BCS712XXL
Category	Vacuum cleaner
Type	Cordless vacuum cleaner
Power supply	Rechargeable battery 18 V (Power for ALL 18V)
Battery voltage	18 V
Dust container capacity	0.4 L (estimated)
Filter type	Lint filter and lamella filter
Suction power	Variable via power selector
Floor brush	Universal floor brush with free-standing function
Release system	Foot release
Included accessories	Base station, quick charger, angled suction hose, storage hook
Display	Status display (battery and error)
Maximum operating height	2000 m
Safety	Overheating protection, unsupervised use prohibited for children
Maintenance	Filter cleaning (at least 1x/month), emptying container, brush cleaning
Spare parts	Available via spare parts service: 0892 698 009
Consumer service	0892 698 010 (€0.40/min)
Warranty	According to distributor conditions
Weight	2.5 kg (estimated)

Frequently Asked Questions - BCS712XXL BOSCH

How do I charge the battery of the BCS712XXL vacuum cleaner?

Use only the supplied quick charger or original charging cable. Plug the vacuum cleaner into the base station or directly into the charger. Refer to figures 6 to 10 in the manual for details.

What should I do if the vacuum cleaner does not turn on?

Check that the battery is correctly inserted and charged. If the red error display lights up, wait for the appliance to cool down or warm up to room temperature.

How do I clean the filter of the vacuum cleaner?

Remove the filtration unit and clean the lint filter and lamella filter without using liquid. It is recommended to do this at least once a month. Refer to figures 34 to 40 in the manual.

Why is the suction power decreasing?

This may be due to a clogged filter, blocked nozzle, or full dust container. Clean the filter, check the air duct, and empty the container. If the problem persists, let the appliance cool down.

Can I use the vacuum cleaner to suck up water or liquids?

No, the BCS712XXL vacuum cleaner is designed only for dry substances. Sucking up liquids can damage the appliance and void the warranty.

How do I empty the dust container?

Press the dust container release button (mark 6) and remove it. Empty the contents into a trash bin. Refer to figures 30 to 33 in the manual.

What types of floors can I clean with the universal brush?

The universal floor brush is suitable for hard floors and carpets. Thanks to its free-standing function, it automatically adjusts to the surface.

Where can I buy spare parts or accessories?

Contact BOSCH spare parts service at 0892 698 009 (€0.40/min) or visit www.bosch-home.com/fr.

What should I do if the battery overheats abnormally?

Turn off the vacuum cleaner and disconnect the battery. Let it cool down to room temperature before reuse. If the problem persists, contact consumer service.

How do I maintain the floor brush?

Regularly clean the brush by removing tangled hair and fibers. Refer to figure 41 in the manual for detailed instructions.

USER MANUAL BCS712XXL BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Cordless handstick vacuum cleaner

BBS71

BCS71

BKS71

BSS71

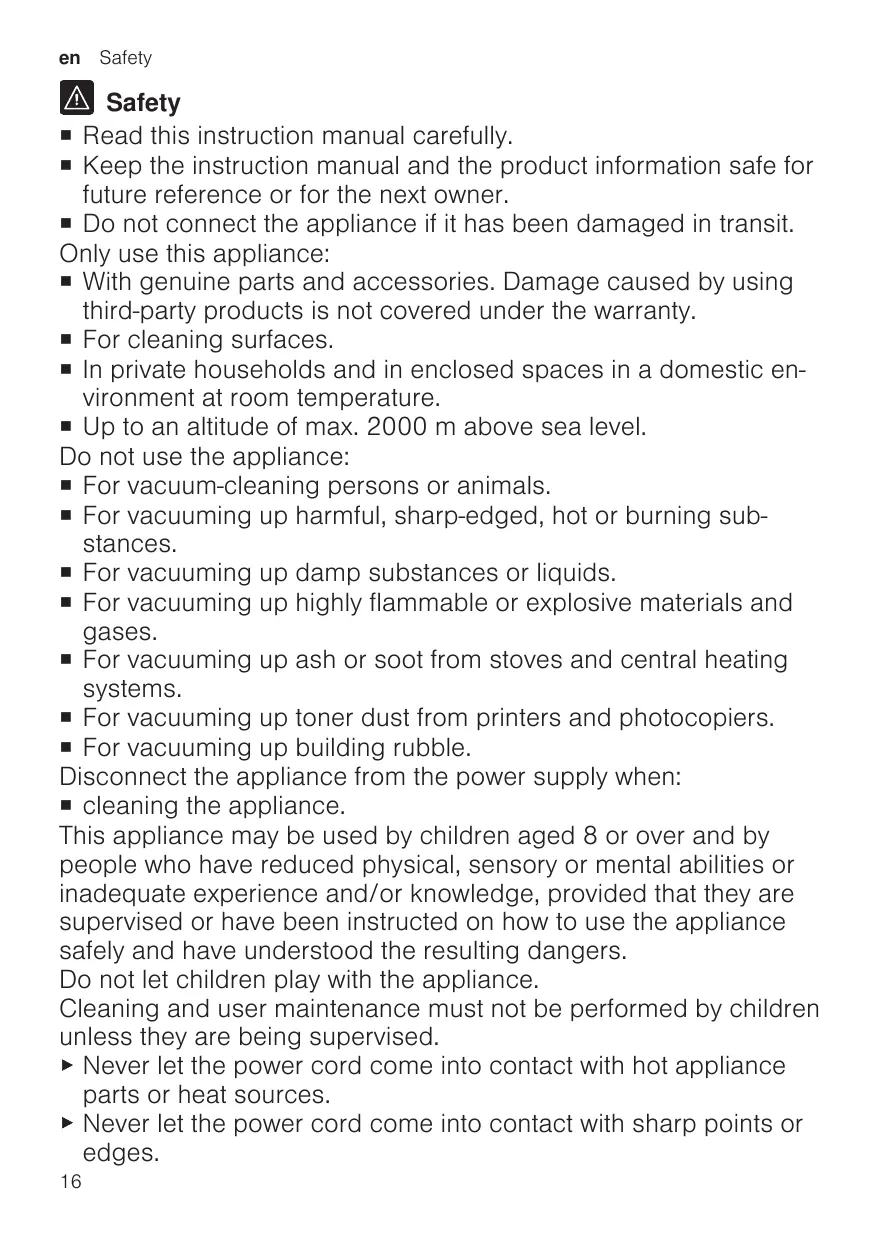

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

• With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
  For cleaning surfaces.
• In private households and in enclosed spaces in a domestic environment at room temperature.
  Up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

For vacuum-cleaning persons or animals.
- For vacuuming up harmful, sharp-edged, hot or burning substances.
For vacuuming up damp substances or liquids.
- For vacuuming up highly flammable or explosive materials and gases.
- For vacuuming up ash or soot from stoves and central heating systems.
- For vacuuming up toner dust from printers and photocopiers.
For vacuuming up building rubble.

Disconnect the appliance from the power supply when:

• cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Never let the power cord come into contact with hot appliance parts or heat sources.

• Never let the power cord come into contact with sharp points or edges.

• Never kink, crush or modify the power cord.

• Connect and operate the charging cable¹ and the quick charger¹ only in accordance with the specifications on the rating plate.
• Connect the charging cable¹ and the quick charger¹ to a power supply with alternating current only via a properly installed socket with earthing.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
• Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• Ensure that children do not play with the appliance, even when it is in the base station¹.
• Persons with electronic implants must stand at least 10~cm away from the appliance.
• Keep packaging material away from children.
• Do not let children play with packaging material.
  Protect the battery against fire, heat and constant sunlight.
  Protect the battery against water and penetrating moisture.
• Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
  Supply fresh air.
  If there are any problems, seek medical advice from a doctor.
• If these come into contact with the skin, wash immediately with cold water.
  If these come into contact with the eyes, seek medical help.

Preventing material damage

Check and clean any wet objects.
Replace damaged objects.
Regularly check the running surfaces of the nozzles for wear.
Replace worn nozzles.
- Never use the nozzle without the brush roller in place.

• Never operate the appliance without the filter unit.

Overview

You can find an overview of the parts of your appliance here.

Fig. 1

1

Dust container

2	Fluff filter
3	Cartridge filter
4	Power control and on/off switch
5	Status display
6	Dust container release button
7	Storage hook
8	Flexible suction pipe
9	Foot release
10	Universal floor nozzle with free-standing function

Operating the appliance

Follow the illustrated instructions.

Installing the base station

• Check whether any household wiring could be damaged in the installation area.
• Do not install the base station horizontally or vertically above, below or next to a socket.

$$ \rightarrow \text {F i g .} 2 - 3 $$

Installing the appliance

$$ \rightarrow \text {F i g .} 4 - 5 $$

Charging the appliance

Only charge the battery in chargers that are recommended by the manufacturer.
- Only use the battery in connection with the Bosch appliance.
- Charge the battery using the original charging cable ^1 or the original quick charger ^1 .
- Only use batteries from the Power for ALL 18 V series.
- Ensure that children do not play with the appliance, even when it is in the base station¹.

$$ \rightarrow \text {F i g .} 6 - 1 0 $$

Operating the appliance

$$ \rightarrow \text {F i g .} \quad 1 1 1 - 2 5 $$

Removing the appliance

$$ \rightarrow \text {F i g .} \quad 2 6 - 2 8 $$

Cleaning and servicing

Follow the illustrated instructions.

Note: It is recommended cleaning the filter of the dust container whenever you empty the container. It should however be done at least once a month.

Cleaning the appliance

$$ \rightarrow \text {F i g .} 2 9 - 2 9 $$

Emptying the dust container

$$ \rightarrow \text {F i g .} \quad 3 0 - 3 3 $$

Cleaning the filter unit

• Never allow the filters to come into contact with liquids.

$$ \rightarrow \text {F i g .} \quad 3 4 - 4 0 $$

Cleaning the floor nozzle

$$ \rightarrow \text {F i g .} \quad 4 1 - 4 1 $$

Troubleshooting

Fault	Cause and troubleshooting
The appliance is not working.	The battery has not been inserted correctly.
The battery status display does not show any status.	Insert the battery correctly. Inserting and charging the battery
The red fault indicator lights up for 10 seconds.	The battery has not been charged. Charge the battery.
	The battery has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until battery has reached room temperature.
	The appliance has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until the appliance has reached room temperature.
No charging function.	Incorrect charger was used. Only use the charger that is included.
The dust container cannot be inserted.	The filter unit is not complete. Check whether the filter unit is complete.
	The filter unit or dust container is not positioned correctly. Check whether the filter unit and dust container are inserted correctly.
Suction is reduced.	The filter is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Clean the filter unit.
	The nozzle is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Check whether the air channel from the nozzle to the appliance is blocked. 3. Empty the dust container. 4. Clean the filter unit. 5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

• Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Warranty conditions

You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Sécurité

Montage of basestation

Rengoring at apparatus

Fig. 29 - 29

Eliminar as bacterias/pilhas

81739 Munchen, Germany

www.bosch-home.com

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

He ncpoIb3yIte npn6op:

PoiIb3yITeCb IInCTpyKcneH Na IIn3OpaJKeHN-ax.

3aMeTka: PekOMeHdyETcOuNtB ΦIbTp KOHTeHepa dJa c6opApbln ppi KaJdOM OnpoKHeHH KOHTeHepa, Ho He peKe yem pa3 B Meca.

OuhcTka npH6opa

→Pnc.29-29

OnopokHeHne KOHTeHepa IJIc6opa nbln

→Pc.30-33

OuHcTkaΦHJIbTpOBAJIbHOro 6Ioka

He doynyckaTe KOHTaKta fNJIbTpac KNDKOCTAMN.
→Pnc.34-40

OuHCTKa HacaIKN JIЯ NOJa

→Pnc.41-41

YctpaHHe HeHcnpaBHOCTe

HeNCnpaBnOCTb	Прична и устранения HeNCnpaBnOCTe
Прибор He pa6otaet.	АккумларTop установlen He npaBnIbNo.
Индikatop соctoHnna	►Установite akkuMylarTop B паВиьнHom поожени.
akkymyIaTOpHoi 6atapei He poka3bIbAet co-stoHnne.	UstahOBka n 3apJdka akkuMylarTopa
Индikatop HeincnpaBHo-CTn copit KpacbIbIM CBe-tOM B teuHene 10 c.	АккумларTop He 3apJxKeH.
	Зретер Илип警察хлajдение akkuMylarTopa.
	1. Выклочite prinbopи OТcoeДиHite erо OT ол ektrponita-HЯ.
	2. ПобождITE, рoka akkuMylarTop He DoCTIHnet KMHaTHOH TeMpepaTpybl.
	Перетер Илип警察хлajдение prinbopa.
	1. Выклочite prinbopи OТcoeДиHite erо OT ол ektrponita-Hя.
	2. ПобождITE, рoka prinbop He DoCTIHnet KMHaTHOH TeMpepaTpybl.
Зрета He blyolHЯET-CЯ.	Исpenl3ozBaIocb HepoIxOJaIe ee 3apJdHoe yCTpoIcSTBO.
	Исpenl3zyte TOnbKO BxOJaIe ee B KomPJIeKT PocTbKIN 3a-paHoe yCTpoIcSTBO.
Кont致电 Дуплі He uStaHOBJIeH.	ФильтюВальньй 6blOK He ykomPЛeKTOBaH.
	ПрobерTe ykomPЛeKTOBaH Л ФильтюВальньй 6blOK.
	ФильтюВальньй 6blOK Л Фильтveнр ДупСБаРОвALEHын.
	ПрobерTe рpaВиьно Л установны ФильтюВальньй 6blOK Л ФильтewрДупСБаРОвALEHы.
Мошноctь BCasblBaHnny UmehbIaIacb.	Фильтpr 3acopen.
	1. Выклочite prinbopи OТcoeДиHite erо OT ол ektrponita-Hя.
	2. Oчиртite ФильтюВальньй 6blOK.
	Hacadka 3a6IokinpobaHa.
HeincpapbHocstb	Причины и устра themselves HeincpapbHocstey
Мошносты BCasыВаня умehьшлалс.	1. ВыклочITE прибори отcoeoинite erо от злескопита- ня. 2. Проверты, He засорен liи ВОзduшный канал от насадok do пriбора. 3. Onopожипite koHTeнер дlya сбора пыли. 4. Oчирсте Фильстовальский. 5. Сноа ВКлочITE пriбор, пооче ТOTO, КAK OH oxlaДNTСY.

Ytvn3aunca Staporo 6bITOBOROpn6opa

• YtJIN3npyIte np6op B COOTBETCTBn C 3KOJIOnHueCKIMN HopMaMn.

CBeDeHnO BO3MOxHbIX cNooc6ax yTNI3aunm MOxHO NOLyUHTB CneuAIn3npoBaHHOM TOPOBOM PpeDnPnATn, a TaKKe B paOHbIX INI rOpOdcknx Oprahax UnpaBLeHn.

Данньий пибор Имeel OT-MeTKу O COOTBETCTBn EБpo-NeiCKm HopMaM 2012/19/EU yTnIn3aUnn 3JeKtpuYeCKnx I 3JeKTPoHHbIX пибopob (waste electrical and electronic equipment - WEEE).

ДанныеHopMbI oppeelenHOT DeiCTBvUOuNe Ha TeppITOpn EBpocOIO3 npaBnla BO3BpaTaN yTININ3aunn cTapbIX npN6OpOB.

Ytvn3aun aKKymyIaTOPOB/6aTapei

AkkymyIaTObpI/6aTapeN CneJeYeT OtnpaBnTB Na DaJIbHeNsuO yTuIN3aCNUo B COOTBeTCTBnC Tpe6oBaHnMn OxpaHbOkpyKaIOu-ue CpeDb. He yTuIN3npyTe aKKymyIaTObpI/6aTapeN BMecTe C 6bITOBbIM MycOpom.

YtJnI3npuIte aKkymyIaTOpbI/6aTapeN B COOTBeTCTBn C 3KOJIOnueCKMm HOpMa-Mn.

B coOTbETCTBnC eBponeckoI INpeKTHBOI 2006/66/EC nobpeXdEHHbIe IINncIOJIb3OBAHbIe aKKyMylTOpbl/6aTapeN DoJIbHbIO OTnpabIaTBcR OTeJIbHO IO TnpaIBTbcra Ha DaJIbHeNJyU OTHIN3aUNIO B COOTbETCTBnC tpe6OBaHNIM OxpaHbI OkpyKaHOSe Cpebl.

TapaANTHbIe ycNoBna

BbI nmeete npaBo Ha rapaHTnHoe o6cnyKuBaHne BaIeero npi6oPa B COOTBeTCTBnC coCJeDyUOIMN yCNOBnMn.

Ionyntb ncepepbibBaOuSyIO uHΦopMaunIO 06ycNoBnX rapaHTnHOro 06cLnyKnBaHnBAbl MoKeTe B BaWeM 6nnKaJWeM aBTopn30BaHHom cepBnCHOM ueHTpe, INN B cepBnCHOM ueHTpe ot npOn3BoNDteJI OOO «BCX BbyOBaT texHnKa», INN B cOpBoNDteJbHOJ DOkUMeHTaCIN.

HnΦopMaunu n3rOToBnteTn o rapaHTnHOM n cepBnCHOM 6cnyXnBaHH

Kpyrnocytohnyteneoohcnyk6bnoepkkn*:

8 [phone]

OΦnuaNbHbI caHT B INThepHeTe:

www.bosch-home.ru

Aepcae aBOpTH3OBAHbHIX cepBNbHix eHTPOB, a TAKXe BcA MfOPMaunu no cepBNCHOMy o6cbNyKbAHNIO doctYnHa oOFmuaHbHom caTte B INHTepre: www.bosch-home.ru.

PekomeHdyem Bam nonb3oBaTbcycnryramn TOnbKO aBTOpH3OBAHHbIX cepBCHbIX cHTPOB.

OpHnHnHbIbe AkeccecyapB I n cpeCtDa no yOxdy I an BStTOB OTHnxHosB Bosch Bi MoKeTe npHOb6ptn H aHaem dHpMehHom HHTepHemar3aHHe: www.bosch-home.ru/store. C yCnoBmHK mZakaa, onlntu H oDzabkN Bbl MoKeTe o3hAKoMHTbc H aCaIe. TaKke opHnHbIbeAkeccecyapB I n cpeCtDa no yOxdy Bbl MoKeTe npHOb6ptn B ATOPnOBAOBHbX cepBCHbIX eChTpaX.

1.ИЗdens

1. Moenb

NHybI 2-1 3aONHIOCTO TLbK B CNYae,ecn 3TN DAnhBte He CopepXATcB DOKyMeHTAX O NOKyKe IADENIA (kaccobN Yek N/NN ToBapHHN 1 Yck,TOBAPHNA KauNaHdA).

Central Service Contacts

AE United Arab Emirates,
A
BSH Home Appliances FZE
Round About 13, Plot Nr M0-0532A
Jebel Ali Free Zone-Dubai
Tel.:[phone]*
mailto:[e-mail]
www.bosch-home.com/ae
*Sun-Thu 8am to 5pm (exclude public hol
idays)

AM AM Armenia, Rujuuuunulu

ZIG ZAG LLC

Charencistr.25

Yerevan 375025

Tel.:[phone]

mailto:[e-mail]

www.zigzag.am

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.au

*Mon-Fri 24 hours

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A.-N.V.

Rue Picard 7, box 400, Picardstraße 7, box 400

1000 Bruxelles-Brussel

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.be

BH Bahrain,

Khalaifat Est.

BLD 898,R533,TASHAN405

Manama

Tel.:[phone]*

mailto:[e-mail]

*Sat-Thu 7am to 5pm (exclude public holidays)

BY Belarus, Bénapycb

000"BCXbIToBaTeXnika"

ren.:4957372961

mailto:[e-mail]

Argas Limited Company

Grand Union House, Old Wolverton Road,

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit www.bosch

home.co.uk Or call Tel.: [phone]*

*Calls are charged at the basic rate,

please check with your telephone service

provider for exact charges.

GR Greece,EMAdC

BSH Ikiakes SiskevesA.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Tnλeφωνo:2104277500,-701

mailto: [e-mail]

www.bosch-home.gr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park, Ballymount Road Upper, Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: [phone]*

www.bosch-home.ie

*Calls are charged at the basic rate, please

check with your telephone service provider for exact charges

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

JO Jordan,

Diab Qawasmi & Sons Co.

Khaled Ben Al-Waleed Street, Jabal Al Hussein (11121)

P.O.Box212292,Amman

Tel.:[phone],-2650

Tel.: [phone]

mailto:[e-mail]

LB Lebanon,

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth, P.O. Box 90449

Jdeideh 1202 2040

Tel.:[phone]

mailto:[e-mail]

LU Luxembourg

Level 3, Air NZ Building, Smales Farm Busi

ness Park, 74 Taharoto Road, Takapuna

Auckland 0622

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.co.nz

*Mon-Fri 8.30am to 5pm (exclude public

holic

PL Polska, Poland

SA Kingdom Saudi Arabia, a b d a Sd

Abdul Latif Jameel Electronics and Airconditioning Co. Ltd.

BOSCH Service centre, Kilo 5 Old Makkah

Road (Next to Toyota), Jamiah Dist., P.O. Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljazeera.com.sa

*Sat-Thu 8am to 11pm (exclude public holidays)

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.:[phone]

mailto:[e-mail]

www.bosch-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

38C Jalan Pemimpin, #01-01

Singapore 577180

Tel.:[phone]*

mailto:[e-mail]

www.bosch-home.com.sg

*Mon-Fri 9am to 6pm, Sat: 9am to 1pm (exclude public holidays)

TR Türkiye, Turkey

www.bosch-home.com/tr

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
