USER MANUAL 0W22510002 KENWOOD

HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Lane, Havant, Hampshire PO9 2NH

Read these instructions carefully and retain for future reference.

Remove all packaging and any labels. Switch off and unplug: before fitting or removing parts after use before cleaning. Never let the power unit, cord or plug get wet. Never use a damaged appliance. Get it checked or repaired: see ‘service and customer care’. Do not let the cord touch hot surfaces or hang down where a child could grab it. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Misuse of your appliance can result in injury Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. 2

Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions. important

Do not press too hard on the cone or run for longer than 10 minutes - you may damage your juicer. 3 Put a suitable glass or jug under the spout f. 4 Push the drip stop down ready for juicing 2. 5 Cut the fruit in half and place one half on the cone. The juicer will operate automatically. l During use the cone may change the direction it rotates. This is normal and ensures that the maximum amount of juice is squeezed out of the fruit. l To help with juice extraction, move the fruit from side to side. l When juicing large quantities, empty the strainer regularly to prevent the build up of pulp and seeds. l For best results store and juice the fruit at room temperature and hand roll on a worktop before juicing. 6 To stop the juicer, lift the fruit from the cone. Lift the drip stop up 3 before removing the jug or glass.

Use your new Kenwood Citrus

Juicer to squeeze the juice from citrus fruit eg oranges, lemons, limes and grapefruits. l

Make sure your electricity supply is the same as the one shown on the underside of the appliance. This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

before using for the first time

1 Wash the parts: see ‘cleaning’.

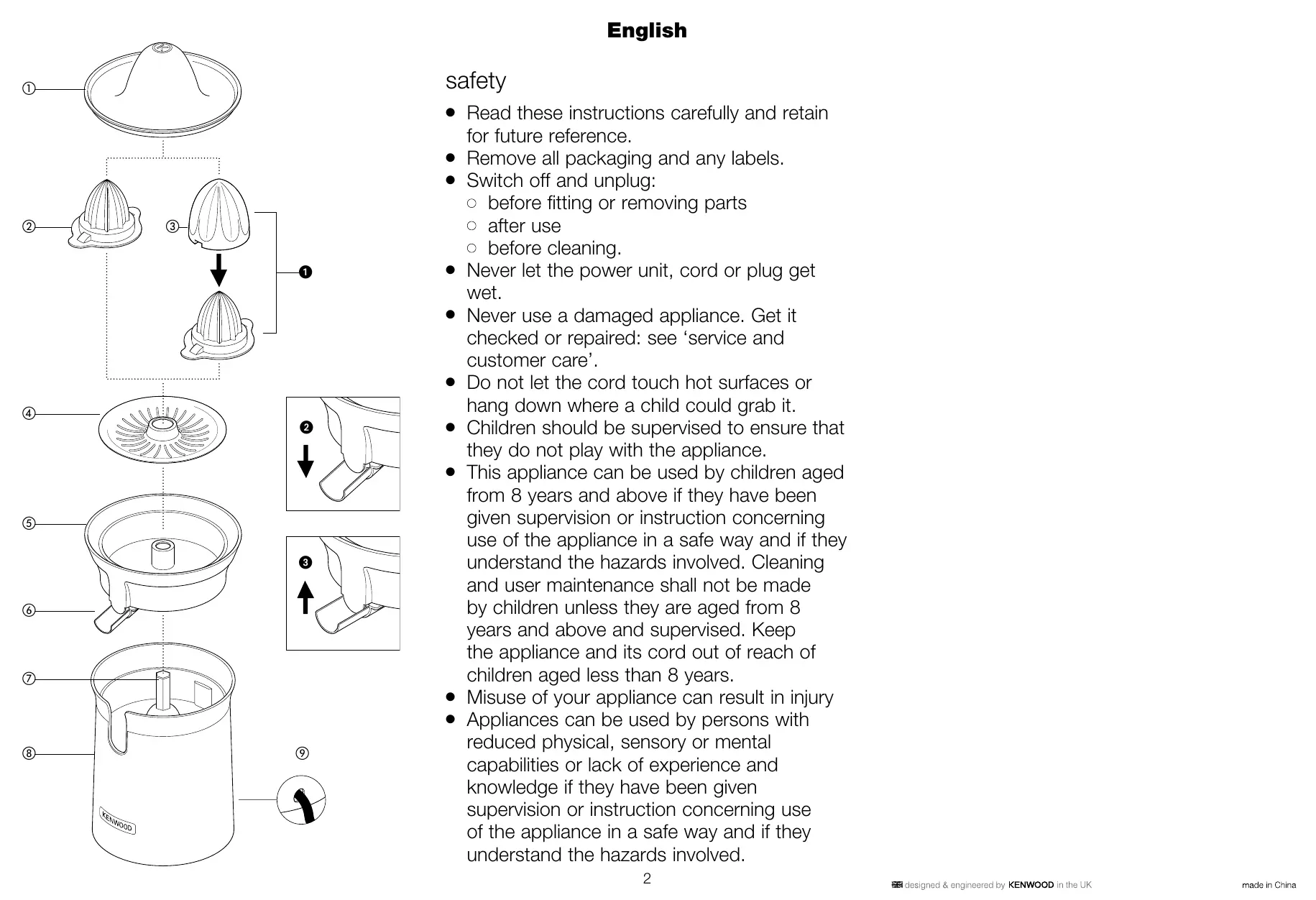

dust cover small cone large cone strainer juice bowl anti-drip spout drive shaft power unit cord storage

to use your citrus juicer

1 Fit the bowl e to the power unit.

2 Place the strainer d inside the bowl, then add the cone. l The small cone is most suitable for small fruits such as lemons and limes. l To use the larger cone fit it over the smaller cone 1. The larger cone is most suitable for larger fruits such as oranges and grapefruits.

Always switch off, unplug and dismantle before cleaning.

Replace the dust cover a after use. power unit Wipe with a damp cloth, then dry. Do not immerse in water. Store excess cord in the storage area at the back of the power unit i. other parts Wash in hot soapy water, then dry. Alternatively they can be washed on the top rack of your dishwasher.

service and customer care l

If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised

If you experience any problems with the operation of your appliance, before requesting assistance refer to the “troubleshooting guide” section in the manual or visit www.kenwoodworld.com.

Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.

If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service

Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.

Designed and engineered by

Kenwood in the UK. Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Juicer not operating.

• Check juicer plugged in.

• Run continuously for more than 10 minutes.

• Unplug and allow to cool down for 15 minutes before juicing again.

Cone changing direction during processing.

• The cone is designed to change direction to maximum the juice extraction.

Strainer flooding with juice.

• Juice outlet blocked with pulp.

• Remove build up of pulp from juice outlet.

Leaking/overflow from underneath juice spout.

• Empty the strainer

• Large quantity of fruit processed and pulp and regularly if processing large quantities. seed built up in strainer and blocking holes. For best extraction rates • Normal for fruit being and results: processed. • Store and juice the fruit • Fruit not moulded round at room temperature and hand roll on a cone and too much flesh left in the fruit skin. worktop before juicing. • Move the fruit from side to side.

Low extraction rate.
