Product type	Filter coffee machine
Brand	De'Longhi
Model	ICM 16210
Power	1000 W
Voltage	220-240 V ~ 50/60 Hz
Net weight	2.5 kg
Maximum capacity	10 cups (approx. 1.25 L)
Aroma function	Yes, slow filtration for more aroma
Automatic shut-off	Yes, after 40 minutes
Hot plate	Yes, keeps warm
Water tank	With transparent level indicator
Permanent filter	Reusable nylon
Carafe	Glass with lid
Measuring spoon	Included (5 g per level dose)
Recommended coffee type	Medium grind for filter
Use	Household only
Maintenance	Clean with soft cloth, descale every 60 cycles
Safety	Do not immerse, hot surfaces, automatic shut-off
Repairability	Repairs exclusively by an authorized center

Frequently Asked Questions - ICM 16210 DELONGHI

How to prepare coffee with the ICM 16210?

Open the lid, pour fresh water into the tank up to the desired mark. Insert the permanent filter into the filter holder, add ground coffee (1 level measuring spoon per cup). Close the lid, place the carafe on the hot plate and press the On/Stand-by button. The coffee starts flowing after a few seconds.

How many measuring spoons for 10 cups?

For 10 cups, use 10 level measuring spoons (about 50 g of ground coffee). You can adjust according to your taste.

How to activate the Aroma function?

Press the AROMA button (the indicator lights up). This function slows down the water flow to release more aroma. Preferably use it for small amounts of coffee.

How to clean the machine?

Before cleaning, unplug the machine and let it cool down. Clean the exterior with a soft damp cloth. Never immerse the machine in water. The tank filter can be cleaned through the lid.

When and how to descale the machine?

Descale every 60 cycles with a descaling product for filter coffee machines. Pour the solution into the tank, run a cup, let it sit for 15 minutes, then repeat. Then rinse with 3 tanks of fresh water.

What to do if the coffee flows slowly?

Slow flow often indicates a need for descaling. Follow the descaling procedure described in the manual.

What to do if the coffee is acidic?

An acidic taste may be due to insufficient rinsing after descaling. Rinse the machine with fresh water at least 3 times.

What is the power of the machine?

The ICM 16210 coffee machine has a power of 1000 W and operates on a voltage of 220-240 V ~ 50/60 Hz.

What type of coffee to use?

Use ground coffee with a medium grind specially designed for filter coffee machines. The recommended amount is 1 level measuring spoon per cup, about 5 g.

Does the machine turn off automatically?

Yes, the machine turns off automatically 40 minutes after the coffee has finished flowing. You can also turn off the hot plate manually with the On/Stand-by button.

USER MANUAL ICM 16210 DELONGHI

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the

following code:

Green and yellow:

Earth

Blue:

Neutral

Brown:

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

Note:

This symbol identifies important advice or information for the user.

• Read this instruction booklet carefully before installing and using the appliance. This is the only way to ensure the best results and maximum safety for the user. This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments. Any other use is considered improper and thus dangerous. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. After positioning the appliance on the work top, leave a space of at least 5 cm between the surfaces of the appliance and the side and rear walls and at least 20 cm above the coffee maker.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

• This appliance is designed and made to "prepare coffee". Be careful to avoid being scalded by spraying water or steam or due to improper use of the appliance.
• When using the appliance do not touch the hot surfaces. Use the knobs or handles.
• Never touch the appliance with wet or damp hands or feet.
• The warming plate remains hot after the appliance has been used.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use.
• In the event of failure or malfunction, unplug the appliance from the mains. If it requires repair, contact De'Longhi Customer Services only and ask for original spare parts to be used. Failure to respect the above could jeopardise the safety of the appliance. This appliance can be used by children aged from 8 years and above and per

Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge may use the appliance only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only. The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children as they are a safety hazard. Place the appliance on a work surface far away from water taps, basins and sources of heat. Never install the appliance in environments where the temperature may reach 0°C or lower (the appliance may be damaged if the water freezes).

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The power cable of this appliance must not be replaced by the user as the operation requires the use of special tools. If it is damaged or must be replaced, contact De'Longhi Customer Services to avoid all risk.
• Never immerse the coffee maker in water. It is an electrical appliance.
• Unplug the appliance and turn off the main switch when not in use. Do not leave the appliance switched on unnecessarily.
• As with all electrical appliances, use the coffee maker with care and common sense, particularly in the presence of children.
• Check that the voltage of the mains power supply corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed electrical socket with a minimum rating of 10A only. The manufacturer declines all liability for any accidents caused by the absence of an efficient earth system. If the power socket does not match the plug on the appliance,

have the socket replaced with a suitable type by a qualified electrician.

• When filling the water tank or removing the jug from the machine, avoid spilling liquid on the plug or power cable.

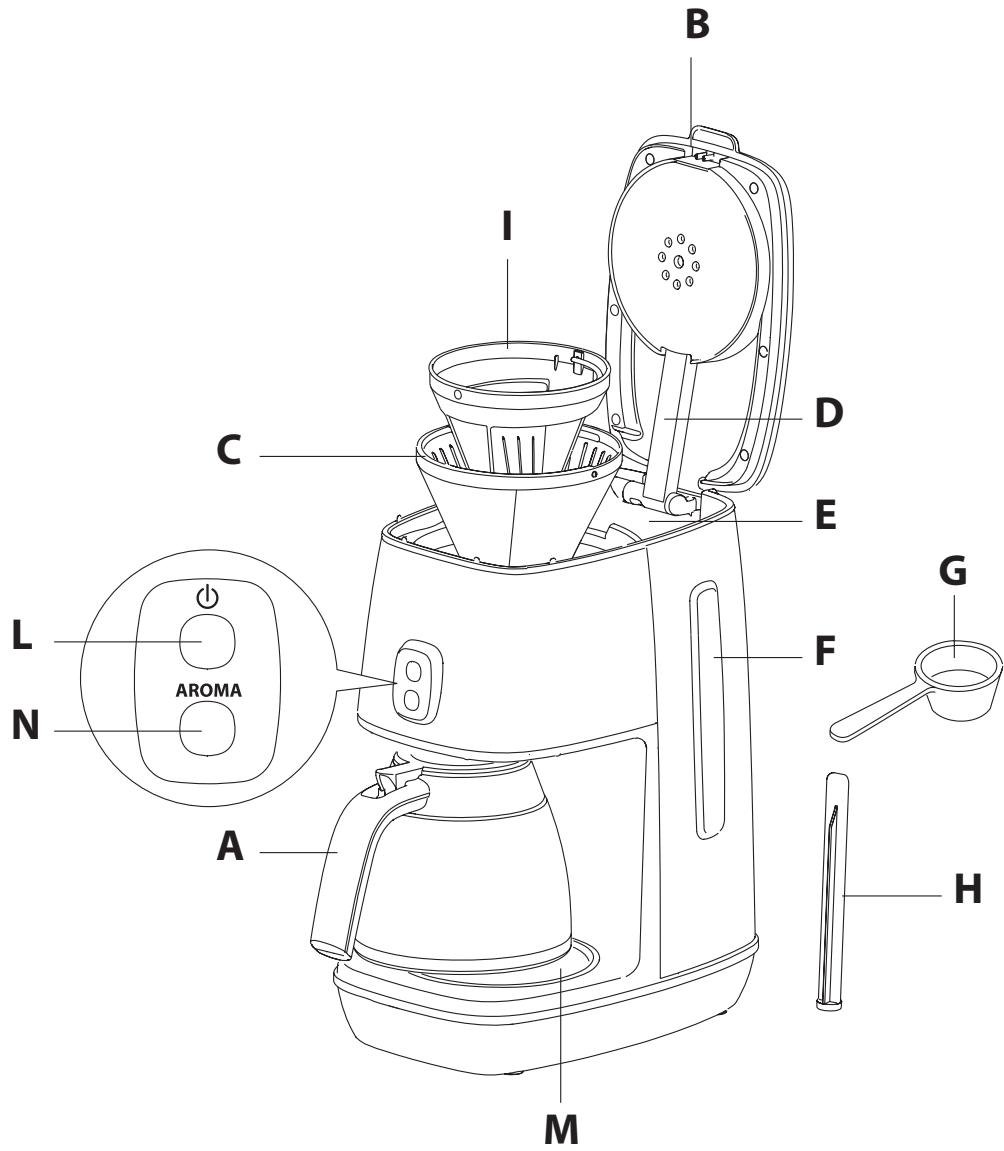

Description of appliance

A. Glass jug B. Lid C. Filter holder for drip coffee D. Shower E. Water tank compartment F. Water level window G. Measure H. Water tank filter I. Permanent nylon filter L. "On/stand-by" button with light M. Warming plate N. Aroma button with light

How to make drip coffee

Please note: the first time the appliance is used, all accessories and the internal circuits must be washed through by making at least two jugs of coffee without using pre-ground coffee.

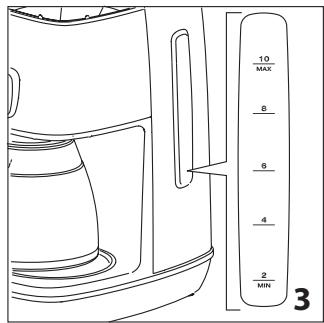

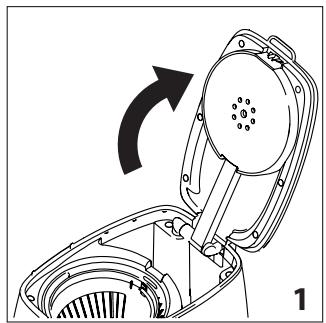

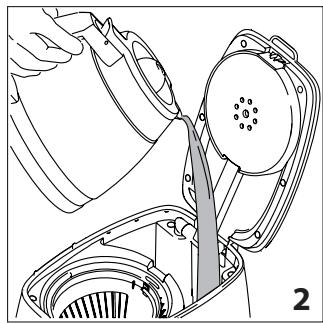

• Open the lid (B) (fig. 1) and use the jug (A) to pour clean cold water into the water tank compartment (E) up to the level indicated for the number of cups of coffee you want to make (fig. 2). Check the level of water in the tank through the level window (F) (fig. 3). You are recommended to use the jug provided as a measure as the maximum capacity of the jug and the tank are the same. Position the permanent nylon filter (I) within the filter holder (C) (fig. 4).

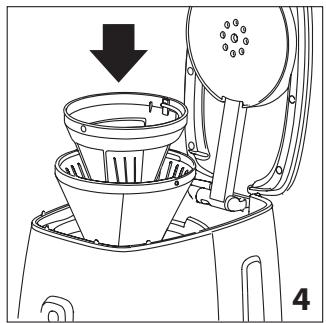

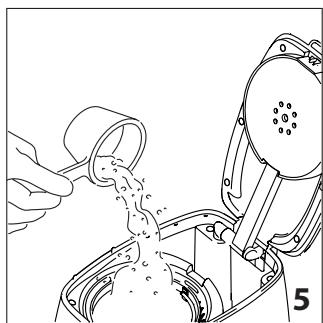

• Place the pre-ground coffee in the filter using the measure (G) provided and level evenly (fig. 5). Use good quality, medium pre-ground coffee for drip coffee makers. The type of blend has a considerable influence on the coffee you make. You should therefore try various types of coffee to find the one best suited to your taste.

Recommended quantities:

No. cups	No. measures (*)
10	10
8	8
6	6
4	4
2	2

(*) 1 level measure = 1 tablespoon (5 g)

For a stronger taste we suggest to add 1 measure more each cup.

The quantities given in the table are indicative and should be adapted to your personal taste and the type of coffee. Never exceed the maximum quantity of 5 measures. The type of blend has a considerable influence on the coffee you make. You should therefore try various types of coffee to find the one best suited to your taste.

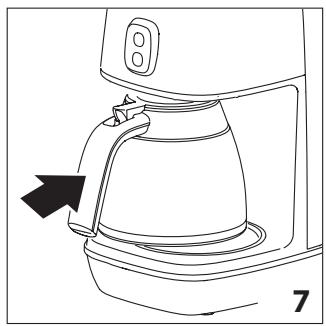

• Close the lid (B) and place the closed jug on the plate (fig. 7).

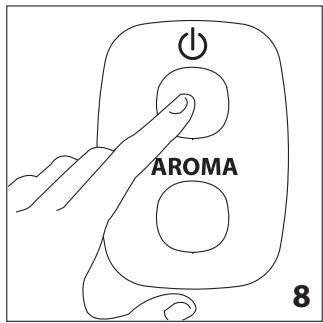

• Press the button (L) (fig. 8). The light on the switch indicates that the coffee maker is operating. Coffee delivery will start after a few seconds. It is completely normal for the appliance to give off steam while the coffee is percolating. The coffee maker emits a beep when delivery begins, then three beeps when it ends. The taste of the coffee can be optimised by pressing the AROMA button (N). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.
• If you leave the button (L) pressed after percolation has finished, the plate will keep the coffee at the ideal temperature. The appliance goes off automatically 40 minutes after coffee delivery ends. To turn the warming plate (M) off press the button (L) again. For a new brewing cycle switch off the appliance pressing button (L) and restart. Please note: removing the jug before all the coffee requested has been delivered does not interrupt coffee making, but merely blocks flow into the jug. If you want to pour out a little coffee immediately, you should do so as rapidly as possible in order to avoid the coffee overflowing.

Cleaning and maintenance

Before maintenance or cleaning of the appliance, turn off, unplug from the mains socket and allow to cool.

• Do not use solvents or abrasive detergents to clean the coffee maker. Just wipe with a soft damp cloth.
• Never immerse the coffee maker in water. It is an electrical appliance. The water tank filter (H) can be reached through the lid (B) (fig. 6). Clean when necessary.

Descaling

If the water in your area is hard, limescale builds up over time. These deposits may affect correct operation of the appliance. You are recommended to descale the coffee maker every 60 coffee making cycles. To descale, always use special commercially available descaling products for drip coffee makers.

1. Dilute the product in the jug, following the instructions on the descaler pack.
2. Pour the solution into the water fill compartment.
3. Place the jug on the warming plate (M).
4. Press the button (L), percolate the equivalent of one cup then turn the appliance off.
5. Leave the solution to work for 15 minutes, then repeat operations 4 and 5.
6. Turn the appliance on and deliver the water until the tank is completely empty.
7. Rinse by operating the appliance with water only at least 3 times (3 complete tanks of water).

Failure to clean as described above invalidates the guarantee.

Technical data

Mains voltage: 220-240V-50/60Hz

Absorbed power: 1000W

Weight: 2.5 kg

Disposing of the appliance

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

CE The appliance complies with the following EC directives:

Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments EC Regulation 1275/2008 for standby

Troubleshooting

Problem	Probable cause	Solution
The coffee takes longer to brew.	The coffee maker needs to be desca-led.	Descale the machine as described in the section DESCALING.
The coffee has an acidic taste.	Insufficient rinsing after descaling.	Rinse the machine as described in the section DESCALING.

iN.B:

Note: When using the coffee maker for the first time, it is necessary to rinse all accessories and internal systems, preparing at least two cups, without adding coffee.

• Open the water tank lid (B, Fig. 1) and, using the measuring cup, add fresh cold water to the tank (E) so that the level indicator corresponds to the number of cups to be prepared (Fig. 2). Monitor the water level in the tank through the special indicator F, Fig. 3. As a measuring cup, it is recommended to use the supplied measuring cup, as the maximum capacity of the cup corresponds to two cups. - Remove the filter holder (I) and the filter (C) (Fig. 4). Pour ground coffee into the filter, using the measure (G) supplied with the machine, and distribute it evenly (Fig. 5). Use good quality ground coffee, medium grind, in packages for coffee makers with filters. The type of blend greatly affects the coffee quality. It is recommended to try several types to determine the one that best suits your taste.

Recommended quantities:

КолочECTBO чашек	КолочECTBO мерok (*)
10	10
8	8
6	6
4	4
2	2

(*)1Full to the brim of the measure corresponds to 1 tablespoon (5g).

Directive 2006/95/EC and subsequent amendments; Directive on electromagnetic compatibility 2004/108/EC and subsequent amendments; Regulation (EC) 1275/2008 on standby power consumption

Troubleshooting

Danger of burns!

Descaling the kettle

If the water in your area is hard, scale will build up in the kettle over time. A descaled kettle can improve the performance of the appliance. It is recommended to descale the kettle every 60 working cycles. Proceed with descaling the kettle by using the recommended special descaling agents for kettles from the filter coffee machine manufacturer.

1. Dissolve the agent in water, following the instructions on the agent's packaging;
2. Pour the solution into the water reservoir;
3. Place the kettle on the heating base (M);
4. Press the button (L), let it run until it dispenses a cup's worth, then turn off the appliance;
5. Let the solution sit for 15 minutes.

Repeat operations 4 and 5 twice.

1. Turn on the machine and let it run with water until the reservoir is empty. 7. Turn off the machine, then let it run with clean water for at least 3 cycles (3 reservoir fills with water).

The warranty is void if the descaling procedure described above is not performed regularly.

Technical data

Voltage: 220-240V~50/60Hz

Power: 1000W

Weight: 2.5 kg

Disposal of the appliance

According to Directive 2002/96/EC, do not dispose of this device with household waste, but return it to an official collection center for separate waste collection.

The device complies with the following directives:

- Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments; Regulation (EC) 1275/2008 regarding standby power consumption.

Troubleshooting

Power: 1000W

Weight: 2.5kg

CE marking in accordance with EU directives:

2006/95/EC Low Voltage Directive and subsequent amendments; EMC 2004/108/EC Directive and subsequent amendments; Regulation (EC) 1275/2008.

Mэcene	ыктумал себбì	Шешimi
Кофейн Kaй hayы Na yazbipak yakbit Kejetι.	К о Ф eЖасавиштын Kaftын Тазанay Kepek.	Курсылсын Kaftын KAKТ А 3 А Л AуБ eлIMидец Синаталгандай etin Тазаныз.
Кофейн дэм Ki liшьлтвim.	Кak тазалayдан coh Дурсicшайлмаган.	Курсылсын KaK TAZALAYerolimпдец Синаталгандай etin Шayынз.

TECHNICAL SPECIFICATIONS

Input: 230V~50Hz

Voltage:

Frequency:

Power:

Current:

Weight:

De'Longhi Appliances s.r.l.

via L. Seitz, 47 - 31100 Treviso Italy
