USER MANUAL 2500207UC - 2500407UC - 2504707UA - G-MAX 2500207 GREENWORKS
English (Original Instructions)

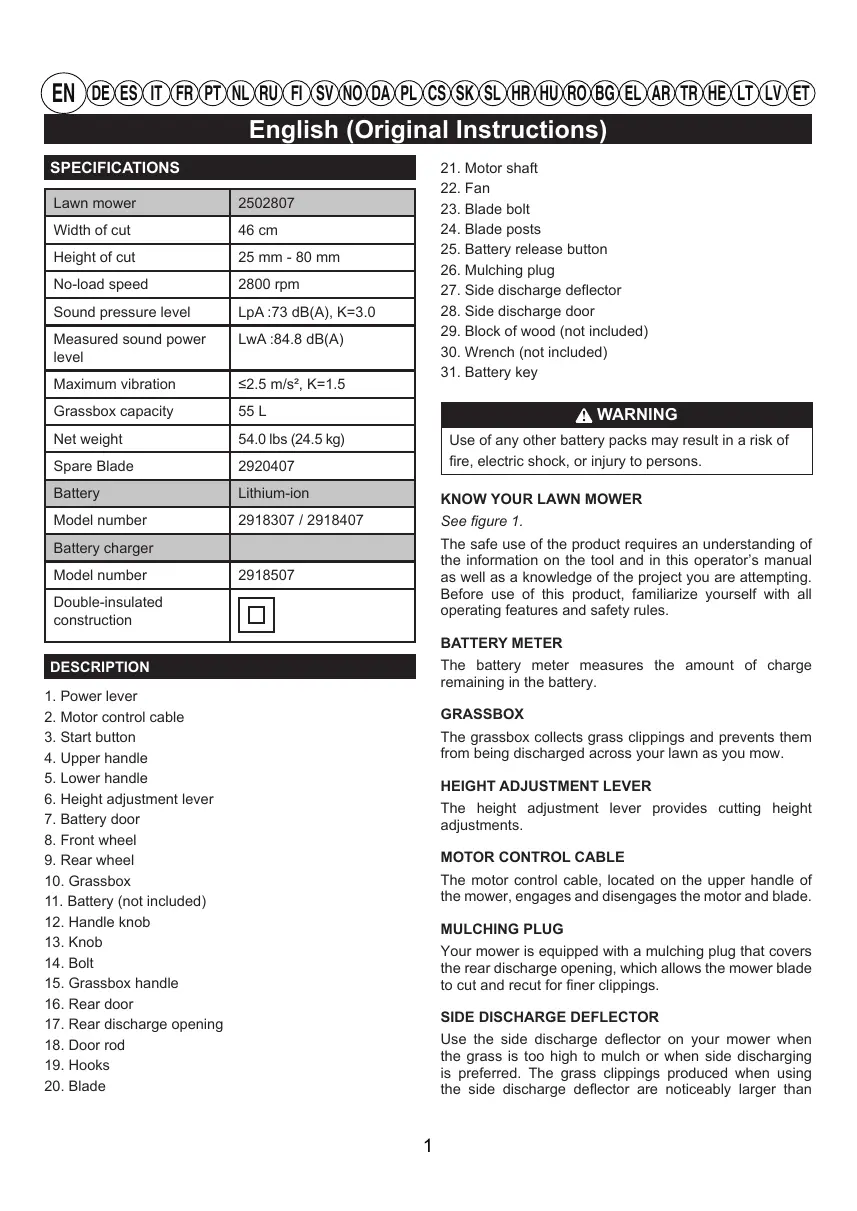

SPECIFICATIONS
| Lawn mower | 2502807 |
| Width of cut | 46 cm |
| Height of cut | 25 mm - 80 mm |
| No-load speed | 2800 rpm |
| Sound pressure level | LpA :73 dB(A), K=3.0 |
| Measured sound power level | LwA :84.8 dB(A) |
| Maximum vibration | ≤2.5 m/s², K=1.5 |
| Grassbox capacity | 55 L |
| Net weight | 54.0 lbs (24.5 kg) |
| Spare Blade | 2920407 |
| Battery | Lithium-ion |
| Model number | 2918307 / 2918407 |
| Battery charger | |
| Model number | 2918507 |
| Double-insulated construction |
DESCRIPTION
- Power lever
- Motor control cable
3.Start button - Upper handle
- Lower handle
- Height adjustment lever
- Battery door
- Front wheel
- Rear wheel
- Grassbox
- Battery (not included)
- Handle knob
- Knob
- Bolt
- Grassbox handle
- Rear door
- Rear discharge opening
- Door rod
- Hooks
-
Blade
-
Motor shaft
- Fan
- Blade bolt
- Blade posts
- Battery release button
- Mulching plug
- Side discharge deflector
- Side discharge door
- Block of wood (not included)
- Wrench (not included)
- Battery key
WARNING
Use of any other battery packs may result in a risk of fire, electric shock, or injury to persons.
KNOW YOUR LAWN MOWER
See figure 1.
The safe use of the product requires an understanding of the information on the tool and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
BATTERY METER
The battery meter measures the amount of charge remaining in the battery.
GRASSBOX
The grassbox collects grass clippings and prevents them from being discharged across your lawn as you mow.
HEIGHT ADJUSTMENT LEVER
The height adjustment lever provides cutting height adjustments.
MOTOR CONTROL CABLE
The motor control cable, located on the upper handle of the mower, engages and disengages the motor and blade.
MULCHING PLUG
Your mower is equipped with a mulching plug that covers the rear discharge opening, which allows the mower blade to cut and recut for finer clippings.
SIDE DISCHARGE DEFLECTOR
Use the side discharge deflector on your mower when the grass is too high to mulch or when side discharging is preferred. The grass clippings produced when using the side discharge deflector are noticeably larger than
English (Original Instructions)
those produced when using the mulching plug and side mulching plate.
SIDE DISCHARGE DOOR
Your mower is equipped with a door that covers the side discharge opening, which allows the mower blade to cut and recut the grass for finer clippings if the mulching plug is engaged, or otherwise sends the grass clippings to the collection bag.
ASSEMBLY
UNPACKING
This product requires assembly.
- Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
WARNING
Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call your Greenworks tools service centre for assistance.
PACKING LIST
Lawn mower
Battery key
Grassbox
Mulching plug
Side discharge deflector
Operator's manual
Knobs
Bolts
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
WARNING
Do not insert battery key until assembly is complete and you are ready to mow. Failure to comply could result in accidental starting and possible serious personal injury.
WARNING
To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling parts.
WARNING
Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Operation of this product with damaged or missing parts could result in serious personal injury.
UNFOLDING AND ADJUSTING LOWER HANDLE
See figure 2.
Pull and rotate the handle knobs 90^ on both sides to loosen the lower handles on both sides.
- Move the lower handles to the operating position. You may raise or lower the handle to a position comfortable for you. There are 3 positions for you to choose. Release the handle knobs to lock the lower handle into position.
NOTE: Ensure both sides are set at the same position for proper assembly.
INSTALLING THE UPPER HANDLE
See figure 3.
Align the mounting holes on the upper handle and the lower handle. Insert the carriage bolts and use the knobs to tighten them. Repeat the operation on the
English (Original Instructions)
other side.
INSTALLING THE GRASSBOX
See figure 4.
- Lift the rear discharge door.
- Lift the grass catcher by its handle and place under the rear discharge door so that the hooks on the grass catcher are seated on the door rod.
- Release the rear discharge door. When installed correctly, the hooks on the grass catcher will extend through the openings on the rear discharge door.
INSTALLING THE MULCHING PLUG
See figure 5.
- Lift and hold up the rear discharge door.
- Grasp the mulching plug by its handle and insert it at a slight angle, as shown.
Push the mulching plug securely into place.
Lower the rear discharge door.
INSTALLING SIDE DISCHARGE DEFLECTOR
See figure 6.
NOTE: When using the side discharge deflector, do not install the grassbox. The mulching plug should remain installed.
- Lift the side discharge door.
Align the hooks on the deflector with the hinge rod on the underside of the door.
Lower the deflector until the hooks are secured on the mulch door hinge rod. - Release the deflector and side discharge door.
SETTING BLADE HEIGHT
See figure 7.
When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, adjust the cutting position to the height best suited for your lawn. The average lawn should be between 38 mm and 51 mm during cool months and between 51 mm and 70 mm during hot months.
To adjust the blade height
To raise the blade height, grasp the height adjustment lever and move it toward the back of the mower.
To lower the blade height, grasp the height adjustment lever and move it toward the front of the mower.
OPERATION
WARNING
Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING
Always wear eye protection. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
WARNING
Always inspect mower for missing or damaged parts and blade for damage, uneven, or excessive wear prior to use. Using a product with damaged or missing parts could result in serious personal injury.
- Do not tilt the lawn mower when starting the engine or switching on the motor, unless the lawn mower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
- Do not start the engine when standing in front of the discharge chute.
- Do not put hands or feet near or under rotating parts. Always keep clear of the discharge opening.
For complete charging instructions, refer to the operator's manual for the battery packs and chargers listed in the specifications section.
TO INSTALL BATTERY PACK
See figure 8.
- Lift and hold up the battery door.
Align the battery with the mower's battery port.
Make sure the battery release button snaps in place and that battery is fully seated and secure in the mower before beginning operation.
Insert the battery key.
If the machine is not going to be used immediately, do not insert the battery key
English (Original Instructions)
Close the door.
TO REMOVE BATTERY PACK
See figure 8.
- Release the power lever to stop the product.
- Open the battery door to access the battery compartment.
Remove the battery key.
Press the battery release button on the mower. This will cause the battery to raise out of the tool slightly.
Remove battery pack from the product.
STARTING/STOPPING THE MOWER
See figure 9.
Press and hold the safety lock-out button.
Pull the power lever upward to the handle to start the mower and release the safety lock-out button.
To stop the mower, release the power lever.
NOTE: A high-pitched noise and sparking may occur as the electric motor decelerates. This is normal.
MOWING TIPS
Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn mower blades or motor. Do not mow over property stakes or other metal posts. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.
For a healthy lawn, always cut off one-third or less of the total length of the grass.
- Do not cut wet grass, it will stick to the underside of the deck and prevent proper bagging or mulching of grass clippings.
New or thick grass may require a narrower cut or a higher cutting height.
- Clean the underside of the mower deck after each use to remove grass clippings, leaves, dirt, and any other accumulated debris.
- When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
NOTE: Always stop mower, allow blades to completely stop, and remove the battery key before cleaning underneath the mower.
SLOPE OPERATION
A WARNING
Slopes are a major factor related to slip and fall accidents that can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.
Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes.
Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over or thrown by the blade.
Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your balance, release the power lever immediately.
Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.
- Stop mower, allow blade to completely stop, and remove battery key.
Lift the rear door. - Lift the grassbox by its handle to remove from mower.
Empty grass clippings. - Lift the rear door and reinstall the grassbox as described earlier in this manual.
MAINTENANCE
WARNING
Before performing any maintenance, make sure the mower battery and battery key are removed to avoid accidental starting and possible serious personal injury.
WARNING
To prevent accidental start-up or unauthorized use, the cordless lawn mower is equipped with a removable safety key. To completely disable the mower, the safety key should be removed and kept in a place away from the mower and out of the reach of children.
English (Original Instructions)
WARNING
When servicing, use only authorised replacement parts. Use of any other parts may create a hazard or cause product damage.
WARNING
Keep the motor and battery compartments free from grass, leaves or excessive grease. This will help reduce the risk of fire.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc.
Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please call Greenworks tools customer service for assistance. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
To reduce the risk of damage and danger, never clean the tool with pressure washer or under running water.
WARNING
Store indoors only. Always remove the battery from mower and charger when cleaning or storing the tool.
WARNING
Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury.
Periodically check all nuts and bolts for proper tightness to ensure safe operation of the mower.
Wipe the mower clean with a dry cloth occasionally. Do not use water.
LUBRICATION
All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required.
A WARNING
Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags and other material when performing blade maintenance. Contact with the blade could result in serious personal injury.
WARNING
Do not lubricate any of the wheel components. Lubrication may cause the wheel components to fail during use, which could result in serious personal injury to the operator and/or mower or property damage.
REPLACING THE CUTTING BLADE
See figure 11-12.
NOTE: Only use authorised replacement blades. Replace worn or damaged blades and bolts in sets to preserve balance.
- Stop the motor and remove the battery key. Allow blade to come to a complete stop.
Remove the battery pack.
Turn the mower on its side. - Wedge a block of wood between the blade and mower deck to prevent the blade from turning.
- Loosen the blade bolt by turning it counterclockwise (as viewed from bottom of mower) using a 27mm wrench or socket (not provided).
Remove the blade bolt and blade. - Place the new blade on the shaft. Ensure blade is properly seated with shaft going through center blade hole and the two blade posts on the fan inserted into their respective holes on the blade. Make sure it is installed with the curved ends pointing up toward the mower deck and not down toward the ground. When seated properly, the blade should be flat against the fan.
Thread the blade bolt on the shaft and finger tighten.
Torque the blade bolt down clockwise using a torque wrench (not provided) to ensure the bolt is properly tightened. The recommended torque for the blade bolt is 62.5 71.5 kgfcm (350-400 in.-lb.).
ENVIRONMENTAL PROTECTION
Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area.
- Scrupulously comply with local regulations for the disposal of packaging, deteriorated parts or any
English (Original Instructions)
elements with a strong environmental impact; this waste must not be disposed of as normal waste, it must be separated and taken to specified waste disposal centres where the material will be recycled.
- Scrupulously comply with local regulations for the disposal of waste materials after mowing.
At the time of decommissioning, do not pollute the environment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force.
TROUBLESHOOTING
| Problem | Possible cause | Solution |
| Handle is not in position. | Carriage bolts are not seated properly. | Adjust the height of the handle and make sure the carriage bolts are seated properly. |
| Mower is not starting. | Battery is low in charge. | Charge the battery. |
| Battery is either inoperable or will not take a charge. | Replace the battery. | |
| The battery key is not inserted. | Insert the battery key. | |
| Mower is cutting grass unevenly. | Lawn is rough or uneven or cutting height not set properly. | Move the wheels to a higher position. All wheels must be placed in the same cutting height for the mower to cut evenly. |
| Mower is not mulching properly. | Wet grass clippings are sticking to the underside of the deck. | Wait until the grass dries before mowing. |
| Mower is hard to push. | High grass, rear of mower housing and blade are dragging in heavy grass, or cutting height too low. | Raise the cutting height. |
| Mower is not bagging properly. | Cutting height is set too low. | Raise the cutting height. |
| Mower is vibrating at higher speed. | Blade is unbalanced, excessively or unevenly worn. | Replace the blade. |
| Motor shaft is bent. | Stop the motor, remove isolator key and battery, disconnect the power source, and inspect for damage. Have it repaired by an authorised service center before restarting. | |
| Motor stops while cutting. | Cutting height is set too low. | Raise the cutting height. |
| Battery has no power. | Charge the battery. |
If these solutions do not solve the problem contact your authorised service dealer.
DIE INSTALLATION DES OBEREN GRIFS
Siehe Abbildung 3.
TEXHINHECKNE XAPAKTEPNCNTNKN
TEXHUNHECKOE O5CJNYXNBAHNE
A OCTOPOXHO
Ipepe npOBeHnEM TexHnueckoro 06cnykBaHHaYb6dntecb, YTO batape raOHOKcInKn INpEdoxpanHtEnBhbl KIOUH N3BNeHuEBO N36bExAHneCnuHOro 3aNycka n cepbe3HbX TpaBM.
A OCTOPOXHO
ДлпnpedOTbpaueHnCnyaHOrO nycKa nHn HecaHKUHOHPOBaHHORN cNcNoIb3OBaHnH b6ecpOBoDHaRaTgOHOKOcINKc OCHaSeHc bEmHbIM npedoxpanHeJIbHbM KJIYOM. YToBbI pONHOCTbIO BbIKNoUHTb Ra3OHOKOCINKy, HeOBxODmIO m3BNeyB npedoxpanHeJIbHbI KJIOnu XpaHInIberoBdAJIb OT ra3OHOKOCINKIN B HeIOCTyHOM dIeTe MeCTe.
OCTOPOXHO
Ipi npoBeDeHn TexHnueCKOrO 6cNpyKBaHnna IcNoJIb3yIte ToJIbKO peKOMeHIOBaHnble 3aNCACTI. IcNoJIb3OBAHnne IIObIX dpyrnx qacte MoKeT co3dABTaOnaCHOCTb INI pNCHnTb NpBpeJdeHn n3dJIIN.
OCTOPOXHO
OuHaaTe DniratEn b NTcK AkKyMnyTopHO 6batapeoT TpaBbl, NtCTbeB NnIshHe Cma3Kn. 3TO nOMOXET CHN3NTb ONaCHOCTb BO3rOpAHH.
OBUCEE OBCJYKUBAHNE
Ipeed kaxdbim nCnoB3oBaHmE npOBepbTe IHCTpyMeHT na OTCYCTBnE NobPexDeHn, HeIOCTaOuXnx nJIn Ocnabxns Detanei (BVNTbl, raNkn, 60NTbl, KpbUKN uT.n. NaExKHO 3aTaNHe BCE kpeIeHnA n KpbUKN i He noB3yIteCB HcTpyMeHToM Do 3aMeBn BCex yTerpaHHbx nJIn NobPexDeHbXs Detanei. 3a KOHCynbTaunnei o6baaIaeTcb C Jnyk6y pa 60bTIKn E HTACMN KOMNaHN Greenworks tools. PpN ouHCTKe pIaCTMaCCOBbIX Detanei He dOnyckaetcN cNoB3oBaTb pactBOpHTen. BOnbUHNCTBO NpactMaCC BOCpNIIMNUBO, QTO6bl nobPeDITbcr OT pa3NnuHbIX TIOBONKOMMepueckNX pactBOPHTenE n MoKET b6bTIb NobPexDeHO nCnoB3oBaHmE. Dnra OChCTKn OT rpr3n, PbNl, MaCnla, Cma3Kn I.T.n. NcNoB3yIte npOTnpOCHyTO TpAnky.
Pycckni (IpebeoN3 nepBOHaayJIbHbIX nHCTpyKcN)
A OCTOPOXHO
Tb6bl Chn3ntb nck NOBpeKJDeHnI a Bo3HKnHOBHeHnO anaCHO nCtuaun, HNKoIgda He OChuMaTe YCTpoiCTBO BODOn IODabJIeHNEM IINIOI POTOUHOB BOID.
A OCTOPOXHO
XpaHnTb TOnIbKO B NOMEseHm. Bcerda n3BneKaJTe
aKyMjTTOP I3 rA3OHOKOCINIK IN 3aprJHOro
ycToPiCTBa pepeD ONUCTKoN XpaHeHnEM
NHCTpyMEHTA.
A OCTOPOXHO
He donyckaIte B3aHMoDeIcTBnA TopMo3HbIX
XuKoCTeB,BeH3Ha,HeTePnpOdyKTOB, npOniTuOchbIX
MaCeN I T.I.C PnlaCTMaCCOBbIMn DetalmM. XmNkAtbl
MOrYT NobpeDnTb,OCnAbNTb NIN pa3pyUInTb
PiactMaCy, YTO MoKET nPnBecT K TReKKIm TeNEChbIM
NoPBxKeHnYAM.
PepnoDnueckn npoBepaB BCE 60NTb n 3aDbMkn Dnna Hndneaeuenn TTOHcTN, TTObI rapaHTnpOBaT b6eOanchoHe dJeCTBME KOCINKn.
BbItnpaTb KocuNky, YnCToI n cyxO TkaHbIO INOrda. He IcNoJIb30BaTb BOy.
CMA3bIBAHNE
BceOTHOSeHnB3TOMN3DeJIN-CMA3aHbICDOCTaOHTHBIM KOIJIueCTBOM CMA3KN BblCUEFO KaueCTBa IJRA XIN3HN eINHnIbI NOD HOPMaJIbHbIM 3KCNJIyatauONHHbIM pexmAMn. P03ToM, NIKAKA DaJIbHeJsa CMA3Ka OTHOSeHnE, He Tpe6yETc.
A OCTOPOXHO
Bcerda 3aunntb pykn, HadeBaT TjKeIbIe nepaTkn
n-III OeptlbBaer ne3Bmra Tprkamn n Dpyrnm
matepnAnom npn BblOnHeHnn OcnyKbHaNn ne3BnA.
B pe3yIbTaTe KOHTAKrCa pexyUIm ne3BmEm MOxHO
nonynhT cepbe3Hyu TpaBMY.
A OCTOPOXHO
H Cma3bIBaTb HnKaKoN 3 KOMNoHErTOB KOJcA.
Cm3aKoMKeT npBBeCTN K c6ObO Pa6Ote KOMnHOHeTOB
KoJcA BO BpEma CTpnXkU, YTO MOKeT npBecTe N K
cepE3Ho TpBaMe OpeaToP a/Inn NOBpeXdeHIO
ra3OHOKocIKn INn DpyTORIMyIeCTBA.
3AMEHA COKPAUJAIOJIERO JIe3BnA
CM.puc.11-12.
IPMMEYAHHE: NcnoB3yTe TOnbKO pa3peWHeHbIe 3aNaChIbe pExyUne Ne3BnI. 3aMeHNrte I3HOseHHbIe IIN NOpBeKdHeHbIe pExyUne Ne3BnI n BoNTbI B KOMPNeKeTc, yTObI obecNtB baHaHcnPOBky.
OctahOBITE DBRatteN N 3BNEKITnpedoxpaHntelbNbKnIOU. DoxTeCb noHoro octaHOpeXyUeIeroJe3Bry.
CHIMITE aKKyMylTOpHyo 6aTapeIO.
IobepHytb KocnIKy Ha ee cToPOHy.
BtncHyb 6nok dpBeecInbI MeXy Ie3BnEIM nanyBoKocnIKu, YTObI ppeoTbpaTb Ie3Bne O npebpaueHn.
IcnoJb3yra KIOUHa 27 MM (He BXOJNT B KOMNKeT NOCTABK), OcNA6Bte 60INT NINbHORO DnCKa NOBOPOTM INPOTN YACOBON CTpeJIKN, ECNI CMOTpeTb C HIXKHEI QACTN rA3OHOKOCNIKN.
CHIMITE 6oTn PInbHoro DnCKa n cam DNCK.
YCTAHOBITE HOBBI NINHBHII DnCK Ha BAN. Y6eINTecB, YTO NINbHbN DIck nPabINbHO CnHT Ha BABy, IPOXODaIeM uepe3 CEHTpaINbHOEOTBPcTne NINbHorO DnCKA, INBa WbIpy HA BeHTNIATope BCTABHeHb BOoTBeTCTBHyOuNE OTEBPCTNa H NINbHOM DnCKE. Y6eINTecB, YTO OH YCTAHOBNeH C 3aHTyBIMMOKUAMNI BBEPx B CTOPOHY OCHOBAHNA ra3OHOKOCINiK, a He BHN3 K 3emJne. Ppi npabInbHOM paMaeeHHn HapRotVB BEHTNIArTopa DoJnxHa HaxOJIITcbn PIOCKa YACTbDnCKa.
HaxNBte 60NT nIbHorO dNcKa Ha BaJI N 3aTHe NaIbUAMn.
3aTAHnte raKy peKyuIero ne3Bnra tegyHbIM KIOUOM (He npinaraetc), BpaAaJ no YacOBoi cTpeIke, yTObI o6ceNHTb HndEkaUy 3aT8Kky BOITTA. PekomeHdyEmbIKpyTAAmOmeNT npu 3aT8INBaHNr RaNK peKyuIero ne3Bna coCTabJIeT 62,5~71,5 Krc-CM (350-400 dIOHMoB/phiHT).
OXPANA OKPYXAIIOUEN CPEbl
OxpaHa OkpykaUoIeI cpebl DoJlnKha YBJIbTbCBy CyueCTBeHHbIM I nepBOoOpePdHbIM acNEKToM npINb3OBaHN MaunHO, BO 6Lnaro YeNoBoeCeCKOrO O6IeCTBa I OKpykaUoIeI cpebl, B KOtOpN Mbl KInBem. CtapaiTebc He beCecnOKoITb OkpykaOuINX.
Ctporo coBnIouaIte MeCTbIe HOpMbI no yTINH3aunu ynakOBKIM, MAcEN, 6EHNHa, fNbIbTPOB, NOPBKeJdEHbIX qAteh IIN NIObXbI ZIEMeHTOB CO 3NaHTeJIbHbIM BInJHmHc MaOKpyKaHOUy CpeDy; 3TN OTXObl He DOnJHXbl BbIbpaCbIbTaBcRc C bIbTOBbIM MycopoM, aCoBupatbcr OTeJbnHO n IpePeJaBaTbCS B CneuaIaNbIbHe ceHTpbI c6opa OTxOob, BInONJIraUoJe nxpepeabotkY.
Ctporo coBIOdaTe DeIcTByIOUne Ha MeCTHOM yPOBHe npaBnla no BbIO3y OTXoOB pa6Obl.
Iocne 3aBepseHnna cpoKa cnkybMaMHHe Bb6paCbBaIe ee,a o6paTntecb B ceHTp C6opa OTXoOB B COOTCTBmC DeNCTBYOUM MeCTHbIM 3aKHOODaTeNbCTBOM.
Pycckni (IpebeoN3 nepBOHaayJIbHbIX nHCTpyKcN)
ПОИСКΗЕЦПавноcteɪ
TOMMING AV GRESSBOKSEN
Se figure 10.
IS/ETNING AF GRAESBOKSEN
Sefigur4.
TOMNING AF GRESBOKSEN
Sefigur10.
INSTALACJA KOSZA NA TRAWE
Zobacz rysunek 4.
CIELUNΦUKALIMN HA IPODYKTA
IocbT 3a perynipaHe Ha BncoNuHaTa CnyKn 3a perynipaHa He BncoNuHaTa Ha p3aHe.
KABEL3A YNPABLEHNE HA DBNIGATEJIY
KaBeBt3a YnpaBnEHe Na DnBnAteTne, KOITo Ce HAMIPA B rOpHATA pBkoXbATKa HA KocAkaT, AKTNBnPa I DeAKTNBnPa DnBnTeTne N OCTPnETo.
Блгарnia (Пребовд оригнаннту иструкци)
PNEBKIOUOBATEJEH KJIIOU
IpeBkHouBaTeHNHrKIOUy TpR6Ba Da Ce noCTaBn, 3a da MoKe Da ce CTapTnpa KocauKaTa.
ПРСПОСOBLENHNE 3A MYЛЧИРАНЕ
Kocayka t e cha6deHa c pncnocobJeHne 3a MyuHpaHe, KOeTo npNKpRbBa 3aDnHn OTBOp 3a NxBbPnHne, Koeto no3BOJBA ocTpneTo Ha KocayKaTa da pexe nO-fHo TpeBaT.
OTKJIOHNTEL3ACTPAHNUHO3XBbPJIaHE
I3non3BaIte OTKNOHHTe 3a CtpaHNo I3XbBpJHe Ha KocAkhata, KORATO TpeBata E TBpDe BnCOKA 3a MyuHpaHe IIN KORATO ce npednoHTa CTPaHNo I3XbBpJHe. I3P3aHaTate PBEA, KOrTO Ce HATpyBa npn I3NON3BaHe HA OTKHOHTe 3a CtpaHNo I3XbBpJHe, e 3HaUHTeHNO NO-ROJMA O TA3N, KOrTO Ce HATpyBa npn I3NON3BaHe HA npCnOCObJIeHTo 3a MyuHpaHe IcTpaHNaHTa NpactHna 3a MyuHpaHe.
CTPAHnUHA BPATA 3A N3XBbPJIaHE
Kocayka e cahdeHa c bpaTa, KOyTO npikpBa O TBopa 3a CTPAHUHO mXbPJIHe, KOETO N03BOJRA OCTPENO HA KocaykaT a D pexe TpeBaTa H Na-OFHN napYeTa, AOKe CE n3oNBA IpcnOcoBneHEno 3a Myuynape He nn da HnPaA OTRp3aHaTpeBa B TOPb 3a CMeT.
CTIOEBAHE
PA30NAKOBAHE
To3n npOdykT n3ncKBa crNo6yBaHe.
BHNMaTeJIHO n3BaJeTe npOdyKta n npInHaJnEeXHoCTte OETkyTeta.YBepeTe ce,ye ca HaIaHcN BcUHKe eIeMeHTn,BKJIIOueHbONiCaHa naketa.
A PNEUYNPEXDEHNE
He n3no3BaIte To3n npOdyKT, aKO npn pa3oNaKOBaHETO My HAKOM YACTN, BKIOUeHN B OINCA Ha NaKeTa, BeCe ca CrNo6eHN. YactInTe, BKIOUeHN B To3n OINc, He ca fAp6pnuHO CrNo6eHN, a TpRbBA KIneHTbT Cam da rN CrNo6n. N3no3BaHTo HA HenpaBnIHo CrNo6eH npOyKT Moke da DoBeE do cepNo3Hn FIn3NuYeCKn HapAraBaHna.
OrneJaTe BnHMaTeIHo npOdyKta, 3a da ce yBepnte, ye He ca Bb3NkHaJI NOBpei INI CyynBaHnno Bpeme Ha TpaHCnOpTa.
OrneaTe BnHMaTeNHO npOdyKta n ce yBepete, ye paobTo npabInHo, npEi Da 3XbPnTe onaKOBbUHHa MATEpAn.
Ako Ima JINCBAUH NJIIOBpeHn Yactn, ce
obphete 3a nomou KbM cepBn3 Ha Greenworks tools.
ONIC HA NAKETA
Kocayka 3a TpeBa
KlouHaakymyataopnata6aTePna
Kyttna 3a TpeBa
Pnpncnoocbne3aMynuipahe
OTKJIOH TEL 3a CtpaHnHOn HxBbPpIHe
PbKOBOIDTOB3aonepatopa
BpbTkN
BoltoBe
A INPEDUNPEXXDEHNE
Ako IMa IINCBAUINI INIOBpeHn YactN, He 3n3no13BaITe TO3IN IPOyKT, IpEiN TE Da 6bDat 3aMeHEn. I3no13BaHTo HnpoyKT npn HauNueHTo Hn IOBpeHn IINI INI CBAUINYAcTn MoKe da DObeDe Do CePio3HNΦmNueCKn HapaHraBaHnI.
PENEUYIPEXDEHME
He onntBaIte da npomehre To3n npodyk nIa Da cb3dabate npnaIadJeKHOCTN, KOITo He ca npenopbUaHn 3a yonTpE6a c Hero. BcKa nOdoHa nonpaBka N Iu npOMHa e HekopekTHa yonTpE6a m MoKe Da cb3daDe onaChn ycNoBn n da HaHece cepno3Hn fni3nueckn HapaHbaHnI.
A INPEDUNPEXXDEHNE
He NoctabyIte KInOHa Na akymyIaTOphata 6aTepeRn, DOKATO He npKINIOH MOITaKa N DOkato HE CTe FOToBn 3a KocHe. HecnaBaHeto Ha ToBa npeDynpExKeHne MOpke Da DoBede No CnUyNoCTapTnpAHe Ha yPeDa n EbeHTyaJIHn Cepno3Hn HapAHBaHn.
TPENDYIPEXDEHME
3a da n36berHete cnyaHNO CTapTnpaHene, KOeTO MOKe da DObEe Do cepno3Nn Fm3nHeckn HapaHraBaHH, BnHaN OTcPAnBaTe bate pRrTa ot npOdykTa no Bpeme Ha crNo6BaHae.
Perynipane BnOcunHaTa Ha ocTpneTo
IpbHHeTe IocTa 3a HAcTpoKa Ha BnCOUnHaTa KbMaHaTa YacT Ha KocauKata, 3a Da yBeInuYte.
HaTnchTe JIOCTa 3a HAcTpoJa Ha BnCOOnHaTa KbMa npedHata YacT Ha KocayKaTa, 3a Da Ra HamaJIInTe.
PAEOTA
A INPDEUYIPEXKDEHNE
He no3BONBAIte Do6pTO no3HaBaHae Ha npOyKTInTe Da oTcAnb6DnTeNHOCTTa Bn. 3aONMHTe, Ye MHR HEBNHIMAHme E OCTaTBueh 3a HahacrHTo Ha cepo3Hn HapahBaHna.
Блгарnia (Пребовд оригнаннту иструкци)
PENEYUNPEXDEHME
BnHaHn Hocete 3aunTHn Ovna. HecbOpa3aBaHeto C Toba npeDynpEckdHeNe MOKe Da DObede Do nonaDaHe Na YUkDi NactuNi B OHTe BN EBeHTyaJIHn CepNo3Hn HaparBaHn.
A INPDEUNIPEXKDEHNE
He n3no3BaIte HnKakBn npCTabKn n npHaNDexHcOtN, KOIO He ca npenOpBuAn O T npo3BODInTe Ha To3n npOdyKT. N3no3BaHTo Ha HnpenOpBuAn pnpCTABKn n npHaNDexHcOtN MoKe da DoBeDe Do cepNo3HnΦn3uYeCKn HapaHbAHn.
PNEUYPIEXEHEME
IpeDi yNtpe6a BInHarn npOBepaBaiTe KocAchkaTa 3a IINCBaUnn NnN NOBpeDeHN YactNi, KaKTo N OCTpNeTo 3a NOpeDa, HApBbONOpHEo NnN pReKOpMePHO hNcOsbAHe. IV3Onl3BaHepTo Na pOdyKT nPi HAnuHMeTo Ha NOpBeDeHn NnN IIN CBaun NactM OMe Da Do BoDee do CepNo3Hn fN3nueckn HapAraBaHn.
He haknahanTe Kocaykata 3a TpeBa npi cTapTnpaHe Ha DbratEnI INN BKJNUOVAHETO HA MOTopa,OCBEN aKO TOBA He e HANOXHTeJIHO. B TaKB CnyaH He haknahanTe NOBeue O abCOJIOTHo HeobxOdMOTO n NobDraTe CaMo Ta3n Uact, KOrTo e daJeu ot ONepaTopa.
He cnapaTe Dniratena,doKaTo Cte nped yner 3a n3XbPnIe Ha TpeBa.
He nocTabaIe pUcete nn Kpakata cn 6bn3o do nn noD BbptAunite ce qactn. BnHarnt cToHTe daney ot OTBOPa 3a N3XBpRnHae.
3a nbHnITE ykaaHnna 3a 3apeJdahe BmKTe pBkoBDCTBOTa 0a onepaTopa 3a 6aTepeHnTe 3apAaHnTe uycpOCTBA, noocuEnH bpaZda cbc cneuFkauHnTe.
IOCTABRHE HA BATEPRA
Bux Quypa 8.
IobDnHHeTe n 3aApbXkTe Kanaka Ha baTepyra.
HanacheTe akymylatopnHaTa 6aTepya Cnpmo OTdeJeHMeTo 3a 6aTepya Ha Kocaykata.
BytOHbT 3a ocbo6oxdabaHe Ha 6atepnaT TaP6Ba Da 7paKHe HA MCTOTO C, a Camata akymyNaTOphA 6atepna Tp6Ba Da e Noctabena CtaBnHOB Kocaykata, npedi da 3anoCHete pa0TaC ypeDa.
IocTabeTe KIOUa Ha akymylaTophata 6atepna.
Ako MaunHaTn Hma Da ce n3noJ3Ba He3a6abHO, He NOCTABYTe KIOUa Ha akymyIaTOPHata 6atepna.
3aTBopete BpataT.
I PENEYI P E XE H E N I E
BnHaH NocTe 3aunTHn pbkabuun nIyBnuBaIte pexeUHTpe bOBe Na ocTpMeTO Bnapdnnn npI pyr MaTePnAn, 3a da npEtna3nte pBuTe cN, DOKATO n3BbPWBate DeCTBn no NOdPbXkata. KOtAkrTc oCOTPeTO MoKe Da doBede Do cepNo3HN fN3NuCeKn HapAHBaHn.
A INPEDUYIPEXKDEHNE
He Cma3BaIte Yactnte Ha KonoIeTata. Cma3BaHeto MoxTe Da DOBede Do nIpaIaIeHa HnKoR O'T qACTtTe NO BpEme Ha paOta N da pNUnHn HapaHbAhe Ha onepaTopa IIN Da DOBede Do nobPeDa Ha KocauKaTa IIN NIMUyIeCTBeHn UETi.
CMRAHAHOCTPNETO
Bux Φeypa 11-12.
3A6EJIEXKKA: N3nON3BaIte cAmo OTOpn3npaHn pe3eRbHN oCtPeta. 3aMeHete n3HocEHnTe nIN NOBpeDeHnTe ocTpneTa n 60lToBe 3aeDHO, 3a da 3ana3nnte 6baHaCA.
CnpTe MOTopa nI3BaIeTe KJIouHa na AkymyIaTOPHaT
6aTePna. N3yaKaai Te ocTpeTo da cnpe HanbIHO.
OTCTpaHete6aTePnraTa.
IocTabeTe KocaykataJeHanaHa eHa cTpaHa.
BknHHe npue Dbpo Mekdy octpneTo n noa,3a da npedOTbpaTne 3aBpTahe Ha OCTpneTO.
- OTBnIte 6oJItHa oCtpneTo, KaTO ro 3aBbPTInTe 6OpaTHO Ha yacOBHKObATA cTpeNkA (nORHeHATO OT DOnHATA cTpHa Ha KocayKaTa) C NOMOHTA Ha 27 MM raeuH KIOU INM BbTppeHJeSCTOCTeH (He ca BKIOUeHN B IOCTaBkATA).
ДемоHTирайтseбоNTаHaOCTpneToи CamOTo OCTpne.
IocTabete HOBOTO OCTPNE Bbpyx OCTa. YBepete Ce, ye OCTpNETo e NOCTABEHO npabINHO, KATO 3a CEeta OCTa Tp8Ba Da e Bn3Ha Pne3 CEHTpaHnA OTBOP 3a OCTpNETo, a DBeTe NIOIPON Ha OCTpNETo pIn BeHTnlaTopa Tp8Ba Da ca BkapaHN B CbOTBeTHnTE m OTBOP. OCTpNETo Tp8Ba Da e MOHTnpaHO CbC 3aKpIBeHNTe KpaUHa HArope KbM KopnyCa Ha Kocayata, a He KbM 3emrTa. PIn npabINHO NoctabTHe OCTpNETo Tp8Ba Da e XOpN3OHTaJIHO cnprMo BEHTnlaTopa.
IocTabete 6oPaTHO 6oNTa 3a oCtPnETo Bbpxy OCTa Iro 3aTeHETe pBHyO.
3aterhe raikata Ha octpneTo no nocoka Ha yacobnkoBata cTpeNkA C dHaHAMoTePmHeh KIOU (He e BkIIOueH B IOCTaBkata), 3a da ce yBepnte, ye e npabuHIO ha terHATA. PnpOpbYHTeINHnT MOpENT Ha 3aTtArHe 3a raikata Ha octpneTo e 62.5~71.5 kgf cm (350-400 in. lb).
ОПАЗBAHE HA OKOЛHATA CPEДA
ONa3BaHTo Ha OKoJHaTa CpeDa Tp8Ba Da 6bJe npOpNTe N BaaKHe ACNeKT npN yNoTpeBaTa Ha MaunHata, B NoI3a Ha rpaJdaHckOTO o6IeCTBO n Ha CpeDAta, B KOrTo XnBeem. N36gBaTe da npntechBaTe cbSeDInTe.
CneBDAHTE CTPNKTHO MecTHNTE HOPM3a 3xHBpJHHe Ha onAkOBKHTe, Macnata, 6bH3Ha, fHNTPHTe, N3HOCEHNTe YACTN INI KOTIO n Da e ENEMT, KOIO MOKE CINHO DA 3aMbPCN OKONHATA CpeDA; Te3N OTNAbUH He MOrAT Da 6bDat N3XBpJHn B BOKNYka, a Tp8Ba DA 6bDAT OTdEJIHNn I pPeDaBAHN B CNEUAAHNTI CEHTPOBE, KbDETO Uc CE OCBUCTBN peuHKnPaHn HA MaTePNAHTe.
CneBaaTe CTPNKTHo MeCTHnTe pa3nOpe6n 3a n3XbPJIHe Ha OTnAbYHm MaTepnaJIc CneJ KocHe.
B MOMeHTa Ha n3BaXdAhe OT yNoTpe6a, He 3axBbPnIte MaHInHaTe B OKOJNHaTa CpeDa, a ce ObpHeTe KbM CbOpaTeJeHnYnKt, CbLnacHO DeiCTBaUInTE MeCTHN pa3Nope6n.
1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 2 u
212 1j
1s jUe sJue e Jus 1s Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus
（）
U
Wc
JU
suluolupuscelejso.
1 24
A
Uuue uuuuue uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
JU Cua pa pa Ue Ue cu cpa Ue Ls o Uaiau
G C 15000000000000000000000000000000000000000000000000000000000000000000000
151505
1
auiicuiuuiu
1
1
P
A
C 10000000000000000000000000000000000000000000000000000000000000
A
11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 1
A
JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1 JU 1
A
U 111111111111111111111111111111111111
A
11 Cg 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11
L 1 Lg 1 Lg 1 Lg 1 Lg 1
UJU2.
- 1s 1u 1u j 1u j u 1u j 1u j 1u j
JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u JU 1u
U
11-12.
aLc:Uepeuue Uuuueauue uueae
1 111111111111111111
1
L
12J 150 150 150 150 150 150 150 150
1 111111111111111111111111111111111111111111
1
e 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
L
60 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 153 62~71.5
UCA SO UUGS
susususususususususususususususususususususususususususususususususususususususususususususususususususususususus
UuUs Uus Uus Uus Uus Uus Uus Uus
E uUuue E uuuuua Uuuuua uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
（）
1
Uuuaa uuuuucuauuueuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
Türkçe (Original talimatlar)
ÖZELLIKLER
NINNNINNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
A
x y 1000000000000000000000000000000000000000000000000000000000
Tn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
Xn nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
Greenworks Tools
wn noh
ONNTUX
nann no17n
T
1
n0u777xT
nnnn
917
1
Ammn
TNTNnONNNINN NNOYNIINN 177, nTTNNIINNNIINN NNNN NNNN.
n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
nnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
77 77 77 77 77 77 77 77 77 77
n nn nnnnnnnnnnnnn.
yynnnn nn nynnnn ynnnnn nn nnnn nn.
noon noihn
777 8.
n nn no nnnnnnnnn
nno no nno no nn no nn no nn.
17 17 17 17 17 17 17 17 17 17 17 17 17 17 17
nno nnn no
Xn Xn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
OJNNT
nno
777 8.
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
n nn no n no n no n.
n nn no nnn
nynynnnn noannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
1
nann
77 9.
nynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
TJn nnonnn, nnnnnnn.
11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X 11X
nui nnn nn nnn, on nnn nn nn nn nn nn nn.
N7 NON TNN NNI YIN "TNTNNI YN NNI N OIN IYN N NNO IN NIOI
TUNNTYJNYYNJNNNIN
yann (naxnn nyn)
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
JIN JIN TUN NIN, NIN NIN NIN NIN NIN NIN. JIN JIN 19700000000000000000
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
y
Ammn
y 1000000000000000000000000000000000000000000000000000000000000000
on nn wio, y no n nn. nnnn
n nn nnnn, nnnn, 07y, ynnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
y 1
n7 nON nT NvD,nuN Xi TIN Nn D;Nn yH 7Xn nn nTn Xn nn nnn.
TnNTX
10.
n nn noonnn, nn nn nn nn nn nn nn nn.
1
n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
1
n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
nnr
Ammn
nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
A
wnnnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
A
yN 17, nnN NnN nNnN. nnN nnN
A
yni yni ni n noi nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nni nii
nnnnn
7777777777777777777777777777777777777777777777
n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7.
A
TNTNNOONNNNNOONN NNNNNNNNNNN
A
nno nnnn nn nnnn nn nnnn nn no nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
A
77 77, 77 77 190, 77 77 190 77 77 190 77 77 190 77 77 190 77 77 190
Tn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
1 1
#
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
yann (ninn nn)
A xmmn
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
A xmmn
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
nannnn
11-12.
ynnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn
n nn nnn nn nn no nnn nn nn nn nn nn.
n nn no7n.
n nn nnonn nn.
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
n
n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn
n nn nnnn nn nnnn nnnn
n 62.5-71.5"an/om (350-400 y/).
nno no
y
nynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
nuy nynnnn nn nnnn nn nnnn nn nnnn nn nnnn.
yynnnn nn, x7 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
yann (nynnnn)
y
All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers.
This warranty is non-transferable.
LIMITATIONS
This warranty applies only to defective parts/components and does not cover repairs due to:
- Normal wear and tear.
- Routine tune up or adjustment.
- Damage caused by improper handling/abuse/misuse or neglect.
- Overheating due to lack of maintenance.
- Damage due to fittings/fasteners becoming loose/detached through lack of maintenance.
- Damage caused by cleaning with water.
- Machines serviced or repaired by non-authorised Greenworks Tools service centres.
- Machines incorrectly assembled or adjusted.
- Damage caused by improper use of the machine.
- Damage caused by improper winterisation (pressure washers)
- Items considered as consumable parts are not normally covered by the warranty, including but not limited to:
Batteries
Electric cables
- Blade and blade assemblies
- Belts
- Filters
- Chucks and tool holders
- Certain products may contain components such as engines, transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer's warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer's warranty period.
- Second hand goods are not covered under this warranty policy.
- The fitting of spares, replacements or extra components which are not supplied or approved by Greenworks Tools Europe GmbH.
Warranty
To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced.
If the central service facility finds that machine is not found to be at fault then the consumer will be advised they will need to pay for the cost of the repair.
This warranty policy is subject to change from time to time to accommodate the needs of new products. A copy of the latest warranty policy will be available at www.greenworkstools.eu.
GoojoooGreenworks Tools (DIY)
psu
EC DECLARATION OF CONFORMITY FOR MACHINERY
Manufacturer:Changzhou Globe Co., Ltd.
Address: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000
P.R.China
Name and address of the person authorised to compile the technical file:
Name: Gary Gao Naixin (Director of Outdoor Power Equipment)
Address: Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Koln
Germany
Herewith we declare that the product
Category CORDLESS MOWER Model .2502807
Serial number . See product rating label
Year of Construction . See product rating label
-
is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)
-
is in conformity with the provisions of the following other EC-Directive
2014/30/EU (EMC-Directive), and
2000/14/EC (Noise-Directive) incl. modifications (2005/88/EC)
And furthermore, we declare that
- the following (parts/clauses of) European harmonised standards have been used
Measured sound power level
Guaranteed sound power level
LWA: 84.8 dB(A)
88 dB(A)
Conformity assessment method to Annex V/ Directive 2000/14/EC
EC type approval to 2000/14/EC: Intertek Testing & Certification Co., Ltd. (NB0359)
Place, date: Changzhou, 22/07/2016
MIET) Vice president of Engineering
Signature: Gary Gao Naixin (BEng, CEng,
Endereço: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 China
Naam: Gary Gao Naixin (Director of Outdoor Power Equipment)
Adres: Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Kln
Germany
Aüpec: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000
China
IIMn aDpec JInca, OTBeTCTBENHO 3a NOdrotOBky TeXHnueckoro faJIa:
- 6bIIN INCNoJIb3OBaHbI CNeDyUOJIne YactN IINI CTaTbN EBPOJneCKNX
CORNAOBaHHbIX CTaHdapTOB
EN 60335-1, EN60335-2-77
EN 62233, EN ISO 3744; EN 55014-1;
EN 55014-2, ISO 11094
I3mepenHHb yPOBHeb 3ByKOBoM O uHOCn
IapaTnpyembI ypOeHb 3ByKOBo MOUHOCTN
OueHka COOTBeTCTBnI npoBeHeHa corIaCHO npuIooKeHIO V / K dIupeKtNBe 2000/14/EC
CeptnoikkauncoOTBcTcTBnE C 2000/14/EC:
Intertek Testing & Certification Co., Ltd. (NB0359)
Mecto, data: Changzhou, 22/07/2016 Poiin: Gary Gao Naixin (BEng, CEng,
MIET) Bnue-npe3nIeHT no pa3pa6oTkAm
LAITTEIDEN EY:N VAATIMUSTENMUKAISUUSVAKUUTUS
Namn: Gary Gao Naixin (Chef for Outdoor Power Equipment)
Adress: Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Koln
Germany
EC type approval to 2000/14/EC : Intertek Testing & Certification
Co., Ltd. (NB0359)
Sted, dato: Changzhou, 22/07/2016 Signatur: Gary Gao Naixin (BEng, CEng,
DEKLARACJA ZGODNOSCWE DLA MASZYN
Producent: Changzhou Globe Co., Ltd.
Adres: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.
Chiny
Potpis: Gary Gao Naixin (BEng,
CEng, MIET) Potpredsjednikin*enjeringa
EK GEPESZETI MEGFELEOSEGI NYILATKOZAT
Gyartó: Changzhou Globe Co., Ltd.
Cim: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000, Kina
TOnHa Ha npO3BODCTBO .BnKTe eTuKeta c HOMHaJIHInTe CToHOCTH
-
OTROBAPRA Na CbOTBeTHNte pa3nope6n Ha NdupeKTHBaTc OTHOCHO MaUNHInTe 2006/42/EC
-
OTROBAPRA Ha pa3nope6nTe Ha cneHnTe dpyrN DnpeKtNBn Ha EO
2014/30/EU (Диеректiva 3a EMC) n
2000/14/EC (I3nbYbAH yM OT MaunHn N cbOpBXeHn, KOnTO pa6oTt Ha OTkPntO)
BKNIOHTeHNO npOMeHNTe (2005/88/EC)
Ocben ToBa DeKnapnpaMe, Ye
ca cna3eHn (uaTn/KIay3n OT) cJeHNITE o6uHTe ebPoneiCKn CTaHdapTN
I3MepeHO HnBO Ha Wym
LWA: 84.8 dB(A)
TapaNTnpaHO HnBO Ha 乌M
88 dB(A)
MetoHa OueHbAe Ha CbOTBcTbIeTo CbO6pa3No npJIOXeHne V ot DnpeKtBa
2000/14/EC
TnIOBO Odo6peHne Ha EO B cBc0TBcTcBne C 2000/14/EO: Intertek Testing &
Certification Co., Ltd. (NB0359)
MЯсто, Дata: Changzhou, 22/07/2016
Подпс: Gary Gao Naixin (BEng, CEng, MIET)
Bunenepnent
MaShuHOctPoeHe
EL H H YMMOP H E K
Kaataaekuaotn; Changzhou Globe Co., Ltd.
uuvon: No.65 Xinggang Road Zhonglou Zone Changzhou,
Jiangsu 213000 P.R.China
Ovoua ka iai dieuohuvan atoou eouoiodotmuevou va ouvtaleov texivko akelao:
Ovoa: Gary Gao Naixin (Aieuthetavntc uTaiotou nKtpoivnTou eoTlioou)
Address: Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Koln
Germany
Aia Tou Tnapovtoc oIawoume otTto Tpoiov
Katnyopia MHXANH KOYPEMATOJ PAIIOY
Movélo 2502807
MeptnEvO eTtEo EvtaOn nXou
L: No.65 Xinggang Road Zhonglou Zone Changzhou,
Jiangsu 213000 P.R.China.
U:Gary Gao Naixin (p
Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Koln
Germany
JU 1
2502807
U.
..
y 2006/42/EC
EC-Directives
2014/30/EU (w
2000/14/EC (UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC UCC
J 1
Ugol (UjIjI/ Uuug) UUUGo g oJ UpUwUc Uggluog So Ugso
V/ Directive 2000/14/EC
2000/14/EC: Intertek Testing &
Certification Co., Ltd (NB0359)
U: 22/07/2016
s
JUJUJUJUJUJU
TR AT UYGUNLUK BEYANI
Uretici: Changzhou Globe Co., Ltd.
Adres: No.65 Xinggang Road Zhonglou Zone Changzhou,
Address: Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Koln
X
P
2502807
no' o' n' ...
y
- yintan 2006/42/EC
yintnncnncnncnECniosin
200/14/EC: Intertek Testing & Certification
Co., Ltd. (NB0359)
nni, nni: ynnn, 22/07/2016
ninn: Gary Gao Naixin
(BEng, CEng, MIET) ond" nton
LT EKIRENGIMU ATITIKTIES DEKLARACIJA
Gamintojas: "Changzhou Globe Co., Ltd."
Adresas: No. 65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R. Kinija
2014/30/EU (EMC-directkyva), in
2000/14/EK (Triukšmo direktyva) jskaitant pakeitimus (2005/88/EK).
Razotajs: Manufacturer:Changzhou Globe Co., Ltd.
Adrese: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000
P.R.China
Personas, kas pilnvarota sastadit tehnisko dokumentaciju, vards, uzvards un adrese:
Vards, uzbards: Gary Gao Naixin (Lauka iekartu dalas direktors)
Adrese: Greenworks Tools Europe GmbH
Wankelstrasse 40.
50996 Kln
Germany
