USER MANUAL OASYS 2/3 FIXPLUS CHICCO

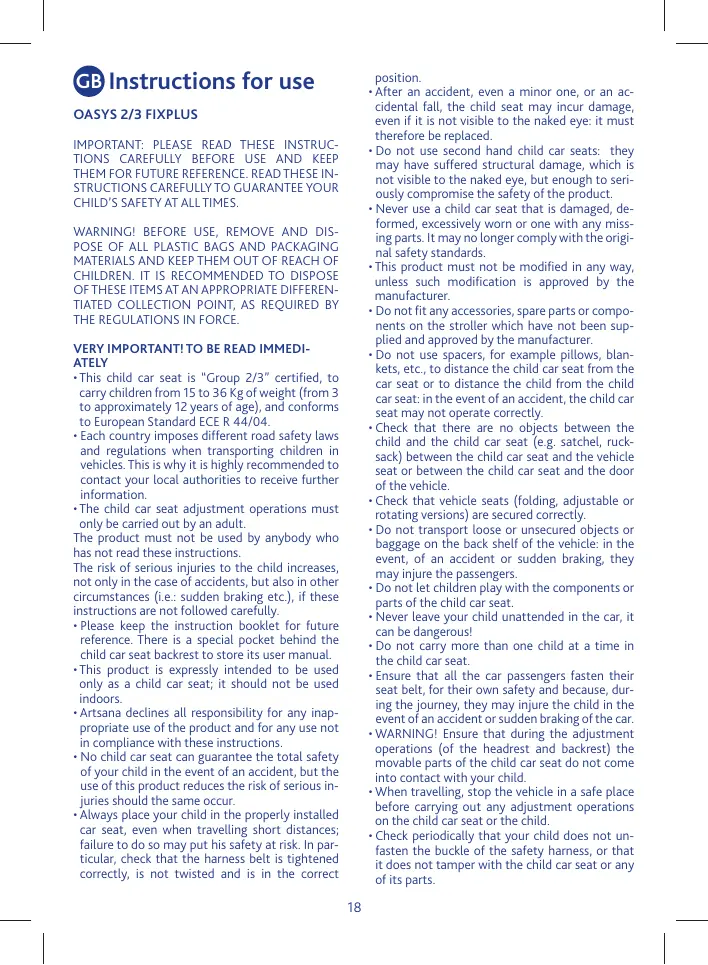

GB Instructions for use

OASYS 2/3 FIXPLUS

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. READ THESE INSTRUCTIONS CAREFULLY TO GUARantee YOUR CHILD'S SAFETY AT ALL TIMES.

WARNING! BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN. IT IS RECOMMENDED TO DISPOSE OF THESE ITEMS AT AN APPROPRIATE DIFFERENTIATED COLLECTION POINT, AS REQUIRED BY THE REGULATIONS IN FORCE.

VERY IMPORTANT! TO BE READ IMMEDIATELY

• This child car seat is "Group 2/3" certified, to carry children from 15 to 36Kg of weight (from 3 to approximately 12 years of age), and conforms to European Standard ECE R 44/04.
  Each country imposes different road safety laws and regulations when transporting children in vehicles. This is why it is highly recommended to contact your local authorities to receive further information.
• The child car seat adjustment operations must only be carried out by an adult.

The product must not be used by anybody who has not read these instructions.

The risk of serious injuries to the child increases, not only in the case of accidents, but also in other circumstances (i.e.: sudden braking etc.), if these instructions are not followed carefully.
- Please keep the instruction booklet for future reference. There is a special pocket behind the child car seat backrest to store its user manual.
- This product is expressly intended to be used only as a child car seat; it should not be used indoors.
- Artsana declines all responsibility for any inappropriate use of the product and for any use not in compliance with these instructions.
- No child car seat can guarantee the total safety of your child in the event of an accident, but the use of this product reduces the risk of serious injuries should the same occur.
- Always place your child in the properly installed car seat, even when travelling short distances; failure to do so may put his safety at risk. In particular, check that the harness belt is tightened correctly, is not twisted and is in the correct

position.

After an accident, even a minor one, or an accidental fall, the child seat may incur damage, even if it is not visible to the naked eye: it must therefore be replaced.
- Do not use second hand child car seats: they may have suffered structural damage, which is not visible to the naked eye, but enough to seriously compromise the safety of the product.
- Never use a child car seat that is damaged, deformed, excessively worn or one with any missing parts. It may no longer comply with the original safety standards.
- This product must not be modified in any way, unless such modification is approved by the manufacturer.
- Do not fit any accessories, spare parts or components on the stroller which have not been supplied and approved by the manufacturer.
- Do not use spacers, for example pillows, blankets, etc., to distance the child car seat from the car seat or to distance the child from the child car seat: in the event of an accident, the child car seat may not operate correctly.
- Check that there are no objects between the child and the child car seat (e.g. satchel, rucksack) between the child car seat and the vehicle seat or between the child car seat and the door of the vehicle.
- Check that vehicle seats (folding, adjustable or rotating versions) are secured correctly.
- Do not transport loose or unsecured objects or baggage on the back shelf of the vehicle: in the event, of an accident or sudden braking, they may injure the passengers.
- Do not let children play with the components or parts of the child car seat.
- Never leave your child unattended in the car, it can be dangerous!
- Do not carry more than one child at a time in the child car seat.
- Ensure that all the car passengers fasten their seat belt, for their own safety and because, during the journey, they may injure the child in the event of an accident or sudden braking of the car.
- WARNING! Ensure that during the adjustment operations (of the headrest and backrest) the movable parts of the child car seat do not come into contact with your child.
- When travelling, stop the vehicle in a safe place before carrying out any adjustment operations on the child car seat or the child.
- Check periodically that your child does not unfasten the buckle of the safety harness, or that it does not tamper with the child car seat or any of its parts.

• Avoid giving food to your child while travelling, in particular lollypops, ice lollies or other foods on sticks. It may injure your child in the event of an accident or sudden braking.
• On long journeys, it is recommended to make frequent stops: children tire very easily in child car seats and need to stretch their legs. It is recommended to accompany your child in and out of the car from the pavement side, not the traffic road side.
• Do note remove the labels and trademarks from the child car seat lining; this could damage the lining itself.
• Do not leave the highchair under the sun for a long time: prolonged exposure to direct sunlight may cause the fabric cover to fade.
• If the vehicle has been left in the sun, check that the different parts of the child car seat are not too hot: in such an event, let the child car seat cool down first before placing the child into it, in order to avoid burns.

IMPORTANT INFORMATION

1. This is a child restraint system approved to EC Regulation No. 44/04 standards, for two different types of installation:

2. using the rigid FixPlus (P) clasps, with the 3-point car seat belts, the device is classified as a "Semi-Universal" device which is compatible for use on the vehicles indicated in the relative "List of approved vehicles".

3. using the child car seat without the rigid FixPlus clasps, with the 3-point car seat belts, the device is classified as a "Universal" device.

4. Only suitable if the vehicle is fitted with a 3-point static or 3-point retractor safety harnesses approved to UN/ECE Regulation No.16, or other equivalent standards.

5. If in doubt, consult either the child restraint device manufacturer or your retailer.

RESTRICTIONS AND REQUISITES REGARDING THE USE OF THE PRODUCT AND CAR SEAT

WARNING! Read these restrictions and requisites carefully to ensure the product and car seat are used safely: if you don't, the safety levels can not be guaranteed.

• The child car seat is suitable for children from 15 up to 36Kg in weight.
  The car seat must be fitted with a 3-point static or 3-point retractor safety belts approved to UN/ECE Regulation No.16, or other equivalent standards (Diag. 1-Diag. 2.).
• You may find that the safety belt buckle is too

long and exceeds the foreseen height in relation to the lower section of the child car seat (Diag. 3). In this case the child car seat must not be installed on that specific seat, and you should try installing it on a seat that does not have this inconvenience. Please contact the car manufacturer for further information on this aspect.

• The child car seat can be fitted into the front passenger seat or any other back seats, always in a forward facing direction. Never use this child car seat on vehicle seats which are facing sideways or rearwards (diag. 4)

WARNING! According to car accident statistics, the rear seats of a vehicle are generally safer than the front seat: it is therefore recommended to fit the child car seat into the rear seats of the car. In particular, the central rear seat is the safest, when fitted with a 3-point safety strap: in this case it is recommended to fit the child car seat onto the central rear seat of the vehicle.

If the child car seat is fitted in the front seat of the car, in order to ensure maximum safety, it is recommended to push the seat back as much as possible, bearing in mind the comfort of the passenger sitting in the seat directly behind it and adjusting the backrest to the most vertical position. If the vehicle is fitted with an adjuster to regulate the height of the safety belt, position it as low as possible. Check that the safety belt adjuster is behind (or at the most aligned) with the backrest of the vehicle seat (Diag. 5A and 5B).

It is not recommended to fit the child car seat into a front seat equipped with airbag. If you wish to fit the child car seat in any seat protected by airbag, always refer to the vehicle instructions manual.

INSTRUCTIONS FOR USE Contents

• Fitting the child car seat inside the vehicle using safety belts and placing the child inside
• Fitting the child car seat inside the vehicle using safety belts and rigid FixPlus clasps and placing the child inside
• Installing the child seat inside the vehicle without the child inside
• How to remove the child from the child car seat
• Removal of the child car seat from the vehicle
• Installing and removing the cup holder
• Adjusting the height of the back rest
  Adjusting the width of the back rest
• Adjusting the inclination of the child car seat backrest/seat
• Removable backrest/seat covers
• Cleaning and maintenance of the seat covers

Parts

A. Headrest

B. Diagonal belt guide

C. Backrest

D. Armrests

E. Seat

F. Lap belt guide

G. Cup holder

H. Reclining adjuster button

1. Safety belt guide open/close button

J. Cup holder clip

K. Backrest width adjuster wheel

L. Backrest height adjuster lever

M. Rear pocket for instruction booklet

N. Side wings

O. Rigid FixPlus clasp lever

P. Rigid clasps

Q. Indicators

R. Rigid clasp release system buttons

Fitting the child car seat inside the vehicle using safety belts and placing the child inside

WARNING! These instructions and diagrams are for the installation of the child car seat on the right back seat.

To fit the child car seat in other positions, carry out these operations in the same order.

1. Place the child car seat onto the vehicle seat with the backrest up against the vehicle seat backrest
   WARNING! Check that the vehicle headrest does not interfere with the child seat headrest: it must not push it forwards (Diag. 6). If this happens, remove the headrest from the vehicle seat where you intend to install the child car seat. Remember to replace the vehicle headrest when the child car seat is removed and a passenger uses the seat.
   WARNING! The rear side of the child car seat must be resting against the vehicle seat.
2. Place your child inside the car seat with his back correctly placed against the backrest.
3. Check the backrest height (see paragraph "ADJUSTING THE HEIGHT OF THE BACKREST")
4. Check the backrest width (see paragraph "ADJUSTING THE WIDTH OF THE BACKREST")
5. Thread the diagonal car seat belt through the diagonal belt guide (B). Check that the belt guide (I) open/close button is firmly closed; you must be able to see the white reference line (Diag. 7).
6. Connect the car safety belt by threading the lap belt trough the red lap belt guides (F) under the two armrests in line, and by threading the diagonal belt under the armrest on the side of the fastener buckle (Diag. 8).
7. Pull the diagonal car safety belt upwards, to

ensure the belt is taut and fitting properly over the child's legs and chest; don't tighten it too much!. (Diag.9)

WARNING! Check that the car safety belt is tight enough.

WARNING! Check that the car safety belt is not twisted (Diag. 10).

WARNING! Check that the diagonal safety belt fits correctly across the child's shoulder (Diag.

9) and does not press on the neck; adjust the backrest accordingly (see paragraph "ADJUSTING THE HEIGHT OF THE BACKREST").

WARNING! Check that the car safety belt adjuster is behind the backrest of the car seat (or at least aligned to it) (Diag. 5).

WARNING! Do not fit the car safety belt in any way other than that indicated in these instructions! (Diag. 11)

WARNING! Check that the child is strapped into the child car seat correctly so that he cannot slide forwards.

Check that any unused rigid clasps are hidden away in the compartment at the back.

Fitting the child car seat inside the vehicle using safety belts and rigid FixPlus clasps and placing the child inside

WARNING! Before installing the child car seat using the FixPlus clasps, check the child car seat is in a vertical and not reclined position.

WARNING! These instructions and diagrams are for the installation of the child car seat on the right back seat. To fit the child car seat in other positions, carry out these operations in the same order.

IMPORTANT! The child car seat MUST ALWAYS be installed using the car safety belts. The rigid FixPlus clasps are an additional device to the use of car safety belts and aim to provide greater stability for the child car seat.

1. Place the child car seat onto the vehicle seat with the backrest up against the vehicle seat backrest (diag. 12)
   WARNING! Check that the vehicle headrest does not interfere with the child seat headrest: it must not push it forwards (Diag. 6). If this happens, remove the car seat headrest. Remember to replace the vehicle headrest when the child car seat is removed and a passenger uses the seat.
2. Pull the lever (O), located under the inclination adjuster button (H), upwards. (Diag. 13)
3. While keeping the lever pulled, pull out the rigid clasps (P) completely from the rear of the backrest (diag. 14).
4. Insert the two rigid clasps (P) into the corre

sponding ISOFIX anchorage points on the car seat, located between the backrest and the seat (diag. 15).

WARNING! Check that the two indicators (Q) are green which means the system has been installed correctly (diag.16).

1. Push the child car seat firmly against the backrest of the car seat (Diag. 17), pushing the lever (O) to ensure maximum adherence of the child car seat backrest against the car seat.
2. Sit the child inside with his back against the child car seat backrest and follow the instructions 3-4-5-6-7 provided in the previous chapter to install the car safety belts, (Fitting the child car seat inside the vehicle using safety belts and rigid FixPlus clasps and placing the child inside) paying attention to every single detail.

The rigid FixPlus clasps are designed to improve the levels of comfort and stability of the child car seat. It is possible to use the Oasys FixPlus child car seat without these optionals, if you encounter problems installing them in your car.

Installing the child seat inside the vehicle without the child inside

When the child is not travelling in the car, the child car seat should be left secured by the vehicle three-point safety belt, or stowed away in the car boot. An unsecured child car seat may be a source of danger for the other passengers in the event of an accident or sudden braking.

How to remove the child from the child car seat

Release the car belt buckle, accompanying the belt as it retracts.

Removal of the child car seat

WARNING! Remove the child from the child car seat before removing it.

1. Release the car safety belt.
2. Unthread the diagonal strap through the guide, accompanying it as it retracts.

If the rigid clasps have been used to fasten the car seat in place, they must now be released from the anchor points:

1. Pull the two red buttons on the rigid clasp release system towards you, release the clasps from the corresponding Isofix anchor points on the car seat (Diag. 18) so that the indicator is completely red.
2. Hold the lever up (O) as you push the rigid clasps all the way into the base of the child car seat, (Diag. 19).

Installing and removing the cup holder

The child car seat has 2 inserts, one on the right and one on the left of the side of the seat where you can fit the cup holder whenever you like. To install the cup holder:

1. Insert the cup holder into the relative guide (Diag. 20)
2. Press the cup holder downwards until it clicks into place (Diag. 21).

WARNING! Do not place glass containers or hot liquids on the cup holder as they could harm the child.

To remove it:

1. Press the lever on the back of the cup holder and lift it upwards, out of the guide (Diag. 22)
   The cup holder guides are fitted with a special device that makes sure it always remains in a horizontal position.
   To rotate and position the cup holder:
2. Press the lever on the back and rotate it to the desired position

Adjusting the height of the back rest

The height of the headrest can be adjusted to 10 different positions to adapt the child car seat to the height of the child.

Make sure the child's head is always well protected and the car diagonal safety belt is positioned properly on his shoulder.

When adjusting the height of the backrest, check that the diagonal belt loop (B) is positioned at a maximum of 2cm above the child's shoulder (Diag. 23)

To make the adjustment:

1. Use one hand to press the child car seat backrest height adjuster lever (L) located on the back of the headrest (Diag. 24)
2. Raise/lower the backrest to adapt it to the height of the child's shoulders (Diag. 25)
3. Release the lever checking that it has clicked into the desired position.

Adjusting the width of the back rest

The width of the backrest can be adjusted to adapt the child car seat to suit the physique of the child.

Use the backrest width regulator wheel (K) located above the headrest, to adjust the width:

1. Rotating it counter clockwise will increase the width of the backrest (Diag. 26) while rotating it clockwise will decrease the width (Diag. 27).

Adjusting the inclination of the child car seat backrest/seat

It is possible to recline the child car seat by using the reclining adjuster button (H).

The child car seat backrest/seat can be reclined to 4 different positions to allow the child to travel in absolute comfort.

To recline the backrest simply grasp hold of the front section of the seat (Diag. 28) and pull it towards you.

Simply press the reclining adjuster button (H) pushing the seat backwards towards the vehicle seat backrest to return it to a vertical position.

WARNING! never recline the child car seat when in use. Before adjusting the backrest, remove the child from the child car seat.

After reclining or straightening the Oasys child car seat, always check that the car 3-point safety belt is sufficiently taut and a maximum of 2cm above the shoulder of the child (Diag. 23).

Always perform the above operations when the vehicle is at a standstill.

Removable backrest/seat covers

The child car seat fabric cover is completely removable and washable. It is attached to the structure using velcro straps and elastics (Diag. 29)

Straighten the backrest (C) upright and widen the side flaps (N).

Backrest

Start from the lower section of the side flaps, separate the fabric lining from the Velcro fasteners (diag. 30) and lift it off.

Now separate the central section of the backrest working from the bottom upwards, removing the entire cover, including the headrest section, undoing any elastic fasteners found behind the backrest. (Diag. 31)

Seat

1. Open the velcro fastener on the back of the seat (Diag. 32).
2. Pull the fabric cover so the elastic is taut, then remove it from the lap belt loop (F) on both sides (Diag. 33)
3. Grasping both elastics, remove this section of the fabric cover from the lap belt loops (F) on both sides (Diag. 34)
4. The central protection is fastened to the backrest by two toothed fixtures, pull the central protection upwards, releasing the toothed fixtures from their seats (Diag. 35).
5. Pull the cover up over the armrests and remove.
6. Now finish the removal process by pulling the triangular plastic reinforcement, fitted around the reclining adjuster button (H), upwards (Diag. 36 A and 36 B).

To replace the cover on the frame:

Straighten the backrest upright and widen the side flaps.

Seat

Start by covering the seat, repeating operations 6 to 1 in the reverse order, paying particular attention that the cover fits over all parts of the frame perfectly, especially around the two lap belt guides (F) threading the elastics under each of them.

Backrest

Start from the headrest making sure you insert the elastic and the section of the fabric in the rear cover. Now fit the cover on, following the instructions for operations 1 and 2 in reverse order.

Cleaning and maintenance of the seat covers

The cleaning and maintenance operations must only be carried out by an adult.

How to Clean the Fabric cover

The child car seat fabric cover is completely removable and washable. Please refer to the care label for instructions on cleaning the fabric cover:

30℃

Machine washable at 30^

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

Never use abrasive detergents or solvents.

Do not spin dry the fabric cover, let it dry without wringing it.

The fabric cover must only be replaced with another cover approved by the manufacturer, since it is an integral part of the child car seat and, therefore, one of its safety elements.

WARNING! To ensure the safety of the child car seat, never use it without its fabric cover.

Cleaning the plastic parts

Clean the plastic parts cloth dipped in water or a neutral detergent.

Never use abrasive detergents or solvents. The movable parts of the child car seat must not be lubricated.

Checking the condition of the components

It is recommended to regularly check the condition of the following components to ensure that they are not damaged or worn out:

• fabric cover: check that the padding does not come out from the seams. Check the condition of the seams: they must always be intact and undamaged.
• plastic parts: check that the plastic parts are not worn out, damaged or faded.

WARNING! If the child car seat is deformed or worn out, it must be replaced: it may no longer comply with the original safety standards.

Storing the Product

When it is not fitted in the car, it is recommended to store the child car seat in a dry place, away from sources of heat and to protect it from dust, humidity and direct sunlight.

Disposing of the product

When the child car seat no longer complies with the original safety standards, stop using it and dispose of it at an appropriate collection point. Dispos of the product as laid down in the environmental regulations in force in the Country of use.

F Mode d'emploi

OASYS 2/3 FIXPLUS

IMPORTANT : AVANT D'UTILISER LE PRODUIT, LIRE ATTENTIVÉMENT ET ENTIÈRÉMENT CETTE NOTICE POUR ÉVITER TOUT DANGER ET LA CONSERVER POUR TOUTE RÉFERENCE FUTURE. POUR NE PAS COMPROMETTURE LA SECURITE DE VOTRE ENFANT, SUIVEZ ATTENTIVÉMENT CES INSTRUCTIONS.

ATTENTION! AVANT D'UTILISER LE PRODUIT, OTER ET ELIMINER TOUS LES SACHETS EN PLASTIQUE ÉVENTUELS ET TODS LES ÉLÉMENTS COMPOSANT L'EMBALLAGE DU PRODUIT ET LES TENIR HORS DE PORTÉ DES ENFANTS. IL EST CONSEILLÉ D'ELIMINER CES ÉLÉMENTS EN FAISANT LE TRI SÉLECTIONT CONFORMÉMENT AUX LOIS EN VIGUEUR.

TRÉS IMPORTANT! À LIRE IMMÉDIATÉMENT

LIMITATIONS ET CONDITIONS D'UTILISATION RELATIVES AU PRODUIT ET AU SIÉGE AUTO

Levante completeness or encosto (C) e alargue as abas lateralis (N).

Encosto

Comecandoonga parte inferior das abas laterais, separo o revestimento textil dos velcros (fig. 30), desenfiando-o.

ELeyoc ncakepaioTntac twv EApntmuTwv

SUVIOTATAI VA EAYETE TAKTIKA TVA KEPAOITNA
KAI TTV KATAOAN φθOBAP, TW AOKOLUWV ESAP
TNTMUTV:

Ypaaiutiv nEevduo: BaeaiwOeite Oti dev pnoecexoun byaiouv otoieia tnc eowtepkic ymuionc. BaeaiwOeite yia tvn akepaioTnta tvpapwv.
IIaOTKAtunmuata:BeaIomegaTei yiaTnAkepaio- nTa dWvNlaOtIKuWtunmuTuWou Nou Dev Ta npEeV aTAPouoiCov EmuPav iXyn Cnmuic n anoxpauotou.

BHIMAHHIE! Ctrpo npnepkmbaTcB cneyoo- xs ORpnaeHneN I Tpe60BaHn K nCnloB3OBAHn BOtKpeCn A cnDEHn ABTOMObIaN: INhaue 6beonacHOCT He rapaHTnpyETcN.

Bec pe6eHka doJXKeH haoDntbCBA npeDeIax 10 15 do 36 kr.
CJMEHeB ATOBOMOUII DQNHO 6bTb OCAHSEIO CTATNHECKM IINI INEPUONHBM 3-TOUEHBM PEMHM 6E03ANPOCTOH,CEPTMDNUPBOAHHBM corNACHO Tpe6OBAHNM CTAnDpTaUN/EE N16 IINI dpynIX paBNOUeHNbX CTAndapTOB (Pnc.1 - Pnc.2).
3ACTKka PEMH 6E0nACHOTM MOKET OKA3aTbC SNIKOM DNIHHO, PNEBbIaHOe IpeDyCMOTPENHYO BHCOTY OTHOCUENTBO HNIXHE JACTN CINDEHB (Pnc.3).B TOM CNYae ABTOKpecNO He DonJHO KPNNTbCA Ha TOKE CIEDHE; HAIDNT DE KPNLEHNE NPOXDAUEe CINDEHVE, B KOTOPOM OTCYCTBYET DAHNRA POBNEMa.3a DOJONHTENBJHO INHOFMAUne IIO ETOMY BOIPOCY OBPATITcB K PnEDCTABNTELAM IpnO3BODITJIEN ABTOMOBUNIA.
- Dettckoe abTOKpeCNO MOKET yCTAHABINBATCBa Ha nepeHem naccAkapcCKom CUneHNn HInn Ha IIObOM 3aDHeNn ABTOMBOJN O dONkHO pACNONARATCB BcERda NO xOyD yBUNJEHn. 3aPpeAetaC nCnIbON3OBaB hAcToIeae ABTOKpeCLO Ha CUnEHNX, TIOBepHYtBx 60KOM IINn cINHO N XOyD bIXeKNHn BOABOTMO BHMIM POrnACo CTATNCHTueCkIM dANHHM o DITTI 3aDHeNn ABTOMBOJN ABVHTOCBOeNE 6e3OaNCHbIM No cPABHEHn CpeNDHMM: NpOTMY PEKOMEHUYTcY cTahANBIMBaB ABTOKpeCLO Ha 3aDHeNc McEHNb. OcObeHNo 6e3Ancho QteHPaJIbHOe 3aDHeNc eCNi OHO cBAKeHOp PEMHm E6eONaHcOCTc K pKeINNeHM B TpEx ToUkax. B 3tOM CNyUye peKOMEHUYTeC yTAHOBtB AbTOKpeCLO Ha 9eTHPaJIbHOM 3aDHeNc CUnEHNBOMb
EcniabTOKpeCNO yctaHaBnIBaEeTaH NapeHdHem
cIeHNiABTOMObNII, peKOMEnyDteTc4oBIoB-
Ie 6BeONACHO MAKcIMaNbHO OToBDHHTb
Ha3ad cIeDNHe C yUetom HaxOJaUMXc3aDN
PiNACsIKIOB N OTPERYNIOPOBaTc PinHKY NO B03-
MOxHOCTN CTporo BEPTNKAlHo. EcNI ABTOM-
ObNb OCSaHEn MEXAHINMOM, peryNpUpyOUM

BbCOTy PEmHb 63eONaCHOtN, paCNONOJXte CAM pEmEhK Ka KMOHn HKeHe.3aTeM IpOBepBte, cTO pyegyTAlop PemHb HaxoDnTc NOzAdn (nuIb BkAHEm Cnyae, BpOeHb) Co cINHKOY ABOMO bblbHO rOcHEnBa (Pnc.5A n5B).

EcnipnepeHcCnBeO hceauhofo pOoHTanbHO nOpyuKoBe3oanacHoCTn,hePekOMeHyETc yCTaHabINbTa Hno HeTeTcKoe ABTOKpeCIO. PnpyctAHOBKe HaIOBOM cDeyHIn, ZaIIuIeHN HO B2dyUHO nOpyuKObe3oanacCTOn, OBa3atJIbHO CnDEYITE INCHTpykUIM K ATOBOMOJIO.

INCTPYKLMNIO MCNOIb3OBAHMOYkaatatenB

• YCTAHOBKA B ABOTOMOJINE DETCKORO ABTOKPCENA C TOMOJIbU BO TAMOTOMOJIbIbX PBeMH Be3ONaCHOtN i p4Ma3MeJHnepe6HeKBA B ATOKPeCNE
YCTAHOBKBA B ABOTMOBJIne DETCKORo ABTOKpeCnCA N TOMOJIbO ABOTMOBJIbHbIX PEMHeN 6e3OnaCHOCTN I JXeKTKN KpENNEH FxIPls, pa3MeUeHNe pe6EHaBA VBOTKpeCne
• YCTAHOBKA B ABOTOMOJINE DETCKORO ABOTOKPECLNA 6e3 peBéHka
KaBbHyTb pe6eHka n3 aBtOKpeCna
- Charne deTCKOro ABTOKpeCna n3 ABTOMO6nla
KpeJIeHne n ChTne NOCTaKaHHnka
PerynpoBkCINHKNIO BBICOTe
PeynilpoBkA cnHKn no hpInHe
- PerynipobKaHaKJIOHa CnIHKn/CnDEHn
-Сятахушикс/ciDeHn
- yxodn ounstka yexna

KOMNOHEHTbl

A.ПОДROLOВИК
B. HanpaBlaioiouaДnafoHaJIbHOro peMHa
C.CnHKa
D.ПодлokOTнИКИ
E.CnneHne
F. Hanpablauouaia nochoro pemna
G.ПодостаканнИK
H. Khonka perynipobkn haKloha
I.KhONKa OTKbTIa/3akpbln HnapBaJIIOuei peMH
J.KpenJIeHnE nIy noCTaKaHHNka
K. Konecinski Д reasonably peryunipobkn cnilnkn no shinne
L. Pbyar dЯpergylnipOBK cnHKn NO Bicote
MMA.3aHnKapMaHdIb6pOuOpbCInHCTpyKuHN
N. BOKOBbie KpbIbIuKN
O.Pbuiar jkeTknx kpenneHn FixPlus
P. XeCTKne KpePnEHHa
Q.CnHnaJIbHbIeOTMETKIN
R. KhoNkI nIa pa3bIoknIkpOBKn JckTeKnx KpeJIeHnn

UctahOBka B ABTOMo6nne TcKTOB ABTOKpeCNA C NOMOuB ABOTMo6nblbHbX pEmHe 6e0nacOhtn n pa3MeueHne pe6EhKa B ATOKpeCne

BHIMAHIE! B DAHOM PYKOBOCTBE PACCMA
TIPBAEETBAPNAHTYAOHBKAI ATOKPEcNA Ha
IpaBOM 3aDHEMN CINDEHN ABTOMO6JIa.
Ipy TCAHOTB B DYRNI NOJIOKENHIX NOCNEHO
BATEbHOBCTB DECTBN COBIONDAETC.

1.YCTAHOBITE ABTOKPECNO HA CINDEHNE ABOMO6NIIA TAK, YTOBBI EORCNHKA ONIPAAcb HA CINHKY ABTOMIOINbHOI CINDEHNI.
BHIMAHIEY6edntcB,TO NOIQRIOBNHK CINDeHINABOTOMOBHe NOTaTNKBAeBTNEpeD NOIQRIOBNHK DETCKORO ABOTOKPecna (Pnc.6).EcnI 30nPOXcOXIT,CHMNITE NOIQRIOBNHK CABOTOMOBnBHORO CINDEhA,HAKTOPOM YCTAHOBNeHO ABOTOKPecNo. PONHINE O TOM TO NOIQRIOBNHK NEbOxIDMO BEDET CHOBA YCTAHOBNb HA CINDEH INABOTOMOBnI DnA naccaknpa cpa3y nocne CHATRn DETCKORO ABOTOKPecNa.
BHHAMHIE! 3aJdhaTb aBtOKpeCna DOnkHa JIPTHO pIneratBaK cUcEHNIO.
2.Ycnditepe6eHbKaB ATOKpeCNo TAK,HTObIero CnHNA NIOTHOpNIIerana K CmNHKe ABTOKpeCna.
3. IoepeBte BvCOTy CmNnK (cm.naparpaF 心 PEJYINPOBA CZINHKIO BbICOTE)
4. Μρερβετη Σιπηνή Συπηκή (cM.naparραφ ΕPΕΓΙΝΙΝΟΒΑ ΣΙΝΗΝΚ ΠΟ ΣΠΥΝΙΜΕ)
5.BBEDITE DIAHORALbHyUcAht ABTOMOBnBO HOro pEmHr 6eOaNaChOCTN B IpeDHa3aHeHHyIOI Hrero HapraBlaHOuO (B).Y6eIDTeC8B COTOKBaueiE 6bOKIOPOBE KhoTKn OTKpbTuN/3OcKttn HA npBaPBAIOe peMn (I), opneHTnPOM clykHt 6bJIaIIHHa (PiC.7).
6.Пигс�нге ременб Збогаши CTBOMO6JI,поруctи NOHry cactb N predHa3aueHHeIe nde He HapraNIOUcne KpACHOBTa(BETA(F) NOД bYMaN PNOJOKOTNIKAMn A daNaRHOJIbHyu cactb -NoI NOJIOKOTNIKOM CO STOpOBOH pRAKKIN (Pics.8).
7.ПOTROMNITEДАгогаловнычASTOKРЕМУВТОБПИВВЕХ,ТаКТоБСВЕРМЕСК OKАЗЛСС XOPOSO HATANHYTBM И ПЛTOНТРИпЕ К ГуДи И Готам рбЕнka. He zatryINBAITE PEMEHСΙΝΥΚΟМΚΡΕΝΟЛ (PcN. 9).
BHHAMHIE!IpObeBptne pabnilbHOe TATRAKHeHE ABOMBOHIBHOr opeMH6BeONaCHOHT.
BHIMAHUIEY6eIeTcB TOM,TOA bTomO6mbHb npemHe 6e0nacHOtNe nepeKpyeu (Pnc. 10).
BHIMAHIEY 6eBntteb,TOI dAorOahlbpeMeHb npaBnBHO npoXoDnT no neJeP6eEHKa (Pnc.9) n He daBnEmy Ha steo; npn Heo6xOdmocTo nptpylnypuTe BcOTy CnHKn (cm.naparpaF 一 P E 广 T I N O B P K A 二 C H N H K I T O P b C I O T e )
BHIMAHHE!Y6eIntecbTOM,HTOppeyIaTOp

peMHNAHOJNTCRPO3ADINHINBKPAAHEM CNYAe, HA OHNOM yPOBE HE COnNHKOABTOMO6NJbHORO CnDEHIA(Pnc.5).

BHIMAHIE! 3AJIPEIIAECTCR npoDeBbT peMeHb ABTOMOJIb M CeMaT, OTnMauOUIXcR OYka3AH-H hxB X DAHOM PYKOBODCTB！(PNC.11)

BHIMAHHEI Y6eHITcB,чTO pe6EHOK npaBIVb- HO nPICTeHT K ATOKpeCNY u He COCKaJIb3bIABaET Bnepd.

PIOpeBaeY, YoobJI XeCTKNe KpEINHeH N BepmObI HeNcNoJIb3OBaHNbBJn CLOKeHb I CneLIaBbHBe 3dAHIe HNIJI.

UCTAHOBA K A BTOMO6JIne DETCKORe ABTOKPeCNa C NOMOJbU ATOMO6JIbHbIX peMHe 6eO3oNacOCTn I KeCTKnx KpenEHHu FxIplus, pa3MeueHene pe6eHka B ABTOKPeCNe

BHIMAHIE! Peped, yctahOBKO bAOKpeCn c nOmoIbIo FixPlus,y6eJIntecE, cTO OHO 3aHmIAET BEPTIKaJIbHOe NIOJOKHeNc, 6E3 HAKJOHa.

BHIMAHIE!B TeKCTXnHa pCNUyHKaDaanHOHNTPYKUNPACCmTpBAETCaBapNHTcYTAHOKNABTKPecNa HApOBAM3aDNHEINbAOTMOBNI. Pnp cTaYBOKeBb DpyrNtioNOJEXHNAOIOJIeAOBATEBnBOHCTBejCNIbTcO6NJIOAdTc.

BAJXHO! ABOTkpeCNO O8R3ATEBbHO J0JHXHO yctahabnBaTcB c nOmoIbpo pemHei 6beNaocHToB aTOMbIoN. IcNoIbSBoHaNe jKTHKnKPenHnFixPlus eue bonee yBenvuHnaet YTOHnOBt bA TOkpeCn, oBeCeNuBaEMyIO pemHaMBeOanACnOTo.

1. UCTAHOBITE ABOTOKEPCNO HA CINDEHNA BAOMOBIMTA TAK, YTOBH ERO CINNKA ONIPANABc HAcNHKY ABOMOBIMbHOrO CINDEHNA (PNC. 12).

BHIMAHINE! Ye6dnteCb, YTO nOgROBONHIK CnDEH N B ABTOMOBNI H NoNDTANKINBAET BNEpeD nOgROBHNB DNTCKNORoA TBOKPCEA (Pnc.6). ECNt 3TO pNOXCDOHT, ydaJIITE NOgROBONHIK C nDEHNI B ABTOMOBNI. PONHITMe TO TQo NIOPOBONHIK Heo6XoDMIO Byedet CHOBA UCTaHOBNITb HA cIeHENe A BBTOMOBNI JI NaCCAKNIPA cpa3y noCle CHRTY DETCKFOroA BTOKpcEnA.

2.ПOTЯНТЕ ВЕРХ БУАг (О), PACNONOXEHHBiy NOД KHNKOK PERYUNIOBKN HAKLOHA (H) (Pnc. 13).

3.YedepKmbaBbpyar B bOTM NIOLOXEHMN,NOHOCTbIO HBNBKeNITE KcEeKTNKe PkENJIeHn (P) C 3aDHei aactn cinnnn (Pnc.14).

4.ПпстerteНITE ДА Крелени(P)КСОТБETCYBOUIM CKBOM ISOfIX, KOTOPBIE HAXODTCAHA AT BOTomOBINbHOM CINDEHIN MEXJY CINHKOINCINDEHENM(Pnc.15).

BHIMAHNE!IpoBepbte,TOKkpenHneBbONHe npabInbHo:

DIBCINHbIhbe OMeTmKU (Q) DOnKhbY kHa3bIbAtb Ha 3eHeHH bET (PNC.16).

5.3HeprnHNO npOTOnkHnTe aBtOKpeCNo K cInHke

aBTOMObIbHOrO cIneHbI (Pc. 17), Haxab Ha bIyar (O) IJIa oEbcneuehen MAKCImaHbHO rnpIeRanHc CINHN ABTOKpeCa K cINHKe aBTOMObIbHOrO cIneHbI.

6.Ycnditepe6eBHKaTAKTO6bIero cnoHnA NIOHTO nprieraKcnHKe BAOKpeCna n pncTeHne IePMHAMMe 6o3oNACHOCTn BInIOHJRA deiCTBn 3-4-5-6-7nnpdeDuJeUero paoLaDna (xCTAHOBKa BVATOMOuNE DETCKrOg ABOKpeCna C nMOsBupeMHe 6eO3oNACHO tNpaMaueHHepe6eHKA) Co BcEMn Heo6XoDmblMN MepAMn PpNDOTOPOXHOCTn.

XeKtMKe KpePnHEna FixPlus papa6ObaTbIynyuUeHEna KOMpOpta N yCTOINMBoCTN ABTOKpeCcA.EcIn B aBaMeB ABOmObIne HET CIECTMEIbIsofIX, Bbl MOkeTe 3akpenTb KpeCNo 6E3 nCNOIb3OBAHn KpePnHEnaFixPlus,cNMOuBIOABTOMbNbHbX pemEHNE630NAChOHTn.

UCTAHOKBA BVATOMO6HNE DETCKORAOBATOKpe- 1a 63e pe6EHKa

KoJda pe6eHOK He nepebo3NTc, ABTOKecPONMOxHO OCTaBHTb B ATOMOJIne, 3aKnCnPOBA8ERO 3TOUHEBM PEmHem 6e0NaCHOCNTIINyIbpoBeroB 6aRaXHHK.He 3aKpEnHeHnoe ATOKpeCNO CnyjMNTIOUHKNOM ONaCHOTN IINr NaCCaxnPoB CnYuee ITII INI pE3KO TOpMOxHnIA.

KaK BbHyTb pe6EHa n3 aBtOKpeCnA

IOCTAOHO paccTeHTb IprJXky ABOTMO6IbHoro peMHBa3OpaCHoCTN,piupejKmba eB BOBPEMCAtBBAHIN.

CHTNE TETCKO BA TOKpeCna 13 ABTOMOBnBABHMANIE! Iepen OTkpenHem ABTOKpeNa BbIbTe IV3 HrO pe6EhKa.

1.OTCTeHTHe pemeHb 6e3oNaCHOCTn ABTOMOBnJIa
2.BbHtTe n3 HapnabBIAOeI DaHOHaJIbHbY yauKoTpe pemH, npInepJxNBA erO BO BpEM CMtBaHnA

Ecnpi pknKcaaun ABTOKpeCna HcN0Ib3OBAIinCb TaKke JeCTKne KpENNEHn, Heo6xODIMOOTcETHerHy nco CkOB:

PIONHITHe Na c6eB Da KPCaHbE KHONKc CNTcMbEt Paa3bKnOpKBn JcEeKTHNc KpEnIeHNr (R),OTcTeHNe TKePNeHInr NcoTBeTcByOuMx KcO6 Isof H aCsiHEn bAToTMoBUnr (Ptc.18), TaK YTOb6 CnHabJIbNA TOMETKa YkBaZbAbaN a KaPcHbIc TcBt.

UyepKbMaBbYaPoiNDbTbM (O), npoToKnHite JKeCTKHe KpEnIeHMe BHTpyb OCHOBbl ABTOpeCna TAK, tObBi oHNI pNOHcTb BOWNI B Hee (Pnc. 19).

KpenneHne n ChTne noctakahnka

PIO kO6akUcHEnA BAOKPeCNa, CnpBaA u CNEBA, npEycMOTpeHbI 2 HacauN, N03BOJIoUe yCTaHOBnTbNo JXeJauHIO NOCTaKHINK.

YTO6bIyCTaHOBnTb NOCTaKaHHNK:

BCTabte nOCTaKaHnIK B COOTBeTcTBYoiUHO Ha-cakNY (Pric.20).

П troлонкнITE NOДТСАКИнHK BHN3, NOKA OH He 3a-6bOKINPYETCA (PNC. 21).

BHIMAHNE! He yctahabnbaahe Ha noDCTakAHNH KCTeKJIHbHe eMKoCTn I rOpTne HAnNTKN,3OTo ancho dnype6EHa.

YtO6bI CHrTb NODCTaKaHHNK:

HaxMnTa Hn TaPbUaNpoTcAkanHnKia n npInoDHNMTe erO,OTkpenBc

COOTBETCTBtuOuNXHacaDOK(Pnc.22).

BCTbKnIOJDCTAKAHNtKA OCHaENbI CNEUAnbHbIM yCTOPICTOB, yDepKbBaOuMm ERO cTPORBO rpoHOHTaB HOM NONOJEHHn.

TcOb6nBepHTyN UCTAHOBNTB B HXHOE NOLOXeHne NOCTaKaHHNK:

HAnMnite Ha3dnnbPbIaNIOBepHNITE NOCTAKAHINK B HNYHOE NOIONXHEIE.

PerynipoBka cnnHKn no BbICote

B COOTBECTBUN CPOCTOM pe6eHka cINHky MOK- NO YCTAHOBNTI NO BICOTE BOHN H3 10 nped-yCMOTPeHHbX NIONOKeHN.

OTyepnnpyte BbCOTy TaK,TO6bI TONOBApeB6eKa HAdEKeHNo UeRkPbAanBaS, a daNroHaJIbHypeMEnb npabInbNo pOxOdINo o erO nneU.

BoBpem pyerynipoBk Bicotb cnHKn npoBepbte, YTO HapablnOuaD nAroHaNbHoFo pEmH (B) MOKET PNOxODHTnbOpE xPiueHa Ha paacToHN He 6 bonee 2 CM (PwC.23).

He npoBepraTb xHmUueckoynctke

ZaepaeuaeTcNIObONB0AnHe a63a1BbXb MOOuX cpeCTb NINI pactOBtPEnTei.

HeCyuHHeYeXueHbIeHTpyEeJaTe EMy BbCOxHyTB 6e3OTKHMAnHa.

Yexon JIJIETcH OTeBMeIMeMO YaCTbIO BAtOKPcNcI NCLQOBATEbHO, 3JIEMHTOM 6E0JIACHOCTN, NO3OTMY EO MNOKHO 3AMeHrTb DpyTmN, TOnBJCO ECIN OH YTBepXdEN IPOIN3BOJNTeEM BAtOKPceNa.

BHIMAHIVE!Ito6bJe noJDBepratb pe6EhKa onaCHOCTn, 3aPpeaetcN cNoJIb3OBaTb ATOKepcNo 63 be pinnraAiooeroc YexHa.

OuNTka nlaTMacCObBix qAcTei

OuHuaTe PnactMaCCOBbIe HaCTN TPAIKoM CMOueHHoB B OBe IINB H HeITpAlbHOM MOIOeM CpeDCTBE.

3aIpeaETcN cIOnb3oBAt b6p3AINHbIe cpeCTBa IJI pAcTBOpENTNI. 3aIpeaETcN CMA3bIBaTb NIOdBXHbIe aACTn ABTOKpeCna.

a + b = 3

a5,11 a21g 21 g i11 lgl 11

aieeee

gai giaLo a iia JaaI aywS yc

a]g i aieiell 5y jol gale Jgai 1

aaii a5j j 10 yo lgcl aaggln

Jaii jie Jaijai jaiy 8 ayjaiy

Igobhanyagig iJis gagioiLwgl abilalll

.0gj381 lg2y j0 1 ogj5g JiaJbJL

iioog wJil iioo) Jueill lloe piaill sic: aii

gdsjnilsljglalmo pao no slll (gab)

Jabal Jaa Jaba Jy Jya S

JusieuLac sIgii GsG aSio aJylll ngSi Loxic

auiuuii gii iis 1j jaiuui ywglc

aJgJlJgJgJgJgJgJgJgJgJgJgJgJg

L

ploj 1o, cio. qio; pgoj x JiaIall oJyoo

aJzjgl Jabll jlll gss 2 aJnog JLoX

olall aolj Jaiil sic azoboi j Jabiipaa

a0e81j 1i 1g jI gC JgAolglg

gag aJLg Jalll gj 1g jnJc Jd gill

aLao a gay ay jull aegi icg lo LLa

j8. aIglo 1yR pIaJI ic iJ g jy

y

Jjijg wll j: caii .dSall aL aL 108 108 Jiaa

geall jie JaiJIaI aeiJoo

JgJJg

aJyIgS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS yS

.ogwSll jnnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

algdoaunuugullll jabll oolwswj

11 11 a 10 10 10

aaiy plalll yuull g oJLJI JAL

Jbll wla! Jd. diljaiigwpa o 5ll y

Jai 1

SA JLo

OASYS 2/3 FIXPLUS

Jooosj,clc gail Joooi Joo:aoog ao b>so

LoS.JLceinblbino nuiuclig adie,als caleeill

a 1

eIiIcIcIeIbOJUwIcAbololl

Laiyai:laieill

aLg aS wJ1 JwS21 allj! JLozWJ1 J

Lgaoag Lgao yalilg qilll laoe i aolll s

Jg21 aLs JlaBgl Jglio

aai aai bai gai iia oai yalssai ai lac ai jiu

LJyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

1gai gai 112 aagc o1b>30

Jai Jyaiaia gag 2/3 aqaoaLLggo w

gj 15 jglj

JlLiW8LcUg.（yraaiw12gUgiw3jynpaLa

ECE R44/04 a2g2d

Jai aolw gtei jil all aolbl aiqaleig aijgla JSL

a1111111111111111111111

aolio! oLogleoglc Jgann

gssll luee cuae: hao ghuu

0128 21

LoLe1

aIg baa yaa aaaa Jiaai Jiaai Jaa

aL L aagj (L) Li j s JxJg Li g. Lo o

00000000000000000000000000000000000000

· = 0

a131 sic a1c e 1b11 iio Iolai Jia bia

Jia Jabi jbjwJyS yB aiwo cali: aiwo

JlueiWgIolalejldaetoslwI

JgssuJg oJg Jaiu Jauo gaili

山

jol31 pssw21 aJlgo Artsana 4

aaiia aaih: ciil Jlae iJl gciil

= ( 1 + 110) ^110

aJlaljI aJIJI aJILI aJILI JIJI JIJI

Jai dilu no gswSll i Jaoiwl jLc.Lo Lg

Lo 1gag aJL g aJIy Jalal JALaJ Ldo

1a aJyJwJy JqzWJy aJyJyJy Jai

Lo5. aaoa aee baae yess 100g

j 1

J 1

aui jieiio 40og og aog oio ploj1o no ool

a bla a,b,

aJg jL aJb JSL gjg JLo JcJgag all

aI I aI bI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI

A

Joo Jao Jaoiul jL JaoJI JaoJyS pssui

y

Lgjglal aolll Jai gilg 1

aaij Jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai jaiyai

Jalal jg yj Jalal jyJyS

y,51 Jc no jiaJIg

J

Jolol jolj

gallino elaij Jue

jbjll jnnoo jno

ySll aeolglal siouo slinjue

L_ ACD = 12 × 2t = 4t

suiyj j

pJd1y jLj1/2

C. all lolo 2020

A

gbl siu oEaij Juei jie

laeei Jaae gai

L L L L L

FixPlus Ligo alic

a. 100

aALLlloagllj3 pIbI j

aJlqaeWj,0jLwJg JlaJIb0jLwJyS

J 1

Jieill gsws cglg pwrjg Laleill aas

Juwuui jai Eiljie 5cL .yai yai1 5ai1

s#g 1000

gssll

.

jleie 8 oJull Jao g wJll nniu j no sLi: a

pL21 J 2gJ:LalJyS gJJrJrJrJr

JrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJr

jLJUJIeai jIJI siuwoei jSii. oJLJI JEAoo

Jia Jia Jiaai Jiaeiui iicg Jiai jiy s alljiaic

L

jabll yjw w g jg 1s s2

.

g.(3aJ)al all no Jaiwll aajlao glll

a 1

cIao Icgljagxio cIao Ic gswll

(4) a1 = 2 an + 1 = 2 - a_n = 2 - 12

aal 1cll 1y 1sgl 1c 1y 1y

1J:goLo8J eall JooL o5o aolc oov

Jaaa aai 150 yj 150 Jaaal 150
Jaaanwai 150 jao 150 Jaal 150 Jaaas
Jaaal 3-4-5-6-7 Jaaal 150 Jaaal Jaaal Jaaal
Jaaal Jaaal Jaaal Jaaal Jaaal Jaaal Jaaal
Jaa Jaaal Jaaal Jaaal Jaaal Jaaal Jaaal
Jaa Jaaal Jaaal Jaaal Jaaal Jaaal Jaaal
Jaa Jaaal Jaaal Jaaal Jaaal Jaaal Jaaal
Jaa Jaaal Jaaal Jaaal Jaaal Jaaal Jaaal
Jaa Jaaal Jaaal Jaaal Jaaal Jaaal

JbIJIg jyI yI g JIJIyI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI

ySLJ Lc JALLgj
. ySLJ Uc JALLg j
. aLc JALLdA

Jlal Jll JwS Jaa Jlae plall Jw Sll Jao Jall Jaa Jlaa Jlaa Jlaa

aaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

Mglal Jatwai Jalal jellw yS SjA aL 15 li jie Jai jali Llal pla ayil alal

(R) aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaI aIaII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII aII

Iaill aill yss s bact Iaill gaaal cllgall gol abil 10.19 ayjai lal 10.19 yjai 10.19

jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal jololal

Laaia oagb 05j 1c oag 1o. jaiall wlln ma . jaiall gssg 8gaii iinie Lai
Jiaia oia oic 1c eogy 10, agbiil iinae elaij u aoi
(ogaii iinae elaij

j#e" j#e jll (g#y) y#y #y #y 0y 0y

aagabwglgblal iinae lcaiaiogbwglalldl

Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

(35 8jogJl) LogjLw! j

y

SsiuJlAgiJIgjIyIyIyIyIyIyIyIyIy

Jjjjgagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag

(36Bg 36A JIJI) (H) liJiJI

:JSGgIgOgWSSI

1 1

21 × 21

JooLoeell slyjg yssll aiaaio

a 1000000000000000000000000000000000000000000

pJzIy aahio g aol JgllgcogwSll

jia 13 no jai blll jy jy po Jg (F) gill

m = 1

ai a ai 分母最小值为 k .

sJ1 JIsJ! oJl 28

clcIie 1e. gaii slhjg wai jolll

2g1 yolol sly. Lig stll cuiol aloc JLoSy

12 = 4 + 52

[pa:biig ogwSll aiLuo

aallll laloe

og S( -1,0)

aLagolSLLJUdALaLaIaJIbUoJySgSsO

oSill lalolll elil oogssll Juee jiu

:aiilll laloeiI glc gii 1

.20gJJI) 4yJLgJI JgJLgJL

(21 8jwJ) jwJ JawJ JwJ JwJ JwJ

JolaoaisLwJilgwoj aLajcugge 8:aa

JU Jauu Jauu Jauu Jauu Jauu Jauu

c.1 = | lolo| = | lolo|

alololololololololololololololololololololololololololololololololololololololololololololololololol

(20 1)

slll J 10000000000000000000000000000000000000000000000

a. a. a. a. a. a.

aaglll aeggll g aeggg tall Jol oJ2

Lil g h wSll lalil J

e 1

S OBC = S AOB + S_ BOC

1. = · = 0, = · = 0

yJyJyJyJyJyJyJyJyJyJyJy

aLl 1

ogssllggsjJal Jalaol jysws Joaaiw 2:aa

gU Jauu

a1 < 0, | x1| = | x2| = | x3| < 1

all oolg aohia hao a s wlll 1

gsl

elio81 yolio glaowlcs lalbio joeiwi 8

Jabal yS g aS yill sIg jc Lolo

S1 = 12 · ( r1^2 + r2^2 + r3^2)

ailllgljg21allogdoLw no jroanly 5lll

sIjai IaIwgi aiIaJIg 0

Lg 1

aL aI aI aI aI aI aI aI aI aI aI aI aI

Lolc a o no a lss

JUJJ Jg jIJI Jc

aLi g aagai jia JalaljwJlaii

gill aLwAailaiae 2005 100

.

AaBlaia 2L Caaai .yLaWJg Lioo ySj 8Loaic

aagglg jllg jllg jdlg 0c 0g 0g

iJwLJI JwI

YBAtA! He BCTaHOBIOHTe HAIIDCKJIHHINK CKNHIEMHOCTI I rapaH i HAOI, kMI KMOyTb 6ytN He6e3-NeHHMMI DnI DAHTNHIN.

Uo63HrTNIiDCKJAAHHNK:

Hatachitb Ha aadh Baxibn iDcklnHHNka i nHimtB Ioro, BiKpinnBm 3 BiNobIHnx HacadoK (Man.22).

Hacadki niiDckLHnHnka OcHaueHNI cneJIaJIbHmN pIcIcTPOE, mU TpyMMe IIO OHTKO BROPIN3OHTAJIbHOMy NONOJKeHHI.

LIO6 nobepHTy i BCTAHOBHTN iDCKLHNNK B 6a- jXae NOJOKEHJI:

Hatahichib Ha zadnih Baxilin I nopebHt b ndckIHN B 6aKahe NOponoKeHH.

PerynIOBAAHBAWCOTN CnNHKN

BIDNOIBINO do 3POCTY dITINH CINNHY MOKHA BCTaHOBNITs 3Ba BCOTIO B ONDHY 31pepe6a-ueHNs NONOKeHb.

BIDperyuHIOBE BVCSOTAYK,106OBIOBOA DITMHN HAIJINHO yTPMHyBaLcA, aIiaIraOHbHN pEmiHb npABInbHO npOxoDbN no IIO nNeU.

Пд ус Perулбовая BиСOTи СпнКи NepeБiPte, Siо наряма DiЯROHbNOrO рЕмен(A)Зхо-Дыь с�овп nxpeч ha bIDctahi He biIbSe 2 CM (Man. 23).

UoB ViDperyIIOBaT BnCOTy niDroJIIBHnka:

1. Hatnichby pykoio Ha peryniobalbni Bajkijb BWCOTN CINHKN (L), po3taowabn 33aNy niD- roJbnka (Man. 24).
   2.ⅡiDhImtB/Onyctitb CnHnK, 106 HanautbyBatn ii nn BOCHTN pJeTte DInTHu (Man. 25).
   3.BiJyTcIb baxIn, nepeBipuBnH, 2o BIDyNocA 6KnOpBaAHn B nortiBOMHy nOtoKeHH.

Peryliobahna shnpnncnHKn

UHHNHY CnHKn MoKHa BIdperyIIOBAti, 06 KpaIe npICTocByaTn ABTOkPcIOn NiD pO3MIPn DITNIH.

BldpeyIIOJIe 7npiHny cHNIHKa 3a donOMoHO KOJIuaTka (K), po3taWOBaHORO noHaJ niDronIB-NHKM:

1.ПиОБЕТАНHI koniiATka npOTn roDHHNKOBOI CTPIINKI SPUNHIA cINHNK 36iINbUeTcBcA (MaJ.26),3a ROHNHHNKOBIO CTPINKIO - SPINHNA cINHNK 3MeHNUeTbCBA (MaJ.27).

PeryIIOBaHHaHXnIy CnIHKn/CnDIIHH

Haxinl CnHNK 3dJIHOIEbC3a 3a DONMOFOI KHNONI peryNIIOBAAHAXIN(H)

CinHka ABTOKPCiMa MoKe npIMaTH 4 NOJoxHeH, 106 3a6e3neuHTn DnTnHi Hai6bIbn KOM-foptyD npOri.

IIO6 HaxinNTNI CNIHNY,DOCTB 3BHTNCTA 3a CNDIH Nyepe3 nepeDNI OTBIP (MaN.28) i notaryn Iyoro Ha c6e6.

IIO6 NOBepHyTN ABTOKpICNo YEbrTKaJIbHe NoIIOXeHHN, HATNCHTb Ha KONKy peryIIOBaHHN HAXmNy (H), npoTobXHyBwCnDInHn DO cINHNk ABOTMO6IBHOrO CdIHnHA.

YB4A! He HaxnIaTe BAtOKPcINo PII qac BIKOPiHCTAHNJIpeE BnKOHaHHAMpeyIIOBaHNHHeo6XIOHO BmIHNTn DIHTHY 3 ABTOKPCnA.

HaxnunBnA 606 BnpiBnBn ABOKpicNo Oasys, O6Ob8a3KO BO nepeBIpTe, 6o6 3-TOcKOBn ABTOMOiBnH pemeHb 6beNek 6yB npaBnBHO HA- TaryHnI 3aaniuaocE He 6ilbue 2 cm Hnd nIeem dnttnn (Man. 23).

BnKoHynte zi iii tIbkn nij cah zynHKn aBtoMoiHin.

A3HrTu yOxON 3i CnHKn/CnIHn

Qoxon aBtOKpICna e NOBHCIO 3HIMHM i npDTHM Do npAHH.Bi KcYbCdo Kapkacy 3a DOIOMOIO LInyUOK i enaCTNHNx ENEMHTB (Man.29).

PbHcTIOJIaIMITbAToKpICNo (C) iPo3KpnIte 6iHi KPNILBa.

CnnHka

POnHnHaOu 3 NHXbBoI aCTHnN bIHnK XpNJEnCb, pO3Te6HtB nIpyKn i 3HIMtB TeKCTmbln HuyoXon (Man. 30).

Iotim 3Hn3y BROPY BiOKpEMTe ueHTpaBHy cactNHY CNiHNK, NOBHCTIO 3HrBWiN TAKOIX HoxON iNOrIbHNka 3a DonoMOrOIO pe3nHNKn No3aody CNiHNK (Man.31).

CnDinHn

1. BicTe6HiTb 3aHIO IINyUky CINiHn (MaI. 32).
2. ItoTHTb 3a YoXON TAK, Uo6 HataHyTu pezHHKy I 3BtHbNTI 3 HapamHOI NORCHORO pemeHa (F) 3 o60 X6KiB (Man. 33).
   3.YtPmmyUOy DBI pe3HnKIM, NOBHCTHO 3HmTb Yooxo3 HnaprMnHX NORCHORo pEmHe (F) 3 060x6okB (Man. 34).
3. Κεντραβλθέ Καχις Πηριστούγουνην πρόκριπηηοῦ Στυπηκή 3λ συπΟΓΟΥ ΑΒόχο 3γδύβις, Μοῦτην ἀνρόγι Βαχις Πηριστούγουνην, Bι-Cγαύουην 3γδύβις 3 βίπουνιδιμήν Φιδίδ (Man. 35).
   5.3HIMITb 066Bky 3 NiJIOKIITHNKIB
   6.3aikHHTb 3nTTy OXyTA, NotarHyBwB Bropy nIactMacOBm TpKyyTHm KOMTOHEr NiITpMKN, pNkPInIeHNb 6JIb KNKn PeryIOBaHHa Haxiny (H) (Man. 36 A i 36 B).

Uo63HOByHaDITNUOxOJI:

PbHCTIO niiIMiBcNnHKy i pO3KpNIte 6iHi KPNJIbA.

CudinHn

PouHbIb HndarTn YoXoH Na CiiDHHN, BIKOHyOuYn B 3BOPOTOMy NopAky Onepaui 3-60i No 1, yBaKHO CTeKaUH 3a Tm, uO6 IdeaJIbHO HAdTIYoXoH Na Kapkac, OcO6NlBO 6Ina DBOx HaprMnHX NOCHOROppeMeHn (F), npOnyctNbUn 06IbIbe pENHKnONiD HIMN.

CnnHka

POnHtIb HndrAtn YoXnO hNidrOINBHK, BCTaBbUIN peHNIky I TeKCTNIbHy OobNBky B 3aDHOh KnaJdKy. TOTIM NOBHCIO NAdHjte YoXnO, Bn

KoHaBwI B 3BOpToHOMy nopAky opeaui 1 i 2.

Dorla i ouhienHa oXna

Onepailoi 3OIOUeHnI I DOJrIy MaIObT BIKOHyBaTICN DOPCLOIO OOCIOI.

OuHHeHH yoxna abToKpicna

YOxON MOXHa NOBHiCTO 3HHTn 3 KPCiA i BINpatN, Ipn paNaHt CTPOr OTOPTMMyTEcI hCTpyKlui Ha etIKETJIy OXoHa:

PpahnB B npaJIbHI MaunHInI npn 30^

He bɪdʒiʌbətɪn

He cyuHTN B cyuINbHi MaunHi

He npacybata

He niDabatn ximiuhi nCtui

NeBHKOPINCTOBVATn abpa3aIBHmMIKIOU 3aco6o baoPCHNNHHK.

Ye cyuuny ToxOw B UeHTpDby3i He BiDkHMATn. PtIno Heo6xHIOCTi ToXOJ MoNka 3aMHiNTn, ane TiBkn ToXOM, YBXaJIeHN MBIPOHOKM, TOMU qO BI E HEBI'EMHOO ACTINHOO KpICa I Heo6xIDHM enEMeHTOM BeqEneK.

YBAGA! HIKONI HE BUKOPCITOBYATE DNITHE KPCIO 6e3 oXoHa, TOMY OIO CE MOKE NIDaTN He63neu CI Bauy dInTHNY.

OuHHeHHIJIaCTMaCOBnX YaCTINH

PiactmacoBI detani cIi MMTINbKN TKAHNHO, 3BOIOKeHOIO y BOi a60 BHeITpAlbHOMy MHOOMY 3acoBI.

He BnKOpCTOByBatn 6aBa3uBHi MInOHi 3aO6Bn a6o0p3uHnHKn.3aBopOHaTcBc3MaUyBatn pyXOMI ACTNHa ABTOKPicna.

Ipebipka zijichocti kOmnoheHTIB

PEKOMEHYtcbpeyIARPHo nepeBIPATIN liNHCbIc t cTah 3OHeUeHAn TAKIX KOMIOHEHTB:

· YOxON: nepebipte, 106b HauBbA 360 II quchTINH He BnCTynan HauBbHI. Nepebipte JinichiCt b WibB.

-Пл actHn: HepeBipTe CTAH BCIX nactKOBHX aCTHN,aki He NOBHHMaTn ABHNX 03HAK NOLOMNKx 603he6apBnHnH.

YBAGA! DepepoMoBe A60 cunbHIO 3HOHeebe ATOBPCIO pIINPIAAE 3aMHI, TOMU IIO BOHO MOKTBA

BHIMAHNE! Ye6eTeTe ce, He DeTeTo e DoBe 3a-KoTHaHO C npEa3nHTe KOaHIn, N He He Ce n3Xy3Ba HnpeD.

Y6eTepe Ce, Ye TbBpIte KOHEKTOPI (KORA He ce H3nOJI3Ba) Ca npIbpaH B pIpeDINHeHTe 3a TRX MeCTA B3dHaTaaCT.

MOnTnIpaHne Ha cToIeTu C NOMOHTa H npEiNaHtE KOJAHN I KOHEKTopuTe FixPlus, nNoCTABaHHe Ha DetETo

BHIMAHVE!IpeiDaI npriCTbNITe KbM OHTaKa H a TcTOnE c N oMOUta H a KOHEKTOPnTE FixPlus e 3aBxHtENHO hN3npaBte ObneraKaMa TYaka, ye Ta da Ce hAmPiHa BnAHTNo BEptknAHO nOJIOKHeNe.

BHIMAHIE! Teu kya3aHnK, KaKTe TKcOBATAm uCt, Taka n HIOCTpaunITE, ce OTHcAIT KbM MOHTPiAHETO HA CTOnIHTo BpXyJ ACHOCTbPiTHueCKO MRCTO Ha 3aDnHATA ABOTMOBUNHa cedJaKa. Ipn MoTaNk Ha DpyrMoCTo CneDbaiTe CbuNiaPeH daEChTBn.

BHIMAHHE! CToTHeTO TPRBBA BVHAFI da 6bJe MOHTnPaHO c ABTOMO6INHtne npedna3HN KOaHn. TbBpndn KOKeTOpN FixPlus ca DoNTbHnTeHNO pncnC06BeHne, KoTo TPOBaDa 6bJe HIO3NBOAHO 3aeHc O a BTOMO6INHtne npedna3HN KOaHn C ceI NOdo6PbaHe CTaBnHOCCTTa Ha CTOnHeTO.

1.PaonolONKETe CTOnyeto BbPxy cedAnkata, KATO onpTe 6oNerAnkata My B oNerAnkata Ha A bToMoBunHnata cedAnka (FIn.12).
BHIMAHIEY6ede ce,he onopata 3a rnahabata na ATBOMOHNHATA ObneranAke InepuHa no onopata 3a rnahabata Ha ctonHe (phr.6).B npotenbe cnuyahOTcpanHeT Onpata 3a rnahabata ha ATBOMOHNHATA cedanAka, Bbpxy KOrTO ue MOHTIPATE ctonHe. PnI DEMOHTPAne H aONTHe He 3abpawHtE Da BpHETe ONOPATA HA MCTOTOH,B Cnyau,Ye MACTOTo 6bde I3N0L3BaHO 3a ppeBO3BAHE h TbTHIK.
2.Иstbprnnahe Hanope nocta (O), paznoJokneHoiq 6ToHyta 3a Nahtroponka Ha naKhoHa (H). (Фгг.13).
3. 3adpbbte NOCTa HATCNCHAT NINDbPnAITE HABhN OHNOBpemHNO INBaTbBpDn KOHEKTopa (P) OT aDaHATA qct HA O6bnrAnkata (Dur. 14).
4.3akaheTe Dbata KOHEKTOPA (P) 3a cbOteBHTHne KYK ISOFIX, HAMIPAaun CE Mekjy cedankata u OOBerankata h ABOTOMObina (fAmr.15).
BHIMAHNE!Y6eBete Ce,ye KOHEKTOPITE ca npaBUNHO 8zaehaHTN,KATOnpOBepiTE.

YeZBeTbT Ha DBaTa HnDnKaTopa (Q) e3eJen (ΦnI. 16).

5.N367aTne HEPrHNO CTOnHETo NocOKA KbM o6nEraknKATA ha ABTOMO6JNA (fHt.17) nHaTmCHeTe NOCTaO(T), Taka 6nEraknKATA ha CTOnHETo ⅢactaHE NpBTHO KbM o6nEraknKATA ha ABTOMO6JNATe cedAKNA.
6.Ioctabete Deteto B cToHeta, Kato BHIMABATE bPbMy Da pnnne HnBTHo KbM oJbnarKata nIpekapaiye npdA3nHg KOaH np3e npDBeHNeHTe 3 Hero ToKn i NfKcTOpri, Kato I3NbHNITE MaHnYnaUaNTe, OmCaHn B T. 3-4-5-6-7 Ot npDeXOHaN pa3ed (MeMHtane Ha cToHNO C nOMoUta Ha npPeNa3HITe KOaHNu NocCTABHe Ha DeTeTO) I BzEMeTE HeOxODAHnpDnA3nH MEpKn.

Kohektopnite FixPlus ca Heo6xodmM 3a noOp6prBaBte c7aunnoCTa HcTOnHeT. B Cnyuay, ye e Heb3MOKHa da nIIOJI3BaTe n3dJeNToC bAwaia ABOTMO6HJ, MOKete Da nIIOJI3BaTe cTOJHeto OAsys FixPlus 6e3 Te3n DoIbnHInTeHNy UcPoIcTBA.

MOnthiPraHa Nc StOJIeTO B AVTOMo6Ia (6e3 detToB Hero)

Korato He ce 3e cedan3ba, CTJHETO Tp6BaDa 6b6de 3axBaHaTo 3e cedankata C TpIIOUcOB PpeIaNae3EN KOJAH INa NocTABeHO B GArKaHnA. AKO CTJHETO He e 3axBaHaTO, MOKeJa I pPeIcTBAIBa ONaCHOT 3a OctaHAnite PbTHINu B ABTOMoBnla npr ITTTI INI pR3O cnPnaHe.

I3BaJdaHe Ha DeTeTo OT CTOnUeTO

3a Laetae e OoctatbHNO da OTKOnHaete npeDnA3-NHIA KOJAN h da NtUkaTe Da CE HABNe B ABTOMaTMHOTO HABBauo yCTOPICTBO.

CbaJIaHe Ha cToJIyTeO t ABTomo6nla

BHIMAHNE!I3aBdeteTetetoCTOnHTeTO pIepn daPncbTBeNk KbM DEMOTHAPaHEo.

1. Pa3KoIyAte aBtOMO6nJIHnKoJaN.H
   2.Индане Дагоганпата и Изда Кд са Навиь abOTMATIчноВ habenBauTOYCTOPICTOBV.

Ako cToIyHeto e MOHTIPAHO c NOMOHTa Ha TBbPNTe KOHEKTOPI, e Heo6XoMDa rN OCBOBODITE oCT BoCTBEHTNHTE KUYK.

3a Zeta e HeB6xOdMnO da N3DbpNate KbM c6e3 cn DbaTae UeBbEHN 6yToHa Na CStEMATA 3a pa3- kauBaHna TBbDInTe KOHEKTOR (R), Da oTcBe- dInHTe KOHEKTOPTE O TcBtBETHNte Kykun Isofix, pa3oJIoKHeH MeXdy CeIaNkAra uOBnAInkAra na AB ToTomO6bnla (phi. 18) n da ce y6eJnte, ye nHdkatoprtnCe aCTahAnHnBtHIO ueBpeHn.

36btyaIte TbprnTe KOeKToPb BvB bTpeuHocHTa Ha cToJIeTO, yOBeTe Ce, ye Ca HbJHo npIbpaNN Bb BtpeuHocHTa Na OHObata (Din.

19), kaTo 3aIbpxKe I3IbpaHnHa loCT (O).

MOHTIPAHe n CBAJIHe NOCTaBkTa 3a qAun

CSTnoTeE c ChADeHc DBA npope3a,p3nONoJKeHN OTIABNO OTIACHO HA CeDAkKaTa,3a MOHTaPae HOCCTABKaTAt 3a HaNt.

3aДо�MOHOTNATE NOCTABKAtA 3aЧИС e HeO6Xo-ДIMO CnEHOTO:

MOnTnPaIte NoCTABKaTa 3a Chaun B CbOTBETNIA npoe3 (Фг.20).

Hattichete noctabkata hadoony,doKaTo ce 6nokupa b npope3a (phi.21).

BHIMAHHE! He noctabraye B noctabkata CtbkLeHH uahu/Unweta nnu uauu/Unweta, CbDpXaunr OpeuHn HauNTKn, 3a da n36ErHeTne npra3BAHn nnI INrArapHn.

3a da cbaNTHe NOCTbKaTa 3a Yauin e Heo6XoIMMO cnEHOTO:

HATNCHETE 3aHOTO IocTHe Ha NocTbKATAI rTO NOBnIHETe, Taka Ie AOCBO6DInTe OT cbOTBeHTNHe npoees.22).

Pnpoeieme Ca cnabdeH cb CnepuaJHOyctPOINCTBO,KoETO NOIbApXa NOCTaKaTa 3a NaWu BNHaRm BXOPU3OHANTAHNO NIOJXEHe.

3a da 3abptnte NOCTABKATA n da JnOCTABTE BJKeNaHOTOTBACNOJXeHne HHeO6XoIMNcIeHOTO:

HATCHENE 3aHDTO NocHTe n 3aBBtPeTe NOCTKaT3a YauHOn Do JxelaJHOToB O TAC NOLOXEHMe.

HarlacBahe BucunHa Ta Ha 6jraikata

MoKTe Da Harnacnte BIncoHnata Ha oBnerrankata Ba 10a3nnHH NOnoKeHH, KoTo 10aNoBHJa da NoCTnHete NHeAJIHOTO CbOTBeTCTBE Mekdy PbCTa Ha DetTo E INCOHnata Ha OOBnerrankata.
Y6eTeTe CE, Ye IaIbATA Ha TeTeO e YUdoH o BoNeHaTAE BbPxy OIopata N e ZdIaHOHATA cHaCT Ha PpePn3NIA KOLAN OINIPA BA MOpO My.
PnHnagnacBaHe BmOChInHa Na ObInerAnkatae eNoEoXoDmHO pa Ce y6Bdnte,CeΦKcATOpTb Ha DnAroHaiHATA qACT Ha KOJana (B) ceHAMpaHad pAMOTa H aTeTTO HA MACKIMAHo PA3CTORHMe 2 CM (ФИг.23).
Harnacete no cIeHnHaun:
1.Ceanda pIbka HATINCHETE NOCTa 3a hACTPOJKA BUNCOUHATA NaOBsERANKAta (L),pAnIOLOKEn Ha rpb6aHa onopata 3raNBATA (ФИ.24).
2.Повдгенетe/cbaNETe Obenerajkata,здаяHa- rarnacITe CnOpeB INcoUCHNAta Ha pameHete Ha deteto (dfr. 25).
3. OTnyshefte nocta u se6egete, oe hoberankata e 6knokpana B kenaHOTo BAC nnonoKeHne.

HarlaacBaHe uipnHaTa ha o6JeRaIkaT

MoKTe Da Hargnacite WpUHATA Na ObIeRaNkata, KOEt PO3BOJIHbA Da NOCTINHete INeJdANHOTo CbOTBcTCTBE Meky TAY TAnOHa DeTTo N OwPunHATA Na ObIeRaNkata.

3a da zeNTA e Heo6xOJIMNO da 3aBbPtHTe KOENOTO 3a HAcTPOKA (K), KOETe CE BnKDa NaD onOpata 3a IraIbata:

1.Пи Вьтende creшу часовинокатастpenka obelergankata ce pashimpa (фиг.26), a no chasovchinokatabstpenka ce stechra (фиг.27).

HaNaCBAHnA H6NerAkankata/ cedAnkata

Moxete da pnpemehre nakloha Ha cTnHToC nOmoita Ha 6bOnHa 3a HarnacBaHa He hakoHa (H). Moxete da b6KoRapHe nakHoHa He cEDAanKa/06Ierlankata Ha cTnHToB 4 pazinuHn NonoKeHn, 3a da ocNpynte Ha deteto HauKOMpOpTHOTNO NOXHEme npIbTuBAhe.

3aJa HABEDeTe Obnerankata e DoCTaTbHOn Da xBaHete CeIaNkata OTnped (fM.28) n da Jn3DbPnate hnapE.

3a Da BbPheTe CToNHeTbB BeprIkaHNo NonoJKeHne E Heo6XoIMn Da HnatCHeTe 6yToHa 3a HaHnacBaHe HakNoHa (H), Kato n36yTaTe cedAnKaTn PO NoCOKa KbM oBJeRanKATA ha ABOTMObHa.

BHHAMHIE! He n3bprbaahe TeMa hAnynyauu nn O Bpme Hn anonlBaae H a cTnoHeto,PiEe Da npnctbnite Kbm HarglaBaHe NaKHOHa naCedanKa/06bnrKaTe e Heo6xOIMO da NBA-dnte detetO t cTNOHTo.

Cnedi Kato npkiKIOHTe c OnepaIINe NO haJIaBaCBAHe A h CTOnO OAsys e Heo6bQHIMdo a ce y6beJnte,te TpTOnTOKOBNIAT pnpTeaN30 konAe I o6pe 06Te HAT n Ce HAMPA HA NmHO 2 CM had pAMTO Ha DetETO (phir. 23).

NtBbpuBaTte TcHMaNHyPuaaCnCMo B Cnhya, ye ATOBMOHnBt e Cnpra.

CbaIaHne Ha tanuieepnHa Na 6bnerAkanata/ ceIaNkata

TaniueepnTaHa cToIeTe e NoBnJHn H MoKe Ta ce Inepe.3akpenHe a KbM cTpkytPaHa cToIeTe C nOmoTuHa cAmO3aJeNbaUu NeHTn H NaCTuNi (Phi.29).

N3npabetae hantbHNO o6nErarakata (C) n pBeHteHe NaCTaHNI CTsPNAHNTNE OONPHK cnPLNA (N).

06neraIka

3aOnuBaKnO IToDnHata Yact Ha ONOpNHte CtpanHHN KpNlCu OToDnTe TaInUepeHnTaOT CaMo3aIenBauNTeJeHTn (fhi. 30) n u IaBaeTbe

PIObJbKeTe CbC BaJIeHO tHe cHTpAnHtata YaCT Ha TANIepeYTA H aOBnERanKATA B NOCKa OTOny HArOpe; CBaNE tAcTtA h OIopAta 3a IraBata, KATO BHIMBaTe tAO cObOBeDit NaCTMka, MInAHaua,OT3d A hOBnERanKATA. (phr.31)

Cedanka

1.OTdenele 3aHaNTa cMaO3aIenBauaJI neHTa Ha cedankata (firr. 32).
2.ИЗдрай Te Taniцеряta TaKa,Чу Ду ИзпьНeTe

JaTtKA, KATO RO OCB6OoDITE O fHKCaTOpaHa xOpin3OHTaHnTaJ aCt Ha KOJAna (F) u ot DBeTe cTpaH (fir. 33).

3.XBaHete Dbata NaCTNka N 3BaDeTe HaNbIHO TaTINCePnITa OT OIKNCATOPrIte HA XOpN3OH-TaHnTa Na Tc HAppeNa3HnKoHaNOTDbete CtpAHu (ФИ.34).
4. LéHTpαnHATA 3aùNTa e 3axBaHATA 3a obIeIanKata C NOMOHTA H dBA 3bEua: nIbIbpNaIte HArOpé LéHTpαnHATA 3aùNTa, pOpa K30KONJaTe 3bOJUmeOT MCTATA IM (Φir. 35).
5.CBaIeTe TaHnuepeRyTa OT NpIaNkBtHnCITe
3. 3abbpwete cbaanHTo Ha taniuepeyra, Kato n3dbpnaTe hanope TnactMocOBa TnpbIbnHK, HAMPAe ce OKO6yTOHa 3a HAcTPOKa HKnloHa (H) (fNt. 36 A n 36 B).

IocTabaHHe Ha MxCTOTO TannucepPraTa

Unpahebe TnaBnIHObnerJAKaT N pRbHete HacPaTHC TpAhnHITe OIOPHN KPIJIua.

Cedanka

3anaohete C bprzauheTO ha mactOTo H naTINcpeyTA, kato I3BpuPHTe B o6pTaH peMaHnIynaaHTe OT ToUKa 6 KbM ToUKa 1; BHMMaBaJIte Da NocTbATE TOHO HA MCTOTO N BCKa YACT O TANILCEPIrA, KATO O6bPHTe Oco6EHO BHMMaHHe HA cUHTe, HAMPAuTIe B 6NtO3O DO daBaT PIKCatOPa H xOp9oHTanHATA qCT Ha npedIa3HmK konah (F), n ppekapate NOJ T8X DaBA JACTHa.

06neralka

3aOnuhe CTn O npopata 3a Tnabata, Kato BnIMABAte Da NoCTaBTE JAcTtHa MRCTO My,KaKTo N3dHATAc TaCT Ha TaniuepeRHTA. IpoDbJxete C BpuBaHETo HA TaniuepeRHTA MaRCTO My Kato N3bBpuInTe MaHINyIaNiTe OTouKn 1 n2B o6pateh peN.

IopdpbKka n nouchTaBaHe Ha Taunuepeyra

Onepaunite no noocHTBaHTo n oNoPbBkKata Tp8BaDa ce nI3bJhNbaT caMoT o Bb3pactN.

PouncBaHe Ha TaHnepnraTa

Tannepneta Ha ctoHeto e eoDbNjHna mOKeJa da ce nephe. Pnp npane cneBdAte yka3aHnTa, daJeHn Bbpxy etketa.

ARTSANA GERMANY GMBH

Borsigstrasse 1-3

Prospect Close - Lowmoor Road Business Park

Kirkby In Ashfield

Nottinghamshire - Ng17 7Lf

England U.K.

01623 750870 (office hours)

www.chicco.co.uk

ARTSANA SPAIN S.A.U.

C/Industria 10

Pol. Industrial Urtinsa

28923 Alcorcon (Madrid)-Spain

902117093

www.chicco.es

ARTSANA PORTUGAL S.A.

Uner Plaza No.4/1 Kat 12

Kozyatagi - Kadikoy

34710 Istanbul - Turkey

02144442444

www.chicco.com

ARTSANA POLAND Sp.zo.o.

Aquarius, Ul. Polczynska 31 A

01-377 Warszawa

[phone]

www.chicco.com

ARTSANA BRASIL LTDA.

Rua Major Paladino, N° 128

Galpao 18

Dec V. Ruben Dario 1015

Colonia Lomas De Providencia 44647

Guadalajara, Jalisco-Mexico

018007028983

www.chicco.com.mx

ARTSANA ARGENTINA S.A.

Uruguay 4501

Victoria Cp(1644)

San Fernando-Buenos Aires-Argentina

0810-888-2442

www.chicco.com.ar

ARTSANA INDIA PRIVATE LIMITED,

7Th Floor, Tower B, Paras Twin Towers,

Golf Course Road, Sector 54

Gurgaon-122002

Haryana, India

(+91)(124)(4964500)

www.chicco.in

ARTSANA S.p.A.

22070 Grandate (CO) - Italy

Tel. [phone]

Fax [phone]

www.chicco.com

NOTE

NOTE

NOTE
