SOUND SYSTEM MODEL XS - Portable audio system GENEVA - Free user manual and instructions

Product type	Portable audio system
Brand	GENEVA
Model	SOUND SYSTEM MODEL XS
Audio sources	FM radio, DAB/DAB+ (depending on model), Bluetooth A2DP, 3.5 mm line input
Connectivity	Bluetooth, 3.5 mm stereo line input
Power supply	Built-in rechargeable battery; DC 5.5 V mains adapter
Initial charge	At least 8 hours continuously
Display	Backlit touch screen
Functions	Radio, alarm, clock, wake-up by radio or audible signal
Antenna	Built-in FM antenna
Housing	Removable housing with hooks
Maintenance	Clean with a dry cloth
Safety	Do not expose to water, use original adapter, do not open
Repairability	Contact the retailer or www.genevalab.com
Warranty	Check www.genevalab.com according to country
Compliance	CE, FCC, Canada RSS
Recycling	Do not dispose of with household waste, bring to collection point
Operating temperature	5 °C to 40 °C

Frequently Asked Questions - SOUND SYSTEM MODEL XS GENEVA

Why won't my mobile phone connect via Bluetooth?

Make sure your phone's Bluetooth is on and the XS model is in Bluetooth mode (press M until "Blue" appears). If pairing fails, bring the devices closer and enter PIN 0000 if prompted. Visit www.genevalab.com for specific guides.

How to charge the battery of the XS model?

Insert the battery into the rear compartment, connect the cable to the white connector, then close the cover. Connect the mains adapter to the "DC 5.5V" jack. The initial charge must last at least 8 hours.

How to set the alarm?

Turn on the device, press the alarm setting key (). The letter "A" flashes. Use ◀ and ▶ to choose the time, then press the key again to confirm. The alarm will sound on FM radio if FM mode is active, otherwise on an audible signal.

How to check the battery status?

A dot in the lower right corner of the screen indicates: on = battery full, flashing = charging. If the battery is low, the screen displays "low" and "batt".

What to do if the screen shows "low" and "batt"?

This means the battery is very low. Plug in the mains adapter to charge the battery. Wait a few minutes before turning on the device.

Why does the XS model turn off automatically?

The device turns off automatically after one minute if it is not in the correct position (case open and properly tilted). Refer to the figure under "Power on" in the manual.

The XS model does not turn on when I press the Power key.

Press the ○ key with one finger, without touching the rest of the touch screen. If the battery is drained, plug in the mains adapter and wait a moment.

How to listen to FM radio?

Press M until an FM frequency appears (e.g., 103.2). Use ◀ and ▶ to change stations (click: 0.1 MHz; hold: automatic search).

Can I use the XS model with a non-Bluetooth device?

Yes, connect a 3.5 mm line input cable to the rear jack. Press M until "Line" appears. Connect the other end to the headphone output of the audio device.

How to clean the XS model?

Use a soft, dry cloth. Do not use liquid or abrasive products. Unplug the device before cleaning.

USER MANUAL SOUND SYSTEM MODEL XS GENEVA

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions

2. Keep these instructions

3. Heed all warnings

4. Follow all instructions

5. Do not use this device near water.

6. Only clean with a dry cloth.

7. Do not block any vents. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heaters, stoves, or other devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and the point where they exit from the device

11. Only use attachments / accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device When a cart is used, use caution when moving the cart/device combination to avoid injury from tip-over.

13. Unplug this device during lightning storms or during long periods of disuse.

14. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug damages, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Do not install this equipment in a confined or built-in space such as a book case or similar unit, and maintain well-ventilated conditions. The ventilation should not be impeded by covering the vents with items such as newspaper,

table-cloths, curtains etc.

1. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the device.

2. WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device should not be exposed to dripping or splashing and objects filled with liquids, such as vases, should not be placed on the apparatus.

3. CAUTION: Danger of explosion if battery is incorrectly replaced. Only replace with the same or equivalent type.

4. WARNING: The battery (battery or batteries or battery pack) should not be exposed to excessive heat such as sunshine, fire or the like.

5. WARNING: The direct plug-in adapter is used as a cut-off device, the cut-off device should remain readily operable.

6. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CAUTION: Risk of explosion if battery is replaced incorrectly.

Replace only with a battery of the correct type and model number (Geneva Sound System, Model XS Replacement Battery).

Operating Temperatures: The recommended operating temperature range for the Geneva Sound System is 5..40 degrees Celsius / 41..104 degrees Fahrenheit.

Use the original power adapter: Only use the supplied original power adapter to power and charge the Geneva Sound System. Other power adapters might look similar, but using them could result in electric shock and could damage the Geneva Sound System.

CONFORMITY

Label location

The product labels, FCC information and safety related markings are located in the battery compartment of the Geneva Sound System and the power adapter.

FCC Regulations

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.

FCC ID: ZXX-MODELXS

"ZXX": Grantee Code, assigned by the FCC.

AC/DC Adapter with the ferrite ring must be used with this unit to ensure compliance with the Class B FCC limits.

Canada

This device complies with Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any inter-

ference, including interference that may cause undesired operation of the device.

CE Conformity

G-Lab GmbH declares that this Model XS & Model XS DAB+ is in compliance with the essential requirements and other relevant provisions of Directive1999/5/EC. The declaration of conformity may be consulted at the request to G-Lab GmbH, Zurich, Switzerland or on genevalab.com. In case of an electrostatic discharge (+ / - 4 kV), the unit may malfunction and must be powered off and on again.

C€ 0979

RECYCLING

This product can be recycled. Products bearing this symbol must NOT be thrown away with normal household waste. At the end of the product's life, take it to a collection point designated for recycling of electrical and electronic devices. Find out more about return and collection points through your local authority.

The European Waste Electrical and Electronic Equipment (WEEE) Directive was implemented to dramatically reduce the amount of waste going to landfills, thereby reducing the environmental impact on the planet and on human health. Please act responsibly by recycling used products. If this product is still usable, consider giving it away or selling it.

Used batteries: Please dispose of used batteries properly, following the local regulations. Do not place the battery in fire.

Geneva ^® is a registered trademark of G-Lab GmbH. Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries.

The trademark EmbracingSound™ is owned by Embracing Sound Experience AB.

The Bluetooth ^® word mark and logos are registered Trademarks owned by Bluetooth SIG, Inc.

© 2011 G-Lab GmbH. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of G-Lab GmbH.

Geneva Sound System, Model XS&Model XS DAB+, User Manual, Version v2.1-A, 12/2012 110001 Manual A (Europe/America), Model XS

GETTING STARTED

Hand holding a device with an open lid and circular opening, no text or symbols visible

Connector Battery

Lid ④

⑤

Power adapter

Charging the Battery

1. Once the battery is in place, plug the power adapter cord into your Model XS ("DC 5.5V").

For maximum battery life, charge the battery at least 8 hours continuously when using your Model XS for the first time.

Turning the Power On

1. Open the case.

2. Insert the two hooks of the top cover into the Model XS.

Top cover Hooks Power On 7:00 A

When the Model XS is not in the correct position, it will automatically turn off to save battery power.

Correct position

Turns off automatically

Inserting the Rechargeable Battery

1. Open the case and turn your Model XS so you can access the battery compartment on the back.
2. Plug the battery cable into the small white connector in the upper left corner of the battery compartment.
3. Place the battery into the back compartment. Carefully fold the cable next to the battery.
4. Take the lid and push it until it snaps in.

OVERVIEW

You can play music from the following sources:

• FM Radio
  • DAB Radio (Model XS DAB+ only)
• Mobile phone or computer via Bluetooth
• Other devices with a Line-In cable

Bluetooth FM Radio DAB Radio Line-In 700 A

Model XS, Model XS DAB+

Case Power On Hook Display 100Ω Touch Panel Anenna

Touch Panel

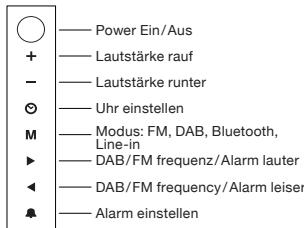

Power On/Off Volume up Volume down Set clock Mode: FM, DAB, Bluetooth, Line-in DAB/FM frequency/alarm up DAB/FM frequency/alarm up Set alarm

USING MODEL XS

FM Radio

1. Touch M until the display shows an FM frequency, for example "103.2".
2. Select an FM station with ◀ and ▶:
3. Use a single touch: change frequency by 0.1 MHz.
4. Hold down for a short time: automatically search for another station.

DAB / DAB+ (Model XS DAB+ only)

1. Touch M until the display shows DAB.
2. Select a DAB station with ◀ and ▶. Model XS DAB+ is compatible with DAB, DAB+, DMR and DMB.
   When using your Model XS for the first time, the radio needs to find available radio stations in your region (done with the “Scan” function). After a scan, the stations will be automatically stored

- Within 5 seconds of entering DAB mode, hold down the ▶ button until "Scan" displays.

“Scan” is also needed after traveling to a new location with different radio stations, or when you move the radio to a different room where there is different radio reception.

Line-In

1. Connect one end of the supplied Line-In cable to the audio device (headphone or Line-Out plug).
2. Connect the other end of the cable to the Line-In plug on the back of Model XS.
3. Touch M until the display shows"Line".

Power adapter DC 5.5V Line-In

Bluetooth

Mobile phones and computers with Bluetooth can connect to the Model XS and play music. The mobile phone or computer must support Bluetooth A2DP.

Initial Setup ("pairing") With iPhone®

1. Touch the M key until the display shows "Blue". Wait for 20 seconds until the display shows a blinking "P".
2. Select “settings” on your iPhone®. Select “General / Bluetooth”. Turn on Bluetooth. New Bluetooth devices are discovered automatically. After a few seconds “Geneva XS Sound System (Not Paired)” will appear.
3. Select "Geneva XS Sound System". The phone is now connecting ("pairing") to the Model XS.
4. If the phone asks for a PIN: enter "0000" (four zeros).
5. Now you can play music on an iPhone® App “iPod” and listen to it on the Model XS.

Playing Music

Most phones connect automatically to the Model XS after the initial setup (“pairing”).

1. Touch the M key on your Model XS until the display shows "Blue". When Model XS connects, the display shows "C" for a few seconds.
2. Play music on the mobile phone, music will start playing on Model XS automatically after a few seconds.

Pairing guides for other devices and mobile phones Go to www.genevalab.com and select "Support." Status information on the display

S: Searching for previously paired devices.
C: Connection successful.
P: Pairing. If Model XS did not make a successful connection within 20 seconds, Model XS will go into the pairing mode for 2 minutes.

ALARM

Setting the Alarm

1. Turn on Model XS, then touch 🔊: a blinking “A” appears on the display.
2. Set the desired alarm time using ◀ and ▶.
3. Touch ♠ again to save the alarm time. "A" indicates alarm is now on.
4. Touch ○ to turn Model XS off.

Turning the Alarm On And Off

Turn off Model XS, then touch any key on the touch panel to toggle the alarm. "A" on the display indicates the alarm is on.

Muting the Alarm

Touch any key on the touch panel to mute the alarm. The alarm will automatically turn off after 20 minutes if no key on the touch panel is touched.

Selecting the Alarm Sound

There are two alarm sounds: FM radio and a beeping sound. If you set the alarm and the current mode is FM, the FM radio will play when the alarm goes off. Otherwise the beeping sound is used.

Setting the Clock

1. Turn on Model XS, then touch ⚙. The letter “C” starts blinking on the display.
2. Use ◀ and ▶ to set the current time.
3. Touch ⬇ to complete the procedure.

AM/PM Display (US Version Only)

The dot to the right of the minute digits indicates AM or PM:

• Off: AM
• On: PM

TROUBLESHOOTING

Why is my mobile phone not connecting? You will find more detailed information on various mobile phones on the Support pages at www.genevalab.com.

The Model XS will not turn on, the display shows "low" and "batt".

“low” and “batt” means low battery. Connect the power adapter to the Model XS and the battery will begin charging. You can use the Model XS within a few minutes.

The Model XS will not turn on, nothing happens.

If the battery is very low, there is too little power to turn on the display, even if the power adapter is connected. Model XS can be turned on after it has been connected for a few to the power adapter.

Why is the Model XS turning off after a while?

After one minute the device will automatically turn itself off, when it is not in the correct position (see figure in “Turning the Power On”).

The Model XS does not turn on when I touch the ○ button.

Touch ○ with one finger only. Don't touch the rest of the touch panel with other fingers. The touch panel works properly when used with one finger only.

How do the Bluetooth settings look like in the iPhone®?

2:37 General Bluetooth Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable

2.38 Glenetown Audio Modulator On The Race Discovery 0:00 62 of 143 3.54 iPhone Geneva XS Sound System Cancel

Settings on iPhone®
Playing music with App "iPod"

What is the PIN for a Bluetooth connection?

The PIN is: 0000 (4 zeros). Not all computers or mobile phones require a pin code during the initial setup (pairing).

I have an unreliable connection with dropouts when listening via Bluetooth.

• Move the mobile phone closer to the Model XS.
• Move away or turn off other wireless devices that can disturb a Bluetooth connection (for example WLAN / Wifi, other mobile phones etc.).

How do I know if the battery is charging?

A small dot on the lower right of the display blinks slowly if the battery is being charged.

How can I check the battery charge?

A dot on the lower right corner of the display shows the battery status:

• On: battery fully charged.
• Blinking: battery is charging.

If the battery is low, the display will also show "low" and "batt". In this case the Model XS will automatically turn off, but it still has enough power to show the time for a while.

Why is the alarm not working when the case is closed?

The alarm does not work in this position because the device power is off. However, the clock is still running.

SUPPORT

More information, troubleshooting, etc. Select "Support" at www.genevalab.com.

Service and Repair

If the product is damaged and needs repair, please contact your dealer. Visit www.genevalab.com to find a dealer in your area.

Warranty

See the specific terms for your country at www.genevalab.com.

Hand holding a flatbed electronic device with a circular button, no text or symbols visible

Top cover Hooks Power On 7:00A

FM Radio DAB Radio
Line-In

7:00 A

Model XS, Model XS DAB+

Etui Power Ein Noppen Display Touch- panel FM Antenne

Touch Panel

2:37 General Bluetooth Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable

Line drawing of a hand using a tool to cut a device into a tray (no text or symbols)

Line drawing of a device with cable and connectors, no text or symbols present

Adaptateur secteur

Two technical diagrams showing a checkmark and a cross symbol, no text or labels present.

Bluetooth FM Radio DAB Radio Line-In 7:00 R

Bluetooth ON Devices Creative D200 Not Connected Geneva X5 Sound... Not Paired Now Discoverable iPhone > Geneva X5 Sound System > Cancel

Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries..

Hand holding a device with a circular component, no text or symbols visible

Line drawing of a device with a labeled component and directional arrows indicating movement (no text or symbols present)

Diagram showing two types of 3D objects with checkmark indicators, one marked with a circle and the other with a cross.

Bluetooth FM Radio DAB Radio Line-In 700 A

Model XS, Model XS DAB+

2:37 General Bluetooth Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable

Hand holding a device with a circular component, no text or symbols visible

Connettore ② Bateria

Coperchio ④

Line drawing of a device with a box and cable, no text or symbols present

Two technical diagrams showing a checkmark and a cross symbol, no text or labels present.

Bluetooth FM Radio DAB Radio Line-In 7:00 R

Model XS, Model XS DAB+

Alloggia- mento Acceso Ganci Display 700µm Pannello di controllo Antenna FM

Radio DAB/DAB+ (solo Model XS DAB+)

2:37 General Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable 2:38 Bluetooth On The Bus Sherry 62 of 143 iPhone > Geneva XS Sound System > Cancel

Apple, iPod, Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries.

Line drawing of a hand using a tool to press or adjust a device with a circular component (no text or symbols)

Connector ② Batterij

Klepje ④

Stroomadapter

Two diagrams showing a checkmark inside a folded paper or book shape, with no text or symbols present.

Bluetooth FM Radio DAB Radio Line-In 7:00 R

Model XS, Model XS DAB+

2:37 General Bluetooth Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable

2.38 Electronic Opti-ChinEMA On The Bus Discovery 0:03 62 of 143 3:54 iPhone > Geneva XS Sound System > Cancel

Kies "Support" op www.genevalab.com

Service en Herstelling

Hand holding a device with a circular component, no text or symbols visible

Stik ② Batteri

Låg ④

Strømadapter

FM Radio DAB Radio
Line-In

7:00 A

Model XS, Model XS DAB+

Kabinet Strom On Kroge Display 100Ω Berørings- panel FM Antenne

Touch Panel

○——Strom On/Off +——Volumen op -——Volumen ned ⊗——Indstilling af uret M——Modalitet: FM, DAB, Bluetooth, Line-in ►——DAB/FM frekvens/Alarm op ◀——DAB/FM frekvens/Alarm ned ▲——Indstilling af alarm

BRUGE MODEL XS

FM Radio

2:37 General Bluetooth Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable

Settings på iPhone®

0.03 60 of 143 -3.54 iPhone > Geneva XS Sound System > Cancel

Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries.

Line drawing of a hand using a tool to press or install a device into a tray (no text or symbols)

Kontakt ② Batteri

Lock ④

Strömdapter

Hake Lock Power On 7:00 A

FM Radio DAB Radio
Line-In

7:00 A

Model XS, Model XS DAB+

Fodral Power On Hook Display 700R Kontroll- panel FM- antenn

Touch Panel

Strömadapter Line-In-kabel

Bluetooth

2:37 General Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable 2:38 Bluetooth On The Sun Diaphvery 60 of 143 iPhone > Geneva XS Sound System > Cancel

Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries

Hand holding a device with a circular component, no text or symbols visible

2 Kontakt 3 Batteri

Lokk ④

Strømadapter

Sette inn det oppladbare batteriet

Hake Lock Power On 7:00 A

FM Radio DAB Radio
Line-In

7:00 A

Model XS, Model XS DAB+

Kabinett Strom på Kroker Skjerm 100Ω Berörings- panel FM- antenn

Touch Panel

Power On/Off + Volume up - Volume down ⊗ Set clock M — Mode: Select FM, DAB, Bluetooth, Line-in ► — DAB/FM frequency/alarm up ◀ — DAB/FM frequency/alarm down ▲ — Set alarm

BRUKE MODEL XS

FM-radio

Stromadapter Line-In-kabel

Bluetooth

2:37 General Bluetooth ON Devices ○ Creative D200 Not Connected ○ Geneva XS Sound... Not Paired Now Discoverable 2:38 On The Run Platinum 62 of 143 iPhone > Geneva XS Sound System > Cancel

Bluetooth-tilkobling?

Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries

EmbracingSound™-tavaramerkin omistaa Embracing Sound Experience AB.

Illustration of a hand using a folding tool to press or adjust a device (no text or symbols visible)

Two diagrams showing a folded paper or document with a checkmark and a cross symbol (no text or labels present)

2:37 General Bluetooth Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable

Apple, iPod, iPhone and iPad are trademarks of Apple Computer, Inc. registered in the U.S. and other countries

A marca comercial EmbracingSound™ é de propriedade da Embracing Sound Experience AB.

Hand holding a device with a circular opening, showing mechanical components (no text or symbols)

Conector ② Bateria

Tampa ④

Diagram showing a device connected to a laptop with an arrow indicating the cable or cable attachment point.

FM Radio DAB Radio
Line-In

7:00 A

Model XS, Model XS DAB+

Caixa Ligado Ganchos Display 700Ω Painel sensivel ao torque Antena FM

Panel táctil

2:37 General Bluetooth ON Devices Creative D200 Not Connected Geneva XS Sound... Not Paired Now Discoverable 2:38 Electronic Bluetooth On The Bus Bluetooth 82 of 163 iPhone > Geneva XS Sound System > Cancel
