Product Type	Wrist blood pressure monitor
Brand	KAZ (Braun)
Model	BP 2510
Power supply	2 LR03 (AAA) alkaline or rechargeable batteries
Battery life	Approximately 300 measurements with new alkaline batteries
Measurement range of blood pressure	50 – 250 mmHg (diastolic – systolic)
Pulse measurement range	40 – 160 beats/min
Blood pressure accuracy	± 3 mmHg (cuff pressure), ± 5% for pulse
Memory	Last 30 measurements (blood pressure and pulse)
Main functions	Automatic measurement, cardiac position indicator, automatic shut-off, arrhythmia detection
Compatible wrist circumference	13.5 – 20 cm
Operating conditions	+10°C to +40°C, up to 85% RH
Storage conditions	-20°C to +60°C
Care and cleaning	Clean the housing with a soft, damp cloth; clean the cuff with a damp cloth, do not wash
Safety	For domestic use only; consult a doctor in case of arrhythmia, pacemaker, etc.
Warranty	2 years against manufacturing defects
Clinical validation	Compliant with AAMI-SP10
Dimensions (estimated)	Approximately 70 x 70 x 30 mm
Weight (estimated)	Approximately 100 g (without batteries)

Frequently Asked Questions - BP 2510 KAZ

How to take a correct blood pressure measurement?

Attach the monitor to the narrow part of your bare forearm, cuff well tightened. Sit down, relax, do not talk or move. Press the start/stop button. Follow the arrows of the position indicator to place the wrist at heart level. The measurement starts automatically.

What do the displayed error codes mean (e.g., 64, 81, 01)?

Codes greater than 64 (e.g., 64) indicate that the cuff is too loose or incorrectly installed. Codes less than 64 (e.g., 81) signal a system error. Code 01 indicates an incorrect measurement position. Refer to the full manual for detailed solutions.

How to view the measurements stored in memory?

Turn off the device, then press the memory button 'mem'. The last measurement is displayed. Press several times to scroll through the last 30 measurements. The number at the top left indicates the order (0 = oldest, 29 = newest).

Can I disable the position indicator?

Yes. Turn off the device, press the selection button (D) for 2 seconds. The flashing symbol appears. Press I/O to switch from 'on' to '--'. Confirm with the memory button. To reactivate, repeat the operation.

What to do if the batteries are low?

The low battery symbol appears (flashing or steady). If flashing, measurements are still possible but replace the batteries soon with two LR03 (AAA) alkaline batteries. If steady, measurement is impossible; replace the batteries immediately.

How to clean and maintain the blood pressure monitor?

Clean the housing with a soft, damp cloth. The cuff can be cleaned with a damp cloth, but do not wash it with water or dry clean. Do not expose the device to direct sunlight or extreme humidity.

Does the blood pressure monitor require calibration?

The product is calibrated at the factory. If used according to the instructions, no recalibration is necessary. In case of doubt about accuracy, contact Braun Customer Service.

What are the contraindications for use?

People suffering from cardiac arrhythmia, vascular constriction, atherosclerosis, diabetes, or wearing a pacemaker should consult a doctor before use. The device is intended for domestic use only.

Why do successive measurements differ?

Blood pressure varies naturally. Variations of 10 to 20 mmHg are normal. Make sure to measure at the same time, under the same conditions, and wait 3 minutes between measurements.

How to use rechargeable batteries?

Use LR03 (AAA) rechargeable batteries. The low battery symbol may appear earlier than with alkaline batteries, but this does not affect accuracy. Replace them when necessary.

USER MANUAL BP 2510 KAZ

Should you require any further assistance please call Braun (UK) Consumer Relations on 0800 783 70 10

IRL Helpline

1800509448

F Vouaveszdesquestionssurce produit?
Appelez Braun France 0147487070
E Servicio al consumidor para España: 901-116184
P Servico ao Consumidor para Portugal: 808200033
Servizio consumatori: 800-44 00 11
NL Heeft u vragen over dit produit? Bel Braun Consumenten-infolijn: (070) 4 13 16 58
B Vouaves des questions sur ce produit?

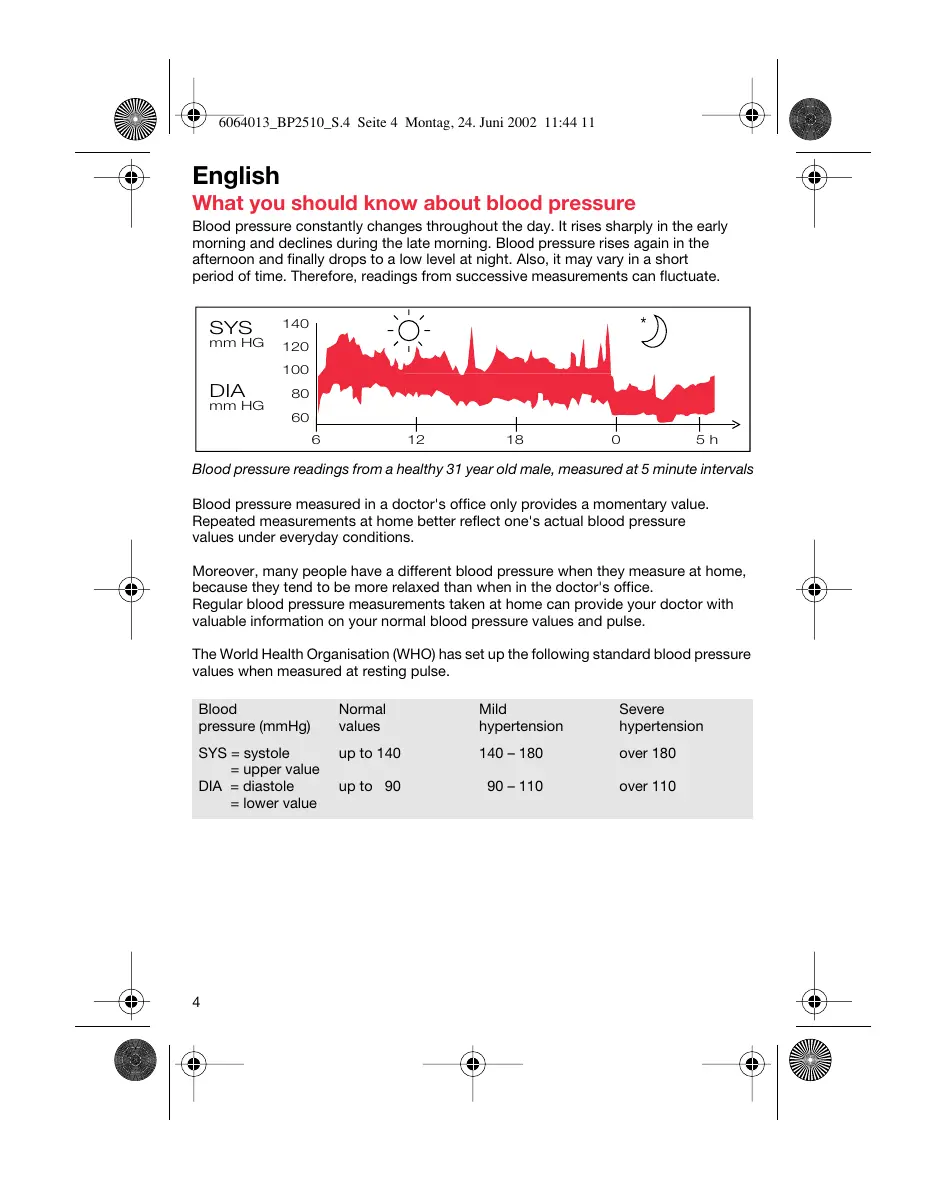

What you should know about blood pressure

Blood pressure constantly changes throughout the day. It rises sharply in the early morning and declines during the late morning. Blood pressure rises again in the afternoon and finally drops to a low level at night. Also, it may vary in a short period of time. Therefore, readings from successive measurements can fluctuate.

Blood pressure readings from a healthy 31 year old male, measured at 5 minute intervals

Blood pressure measured in a doctor's office only provides a momentary value. Repeated measurements at home better reflect one's actual blood pressure values under everyday conditions.

Moreover, many people have a different blood pressure when they measure at home, because they tend to be more relaxed than when in the doctor's office.

Regular blood pressure measurements taken at home can provide your doctor with valuable information on your normal blood pressure values and pulse.

The World Health Organisation (WHO) has set up the following standard blood pressure values when measured at resting pulse.

Blood pressure (mmHg)	Normal values	Mild hypertension	Severe hypertension
SYS = systole	up to 140	140 – 180	over 180
= upper value
DIA = diastole	up to 90	90 – 110	over 110
= lower value

What you should know about this blood pressure monitor

For accurate measurements, all wrist blood pressure monitors must be positioned at heart level.

Example: If the monitor is positioned 20cm below heart level as shown on the left (e.g. by putting the arm on a table), the reading you will obtain is approximately 15mmHg too high.

Therefore, the Braun SensorControl has a unique active positioning system: The position sensor arrows on the display guide you to hold your measuring arm in the right position at heart level.

Additionally, your blood pressure monitor offers the following benefits:

• Easy handling due to large buttons and the large display.
  Automatic storage of the last 30 readings consisting of blood pressure values, pulse, date and time of measurement.
• Comfort cuff.

• To ensure accurate measuring results, carefully read these instructions.
• This product is intended for household use only. Keep product and batteries away from children.
• People suffering from cardiac arrhythmia, vascular constriction, arteriosclerosis in extremities, diabetes or users of cardiac pacemakers should consult their doctor before measuring their blood pressure themselves, since deviations in blood pressure values may occur in such cases.
• Please consult your doctor in case of any doubt, especially if you are under medical treatment or receiving medication.
• The use of this blood pressure monitor is not intended as a substitute for consultation with your doctor.

Product description

A Display
B Memory button («mem»)
C 1/0 (on/off) button
D «Select» button
E Battery compartment
F Battery compartment cover
G Cuff

Inserting batteries

• Use alkaline batteries, type LR 03 (AAA) (e.g. Duracell Ultra) as supplied with this product or rechargeable batteries.
• Remove the battery compartment cover (F) and insert two batteries with correct polarity (see symbol in the battery compartment (E)).
• New batteries (Duracell Ultra) will provide approximately 300 measurements.
• Only discard empty batteries. They should not be disposed of in the household waste, but at appropriate collection sites or at your dealer.

Use of rechargeable batteries

In case rechargeable batteries are used, please note that the "battery low" symbol may appear earlier on the display than with alkaline batteries. However, this will not affect the measuring accuracy.

Key rules for accurate blood pressure measurements

• Always take readings at the same time of day, ideally in the morning, under the same conditions.
• Do not measure within 30 minutes after smoking, coffee or tea consumption.
  Take off wrist watch and jewellery before fitting the appliance on the measuring arm.
  While taking a measurement, sit down, relax, keep still, especially the hand of the measuring arm, do not move or speak.
• Hold the appliance at heart level.
• Wait approximately 3 minutes before repeating a measurement.

Measuring

For a reliable blood pressure measurement, make sure that you hold the appliance at heart level. The position sensor arrows on the display will guide you to hold your arm in the right position at heart level.

1. Fasten the appliance on the slim side of your bare forearm.

Make sure that the cuff fits tight.

1. Press the red I/0 (on/off) button (C).

1. Put the arm with the appliance on the other upper arm as shown. Slowly move the hand upward along the upper arm.

Move your hand up or down according to the direction of the arrow shown.

1. When you have reached the right measuring position, the display shows a heart symbol and a beep will sound. The measurement will start automatically.

When the measurement is complete, a beep will sound again, and the reading is displayed:

Upper (systolic) value Lower (diastolic) value Pulse

Please note:

15 seconds after switching on the appliance, the measuring process will start automatically, even if the appropriate measuring position has not been reached.

If at any time, you want to discontinue the measurement, press the I/O button.

Turning off the product

Press the I/O button (C) to turn the product off. Otherwise the product will turn off automatically after 2 minutes.

Memory function

Your blood pressure monitor stores the readings of the last 30 measurements. Storing is done automatically without having to press the memory button after a measurement. The memory cannot be cleared. Once the memory is full, the oldest values will be overwritten.

Recalling stored readings

To recall stored readings, first turn the product off, then press the memory button («mem») (B).

The latest reading will be displayed. The number in the upper left corner of the display indicates the memory position (0 being the oldest, 29 the most recent).

Repeatedly pressing the memory button will call up one by one all stored readings.

Position sensor

By means of the «select» button (D) placed underneath the battery compartment cover, you can de-activate the position sensor (e.g. if you want to measure while lying down).

Proceed as follows:

• First turn off the product. Press the «select» button for 2 seconds.
• The position sensor symbol (flashing) will be displayed next to «on».
• Press the I/O button to change the setting from «on» (position sensor activated) to «--» (position sensor deactivated).
• To confirm the change of setting, press the memory button.

Please note:

Unless you confirm a modified setting by pressing the I/O button, the appliance will turn off automatically after 2 minutes without adapting the modified setting.

Storage and cleaning

Clean the product with a soft, slightly damp cloth. Stains on the cuff (G) can be carefully removed with damp cloth. Do not wash or dry clean the cuff. Do not store the product in a place exposed to direct sunlight or high humidity.

Calibration

This product has been calibrated at the time of manufacture. If used according to the use instructions, periodic recalibration is not required.

If at any time, you question the measuring accuracy, please contact a Braun Service Centre.

Manufacturing date is given by the LOT number on the back of the product. The first number after LOT represents the last digit of the year of manufacture. The next three digits give the day of the year of manufacture.

An example: LOT 2116 xx xx - this product has been manufactured on the 116th day of the year 2002.

Problem	Reason	Solution
+	Batteries are low. Measurements still possible. With rechargeable batteries, the «battery low» symbol may appear earlier than with alkaline batteries.	Battery replacement required soon.
+ (flashing)	Batteries are flat. Memory readings can be called up. Measurements are not possible.	Insert new batteries.
E-64	Cuff is too loose or cannot be inflated.	Refit cuff tightly, repeat measurement as shown and described under «Measuring».
e.g.	Error message higher than 64: Cuff is not properly fitted.	Refit cuff tightly, repeat measurement as shown and described under «Measuring».
E-81	Error message lower than 64: System error	Have the product checked at a Braun Service Centre.
e.g.	Error message lower than 64: System error
Measurement or inflation does not start instantly.	Right measurement position was not reached.	Repeat measurement as shown and described under «Measuring» or deactivate the position sensor.
Readings from repeated measurements differ considerably.	Blood pressure is a fluctuating value. For healthy adults, deviations of 10 to 20 mmHg are possible.	none
	Cuff is not properly fitted.	Ensure that the appliance is fitted as follows: • on top of the slim side of the forearm • with the display on top • with the battery compartment facing the user's body • approx. 2 cm away from the thumb root
	Readings were not consistently taken at heart level.	For each measurement, proceed exactly as shown and described under «Measuring».
	Talking, coughing, laughing, moving etc. when measuring will influence the reading.	While measuring, relax, keep still, do not move, or speak.
Prior to a measurement, the position sensor does not work.	Position sensor is deactivated.	Refer to the chapter «Posotion Sensor» to activate the position sensor.

Specifications

Model:	BP 2510
Operation principle:	Oscillometric method
Display:	Liquid Crystal Display
Measuring range:	0 - 300 mmHg (cuff pressure)
	40 - 160 / min (pulse rate)
Blood pressure	50 mmHg (minimum diastolic value)
measurement:	250 mmHg (maximum systolic value)
Laboratory accuracy:	± 3 mmHg (cuff pressure)
	± 5 % of reading (pulse rate)
Clinical accuracy:	According to AAMI-SP 10 with auscultatory reference:
	< 5 mmHg systematic offset
	< 8 mmHg standard deviation
Inflation:	Automatic, adapted to blood pressure
Deflation:	Electronic control valve adapted to heart frequency
Power supply:	2 batteries, type LR 03 (AAA)
	(e.g. Duracell Ultra)
Operating temperature:	+ 10 °C to + 40 °C
Storage temperature:	- 20 °C to + 60 °C
Humidity:	Up to 85% RH
Cuff:	Suitable for wrist circumference of 13.5 to 20 cm
Clinical validation:	According to AAMI-SP10 with auscultatory reference.
(Please note that a validation against intra-arterial measurements can lead to different results for devices which are calibrated against auscultatory reference.)

Type BF equipment

Subject to change without notice.

This appliance conforms to the following standards:

DIN EN 60601-1: 3/96 «Medical electrical equipment» –

Part 1: General requirements for safety

DIN EN 1060-1: 12/95, AMD 1 09/02 «Non-invasive sphygmomanometers» –

Part 1: General requirements

DIN EN 1060-3: 9/97 «Non-invasive sphygmomanometers» –

Part 3: Supplementary requirements for electro-mechanical blood pressure measuring systems

This product conforms to the provisions of the EC directive 93/42 / EEC (Medical Device Directive).

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.
