USER MANUAL MA 400 MAGNAT

20 Hz – 20 kHz, THD < 1.0%, 4 Ohm 2 x 40 W 20 Hz – 20 kHz, THD < 1.0%, 8 Ohm 2 x 32 W 1 kHz, 4 Ohm

• In the event of contact with moisture or liquids remove the mains adapter immediately.
• Only clean the device using a dry cloth.
• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.
• Never open the device.
• A mains cable is included in delivery. Only use this original accessory for the power supply or a power cable that has been examined with regards to its safety (e.g. with a TÜV or VDE certificate).
• The mains cable must always be operational. The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.
• Do not connect or remove the mains cable with damp hands.
• Always refer to a qualified specialist for any maintenance or repair work.
• If the device is not going to be used for a prolonged period, switch it off by using the power switch located on the rear of the device (see the section entitled "Rear").
• Please remove the mains plug in the event of thunderstorms.

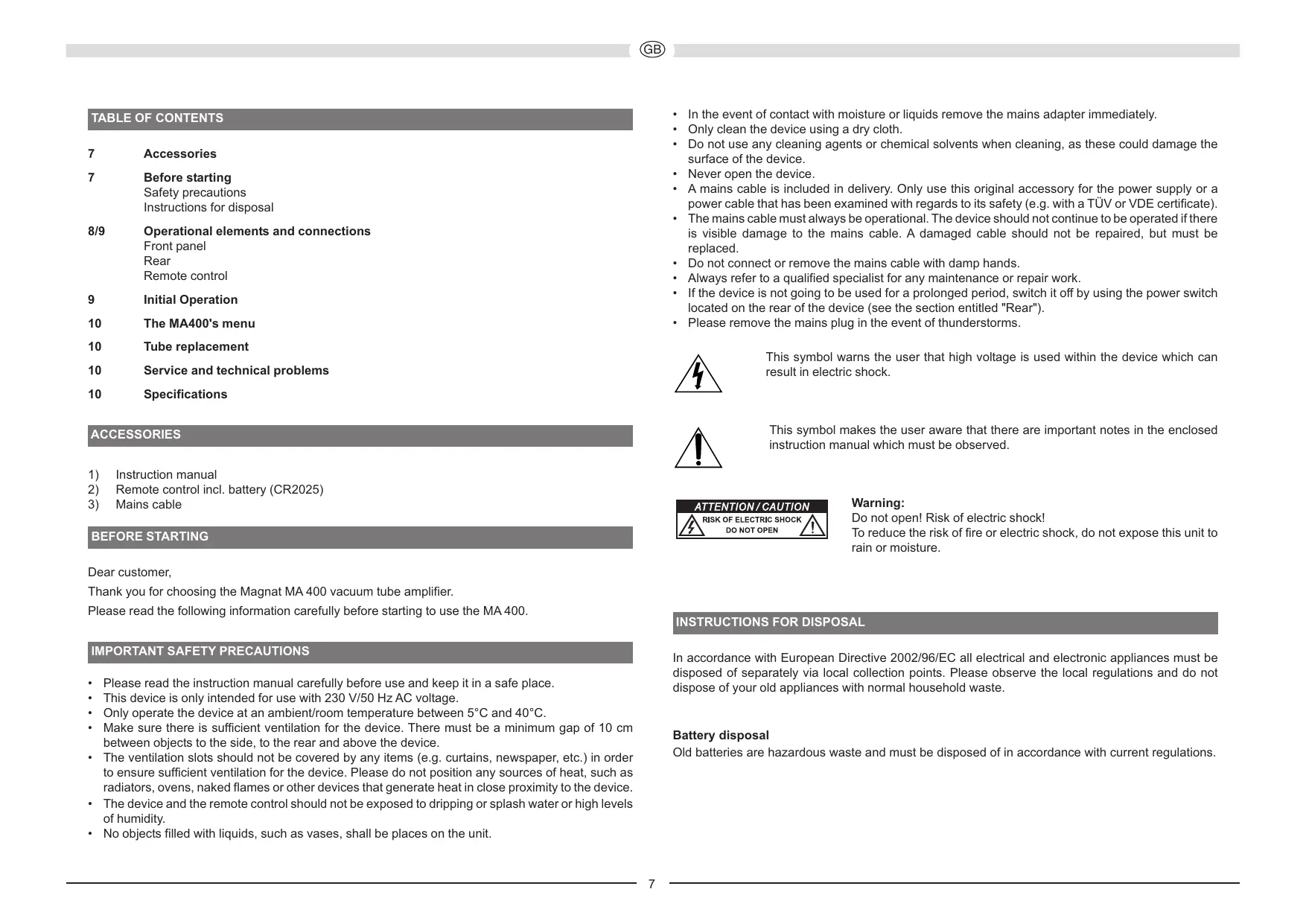

TABLE OF CONTENTS

Accessories 8/9 Operational elements and connections Front panel Rear Remote control

Before starting Safety precautions Instructions for disposal Initial Operation The MA400's menu Tube replacement This symbol warns the user that high voltage is used within the device which can result in electric shock. Service and technical problems Specifications This symbol makes the user aware that there are important notes in the enclosed instruction manual which must be observed. Instruction manual Remote control incl. battery (CR2025) Mains cable

Warning:

Do not open! Risk of electric shock! To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. BEFORE STARTING Dear customer, Thank you for choosing the Magnat MA 400 vacuum tube amplifier. Please read the following information carefully before starting to use the MA 400.

INSTRUCTIONS FOR DISPOSAL

IMPORTANT SAFETY PRECAUTIONS

In accordance with European Directive 2002/96/EC all electrical and electronic appliances must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old appliances with normal household waste.

Please read the instruction manual carefully before use and keep it in a safe place. This device is only intended for use with 230 V/50 Hz AC voltage. Only operate the device at an ambient/room temperature between 5°C and 40°C. Make sure there is sufficient ventilation for the device. There must be a minimum gap of 10 cm between objects to the side, to the rear and above the device.

• The ventilation slots should not be covered by any items (e.g. curtains, newspaper, etc.) in order to ensure sufficient ventilation for the device. Please do not position any sources of heat, such as radiators, ovens, naked flames or other devices that generate heat in close proximity to the device.
• The device and the remote control should not be exposed to dripping or splash water or high levels of humidity.
• No objects filled with liquids, such as vases, shall be places on the unit. Battery disposal Old batteries are hazardous waste and must be disposed of in accordance with current regulations.

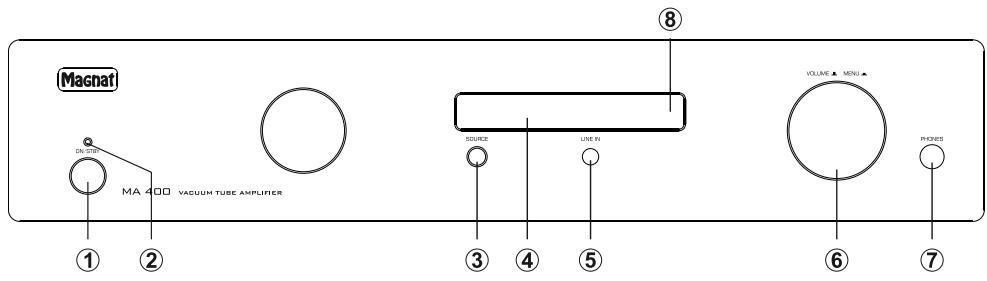

1 ON/STBY Switches the device on when it is in the standby mode. If the LED does not illuminate, actuate the power switch located on the rear of the device. Conversely the device can be switched from power operation to the standby mode.

2 LED STATUS INDICATION

This illuminated display indicates the MA 400's 2 possible states:

• LED is illuminated green: The MA 400 is switched on. The device is ready for use.
• LED is illuminated red: The MA 400 is in the standby mode. 3 SOURCE (INPUT SELECTOR SWITCH) Switches between the different audio sources:

• TUNER: Radio reception device.
• PHONO: Record players with a magnet system (MM).
• AUX: Other audio device (e.g. MD player).
• TAPE: Tape or cassette recorder.
• FRONT: Front input for portable devices 4 DISPLAY The following information is indicated in the display:
• Heating phase of the tube: WARM UP This lasts for around 20 seconds after the device has been switched on. 1 POWER SWITCH Switches the device on and sets it in the standby mode. If the switch is set to the "OFF" position, the device is disconnected from the mains supply.

• Selected audio input: 2 MAINS CONNECTION For connecting the supplied mains cable. The safety fuse should only be changed by qualified service personnel.

• Menu settings (see page 10). 5 LINE-IN (FRONT)

3.5 mm stereo input jack for an auxiliary audio

device (e.g. MP3 player, etc.). 3 SPEAKER TERMINALS For the connection of stereo speakers with an impedance rating of 4-8 ohms (the correct polarity must be taken into account). (See also page 9). 6 VOLUME/MENU Turn: For adjusting the overall volume of the music. Press: Launches the menu for adjusting tone and for configuring the inputs. Turning the VOLUME knob navigates through the menu.

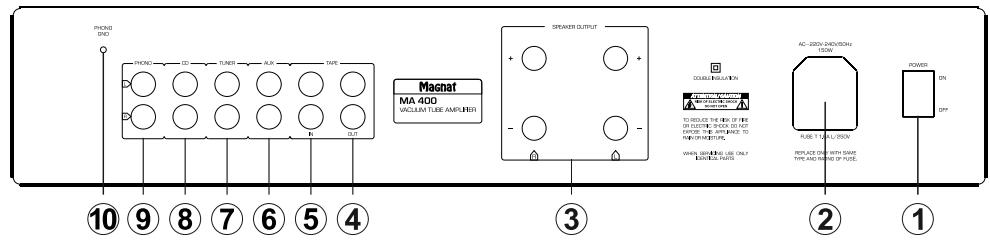

ANALOGUE RCA CONNECTIONS

6.3 mm stereo output jack for headphones. The

speakers are deactivated when this jack is used. Set the volume to a low level before connecting headphones. For connecting analogue audio sources. Please observe the coloured marking of the sockets and connectors. Red is always the right channel. 4 TAPE OUT For connecting devices for analogue sound recording (e.g. tape recorder). The signal for the selected audio source with fixed level applies for this output, i.e. it is independent of the position of the volume knob.

8 SENSOR FOR THE REMOTE CONTROL

Please aim at this sensor when using the remote control.

5 TAPE INPUT For the connection of a cassette deck or tape recorder. 6 AUX INPUT Connection of another audio source (e.g. MP3 or Minidisc player). 7 TUNER INPUT Connection of a radio reception device. 8 CD INPUT Connection of a CD player. 9 PHONO INPUT Connection of a record player with a magnet system (MM) or MC system with high output level (high output MC).

10 PHONO EARTH CONNECTION

Connection of the phono cable's earth wire in order to prevent humming.

• The transparent protective tab on the underside of the battery compartment must be removed before using the remote control.
• If the batteries have run out after prolonged use, please replace them (type CR2025).
• To prevent causing damage to the remote control please remove the batteries if the device is not going to be used for a prolonged period.

• Place the MA 400 on an even surface. Observe the relevant clearance gaps as specified under "Important safety instructions". IMPORTANT: Do not place any objects on top of the device (magazines, CD/record cases, etc.). The ventilation slots located on top of the device must be unobstructed at all times!

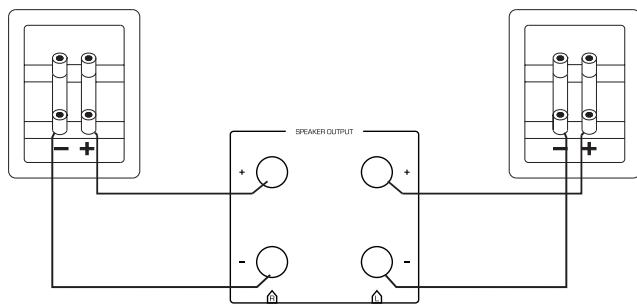

• Connect your speakers: The stereo speakers (impedance of 4 to 8 ohms) are connected to the rear as follows: 1 MASTER / 2 AMP Switches the device on when it is in the standby mode. If the LED does not illuminate, actuate the power switch located on the rear of the device. Conversely the device can be switched from power operation to the standby mode. The MASTER button also switches other units in Magnat's M400 series (MCD 450, MT 420) on and off. 3 INPUT SELECTON These buttons enable direct selection of the individual audio inputs. The active input is indicated in the display. 4 MENU Launches the menu for adjusting tone and for configuring the inputs. Navigate through the menu with the VOLUME keys. Only use high-quality audio speaker cables with a conductor cross section of min. 1.5 - 2.5 mm². Strip approx. 10 mm from the cables and twist the ends. Loosen the terminal screws one after the other and insert the stripped ends into the holes. Re-tighten the terminal screws. Make sure you pay attention to the correct polarity. You can also use prefabricated cables with 4mm banana plugs or forked fittings. 5 VOLUME Increases () or decreases () the volume. 6 MUTE Switches the sound on and off.

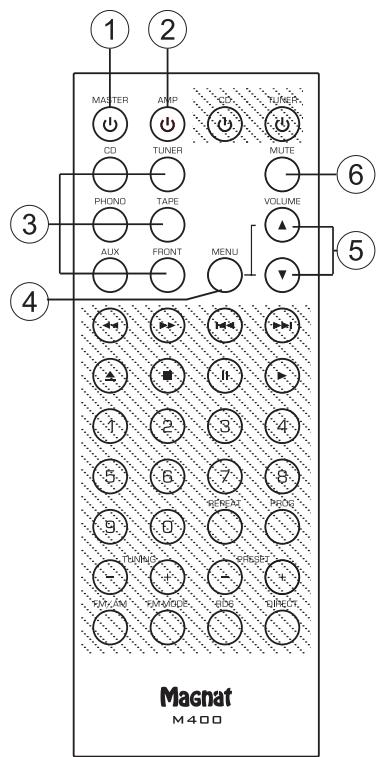

The non-numbered buttons are reserved for operating the Magnat CD player MCD 450 and the Tuner MT 420 and have no function for the MA 400.

Also observe the operating instructions for the speakers you are using. Connect your audio sources to the analogue connections. Connect the supplied mains cable to the rear and then insert the other end into a 230V socket. Actuate the on/off switch on the rear side, the device is now in the standby mode. Now switch on the device using the remote control or with the ON/STBY key on the front. When the tube has heated up the device is ready for use. Select your desired audio source using the input selector switch.

THE MA 400'S MENU

SPECIFICATIONS The tone and the inputs' input sensitivity may be comfortably adjusted via a menu.

• The menu is launched with the MENU key on the remote control or by pressing the volume control on the front.
• The menu may be navigated and settings changed with the VOLUME keys on the remote control or by turning the volume control.
• The individual menu items may be confirmed with the MENU key on the remote control or by pressing the volume control. Amplifier Power output: Rated power Peak power: Frequency response : CD/Tuner/Aux/Line/Tape The following settings are possible:

• Bass adjustment: Select BASS in the menu. Bass playback may be ramped either up or down in five steps.
• Treble adjustment: Select TREBLE in the menu. The treble setting may be ramped either up or down in five steps.
• Balance adjustment: Select BALANCE in the menu. The stereo balance may be adjusted either to the right or left in ten steps.
• Loudness (aurally compensated volume correction): Select LOUDNESS in the menu. The function may now be activated or deactivated.
• Input sensitivity: Select INPUTGAIN in the menu. Now the input sensitivity for the currently selected input may be increased in four steps. This enables you to adapt audio sources with lower output levels to other audio sources. Phono Signal to noise ratio: CD/Tuner/Aux/Line/Tape Phono Input sensitivity/impedance: CD/Tuner/Aux/Line/Tape Phono Fitted with: The RESET menu item will restore the basic settings (all tone settings to 0, loudness function off and input sensitivity for all inputs to 0 dB). TUBE REPLACEMENT The device has a high quality preamplifier stage which is equipped with a tube. The tube has a very long service life when used under normal operating conditions (min. 20,000-50,000 hours). If it is necessary to replace the tube, please refer to a specialist dealer. Max. 150 W Standby <1,0 W Miscellaneous You can leave the menu via EXIT. 20 Hz – 20 kHz, THD < 1.0%, 4 ohm 20 Hz – 20 kHz, THD < 1.0%, 8 ohm 1 kHz, 4 ohm Dimensions (wxhxd): Main device: 430 x 91 x 287 mm Main device incl. operational elements/connecting terminals: 430 x 91 x 330 mm Remote Control: 54 x 140 x 11 mm

SERVICE AND TECHNICAL PROBLEMS

If you should encounter any technical problems, please contact your specialist dealer or Magnat Audio-Produkte GmbH, Tel.: 02234807-0. Weight: 5,8 kg Subject to technical change. For further information please visit our website: http://www.magnat.de.

2 x 40 W 2 x 32 W 150 W

INSTRUCTIONS POUR LA MISE AU REBUT

PRISES CINCH ANALOGIQUES

Ecart signal/bruit:: CD/Tuner/Aux/Line/Tape Phono

REMPLACEMENT DE LA TUBE

20 Hz – 20 kHz, THD < 1.0%, 4 Ohm 20 Hz – 20 kHz, THD < 1.0%, 8 Ohm 1 kHz, 4 Ohm Max.: Veille: 150 W <1,0 W

5.8 kg

ATTACCHI ANALOGICI CINCH

ASSISTENZA E PROBLEMI TECNICI

2 x 40 W 2 x 32 W 150 W 20 Hz – 20 kHz, THD < 1.0%, 4 Ohm 20 Hz – 20 kHz, THD < 1.0%, 8 Ohm 1 kHz, 4 Ohm

CONEXIONES RCA ANALÓGICAS

430 x 91 x 287 mm 430 x 91 x 330 mm 54 x 140 x 11 mm 5,8 kg Congratulations! You have made a wise selection in becoming the owner of a MAGNAT HiFi equipment. The equipments are checked and tested continously during the entire production process. In case you have problems with your MAGNAT HiFi equipment, kindly observe the following:

1. The warranty period commences with the purchase of the component and is applicable only to the original owner.

2. During the warranty period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded. The warranty period is not altered by the fact that we have carried out warranty work.

3. Unauthorized tampering with the equipment will invalidate this warranty.

4. Consult your authorized dealer first, if warranty service is needed. Should it prove necessary to return the component to the factory, please insure that • the component is packed in original factory packing in good condition • the quality control card has been filled out and enclosed with the component • your enclose your receipt as proof of purchase. 5. Excluded from the warranty are: • Illuminates • Valves • Batteries • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consoquential damages to other equipments. • Reimbursement of cools, without our prior consent, when repairing damages by third parties.
