BRANCH 2.0 - Computer accessory DICOTA - Free user manual and instructions

Product Type	USB 2.0 Hub
Brand	DICOTA
Model	BRANCH 2.0
Interface	USB 2.0 (compatible with USB 1.1)
Maximum Transfer Rate	480 Mbit/s
Upstream Port	1 x USB Type B
Downstream Ports	4 x USB Type A
Indicator LED	1 Power LED
Power Supply	Via external power adapter (DC 5V, 2000 mA) or USB bus
Maximum Current per Port	500 mA (in self-powered mode)
System Compatibility	Windows 98 SE/2000/ME/XP, Mac OS 8.6+
Main Functions	Plug & Play, automatic speed detection, overcurrent protection, Re-Connect function
Operating Conditions	Temperature: 0°C to 55°C; Humidity: 20-80% non-condensing
Certifications	CE, FCC
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive products.
Safety	Use only the supplied power adapter. Do not expose to moisture or extreme temperatures. Disconnect during thunderstorms.
Spare Parts and Reparability	The hub is not user-repairable. Contact customer service for any issues. Power adapter and USB cable available as options.
Warranty	2 years (see conditions at www.dicota.com)
Package Contents	BRANCH 2.0 Hub, USB 2.0 cable, power adapter, user manual

Frequently Asked Questions - BRANCH 2.0 DICOTA

Which operating systems are compatible with the BRANCH 2.0 hub?

The hub is compatible with Windows 98 SE/2000/ME/XP and Mac OS 8.6 and later.

Can I connect USB 1.1 devices to this hub?

Yes, the BRANCH 2.0 is backward compatible with USB 1.1 devices. They will operate at their native speed (1.5 or 12 Mbit/s).

How many devices can be connected simultaneously?

Theoretically, up to 127 devices can be connected via daisy-chained hubs, but this hub has 4 downstream ports directly accessible.

Does the hub require external power?

It can operate in bus-powered mode (powered by the computer) or in self-powered mode via the provided power adapter. For maximum power on each port, using the external power supply is recommended.

What is the maximum transfer speed?

The BRANCH 2.0 supports speeds up to 480 Mbit/s in USB 2.0, and is compatible with USB 1.1 speeds (12 Mbit/s) and USB 1.0 speeds (1.5 Mbit/s).

How do I know if the hub is properly installed?

An LED lights up on the hub when connections are correct and power is present.

Can I plug and unplug devices without turning off the computer?

Yes, the Plug & Play function allows connecting or disconnecting devices while the computer is running without risk.

What if a connected device is not recognized?

First check connections and power. Try reconnecting the device to another port. Make sure drivers are up to date. If the problem persists, contact DICOTA customer service.

Does the hub protect my devices from power surges?

Yes, the hub features overcurrent protection with automatic recovery.

Where can I find the complete manual?

The complete manual is available for free download at notice-facile.com or on the official website www.dicota.com.

USER MANUAL BRANCH 2.0 DICOTA

PykoBODCTBOIJIPOJIb3OBATeNA

4-NotopToBbIM USB 2.0 XAB

english

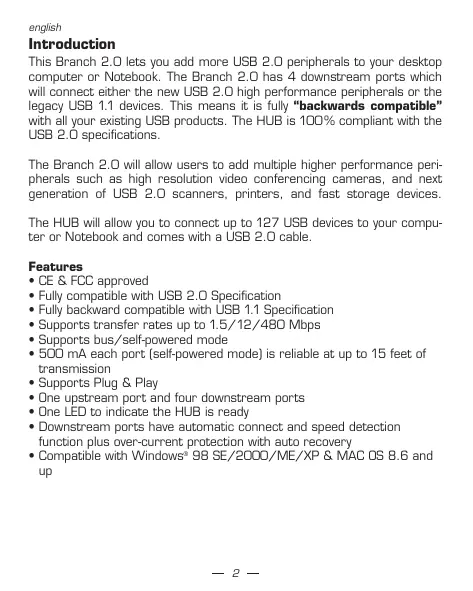

Introduction

This Branch 2.0 lets you add more USB 2.0 peripherals to your desktop computer or Notebook. The Branch 2.0 has 4 downstream ports which will connect either the new USB 2.0 high performance peripherals or the legacy USB 1.1 devices. This means it is fully "backwards compatible" with all your existing USB products. The HUB is 100% compliant with the USB 2.0 specifications.

The Branch 2.0 will allow users to add multiple higher performance peripherals such as high resolution video conferencing cameras, and next generation of USB 2.0 scanners, printers, and fast storage devices.

The HUB will allow you to connect up to 127 USB devices to your computer or Notebook and comes with a USB 2.0 cable.

Features

• CE & FCC approved
  Fully compatible with USB 2.0 Specification
  Fully backward compatible with USB 1.1 Specification
  Supports transfer rates up to 1.5/12/480 Mbps
  Supports bus/self-powered mode
• 500 mA each port (self-powered mode) is reliable at up to 15 feet of transmission
  Supports Plug & Play
  One upstream port and four downstream ports
  One LED to indicate the HUB is ready
• Downstream ports have automatic connect and speed detection function plus over-current protection with auto recovery
• Compatible with Windows® 98 SE/2000/ME/XP & MAC OS 8.6 and up

Specification

Bus interface	USB 2.0
Transfer rate	480/12/1.5 Mbps
Connectors	Upstream port - 1 B type connector Downstream port - 4 A type connectors
LEDs	One power LED
Power	One mini DC jack One mini switching power adapter, +5 V, 2000 mA
Electrical	+5 V, 500 mA max. output per port
Operating requirements	Temperature from 0°C to 55°C Relative humidity 20-80% (non-condensing)

Hardware Installation

In order to get the USB 2.0 performance, make sure to properly install the USB 2.0 4-Port HUB to your desktop computer or to your Notebook.

Step 1:

Connect the USB 2.0 cable to your desktop computer or Notebook.

Step 2:

Connect the USB 2.0 cable to the HUB.

Step 3:

Plug the power adapter into the AC outlet of the wall or the power strip.

Step 4:

Connect the plug of the power adapter to the HUB.

The LED will lit after the above steps are properly installed.

Now, you can connect the USB 2.0 or USB 1.1 devices to the downstream ports of the HUB.

Disclaimer

Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. No part of this document may be reproduced or transmitted in any form by any means, electronic or mechanical, including photocopying, recording or information recording and retrieval systems without the express written permission of the manufacturer.

Customer Service:

If you encounter any problem with your Branch 2.0, please contact our local subsidiary, partner or dealer, or send us your inquiry to [e-mail].

2 years warranty. Please find the complete text in our guarantee on the Internet: www DICota.com.

All the products and software mentioned above are registered trademarks of their respective owners. Errors and omissions excepted.

N1879
