USER MANUAL FO391TD - REV 1 DOMETIC

ACCENSIONE MANUALE DEL GRILL

- ACCENSIONE MANUALE DEL GRILL

La rimozione ed il fissaggio degli iniettori deve essere eseguita mantenendo bloccato (mediante un utensile) il portainiettore (FIG. 9 - PAG. 131). USO LE ATTIVITA’ DEVONO ESSERE FATTE DA PERSONALE AUTORIZZATO. DOPO TALE OPERAZIONE SI DECLINA OGNI RESPONSABILITA’ DERIVANTE DALL’INTERVENTO STESSO. ENGLISH SYMBOLS

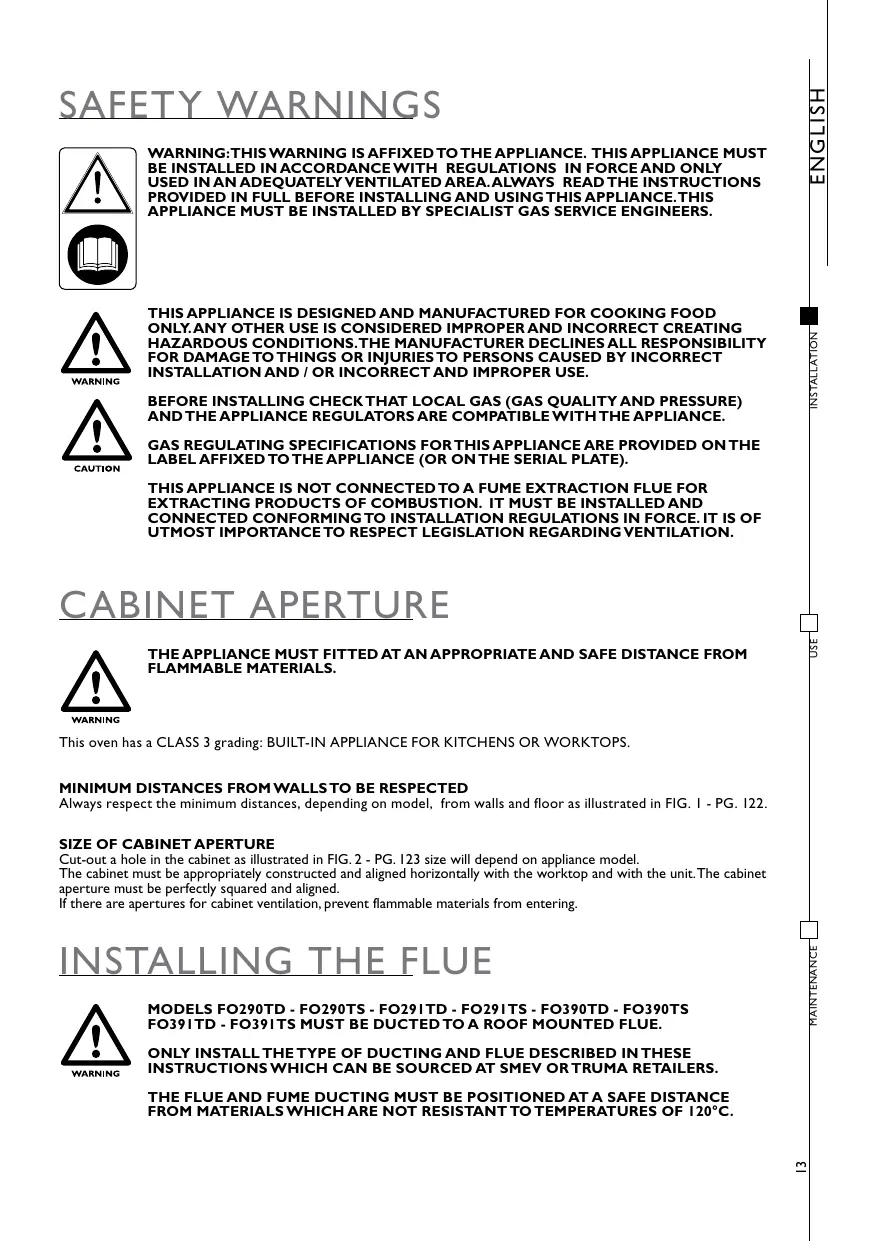

WARNINGS AND SAFETY SYMBOLS

The safety symbols utilised identify possible hazards to users. Always respect all safety warnings identified with these symbols: INSTALLATION DANGER Hazard of injury or death. CAUTION To prevent possible injury and / or damage INDEX INSTALLATION USE SAFETY WARNINGS CABINET APERTURE

WARNING:THIS WARNING IS AFFIXED TO THE APPLIANCE. THIS APPLIANCE MUST

BE INSTALLED IN ACCORDANCE WITH REGULATIONS IN FORCE AND ONLY USED IN AN ADEQUATELY VENTILATED AREA. ALWAYS READ THE INSTRUCTIONS PROVIDED IN FULL BEFORE INSTALLING AND USING THIS APPLIANCE.THIS APPLIANCE MUST BE INSTALLED BY SPECIALIST GAS SERVICE ENGINEERS. INSTALLATION SAFETY WARNINGS GAS REGULATING SPECIFICATIONS FOR THIS APPLIANCE ARE PROVIDED ON THE LABEL AFFIXED TO THE APPLIANCE (OR ON THE SERIAL PLATE). THIS APPLIANCE IS NOT CONNECTED TO A FUME EXTRACTION FLUE FOR EXTRACTING PRODUCTS OF COMBUSTION. IT MUST BE INSTALLED AND CONNECTED CONFORMING TO INSTALLATION REGULATIONS IN FORCE. IT IS OF UTMOST IMPORTANCE TO RESPECT LEGISLATION REGARDING VENTILATION. THE APPLIANCE MUST FITTED AT AN APPROPRIATE AND SAFE DISTANCE FROM FLAMMABLE MATERIALS. USE CABINET APERTURE This oven has a CLASS 3 grading: BUILT-IN APPLIANCE FOR KITCHENS OR WORKTOPS. MINIMUM DISTANCES FROM WALLS TO BE RESPECTED Always respect the minimum distances, depending on model, from walls and floor as illustrated in FIG. 1 - PG. 122.

Cut-out a hole in the cabinet as illustrated in FIG. 2 - PG. 123 size will depend on appliance model. The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit. The cabinet aperture must be perfectly squared and aligned. If there are apertures for cabinet ventilation, prevent flammable materials from entering. ONLY INSTALL THE TYPE OF DUCTING AND FLUE DESCRIBED IN THESE INSTRUCTIONS WHICH CAN BE SOURCED AT SMEV OR TRUMA RETAILERS.

THE FLUE AND FUME DUCTING MUST BE POSITIONED AT A SAFE DISTANCE FROM MATERIALS WHICH ARE NOT RESISTANT TO TEMPERATURES OF 120°C. ENGLISH 1 Mount the flue attachment (K) and secure in place with the 2 fixture screws provided as illustrated in FIG. 3 - PG. 126 and then proceed with connecting the ducting to the flue. 2 The roof mounted flue must be positioned vertically with a maximum inclination of 15°. Drill a 60mm ∅ hole in the roof of the vehicle in proximity of the oven. To avoid damaging or denting the roof when installing the flue and to ensure sealing if required mount a 1mm thickness metal plate to the wall with the hole. 3 Install the flue and from the inside of the vehicle secure in place with the nut. To guarantee the roof is sealed and does not leak, after the oven has been on for several hours re-tightened the flue fixture nut. INSTALLATION 4 Mount and install the ducting as illustrated in FIG. 4 - PG.127. Feed the ducting into the flue until it stops and secure in place with a self-tapping screw. 5 Using ties secure the ducting (∅ 55mm) and the protective tubing (∅ 65mm) for their entire lengths to the walls.

CONNECTING TO GAS SUPPLY

CHECK THESE SPECIFICATIONS BEFORE CONNECTING THE APPLIANCE TO THE GAS CYLINDER /BOTTLE.THE PRESSURE REGULATORS CONNECTED BETWEEN THE GAS CYLINDER AND APPLIANCE MUST CONFORM WITH THE CATEGORIES GIVEN IN THE TABLE BELOW. USE This appliance is designed for running off the following types of gas at the corresponding operating pressures. The gas category (or categories) of the appliance is given on the specifications label affixed to the appliance.

The gas supply pipe connected to the appliance must be a rigid metal pipe with sealed fittings. It is possible to fit a flexible hose, however, in this case the following conditions must be respected:

CONNECTING TO ELECTRICITY SUPPLY

This chapter refers only to models with the wording 12 V appliance. on the appliance specifications label affixed to the ENGLISH INSTALLATION a) The hose can be accessed easily for inspection; b) The hose must be protected against coming into contact with parts which heat up (for example parts underneath the burners); c) The hose must be protected against being damaged (twisting, pulling, trapping,….); d) The hose must be protected against being trapped by moving parts (e.g. drawers); e) The hose must not have a length over 1.5 m; f) The hose must be replaced before its expiry date; Once the appliance has been connected to the gas supply check for gas leaks utilising a non-corrosive fluid. Do not use a water and soap solution. NEVER USE A FLAME TO CHECK FOR GAS LEAKS. THIS APPLIANCE MUST BE CONNECTED TO A 12 V POWER PACK ONLY. THE CIRCUIT MUST BE FITTED WITH A SAFETY FUSE NOT HIGHER THAN 3 AMP. WHEN WIRING THE APPLIANCE RESPECT CORRECT POLARITY! IT IS OF UTMOST IMPORTANCE NEVER TO CONNECT THIS APPLIANCE TO MAINS VOLTAGE (230 V∼) WHICH IRREVERSIBLY DAMAGES APPLIANCE COMPONENTS AND CREATES A HAZARD TO THE USER. USE To connect the appliance use a 1.5 mm2 double red and black wire and wire to the terminal junction box located at the rear of the appliance. The red terminal is the positive pole and the black terminal is the negative pole. FIXTURE

MODEL ENGLISH OVEN THE OVEN BURNER MUST BE IGNITED ONLY WITH THE OVEN DOOR FULLY OPEN. INSTALLATION THE WIRE SHELF, DRIP TRAY AND OVEN DISH WHEN IN THE OVEN MUST BE POSITIONED SO AS TO AVOID COMING INTO CONTACT WITH THE FLAMES. IF THE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND WAIT ONE MINUTE BEFORE RE-IGNITING. - ELECTRONIC IGNITION OVEN (DEPENDING ON MODEL) To ignite burner, push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time press the electronic ignition pushbutton (for models that have ★ affixed to the oven door the electronic ignition button is not visible and is activated by pressing the gas knob down). Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight. IF THE BRUNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER HAVING FOLLOWED EACH STEP BELOW:

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition. To ignite burner, gently push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight. IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE. IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER. MAINTENANCE

200° C 220° C 240° C When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven reaches the set temperature the flame automatically goes down to low flame.

• CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE. USE To ignite burner, gently push-in and turn the control knob to position GRILL or HIGH FLAME and maintaining the knob pushed at the same time press the electronic ignition button (for models with the ★ symbol affixed to the door, the ignition button is not visible and is activated by pressing the knob down). Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight. IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- MANUAL IGNITION GRILL

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition. To ignite burner, gently push-in and turn the control knob to position GRILL or HIGH FLAME and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight. IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

- FLAME REGULATION GRILL

For models VN555 and VN565: to regulate flame turn the knob to the desired cooking flame. MAINTENANCE IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER. For all other models: the grill is to be used only at its rated thermal capacity.

Depending on the type of gas used the flame should be: Propane (G31): blue flame without yellow tips. Butane (G30): flame with yellow tips when ignited which becomes more intense in colour as the burner heats. ENGLISH SPIT Ignite the oven as described in the chapter OVEN. Turn the gas knob to the required position. Insert the drip tray with the spit already installed as illustrated in FIG. 7 - PG. 130. Press the spit button to turn on the spit motor. ROTATING PLATE INSTALLATION THE ROTATING PLATE CAN BE USED WITH THE GRILL ONLY Ignite the grill burner as described in the chapter GRILL. Position the drip tray with the rotating plate as illustrated in FIG. 8 - PG. 131. Press the purpose button to turn on rotating plate motor.

GAS CYLINDERS/ BOTTLES

USE NEVER OPERATE THE APPLIANCE WITH GAS AND OR AT GAS PRESSURES DIFFERENT TO THOSE INDICATED BY SMEV AS THIS COULD CAUSE IRREGULAR AND INCORRECT OPERATION. SMEV DECLINES ALL RESPONSIBILITY FOR DAMAGE OR INJURY CAUSED BY AN INCORRECT OR IMPROPER USE OF THE APPLIANCE. The appliance runs off standard gas bottles which can be found in the country of use. The type of gas to use is clearly marked on the packaging and on the specifications label affixed to the rear of the appliance. However always respect the following instructions: gas bottles must always be located and positioned in the compartment provided for this purpose. They must always be vertical and fitted with a pressure regulator and easily accessible and not obstructed. Do not obstruct or impede access to the gas bottle to permit quick and easy access when replacing. WARNING!: When replacing the gas bottle always take the following precautions: a) close all gas knobs; b) make sure there are no flames or fires in proximity of the gas bottle; c) close the gas valve on the bottle to be replaced; d) unscrew the pressure regulator on the empty bottle and remove the bottle from the purpose compartment. This procedure is inverted for fitting a new bottle. Check for gas leaks using a non-corrosive fluid/solution. Do not use a water and soap solution. NEVER USE A FLAME TO CHECK FOR GAS LEAKS; e) ignite the burners to check they function correctly. If there are problems, call in an authorised gas service engineer. AFTER APPLIANCE USE ALWAYS TURN OFF THE GAS TAP ON THE BOTTLE. MAINTENANCE GAS LEAKS We recommend the use of an electronic and homologated gas detector for checking for gas leaks. If there is a smell of gas; a) immediately open the windows and evacuate the vehicle or caravan. b) do not turn on or off light switches or other electronic and electric appliances, do not light matches or lighters or anything that could cause the gas to ignite; c) put out any flames d) shut off the valve on the gas bottle or cylinder. Do not re-open this valve unless the gas leak has been identified and eliminated. e) contact a specialised gas service engineer.

BURNER MAINTENANCE When removing and mounting the injectors the injector holder must be held in place with the aid of tool (FIG. 9 - PG. 131).

ALLUMAGE MANUEL DU FOUR

REGLAGE DE LA FLAMME DU FOUR AVEC THERMOSTAT GRIL: ALLUMAGE ELECTRONIQUE DU GRIL (SELON LE MODELE)

ALLUMAGE MANUEL DU GRIL

DIMENSIONS DU FOUR A ENCASTREMENT

- ALLUMAGE MANUEL DU FOUR

- ALLUMAGE MANUEL DU GRIL

GRILL P O RT U G U Ê S

GRILL N E DA E R L A N D S ANDERE SYMBOLEN

MANUEL TÆNDING AF OVNEN

- MANUEL TÆNDING AF OVNEN

INNEHÅLLSFÖRTECKNING

MANUELL TENNING AV STEKEOVNEN

INNEBYGGINGSHULLETS MÅL

TOTAL NOMINELL TERMISK

VEDLIKEHOLD APPARATET MÅ FESTES TIL KJØKKENSKAPET MED SKRUER SOM VIST PÅ FIG.

• FORTSETT MED MANUELL TENNING.

• FORTSETT MED MANUELL TENNING.
