USER MANUAL FO290TD - REV 1 DOMETIC

ACCENSIONE MANUALE DEL GRILL

- ACCENSIONE MANUALE DEL GRILL

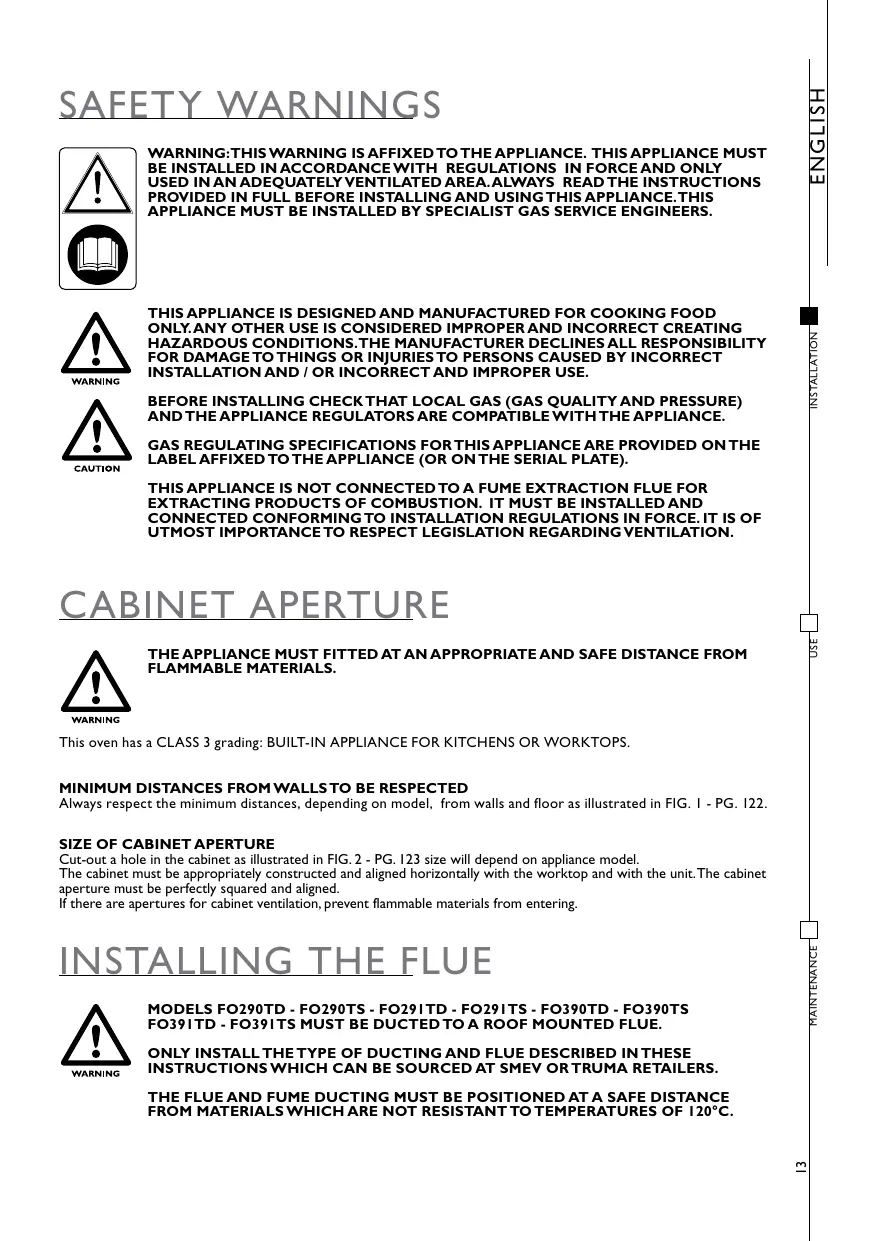

WARNINGS AND SAFETY SYMBOLS

The safety symbol utilised identify possible hazards to users. Always respect all safety warnings identified with these symbols: DANGER CAUTION Hazard of injury or death To prevent possible injury and / or damage INSTALLATION SAFETY WARNINGS CABINET APERTURE

WARNING:THIS WARNING IS AFFIXED TO THE APPLIANCE. THIS APPLIANCE MUST

THIS APPLIANCE IS NOT CONNECTED TO À FUME EXTRACTION FLUE FOR EXTRACTING PRODUCTS OF COMBUSTION. IT MUST BE INSTALLED AND CONNECTED CONFORMING TO INSTALLATION REGULATIONS IN FORCE. IT IS OF UTMOST IMPORTANCE TO RESPECT LEGISLATION REGARDING VENTILATION. CABINET APERTURE THE APPLIANCE MUST FITTED AT AN APPROPRIATE AND SAFE DISTANCE FROM FLAMMABLE MATERIALS. This oven has a CLASS 3 grading: BUILT-IN APPLIANCE FOR KITCHENS OR WORKTOPS. MINIMUM DISTANCES FROM WALLS TO BE RESPECTED Always respect the minimum distances, depending on model, from walls and floor as illustrated in FIG. 1 - PG. 122.

SIZE OF CABINET APERTURE

Cut-out a hole in the cabinet as ilustrated in FIG. 2 - PG. 123 size will depend on appliance model. The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit. The cabinet aperture must be perfectly squared and aligned. there are apertures for cabinet ventilation, prevent flammable materials from entering.

MAINTENANCE 1 [1] 1 Mount the flue attachment (K) and secure in place with the 2 fixture screws provided as illustrated in FIG. 3 - PG. 126 and then proceed with connecting the ducting to the flue. The roof mounted flue must be positioned vertically with a maximum inclination of 15°. Drill a 60mm @ hole in the roof of the vehicle in proximity of the oven. To avoid damaging or denting the roof when installing the flue and 10 ensure sealing if required mount a Imm thickness metal plate to the wall with the hole. Install the flue and from the inside of the vehicle secure in place with the nut.To guarantee the roof is sealed and does not leak, afcer the oven has been on for several hours re-tightened the flue fixture nut.

Mount and install the ducting as ilustrated in FIG. 4 - PG.127. Feed the ducting into the flue unël it stops and secure in place with a self-tapping serew. 5 Using ties secure the ducting (2 55mm) and the protective tubing (2 65mm) for their entire lengths to the walls. GAS SUPPLY CHECK THESE SPECIFICATIONS BEFORE CONNECTING THE APPLIANCE TO THE GAS CYLINDER /BOTTLE.THE PRESSURE REGULATORS CONNECTED BETWEEN THE GAS CYLINDER AND APPLIANCE MUST CONFORM WITH THE CATEGORIES GIVEN IN THE TABLE BELOW. This appliance is designed for running off the following types of gas at the corresponding operating pressures. The gas category (or categories) of the appliance is given on the specifications label affixed to the appliance CATEGORY AND COUNTRY OF DESTINATION GAS PRESSURE 138/P(30) 30 mbar Butane (G30) AT BE DE DK FI GB NL NO PT SE SI 30 mbar Propane (G31) 13+ (28-30/37) 28-30 mbar Butane (G30) BE CHES FR GB IE IT PT SI 37 mbar Propane (631) MODEL TOTAL NOMINAL THERMAL | AIRVOLUME REQUIRED FOR CAPACITY COMBUSTION

VN555 -VN565 WHEN INSTALLING AND CONNECTING THE APPLIANCE TO THE GAS SUPPLY, ENSURE THAT THE GAS SUPPLY HOSE IS NOT TWISTED, STRETCHED OR SUBJECTED TO ANY FORM OF STRAIN WHICH COULD CREATE À HAZARD. The gas supply pipe connected to the appliance must be à rigid metal pipe with sealed fittings. le is possible to fit a flexible hose, however, in this case the following conditions must be respected:

2) The hose can be accessed easily for inspection:

b) The hose must be protected against coming into contact with parts which heat up (for example parts underneath the burners): ©) The hose must be protected against being damaged (twisting, pulling, trapping,…); d) The hose must be protected against being trapped by moving parts (e.g. drawers): e) The hose must not have a length over 1.5 m: # The hose must be replaced before its expiry date; Once the appliance has been connected to the gas supply check for gas leaks utilising a non-corrosive fluid. Do not use à water and soap solution. NEVER USE À FLAME TO CHECK FOR GAS LEAKS. LECTRICITY SUPPLY This chapter refers only to models with the wording 12V + on the appliance specifications label affixed to the appliance. THIS APPLIANCE MUST BE CONNECTED TO A 12V- POWER PACK ONLY. THE CIRCUIT MUST BE FITTED WITH A SAFETY FUSE NOT HIGHER THAN 3 AMP. WHEN WIRING THE APPLIANCE RESPECT CORRECT POLARITY! IT IS OF UTMOST IMPORTANCE NEVER TO CONNECT THIS APPLIANCE TO MAINS VOLTAGE (230 V-) WHICH IRREVERSIBLY DAMAGES APPLIANCE COMPONENTS AND CREATES À HAZARD TO THE USER. WARNING. To connect the appliance use a 1.5 mm double red and black wire and wire to the terminal junction box located at the rear of the appliance. The red terminal is the positive pole and the black terminal is the negative pole. FIXTURE THIS APPLIANCE MUST BE FITTED AND SECURED TO THE CABINET UTILISING FIXTURE SCREWS AS ILLUSTRATED IN FIG. 5 - PG. 128.

(GRILL) THIS SYMBOL IS POSITIONED NEAR THE OVEN BURNER KNOB THIS SYMBOL IS POSITIONED NEAR THE GRILL BURNER KNOB The following symbols are for burner flame regulation and correspond to the position of the knob. NOTE: Different models may have different knobs and different symbols.

OVEN THE OVEN BURNER MUST BE IGNITED ONLY WITHTHE OVEN DOOR FULLY OPEN. THE WIRE SHELF, DRIP TRAY AND OVEN DISH WHEN INTHE OVEN MUST BE POSITIONED SO AS TO AVOID COMING INTO CONTACT WITHTHE FLAMES. IFTHE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND WAIT ONE MINUTE BEFORE RE-IGNITING. - ELECTRONIC IGNITION OVEN (DEPENDING ON MODEL) To ignite burner, push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time press the electronic ignition pushbutton (for models that have x affixed to the oven door the electronic ignition button is not visible and is activated by pressing the gas knob down). Once the burner is alight maintain the Knob in this position for a few seconds to ensure the flame remains alight. IFTHE BRUNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER HAVING FOLLOWED EACH STEP BELOW:

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition. To ignite burner, gently push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight. IFTHE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS INTHE GAS BOTTLE. IFTHE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE rer MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- OVEN FLAME REGULATION WITH THERMOSTAT

POSITIONS 1 2 3 4 s 6 TEMPERATURE |130° C | 160° c | 180° c | 200° c | 220°c |240°c When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven reaches the set temperature the flame automatically goes down to low flame.

GRILL THE GRILL BURNER MUST BE IGNITED ONLY WITH THE DOOR FULLY OPEN. IF THE BURNER DOES NOT IGNITE IMMEDIATELY, RELEASE THE KNOB WAIT FOR AT LEAST 10 SECONDS AND IGNITE AGAIN. AS ACCESSIBLE PARTS MAY BE VERY HOT WHEN USING THE GRILL KEEP ——— CHILDREN AT A SAFE DISTANCE FROM GRILL. WHEN USINGTHE GRILL THE DOOR MUST BE KEPT OPEN AND WITHTHE HEAT GUARD FULLY EXTRACTED (FIG.6 - PG. 130). NEVER USE THE GRILL FOR MORE THAN 25 MINUTES.THE GRILL CANNOT BE USED AS AN OVEN. IF THE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND WAIT ONE MINUTE BEFORE RE-IGNITING. - ELECTRONIC IGNITION GRILL (DEPENDING ON MODEL) To ignite burner, gently push-in and turn the control knob to position GRILL or HIGH FLAME and maintaining the knob pushed at the same time press the electronic ignition button (for models with the x symbol affixed to the door, the ignition button is not visible and is activated by pressing the knob down). Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight. IF THE BRUNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER HAVING FOLLOWED EACH STEP BELOW:

Manual ignition when the appliance is not fitred with the electronic ignition feature or in the event of failure in the electronic ignition. To ignite burner, gently push-in and turn the control knob to position GRILL or HIGH FLAME and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is aligh maintain the knob in this position for a few seconds to ensure the flame remains alight. IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS INTHE GAS BOTTLE. IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE une MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- FLAME REGULATION GRILL

For models VN555 and VN565: 10 regulate flame turn the Knob to the desired cooking flame. For all other models: the grill is to be used only at its rated thermal capacity.

VISUAL FLAME CONTROL

Depending on the type of gas used the flame should be: Propane (G31); blue flame without yellow tips. Butane (G30): flame with yellow tips when ignited which becomes more intense in colour as the burner heats. MRSTATTATION

MAINTENANCE 1 [14 SPIT lgnite the oven as described in the chapter OVEN. Turn the gas knob to the required position. Insert the drip tray with the spit already installed as illustrated in FIG. 7 - PG. 130. Press the spit button to turn on the spit motor. THE ROTATING PLATE CAN BE USED WITHTHE GRILL ONLY Ii the gril burner as described in the chapcer GRILL. Position che drip &ray with the routine plate as ilustrated in IG.8 - PG. 131. Press the purpose button to turn on rotating plate motor. OTTLES NEVER OPERATE THE APPLIANCE WITH GAS AND OR AT GAS PRESSURES DIFFERENT TO THOSE INDICATED BY SMEV AS THIS COULD CAUSE IRREGULAR AND INCORRECT OPERATION. SMEV DECLINES ALL RESPONSIBILITY FOR DAMAGE OR INJURY CAUSED BY AN INCORRECT OR IMPROPER USE OF THE Tunes APPLIANCE. The appliance runs off standard gas bottles which can be found in the country of use. The type of gas to use is clearly marked on the packaging and on the specifications label affixed to the rear of the appliance. However always respect the following instructions: gas bottles must always be located and positioned in the compartment provided for this purpose. They must always be vertical and fitred with a pressure regulator and easily accessible and not obstructed. Do not obstruct or impede access to the gas bottle to permit quick and easy access when replacing. WARNING!:When replacing the gas bottle always take the following precautions:

2) close all gas knobs;

b) make sure there are no flames or fires in proximiy of the gas bottle; c) close the gas valve on the bottle to be replaced: d) unscrew the pressure regulator on the empty bottle and remove the bottle from the purpose compartment. This procedure is inverted for fitting a new bottle. Check for gas leaks using a non-corrosive fluid/solution. Do not use a Water and soap solution. NEVER USE À FLAME TO CHECK FOR GAS LEAKS; €) ignite the burners to check they function correcty. there are problems, call in an authorised gas service engineer. AFTER APPLIANCE USE ALWAYS TURN OFFTHE GAS TAP ON THE BOTTLE. GAS LEAKS We recommend the use of an electronic and homologated gas detector for checking for gas leaks. there is a smell of gas;

2) immediately open the windows and evacuate the vehicle or caravan.

b) do not turn on or of light switches or other electronic and electric appliances, do not light matches or lighters or anything that could cause the gas to ignite; €) put out any flames d) shut off the valve on the gas bottle or cylinder. Do not re-open this valve unless the gas leak has been identified and eliminated. €) contact a specialised gas service engineer.

‘When removing and mounting the injectors the injector holder must be held in place with the aid of tool (FIG.9 - PG. 131). BURNER © INJECTOR (mm) STAMPED N. OVEN 053 53 GRILL 0,62 GI MRSTATTATION ranrevnce Il

ALLUMAGE MANUEL DU FOUR 28

REGLAGE DE LA FLAMME DU FOUR AVEC THERMOSTAT 28 RIL: 2 ALLUMAGE ELECTRONIQUE DU GRIL (SELON LE MODELE) 2

ALLUMAGE MANUEL DU GRIL 2

DIMENSIONS DU FOUR A ENCASTREMENT

- ALLUMAGE MANUEL DU FOUR

- ALLUMAGE MANUEL DU GRIL

erwenourc-W MRSTALTATIONT

THERMISCH VERMOGEN THERMISCH VERMOGEN

MANUEL TÆNDING AF OVNEN

- MANUEL TÆNDING AF OVNEN

INSTALLASION | BRUK VEDLIKEHOLD

MANUELL TENNING AV STEKEOVNEN

INNEBYGGINGSHULLETS MÂL
