| Product type | Wood stove with storage firebox |
| Brand | HASE |
| Model | VALENCIA |
| Nominal heat output | 8 kW |
| Energy efficiency | 81 % |
| Fuel | Wood logs (max length 33 cm for 8 kW, 25 cm for 4 kW) |
| Maximum fuel quantity | 2.5 kg per load |
| Dimensions (H × W × D) | 200.5 cm (variable) × 86 cm × 53 cm |
| Weight (depending on cladding) | 343 kg (ceramic), 386 kg (soapstone), 365 kg (sandstone) + 25 kg (mounting element) |
| Flue pipe diameter | 15 cm |
| Air intake diameter | 10 cm |
| Flue gas temperature | 300 °C at the flue connector |
| Flue gas mass flow | 8 g/s |
| Minimum flue draft | 13 Pa |
| CO content (at 13% O2) | 996 mg/m³ |
| Fine particles | 29 mg/m³ |
| Firebox opening | 1764 cm² |
| Safety distances (front) | 120 cm in front of the stove |
| Safety distances (sides) | 30 cm on each side |
| Safety distances (rear and ceiling) | 1 cm at rear, 2 cm at ceiling (5 cm in Switzerland) |
| Standard | EN 13240:2001 + A2:2004 |
| Maintenance | Empty the ash pan after cooling, clean surfaces with a vacuum cleaner |
| First use | Initial heating period of 4 to 5 hours, ventilate the room |
Frequently Asked Questions - VALENCIA HASE
User questions about VALENCIA HASE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wood stove in PDF format for free! Find your manual VALENCIA - HASE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VALENCIA by HASE.
USER MANUAL VALENCIA HASE
Chere clientele, Cher client,
These operating instructions provide important information about the safe operation and handling of your Valencia stove. Please read carefully through these operating instructions before using the stove for the first time.
In addition, your Valencia stove comes with general operating instructions (part II) containing further instructions and helpful tips on how to use Hase stoves.
Enjoy your Valencia stove!
- General Information 30
1.1. Definition of Safety Notes 30 - Control Elements 31
- Safety Distances 32
- Fuel Load Sizes and Thermal Output 32
- Initial Operation 33
- Lighting the Fire 33
- Adding Fuel / Heating at Nominal Thermal Output .34
- Emptying the Ash Analyzer 34
- Technical Data 35
- Connection Variants 36
- CE Declaration of Conformity 37
Page
1. General Information
This section contains important information on using this technical documentation. Utmost care was taken in preparing this document. Nevertheless, suggestions for improvement and comments regarding any errors are always welcome.
1.1 Definition of Safety Notes
WARNING!
This symbol alerts you to a potentially hazardous situation. Non-compliance with this warning can cause severe injuries, or even death.
CAUTION!
This symbol alerts you to a potentially hazardous situation. Non-compliance can cause damage to property or injuries to persons.
NOTE!
Provides additional tips about using the stove as well as useful information.
ENVIRONMENT!
Sections marked with this symbol provide information about safe and environmentally-friendly operation as well as environmental laws and regulations.

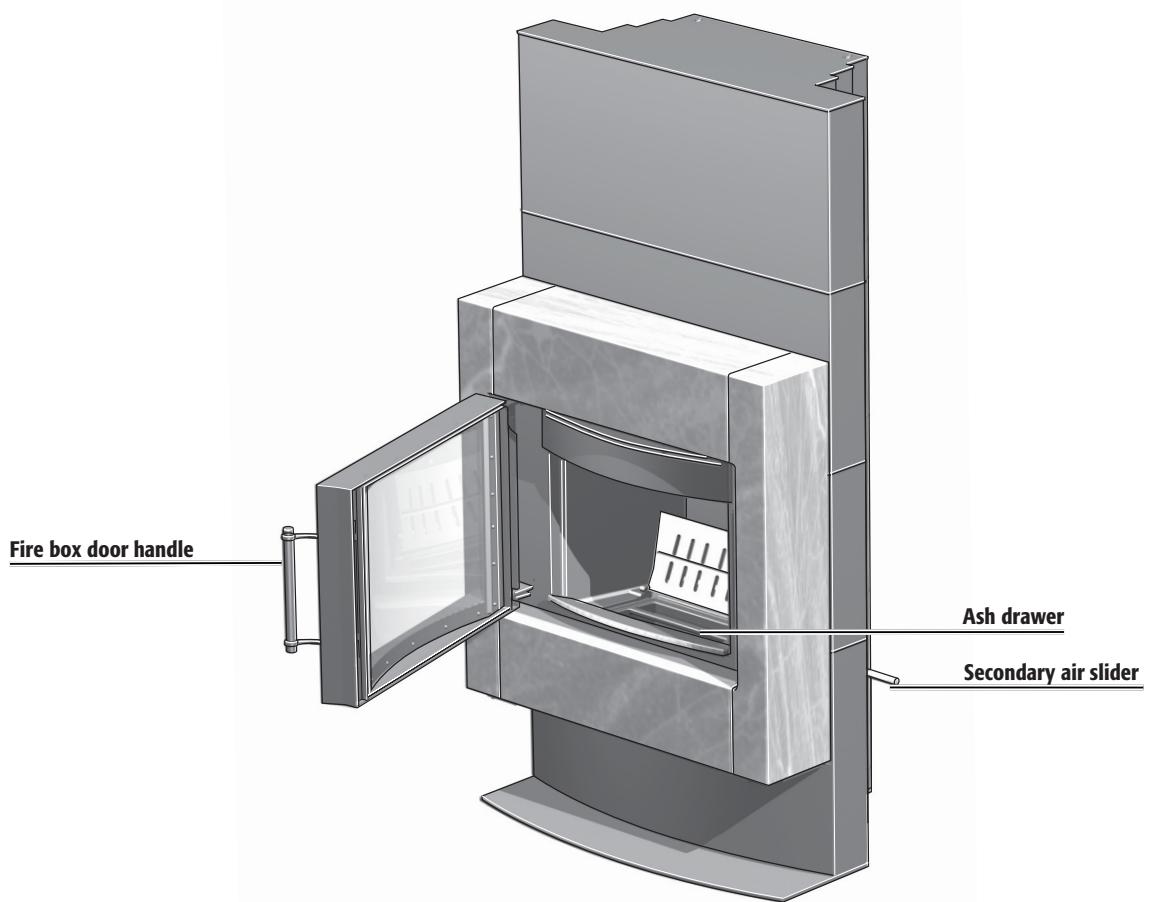

2. Control Elements
GB

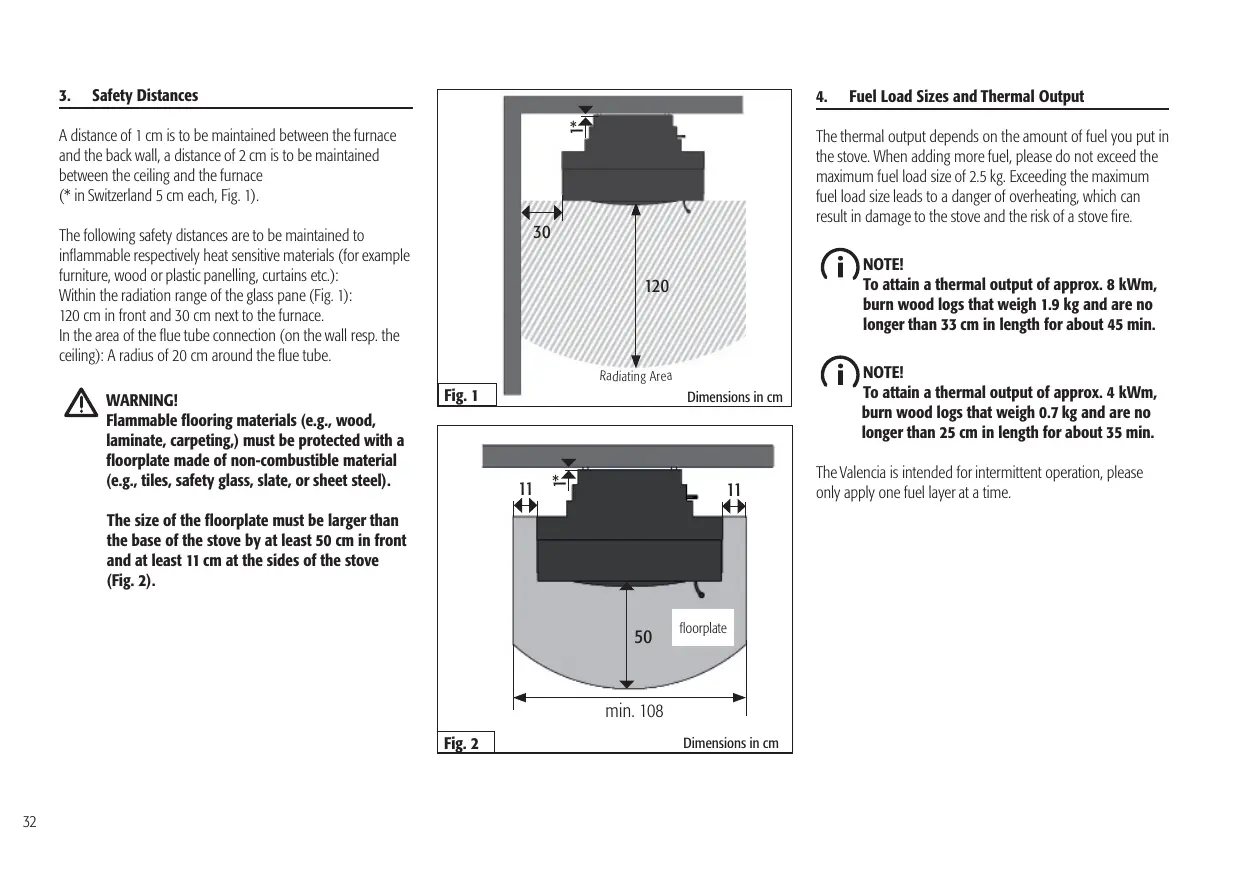

3. Safety Distances

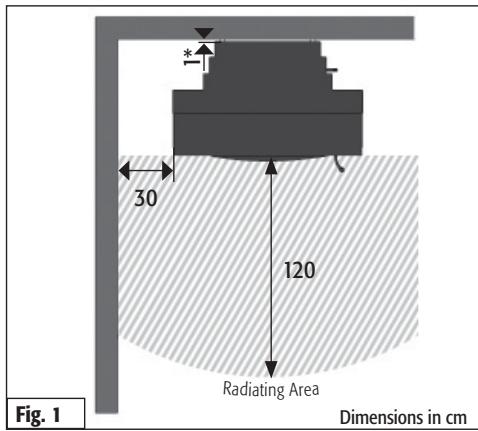

A distance of 1cm is to be maintained between the furnace and the back wall, a distance of 2cm is to be maintained between the ceiling and the furnace (* in Switzerland 5 cm each, Fig. 1).
The following safety distances are to be maintained to inflammable respectively heat sensitive materials (for example furniture, wood or plastic panelling, curtains etc.): Within the radiation range of the glass pane (Fig. 1): 120~cm in front and 30~cm next to the furnace. In the area of the flue tube connection (on the wall resp. the ceiling): A radius of 20~cm around the flue tube.
WARNING!
Flammable flooring materials (e.g., wood, laminate, carpeting,) must be protected with a floorplate made of non-combustible material (e.g., tiles, safety glass, slate, or sheet steel).

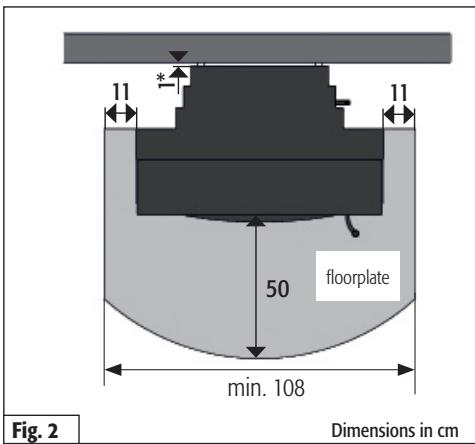

The size of the floorplate must be larger than the base of the stove by at least 50~cm in front and at least 11~cm at the sides of the stove (Fig. 2).
4. Fuel Load Sizes and Thermal Output
The thermal output depends on the amount of fuel you put in the stove. When adding more fuel, please do not exceed the maximum fuel load size of 2.5kg . Exceeding the maximum fuel load size leads to a danger of overheating, which can result in damage to the stove and the risk of a stove fire.
NOTE!
To attain a thermal output of approx. 8kWm burn wood logs that weigh 1.9kg and are no longer than 33~cm in length for about 45min
NOTE!
To attain a thermal output of approx. 4kWm burn wood logs that weigh 0.7kg and are no longer than 25~cm in length for about 35min
The Valencia is intended for intermittent operation, please only apply one fuel layer at a time.
5. Initial Operation
NOTE!
During shipment, condensation moisture can accumulate in the stove's interior, which may possibly lead to the appearance of condensation or water on the stove or flue pipes. Please dry off these damp areas immediately.
The surface of your stove was treated in a sandblasting machine before applying the colour coating. Despite careful and thorough inspection, there may still be some residual material in the stove body, which can fall out when your stove is being installed.
NOTE!
To prevent any damage, please immediately vacuum up these small steel pellets with a vacuum cleaner.
The first time a stove is operated, the heat development causes the emission of volatile components from the coating, sealing strips and lubricants, and smoke and odours can occur.
At a higher combustion temperature, this one-time process can take between 4 to 5 hours. To achieve this higher combustion temperature, please increase the fuel quantity recommended in Section 7, "Adding Fuel/ Heating with Nominal Thermal Output", by approximately 25% .
CAUTION!
To prevent adverse effects on health, nobody should stay in the room(s) during this process
unless absolutely necessary. Make sure the room is well-ventilated and open the windows and outside doors. If needed, use a fan for faster air circulation.
If the maximum temperature is not reached during the first heating operation, you may notice an odour for a short period of time the next time the stove is used as well.
6. Lighting the Fire
The firing up phase should be as short as possible, since higher emissions can occur during this phase.
The slider settings described in Table 1 (see figure on the right) are recommendations that were determined under conformance testing conditions, in compliance with the relevant standard. Depending on the weather conditions and the draught capability of your chimney, accordingly adjust the slider positions for your Valencia to the local conditions.
NOTE!
The Valencia may only be operated when the fire box door is closed; the fire box door may only be opened to add fuel.
WARNING!
Never use spirits, petrol, or other flammable fluids to light the stove.
Lighting the Fire
Tab. 1
| Procedure | Position of Control Elements |
| Completely open secondary air | Pull secondary air slider all the way out |
| Pile up any remaining ash and unburned charcoal into the centre of the combustion chamber | |
| Place 2-3 small logs into the middle of the fire box; stack kindling/ignition material and approx. 0.5 kg of dry wood chips on top | Open fire box door |
| Light the kindling/ ignition material. | Put fire box door in the warming up position (leave slightly ajar). Wait about 5 minutes and then close the fire box door completely. |
7. Adding Fuel / Heating at Nominal Thermal Output
More fuel should be added to the fire when the flames from the previous burning off phase have just gone out.
Adding Fuel / Heating at Nominal Output
Tab. 2
| Procedure | Position of Control Elements |
| Adjust secondary air | Set secondary air slider to position 3-4 |
| Add two logs weighing approx. 1.9 kg in total. Place logs with the end to the front of fire box. Only add a single layer of fuel. | Open fire box door |
| Close fire box door |
8. Emptying the Ash Analyzer
As a safety precaution, please make sure that you only dispose of ashes once they are cold.
The ash drawer contains the mineral components of the wood (approx. 1% ) as combustion residues.

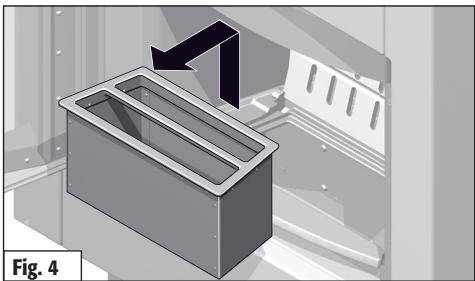

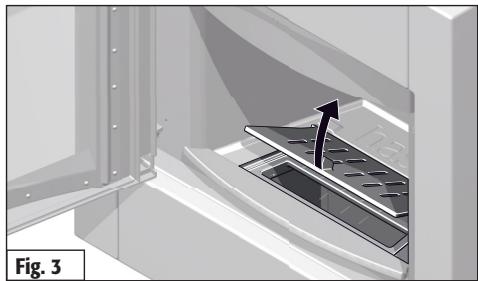

Lift the fire grate and tilt it towards the back (fig. 3). The furnace ash dump can then be removed (fig. 4).
9. Technical Data
The Valencia, certified in compliance with DIN-EN 13240:2001 + A2 2004 and Art. 15 a B-VG (Austria), can only be operated when the fire box is closed; more than one device can be connected to the chimney.
VFK-No.: 19137; Inspection Report No. (A): FSPS-Wa 1853-A
The following data applies to the chimney characteristics in accordance with EN 13384-1 / 2:
| Combustion Values | Wood | |
| Nominal Thermal Output | 8 | kW |
| Waste Gas Mass Flow Rate | 8 | g/s |
| Waste Gas Outlet Temp. | 300 | °C |
| Min. Supply Pressure at Nominal Thermal Output | 13 | Pa |
| CO content at 13% O2 | 996 | mg/m3 |
| Efficiency | 81 | % |
| Particulate | 29 | mg/m3 |
Depending on the insulation of the building, the nominal thermal output of 8 kW indicated on 30 - 115 m² (subject to change)

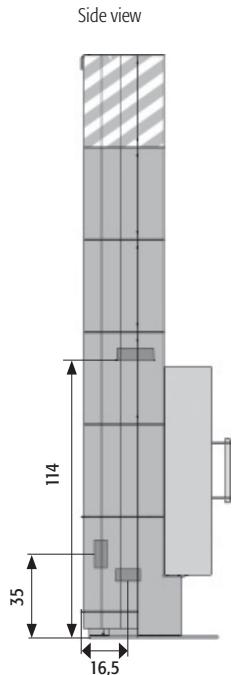

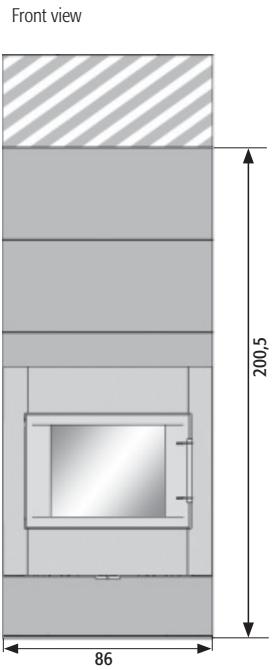

| Dimensions: | Height | Width | Depth | ||
| Stove | 200,5 cm - variable | 86 cm | 53 cm | ||
| Fire box | 51,5 cm | 31,5 cm | 31,5 cm | ||
| Ceramic | Soapstone | Sandstone | Structure element | ||
| Weight: | 343 kg | 386 kg | 365 kg | 25 kg | |
| Fire Box Opening: | 1764 | cm2 | |||
| Flue pipe diameter: | 15 | cm | |||
| Pipe diameter of Hase ventilation system* | 10 | cm | |||
- For separate air supply in low-energy houses and insufficient combustion air supply in the room where the stove is installed

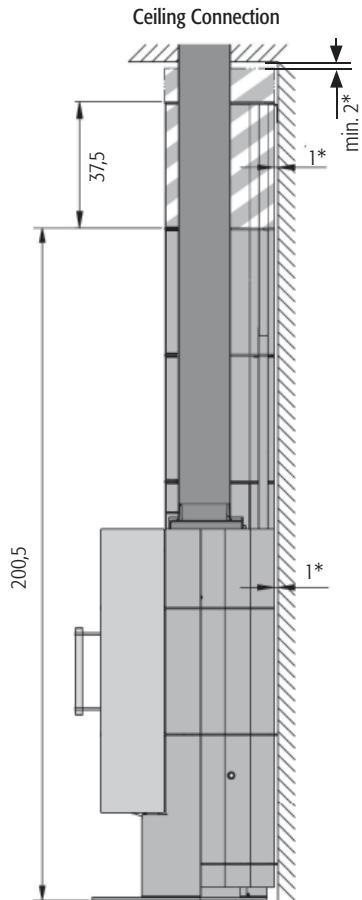

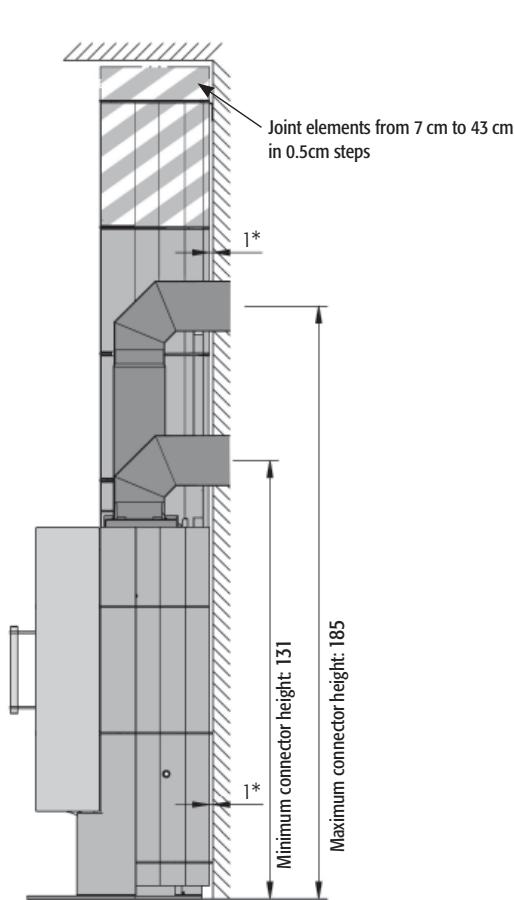

Top view
Dimensions in cm
(^* in Switzerland 5cm)
imensions in cm
11. CE Declaration of Conformity
The original Declaration of Conformity and associated documents are available from the manufacturer upon request.
Hereby declares that the room heating appliance for use
with solid fuels, bearing the trade name:
Valencia
complies with the stipulations and provisions of the:
CE Construction Products Directive 89/106/EEC and the M129 Mandate
and is in compliance with the following harmonised standard:
EN 13240:2001+EN 13240:2001/A2:2004
The notified testing institute listed below has performed the inspection and testing of the room heating appliance for use with solid fuels in regards to conformity with the requirements specified by the standard:
RWE Power AG
Trier, Germany, dated 12.01.2011
Fernando Najera, Executive Manager
Please observe the safety notes and precautions contained in the installation and operating instructions that are shipped with the product.
Beste klant,

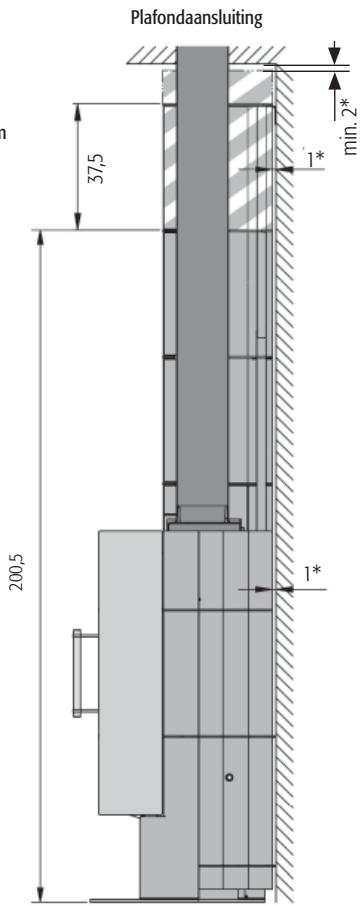

(*in Switzerland 5cm)

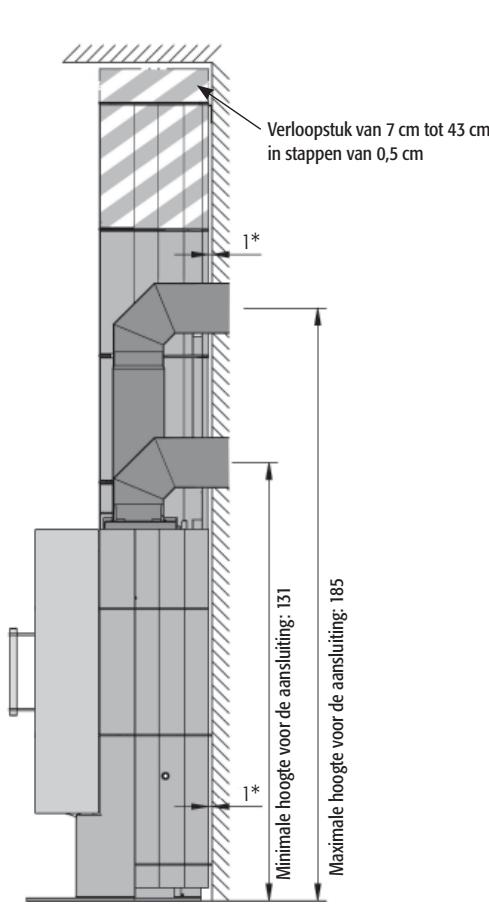

Afmetingen in cm
