USER MANUAL RB-1092 ROTEL

WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, be sure that the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

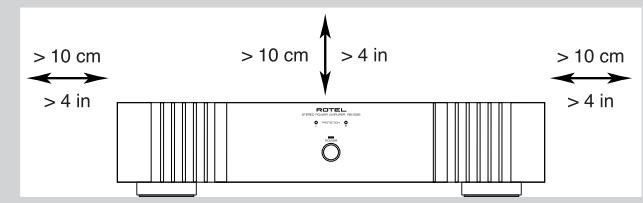

You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling.

Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat.

The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit.

Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords.

Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit.

Main plug is used as the mains disconnect device and shall remain ready accessible.

The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.
• Objects have fallen or liquid has been spilled into the unit.
  The unit has been exposed to rain.
• The unit shows signs of improper operation
• The unit has been dropped or damaged in any way

Please use Class 2 Wiring when connecting the speaker terminals of the unit to ensure proper insulation and minimize the risk of electrical shock.

Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over.

This symbol means that this unit is double insulated. An earth connection is not required.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCSE ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND.

This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock.

This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.

Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

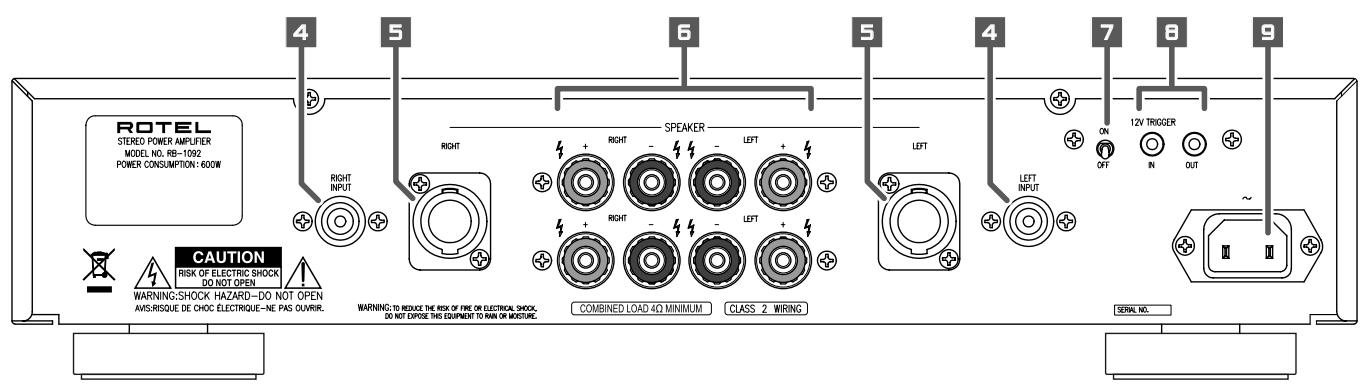

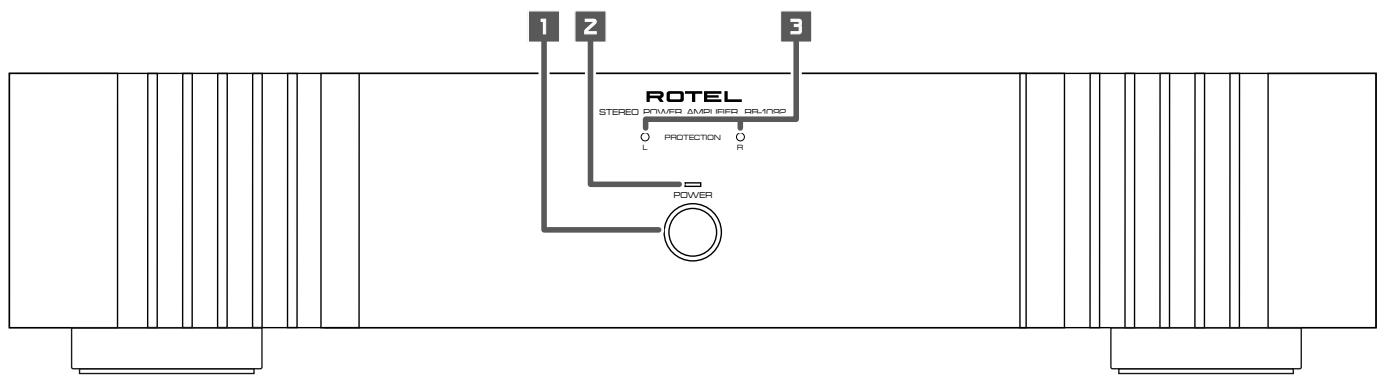

Figure 1: Controls and Connections

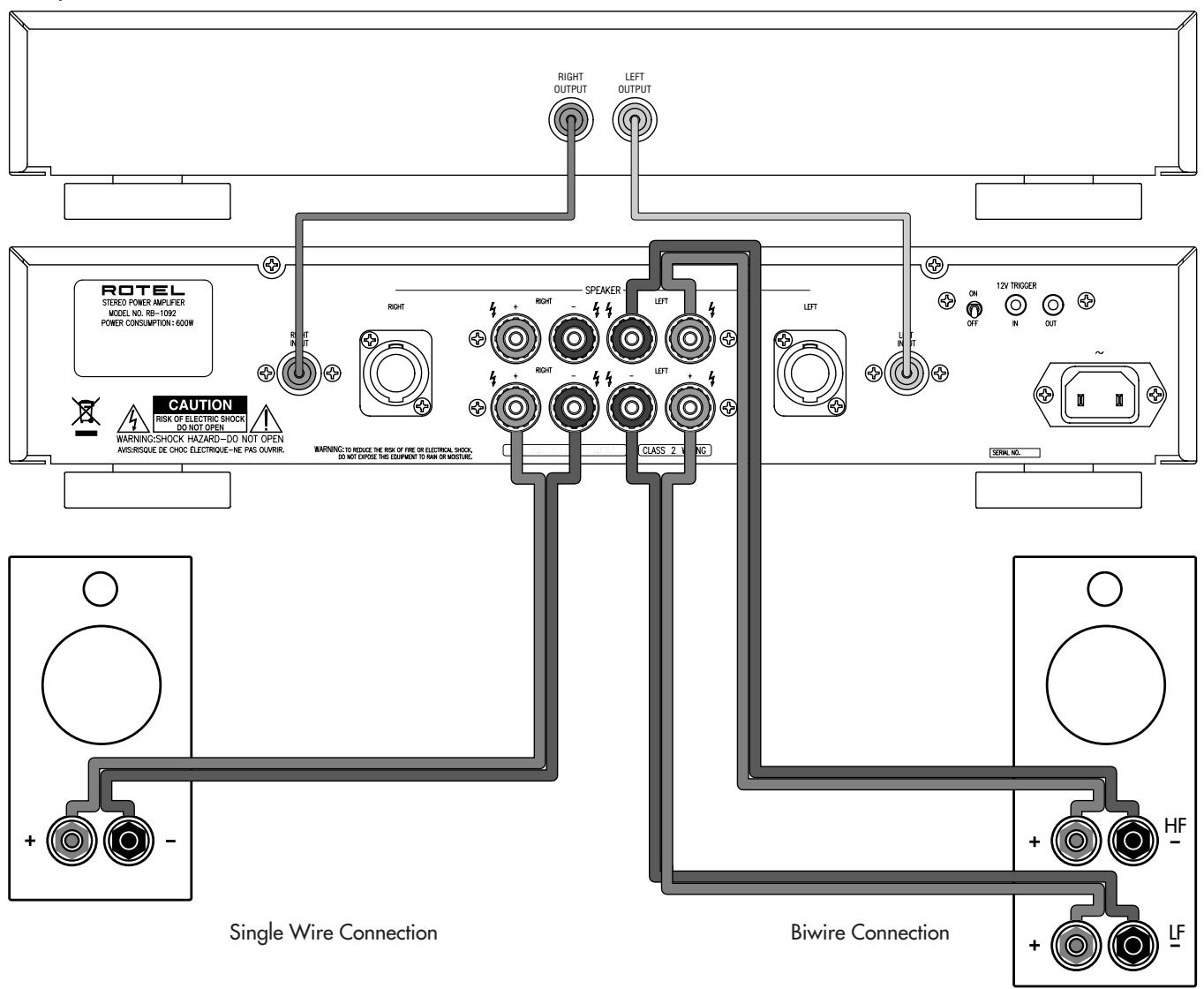

Figure 2: Input and Output Connections
Preamp or Sound Processor

See page 7 for information on using the Speakon® speaker output connectors.

Important Notes

When making connections be sure to:

Turn off all the components in the system before hooking up any components, including loudspeakers.
Turn off all components in the system before changing any of the connections to the system.

It is also recommended that you:

Turn the volume control of the amplifier all the way down before the amplifier is turned on or off.

Contents

Figure 1: Controls and Connections 3
Figure 2: Input and Output Connections 4
About Rotel 5

Getting Started. 5

Operating Features 5
A Few Precautions 5
Placement 5

AC Power and Control 6

AC Power Input 6
Power Switch and Indicator 1 Z 6
Turn On/Off Mode Selector 6
+12V Trigger Input and Output 6

Protection Indicators 3 6
Input Signal Connections 4 6

Speaker Connections 7

Speaker Selection 7
Speaker Wire Selection 7
Polarity and Phasing 7
Conventional Speaker Wire Connections 6 7
Speakon® Speaker Connection 5 7

Troubleshooting. 8

Front Panel Power Indicator Is Not Lit 8
No Sound 8
Protection Indicator Is Lit 8

Specifications. 8

About Rotel

A family whose passionate interest in music led them to manufacture high fidelity components of uncompromising quality founded Rotel over 40 years ago. Over the years that passion has remained undiminished and the goal of providing exceptional value for audiophiles and music lovers regardless of their budget, is shared by all Rotel employees.

The engineers work as a close team, listening to, and fine tuning each new product until it reaches their exacting musical standards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semiconductors from Japan or the United States, and toroidal power transformers manufactured in Rotel's own factory.

Rotel's reputation for excellence has been earned through hundreds of good reviews and awards from the most respected reviewers in the industry, who listen to music every day. Their comments keep the company true to its goal – the pursuit of equipment that is musical, reliable and affordable.

All of us at Rotel thank you for buying this product and hope it will bring you many hours of enjoyment.

Getting Started

Thank you for purchasing the Rotel RB-1092 Stereo Power Amplifier. When used in a high-quality music or home theater system, your Rotel amplifier will provide years of musical enjoyment.

The RB-1092 is a sophisticated two-channel power amplifier. It's digital amplifier circuitry, switching power supply, premium components, and Rotel's Balanced Design ensure superb sound quality. High current capability allows the RB-1092 to drive difficult speaker loads with ease.

Operating Features

• Two amplifier channels.
• User selectable power on/off configuration: manual or controlled by remote 12 volt trigger signal.
• Protection circuitry with front panel indicators.
• Dual binding post and Speakon® speaker outputs.

A Few Precautions

Please read this manual carefully. In addition to installation and operating instructions, it provides information on various RB-1092 system configurations. Please contact your authorized Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.

Save the RB-1092 shipping carton and packing material for future use. Shipping or moving the RB-1092 in anything other than the original packing material may result in severe damage to your amplifier.

Be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required.

Placement

The RB-1092 generates heat as part of its normal operation. The heat sinks and ventilation openings in the amplifier are designed to dissipate this heat. The ventilation slots in the top cover must be unobstructed. There should be 10cm (4 inches) of clearance around the chassis, and reasonable airflow through the installation location, to prevent the amplifier from overheating. Likewise, remember the weight of the amplifier when you select an installation location. Make sure that the shelf or cabinet can support its weight.

AC Power and Control

AC Power Input 9

The RB-1092 is supplied with the proper AC power cord. Use only this cord or an exact equivalent. Do not use an extension cord. A heavy duty multi-tap power outlet strip may be used, but only if it is rated to handle the current demand of the RB-1092.

Be sure the Power Switch on the front panel of the RB-1092 is turned off. Then, plug one end of the cord into the AC power connector on the back panel of the amplifier. Plug the other end into an appropriate AC outlet.

Your RB-1092 is configured at the factory for the proper AC line voltage in the country where you purchased it (USA: 120 volts/60 Hz, Europe: 230 volts/50 Hz). The AC line configuration is noted on a label on the back panel.

NOTE: Should you move your RB-1092 to another country, it is possible to configure your amplifier for use on a different line voltage. Do not attempt to perform this conversion yourself. Opening the enclosure of the RB-1092 exposes you to dangerous voltages. Consult a qualified technician or the Rotel factory service department for information.

If you are going to be away from home for an extended period of time, it is a sensible precaution to unplug your amplifier.

Power Switch and

Indicator 12

The Power Switch is located on the front panel. To turn the amplifier on (or to activate either of the optional automatic power-on modes), push the switch in. The LED indicator above the switch will light, indicating that the amplifier is turned on. To turn the amplifier off, push the button again and return it to the out position.

Turn On/Off Mode Selector

The RB-1092 can be turned on and off automatically by using its "12V Trigger" system. The Turn On/Off Mode Selector switch is used to select which method is used.

• With the switch in the OFF position, the amplifier is turned on or off manually using the front panel power switch.
• With the switch in the 12V TRIG. position, the amplifier is turned on automatically when a 12 volt trigger signal is applied to the 3.5mm Jack labeled IN. The front panel POWER SWITCH overrides this function. It must be ON for the +12V trigger to work. Turning the switch OFF cuts power to the amplifier, regardless of whether or not a trigger signal is present.

+12V Trigger Input and Output

The jack labeled IN is for connecting the 3.5mm Plug/Cable carrying a +12 volt trigger signal to turn the amplifier on and off. To use this feature the adjacent switch must be set in the 12V TRIG position (see previous section). This input accepts any control signal (AC or DC) ranging from 3 volts to 30 volts.

The jack labeled OUT is for connecting another 3.5mm plug/cable to provide a 12V trigger signal to other components. The 12V output signal is available whenever +12 volt trigger signal is applied to the IN connector.

Protection Indicators 3

Thermal and protection circuits protect the amplifier against potential damage in the event of extreme or faulty operating conditions. Unlike many designs, the RB-1092's protection circuit is independent of the audio signal and has no impact on sonic performance. Instead, the protection circuit monitors the temperature of the output devices and shuts down the amplifier if safe limits are exceeded.

In addition, the RB-1092 includes overcurrent protection which operates only when load impedances drop too low. This protection is independent for each of the two channels.

Should a faulty condition arise, the amplifier will stop playing and the PROTECTION LED on the front panel will light.

If this happens, turn the amplifier off, let it cool down for several minutes, and attempt to identify and correct the problem. When you turn the amplifier back on, the protection circuit will automatically reset and the PROTECTION LED should go out.

In most cases, the protection circuitry activates because of a fault condition such as shorted speaker wires, or inadequate ventilation leading to an overheating condition. In very rare cases, highly reactive or extremely low impedance speaker loads could cause the protection circuit to engage.

Input Signal Connections 4

See Figure 2

The RB-1092 has standard unbalanced RCA-type input connectors, the type used on nearly all audio equipment. There is an RCA input for each of the two amplifier channels. These RCA inputs accept audio signals from pre-amplifiers or surround sound processors. Use high quality audio interconnect cables for best performance.

Speaker Connections

See Figure 2

The RB-1092 has two sets of dual binding post speaker connection terminals, one set for each amplifier channel. In addition there are two four-contact Speakon® connectors. Some speakers also have Speakon® connectors which make it easy to connect the speakers by simply plugging in wires that are terminated with Speakon® plugs. Even if your speakers do not have Speakon® connectors you can still use speaker wires that have Speakon® plugs on one end.

Speaker Selection

The nominal impedance of the loudspeaker(s) connected to each channel of the RB-1092 should be no lower than 4 ohms.

Speaker Wire Selection

Use insulated two-conductor stranded wire to connect the RB-1092 to the speakers. The size and quality of the wire can have an audible effect on the performance of the system. Standard speaker wire will work, but can result in lower output or diminished bass response, particularly over longer distances. In general, heavier wire will improve the sound. For best performance, you may want to consider special high-quality speaker cables. Your authorized Rotel dealer can help in the selection of appropriate cables for your system.

Polarity and Phasing

The polarity – the positive/negative orientation of the connections – for every speaker and amplifier connection must be consistent so all the speakers will be in phase. If the polarity of one connection is mistakenly reversed, bass output will be very weak and stereo imaging degraded. All wire is marked so you can identify the two conductors. There may be ribs or a stripe on the insulation of one conductor. The wire may have clear insulation with different color conductors (copper and silver). There may be polarity indications printed on the insulation. Identify the positive and negative conductors and be consistent with every speaker and amplifier connection.

If you are using Speakon® plugs be sure the wires are connected to the proper terminals on the plug.

Conventional Speaker Wire Connections

The RB-1092 has two sets of color coded terminals for each amplifier channel. Having two sets of terminals for each channel makes it easy to biwire the speakers. The speaker terminals accept bare wire, connector lugs, or "banana" type connectors (except in the European Community countries where their use is not permitted).

Route the wires from the RB-1092 to the speakers. Give yourself enough slack so you can move the components to allow access to the speaker connectors.

If you are using banana plugs, connect them to the wires and then plug into the backs of the speaker connectors. When using banana plugs, the collars of the binding post terminals should be screwed in all the way (clockwise).

If you are using terminal lugs, connect them to the wires. If you are attaching bare wires directly to the speaker connectors, separate the wire conductors and strip back the insulation from the end of each conductor. Be careful not to cut into the wire strands. Unscrew (turn counterclockwise) the binding post collar. Place the connector lug around the shaft, or insert the bundled wire into the hole in the shaft. Turn the collars clockwise to clamp the connector lug or wire firmly in place.

NOTE: Be sure there are no loose wire strands that could touch adjacent wires or connectors.

Speakon® Speaker

Connection 5

The RB-1092 has a four-contact Speakon® speaker connector for each channel. The four contact connectors make it easy to make biwire speaker connections. The connectors on the RB-1092 also accepts two contact Speakon® connectors if you do not plan to biwire the speakers.

Pre-wired Speakon® connector cables are available. You may also wire your own cables using wire you choose.

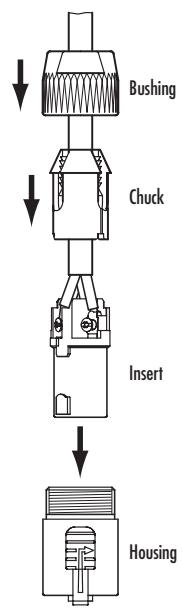

Wiring Speakon® Connectors

This information describes how to wire the NL4FC four-contact Speakon® connector. The NL2FC two-contact connector is connected in a similar way. See the instruction sheet that comes with the connector for more information, or go the manufacturer's web site, www.neutrik.com.

Place the bushing and chuck on the cable as shown before attaching the wires to the terminals on the insert.

Remove the outer jacket of the wire and strip the insulation from the wires as shown. Twist the wire strands together and insert it into the terminal. Tighten the terminal screw with a screw driver or a 1/16'' allen wrench to clamp the cable wire in place.

The insert terminals are labeled 1+ , 1- , 2+ and 2- . Connect the wires to the terminals of the connector insert for the other end of the cable before you assemble the connectors so you can be sure that each wire is connected to the corresponding terminal on each insert.

Push the insert all the way into the housing. Slide the chuck down the wire into place behind the insert. Thread the bushing onto the housing and tighten it so the chuck clamps the cable in place.

Troubleshooting

Most difficulties in audio systems are the result of poor or wrong connections, or improper control settings. If you encounter problems, isolate the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the RB-1092, refer to the suggestions for the following conditions:

Front Panel Power Indicator Is Not Lit

No main power to the RB-1092. Check AC power connections at the amplifier and the AC outlet. Check the front panel power switch. Make sure that it is set to the ON position. If using 12V trigger power-on, make sure that a trigger signal is present at rear panel 12V TRIG IN jack.

No Sound

If the amp is getting AC power, but is producing no sound, check the PROTECTION INDICATOR on the front panel. If lit, see below. If not, check all of your connections and control settings on associated components. Make sure that your input connections and speaker connections match your system configuration.

Protection Indicator Is Lit

One or both of the front panel PROTECTION INDICATORS will light when the RB-1092 protection circuits have shut off the amplifier. Typically, this occurs only when the amplifier has overheated, when there is faulty speaker wiring, or after a period of extreme use. Turn off the system and wait for the amp to cool. Then push the front panel power switch in and out to reset the protection devices. If the problem is not corrected or reoccurs, there is a problem with the system or the amplifier itself.

Specifications

Power Configurations

Watts/Channel

2x500Watts

500 watts, all channels driven, with 20KHz filter,

8 ohm load, 20-20 kHz, 0.03% THD

Total Harmonic Distortion (20Hz-20kHz, 8 ohms)

Continuous Rated Power

One-Half Rated Power

One Watt per Channel

< 0.03%

<0.03%

<0.03%

Power Output (4 Ohms, 0.09% THD)

Output Peak Current

Intermodulation Distortion 60 Hz:7 kHz, 4:1

Damping Factor (8 ohms)

Amp Gain

Input Sensitivity/Impedance

Frequency Response

Signal to Noise Ratio (IHFA)

Power Requirements

USA

Europe

Power Consumption

Dimensions (W× H× D)

Panel Height (for rack mounting)

Weight (net)

40A

< 0.03%

400

27.2dB

2.2 V/11.1 kohms

10-40KHz(±3dB)

118 dB

120 Volts, 60 Hz

230 Volts, 50 Hz

600 Watts

69 Watts - Idling

3 Watts - Standby

432× 92× 407mm

17^1 / 8× 3^5 / 8× 16^1 / 8 in

80 mm, 3^1 / 8 in

10 kg, 22 lb.

All specifications are accurate at the time of printing.

Rotel reserves the right to make improvements without notice.

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

ATTENTION: POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE PAS RETIRER LE CAPOT. IL N'Y A À L'INTERIEUR AUCUNE PIECE SUSCEPTIBLE D'ÊTRÉ MODIFIÉE PAR L'UTILISATEUR. EN CAS DE PROBLÈME, ADRESSEZ-VOUS À UN RÉPARATEUR AGRÉE.

IPEIOCTEPEXHEHIE: IIN CHIXKENH ONACHO B3ROPANH HNN NOPAXEHN 3NEKTPUeCKnM TOKOM He NOBepraite DAHHbI annapat BO3dEICTBnIO DOJkA INN Bnarn. He OONYCKaIte nonadAHnnoCTOpOHnX npeMetOB BHTpb KOpnyca EcInn BHTpb KOpnyca nonana BNara INN noCTOpOHnN npeMet, HemeJeHNO BbIHbTe Bnky shypa nHTAHN IN3 POSETKN. DoCTabte annapat K KBaIIHnOuropOBAHHomCneuaHnCTy dnn OCMOTpa N BO3MOxHORo PEMONTa.

Ipejde yem nooCoeHnHaTb annapat n ynpaBnTb nM, npOHTte BCE nHcTpyKuHN. CoxpanHte pykoBOdCTBO no 3kCnnyataun dna daJIbeHeJwero nCnonb3OBaHN.

O6paaIte BHNMaHHe Ha npedocptepexheny, yka3aHbIe Ha Kopnyce aannapata nB daHHom pykoBOcTe. YnpabTne annapatom B COOTBetCTBn C NHTpyKuAHH.

PpOu3BOJIne OChCTky KOpNyCa TOnbKO cyXoN TKaHbO Hn PbIeCOCOM.

Octabte He mehee 10cm cbo6oHoro npocpTaBb BOKpy annapata dIy. He cTabe annapat Ha KpOba, DIBAH, KOber nnnn noD6HyO mKkyo nobepxHocb, Kotopar moKet 3aRopOnb BEHTNlauonHbIe OTBepCTHa. Ecn annapat BCTpaBaetc B ukaΦ nnn npyro Kopny, 3tot Kopnyc DOJKeH BeHTnInpoBaTc dIra oecpeHHe OXaJxJeHn annapata.

Iepknte annapat noaalbse ot padnatopob otonnneHna, o6orpebaTeNe, neey n IIO6bIX npynx yctpoCTB, BbIeJeHOxNx tenno.

Cetoebe HaprajkeHne, K KOtOpOMy NOOcoeINHReTcAannapat, DOnJHO COOTBcTcBOBAT Tpe6oBaHnM, Yka3aHbIM Ha 3aDHei NaHEn annapata. He nepeDeIbBaIte BxoJaun B KOMPiKeT shyp nHTAHN. He noJIb3yItecb yIINHITeMaN.

He npoknaibBaite shypr nHTAHnB Mectax, rde OH moKet 6bIb NOBpeJen Hnnepepe. O6paaTe oco6oe BnMaHne Ha ceteByIO BnKy I MeCTO BbIXoHa shypa n3 annapata.

Ecn npednonaeraetcdoctatoHOnTo He nCnoIbObaTb annapat, BbHbTe Bnky shypa nITAHN H3 po3eTK.

HemeIeHNO npeKpaTHne noJIb3ObaTbc aannapatom n o6paTHeCb K KBaIIHnIupOBaHHOMy nepcoHany,ecn:

• NopBXeHbI shyP nHTAHnI INI BnKa.
  BHytpb annapata nonanin noctopohnne npedmetbl nnn KIOKCTb.
• Annapat nonan noDdoJkb.
• Annapat He cyHKzIOHnpyET doJIxHBiM o6pa3OM.
• Annapat yrhoHnHn OH nobpeJdH npYHM cnOco6om.

Pa3meeaTe annapat Ha yctoynBo, nlocko nobepxhoCTn, doctatoHOn npouHoi, yto6bl bidepXatb erO Bec. He CTabte annapat Ha teneKky, kotopar Moket onpOKHyTcR.

Pacnonarate np6op Ha yctouhBOB,POBHO NOBepxHocTIOCTaTOUHO pOuHO, UTo6bl BbIepXaTB erO BEc. He CTabBe erO HA nepeDbIrTaemy ToTeKky, KOTOPAR MoKet ONpOKHNHTBCr.

3TOT CIMBOI O3HauaET, YTO annapat 6bnaaet IBOHON H3OJIaueN He HJXJaETcB 3a3emnenn.

BHIMAHNE

ONACHOCTb NOPAXEHNIA 3JETKTPNCHCKHM TOKOM HE OTKpBtBATb

BHHMAHNE:Дяумьшениол�ахочипоррахени зн ektpческma TOKOM, He chmmoite BepxHIOIи 3aDHIIO paHJIb!ВHTPN HET qaTei,doCTyINbIXdЯO6cIyXNBAHN noIb3OBATEJIIO.Дobepte O6cIyXNBAHNe KBaIMnIpOBOAHHomMy MaTepeY.

N3o6paKeHHe MoJHnB B paBHOctOPOHHem TpeyroIbHnke npEynPepKjaet POnb3OBaTeJI O HAIuHm BHyTpN KOpNyca N3dEnH HeN3OIIpOBaHHOrO HanpXeHn, BeJIuHnA KOtOporo MoKet Co3DaBaTb OnaCHocTb NopXeHn Yenobeka 3NeKtpnuecknM TOKOM.

N3o6paqehne BocKJnauTeIbHoro 3naka B paBHOCTOpOHem TpeYrOJIbHKpeynpEeJaT eonb3OBaTeIe O HAnuIN B cOpBOXdAIOoe annpapat DOKyMeHTaUIN BaxhIX INcTHpyKUIO NO KcPnyataUIN texHueckOMy 06CNYKBAHNO.

Ipojktb Rotel cnpoeKtnpOBOHb taK, tO6bl COOTBETCTBOBAT 荷6oBaHnM MEXdyHapOoHbIX INpeKTNB NO OprAHnueHNO npImHeHH BpeHbX BeueCTB 3NEkTPOTEXHnueckOM IN 3NEkTPOHOM 6OpUoBAnH (Restriction of Hazardous Substances - RoHS), TAKKe no 6opauHenIO C oTCnyKBwIM Cboi cPOK 3NEkTPOTEXHnueckm IN 3NEkTPOHHbIM 6OpUoBAnHem (Waste Electrical and Electronic Equipment-WEEE). IV3o6paKeHne nepeuepKHyTO MycOpHoro 6aUka Ha KOlecax O3Haayet TaKke To, YTO 3TN Ipojktb DOnJkbHb 6bItb BTOpNHyHO NcONb3OBaHbI (peunKnipOBOHb) ININ JNe 6op6oTaHb B COOTBETCTBN C yNOMAHyTBm BIIwe INpeKTNBAMN.

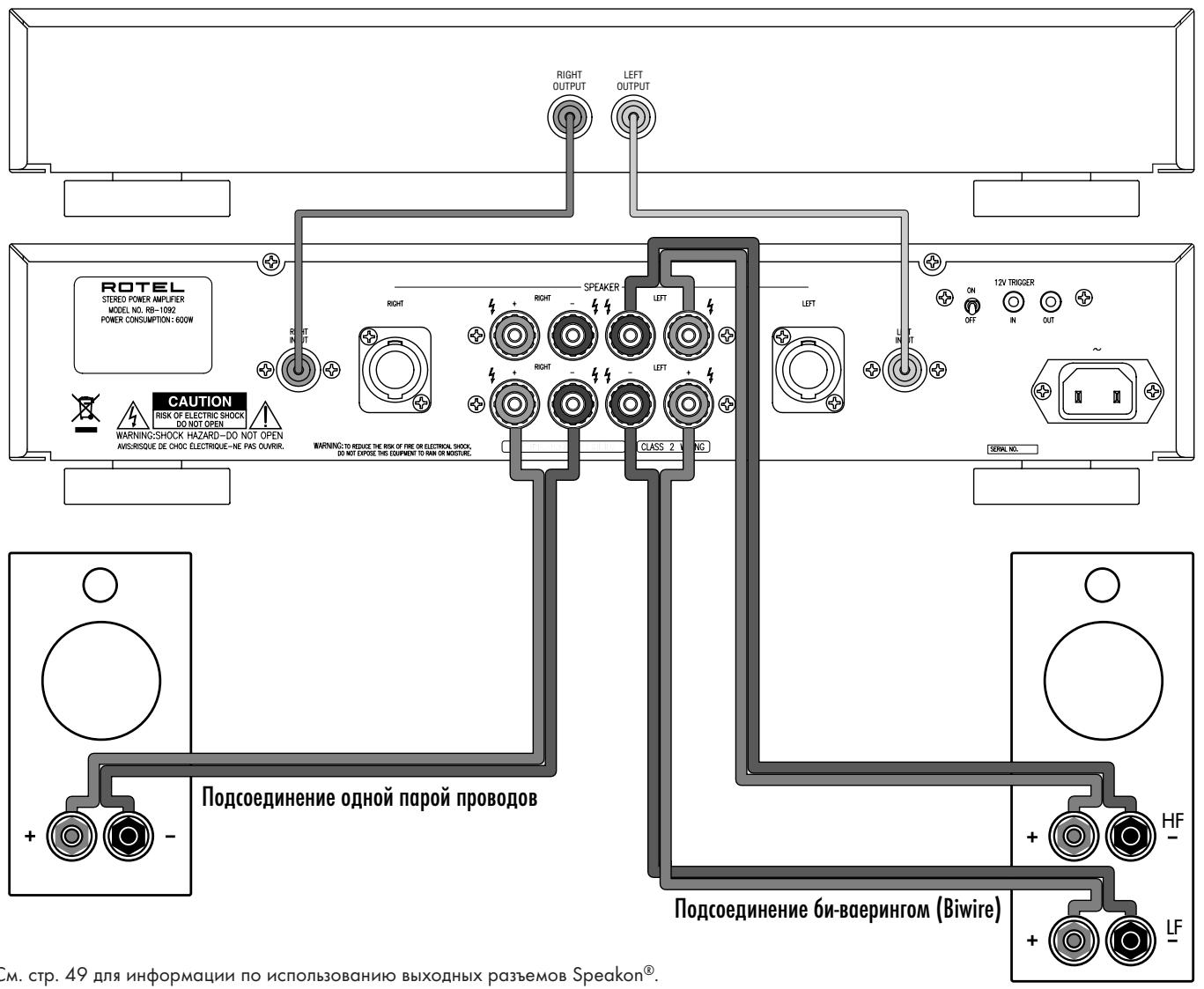

Pnc.2: NpoknIOueHne yCTpoNCTb Hb BXoN BbIXoYcHInTeTna.
Ppeynntel n npoeccop

Cm. ctp. 49 nHΦopMaunn no HcNoJb3OBaHIO BbIXOaHbIX pa3beMoB Speakon

Baxhble 3ameyahn:

Pn noKnoueHH, yOCTOBepbTecb, qTO:

Bce KOMnoHeHTb BbIKNoueHb, BKIOoay KOHOKN.
V BbIKIOUaIte TAKKHe BCE KOMHOENTbI pN IIO6OM H3MeHEnH KOHpyauu NBaIe CnCTembl.

PekomeHnyetcaTakke:

Y6paTb rpoMkoCTb Ha ycHnHTeNE DO MHHmyma, npEeJe YcEM BkIIOuHTb HIn BBkIOuHTb ETo.

Copepkhanne

Pnc.1: OprahbIy npabHeHHa pa3beMbI dIra NoDcoEHHeHH 3
Pnc.2: PnokKnIOUeHne UcTPOIcTB Ha BxOJn BbIXoJ yCNIJIteJIa. 46

O KompanHH Rotel 47

Nepbblewarn. 47

OCHOBHbIE CBOIcTBa 47
HeKoToPbIe npedocToPoXHoCTn 47
PazmeuHne 47

KoMaHnR RoTeI OchoBaHa 6Oone 40 net Ha3a ceMbey, KOTOPa H3-3a CtpaTHO NIOBn K My3bKe 3aHApac npOn3BoAdCBom hi-fi KOMnoHeTob. C rOamn 3Ta CtpaTb He yTHxna, n ceroJnA CTpeMneHHe CeMbN K ObcpeeHnO aYDnOΦHOB n MeNoMAHOB, He3ABNCmO OT IN φINAHCoBOrO nONooHnE, annapatypoB BbICoyaWero KaueCTBa, pa3dJIaHOT BCE cotpydnKn RoTeI.

Духная KMOMAnDA INHKeHepOB nPocnyuINBaET HAcTpaINBaET KAKdoe HOBOE n3dENHe, NOKA OHO He 6yDet COOTBcTcBOBaTb CAMbIM BbICOKM CTaHdaptAM.Иm ppeOCTaBNeHa CBo6OJa BbI6Opa KOMnNEKToUoiNX IO BCEmY Mpy, YTO6bl CcEnaTb annapat KAK MOxHo Nuywe.

Penytaun KOMnAHIN Rote! KaK npOn3BODnten IpeBOcXoHNo TExNHKn NODTBepxdeHa COTHMn IonoXtEnbHbIX OTbIBOB Harpad ot Han6Oonee yBaKaembIX 3KcneptOB. IV KOMMeHTapHN NOMaIOT KOMnAHIN ToUHO DePjAtcBcEe Kypca HA IpOn3BODCTBO KaueCTBeHHORO, HAdexHORO n DoCTynHOrO O6OpyDobAHIn.

Mby, cotpydHHKn KOMpaHHn Rotel, 6naorapm BAc 3a NOKyIKy 3TOr H3JeHN, n HauEemc, yTO OHO DOCTABNT BAM MHOrO yDOBOBONbCTBnR.

Персышагn

Blaoradapm Bac 3a noKpy ctepeo ycninten moHocr Rotei RB-1092.B coCTabe BbICOKokayctBeHHo ayDnOncTeMbI OH 6ydet DoCTABTb Bam ydoOBonbCTBne MHOne IOnbl.

RB-1092 - 3to COBepweHHbI yByXKAHAnbHbI yCnInTeJIb MoOHOCTH. Ero uΦpOBa CXemOTExNHKa, HmNylbcHbI NcTOUHK NTAHN, O6OpHbIe KOMNoHEtbl, IN hPmeHHbI C6aHaNCpOBaHHbI IoXoD Rotel (Balanced Design) oecneuBaet npebocxOdHoe KaecTBO 3Byka. Blicokar Harpy3ouHra cnoCo6HoCTb NO TOKy nO3BoJrE RB-1092 Ierko pa6oTa bJaKe c camblm cNoKhbIM aKycTHueckHMn cnCTeMMn.

OCHOBhIe CBOIcTBa

Bxoid N BbyXoA +12V Trigger

THe3IO C HAnINcBIO IN npedHa3NaHcEHO nn noKlnOueHn 3.5 MM wTeKKepa Ka6eN c +12-BoIbTObIM TprHrRePbIM CNrHAnOM -nn BkLNouHn N BbIKNoUeHn YcHInTeJ. IJa TORO, yTo6bl OH cpa6OtaI, ycHInTeB dOnJxeh 6bITb YctahOBnEH ceneKTopOM B nOnOxHne 12VTRIG (cm. npedbIduyun nyHKT).

TOT BXOД пинимаET ПбОБСИНТАЛ (NOCTOHORIO HINпеременогинряжени)ВДИПАЗОЕ OTO 3Bdo30B.

THe3do cHaannncbO OUT npedna3haeNo dnoNoknouehn npyto Ka6enc pa3bemom 3.5 MM, yTo6bl nOaTb ynpaBnIoUnn CnHan daIbwe Ha npyrte KOMnoHEntb. OH no8BnEETca Ha BixOe OndHOBpeMeHHo c +12 B Ha BxOdHom pa3beme IN.

HnKatopbl 3aunTbi

Cxema tenlobo 3auntbipneoxpaenrteynnteb ot nobpexdeHn npn 3kctpeMaBHOHarpy3e Hn HnnpabInbHOn 3KcNpyatau. B OTnue ot MhOrnx KOHCTpyKcn, cxema 3auntbi RB-1092 He3abucmaO ataydno CnHana n He Bnraet Ha KaeeCTBO BocpOn3BeDeHn. OHa OTcIeXnBaET temepatpy BixoDbIX TpaH3NtOpOB n B cnuyae npbeBbIeHn 6eONaCHO Tempepatpylp npekpaatp a6boty ycHnTe. Kpome toro, RB-1092 o6opudoban 3auntof ot neperpy3kn no Toky, kOtopaCpa6aTbBAe npn naedHN nonHOro cponTINBHeHHarpy3Kn HnKe 3aadHno.

PnCpa6aBbAHIN3aHtB yCNHTB npEkpaaet pa6oty, n 3aropaeTcN HNDKATOP PROTECTION. BbIKNoHTe NITAHNE yCNHTEN, daIte EMy oCTbTB HeCKoJIbKO MInHT N ONbItaNTecb NOHrTb npUChNY cpa6aTbBAHNA 3aHNTb. KOrDa BbI ChOBa BKNOHTe YCNHTEN, 3aHNTa ABtOMaTHueckn c6pocHTc, a HNDKATOp norachET.

Kak npabnno, 3aunita cpa6abtibaet n3-3a 3ambkaHna aydno ka6enei nn HeoctatoHoro npitoka Bo3dyxa K annapaty. B ouehb peknx cnuyaxcpa6abtibaHne 3aunTb MoKet 6blb BbiBaHO cepcUp H3Km HmpeJahcom AC nn erO npko BbyapKeHHo peAKTHBocTbIO. Ecnn 3aunita cpa6abtibaet nobTopHO Bam He ydaetca HaTHn pnuHny, npokOHcyIbtpHyTecb y abtopn3OBaHHoro Dnepa Rotel.

He ropnt nHdNKaTOp nHTaHnA

Ha RB-1092 He noaetcnaTahne OeNtKtpocetn. PnoBepbte BbIKNoUoatEn bntAnHnHa nepeDHe naHei.Ny6eInTeCb, Yo OH HaxOaHTcB nNoJoxKeHHN ON (BKn.). PnoBepbte noCoeHNHeHne Uhypa nTAnHn K YcNInTeHIO nPo3Te Ke 3NeKtpocetn. Ecn nCnoIb3yeTc TpHreRpbHb BxOd 12 B, npOBepbte, noaetcna CnHnA Hn Ihe3do 12 V TRIG IN.

Het3Byka

Ecni nPiTaHne Ha ycNInTeB noJaetcA, Ho 3Byka Het, npOBepbte HnIInKATOpbl 3aunItb. Ecni OHn IropT, cm. cIeNyUoJi nnKt. Ecni HET, npOBepbte Bce coeHNHeHn N pIoJoxHe ne OprAHOB ynpabNeHn NODcoEINHeHHbIX KOMNoHeHToB. IpOBepbte, COOTBeCTbYOT JIcOeHNHeHn Ha BxOJe N NOkIIuOHeHne KOHOK KOHfNrgpaunn BaWey ayno CnCTembl.

Toput nHdkaTOp PROTECTION

Cpa6oTana cxema 3aunltb. O6buHOn 3to npOxC0oNT npn 6NoKpOBKE BENTNIAUONHbIX OTBepCTn, HnnpABINbHOM nOcOeHNHeHHN AC nnn npOdoJXHTenbHO pa6ote B 3KCTpeMaIbHOM pexnme. BkIOuHTe cHCTemy nIOdoXnTe, noka ycInnte bochtet. 3aTEM BkIOuHTe N BkIOuHTe KHONKY nHTAHn, yTO6bl c6pocntb yctpoiCTBO 3aunltb. Ecn 3aunlta cpa6aTbIbaet NOtOpHo, 3Haun, HeNCpABHOCTb B cHCTeme nHn CAMOM ycInntene.

Texhnueckne xapaktepnctnkn

BbIXOHaMAoMHocTb (FTC)

2× 500B

Bt ha kahan

500 Bt/kaHJI, BCE kaHJIbI pa6oTaIOT, c HnltpOM

20KΓu,Ha8Om,(20Γu-20KΓu,<0,03%)

06uhe rapmoHueckne nckaxehn (20Tc-20Kt,8OM)

Pn HOMH. MoHocTN B HeIpep. peXnme

<0.03%

Pn noOBnHc HOMn, MoHocTn

<0.03%

Pn1 Bt ha kahan

<0.03%

BbIXoHnA MoHocTh (4OM,0,09% THD)

1000Br

ПИКOBын TOK Ha BblXOde

40A

HHTepmoDyIaUNOHbIE NCKXKeHN8 (60 _u:7 _u,4:1

<0.03%

DemnHr-akTop (8OM)

400

KoΦnueHt yCnHeHn

27,26

BxOHaHyBCTBnTeBHoCTb/VmpeaHc

2,2 B/11,1 KOM

Dnanaoh yactot

10Γ4-40KΓ（+3a5）

OthoWeHne CunHan/woM (B3BweeHnHO no KpInBOw "A")

118 AB

Tpe6obHnK 3neKtponntaHnIO

230B,50T4

Notpe6nma Mouhoctb

600B

Ta6apntbI (LXxBx)

432× 92× 407_MM

BbocTa nepeDneHnaneHn (nra peKOBOro MoHTaXa)

80mm,3,5"

Macca hetro

10kr

Bce texnueckne xapaktepepnctn KooTBeCTbYIO T deNCTbIneIbHOCTn Ha daty n3dAnna.

Kompania Rotel octablaet 3a co6o npabo moepnHnpobatb n3eHn8 6e3 ppeBaupntelhoro ybeomnenna.

ROTEL

The Rotel Co. Ltd.

10-10 Shinsen-Cho

Shibuya-Ku

Tokyo 150-0045

Japan

Phone: [phone]

Fax: [phone]

Rotel of America

54 Concord Street

North Reading, MA 01864-2699

USA

Phone: [phone]

Fax: [phone]

Rotel Europe

Dale Road

Worthing, West Sussex BN1 12BH

England

Phone: [phone]

Fax: [phone]

Rotel Deutschland
